Transporto priemonė: 1414; VIN numerio dalis: 616007
Grupė: 26 TRANSMISSION
| # | Kodas | Pavadinimas |
|---|---|---|
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR TRANSMISSION,SEE UNIT PARTS LIST | ||
| 714.0 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR TRANSMISSION,SEE UNIT STANDARD VERSION,MODEL: | ||
| 714.4 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR TRANSMISSION,SEE UNIT PARTS LIST | ||
| 714.5 | ||

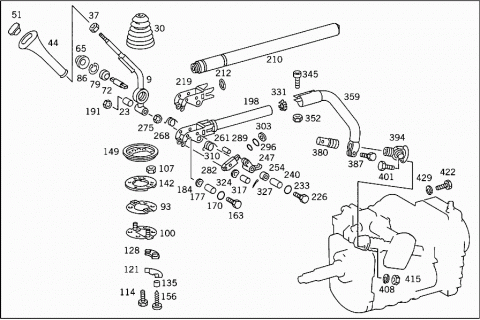

| 009 | A 3852606839 | SHIFT LEVER |
| Repalced by: A 6162600139 | ||
| 009 | A 6162600139 | SHIFT LEVER |
| Repalced by: A 6162600939 | ||
| 009 | A 3852606839 | SHIFT LEVER |
| Repalced by: A 6162600939 | ||
| 009 | A 6162600939 | SHIFT LEVER |
| 009 | A 3852606939 | SHIFT LEVER |
| Repalced by: A 6162600339 | ||
| 009 | A 6162600339 | SHIFT LEVER |
| Repalced by: A 6162601039 | ||
| 009 | A 3852606939 | SHIFT LEVER |
| Repalced by: A 6162601039 | ||
| 009 | A 6162601039 | SHIFT LEVER |
| 023 | A 3359920203 | BUSHING |
| 030 | A 3892680097 | BOOT |
| 037 | N 000936010010 | NUT |
| GEARSHIFT LEVER KNOB TO GEARSHIFT LEVER | ||
| 044 | A 6202680042 | KNOB |
| (GEARSHIFT LEVER KNOB) | ||
| 051 | A 6202680557 | COVER |
| WITH GEAR INDICATOR | ||
| 051 | A 6202680357 | COVER |
| WITH GEAR INDICATOR | ||
| 051 | A 6202680257 | COVER |
| WITH GEAR INDICATOR | ||
| 065 | A 3852680696 | BOOT |
| Repalced by: A 6202680196 | ||
| 065 | A 6202680196 | BOOT |
| SHIFT LEVER BEARING | ||
| 072 | A 3852681474 | PIN |
| SHIFT LEVER BEARING | ||
| 079 | A 0009815531 | JOINT BEARING |
| Repalced by: A 0019813931 | ||
| 079 | A 0019813931 | JOINT BEARING |
| SHIFT LEVER BEARING | ||
| 079 | A 0009814531 | JOINT BEARING |
| SHIFT LEVER BEARING | ||
| 086 | N 000472042001 | LOCK RING |
| SHIFT LEVER BEARING | ||
| 093 | A 3892680440 | BRACKET |
| SHIFT LEVER UPPER PART | ||
| 100 | A 3892605262 | BRACKET |
| SHIFT LEVER LOWER PART | ||
| 107 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 107 | N 913004008001 | NUT |
| BRACKET TO BRACKET | ||
| 114 | N 000931008047 | SCREW |
| Repalced by: N 304017008018 | ||
| 114 | N 304017008018 | SCREW |
| SHIFT LEVER TO CAB FLOOR | ||
| 121 | A 3852681640 | BRACKET |
| SHIFT LEVER TO CAB FLOOR | ||
| 128 | A 3852680492 | RUBBER PAD |
| SHIFT LEVER TO CAB FLOOR | ||
| 135 | A 3892680525 | BUSHING |
| SHIFT LEVER TO CAB FLOOR | ||
| 142 | A 3852680392 | RUBBER PAD |
| SHIFT LEVER TO CAB FLOOR | ||
| 149 | A 3852601962 | BRACKET |
| BOOT | ||
| 156 | N 007981003203 | SHEET METAL SCREW |
| BRACKET TO CAB | ||
| 163 | N 000931010357 | SCREW |
| Repalced by: N 000933010192 | ||
| 163 | A 0019909404 | SCREW |
| SHIFTING ROD TO SHIFT LEVER | ||
| 170 | A 0009978648 | SEAL RING |
| SHIFTING ROD TO SHIFT LEVER | ||
| 177 | A 3852680153 | SPACER TUBE |
| SHIFTING ROD TO SHIFT LEVER | ||
| 184 | N 900055018001 | SPRING WASHER |
| SHIFTING ROD TO SHIFT LEVER | ||
| 191 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 191 | N 910113010000 | NUT |
| SHIFTING ROD TO SHIFT LEVER | ||
| 198 | A 3852609433 | SHIFTING ROD |
| Repalced by: A 3852609333 | ||
| 198 | A 3852609333 | SHIFTING ROD |
| (TELESCOPIC SHIFTING ROD) | ||
| 210 | A 3852603882 | SHIFTING TUBE |
| (TELESCOPIC TUBE) | ||
| 212 | A 0009978748 | SEAL RING |
| SHIFTING ROD | ||
| 30.20 MM | ||
| 219 | A 3852600534 | ROD END |
| HYDRAULIC RELEASE | ||
| 226 | N 000931010357 | SCREW |
| Repalced by: N 000933010192 | ||
| 226 | A 0019909404 | SCREW |
| PAWL TO ROD END | ||
| 233 | A 0009978648 | SEAL RING |
| PAWL TO ROD END | ||
| 17.20 MM | ||
| 240 | A 3852680153 | SPACER TUBE |
| PAWL TO ROD END | ||
| 247 | A 3852600387 | PAWL |
| Repalced by: A 6202600087 | ||
| 247 | A 6202600087 | PAWL |
| SHIFTING ROD | ||
| 254 | A 3359920203 | BUSHING |
| PAWL TO ROD END | ||
| A 6209920003 | BUSHING | |
| PAWL TO ROD END | ||
| A 6202680150 | BUSHING | |
| PAWL TO ROD END | ||
| 261 | A 3859930020 | SPRING |
| PAWL TO ROD END | ||
| 268 | A 3859930120 | SPRING |
| PAWL TO ROD END | ||
| 275 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 275 | N 910113010000 | NUT |
| PAWL TO ROD END | ||
| 282 | A 3852600563 | SHIFTING CYLINDER |
| HYDRAULIC RELEASE | ||
| TECHNOMATIK | ||
| 282 | A 3852600063 | SHIFTING CYLINDER |
| HYDRAULIC RELEASE | ||
| WABCO | ||
| 289 | A 0069976748 | SEAL RING |
| PISTON RINGS | ||
| TO 385 260 00 63 | ||
| 296 | A 0069976848 | SEAL RING |
| SCREW FITTING | ||
| TO 385 260 00 63 | ||
| 303 | A 0019970641 | SEAL RING |
| OUTSIDE | ||
| TO 385 260 00 63 | ||
| 310 | N 001443008203 | PIN |
| Repalced by: N 001444008235 | ||
| 310 | N 001444008235 | PIN |
| SHIFTING CYLINDER TO PAWL | ||
| 8X22 MM | ||
| 317 | N 001444008234 | PIN |
| SHIFTING CYLINDER TO YOKE | ||
| 8X45 MM | ||
| 324 | N 900055008002 | SPRING WASHER |
| SHIFTING CYLINDER TO YOKE | ||
| 327 | N 000094002059 | COTTER PIN |
| SHIFTING CYLINDER TO YOKE | ||
| Repalced by: N 000094002060 | ||
| 327 | N 000094002060 | COTTER PIN |
| SHIFTING CYLINDER TO YOKE | ||
| 331 | A 3852680776 | WASHER |
| BETWEEN FRONT AND REAR SHIFTING TUBES | ||
| 345 | N 006912010000 | SCREW |
| FRONT SHIFTING ROD TO REAR SHIFTING ROD | ||
| 352 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 352 | N 910113010000 | NUT |
| FRONT SHIFTING ROD TO REAR SHIFTING ROD | ||
| 359 | A 6162602833 | SHIFTING ROD |
| REAR | ||
| 359 | A 6162602933 | SHIFTING ROD |
| REAR | ||
| 359 | A 6162601433 | SHIFTING ROD |
| REAR | ||
| 359 | A 6162602633 | SHIFTING ROD |
| REAR | ||
| 359 | A 6162601533 | SHIFTING ROD |
| Repalced by: A 6162602733 | ||
| 359 | A 6162602733 | SHIFTING ROD |
| REAR | ||
| 380 | A 6202680028 | CONNECTOR |
| REAR SHIFTING ROD | ||
| 387 | N 000933014014 | SCREW |
| CONNECTOR TO REAR SHIFTING ROD | ||
| 394 | A 3832680289 | JOINT |
| REAR SHIFTING ROD | ||
| 394 | A 3832680589 | JOINT |
| REAR SHIFTING ROD | ||
| 394 | A 3832680489 | JOINT |
| REAR SHIFTING ROD | ||
| 394 | A 3872680089 | JOINT |
| REAR SHIFTING ROD | ||
| 394 | A 0002686489 | JOINT |
| REAR SHIFTING ROD | ||
| 401 | A 3219900601 | SCREW |
| JOINT TO TRANSMISSION | ||
| 408 | N 912004008102 | LOCK WASHER |
| JOINT TO TRANSMISSION | ||
| 415 | N 304032008006 | NUT |
| JOINT TO TRANSMISSION | ||
| 422 | N 000933014014 | SCREW |
| TRANSMISSION TO BELL HOUSING | ||
| M 14X40 | ||
| 429 | N 912004014100 | LOCK WASHER |
| TRANSMISSION TO BELL HOUSING | ||
| A 6742640034 | LOCK NUT | |
| SPEEDOMETER DRIVE COVERING | ||

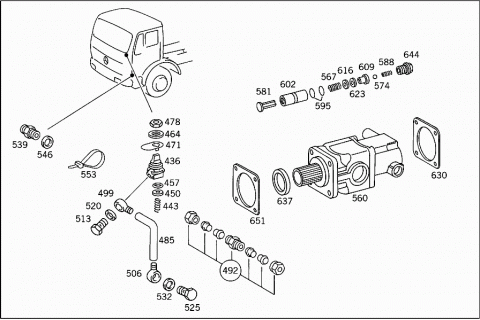

| 436 | A 0019976136 | VALVE |
| P.T.O. CONTROL | ||
| WABCO | ||
| 436 | A 0019975036 | VALVE |
| P.T.O. CONTROL | ||
| BOSCH | ||
| 436 | A 0039975936 | VALVE |
| P.T.O. CONTROL | ||
| KNORR | ||
| A 0039976036 | VALVE | |
| P.T.O. CONTROL | ||
| VOSS | ||
| 443 | A 0049937501 | SPRING |
| TO 001 997 61 36 | ||
| 450 | A 0069972648 | SEAL RING |
| TO 001 997 61 36 | ||
| 457 | A 0039979640 | SEAL RING |
| TO 001 997 61 36 | ||
| 464 | A 6239900040 | WASHER |
| 3/2-WAY VALVE TO TRANSMISSION | ||
| 471 | A 3855841524 | SYMBOL PLATE |
| P.T.O. CONTROL | ||
| 478 | A 3839900051 | NUT |
| 3/2-WAY VALVE TO TRANSMISSION | ||
| 485 | A 0089976082 | HOSE |
| Repalced by: A 0009872627 | ||
| 485 | A 0009872627 | PLASTIC PIPE |
| CONNECTIONS "1,2",3/2-WAY VALVE | ||
| 4 X 6 MM | ||
| 492 | A 0039979172 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 499 | N 915052004015 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 4/12 MM | ||
| 506 | N 915052004016 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 4/10 MM | ||
| 513 | N 915036006202 | HOLLOW SCREW |
| 3/2-WAY VALVE | ||
| 520 | N 007603010404 | SEAL RING |
| 3/2-WAY VALVE | ||
| 525 | N 915036006202 | HOLLOW SCREW |
| LINE CONNECTIONS | ||
| 532 | N 007603012405 | SEAL RING |
| LINE CONNECTIONS | ||
| 539 | N 915036008202 | HOLLOW SCREW |
| AT P.T.O.SHIFTING CYLINDER | ||
| 546 | N 007603012405 | SEAL RING |
| AT P.T.O.SHIFTING CYLINDER | ||
| A 3604280243 | ANGLE | |
| LINE MOUNTING | ||
| N 000933010198 | SCREW | |
| BRACKET TO TRANSMISSION | ||
| N 912004010102 | LOCK WASHER | |
| BRACKET TO TRANSMISSION | ||
| 553 | A 0019978390 | LOOM TIE |
| LINE MOUNTING | ||
| 560 | A 0002366105 | HYDRAULIC PUMP |
| SERVICE WITH DUMPING PLATFORM | ||
| 560 | A 0002366105 | HYDRAULIC PUMP |
| SERVICE WITH DUMPING PLATFORM | ||
| A 0002369505 | HYDRAULIC PUMP | |
| SERVICE WITH DUMPING PLATFORM | ||
| 567 | A 0049936301 | SPRING |
| DUMPER PUMP | ||
| 567 | A 0049936301 | SPRING |
| DUMPER PUMP | ||
| 574 | A 0019814085 | BALL |
| Repalced by: A 0019815085 | ||
| 574 | A 0019815085 | BALL |
| DUMPER PUMP | ||
| 12.70 MM | ||
| 574 | A 0019815085 | BALL |
| DUMPER PUMP | ||
| 12.70 MM | ||
| 574 | A 0019815085 | BALL |
| DUMPER PUMP | ||
| 12.70 MM | ||
| 581 | A 0002360935 | VALVE |
| DUMPER PUMP | ||
| 581 | A 0002360935 | VALVE |
| DUMPER PUMP | ||
| 581 | A 0002360935 | VALVE |
| DUMPER PUMP | ||
| 588 | A 0049936501 | SPRING |
| DUMPER PUMP | ||
| 588 | A 0049936501 | SPRING |
| DUMPER PUMP | ||
| 588 | A 0049936501 | SPRING |
| DUMPER PUMP | ||
| 595 | A 0002361160 | SEAL RING |
| DUMPER PUMP | ||
| 595 | A 0002361160 | SEAL RING |
| DUMPER PUMP | ||
| 602 | A 0002360817 | PISTON |
| Repalced by: A 0002361117 | ||
| 602 | A 0002361117 | PISTON |
| DUMPER PUMP | ||
| 602 | A 0002361117 | PISTON |
| DUMPER PUMP | ||
| 609 | A 0002360735 | VALVE |
| DUMPER PUMP | ||
| 609 | A 0002360735 | VALVE |
| DUMPER PUMP | ||
| 616 | A 0002360376 | WASHER |
| DUMPER PUMP | ||
| 616 | A 0002360376 | WASHER |
| DUMPER PUMP | ||
| 623 | A 0059974247 | SEAL RING |
| DUMPER PUMP | ||
| 623 | A 0059974247 | SEAL RING |
| DUMPER PUMP | ||
| 630 | A 0002360180 | GASKET |
| DUMPER PUMP | ||
| 630 | A 0002360180 | GASKET |
| DUMPER PUMP | ||
| 637 | A 0079977146 | SEAL RING |
| DUMPER PUMP | ||
| 637 | A 0079977146 | SEAL RING |
| DUMPER PUMP | ||
| 637 | A 0149971747 | SEAL RING |
| DUMPER PUMP | ||
| 50X72X7 MM | ||
| 644 | A 0019970630 | SCREW PLUG |
| DUMPER PUMP | ||
| 644 | A 0019970630 | SCREW PLUG |
| DUMPER PUMP | ||
| 644 | A 0019970630 | SCREW PLUG |
| DUMPER PUMP | ||
| 651 | A 0002640479 | GASKET |
| DUMPER PUMP | ||
