Transporto priemonė: 1414; VIN numerio dalis: 616007

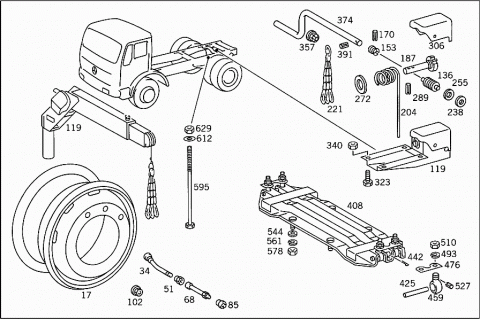

Grupė: 40 WHEELS
| # | Kodas | Pavadinimas |
|---|---|---|
| 017 | A 3834000602 | DISC WHEEL |
| Repalced by: A 0004017305 | ||
| 017 | A 0004017305 | RIM |
| 7.50X22.5 | ||
| 017 | A 0004018605 | RIM |
| Repalced by: A 0004014602 | ||
| 017 | A 0004014602 | DISC WHEEL |
| 7.50X22.5 | ||
| 017 | A 0004019705 | RIM |
| 7.50X22.5 | ||
| 017 | A 0034012601 | DISC WHEEL |
| Repalced by: A 0004017205 | ||
| 017 | A 0004017205 | RIM |
| 6.75X22.5 | ||
| 017 | A 0004018505 | RIM |
| Repalced by: A 0004002802 | ||
| 017 | A 0004002802 | DISC WHEEL |
| 6.75X22.5 | ||
| 017 | A 0004019605 | RIM |
| 6.75X22.5 | ||
| 017 | A 6174000002 | DISC WHEEL |
| Repalced by: A 3854001302 | ||
| 017 | A 3854001302 | DISC WHEEL |
| Repalced by: A 0004017405 | ||
| 017 | A 0004017405 | RIM |
| 7.50X22.5 | ||
| 017 | A 0004018705 | RIM |
| Repalced by: A 0004012302 | ||
| 017 | A 0004012302 | DISC WHEEL |
| Repalced by: A 0004002902 | ||
| 017 | A 0004002902 | DISC WHEEL |
| 7.50X22.5 | ||
| 017 | A 0004019805 | RIM |
| 7.50X22.5 | ||
| 034 | A 0004012913 | VALVE |
| Repalced by: A 0004017113 | ||
| 034 | A 0004017113 | VALVE |
| 27 DEGREES | ||
| 051 | A 0004010272 | NUT |
| VALVE TO DISC WHEEL | ||
| 068 | A 3854010013 | VALVE |
| EXTENSION | ||
| 068 | A 3854010113 | VALVE |
| EXTENSION | ||
| 085 | N 007757008600 | VALVE CAP |
| 102 | A 3854000124 | WHEEL NUT |
| Repalced by: A 0004010672 | ||
| 102 | A 6174000024 | WHEEL NUT |
| Repalced by: A 0004010672 | ||
| 102 | A 0004010672 | WHEEL NUT |
| DISC WHEELS TO FRONT AND REAR AXLES | ||
| 119 | A 3814001639 | SPARE WHEEL HOIST |
| 119 | A 3524003439 | SPARE WHEEL HOIST |
| Repalced by: A 3524003339 | ||
| 119 | A 3524003339 | SPARE WHEEL HOIST |
| 136 | A 3814030185 | WORM |
| Repalced by: A 6204030085 | ||
| 136 | A 6204030085 | WORM |
| SPARE WHEEL HOIST | ||
| 153 | A 3814030250 | BUSHING |
| SPARE WHEEL HOIST | ||
| 170 | N 001481006027 | CLAMPING SLEEVE |
| BUSHING TO WORM | ||
| 6X24 MM | ||
| 187 | A 3814030183 | STOP GEAR |
| Repalced by: A 6204030483 | ||
| 187 | A 6204030483 | STOP GEAR |
| SPARE WHEEL HOIST | ||
| 204 | N 083331008500 | WIRE CABLE |
| Repalced by: N 083334008000 | ||
| 204 | N 083334008000 | WIRE CABLE |
| SPARE WHEEL HOIST | ||
| 204 | A 0004030036 | CABLE |
| SPARE WHEEL HOIST | ||
| 221 | A 0004030090 | CHAIN |
| SPARE WHEEL HOIST | ||
| 238 | A 3819900340 | WASHER |
| WORM AND RATCHET WHEEL TO SPARE WHEEL CARRIER | ||
| 238 | A 6179900540 | WASHER |
| WORM AND RATCHET WHEEL TO SPARE WHEEL CARRIER | ||
| 255 | N 002093031201 | DISC SPRING |
| WORM AND RATCHET WHEEL TO SPARE WHEEL CARRIER | ||
| 272 | A 3819900140 | WASHER |
| WORM AND RATCHET WHEEL TO SPARE WHEEL CARRIER | ||
| 289 | N 001481008038 | CLAMPING SLEEVE |
| Repalced by: N 308752008000 | ||
| 289 | N 308752008000 | CLAMPING PIN |
| WORM AND RATCHET WHEEL TO SPARE WHEEL CARRIER | ||
| 306 | A 3814030044 | COVER PLATE |
| SPARE WHEEL HOIST | ||
| 306 | A 0004030012 | COVERING |
| SPARE WHEEL HOIST | ||
| A 3525850003 | PROTECTIVE WRAPPER | |
| SPARE WHEEL HOIST | ||
| 323 | N 000933010128 | SCREW |
| SPARE WHEEL HOIST TO CROSS MEMBER | ||
| 340 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 340 | N 910113010000 | NUT |
| SPARE WHEEL HOIST TO CROSS MEMBER | ||
| 357 | A 3814030150 | BUSHING |
| AT FRAME | ||
| 374 | A 3814030045 | CRANK |
| SPARE WHEEL HOIST | ||
| 391 | N 001481006027 | CLAMPING SLEEVE |
| CRANK TO BUSHING | ||
| 408 | A 6174000639 | BRACKET |
| SPARE WHEEL CARRIER | ||
| 408 | A 3464005339 | BRACKET |
| Repalced by: A 6554000049 | ||
| 408 | A 6554000049 | PLATE |
| SPARE WHEEL CARRIER | ||
| 425 | A 3874030074 | PIN |
| SPARE WHEEL CARRIER TO FRAME | ||
| 442 | N 000094004065 | COTTER PIN |
| SPARE WHEEL CARRIER TO FRAME | ||
| 459 | A 3859900023 | SCREW |
| Repalced by: A 6519900023 | ||
| 459 | A 6519900023 | SCREW |
| SPARE WHEEL CARRIER TO FRAME | ||
| 476 | A 3874030319 | BASE BLOCK |
| SPARE WHEEL CARRIER TO FRAME | ||
| 493 | N 912004016101 | LOCK WASHER |
| SPARE WHEEL CARRIER TO FRAME | ||
| 510 | N 000934016011 | NUT |
| Repalced by: N 308673016001 | ||
| 510 | N 308673016001 | NUT |
| SPARE WHEEL CARRIER TO FRAME | ||
| 527 | N 007346004016 | CLAMPING SLEEVE |
| SPARE WHEEL CARRIER TO FRAME | ||
| 544 | N 007349021001 | WASHER |
| SPARE WHEEL TO BRACKET | ||
| 561 | N 912004020100 | LOCK WASHER |
| SPARE WHEEL TO BRACKET | ||
| 578 | N 000934020008 | NUT |
| Repalced by: N 308673020002 | ||
| 578 | N 308673020002 | NUT |
| Repalced by: N 308674020000 | ||
| 578 | N 308674020000 | NUT |
| SPARE WHEEL TO BRACKET | ||
| 595 | A 3609902201 | SCREW |
| Repalced by: A 3529900802 | ||
| 595 | A 3529900802 | SCREW |
| SPARE WHEEL TO CROSS MEMBER | ||
| 595 | A 3529900802 | SCREW |
| SPARE WHEEL TO CROSS MEMBER | ||
| 612 | A 3524030067 | SHIM |
| SPARE WHEEL TO CROSS MEMBER | ||
| 612 | A 3524030067 | SHIM |
| SPARE WHEEL TO CROSS MEMBER | ||
| 629 | N 000934012022 | NUT |
| SPARE WHEEL TO CROSS MEMBER | ||
| 629 | N 000934012022 | NUT |
| SPARE WHEEL TO CROSS MEMBER | ||
