Transporto priemonė: 1417; VIN numerio dalis: 383017
Grupė: 42 BRAKES
| # | Kodas | Pavadinimas |
|---|---|---|
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR FRONT WHEEL BRAKE,SEE UNIT STANDARD VERSION, MODEL: | ||
| 730.0 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR FRONT WHEEL BRAKE,SEE UNIT STANDARD VERSION, MODEL: | ||
| 731.4 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR BRAKES,SEE UNIT STANDARD VERSION, MODEL: | ||
| 740.1 | ||
| 010 | N 074298022203 | DOUBLE FITTING |
| 014 | N 007603022102 | SEAL RING |
| 020 | A 0004291401 | LINE |
| 15 MM | ||
| 025 | N 003872015100 | UNION NUT |
| Repalced by: N 915018015000 | ||
| 025 | N 915018015000 | UNION NUT |
| 027 | N 003861015004 | GLAND |
| 029 | N 915065015101 | THRUST RING |
| A 0004292084 | SEAL RING | |
| Repalced by: N 915045012100 | ||
| 031 | N 915045012100 | SEAL RING |
| Repalced by: N 007603012121 | ||
| 031 | N 007603012121 | SEAL RING |
| A 0009909671 | ELBOW FITTING | |
| Repalced by: A 0029901271 | ||
| 035 | A 0029901271 | ELBOW FITTING |
| FITTING TO FRAME SIDE MEMBER | ||
| 035 | N 003941015101 | FITTING |
| FITTING TO FRAME SIDE MEMBER | ||
| 037 | N 074305022202 | NUT |
| FITTING TO FRAME SIDE MEMBER | ||
| 040 | A 0004292101 | LINE |
| 12 MM | ||
| 045 | N 003870012014 | UNION NUT |
| 047 | N 003861012007 | GLAND |
| Repalced by: A 0019901967 | ||
| 047 | A 0019901967 | SEAL CONE |
| 049 | N 074317012300 | FITTING |
| 050 | A 0109975982 | HOSE |
| Repalced by: A 0009872827 | ||
| 050 | A 0009872827 | PLASTIC PIPE |
| 12 MM | ||
| 051 | A 0049971772 | FITTING |
| Repalced by: A 0029906171 | ||
| 051 | A 0029906171 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| TO 010 997 19 82 | ||
| 052 | N 040621013200 | INSULATING HOSE |
| BLACK | ||
| 13X0.8 MM | ||
| 052 | N 040621010200 | INSULATING HOSE |
| BLACK | ||
| 10 X 0.7 MM | ||
| 053 | N 003870012104 | UNION NUT |
| Repalced by: N 915017012100 | ||
| 053 | N 915017012100 | UNION NUT |
| 054 | N 003861012007 | GLAND |
| Repalced by: A 0019901967 | ||
| 054 | A 0019901967 | SEAL CONE |
| 056 | N 915062009000 | SLEEVE |
| 060 | N 915052009009 | BANJO UNION |
| 065 | N 074317012300 | FITTING |
| 070 | A 0089979082 | HOSE |
| 8 MM | ||
| 072 | N 040621008207 | INSULATING HOSE |
| RED | ||
| 8 MM | ||
| 072 | N 040621008206 | INSULATING HOSE |
| BLUE | ||
| 8 MM | ||
| N 040621008216 | INSULATING HOSE | |
| GREEN | ||
| 8 MM | ||
| 080 | N 003870008101 | UNION NUT |
| Repalced by: N 915017008100 | ||
| 080 | N 915017008100 | UNION NUT |
| 082 | N 003861008005 | GLAND |
| 084 | N 915062006000 | SLEEVE |
| 086 | N 915052006021 | BANJO UNION |
| 088 | N 915052006014 | BANJO UNION |
| 092 | A 0019976772 | FITTING |
| Repalced by: N 915059006000 | ||
| 092 | N 915059006002 | FITTING |
| FROM HAND BRAKE VALVE TO RELAY VALVE | ||
| 095 | A 0089976082 | HOSE |
| Repalced by: A 0009872627 | ||
| 095 | A 0009872627 | PLASTIC PIPE |
| BLACK | ||
| 6X4 MM | ||
| 097 | N 040621006203 | INSULATING HOSE |
| RED | ||
| 6 MM | ||
| 100 | N 915017006100 | UNION NUT |
| 102 | N 003861006007 | GLAND |
| Repalced by: A 0019901667 | ||
| 102 | A 0019901667 | SEAL CONE |
| 104 | A 0009920105 | BUSHING |
| Repalced by: N 915062004000 | ||
| 104 | N 915062004000 | SLEEVE |

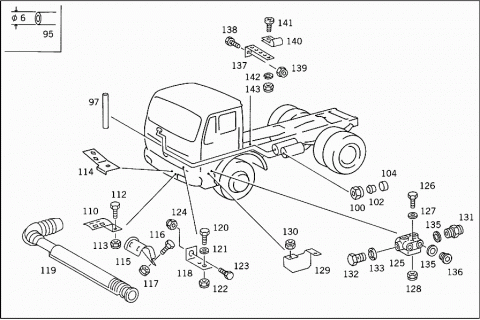

| 110 | A 3874291140 | BRACKET |
| FUEL LINE TO CAB CONSOLE | ||
| 112 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 112 | N 304017008021 | SCREW |
| FUEL LINE TO CAB CONSOLE | ||
| 113 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 113 | N 913004008001 | NUT |
| FUEL LINE TO CAB CONSOLE | ||
| 114 | A 3874292740 | BRACKET |
| PRESSURE GAUGE LINE TO BRACKET | ||
| A 3874291540 | BRACKET | |
| PRESSURE GAUGE LINE TO BRACKET | ||
| 115 | A 3874292540 | BRACKET |
| LEFT | ||
| A 3874292640 | BRACKET | |
| RIGHT | ||
| 116 | N 000933008145 | SCREW |
| LINE TO STRUT | ||
| 117 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 117 | N 913004008001 | NUT |
| LINE TO STRUT | ||
| 118 | A 3274925419 | BRACKET |
| Repalced by: A 6205240340 | ||
| 118 | A 6205240340 | BRACKET |
| PLASTIC LINE TO FRONT CROSS MEMBER | ||
| 118 | A 3604292940 | BRACKET |
| PLASTIC LINES TO FRAME | ||
| 119 | A 0004290086 | PROTECTIVE TUBE |
| Repalced by: A 0005290286 | ||
| 119 | A 0004290286 | PROTECTIVE TUBE |
| PLASTIC LINE TO FRONT CROSS MEMBER | ||
| 120 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 120 | N 304017008034 | SCREW |
| PLASTIC LINE TO FRONT CROSS MEMBER | ||
| 121 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 121 | N 913004008001 | NUT |
| PLASTIC LINE TO FRONT CROSS MEMBER | ||
| 122 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 122 | N 000125008443 | WASHER |
| PLASTIC LINE TO FRONT CROSS MEMBER | ||
| 123 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 123 | N 304017008021 | SCREW |
| PLASTIC LINES TO FRAME | ||
| 124 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 124 | N 913004008001 | NUT |
| PLASTIC LINES TO FRAME | ||
| 125 | A 0004294137 | DISTRIBUTOR |
| 125 | A 0004294037 | DISTRIBUTOR |
| 126 | N 304017006026 | SCREW |
| Repalced by: N 304017006026 | ||
| 126 | N 304017006026 | SCREW |
| DISTRIBUTOR TO CAB | ||
| 127 | N 000125006421 | WASHER |
| DISTRIBUTOR TO CAB | ||
| 128 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 128 | N 913004006001 | NUT |
| DISTRIBUTOR TO CAB | ||
| 129 | A 6204295240 | BRACKET |
| AT CAB FLOOR | ||
| 130 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 130 | N 913004006001 | NUT |
| AT CAB FLOOR | ||
| 131 | A 0009971572 | FITTING |
| Repalced by: A 0019972572 | ||
| 131 | A 0019972572 | FITTING |
| 131 | N 915039008202 | HOLLOW SCREW FITTING |
| AT DISTRIBUTOR | ||
| 132 | N 915036012203 | HOLLOW SCREW |
| AT DISTRIBUTOR | ||
| 132 | N 915047008202 | HOLLOW SCREW |
| DISTRIBUTOR,CONNECTION: | ||
| "1" | ||
| 133 | N 007603016401 | SEAL RING |
| AT DISTRIBUTOR | ||
| 135 | N 007603012405 | SEAL RING |
| AT DISTRIBUTOR | ||
| 136 | N 000908012003 | SCREW PLUG |
| Repalced by: N 000908012009 | ||
| 136 | N 000908012009 | SCREW PLUG |
| AT DISTRIBUTOR | ||
| 137 | A 3854290540 | BRACKET |
| COMPRESSED AIR LINE | ||
| 138 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 138 | N 304017008034 | SCREW |
| BRACKET TO FRAME SIDE MEMBER | ||
| 139 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 139 | N 913004008001 | NUT |
| BRACKET TO FRAME SIDE MEMBER | ||
| 140 | A 3609950601 | CLAMP |
| REAR RIGHT,FOR BRAKE CYLINDER | ||
| 140 | A 3609952001 | CLAMP |
| Repalced by: A 6739950001 | ||
| 140 | A 6739950001 | CLAMP |
| REAR RIGHT,FOR BRAKE CYLINDER | ||
| 141 | N 000084006197 | SCREW |
| REAR RIGHT,FOR BRAKE CYLINDER | ||
| 141 | N 000000001147 | SCREW |
| REAR RIGHT,FOR BRAKE CYLINDER | ||
| M 6X20 | ||
| 142 | N 912004006102 | LOCK WASHER |
| REAR RIGHT,FOR BRAKE CYLINDER | ||
| 143 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 143 | N 913004006001 | NUT |
| REAR RIGHT,FOR BRAKE CYLINDER | ||
| 144 | A 3404201529 | LINE |
| FROM BRAKE MASTER CYLINDER TO TEST CONNECTION | ||
| 900 MM | ||
| 144 | A 3404204029 | LINE |
| FROM MASTER CYLINDER TO FRONT AXLE TEST CONNECTION | ||
| 2600 MM | ||
| 144 | A 3404203529 | LINE |
| FROM MASTER CYLINDER TO FRONT AXLE TEST CONNECTION | ||
| 1900 MM | ||
| 145 | A 3404200529 | LINE |
| FROM TEST CONNECTION TO VALVE | ||
| 400MM | ||
| 146 | A 3879970181 | GROMMET |
| BRAKE LINE | ||
| 147 | A 0039973481 | GROMMET |
| BRAKE LINE | ||
| 148 | A 3859970381 | GROMMET |
| BRAKE LINE | ||
| A 0004290437 | DISTRIBUTOR | |
| 149 | A 0004312231 | TEST CONNECTION |
| 149 | A 0004316531 | TEST CONNECTION |
| 150 | A 0004311231 | TEST CONNECTION |
| FRONT AXLE BRAKE CIRCUIT I | ||
| 150 | A 0004316631 | TEST CONNECTION |
| FRONT AXLE BRAKE CIRCUIT I | ||
| 151 | N 000931008246 | SCREW |
| Repalced by: N 304017008028 | ||
| 151 | N 304017008028 | SCREW |
| TEST CONNECTION TO BRACKET | ||
| 152 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 152 | N 913004008001 | NUT |
| TEST CONNECTION TO BRACKET | ||
| 153 | A 1801550053 | SPACER TUBE |
| TEST CONNECTION TO BRACKET | ||
| 154 | A 0004314513 | VALVE |
| PRESSURE REGULATOR | ||
| 154 | A 0004314613 | VALVE |
| PRESSURE REGULATOR | ||
| 155 | A 0019970341 | SEAL RING |
| TO 000 431 46 13 | ||
| A 0209975948 | SEAL RING | |
| TO 000 431 46 13 | ||
| 156 | A 0019970441 | SEAL RING |
| TO 000 431 46 13 | ||
| 157 | A 0069974548 | SEAL RING |
| Repalced by: A 0019975945 | ||
| 157 | A 0019975945 | SEAL RING |
| TO 000 431 46 13 | ||
| 158 | A 0000600178 | VALVE |
| Repalced by: A 3075530107 | ||
| 158 | A 3075530107 | VALVE |
| TO 000 431 46 13 | ||
| 159 | A 0004280032 | SCREW PLUG |
| AT VALVE | ||
| 160 | N 000931008251 | SCREW |
| REGULATING VALVE TO BRACKET | ||
| 161 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 161 | N 913004008001 | NUT |
| REGULATING VALVE TO BRACKET | ||
| 162 | A 3854315540 | BRACKET |
| (REGULATING VALVE) | ||
| 163 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 163 | N 304017008034 | SCREW |
| VALVE TO CROSS MEMBER | ||
| 164 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 164 | N 913004008001 | NUT |
| VALVE TO CROSS MEMBER | ||
| 165 | N 000933010105 | SCREW |
| VALVE TO CROSS MEMBER | ||
| 166 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 166 | N 910113010000 | NUT |
| VALVE TO CROSS MEMBER | ||
| A 3815530340 | BRACKET | |
| A 3604292440 | BRACKET | |
| Repalced by: A 3604292940 | ||
| A 3604292940 | BRACKET | |
| N 000933008153 | SCREW | |
| Repalced by: N 304017008034 | ||
| N 304017008034 | SCREW | |
| N 913004008004 | NUT | |
| Repalced by: N 913004008001 | ||
| N 913004008001 | NUT | |
| 167 | A 3404203829 | LINE |
| FROM TEST CONNECTION TO LEFT FRONT WHEEL BRAKE HOSE | ||
| 2200 MM | ||
| 167 | A 3404202929 | LINE |
| FROM VALVE TO LEFT FRONT WHEEL | ||
| 1600 MM | ||
| 167 | A 3404202729 | LINE |
| FROM VALVE TO LEFT FRONT WHEEL | ||
| 1500 MM | ||
| 168 | A 3404203129 | LINE |
| FROM TEST CONNECTION TO RIGHT FRONT WHEEL BRAKE HOSE | ||
| 1700 MM | ||
| 168 | A 3404204129 | LINE |
| FROM VALVE TO RIGHT FRONT WHEEL | ||
| 2800 MM | ||
| 168 | A 3404202929 | LINE |
| FROM TEST CONNECTION TO RIGHT FRONT WHEEL BRAKE HOSE | ||
| 1600 MM | ||
| 169 | A 3404200729 | LINE |
| FROM VALVE TO TEST CONNECTION | ||
| 170 | A 3859970081 | GROMMET |
| 171 | A 3854280040 | BRACKET |
| Repalced by: A 3854280240 | ||
| 171 | A 3854280240 | BRACKET |
| LEFT | ||
| 171 | A 3854280340 | BRACKET |
| RIGHT | ||
| 171 | A 3854280140 | BRACKET |
| 172 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 172 | N 304017008021 | SCREW |
| 173 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 173 | N 913004008001 | NUT |
| 174 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 174 | N 916016008200 | CLAMP |
| BRAKE LINE MOUNTING | ||
| 175 | A 0014282935 | BRAKE HOSE |
| Repalced by: A 0024281135 | ||
| 175 | A 0024281135 | BRAKE HOSE |
| Repalced by: A 0004288935 | ||
| 175 | A 0004288935 | BRAKE HOSE |
| 650 MM | ||
| 175 | A 0014284835 | BRAKE HOSE |
| 650 MM | ||
| 175 | A 0024281135 | BRAKE HOSE |
| Repalced by: A 0024280135 | ||
| 175 | A 0024280135 | BRAKE HOSE |
| 700 MM | ||
| 175 | A 0024280235 | BRAKE HOSE |
| 700 MM | ||
| 176 | A 0004280473 | BRACKET |
| Repalced by: A 6525040038 | ||
| 176 | A 6525040038 | MOUNTING PLATE |
| 177 | A 3404201129 | LINE |
| FROM BRAKE MASTER CYLINDER TO TEST CONNECTION | ||
| 700 MM | ||
| 177 | A 3404201129 | LINE |
| FROM MASTER CYLINDER TO CONNECTOR | ||
| 700 MM | ||
| 177 | A 3404201929 | LINE |
| FROM MASTER CYLINDER TO CONNECTOR | ||
| 1100 MM | ||
| 178 | A 0004292736 | CONNECTOR |
| 179 | A 3404204329 | LINE |
| FROM CONNECTOR TO TEST CONNECTION | ||
| 3200 MM | ||
| 179 | A 3404204529 | LINE |
| FROM CONNECTOR TO TEST CONNECTION | ||
| 3600 MM | ||
| 179 | A 3404204829 | LINE |
| FROM CONNECTOR TO TEST CONNECTION | ||
| 4200 MM | ||
| 179 | A 3404205129 | LINE |
| FROM CONNECTOR TO TEST CONNECTION | ||
| 4800 MM | ||
| 179 | A 3404205329 | LINE |
| FROM CONNECTOR TO TEST CONNECTION | ||
| 5200 MM | ||
| 180 | A 0004311231 | TEST CONNECTION |
| REAR AXLE BRAKE CIRCUIT | ||
| 180 | A 0004316631 | TEST CONNECTION |
| REAR AXLE BRAKE CIRCUIT | ||
| 182 | A 1801550053 | SPACER TUBE |
| TEST CONNECTION TO SIDE MEMBER | ||
| 183 | N 000931008322 | SCREW |
| TEST CONNECTION TO SIDE MEMBER | ||
| 8X80 MM | ||
| 184 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 184 | N 000125008443 | WASHER |
| TEST CONNECTION TO SIDE MEMBER | ||
| 185 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 185 | N 913004008001 | NUT |
| TEST CONNECTION TO SIDE MEMBER | ||
| N 000933008153 | SCREW | |
| Repalced by: N 304017008034 | ||
| N 304017008034 | SCREW | |
| 187 | A 3404204129 | LINE |
| FROM TEST CONNECTION TO BRAKE POWER REGULATOR | ||
| 2800 MM | ||
| 187 | A 3404204329 | LINE |
| FROM TEST CONNECTION TO BRAKE POWER REGULATOR | ||
| 3200 MM | ||
| 187 | A 3404204629 | LINE |
| FROM TEST CONNECTION TO BRAKE POWER REGULATOR | ||
| 3800 MM | ||
| 187 | A 3404204929 | LINE |
| FROM TEST CONNECTION TO BRAKE POWER REGULATOR | ||
| 4400 MM | ||
| 187 | A 3404205129 | LINE |
| FROM TEST CONNECTION TO BRAKE POWER REGULATOR | ||
| 4800 MM | ||
| 187 | A 3404201729 | LINE |
| FROM TEST CONNECTION TO BRAKE POWER REGULATOR | ||
| 1000 MM | ||
| 188 | A 3834310340 | BRACKET |
| Repalced by: A 3834300039 | ||
| 188 | A 3834300039 | SUPPORT |
| BRAKE POWER REGULATOR | ||
| 189 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 189 | N 308676012026 | SCREW |
| 190 | N 910113012002 | NUT |
| 191 | A 0004314312 | BRAKE PRESSURE REGULATOR |
| 191 | A 0004317512 | BRAKE PRESSURE REGULATOR |
| A 0004312713 | GUIDE BUSHING | |
| A 0004312339 | LEVER | |
| TOOTHED | ||
| A 0004312439 | LEVER | |
| A 0004316583 | PISTON | |
| A 0109975845 | SEAL RING | |
| A 0004310949 | GUIDE BUSHING | |
| A 0004318760 | FELT STRIP | |
| A 0089975646 | SEAL RING | |
| A 0004318560 | SEAL RING | |
| 193 | A 0004310968 | VALVE PART |
| Repalced by: A 0004311068 | ||
| 193 | A 0004311068 | VALVE PART |
| TO 000 431 43 12,000 431 75 12 | ||
| A 0014315793 | SPRING | |
| TO 000 431 43 12,000 431 75 12 | ||
| A 0004318660 | SEAL RING | |
| A 0004311049 | GUIDE BUSHING | |
| A 0029937201 | SPRING | |
| 194 | N 007603018101 | SEAL RING |
| TO 000 431 43 12,000 431 75 12 | ||
| 195 | A 0004310465 | VALVE |
| Repalced by: A 0004310265 | ||
| 195 | A 0004310265 | VALVE |
| Repalced by: A 3075530107 | ||
| 195 | A 3075530107 | VALVE |
| TO 000 431 43 12,000 431 75 12 | ||
| 196 | N 000931010258 | SCREW |
| 197 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 197 | N 910113010000 | NUT |
| 198 | A 0004311418 | METAL SPRING BELLOWS |
| Repalced by: A 0004311718 | ||
| 198 | A 0004311718 | METAL SPRING BELLOWS |
| 199 | A 3834310440 | BRACKET |
| METAL SPRING BELLOWS | ||
| 199 | A 3834310440 | BRACKET |
| METAL SPRING BELLOWS | ||
| 200 | A 3854317840 | BRACKET |
| METAL SPRING BELLOWS | ||
| 201 | N 000933010128 | SCREW |
| BRACKET TO REAR AXLE HOUSING | ||
| 201 | N 000933010128 | SCREW |
| BRACKET TO REAR AXLE HOUSING | ||
| 202 | N 000961012151 | SCREW |
| BRACKET TO REAR AXLE HOUSING | ||
| 203 | N 000127010203 | LOCK WASHER |
| Repalced by: N 912004010102 | ||
| 203 | N 912004010102 | LOCK WASHER |
| BRACKET TO REAR AXLE HOUSING | ||
| 203 | N 912004010102 | LOCK WASHER |
| BRACKET TO REAR AXLE HOUSING | ||
| 203 | N 912004012100 | LOCK WASHER |
| 204 | A 3834310140 | BRACKET |
| METAL SPRING BELLOWS | ||
| 205 | A 3859901940 | WASHER |
| BRACKET TO REAR AXLE HOUSING | ||
| 206 | N 000933012058 | SCREW |
| METAL SPRING BELLOWS TO BRACKET | ||
| 206 | N 000961012056 | SCREW |
| Repalced by: N 308676012038 | ||
| 206 | N 308676012038 | SCREW |
| METAL SPRING BELLOWS TO BRACKET | ||
| 207 | N 912004012100 | LOCK WASHER |
| METAL SPRING BELLOWS TO BRACKET | ||
| 209 | A 3604306292 | ROD |
| Repalced by: N 900331008427 | ||
| 209 | A 3814300392 | ROD |
| Repalced by: N 900331008427 | ||
| N 900331008262 | PULL ROD | |
| Repalced by: N 900331008420 | ||
| N 900331008420 | PULL ROD | |
| 209 | N 900331008282 | PULL ROD |
| Repalced by: N 900331008427 | ||
| 209 | N 900331008427 | PULL ROD |
| 212 | A 0004310567 | YOKE |
| Repalced by: A 0004310467 | ||
| 212 | A 0004310467 | YOKE |
| Repalced by: A 0004310667 | ||
| 212 | A 0004310667 | YOKE |
| 212 | A 0004310667 | YOKE |
| 212 | A 0004310867 | YOKE |
| 214 | N 304032008006 | NUT |
| 214 | N 304032008006 | NUT |
| 214 | N 000934008035 | NUT |
| 216 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 216 | N 913004008001 | NUT |
| 216 | N 913004008001 | NUT |
| SEE FIG. NO.: | ||
| 168 | ||
| A 3524281740 | BRACKET | |
| Repalced by: A 3184280240 | ||
| A 3184280240 | BRACKET | |
| 217 | A 3404200729 | LINE |
| FROM BRAKE POWER REGULATOR TO BRACKET | ||
| 500 MM | ||
| 218 | A 3404201229 | LINE |
| FROM BRAKE POWER REGULATOR TO DISTRIBUTOR | ||
| 750 MM | ||
| 219 | A 0004290437 | DISTRIBUTOR |
| REAR AXLE | ||
| 220 | N 000933008075 | SCREW |
| Repalced by: N 000933008168 | ||
| 220 | N 000933008168 | SCREW |
| DISTRIBUTOR TO BRACKET | ||
| 221 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 221 | N 913004008001 | NUT |
| DISTRIBUTOR TO BRACKET | ||
| 222 | A 3604292940 | BRACKET |
| DISTRIBUTOR | ||
| 223 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 223 | N 304017008034 | SCREW |
| BRACKET TO RIGHT SIDE MEMBER | ||
| 224 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 224 | N 913004008001 | NUT |
| BRACKET TO RIGHT SIDE MEMBER | ||
| 225 | A 0014311612 | BRAKE PRESSURE REGULATOR |
| 225 | A 0014311712 | BRAKE PRESSURE REGULATOR |
| 226 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 226 | N 304017008016 | SCREW |
| BRAKE POWER REGULATOR TO BRACKET | ||
| 227 | N 912004008102 | LOCK WASHER |
| BRAKE POWER REGULATOR TO BRACKET | ||
| 228 | A 3804310340 | BRACKET |
| BRACKET TO REAR AXLE | ||
| 229 | A 3404204329 | LINE |
| BRACKET TO TRANSMISSION | ||
| 3200 MM | ||
| 229 | A 3404204529 | LINE |
| FROM DISTRIBUTOR TO VALVE | ||
| 3600 MM | ||
| 229 | A 3404204829 | LINE |
| FROM DISTRIBUTOR TO VALVE | ||
| 4200 MM | ||
| 229 | A 3404205129 | LINE |
| FROM DISTRIBUTOR TO VALVE | ||
| 4800 MM | ||
| 229 | A 3404205329 | LINE |
| FROM DISTRIBUTOR TO VALVE | ||
| 5200 MM | ||
| 230 | A 3404201929 | LINE |
| FROM DISTRIBUTOR TO BRAKE HOSE ON REAR AXLE | ||
| 1100 MM | ||
| 231 | A 3404200929 | LINE |
| FROM DISTRIBUTOR TO BRAKE POWER REGULATOR | ||
| 600 MM | ||
| 232 | A 3404202229 | LINE |
| FROM BRAKE POWER REGULATOR TO REAR BRAKE HOSE | ||
| 1250 MM | ||
| 233 | A 3224280140 | BRACKET |
| 234 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 234 | N 304017008021 | SCREW |
| 235 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 235 | N 913004008001 | NUT |
| 236 | A 0004284335 | BRAKE HOSE |
| Repalced by: A 0024280735 | ||
| 236 | A 0024280635 | BRAKE HOSE |
| Repalced by: A 0024280735 | ||
| 236 | A 0014283135 | BRAKE HOSE |
| Repalced by: A 0024280735 | ||
| 236 | A 0014282935 | BRAKE HOSE |
| Repalced by: A 0024280735 | ||
| 236 | A 0024280735 | BRAKE HOSE |
| 600 MM | ||
| 236 | A 0024280735 | BRAKE HOSE |
| 600 MM | ||
| 236 | A 0024280535 | BRAKE HOSE |
| 500 MM | ||
| 236 | A 0014285535 | BRAKE HOSE |
| 500 MM | ||
| 236 | A 0004289035 | BRAKE HOSE |
| Repalced by: A 0024280935 | ||
| 236 | A 0014284735 | BRAKE HOSE |
| Repalced by: A 0024280935 | ||
| 236 | A 0024280935 | BRAKE HOSE |
| Repalced by: A 0024280135 | ||
| 236 | A 0024280135 | BRAKE HOSE |
| 700 MM | ||
| 237 | A 0004280473 | BRACKET |
| Repalced by: A 6525040038 | ||
| 237 | A 6525040038 | MOUNTING PLATE |
| 238 | A 0004316531 | TEST CONNECTION |
| 238 | A 0004312231 | TEST CONNECTION |
| 239 | N 000933008150 | SCREW |
| Repalced by: N 304017008018 | ||
| 239 | N 304017008018 | SCREW |
| TEST CONNECTION TO BRACKET | ||
| 239 | N 304017008018 | SCREW |
| TEST CONNECTION TO BRACKET | ||
| 239 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 239 | N 304017008034 | SCREW |
| TEST CONNECTION TO BRACKET | ||
| 240 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 240 | N 913004008001 | NUT |
| TEST CONNECTION TO BRACKET | ||
| 240 | N 913004008001 | NUT |
| TEST CONNECTION TO BRACKET | ||
| 240 | N 913004008001 | NUT |
| TEST CONNECTION TO BRACKET | ||
| 241 | A 3814312140 | BRACKET |
| TEST CONNECTION | ||
| 242 | N 000961012034 | SCREW |
| BRACKET TO AXLE HOUSING | ||
| 243 | N 912004012100 | LOCK WASHER |
| BRACKET TO AXLE HOUSING | ||
| 244 | A 3382930053 | SPACER TUBE |
| Repalced by: A 3872640974 | ||
| 244 | A 3872640974 | PIN |
| TEST CONNECTION TO BRACKET | ||
| 244 | A 3872640974 | PIN |
| TEST CONNECTION TO BRACKET | ||
| 245 | A 3604280243 | ANGLE |
| BRAKE LINE MOUNTING | ||
| 248 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 248 | N 916016008200 | CLAMP |
| BRAKE LINE MOUNTING | ||
| 250 | A 3609950601 | CLAMP |
| A 3852670040 | BRACKET | |
| 259 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 259 | N 304017008034 | SCREW |
| M 8X25 | ||
| 260 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 260 | N 913004008001 | NUT |
| 262 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 262 | N 304017006020 | SCREW |
| LINE TO AXLE HOUSING | ||
| M 6X20 | ||
| 262 | N 304017006020 | SCREW |
| LINE TO AXLE HOUSING | ||
| M 6X20 | ||
| 262 | N 304017006020 | SCREW |
| LINE TO AXLE HOUSING | ||
| M 6X20 | ||
| 262 | N 000933006127 | SCREW |
| LINE TO AXLE HOUSING | ||
| M 6X25 | ||
| 262 | N 000933006127 | SCREW |
| LINE TO AXLE HOUSING | ||
| M 6X25 | ||
| 264 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 264 | N 913004006001 | NUT |
| 265 | A 3854294040 | BRACKET |
| Repalced by: A 3812711640 | ||
| 265 | A 3812711640 | BRACKET |
| BRAKE LINE TO REAR AXLE | ||
| 266 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 266 | N 304017008016 | SCREW |
| BRAKE LINE TO REAR AXLE | ||
| M 8X16 | ||
| 267 | N 912004008102 | LOCK WASHER |
| BRAKE LINE TO REAR AXLE | ||
| A 3129951020 | CLAMP | |
| 268 | A 3859950020 | CLAMP |
| LINE TO AXLE HOUSING | ||
| 269 | A 3129973482 | HOSE |
| LINE TO AXLE HOUSING | ||
| A 3209901340 | WASHER | |
| LINE TO AXLE HOUSING | ||
| 270 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 270 | N 308676012012 | SCREW |
| LINE TO AXLE HOUSING | ||
| N 000933008212 | SCREW | |
| Repalced by: N 304017008016 | ||
| N 304017008016 | SCREW | |
| N 912004008103 | LOCK WASHER | |
| 275 | A 3404202429 | LINE |
| FROM TEST CONNECTION TO LEFT WHEEL CYLINDER | ||
| 1350 MM | ||
| 275 | A 3404202429 | LINE |
| FROM TEST CONNECTION TO LEFT WHEEL CYLINDER | ||
| 1350 MM | ||
| 275 | A 3404202329 | LINE |
| FROM TEST CONNECTION TO LEFT WHEEL CYLINDER | ||
| 1300 MM | ||
| 278 | A 3404201129 | LINE |
| FROM TEST CONNECTION TO RIGHT WHEEL CYLINDER | ||
| 700 MM | ||
| 278 | A 3404201129 | LINE |
| FROM TEST CONNECTION TO RIGHT WHEEL CYLINDER | ||
| 700 MM | ||
| 278 | A 3404201229 | LINE |
| FROM TEST CONNECTION TO RIGHT WHEEL CYLINDER | ||
| 750 MM | ||
| 332 | A 3835840021 | GUIDE SIGN |
| LOAD-DEPENDING BRAKE | ||
| 332 | A 3835840021 | GUIDE SIGN |
| LOAD-DEPENDING BRAKE | ||
| 332 | A 3835840821 | GUIDE SIGN |
| LOAD-DEPENDING BRAKE | ||
| 332 | A 3835843621 | GUIDE SIGN |
| LOAD-DEPENDING BRAKE | ||
| 332 | A 3835840921 | GUIDE SIGN |
| LOAD-DEPENDING BRAKE | ||
| 332 | A 3835843721 | GUIDE SIGN |
| LOAD-DEPENDING BRAKE | ||
| A 3875840055 | ADHESIVE FOIL | |
| 338 | A 0014310006 | PRESSURE REGULATOR |
| Repalced by: A 0024314906 | ||
| 338 | A 0014310606 | PRESSURE REGULATOR |
| Repalced by: A 0024313406 | ||
| 338 | A 0024313406 | PRESSURE REGULATOR |
| Repalced by: A 0024314306 | ||
| 338 | A 0014311206 | PRESSURE REGULATOR |
| Repalced by: A 0024314906 | ||
| 338 | A 0024314906 | PRESSURE REGULATOR |
| WABCO | ||
| 338 | A 0014313406 | PRESSURE REGULATOR |
| Repalced by: A 0024314306 | ||
| 338 | A 0024314306 | PRESSURE REGULATOR |
| BOSCH | ||
| 338 | A 0024318306 | PRESSURE REGULATOR |
| KNORR | ||
| 340 | A 0015868543 | REPAIR KIT |
| Repalced by: A 0004301407 | ||
| 340 | A 0004301407 | REPAIR KIT |
| TO 001 431 06 06,BOSCH 0 481 039 101 | ||
| 340 | A 0004301768 | REPAIR KIT |
| DIAPHRAGM | ||
| TO 002 431 34 06,BOSCH 0 481 039 221 | ||
| 340 | A 0004301768 | REPAIR KIT |
| DIAPHRAGM | ||
| TO 002 431 43 06,BOSCH 0 481 039 201 | ||
| 340 | A 0004307960 | REPAIR KIT |
| TIRE INFLATING CONNECTION | ||
| TO 002 431 34 06,BOSCH 0 481 039 221 | ||
| 340 | A 0004307960 | REPAIR KIT |
| TIRE INFLATING CONNECTION | ||
| TO 002 431 43 06,BOSCH 0 481 039 201 | ||
| 340 | A 0015864343 | REPAIR KIT |
| Repalced by: A 0004301107 | ||
| 340 | A 0004301107 | REPAIR KIT |
| TO 001 431 00 06,WABCO 975 300 110 0 | ||
| 340 | A 0014304960 | REPAIR KIT |
| TO 002 431 49 06,WABCO 975 303 460 0 | ||
| 340 | A 0024304681 | REPAIR KIT |
| VALVE KIT | ||
| TO 001 431 00 06,WABCO 975 300 110 0 | ||
| 340 | A 0025866743 | REPAIR KIT |
| TO 001 431 12 06,KNORR 3200 | ||
| 340 | A 0025866043 | REPAIR KIT |
| TO 001 431 34 06,GRAU 312 017 014 | ||
| 340 | A 0004300407 | REPAIR KIT |
| TO 002 431 83 06,KNORR 90309 | ||
| 350 | N 074301022203 | ELBOW FITTING |
| PRESSURE REGULATOR,CONNECTION: | ||
| "1" | ||
| 350 | A 0009905871 | ELBOW FITTING |
| PRESSURE REGULATOR,CONNECTION: | ||
| "1" | ||
| 352 | A 3859901540 | WASHER |
| 355 | N 074305022202 | NUT |
| PRESSURE REGULATOR,CONNECTION: | ||
| "1" | ||
| 357 | A 0004290227 | THRUST RING |
| PRESSURE REGULATOR,CONNECTION: | ||
| "1" | ||
| 359 | A 0009870446 | SEALING CORD |
| PRESSURE REGULATOR,CONNECTION: | ||
| "1" | ||
| 365 | A 0019972172 | FITTING |
| PRESSURE REGULATOR,CONNECTION: | ||
| "21" | ||
| 367 | N 007603022102 | SEAL RING |
| PRESSURE REGULATOR,CONNECTION: | ||
| "21" | ||
| 368 | A 0004290227 | THRUST RING |
| PRESSURE REGULATOR,CONNECTION: | ||
| "21" | ||
| 369 | A 0009870446 | SEALING CORD |
| PRESSURE REGULATOR,CONNECTION: | ||
| "21" | ||
| 370 | A 0004310173 | BREATHER PIPE |
| PRESSURE REGULATOR,CONNECTION: | ||
| "21" | ||
| N 916002025100 | CLAMP | |
| Repalced by: N 916026020001 | ||
| 372 | A 0004300170 | MUFFLER |
| PRESSURE REGULATOR,CONNECTION: | ||
| "3" | ||
| 372 | A 0159975082 | HOSE |
| PRESSURE REGULATOR,CONNECTION: | ||
| "3" | ||
| 373 | N 916026020001 | CLAMP |
| Repalced by: N 000000000667 | ||
| 373 | N 000000000667 | CLAMP |
| PRESSURE REGULATOR,CONNECTION: | ||
| "3" | ||
| 373 | N 916017032000 | CLAMP |
| Repalced by: N 000000000670 | ||
| 373 | N 000000000670 | CLAMP |
| PRESSURE REGULATOR,CONNECTION: | ||
| "3" | ||
| 373 | N 916026016001 | CLAMP |
| Repalced by: A 0059970190 | ||
| 373 | A 0059970190 | LOOM TIE |
| PRESSURE REGULATOR,CONNECTION: | ||
| "3" | ||
| A 0004310151 | SPACER RING | |
| PRESSURE REGULATOR,CONNECTION: | ||
| "3" | ||
| 375 | A 3854310153 | SPACER TUBE |
| Repalced by: A 4409910040 | ||
| 375 | A 4409910040 | SPACER TUBE |
| PRESSURE REGULATOR TO BATTERY SUPPORT | ||
| 375 | A 3809910040 | SPACER TUBE |
| PRESSURE REGULATOR TO BATTERY SUPPORT | ||
| 376 | N 000931008281 | SCREW |
| PRESSURE REGULATOR TO BATTERY SUPPORT | ||
| 376 | N 000931008209 | SCREW |
| PRESSURE REGULATOR TO BATTERY SUPPORT | ||
| 377 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 377 | N 913004008001 | NUT |
| PRESSURE REGULATOR TO BATTERY SUPPORT | ||
| A 3854310440 | BRACKET | |
| 380 | A 0014313506 | VALVE |
| Repalced by: A 0014318406 | ||
| 380 | A 0014318406 | VALVE |
| FOUR-CIRCUIT PROTECTIVE VALVE | ||
| KNORR | ||
| 380 | A 0014313806 | VALVE |
| Repalced by: A 0024310406 | ||
| 380 | A 0024310406 | VALVE |
| FOUR-CIRCUIT PROTECTIVE VALVE | ||
| BOSCH | ||
| 380 | A 0014314706 | VALVE |
| FOUR-CIRCUIT PROTECTIVE VALVE | ||
| WABCO | ||
| 380 | A 0014316806 | VALVE |
| Repalced by: A 0024312906 | ||
| 380 | A 0024312906 | VALVE |
| Repalced by: A 0024319306 | ||
| 380 | A 0024319306 | VALVE |
| FOUR-CIRCUIT PROTECTIVE VALVE | ||
| GRAU | ||
| 381 | A 0014310986 | CUP |
| TO 002 431 04 06,BOSCH | ||
| 382 | A 0009935205 | SPRING |
| TO 002 431 04 06,BOSCH | ||
| 383 | A 0014311860 | SEAL RING |
| 34X2.3 MM,TO 001 431 68 06,GRAU | ||
| 384 | A 0024298844 | VALVE |
| TO 001 431 68 06,GRAU 37001 | ||
| 385 | A 0099972448 | SEAL RING |
| 19,3X2,4 MM; TO 0014316806, GRAU 37001 | ||
| 386 | A 0004313188 | VALVE SEAT |
| TO 001 431 68 06;GRAU 37001 | ||
| 387 | A 0059973248 | SEAL RING |
| 25.3X2.4 MM,TO 001 431 68 06,GRAU | ||
| 388 | A 0014311960 | SEAL RING |
| Repalced by: A 0009971548 | ||
| 388 | A 0009971548 | SEAL RING |
| 15X2 MM,TO 001 431 68 06,GRAU 19001 | ||
| 389 | A 0034300881 | REPAIR KIT |
| TO 002 431 93 06 GRAU 74001 | ||
| 389 | A 0015863842 | REPAIR KIT |
| TO 001 431 35 06,KNORR | ||
| 389 | A 0004302906 | GASKET KIT |
| BOOT | ||
| TO 002 431 04 06,BOSCH | ||
| 389 | A 0025861743 | REPAIR KIT |
| BOOT | ||
| TO 001 431 38 06,BOSCH | ||
| 389 | A 0015868443 | REPAIR KIT |
| SEAL RING | ||
| TO 001 431 38 06,BOSCH | ||
| 389 | A 0025860643 | REPAIR KIT |
| Repalced by: A 0025862843 | ||
| 389 | A 0025862843 | REPAIR KIT |
| TO 001 431 47 06;WABCO 2100 | ||
| 389 | A 0004300468 | REPAIR KIT |
| TO 001 431 47 06;WABCO 2210 | ||
| 389 | A 0004303160 | REPAIR KIT |
| TO 001 431 84 06,KNORR | ||
| 390 | A 0004290227 | THRUST RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "1" | ||
| 391 | A 0009870446 | SEALING CORD |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "1" | ||
| 392 | N 074301022203 | ELBOW FITTING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "1" | ||
| 392 | A 0019972372 | FITTING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "1" | ||
| 393 | N 007603022102 | SEAL RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "1" | ||
| 394 | A 0004290227 | THRUST RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "1" | ||
| 395 | A 0009870446 | SEALING CORD |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "1" | ||
| 396 | N 007603016401 | SEAL RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "22" | ||
| 397 | A 0029971572 | FITTING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "22" | ||
| 398 | A 0009904670 | T-FITTING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "23" | ||
| 399 | A 0005455414 | SWITCH |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "23" | ||
| 400 | N 074315012100 | FITTING |
| Repalced by: A 0019903371 | ||
| 400 | A 0019903371 | ELBOW FITTING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "23" | ||
| 400 | A 0019903371 | ELBOW FITTING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS: | ||
| "21,22" | ||
| 401 | A 0009904770 | T-FITTING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "11" | ||
| 401 | A 0009904770 | T-FITTING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS: | ||
| "11,12,23" | ||
| 401 | N 074317012201 | FITTING |
| Repalced by: A 0009905070 | ||
| 401 | A 0009905070 | T-FITTING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "12" | ||
| 402 | N 080705016003 | NUT |
| FOUR-CIRCUIT PROTECTIVE VALVE | ||
| 403 | A 0004290927 | THRUST RING |
| FOUR-CIRCUIT PROTECTIVE VALVE | ||
| 404 | A 0029971640 | SEAL RING |
| Repalced by: A 0009971548 | ||
| 404 | A 0009971548 | SEAL RING |
| FOUR-CIRCUIT PROTECTIVE VALVE | ||
| 405 | A 0019905268 | FITTING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "24" | ||
| 406 | N 007603016401 | SEAL RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "24" | ||
| 407 | A 0004290927 | THRUST RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "24" | ||
| 408 | A 0009971548 | SEAL RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "24" | ||
| 409 | N 003952006102 | FITTING |
| Repalced by: A 0019909871 | ||
| 409 | A 0019909871 | ELBOW FITTING |
| 410 | N 080705018002 | NUT |
| 411 | N 074315012101 | FITTING |
| Repalced by: A 0009907771 | ||
| 411 | A 0009907771 | ELBOW FITTING |
| 411 | A 0009907771 | ELBOW FITTING |
| INSIDE AIR RESERVOIR, REAR CONNECTION | ||
| 412 | N 074305022202 | NUT |
| INSIDE AIR RESERVOIR, REAR CONNECTION | ||
| 413 | A 0004290227 | THRUST RING |
| INSIDE AIR RESERVOIR, REAR CONNECTION | ||
| 414 | A 0009870446 | SEALING CORD |
| INSIDE AIR RESERVOIR, REAR CONNECTION | ||
| 415 | N 915039008202 | HOLLOW SCREW FITTING |
| FOOT OPERATED PARKING BRAKE TO FIRE WALL | ||
| 416 | N 007603012405 | SEAL RING |
| FOOT OPERATED PARKING BRAKE TO FIRE WALL | ||
| 417 | A 3854312240 | BRACKET |
| FOUR-CIRCUIT PROTECTIVE VALVE | ||
| 417 | A 3854313440 | BRACKET |
| FOUR-CIRCUIT PROTECTIVE VALVE | ||
| 418 | N 074305022202 | NUT |
| VALVE TO BRACKET | ||
| 419 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 419 | N 304017008021 | SCREW |
| BRACKET TO BATTERY/APPARATUS SUPPORT | ||
| 420 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 420 | N 913004008001 | NUT |
| BRACKET TO BATTERY/APPARATUS SUPPORT | ||
| 430 | A 0004322601 | RESERVOIR |
| Repalced by: A 0034321801 | ||
| 430 | A 0034321801 | RESERVOIR |
| 30 L | ||
| 432 | A 0004325301 | RESERVOIR |
| 30/10 L. | ||
| 433 | A 0009903970 | T-FITTING |
| Repalced by: A 0019901070 | ||
| 433 | A 0019901070 | T-FITTING |
| INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION | ||
| 434 | A 0019979572 | FITTING |
| INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION | ||
| 435 | A 0004312031 | TEST CONNECTION |
| INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION | ||
| 435 | A 0004314531 | TEST CONNECTION |
| INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION | ||
| 435 | A 0004314831 | TEST CONNECTION |
| INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION | ||
| 435 | A 0004316131 | TEST CONNECTION |
| INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION | ||
| A 0009979486 | PLUG | |
| 436 | N 074305022202 | NUT |
| INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION | ||
| 437 | A 0004290227 | THRUST RING |
| INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION | ||
| 438 | A 0009870446 | SEALING CORD |
| INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION | ||
| 439 | A 0029971172 | FITTING |
| INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION | ||
| 440 | A 0009970569 | F-FITTING |
| INSIDE AIR RESERVOIR, REAR CONNECTION | ||
| 442 | A 0005455414 | SWITCH |
| INSIDE AIR RESERVOIR, REAR CONNECTION | ||
| 444 | A 0019902171 | ELBOW FITTING |
| INSIDE AIR RESERVOIR, REAR CONNECTION | ||
| 445 | N 007603022102 | SEAL RING |
| INSIDE AIR RESERVOIR | ||
| 446 | A 0004290227 | THRUST RING |
| FROM AIR RESERVOIR TO ACTUATING-PART T-FITTING | ||
| 448 | A 0009870446 | SEALING CORD |
| FROM AIR RESERVOIR TO ACTUATING-PART T-FITTING | ||
| 454 | N 074305022202 | NUT |
| INSIDE AIR RESERVOIR, REAR CONNECTION | ||
| 455 | A 0004290227 | THRUST RING |
| INSIDE AIR RESERVOIR, REAR CONNECTION | ||
| 456 | A 0009870446 | SEALING CORD |
| INSIDE AIR RESERVOIR, REAR CONNECTION | ||
| 459 | A 0024295844 | VALVE |
| CHECK VALVE | ||
| 459 | A 0024295944 | VALVE |
| CHECK VALVE | ||
| 459 | A 0024297544 | VALVE |
| CHECK VALVE | ||
| 460 | A 0004322407 | VALVE |
| AIR RESERVOIR | ||
| A 0005830296 | RING | |
| DRAIN VALVE | ||
| TO 000 432 08 07 | ||
| 461 | N 007603022102 | SEAL RING |
| AIR RESERVOIR,BOTTOM CONNECTION | ||
| 461 | A 0004290227 | THRUST RING |
| AIR RESERVOIR,BOTTOM CONNECTION | ||
| 462 | A 0009870446 | SEALING CORD |
| AIR RESERVOIR,BOTTOM CONNECTION | ||
| 463 | N 000908022001 | SCREW PLUG |
| Repalced by: N 000908022011 | ||
| 463 | N 000908022011 | SCREW PLUG |
| OUTSIDE AIR RESERVOIR,REAR CONNECTION | ||
| 464 | A 0004290227 | THRUST RING |
| FROM DOUBLE FITTING TO OPERATING VALVE | ||
| 465 | A 0009870446 | SEALING CORD |
| FROM DOUBLE FITTING TO OPERATING VALVE | ||
| A 3854300240 | STRAP | |
| 466 | A 3854300140 | STRAP |
| 467 | A 3854320218 | BASE |
| 468 | N 000934010014 | NUT |
| 470 | A 3854200168 | SUPPORT |
| Repalced by: A 3854260240 | ||
| 470 | A 3854260240 | BRACKET |
| 471 | A 3854200042 | BRAKE LEVER |
| 472 | A 0009815610 | NEEDLE BEARING |
| Repalced by: A 0119813410 | ||
| 472 | A 0089811110 | NEEDLE BEARING |
| Repalced by: A 0119813410 | ||
| 472 | A 0119813410 | NEEDLE BEARING |
| 473 | A 0089978046 | SEAL RING |
| Repalced by: A 0069979147 | ||
| 473 | A 0069979147 | SEAL RING |
| 474 | A 3802940507 | PIVOT PIN |
| 474 | A 3854310853 | SPACER TUBE |
| 475 | A 3859930010 | SPRING |
| 476 | N 000471020001 | LOCK RING |
| 477 | N 000433021002 | WASHER |
| 478 | N 000931010379 | SCREW |
| 479 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 479 | N 910113010000 | NUT |
| 480 | A 3854260165 | PROTECTIVE PLATE |
| 481 | A 3854260065 | PROTECTIVE PLATE |
| 482 | N 304017010025 | SCREW |
| Repalced by: N 304017010051 | ||
| 482 | N 304017010051 | SCREW |
| 483 | N 000934010014 | NUT |
| A 3819910407 | PIN | |
| N 912007010000 | CLIP | |
| 484 | A 3804310092 | ROD |
| 485 | N 001434010006 | PIN |
| Repalced by: N 001434010009 | ||
| 485 | N 001434010009 | PIN |
| 486 | N 000433010505 | WASHER |
| Repalced by: N 000433010510 | ||
| 486 | N 000433010510 | WASHER |
| 487 | N 000094003219 | COTTER PIN |
| 488 | N 000933010105 | SCREW |
| 488 | N 000933010128 | SCREW |
| 489 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 489 | N 910113010000 | NUT |
| 490 | A 0004316614 | BRAKE CYLINDER |
| 490 | A 0004319614 | BRAKE CYLINDER |
| Repalced by: A 0014317114 | ||
| 490 | A 0014317114 | BRAKE CYLINDER |
| BOSCH | ||
| 491 | A 0004319414 | BRAKE CYLINDER |
| Repalced by: A 0014317314 | ||
| 491 | A 0014310514 | BRAKE CYLINDER |
| Repalced by: A 0014317314 | ||
| 491 | A 0024300830 | BRAKE BOOSTER ASSEMBLY |
| Repalced by: A 0014317314 | ||
| 491 | A 0014313914 | BRAKE CYLINDER |
| Repalced by: A 0014317314 | ||
| 491 | A 0014317314 | BRAKE CYLINDER |
| BOSCH-SCHAEFER | ||
| 491 | A 0014317314 | BRAKE CYLINDER |
| BOSCH-SCHAEFER | ||
| 491 | A 0014317314 | BRAKE CYLINDER |
| BOSCH-SCHAEFER | ||
| 492 | A 0004317283 | PISTON |
| TO 000 431 94 16,000 431 96 14 | ||
| 493 | A 0049970248 | SEAL RING |
| TO 000 431 94 16,000 431 96 14 | ||
| 494 | N 000472030000 | LOCK RING |
| TO 000 431 94 16,000 431 96 14 | ||
| 495 | A 0019979340 | SEAL RING |
| Repalced by: A 0019975945 | ||
| 495 | A 0019975945 | SEAL RING |
| TO 000 431 94 16,000 431 96 14 | ||
| 496 | A 0039979248 | SEAL RING |
| TO 000 431 94 14,000 431 96 14, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 001 431 71 14,001 431 73 14 | ||
| 497 | A 0004318986 | CUP |
| TO 000 431 94 14,000 431 96 14 | ||
| 498 | N 000472036000 | LOCK RING |
| TO 000 431 94 14,000 431 96 14, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 001 431 71 14,001 431 73 14 | ||
| 499 | N 000472017000 | LOCK RING |
| TO 001 431 71 14,001 431 73 14 | ||
| 500 | A 0004317183 | PISTON |
| TO 000 431 94 14,000 431 96 14, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 001 431 71 14,001 431 73 14 | ||
| 501 | A 0069975645 | SEAL RING |
| TO 000 431 94 14,000 431 96 14 | ||
| 502 | A 0039979348 | SEAL RING |
| TO 000 431 94 14,000 431 96 14 | ||
| 503 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 503 | N 304017008027 | SCREW |
| M 8X30,TO 000 431 94 14,96 14, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 001 431 71 14,001 431 73 14 | ||
| 504 | N 912004008102 | LOCK WASHER |
| TO 000 431 94 14,000 431 96 14 | ||
| 505 | N 007603010103 | SEAL RING |
| Repalced by: N 007603010110 | ||
| 505 | N 007603010110 | SEAL RING |
| TO 001 431 71 14,001 431 73 14 | ||
| 505 | A 0014310660 | SEAL RING |
| TO 000 431 94 14,000 431 96 14 | ||
| 506 | A 0004317383 | PISTON |
| TO 000 431 94 14,000 431 96 14 | ||
| 507 | A 0039979448 | SEAL RING |
| TO 000 431 94 14,000 431 96 14 | ||
| N 000934006007 | NUT | |
| TO 000 431 94 14,000 431 96 14 | ||
| N 000963006014 | SCREW | |
| TO 000 431 94 14,000 431 96 14 | ||
| 508 | A 0004311249 | GUIDE BUSHING |
| TO 000 431 94 14,000 431 96 14 | ||
| 509 | N 007993016100 | SNAP RING |
| TO 000 431 94 14,000 431 96 14 | ||
| 510 | N 000933010045 | SCREW |
| TO 000 431 94 14,000 431 96 14 | ||
| 510 | N 000933010094 | SCREW |
| TO 001 431 71 14,001 431 73 14 | ||
| 511 | A 0009902047 | LOCK WASHER |
| Repalced by: N 000127010202 | ||
| 511 | N 912004010102 | LOCK WASHER |
| TO 000 431 94 14,000 431 96 14 | ||
| N 001476003007 | GROOVED NAIL | |
| TO 000 431 94 14,000 431 96 14 | ||
| N 000471022000 | LOCK RING | |
| TO 000 431 94 14,000 431 96 14 | ||
| A 0039974347 | SEAL RING | |
| TO 000 431 94 14,000 431 96 14 | ||
| N 007993006100 | SNAP RING | |
| TO 000 431 94 14,000 431 96 14 | ||
| 512 | A 0004318886 | CUP |
| TO 000 431 94 14,000 431 96 14 | ||
| 512 | A 0004315586 | CUP |
| TO 000 431 66 14,001 431 05 14 | ||
| 513 | A 0004311322 | COVER |
| TO 001 431 73 14,001 431 05 14 | ||
| A 0009882735 | CAP | |
| TO 001 431 71 14 | ||
| A 0044205518 | WHEEL BRAKE CYLINDER | |
| Repalced by: A 0074202018 | ||
| A 0074202018 | WHEEL BRAKE CYLINDER | |
| Repalced by: A 0044206818 | ||
| A 0074202018 | WHEEL BRAKE CYLINDER | |
| SLAVE CYLINDER | ||
| TEVES | ||
| A 0074202018 | WHEEL BRAKE CYLINDER | |
| A 0074202018 | WHEEL BRAKE CYLINDER | |
| 514 | A 0044206818 | WHEEL BRAKE CYLINDER |
| SLAVE CYLINDER | ||
| 514 | A 0044206818 | WHEEL BRAKE CYLINDER |
| SLAVE CYLINDER | ||
| TO 001 431 71 14 | ||
| 514 | A 0044206818 | WHEEL BRAKE CYLINDER |
| SLAVE CYLINDER | ||
| 514 | A 0044206818 | WHEEL BRAKE CYLINDER |
| SLAVE CYLINDER | ||
| 515 | A 0004310265 | VALVE |
| Repalced by: A 3075530107 | ||
| 515 | A 3075530107 | VALVE |
| A 0004202155 | BLEEDER VALVE | |
| Repalced by: A 0004310265 | ||
| 516 | A 3164210187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 516 | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 0004217187 | ||
| 516 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 516 | A 0004210887 | PROTECTIVE CAP |
| A 0004212687 | PROTECTIVE CAP | |
| Repalced by: A 0004210887 | ||
| 518 | A 0025865543 | REPAIR KIT |
| COMPRESSED AIR CYLINDER | ||
| TO 000 431 66 14,0014 431 05 14 | ||
| 518 | A 0025860743 | REPAIR KIT |
| Repalced by: A 0004302108 | ||
| 518 | A 0004302108 | REPAIR KIT |
| COMPRESSED AIR CYLINDER | ||
| TO 000 431 94 14,000 431 96 14, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 001 431 71 14,001 431 39 14 | ||
| 519 | A 0025865643 | REPAIR KIT |
| Repalced by: A 0025865543 | ||
| 519 | A 0025860942 | REPAIR KIT |
| SLAVE CYLINDER | ||
| TO 004 420 68 18 | ||
| 519 | A 0005864829 | REPAIR KIT |
| SLAVE CYLINDER | ||
| TO 004 420 55 18 | ||
| 519 | A 0025862442 | REPAIR KIT |
| SLAVE CYLINDER | ||
| TO 007 420 20 18 | ||
| 520 | A 0089979082 | HOSE |
| BLEEDING | ||
| 500 MM | ||
| 521 | N 912004010102 | LOCK WASHER |
| BRAKE BOOSTER ASSEMBLY TO APPARATUS SUPPORT | ||
| 522 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 522 | N 304017010002 | SCREW |
| BRAKE BOOSTER ASSEMBLY TO APPARATUS SUPPORT | ||
| 523 | N 000931010331 | SCREW |
| BRAKE BOOSTER ASSEMBLY TO APPARATUS SUPPORT | ||
| 523 | N 000931010331 | SCREW |
| BRAKE BOOSTER ASSEMBLY TO APPARATUS SUPPORT | ||
| 523 | N 000931010331 | SCREW |
| BRAKE BOOSTER ASSEMBLY TO APPARATUS SUPPORT | ||
| 523 | N 000933010094 | SCREW |
| BRAKE BOOSTER ASSEMBLY TO APPARATUS SUPPORT | ||
| 523 | N 000933010094 | SCREW |
| BRAKE BOOSTER ASSEMBLY TO APPARATUS SUPPORT | ||
| 525 | N 074315012100 | FITTING |
| Repalced by: A 0019903371 | ||
| 525 | A 0019903371 | ELBOW FITTING |
| AT TRISTOP CYLINDER AND TRAILING AXLE | ||
| 530 | N 080705016003 | NUT |
| CONNECTIONS: | ||
| "11,12" | ||
| 532 | A 0004290927 | THRUST RING |
| CONNECTIONS: | ||
| "11,12" | ||
| 534 | A 0029971640 | SEAL RING |
| Repalced by: A 0009971548 | ||
| 534 | A 0009971548 | SEAL RING |
| CONNECTIONS: | ||
| "11,12" | ||
| 535 | N 007603016401 | SEAL RING |
| BRAKE CYLINDER,CONNECTIONS "2.1,2.2" | ||
| 536 | A 0004290927 | THRUST RING |
| BRAKE CYLINDER,CONNECTIONS "2.1,2.2" | ||
| 537 | A 0009971548 | SEAL RING |
| BRAKE CYLINDER,CONNECTIONS "2.1,2.2" | ||
| 538 | N 000908016001 | SCREW PLUG |
| BRAKE CYLINDER,CONNECTIONS "2.1,2.2" | ||
| 542 | A 0005455214 | SWITCH |
| BRAKE CYLINDER STROKE INDICATOR | ||
| M 24 X 1 MM | ||
| 544 | N 007603010103 | SEAL RING |
| Repalced by: N 007603010110 | ||
| 544 | N 007603010110 | SEAL RING |
| BRAKE CYLINDER STROKE INDICATOR | ||
| 550 | A 0034300801 | BRAKE MASTER CYLINDER |
| 558 | A 0015868843 | REPAIR KIT |
| Repalced by: A 0014300160 | ||
| 558 | A 0014300160 | REPAIR KIT |
| 568 | N 007603022102 | SEAL RING |
| 570 | A 0004318702 | RESERVOIR |
| 572 | A 0004312833 | FILLER CAP |
| Repalced by: A 0004315533 | ||
| 572 | A 0004315533 | FILLER CAP |
| 573 | A 0014310287 | PROTECTIVE CAP |
| 574 | A 0039976440 | SEAL RING |
| 576 | A 0004312634 | STRAINER |
| 577 | N 912004010102 | LOCK WASHER |
| MASTER CYLINDER TO BRAKE BOOSTER | ||
| 578 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 578 | N 304017010002 | SCREW |
| MASTER CYLINDER TO BRAKE BOOSTER | ||
| 580 | A 3854300110 | BRACKET |
| BRAKE MASTER CYLINDER | ||
| 581 | N 000127010203 | LOCK WASHER |
| Repalced by: N 912004010102 | ||
| 581 | N 912004010102 | LOCK WASHER |
| BRACKET TO APPARATUS SUPPORT | ||
| 582 | N 000933010128 | SCREW |
| BRACKET TO APPARATUS SUPPORT | ||
| 582 | N 000933010128 | SCREW |
| BRACKET TO APPARATUS SUPPORT | ||
| 583 | N 000933010105 | SCREW |
| BRACKET TO APPARATUS SUPPORT | ||
| 583 | N 304014008004 | SCREW |
| Repalced by: N 304014008001 | ||
| 583 | N 304014008001 | SCREW |
| BRAKE MASTER CYLINDER TO BRACKET | ||
| 584 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 584 | N 000125008443 | WASHER |
| BRAKE MASTER CYLINDER TO BRACKET | ||
| 585 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 585 | N 913004008001 | NUT |
| BRAKE MASTER CYLINDER TO BRACKET | ||
| 586 | A 0004280830 | CONNECTOR |
| MASTER CYLINDER,CONNECTION "2.1" | ||
| 586 | A 0004280830 | CONNECTOR |
| MASTER CYLINDER,CONNECTION "2.1" | ||
| 587 | N 007603014405 | SEAL RING |
| MASTER CYLINDER,CONNECTION: | ||
| "21" | ||
| 588 | A 0004280026 | HOLLOW SCREW |
| MASTER CYLINDER,CONNECTION: | ||
| "21" | ||
| 588 | A 0004280026 | HOLLOW SCREW |
| MASTER CYLINDER,CONNECTION: | ||
| "21" | ||
| 590 | A 0014292044 | VALVE |
| Repalced by: A 0034291644 | ||
| 590 | A 0034291644 | VALVE |
| RELAY VALVE | ||
| BOSCH | ||
| 590 | A 0014296844 | VALVE |
| RELAY VALVE | ||
| WABCO | ||
| 590 | A 0024290744 | VALVE |
| Repalced by: A 0034295344 | ||
| 590 | A 0034295344 | VALVE |
| RELAY VALVE | ||
| KNORR | ||
| 590 | A 0014299144 | VALVE |
| RELAY VALVE | ||
| GRAU | ||
| 591 | A 0014310760 | SEAL RING |
| TO 000 431 86 14 | ||
| 591 | A 0014310760 | SEAL RING |
| TO 000 431 86 14 | ||
| 591 | A 0059972648 | SEAL RING |
| 22.3X2.4 MM,TO 001 429 91 44,GRAU | ||
| 592 | A 0004312788 | VALVE SEAT |
| TO 001 429 91 44,GRAU | ||
| 593 | A 0059972748 | SEAL RING |
| 80X3 MM,TO 000 429 28 95, GRAU | ||
| 594 | A 0014311660 | SEAL RING |
| 28X2 MM,TO 001 429 91 44,GRAU | ||
| 595 | A 0014311760 | SEAL RING |
| 86X2 MM,TO 001 429 91 44,GRAU | ||
| 596 | A 0014311980 | GASKET |
| Repalced by: A 0004311980 | ||
| 596 | A 0004311980 | GASKET |
| 34X2X6 MM,TO 001 429 91 44,GRAU | ||
| 597 | A 0015862742 | REPAIR KIT |
| TO 001 429 20 44,BOSCH | ||
| 597 | A 0025865742 | REPAIR KIT |
| Repalced by: A 0004301109 | ||
| 597 | A 0004301109 | REPAIR KIT |
| BLEEDER VALVE | ||
| TO 003 429 16 44,BOSCH | ||
| 597 | A 0005865742 | REPAIR KIT |
| TO 001 429 68 44,WABCO | ||
| 597 | A 0025863542 | REPAIR KIT |
| TO 002 429 07 44,003 429 53 44,KNORR | ||
| 598 | A 0025865642 | REPAIR KIT |
| Repalced by: A 0004201071 | ||
| 598 | A 0004201071 | VALVE |
| 598 | A 0004201071 | VALVE |
| GASKET KIT | ||
| TO 003 429 16 88,BOSCH; UP TO 03.82 | ||
| 598 | A 0004201271 | VALVE |
| GASKET KIT | ||
| TO 003 429 16 88,BOSCH; FROM 04.82 | ||
| 599 | A 3554320140 | BRACKET |
| RELAY VALVE | ||
| 600 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 600 | N 000125008443 | WASHER |
| RELAY VALVE TO BRACKET | ||
| 601 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 601 | N 913004008001 | NUT |
| RELAY VALVE TO BRACKET | ||
| 602 | N 000933010128 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 603 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 603 | N 910113010000 | NUT |
| A 0009904670 | T-FITTING | |
| N 074305022202 | NUT | |
| A 0004290227 | THRUST RING | |
| A 0009870446 | SEALING CORD | |
| N 074315012101 | FITTING | |
| Repalced by: A 0009907771 | ||
| A 0009907771 | ELBOW FITTING | |
| A 0009970169 | F-FITTING | |
| Repalced by: A 0019979172 | ||
| A 0019979172 | FITTING | |
| N 003952012101 | FITTING | |
| Repalced by: A 0019902771 | ||
| A 0019902771 | ELBOW FITTING | |
| 604 | A 0009905168 | FITTING |
| RELAY VALVE,CONNECTION: | ||
| "1" | ||
| 605 | N 007603022102 | SEAL RING |
| RELAY VALVE,CONNECTION: | ||
| "1" | ||
| 606 | A 0004290227 | THRUST RING |
| RELAY VALVE,CONNECTION: | ||
| "1" | ||
| 607 | A 0009870446 | SEALING CORD |
| RELAY VALVE,CONNECTION: | ||
| "1" | ||
| 608 | N 915011010101 | HOLLOW SCREW |
| Repalced by: N 915036012101 | ||
| 608 | N 915036012203 | HOLLOW SCREW |
| RELAY VALVE,CONNECTION: | ||
| "1" | ||
| 609 | N 007603016401 | SEAL RING |
| RELAY VALVE,CONNECTION: | ||
| "1" | ||
| 615 | A 0005455414 | SWITCH |
| RELAY VALVE,CONNECTION "2",RIGHT | ||
| 616 | A 0009904770 | T-FITTING |
| RELAY VALVE,CONNECTION "2",RIGHT | ||
| 617 | N 080705016003 | NUT |
| RELAY VALVE,CONNECTION "2",RIGHT | ||
| 618 | A 0004290927 | THRUST RING |
| RELAY VALVE,CONNECTION "2",RIGHT | ||
| 619 | A 0029971640 | SEAL RING |
| Repalced by: A 0009971548 | ||
| 619 | A 0009971548 | SEAL RING |
| RELAY VALVE,CONNECTION "2",RIGHT | ||
| 635 | N 074315012100 | FITTING |
| Repalced by: A 0019903371 | ||
| 635 | A 0019903371 | ELBOW FITTING |
| RELAY VALVE,CONNECTION "2",LEFT | ||
| 638 | N 080705016003 | NUT |
| RELAY VALVE,CONNECTION "2",LEFT | ||
| 642 | A 0004290927 | THRUST RING |
| RELAY VALVE,CONNECTION "2",LEFT | ||
| 646 | A 0029971640 | SEAL RING |
| Repalced by: A 0009971548 | ||
| 646 | A 0009971548 | SEAL RING |
| RELAY VALVE,CONNECTION "2",LEFT | ||
| A 0004294238 | ELBOW FITTING | |
| A 0009971548 | SEAL RING | |
| 670 | N 915011010101 | HOLLOW SCREW |
| Repalced by: N 915036012101 | ||
| 670 | N 915036012203 | HOLLOW SCREW |
| RELAY VALVE,CONNECTION: | ||
| "4" | ||
| 675 | N 007603016401 | SEAL RING |
| RELAY VALVE,CONNECTION: | ||
| "4" | ||
| 720 | A 0004305581 | VALVE |
| HAND BRAKE VALVE | ||
| WABCO | ||
| 720 | A 0004306681 | VALVE |
| HAND BRAKE VALVE | ||
| KNORR | ||
| 720 | A 0004305681 | VALVE |
| HAND BRAKE VALVE | ||
| WABCO | ||
| 720 | A 0004306781 | VALVE |
| HAND BRAKE VALVE | ||
| KNORR | ||
| 725 | A 0005868043 | REPAIR KIT |
| Repalced by: A 0004305760 | ||
| 725 | A 0004305760 | REPAIR KIT |
| TO 000 430 55 81,WABCO | ||
| 725 | A 0005868143 | REPAIR KIT |
| Repalced by: A 0004305860 | ||
| 725 | A 0004305860 | REPAIR KIT |
| TO 000 430 56 81,WABCO | ||
| 725 | A 0025866243 | REPAIR KIT |
| Repalced by: A 0034303881 | ||
| 725 | A 0034303881 | REPAIR KIT |
| TO 000 430 66 81,000 430 67 81,KNORR | ||
| 729 | N 000965006003 | SCREW |
| HAND BRAKE VALVE TO CAB | ||
| 729 | N 000965006000 | SCREW |
| HAND BRAKE VALVE TO CAB | ||
| A 0009907191 | NUT RETAINER | |
| Repalced by: A 3229900091 | ||
| A 3229900091 | NUT RETAINER | |
| HAND BRAKE VALVE TO CAB | ||
| 731 | A 3874310684 | SHIM |
| HAND BRAKE VALVE TO CAB | ||
| 732 | N 915036010204 | HOLLOW SCREW |
| Repalced by: N 915036010108 | ||
| 732 | N 915036010108 | HOLLOW SCREW |
| 734 | N 007603014405 | SEAL RING |
| 740 | A 0004318614 | BRAKE CYLINDER |
| Repalced by: A 0004312414 | ||
| 740 | A 0004312414 | BRAKE CYLINDER |
| SPRING LOAD ACCUMULATOR CYLINDER | ||
| BOSCH | ||
| 740 | A 0004312414 | BRAKE CYLINDER |
| SPRING LOAD ACCUMULATOR CYLINDER | ||
| BOSCH | ||
| 740 | A 0004317614 | BRAKE CYLINDER |
| SPRING LOAD ACCUMULATOR CYLINDER | ||
| KNORR | ||
| 740 | A 0004317614 | BRAKE CYLINDER |
| SPRING LOAD ACCUMULATOR CYLINDER | ||
| KNORR | ||
| 740 | A 0014311314 | BRAKE CYLINDER |
| WABCO | ||
| 740 | A 0004312114 | BRAKE CYLINDER |
| BOSCH | ||
| 740 | A 0004317714 | BRAKE CYLINDER |
| KNORR | ||
| A 0014310860 | SEAL RING | |
| TO 000 431 86 14,BOSCH | ||
| A 0014310860 | SEAL RING | |
| TO 000 431 86 14,BOSCH | ||
| 744 | A 0004319286 | CUP |
| TO 000 431 24 14,BOSCH | ||
| 744 | A 0004319286 | CUP |
| TO 000 431 24 14,BOSCH | ||
| 744 | A 0004319186 | CUP |
| Repalced by: A 0004312786 | ||
| 744 | A 0014310886 | CUP |
| Repalced by: A 0014311186 | ||
| 744 | A 0014311186 | CUP |
| TO 000 431 24 14,BOSCH | ||
| 744 | A 0014311186 | CUP |
| TO 000 431 24 14,BOSCH | ||
| 744 | A 0014310786 | CUP |
| Repalced by: A 0004312786 | ||
| 744 | A 0004312786 | CUP |
| TO 000 431 21 14,BOSCH | ||
| 745 | A 0004318583 | PISTON |
| TO 000 431 21 14,BOSCH | ||
| 745 | A 0004317583 | PISTON |
| TO 000 431 86 14,BOSCH | ||
| 745 | A 0004317583 | PISTON |
| TO 000 431 86 14,BOSCH | ||
| 746 | A 0049971148 | SEAL RING |
| TO 000 431 86 14,BOSCH | ||
| 746 | A 0049971148 | SEAL RING |
| TO 000 431 86 14,BOSCH | ||
| 746 | A 0089977948 | SEAL RING |
| TO 000 431 24 14,BOSCH | ||
| 746 | A 0089977948 | SEAL RING |
| TO 000 431 24 14,BOSCH | ||
| 746 | A 0089977548 | SEAL RING |
| TO 000 431 21 14,BOSCH | ||
| 746 | A 0049971740 | SEAL RING |
| TO 000 431 24 14,BOSCH | ||
| 746 | A 0049971740 | SEAL RING |
| TO 000 431 24 14,BOSCH | ||
| 753 | A 0004319686 | CUP |
| TO 000 431 77 14,KNORR | ||
| 755 | A 0004311880 | GASKET |
| TO 000 431 77 14,KNORR | ||
| 757 | A 0014311160 | SEAL RING |
| TO 000 431 77 14,KNORR | ||
| 759 | A 0059971148 | SEAL RING |
| TO 000 431 77 14,000 431 86 14 | ||
| A 0004310736 | FILTER BOTTOM | |
| TO 000 431 24 14,000 431 21 14,BOSCH | ||
| A 0004310649 | SLIDE | |
| TO 000 431 24 14,000 431 21 14,BOSCH | ||
| A 0004318186 | CUP | |
| Repalced by: A 0015864342 | ||
| 760 | A 0004319086 | CUP |
| Repalced by: A 0004318587 | ||
| 760 | A 0004318587 | PROTECTIVE CAP |
| TO 000 431 86 14,001 431 13 14 | ||
| 760 | A 0004319586 | CUP |
| TO 000 431 76 14,77 14,KNORR | ||
| 762 | A 0014301660 | REPAIR KIT |
| TO 000 431 76 14,KNORR | ||
| 762 | A 0014301660 | REPAIR KIT |
| TO 000 431 76 14,KNORR | ||
| 762 | A 0015864342 | REPAIR KIT |
| Repalced by: A 0034201724 | ||
| 762 | A 0034201724 | REPAIR KIT |
| TO 000 431 24 14,000 431 21 14,BOSCH | ||
| 762 | A 0034201724 | REPAIR KIT |
| TO 000 431 24 14,000 431 21 14,BOSCH | ||
| 762 | A 0025861443 | REPAIR KIT |
| TO 001 431 13 14,WABCO | ||
| 764 | N 074315012100 | FITTING |
| Repalced by: A 0019903371 | ||
| 764 | A 0019903371 | ELBOW FITTING |
| 766 | A 0009904770 | T-FITTING |
| 768 | A 0004312031 | TEST CONNECTION |
| VOSS | ||
| 768 | A 0004314531 | TEST CONNECTION |
| SCHAEFER | ||
| 768 | A 0004314831 | TEST CONNECTION |
| WABCO | ||
| 768 | A 0004316131 | TEST CONNECTION |
| WIRA | ||
| A 0009979486 | PLUG | |
| 769 | N 080705016003 | NUT |
| 770 | A 0004290927 | THRUST RING |
| 771 | A 0029971640 | SEAL RING |
| Repalced by: A 0009971548 | ||
| 771 | A 0009971548 | SEAL RING |
| 780 | A 3604302311 | CONSOLE |
| 782 | N 000933010105 | SCREW |
| 783 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 783 | N 910113010000 | NUT |
| 786 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 786 | N 304017010002 | SCREW |
| 787 | A 3859900140 | WASHER |
| Repalced by: A 3859900540 | ||
| 787 | A 3859900540 | WASHER |
| 788 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 788 | N 000125010532 | WASHER |
| 789 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 789 | N 910113010000 | NUT |
| 800 | A 3854200080 | BRAKE INTERMEDIATE SHAFT |
| 805 | A 3274270058 | SEAL HOLDER |
| 807 | A 3279970040 | SEAL RING |
| 810 | A 3854200178 | BEARING BRACKET |
| A 3024260083 | SPHERICAL PIECE | |
| Repalced by: A 3025860242 | ||
| 817 | N 000470052000 | EXPANSION PLUG |
| 819 | A 3025860242 | REPAIR KIT |
| Repalced by: A 3534200067 | ||
| 819 | A 3534200067 | REPAIR KIT |
| Repalced by: A 3534200167 | ||
| 819 | A 3534200167 | BALL CUP |
| BRAKE INTERMEDIATE SHAFT BEARING | ||
| 821 | N 000933010145 | SCREW |
| 822 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 822 | N 910113010000 | NUT |
| 825 | A 3604200474 | ROD |
| 830 | N 001480012200 | TURNBUCKLE |
| Repalced by: A 3859960034 | ||
| 830 | A 3859960034 | NUT |
| 835 | N 000934012002 | NUT |
| Repalced by: N 000934012020 | ||
| 835 | N 000934012020 | NUT |
| 840 | N 000934012021 | NUT |
| 850 | A 3604200774 | ROD |
| 855 | A 3529910207 | PIN |
| 860 | N 000094003210 | COTTER PIN |
| 865 | N 000433013005 | WASHER |
| Repalced by: N 000433013010 | ||
| 865 | N 000433013010 | WASHER |
| 870 | N 900055012001 | SPRING WASHER |
| 875 | A 3529910107 | PIN |
| 880 | N 000433013005 | WASHER |
| Repalced by: N 000433013010 | ||
| 880 | N 000433013010 | WASHER |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
