Transporto priemonė: 1417; VIN numerio dalis: 383017
Grupė: 32 SPRINGS AND SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|
| 003 | A 3833200402 | FRONT SPRING |
| 8-LEAF | ||
| 003 | A 3853200802 | FRONT SPRING |
| Repalced by: A 3853202202 | ||
| 003 | A 3853202202 | FRONT SPRING |
| 10-LEAF | ||
| 006 | A 3833200094 | SPRING LEAF |
| Repalced by: A 3833201294 | ||
| 006 | A 3853201394 | SPRING LEAF |
| Repalced by: A 3833201294 | ||
| 006 | A 3833200094 | SPRING LEAF |
| Repalced by: A 3833201294 | ||
| 006 | A 3833201294 | SPRING LEAF |
| NO.1 | ||
| 009 | A 3523220050 | BUSHING |
| 009 | A 3853220050 | BUSHING |
| 012 | A 3833210412 | SPRING LEAF |
| Repalced by: A 3833212012 | ||
| 012 | A 3833212012 | SPRING LEAF |
| NO.2 | ||
| 012 | A 3853210812 | SPRING LEAF |
| Repalced by: A 3833212012 | ||
| 012 | A 3833210412 | SPRING LEAF |
| Repalced by: A 3833212012 | ||
| 012 | A 3833212012 | SPRING LEAF |
| NO.2 | ||
| 015 | A 3833200194 | SPRING LEAF |
| NO.3 | ||
| 015 | A 3853210813 | SPRING LEAF |
| NO.3 | ||
| 015 | A 3853201494 | SPRING LEAF |
| NO.4 | ||
| 015 | A 3853203494 | SPRING LEAF |
| NO. 4 | ||
| 018 | A 3123213333 | SPRING CLAMP |
| Repalced by: A 3123240633 | ||
| 018 | A 3123240633 | SPRING CLAMP |
| AT SPRING LEAF NO.3 | ||
| 018 | A 3123240633 | SPRING CLAMP |
| AT SPRING LEAF NO.4 | ||
| 018 | A 3123240633 | SPRING CLAMP |
| AT SPRING LEAF NO.3 | ||
| 021 | N 910006008024 | RIVET |
| SPRING CLAMP TO SPRING LEAF | ||
| 021 | N 910006008024 | RIVET |
| SPRING CLAMP TO SPRING LEAF | ||
| 024 | A 3833210414 | SPRING LEAF |
| Repalced by: A 3833210614 | ||
| 024 | A 3833210614 | SPRING LEAF |
| NO.4 | ||
| 024 | A 3853210814 | SPRING LEAF |
| Repalced by: A 3853203494 | ||
| 024 | A 3853203494 | SPRING LEAF |
| NO.4 | ||
| 027 | A 3123213333 | SPRING CLAMP |
| Repalced by: A 3123240633 | ||
| 027 | A 3123240633 | SPRING CLAMP |
| AT SPRING LEAF NO.6 | ||
| 027 | A 3123240633 | SPRING CLAMP |
| AT SPRING LEAF NO.8 | ||
| 027 | A 3123240633 | SPRING CLAMP |
| AT SPRING LEAF NO.8 OR NO.9 | ||
| 027 | A 3123240633 | SPRING CLAMP |
| AT SPRING LEAF NO.5 | ||
| 029 | N 910006008024 | RIVET |
| SPRING CLAMP TO SPRING LEAF | ||
| 029 | N 910006008024 | RIVET |
| SPRING CLAMP TO SPRING LEAF | ||
| 030 | A 0003212353 | SPACER TUBE |
| Repalced by: A 0003213253 | ||
| 030 | A 0003213253 | SPACER TUBE |
| FOR SPRING CLAMPS | ||
| 033 | N 000931008326 | SCREW |
| Repalced by: N 304014008009 | ||
| 033 | N 304014008009 | SCREW |
| FOR SPRING CLAMPS | ||
| 036 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 036 | N 913004008001 | NUT |
| FOR SPRING CLAMPS | ||
| 039 | A 3143221084 | SHIM |
| 042 | N 004626012120 | SPRING BOLT |
| 045 | N 913004012007 | NUT |
| Repalced by: N 910113012005 | ||
| 045 | N 910113012005 | NUT |
| 048 | A 3833200502 | FRONT SPRING |
| Repalced by: A 3833202202 | ||
| 048 | A 3833202202 | FRONT SPRING |
| 8-LEAF | ||
| 048 | A 3853201002 | FRONT SPRING |
| 10-LEAF | ||
| 051 | A 3833200294 | SPRING LEAF |
| Repalced by: A 3853202994 | ||
| 051 | A 3853200694 | SPRING LEAF |
| Repalced by: A 3853202994 | ||
| 051 | A 3853201194 | SPRING LEAF |
| Repalced by: A 3853202994 | ||
| 051 | A 3853200694 | SPRING LEAF |
| Repalced by: A 3853202994 | ||
| 051 | A 3853202994 | SPRING LEAF |
| NO.1 | ||
| 054 | A 3523220050 | BUSHING |
| 054 | A 3853220050 | BUSHING |
| 057 | A 3833210512 | SPRING LEAF |
| Repalced by: A 3853212512 | ||
| 057 | A 3853211012 | SPRING LEAF |
| Repalced by: A 3853212512 | ||
| 057 | A 3853212512 | SPRING LEAF |
| NO.2 | ||
| 057 | A 3853211012 | SPRING LEAF |
| Repalced by: A 3853212512 | ||
| 057 | A 3853212512 | SPRING LEAF |
| NO.2 | ||
| 060 | A 3853211013 | SPRING LEAF |
| NO.3 | ||
| 060 | A 3833200394 | SPRING LEAF |
| NO.3 | ||
| 060 | A 3833201894 | SPRING LEAF |
| NO.3 | ||
| 060 | A 3853201294 | SPRING LEAF |
| NO.4 | ||
| 060 | A 3853203394 | SPRING LEAF |
| NO.4 | ||
| 063 | A 3273215133 | SPRING CLAMP |
| Repalced by: A 3123213333 | ||
| 063 | A 3123213333 | SPRING CLAMP |
| Repalced by: A 3123240633 | ||
| 063 | A 3123240633 | SPRING CLAMP |
| AT SPRING LEAF NO.3 | ||
| 063 | A 3123240633 | SPRING CLAMP |
| AT SPRING LEAF NO.3 | ||
| 063 | A 3123240633 | SPRING CLAMP |
| AT SPRING LEAF NO.4 | ||
| 063 | A 3123240633 | SPRING CLAMP |
| AT SPRING LEAF NO.3 | ||
| 066 | N 910006008024 | RIVET |
| SPRING CLAMP TO SPRING LEAF | ||
| 069 | A 3833210513 | SPRING LEAF |
| NO.3 | ||
| 069 | A 3833210514 | SPRING LEAF |
| NO.4 | ||
| 069 | A 3853211014 | SPRING LEAF |
| NO.4 | ||
| 072 | A 3853210033 | SPRING CLAMP |
| Repalced by: A 3123213333 | ||
| 072 | A 3123213333 | SPRING CLAMP |
| Repalced by: A 3123240633 | ||
| 072 | A 3123240633 | SPRING CLAMP |
| AT SPRING LEAF NO.7 | ||
| 072 | A 3123240633 | SPRING CLAMP |
| AT SPRING LEAF NO.4 | ||
| 072 | A 3123240633 | SPRING CLAMP |
| AT SPRING LEAF NO.8 OR NO.9 | ||
| 072 | A 3123240633 | SPRING CLAMP |
| AT SPRING LEAF NO.5 | ||
| 075 | N 910006008024 | RIVET |
| SPRING CLAMP TO SPRING LEAF | ||
| 078 | A 3833220084 | SHIM |
| 081 | N 004626012127 | SPRING BOLT |
| M 12X145 | ||
| 081 | N 004626012120 | SPRING BOLT |
| M 12X145 | ||
| 084 | N 913004012007 | NUT |
| Repalced by: N 910113012005 | ||
| 084 | N 910113012005 | NUT |
| SPRING BOLT | ||
| A 3523220530 | SHACKLE PIN | |
| Repalced by: A 3855860332 | ||
| A 3853220030 | SHACKLE PIN | |
| Repalced by: A 3855860332 | ||
| 087 | A 3855860032 | REPAIR KIT |
| Repalced by: A 3855860332 | ||
| 087 | A 3855860332 | REPAIR KIT |
| Repalced by: A 3853200165 | ||
| 087 | A 3853200165 | SHACKLE PIN |
| PARTS KIT | ||
| 090 | A 3523200063 | SHACKLE |
| Repalced by: A 6173200163 | ||
| 090 | A 6173200163 | SHACKLE |
| LEAF SPRING | ||
| 093 | A 3523220050 | BUSHING |
| 093 | A 3853220050 | BUSHING |
| 096 | N 071412010100 | GREASE NIPPLE |
| SPRING SEAT | ||
| 096 | N 071412010300 | GREASE NIPPLE |
| SPRING SEAT | ||
| 099 | N 071412010100 | GREASE NIPPLE |
| SPRING SEAT | ||
| 102 | A 3523230376 | WASHER |
| SPRING SEAT | ||
| 4.00 MM | ||
| 102 | A 3523230476 | WASHER |
| SPRING SEAT | ||
| 4.20 MM | ||
| 102 | A 3523230576 | WASHER |
| SPRING SEAT | ||
| 4.30 MM | ||
| 105 | A 0029973140 | SEAL RING |
| SPRING SEAT | ||
| 108 | A 3529900337 | BOLT |
| SPRING SEAT | ||
| 111 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 111 | N 000125010532 | WASHER |
| SPRING SEAT | ||
| 114 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 114 | N 910113010000 | NUT |
| SPRING SEAT | ||
| 117 | A 3833220031 | PLATE |
| FRONT SPRINGS TO FRONT AXLE | ||
| 120 | A 3523220131 | PLATE |
| FRONT SPRINGS TO FRONT AXLE | ||

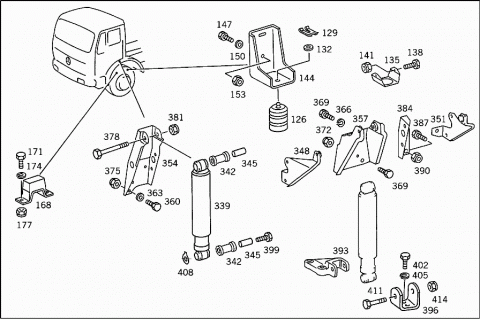

| 123 | A 3833240008 | HELPER SPRING |
| RUBBER BUFFER TO FRAME | ||
| 123 | A 3833240008 | HELPER SPRING |
| RUBBER BUFFER TO FRAME | ||
| 126 | A 3853200077 | RUBBER SPRING |
| (HELPER SPRING) | ||
| 129 | N 912002012001 | LOCK |
| RUBBER SPRING TO BRACKET | ||
| 132 | N 000125013008 | WASHER |
| 135 | A 3853250047 | CLAMP |
| HELPER SPRING | ||
| 138 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 138 | N 304017008021 | SCREW |
| BRACKET TO BRACKET | ||
| 141 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 141 | N 913004008001 | NUT |
| BRACKET TO BRACKET | ||
| 144 | A 3853250040 | BRACKET |
| RUBBER BUFFER TO FRAME | ||
| 147 | N 000961014088 | SCREW |
| Repalced by: N 308676014008 | ||
| 147 | N 308676014008 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 150 | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 150 | N 000125015019 | WASHER |
| BRACKET TO SIDE MEMBER | ||
| 153 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 153 | N 910113014000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 156 | A 3403510325 | U-BOLT |
| Repalced by: A 3603310125 | ||
| 156 | A 3603310125 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 200 MM | ||
| 156 | A 3603310025 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 220 MM | ||
| 159 | A 3523311125 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 260 MM | ||
| 159 | A 3523310625 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 230 MM | ||
| 162 | A 3279970026 | WASHER |
| FRONT SPRINGS TO FRONT AXLE | ||
| 165 | N 000934018006 | NUT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 168 | A 3523300175 | RUBBER MOUNTING |
| Repalced by: A 3853300075 | ||
| 168 | A 3853300075 | RUBBER MOUNTING |
| FRONT AXLE | ||
| 171 | N 000933010105 | SCREW |
| RUBBER MOUNTING TO FRONT AXLE | ||
| M 10X25 | ||
| 171 | N 000933010128 | SCREW |
| RUBBER MOUNTING TO FRONT AXLE | ||
| M 10X20 | ||
| 174 | N 912004010102 | LOCK WASHER |
| RUBBER MOUNTING TO FRONT AXLE | ||
| 177 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 177 | N 910113010000 | NUT |
| RUBBER MOUNTING TO FRONT AXLE | ||
| 180 | A 3523231463 | BEARING BRACKET |
| TORSION BAR,FRONT | ||
| 183 | A 3523230283 | HOUSING |
| TORSION BAR,FRONT | ||
| 186 | A 3603230085 | RUBBER MOUNTING |
| TORSION BAR,FRONT | ||
| 189 | A 3603230065 | TORSION BAR |
| FRONT AXLE | ||
| 192 | A 3603230151 | SPACER RING |
| TORSION BAR TO SHACKLE | ||
| 195 | N 000933010145 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| 198 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 198 | N 910113010000 | NUT |
| BEARING BRACKET TO SIDE MEMBER | ||
| 201 | A 3603230869 | LEVER |
| TORSION BAR,FRONT | ||
| 204 | N 000937030000 | NUT |
| LEVER TO TORSION BAR | ||
| 207 | N 000094006317 | COTTER PIN |
| LEVER TO TORSION BAR | ||
| 210 | A 3813200589 | ROD |
| Repalced by: A 6173200089 | ||
| 210 | A 3813200789 | ROD |
| Repalced by: A 6173200089 | ||
| 210 | A 6173200189 | ROD |
| Repalced by: A 6173200089 | ||
| 210 | A 6173200089 | ROD |
| TORSION BAR | ||
| 213 | A 0003300085 | BOOT |
| Repalced by: A 0004631396 | ||
| 213 | A 0004631396 | BOOT |
| TO 381 320 07 89 | ||
| 216 | A 3813230263 | BEARING BRACKET |
| Repalced by: A 6173200089 | ||
| 216 | A 6173200089 | ROD |
| TO 381 320 05 89 | ||
| 219 | A 3813230060 | SEAL RING |
| TO 381 320 05 89 | ||
| 222 | A 3813230158 | SEAL HOLDER |
| TO 381 320 05 89 | ||
| 225 | A 3813230171 | SCREW |
| TO 381 320 05 89 | ||
| 228 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 228 | N 308676012026 | SCREW |
| ROD TO FRAME | ||
| M 12X35 | ||
| 228 | N 000961012179 | SCREW |
| ROD TO FRAME | ||
| M 12X38 | ||
| 231 | N 000125013008 | WASHER |
| 234 | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 234 | N 000125015019 | WASHER |
| ROD TO FRAME | ||
| 234 | N 006796016102 | CONICAL SPRING WASHER |
| ROD TO FRAME | ||
| 237 | N 910113012002 | NUT |
| ROD TO FRAME | ||
| 237 | N 910113012002 | NUT |
| ROD TO FRAME | ||
| 240 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 240 | N 910113014001 | NUT |
| ROD TO FRAME | ||
| 240 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 240 | N 910113016002 | NUT |
| ROD TO FRAME | ||
| 243 | A 0009810731 | JOINT BEARING |
| Repalced by: A 0009817231 | ||
| 243 | A 0009810931 | JOINT BEARING |
| Repalced by: A 0009817331 | ||
| 243 | A 0009817331 | JOINT BEARING |
| Repalced by: A 0009817231 | ||
| 243 | A 0009817231 | JOINT BEARING |
| Repalced by: A 0019814631 | ||
| 243 | A 0019814631 | JOINT BEARING |
| 243 | A 0019814831 | JOINT BEARING |
| 246 | N 007993035200 | SNAP RING |
| JOINT TO LEVER | ||
| 249 | A 3603230460 | SEAL RING |
| ARTICULATED ROD TO LEVER | ||
| A 3603230274 | PIN | |
| Repalced by: A 3605860032 | ||
| 252 | A 3603230153 | SPACER TUBE |
| ARTICULATED ROD TO LEVER | ||
| 255 | N 006797021201 | TOOTHED WASHER |
| ARTICULATED ROD TO LEVER | ||
| 258 | N 006797021101 | TOOTHED WASHER |
| ARTICULATED ROD TO LEVER | ||
| 261 | N 000936020010 | NUT |
| ARTICULATED ROD TO LEVER | ||
| 264 | N 071412010100 | GREASE NIPPLE |
| 267 | A 3605860032 | REPAIR KIT |
| Repalced by: A 3603200041 | ||
| 267 | A 3603200041 | REPAIR KIT |
| TORSION BAR,FRONT | ||
| 270 | A 3833231363 | BEARING BRACKET |
| 273 | N 000961012164 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| 276 | N 910113012002 | NUT |
| BEARING BRACKET TO SIDE MEMBER | ||
| 279 | A 3833230195 | REINFORCEMENT |
| 282 | N 000961012164 | SCREW |
| REINFORCEMENT TO BEARING BRACKET AND TO ENGINE CROSS MEMBER | ||
| 285 | N 910113012002 | NUT |
| REINFORCEMENT TO BEARING BRACKET AND TO ENGINE CROSS MEMBER | ||
| 288 | N 000125013008 | WASHER |
| 291 | A 3853230065 | TORSION BAR |
| Repalced by: A 3853230265 | ||
| 291 | A 3853230265 | TORSION BAR |
| 294 | A 3833260081 | RUBBER MOUNTING |
| TORSION BAR | ||
| 297 | A 3833230240 | BRACKET |
| TORSION BAR | ||
| 300 | N 000961012164 | SCREW |
| BRACKET TO BEARING BRACKET | ||
| 303 | N 910113012002 | NUT |
| BRACKET TO BEARING BRACKET | ||
| 306 | A 3833230340 | BRACKET |
| TORSION BAR | ||
| 309 | N 000961012151 | SCREW |
| BRACKET TO TORSION BAR | ||
| 312 | N 910113012002 | NUT |
| BRACKET TO TORSION BAR | ||
| 315 | A 3853230263 | BEARING BRACKET |
| 318 | A 0009816131 | JOINT BEARING |
| 318 | A 0009817431 | JOINT BEARING |
| 321 | N 000472055000 | LOCK RING |
| AT BEARING BRACKET | ||
| 324 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 324 | N 071412008102 | GREASE NIPPLE |
| AT BEARING BRACKET | ||
| 327 | A 3833230092 | BOOT |
| AT BEARING BRACKET | ||
| 330 | A 3833230192 | BOOT |
| Repalced by: A 3833230292 | ||
| 330 | A 3833230292 | BOOT |
| STABILIZER TO BEARING BRACKET | ||
| 330 | A 3833230392 | BOOT |
| STABILIZER TO BEARING BRACKET | ||
| 333 | N 913004024004 | NUT |
| STABILIZER TO BEARING BRACKET | ||
| 336 | N 900055022200 | LOCK RING |
| STABILIZER TO BEARING BRACKET | ||
| 339 | A 0023238600 | SHOCK ABSORBER |
| Repalced by: A 0043236400 | ||
| 339 | A 0043236400 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 339 | A 0023238700 | SHOCK ABSORBER |
| Repalced by: A 0043235200 | ||
| 339 | A 0043235200 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 339 | A 0023237600 | SHOCK ABSORBER |
| Repalced by: A 0043237100 | ||
| 339 | A 0043237100 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 339 | A 0023238400 | SHOCK ABSORBER |
| Repalced by: A 0043233300 | ||
| 339 | A 0043233300 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 342 | A 0003232444 | RUBBER BUFFER |
| Repalced by: A 0003232885 | ||
| 342 | A 0003232885 | RUBBER MOUNTING |
| TO 002 323 86 00,002 323 76 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 004 323 64 00,004 323 71 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 002 323 87 00,002 323 84 00 | ||
| 342 | A 0003233044 | RUBBER BUFFER |
| Repalced by: A 0003233144 | ||
| 342 | A 0003233144 | RUBBER BUFFER |
| TO 004 323 33 00,004 323 52 00 | ||
| 345 | A 0003230453 | SPACER TUBE |
| Repalced by: A 0003233150 | ||
| 345 | A 0003232550 | BUSHING |
| Repalced by: A 0003233150 | ||
| 345 | A 0003233150 | SPACER RING |
| TO 002 323 86 00,002 323 76 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 004 323 64 00,004 323 71 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 002 323 87 00,002 323 84 00 | ||
| 345 | A 0003235250 | BUSHING |
| TO 004 323 33 00,004 323 52 00 | ||
| 348 | A 3833200043 | BRACKET |
| LEFT SHOCK ABSORBER | ||
| 351 | A 3833200143 | BRACKET |
| RIGHT SHOCK ABSORBER | ||
| 354 | A 3833200278 | CONSOLE |
| Repalced by: A 6173200078 | ||
| 354 | A 6173200078 | CONSOLE |
| LEFT SHOCK ABSORBER | ||
| 354 | A 3833200378 | CONSOLE |
| Repalced by: A 6173200178 | ||
| 354 | A 6173200178 | CONSOLE |
| RIGHT SHOCK ABSORBER | ||
| 354 | A 3833200078 | CONSOLE |
| Repalced by: A 3833200478 | ||
| 354 | A 3833200478 | CONSOLE |
| LEFT SHOCK ABSORBER | ||
| 354 | A 3833200478 | CONSOLE |
| LEFT SHOCK ABSORBER | ||
| 354 | A 3833200178 | CONSOLE |
| Repalced by: A 3833200578 | ||
| 354 | A 3833200578 | CONSOLE |
| Repalced by: A 3853200678 | ||
| 354 | A 3853200678 | CONSOLE |
| RIGHT SHOCK ABSORBER | ||
| 357 | A 3813200178 | CONSOLE |
| RIGHT SHOCK ABSORBER | ||
| 360 | N 000961012151 | SCREW |
| BEARING BRACKET TO FRAME AND TO CONSOLE | ||
| 360 | N 000961012122 | SCREW |
| BEARING BRACKET TO FRAME AND TO CONSOLE | ||
| 360 | N 000961012122 | SCREW |
| BEARING BRACKET TO FRAME AND TO CONSOLE | ||
| 360 | N 308676012012 | SCREW |
| BEARING BRACKET TO FRAME AND TO CONSOLE | ||
| 360 | N 308676012012 | SCREW |
| BEARING BRACKET TO FRAME AND TO CONSOLE | ||
| 363 | N 007349013003 | WASHER |
| Repalced by: N 007349013005 | ||
| 363 | N 007349013005 | WASHER |
| BEARING BRACKET TO FRAME AND TO CONSOLE | ||
| 363 | N 007349013005 | WASHER |
| BEARING BRACKET TO FRAME AND TO CONSOLE | ||
| 366 | N 912004014100 | LOCK WASHER |
| BEARING BRACKET TO FRAME AND TO CONSOLE | ||
| 369 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 369 | N 308676014020 | SCREW |
| BEARING BRACKET TO FRAME AND TO CONSOLE | ||
| 369 | N 000961014028 | SCREW |
| BEARING BRACKET TO FRAME AND TO CONSOLE | ||
| 372 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 372 | N 910113014001 | NUT |
| BEARING BRACKET TO FRAME AND TO CONSOLE | ||
| 375 | N 910113012002 | NUT |
| BEARING BRACKET TO FRAME AND TO CONSOLE | ||
| 375 | N 910113012002 | NUT |
| BEARING BRACKET TO FRAME AND TO CONSOLE | ||
| 375 | N 910113012002 | NUT |
| BEARING BRACKET TO FRAME AND TO CONSOLE | ||
| A 3839900202 | SCREW | |
| Repalced by: N 000960016244 | ||
| 378 | N 000960016244 | SCREW |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| 381 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 381 | N 910113016002 | NUT |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| 384 | A 3853230695 | REINFORCEMENT |
| LEFT SHOCK ABSORBER | ||
| 384 | A 3853230795 | REINFORCEMENT |
| RIGHT SHOCK ABSORBER | ||
| 387 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 387 | N 308676014020 | SCREW |
| REINFORCEMENT TO FRAME | ||
| 390 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 390 | N 910113014001 | NUT |
| REINFORCEMENT TO FRAME | ||
| 393 | A 3833230963 | BEARING BRACKET |
| BOTTOM LEFT | ||
| 393 | A 3833231063 | BEARING BRACKET |
| BOTTOM RIGHT | ||
| 396 | A 3833231863 | BEARING BRACKET |
| BOTTOM | ||
| 399 | A 3839900001 | SCREW |
| Repalced by: N 000960016105 | ||
| 399 | N 000960016105 | SCREW |
| SHOCK ABSORBER TO BRACKET AT FRONT AXLE | ||
| 399 | N 000960016105 | SCREW |
| SHOCK ABSORBER TO BRACKET AT FRONT AXLE | ||
| 402 | N 308676012012 | SCREW |
| BOTTOM BEARING BRACKET TO FRONT AXLE | ||
| 405 | N 912004012100 | LOCK WASHER |
| BOTTOM BEARING BRACKET TO FRONT AXLE | ||
| 408 | N 000093017001 | LOCK PLATE |
| FROM COUPLING PIECE TO COUPLING PIECE AT RIGHT WHEELHOUSE | ||
| 408 | N 000093017001 | LOCK PLATE |
| FROM COUPLING PIECE TO COUPLING PIECE AT RIGHT WHEELHOUSE | ||
| 411 | N 000960016164 | SCREW |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| 414 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 414 | N 910113016002 | NUT |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||

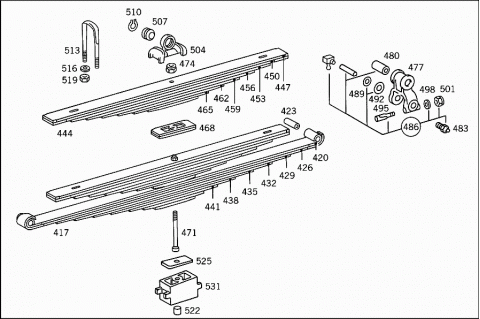

| 417 | A 3833200208 | REAR SPRING |
| 6-LEAF;WITH 5-LEAF HELPER SPRING | ||
| 417 | A 3833200208 | REAR SPRING |
| 6-LEAF;WITH 5-LEAF HELPER SPRING | ||
| 417 | A 3833200208 | REAR SPRING |
| 6-LEAF;WITH 5-LEAF HELPER SPRING | ||
| 417 | A 3833200208 | REAR SPRING |
| 6-LEAF;WITH 5-LEAF HELPER SPRING | ||
| 417 | A 3853200108 | REAR SPRING |
| 6-LEAF;WITH 5-LEAF HELPER SPRING | ||
| 417 | A 3853200108 | REAR SPRING |
| 6-LEAF;WITH 5-LEAF HELPER SPRING | ||
| 417 | A 3853200108 | REAR SPRING |
| 6-LEAF;WITH 5-LEAF HELPER SPRING | ||
| 417 | A 3853200108 | REAR SPRING |
| 6-LEAF;WITH 5-LEAF HELPER SPRING | ||
| 417 | A 3853200208 | REAR SPRING |
| 7-LEAF,WITH 7-LEAF HELPER SPRING | ||
| 417 | A 3853200208 | REAR SPRING |
| 7-LEAF,WITH 7-LEAF HELPER SPRING | ||
| 417 | A 3853200208 | REAR SPRING |
| 7-LEAF,WITH 7-LEAF HELPER SPRING | ||
| 417 | A 3853200208 | REAR SPRING |
| 7-LEAF,WITH 7-LEAF HELPER SPRING | ||
| 420 | A 3833200093 | SPRING LEAF |
| Repalced by: A 3833200993 | ||
| 420 | A 3833200993 | SPRING LEAF |
| NO.1 | ||
| 420 | A 3853200093 | SPRING LEAF |
| Repalced by: A 3853201993 | ||
| 420 | A 3853201993 | SPRING LEAF |
| NO.1 | ||
| 420 | A 3853200193 | SPRING LEAF |
| Repalced by: A 3853201693 | ||
| 420 | A 3853201693 | SPRING LEAF |
| NO.1 | ||
| 423 | A 3273255050 | BUSHING |
| Repalced by: A 3523250150 | ||
| 423 | A 3523250150 | BUSHING |
| 423 | A 3853250050 | BUSHING |
| 426 | A 3833240212 | SPRING LEAF |
| Repalced by: A 3833241012 | ||
| 426 | A 3833241012 | SPRING LEAF |
| NO.2 | ||
| 426 | A 3853240112 | SPRING LEAF |
| Repalced by: A 3853242012 | ||
| 426 | A 3853242012 | SPRING LEAF |
| NO.2 | ||
| 426 | A 3853240212 | SPRING LEAF |
| Repalced by: A 3853242112 | ||
| 426 | A 3853242112 | SPRING LEAF |
| NO.2 | ||
| 429 | A 3833240213 | SPRING LEAF |
| NO.3 | ||
| 429 | A 3853240113 | SPRING LEAF |
| NO.3 | ||
| 429 | A 3853240213 | SPRING LEAF |
| NO.3 | ||
| 432 | A 3833240214 | SPRING LEAF |
| NO.4 | ||
| 432 | A 3853240014 | SPRING LEAF |
| NO.4 | ||
| 432 | A 3853240114 | SPRING LEAF |
| NO.4 | ||
| 435 | A 3833240215 | SPRING LEAF |
| NO.5 | ||
| 435 | A 3853240015 | SPRING LEAF |
| NO.5 | ||
| 435 | A 3853240115 | SPRING LEAF |
| NO.5 | ||
| 438 | A 3833240216 | SPRING LEAF |
| NO.6 | ||
| 438 | A 3853240016 | SPRING LEAF |
| NO.6 | ||
| 438 | A 3853240116 | SPRING LEAF |
| NO.6 | ||
| 441 | A 3853240017 | SPRING LEAF |
| NO.7 | ||
| 444 | A 3833200010 | HELPER SPRING |
| 5-LEAF | ||
| 444 | A 3853200010 | HELPER SPRING |
| 5-LEAF | ||
| 444 | A 3853200110 | HELPER SPRING |
| 7-LEAF | ||
| 447 | A 3833240240 | SPRING LEAF |
| NO.1 | ||
| 447 | A 3853240140 | SPRING LEAF |
| NO.1 | ||
| 447 | A 3853240240 | SPRING LEAF |
| NO.1 | ||
| 450 | A 3833240241 | SPRING LEAF |
| NO.2 | ||
| 450 | A 3853240141 | SPRING LEAF |
| NO.2 | ||
| 450 | A 3853240241 | SPRING LEAF |
| NO.2 | ||
| 453 | A 3833240242 | SPRING LEAF |
| NO.3 | ||
| 453 | A 3853240042 | SPRING LEAF |
| NO.3 | ||
| 453 | A 3853240142 | SPRING LEAF |
| NO.3 | ||
| 456 | A 3833240243 | SPRING LEAF |
| NO.4 | ||
| 456 | A 3853240043 | SPRING LEAF |
| NO.4 | ||
| 456 | A 3853240143 | SPRING LEAF |
| NO.4 | ||
| 459 | A 3833240244 | SPRING LEAF |
| NO.5 | ||
| 459 | A 3853240044 | SPRING LEAF |
| NO.5 | ||
| 459 | A 3853240144 | SPRING LEAF |
| NO.5 | ||
| 462 | A 3853240045 | SPRING LEAF |
| NO.6 | ||
| 465 | A 3853240046 | SPRING LEAF |
| NO.7 | ||
| 468 | A 3523240135 | SPACER |
| 471 | N 004626012138 | SPRING BOLT |
| M 12X215 | ||
| 471 | A 6173241671 | SPRING BOLT |
| M 12X220 | ||
| 471 | N 004626012156 | SPRING BOLT |
| M 12X225 | ||
| 471 | A 6173241771 | SPRING BOLT |
| M 12X230 | ||
| 471 | N 004626012115 | SPRING BOLT |
| M 12X260 | ||
| 471 | A 6173241971 | SPRING BOLT |
| M 12X265 | ||
| 474 | N 913004012007 | NUT |
| Repalced by: N 910113012005 | ||
| 474 | N 910113012005 | NUT |
| 477 | A 3523200163 | SHACKLE |
| REAR SPRING | ||
| 480 | A 3273255050 | BUSHING |
| Repalced by: A 3523250150 | ||
| 480 | A 3523250150 | BUSHING |
| 480 | A 3853250050 | BUSHING |
| 483 | N 071412010100 | GREASE NIPPLE |
| SHACKLE PIN | ||
| 486 | A 3523250530 | SHACKLE PIN |
| Repalced by: A 3855860232 | ||
| 486 | A 3853250030 | SHACKLE PIN |
| Repalced by: A 3855860232 | ||
| 486 | A 3855860132 | REPAIR KIT |
| Repalced by: A 3855860232 | ||
| 486 | A 3855860232 | REPAIR KIT |
| Repalced by: A 3853200065 | ||
| 486 | A 3853200065 | SHACKLE PIN |
| PARTS KIT | ||
| 489 | A 3523230976 | WASHER |
| SPRING SEAT | ||
| 4.00 MM | ||
| 489 | A 3523231076 | WASHER |
| SPRING SEAT | ||
| 4.20 MM | ||
| 492 | A 0029973040 | SEAL RING |
| SPRING SEAT | ||
| 495 | A 3529900337 | BOLT |
| SPRING SEAT | ||
| 498 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 498 | N 000125010532 | WASHER |
| SPRING SEAT | ||
| 501 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 501 | N 910113010000 | NUT |
| SPRING SEAT | ||
| 504 | A 3833250031 | PLATE |
| REAR AXLE TO TO REAR SPRINGS | ||
| 504 | A 3833250031 | PLATE |
| REAR AXLE TO TO REAR SPRINGS | ||
| 504 | A 3833250231 | PLATE |
| REAR AXLE TO TO REAR SPRINGS | ||
| 504 | A 3523250431 | PLATE |
| Repalced by: A 3523200135 | ||
| 504 | A 3523200135 | PLATE |
| REAR AXLE TO TO REAR SPRINGS | ||
| 507 | A 0009810831 | JOINT BEARING |
| REAR AXLE TO TO REAR SPRINGS | ||
| 507 | A 0009811231 | JOINT BEARING |
| REAR AXLE TO TO REAR SPRINGS | ||
| 510 | N 000472055000 | LOCK RING |
| REAR AXLE TO TO REAR SPRINGS | ||
| 513 | A 3403510025 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 410 MM | ||
| 513 | A 3403510025 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 410 MM | ||
| 513 | A 3853511625 | U-BOLT |
| Repalced by: A 3853511725 | ||
| 513 | A 3853511725 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 420 MM | ||
| 513 | A 3853511725 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 420 MM | ||
| 513 | A 3853511225 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 370 MM | ||
| 513 | A 3273510325 | U-BOLT |
| Repalced by: A 3403510025 | ||
| 513 | A 3273515425 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 430 MM | ||
| 513 | A 3403510125 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 450 MM | ||
| 513 | A 3383515125 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 480 MM | ||
| 513 | A 3853512125 | U-BOLT |
| Repalced by: A 3853512025 | ||
| 513 | A 3853512025 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 450 MM | ||
| 513 | A 3583510225 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 490 MM | ||
| 513 | A 3853512325 | U-BOLT |
| Repalced by: A 3853512925 | ||
| 513 | A 3853512925 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 470 MM | ||
| 513 | A 3853510225 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 530 MM | ||
| 513 | A 3853512525 | U-BOLT |
| Repalced by: A 3853513425 | ||
| 513 | A 3853513425 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 520 MM | ||
| 516 | A 3279970026 | WASHER |
| REAR SPRING TO REAR AXLE | ||
| 516 | A 3859970126 | WASHER |
| REAR SPRING TO REAR AXLE | ||
| 519 | N 000934018006 | NUT |
| REAR SPRING TO REAR AXLE | ||
| 519 | N 000934020008 | NUT |
| Repalced by: N 308673020002 | ||
| 519 | N 308673020002 | NUT |
| Repalced by: N 308674020000 | ||
| 519 | N 308674020000 | NUT |
| REAR SPRING TO REAR AXLE | ||
| 522 | A 3839910064 | SHEAR BUSHING |
| REAR SPRING TO REAR AXLE | ||
| 522 | A 3859910464 | SHEAR BUSHING |
| REAR SPRING TO REAR AXLE | ||
| 522 | A 3859910164 | SHEAR BUSHING |
| REAR SPRING TO REAR AXLE | ||
| 522 | A 6179910064 | SHEAR BUSHING |
| REAR SPRING TO REAR AXLE | ||
| 525 | A 3853510628 | PAD |
| REAR AXLE TO TO REAR SPRINGS | ||
| 525 | A 3853510528 | PAD |
| REAR AXLE TO TO REAR SPRINGS | ||
| 525 | A 3853510528 | PAD |
| Repalced by: A 3853510728 | ||
| 525 | A 3853510728 | PAD |
| 528 | A 3553250531 | PLATE |
| REAR AXLE TO TO REAR SPRINGS | ||
| 528 | A 3853250031 | PLATE |
| REAR AXLE TO TO REAR SPRINGS | ||
| 528 | A 3853250031 | PLATE |
| REAR AXLE TO TO REAR SPRINGS | ||
| 531 | A 3833250084 | SHIM |
| REAR AXLE TO TO REAR SPRINGS | ||
| 531 | A 3833250484 | SHIM |
| REAR SPRING TO REAR AXLE | ||

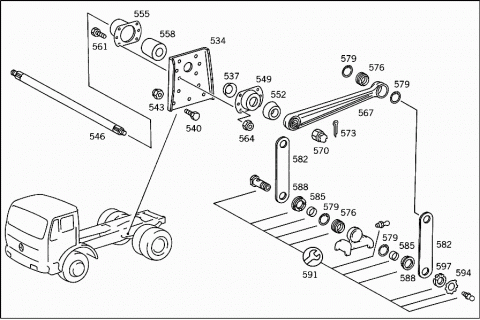

| 534 | A 3403260025 | PLATE |
| REAR STABILIZER | ||
| 537 | A 3403260051 | SPACER RING |
| REAR STABILIZER | ||
| 540 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 540 | N 308676012026 | SCREW |
| REAR STABILIZER | ||
| M 12X35 | ||
| 540 | N 000961012164 | SCREW |
| REAR STABILIZER | ||
| M 12X28 | ||
| 543 | N 910113012002 | NUT |
| REAR STABILIZER | ||
| 546 | A 3603260165 | TORSION BAR |
| REAR | ||
| 549 | A 3403260082 | HOUSING |
| REAR OUTSIDE | ||
| 552 | A 3403260181 | RUBBER MOUNTING |
| REAR OUTSIDE | ||
| 555 | A 3403260182 | HOUSING |
| REAR INSIDE | ||
| 558 | A 3403260081 | RUBBER MOUNTING |
| REAR INSIDE | ||
| 561 | N 000933010145 | SCREW |
| REAR STABILIZER | ||
| 564 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 564 | N 910113010000 | NUT |
| REAR STABILIZER | ||
| 567 | A 3523260469 | LEVER |
| REAR STABILIZER | ||
| 570 | N 000937030000 | NUT |
| REAR STABILIZER | ||
| 573 | N 000094005045 | COTTER PIN |
| REAR STABILIZER | ||
| 576 | A 0009810831 | JOINT BEARING |
| REAR STABILIZER | ||
| 576 | A 0009811231 | JOINT BEARING |
| REAR STABILIZER | ||
| 579 | N 000472055000 | LOCK RING |
| TORSION BAR,REAR | ||
| 582 | A 3833260016 | LINK |
| TORSION BAR,REAR | ||
| 585 | A 3523260153 | SPACER TUBE |
| TORSION BAR,REAR | ||
| 588 | A 3603230560 | SEAL RING |
| TORSION BAR,REAR | ||
| 591 | A 3523260274 | PIN |
| Repalced by: A 3605860332 | ||
| 591 | A 3605860332 | REPAIR KIT |
| Repalced by: A 3603200341 | ||
| 591 | A 3603200341 | REPAIR KIT |
| TORSION BAR,REAR | ||
| 594 | N 070952035101 | LOCK PLATE |
| TORSION BAR,REAR | ||
| 597 | N 070852035000 | NUT |
| TORSION BAR,REAR | ||
| 600 | A 3833260065 | TORSION BAR |
| REAR | ||
| 600 | A 3833260065 | TORSION BAR |
| REAR | ||
| 603 | A 0009810831 | JOINT BEARING |
| TORSION BAR | ||
| 603 | A 0009810831 | JOINT BEARING |
| TORSION BAR | ||
| 603 | A 0009811231 | JOINT BEARING |
| TORSION BAR | ||
| 603 | A 0009811231 | JOINT BEARING |
| TORSION BAR | ||
| 606 | N 000472055000 | LOCK RING |
| TORSION BAR,REAR | ||
| 606 | N 000472055000 | LOCK RING |
| TORSION BAR,REAR | ||
| 609 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 609 | N 071412008102 | GREASE NIPPLE |
| TORSION BAR,REAR | ||
| 609 | N 071412008102 | GREASE NIPPLE |
| TORSION BAR,REAR | ||
| 612 | A 3833260181 | RUBBER MOUNTING |
| TORSION BAR,REAR | ||
| 612 | A 3833260181 | RUBBER MOUNTING |
| TORSION BAR,REAR | ||
| 615 | A 3833260640 | BRACKET |
| TORSION BAR,REAR | ||
| 615 | A 3833260640 | BRACKET |
| TORSION BAR,REAR | ||
| 618 | N 912004014100 | LOCK WASHER |
| BRACKET TO TORSION BAR BRACKET | ||
| 618 | N 912004014100 | LOCK WASHER |
| BRACKET TO TORSION BAR BRACKET | ||
| 621 | N 000961014028 | SCREW |
| BRACKET TO TORSION BAR BRACKET | ||
| 621 | N 000961014028 | SCREW |
| BRACKET TO TORSION BAR BRACKET | ||
| 624 | A 3833260740 | BRACKET |
| TORSION BAR,REAR | ||
| 624 | A 3833260740 | BRACKET |
| TORSION BAR,REAR | ||
| 627 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 627 | N 308676014020 | SCREW |
| BRACKET TO TORSION BAR | ||
| M 14X35 | ||
| 627 | N 308676014020 | SCREW |
| BRACKET TO TORSION BAR | ||
| M 14X35 | ||
| 627 | N 308676012012 | SCREW |
| BRACKET TO TORSION BAR | ||
| M 12X25 | ||
| 630 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 630 | N 910113014001 | NUT |
| BRACKET TO TORSION BAR | ||
| 630 | N 910113014001 | NUT |
| BRACKET TO TORSION BAR | ||
| 630 | N 910113012002 | NUT |
| BRACKET TO TORSION BAR | ||
| 633 | A 3523260063 | BEARING BRACKET |
| TORSION BAR,REAR | ||
| 634 | A 3833260163 | BEARING BRACKET |
| TORSION BAR,REAR | ||
| 634 | A 3833260163 | BEARING BRACKET |
| TORSION BAR,REAR | ||
| 636 | A 3523260425 | PLATE |
| Repalced by: A 3803260025 | ||
| 636 | A 3803260025 | PLATE |
| TORSION BAR,REAR | ||
| 639 | A 3833250141 | STIFFENING |
| TORSION BAR,LEFT | ||
| 639 | A 3833250141 | STIFFENING |
| TORSION BAR,LEFT | ||
| 639 | A 3833250041 | STIFFENING |
| TORSION BAR,RIGHT | ||
| 639 | A 3833250041 | STIFFENING |
| TORSION BAR,RIGHT | ||
| 642 | A 3604750484 | SHIM |
| BEARING BRACKET AND PLATE TO FRAME | ||
| 645 | N 000961014054 | SCREW |
| BEARING BRACKET AND PLATE TO FRAME | ||
| 648 | N 007991014001 | SCREW |
| BEARING BRACKET AND PLATE TO FRAME | ||
| 651 | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 651 | N 000125015019 | WASHER |
| BEARING BRACKET AND PLATE TO FRAME | ||
| 654 | N 912004014100 | LOCK WASHER |
| BEARING BRACKET AND PLATE TO FRAME | ||
| 657 | N 000934014019 | NUT |
| Repalced by: N 308673014001 | ||
| 657 | N 308673014001 | NUT |
| BEARING BRACKET AND PLATE TO FRAME | ||
| 660 | N 000961016100 | SCREW |
| Repalced by: N 308676016020 | ||
| 660 | N 308676016020 | SCREW |
| BEARING BRACKET AND PLATE TO FRAME | ||
| 663 | N 006798016100 | SERRATED WASHER |
| BEARING BRACKET AND PLATE TO FRAME | ||
| 666 | A 0009810831 | JOINT BEARING |
| BEARING BRACKET | ||
| 666 | A 0009810831 | JOINT BEARING |
| BEARING BRACKET | ||
| 666 | A 0009811231 | JOINT BEARING |
| BEARING BRACKET | ||
| 666 | A 0009811231 | JOINT BEARING |
| BEARING BRACKET | ||
| 669 | N 000472055000 | LOCK RING |
| TORSION BAR,REAR | ||
| 669 | N 000472055000 | LOCK RING |
| TORSION BAR,REAR | ||
| 672 | N 071412008302 | GREASE NIPPLE |
| TORSION BAR,REAR | ||
| 672 | N 071412008302 | GREASE NIPPLE |
| TORSION BAR,REAR | ||
| 675 | A 3523260416 | LINK |
| TORSION BAR TO BEARING BRACKET | ||
| 675 | A 3523260416 | LINK |
| TORSION BAR TO BEARING BRACKET | ||
| 675 | A 3853260016 | LINK |
| TORSION BAR TO BEARING BRACKET | ||
| 675 | A 3853260016 | LINK |
| TORSION BAR TO BEARING BRACKET | ||
| 678 | A 3523260153 | SPACER TUBE |
| TORSION BAR,REAR | ||
| 678 | A 3523260153 | SPACER TUBE |
| TORSION BAR,REAR | ||
| 681 | A 3603230560 | SEAL RING |
| TORSION BAR,REAR | ||
| 681 | A 3603230560 | SEAL RING |
| TORSION BAR,REAR | ||
| 684 | A 3523260274 | PIN |
| Repalced by: A 3605860332 | ||
| 684 | A 3605860332 | REPAIR KIT |
| Repalced by: A 3603200341 | ||
| 684 | A 3603200341 | REPAIR KIT |
| TORSION BAR,REAR | ||
| 684 | A 3603200341 | REPAIR KIT |
| TORSION BAR,REAR | ||
| 687 | N 070952035101 | LOCK PLATE |
| TORSION BAR,REAR | ||
| 690 | N 070852035000 | NUT |
| TORSION BAR,REAR | ||
| 693 | A 3604270253 | SPACER TUBE |
| TORSION BAR,REAR | ||
| 693 | A 3604270253 | SPACER TUBE |
| TORSION BAR,REAR | ||
| 696 | N 000960012224 | SCREW |
| Repalced by: N 000961012208 | ||
| 696 | N 000961012208 | SCREW |
| TORSION BAR,REAR | ||
| 699 | N 912004012100 | LOCK WASHER |
| TORSION BAR,REAR | ||
| 702 | N 000934012022 | NUT |
| TORSION BAR,REAR | ||
| A 0033264500 | SHOCK ABSORBER | |
| Repalced by: A 3853260100 | ||
| A 0023264600 | SHOCK ABSORBER | |
| Repalced by: A 3853260100 | ||
| A 0023264700 | SHOCK ABSORBER | |
| Repalced by: A 3853260100 | ||
| A 0023264800 | SHOCK ABSORBER | |
| Repalced by: A 3853260200 | ||
| A 0023264900 | SHOCK ABSORBER | |
| Repalced by: A 3853260200 | ||
| 705 | A 0003230785 | RUBBER MOUNTING |
| TO 002 326 46 00,002 326 47 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 003 326 92 00 | ||
| 705 | A 0003230785 | RUBBER MOUNTING |
| TO 002 326 46 00,002 326 47 00, | ||
| 705 | A 0003233044 | RUBBER BUFFER |
| Repalced by: A 0003233144 | ||
| 705 | A 0003233144 | RUBBER BUFFER |
| TO 003 326 45 00 | ||
| 708 | A 0003230553 | SPACER TUBE |
| 711 | A 3853260100 | SHOCK ABSORBER |
| (PARTS KIT),REAR AXLE | ||
| 711 | A 3853260200 | SHOCK ABSORBER |
| (PARTS KIT),REAR AXLE | ||
| 714 | A 3853100040 | CROSS MEMBER |
| Repalced by: A 3853100440 | ||
| 714 | A 3853100440 | CROSS MEMBER |
| REAR SHOCK ABSORBERS | ||
| 714 | A 3853100140 | CROSS MEMBER |
| REAR SHOCK ABSORBERS | ||
| 717 | A 3853120084 | SHIM |
| CROSS MEMBER TO FRAME | ||
| 720 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 720 | N 308676012026 | SCREW |
| CROSS MEMBER AND SHIM TO FRAME SIDE MEMBERS | ||
| M 12 X 35 | ||
| 723 | N 910113012002 | NUT |
| CROSS MEMBER AND SHIM TO FRAME SIDE MEMBERS | ||
| 726 | N 910005012080 | RIVET |
| CROSS MEMBER AND SHIM TO FRAME SIDE MEMBERS | ||
| 12X42 MM | ||
| 729 | A 3853260068 | RUBBER BUFFER |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 732 | A 3853230253 | SPACER TUBE |
| CROSS MEMBER TO FRAME | ||
| 735 | A 3543260067 | RETAINER |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 738 | A 3223230167 | RETAINER |
| Repalced by: A 3173260167 | ||
| 738 | A 3173260167 | RETAINER |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 741 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 741 | N 910113016002 | NUT |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 744 | A 3833260040 | BRACKET |
| LEFT SHOCK ABSORBER | ||
| 744 | A 3833260040 | BRACKET |
| LEFT SHOCK ABSORBER | ||
| 744 | A 3833260240 | BRACKET |
| TORSION BAR AND SHOCK ABSORBER,LEFT | ||
| 744 | A 3833260240 | BRACKET |
| TORSION BAR AND SHOCK ABSORBER,LEFT | ||
| 744 | A 3833260140 | BRACKET |
| RIGHT SHOCK ABSORBER | ||
| 744 | A 3833260140 | BRACKET |
| RIGHT SHOCK ABSORBER | ||
| 747 | A 3833260340 | BRACKET |
| TORSION BAR AND SHOCK ABSORBER,RIGHT | ||
| 747 | A 3833260340 | BRACKET |
| TORSION BAR AND SHOCK ABSORBER,RIGHT | ||
| 750 | N 000960014073 | SCREW |
| BRACKET TO SPRING SADDLE | ||
| M14X110 | ||
| 750 | N 000960014244 | SCREW |
| BRACKET TO SPRING SADDLE | ||
| M14X65 | ||
| 750 | N 000960014244 | SCREW |
| BRACKET TO SPRING SADDLE | ||
| M14X65 | ||
| 753 | N 912004014100 | LOCK WASHER |
| BRACKET TO SPRING SADDLE | ||
| 756 | A 3859900101 | SCREW |
| SHOCK ABSORBER TO BRACKET | ||
| 759 | N 913004020004 | NUT |
| Repalced by: N 913004020003 | ||
| 759 | N 913004020003 | NUT |
| SHOCK ABSORBER TO BRACKET | ||
| 759 | N 913004020003 | NUT |
| SHOCK ABSORBER TO BRACKET | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
