Transporto priemonė: 1417; VIN numerio dalis: 651016

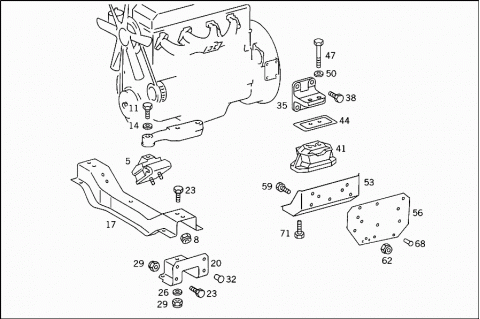

Grupė: 24 ENGINE SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6152400317 | RUBBER MOUNTING |
| FRONT | ||
| 008 | N 910113012002 | NUT |
| RUBBER MOUNTING TO BEARING BRACKET | ||
| 011 | N 000961016088 | SCREW |
| Repalced by: N 000961016097 | ||
| 011 | N 000961016097 | SCREW |
| Repalced by: N 308676016005 | ||
| 011 | N 308676016005 | SCREW |
| RUBBER MOUNTING TO ENGINE SUPPORTING ARM | ||
| 014 | A 3529902440 | WASHER |
| RUBBER MOUNTING TO ENGINE SUPPORTING ARM | ||
| 017 | A 3813120105 | ENGINE CROSS MEMBER |
| ENGINE FRONT SUSPENSION | ||
| 020 | A 3812410609 | ENGINE STAY |
| ENGINE FRONT SUSPENSION | ||
| 023 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 023 | N 308676012026 | SCREW |
| ENGINE FRONT CROSS MEMBER TO ENGINE STAY | ||
| 023 | N 308676012026 | SCREW |
| ENGINE STAY TO SIDE MEMBER | ||
| 026 | A 3859901040 | WASHER |
| ENGINE FRONT CROSS MEMBER TO ENGINE STAY | ||
| 029 | N 910113012002 | NUT |
| ENGINE FRONT CROSS MEMBER TO ENGINE STAY | ||
| 029 | N 910113012002 | NUT |
| ENGINE STAY TO SIDE MEMBER | ||
| 032 | N 910005012080 | RIVET |
| ENGINE STAY TO SIDE MEMBER | ||
| 035 | A 3812420305 | SUPPORTING ARM |
| REAR | ||
| 038 | A 0049907704 | SCREW |
| SUPPORTING ARM TO BELL HOUSING | ||
| M16X35 | ||
| 041 | A 6152400018 | RUBBER MOUNTING |
| REAR | ||
| 041 | A 6152400118 | RUBBER MOUNTING |
| REAR | ||
| 044 | A 3812420034 | SCREENING PLATE |
| REAR RUBBER MOUNTING | ||
| 047 | N 000961014101 | SCREW |
| Repalced by: N 308676014012 | ||
| 047 | N 308676014012 | SCREW |
| RUBBER MOUNTING TO SUPPORTING ARM | ||
| M 14X45 | ||
| 047 | N 000961014116 | SCREW |
| RUBBER MOUNTING TO SUPPORTING ARM | ||
| M 14X50 | ||
| 050 | A 3609901840 | WASHER |
| RUBBER MOUNTING TO SUPPORTING ARM | ||
| 053 | A 3812400106 | CONSOLE |
| ENGINE LEFT REAR MOUNTING | ||
| 053 | A 3812400206 | CONSOLE |
| ENGINE RIGHT REAR MOUNTING | ||
| 056 | A 6172420132 | REINFORCEMENT |
| CONSOLE TO SIDE MEMBER | ||
| 059 | N 000961012106 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 12X35 | ||
| 059 | N 308676012010 | HEXAGON HEAD BOLT |
| CONSOLE TO SIDE MEMBER | ||
| M12X1.5X40 | ||
| 062 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 062 | N 910113012003 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 068 | N 910005010016 | RIVET |
| REINFORCEMENT TO SIDE MEMBER | ||
| 068 | N 910005012080 | RIVET |
| REINFORCEMENT TO SIDE MEMBER | ||
| 071 | N 000961012164 | SCREW |
| RUBBER MOUNTING TO CONSOLE | ||
