Transporto priemonė: 1417 MBSA; VIN numerio dalis: 383017
Grupė: 42 BRAKE SYSTEM - 001 BRAKES
| # | Kodas | Pavadinimas |
|---|---|---|

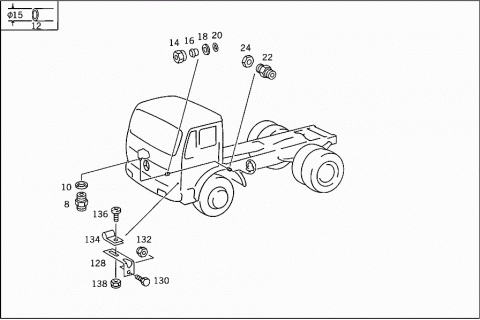

| 008 | N 074298022203 | DOUBLE FITTING |
| AIR COMPRESSOR,CONNECTION: | ||
| "2" | ||
| 009 | A 0009870446 | SEALING CORD |
| AIR COMPRESSOR,CONNECTION: | ||
| "2" | ||
| 011 | A 0004290227 | THRUST RING |
| AIR COMPRESSOR,CONNECTION: | ||
| "2" | ||
| 012 | A 0004291401 | LINE |
| 15 MM | ||
| 014 | N 915018015000 | UNION NUT |
| 016 | N 003861015004 | GLAND |
| 018 | N 915065015101 | THRUST RING |
| 020 | N 915045012100 | SEAL RING |
| 022 | N 003941015101 | FITTING |
| FITTING TO FRAME SIDE MEMBER | ||
| 024 | N 074305022202 | NUT |
| FITTING TO FRAME SIDE MEMBER | ||
| 026 | A 0004292101 | LINE |
| 12 MM | ||
| 028 | N 003870012014 | UNION NUT |
| 030 | N 003861012007 | GLAND |
| 031 | N 074317012300 | FITTING |
| 032 | A 0109975982 | HOSE |
| Repalced by: A 0009872827 | ||
| 032 | A 0009872827 | PLASTIC PIPE |
| 12 MM | ||
| 034 | A 0049971772 | FITTING |
| Repalced by: A 0029906171 | ||
| 034 | A 0029906171 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 036 | N 915017012100 | UNION NUT |
| 038 | N 003861012007 | GLAND |
| 040 | N 915062009000 | SLEEVE |
| 042 | N 915052009005 | BANJO UNION |
| Repalced by: N 915052009009 | ||
| 042 | N 915052009009 | BANJO UNION |
| 044 | N 074317012300 | FITTING |

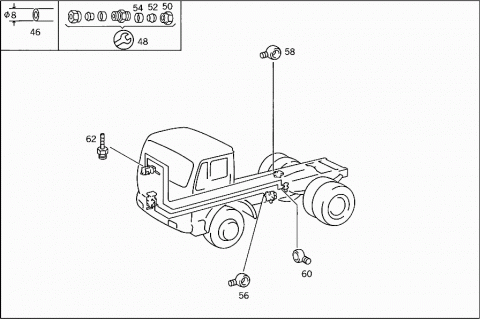

| 046 | A 0089979082 | HOSE |
| 8 MM | ||
| 048 | A 0039978972 | FITTING |
| Repalced by: A 0029905971 | ||
| 048 | A 0029905971 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 050 | N 915017008100 | UNION NUT |
| 052 | N 003861008005 | GLAND |
| 054 | N 915062006000 | SLEEVE |
| 056 | N 915052006021 | BANJO UNION |
| 058 | N 915052006014 | BANJO UNION |
| 062 | N 915059006002 | FITTING |
| FROM HAND BRAKE VALVE TO RELAY VALVE | ||
| 064 | A 0089976082 | HOSE |
| BLACK | ||
| 6X4 MM | ||

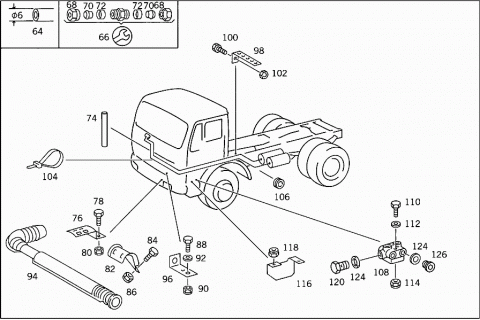

| 066 | A 0039979172 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 068 | N 915017006100 | UNION NUT |
| 070 | N 003861006007 | GLAND |
| 072 | N 915062004000 | SLEEVE |
| 074 | N 073379006203 | HOSE |
| FROM PRESSURE GAUGE TO OIL BATH AIR CLEANER | ||
| 6X10 MM | ||
| 076 | A 3874291140 | BRACKET |
| PRESSURE GAUGE LINE TO CAB | ||
| 078 | N 000933008147 | SCREW |
| PRESSURE GAUGE LINE TO CAB | ||
| 080 | N 913004008004 | NUT |
| PRESSURE GAUGE LINE TO CAB | ||
| 082 | A 3874292640 | BRACKET |
| BUMPER,RIGHT | ||
| 084 | N 000933008145 | SCREW |
| BRACKET TO BUMPER STRUT | ||
| 086 | N 913004008004 | NUT |
| BRACKET TO BUMPER STRUT | ||
| 088 | N 000933008153 | SCREW |
| PLASTIC LINE TO FRONT CROSS MEMBER | ||
| 090 | N 913004008004 | NUT |
| PLASTIC LINE TO FRONT CROSS MEMBER | ||
| 092 | N 000125008418 | WASHER |
| PLASTIC LINE TO FRONT CROSS MEMBER | ||
| 094 | A 0004290286 | PROTECTIVE TUBE |
| PLASTIC LINE TO FRONT CROSS MEMBER | ||
| 096 | A 3274925419 | BRACKET |
| Repalced by: A 6205240340 | ||
| 096 | A 6205240340 | BRACKET |
| PLASTIC LINE TO FRONT CROSS MEMBER | ||
| 098 | A 3604292940 | BRACKET |
| PLASTIC LINES TO FRAME | ||
| 100 | N 000933008147 | SCREW |
| PLASTIC LINES TO FRAME | ||
| 102 | N 913004008004 | NUT |
| PLASTIC LINES TO FRAME | ||
| 108 | A 0004294037 | DISTRIBUTOR |
| SECONDARY CONSUMING UNITS | ||
| 110 | N 000931006136 | SCREW |
| DISTRIBUTOR TO CAB | ||
| 112 | N 000125006421 | WASHER |
| DISTRIBUTOR TO CAB | ||
| 114 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 114 | N 913004006001 | NUT |
| DISTRIBUTOR TO CAB | ||
| 116 | A 6204295240 | BRACKET |
| AT CAB FLOOR | ||
| 118 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 118 | N 913004006001 | NUT |
| AT CAB FLOOR | ||
| 120 | N 915047008202 | HOLLOW SCREW |
| DISTRIBUTOR,CONNECTION: | ||
| "1" | ||
| 124 | N 007603012405 | SEAL RING |
| AT DISTRIBUTOR | ||
| 126 | N 000908012003 | SCREW PLUG |
| AT DISTRIBUTOR | ||
| 128 | A 3854290540 | BRACKET |
| AIR COMPRESSOR LINE | ||
| 130 | N 000933008153 | SCREW |
| BRACKET TO FRAME SIDE MEMBER | ||
| 132 | N 913004008004 | NUT |
| BRACKET TO FRAME SIDE MEMBER | ||
| A 3609952001 | CLAMP | |
| Repalced by: A 6739950001 | ||
| A 6739950001 | CLAMP | |
| AIR-COMPRESSOR-TO-PRESSURE-REGULATOR LINE | ||
| 136 | N 000000001147 | SCREW |
| AIR COMPRESSOR LINE | ||
| M 6X20 | ||
| 138 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 138 | N 913004006001 | NUT |
| AIR COMPRESSOR LINE | ||

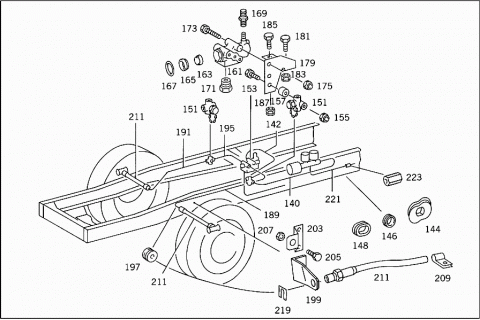

| 140 | A 3404204029 | LINE |
| FROM MASTER CYLINDER TO FRONT AXLE TEST CONNECTION | ||
| 2600 MM | ||
| 142 | A 3404200529 | LINE |
| FROM TEST CONNECTION TO VALVE | ||
| 400 MM | ||
| 144 | A 3879970181 | GROMMET |
| BRAKE LINE | ||
| 146 | A 0039973481 | GROMMET |
| BRAKE LINE | ||
| 148 | A 3859970381 | GROMMET |
| BRAKE LINE | ||
| 151 | A 0004311231 | TEST CONNECTION |
| FRONT AXLE BRAKE CIRCUIT I | ||
| 151 | A 0004316631 | TEST CONNECTION |
| FRONT AXLE BRAKE CIRCUIT I | ||
| 153 | N 000931008246 | SCREW |
| TEST CONNECTION TO BRACKET | ||
| 155 | N 913004008004 | NUT |
| TEST CONNECTION TO BRACKET | ||
| 157 | A 1801550053 | SPACER TUBE |
| TEST CONNECTION TO BRACKET | ||
| 161 | A 0004314513 | VALVE |
| (PRESSURE RATIO VALVE) | ||
| BOSCH | ||
| 161 | A 0004314613 | VALVE |
| (PRESSURE RATIO VALVE) | ||
| WABCO | ||
| 163 | A 0019970341 | SEAL RING |
| TO 000 431 46 13,WABCO | ||
| 165 | A 0019970441 | SEAL RING |
| TO 000 431 46 13,WABCO | ||
| A 0209975948 | SEAL RING | |
| TO 000 431 46 13,WABCO | ||
| 167 | A 0069974548 | SEAL RING |
| Repalced by: A 0019975945 | ||
| 167 | A 0019975945 | SEAL RING |
| TO 000 431 46 13,WABCO | ||
| 169 | A 0000600178 | VALVE |
| Repalced by: A 3075530107 | ||
| 169 | A 3075530107 | VALVE |
| TO 000 431 46 13,WABCO | ||
| 171 | A 0004280032 | SCREW PLUG |
| AT VALVE | ||
| 173 | N 000931008251 | SCREW |
| REGULATING VALVE TO BRACKET | ||
| 175 | N 913004008004 | NUT |
| REGULATING VALVE TO BRACKET | ||
| 179 | A 3854315540 | BRACKET |
| (REGULATING VALVE) | ||
| 181 | N 000933008153 | SCREW |
| VALVE TO CROSS MEMBER | ||
| 183 | N 913004008004 | NUT |
| VALVE TO CROSS MEMBER | ||
| 185 | N 000933010105 | SCREW |
| VALVE TO CROSS MEMBER | ||
| 187 | N 913004010008 | NUT |
| VALVE TO CROSS MEMBER | ||
| 189 | A 3404202929 | LINE |
| FROM VALVE TO LEFT FRONT WHEEL | ||
| 1600 MM | ||
| 191 | A 3404204129 | LINE |
| FROM TEST CONNECTION TO RIGHT FRONT WHEEL BRAKE HOSE | ||
| 2800 MM | ||
| 191 | A 3404203129 | LINE |
| FROM TEST CONNECTION TO RIGHT FRONT WHEEL BRAKE HOSE | ||
| 1700 MM | ||
| 195 | A 3404200729 | LINE |
| FROM VALVE TO TEST CONNECTION | ||
| 500 MM | ||
| 197 | A 3859970081 | GROMMET |
| BRAKE LINE | ||
| 199 | A 3854280240 | BRACKET |
| LEFT FRONT BRAKE HOSE | ||
| 199 | A 3854280340 | BRACKET |
| RIGHT FRONT BRAKE HOSE | ||
| 203 | A 3854280140 | BRACKET |
| BRAKE HOSE,FRONT | ||
| 205 | N 000933008147 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 207 | N 913004008004 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 209 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 209 | N 916016008200 | CLAMP |
| BRAKE LINE MOUNTING | ||
| 211 | A 0004288935 | BRAKE HOSE |
| FRONT | ||
| 650 MM | ||
| 211 | A 0014284835 | BRAKE HOSE |
| FRONT | ||
| 650 MM | ||
| 211 | A 0024280135 | BRAKE HOSE |
| FRONT | ||
| 700 MM | ||
| 211 | A 0024280235 | BRAKE HOSE |
| FRONT | ||
| 700 MM | ||
| 219 | A 0004280473 | BRACKET |
| Repalced by: A 6525040038 | ||
| 219 | A 6525040038 | MOUNTING PLATE |
| BRAKE HOSE,FRONT | ||

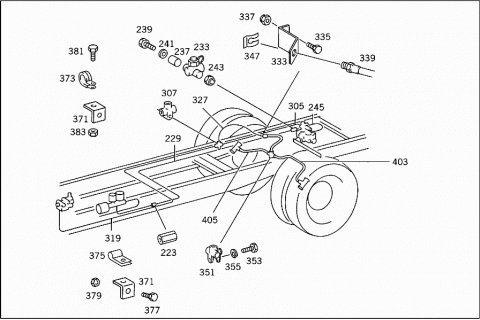

| 221 | A 3404201129 | LINE |
| FROM MASTER CYLINDER TO CONNECTOR | ||
| 700 MM | ||
| 223 | A 0004292736 | CONNECTOR |

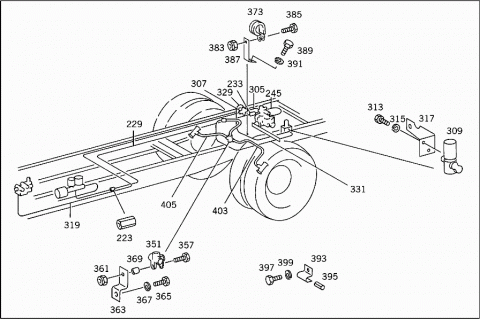

| 229 | A 3404204329 | LINE |
| FROM CONNECTOR TO TEST CONNECTION | ||
| 3200 MM | ||
| 229 | A 3404204529 | LINE |
| FROM CONNECTOR TO TEST CONNECTION | ||
| 3600 MM | ||
| 229 | A 3404205129 | LINE |
| FROM CONNECTOR TO TEST CONNECTION | ||
| 4800 MM | ||
| 229 | A 3404205329 | LINE |
| FROM CONNECTOR TO TEST CONNECTION | ||
| 5200 MM | ||
| 233 | A 0004311231 | TEST CONNECTION |
| REAR AXLE BRAKE CIRCUIT | ||
| 233 | A 0004316631 | TEST CONNECTION |
| REAR AXLE BRAKE CIRCUIT | ||
| 237 | A 1801550053 | SPACER TUBE |
| TEST CONNECTION TO SIDE MEMBER | ||
| 239 | N 000931008322 | SCREW |
| TEST CONNECTION TO SIDE MEMBER | ||
| 8X80 MM | ||
| 241 | N 000125008418 | WASHER |
| TEST CONNECTION TO SIDE MEMBER | ||
| 243 | N 913004008004 | NUT |
| TEST CONNECTION TO SIDE MEMBER | ||
| 245 | A 3404201729 | LINE |
| FROM TEST CONNECTION TO BRAKE POWER REGULATOR,CONNECTION "1" | ||
| 1000 MM | ||
| 247 | A 3834300039 | SUPPORT |
| BRAKE POWER REGULATOR | ||
| 249 | N 000961012097 | SCREW |
| BRACKET TO RIGHT SIDE MEMBER | ||
| 251 | N 913004012008 | NUT |
| BRACKET TO RIGHT SIDE MEMBER | ||

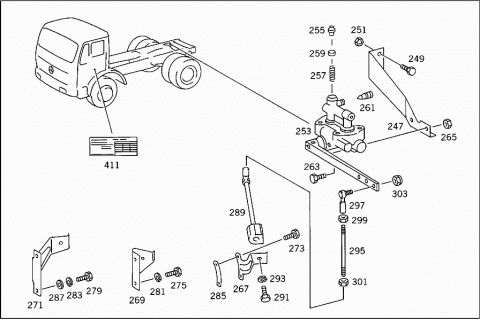

| 253 | A 0004317512 | BRAKE PRESSURE REGULATOR |
| A 0004312439 | LEVER | |
| TOOTHED | ||
| 255 | A 0004311068 | VALVE PART |
| 257 | A 0014315793 | SPRING |
| 259 | N 007603018101 | SEAL RING |
| 261 | A 3075530107 | VALVE |
| 263 | N 000931010258 | SCREW |
| BRAKE POWER REGULATOR TO SUPPORT | ||
| 265 | N 913004010008 | NUT |
| BRAKE POWER REGULATOR TO SUPPORT | ||
| 267 | A 3834311440 | BRACKET |
| METAL SPRING BELLOWS | ||
| 269 | A 3834310440 | BRACKET |
| METAL SPRING BELLOWS | ||
| 271 | A 3854317840 | BRACKET |
| METAL SPRING BELLOWS | ||
| 273 | N 000933010157 | SCREW |
| BRACKET TO REAR AXLE HOUSING | ||
| M 10X28 | ||
| 275 | N 000933010128 | SCREW |
| BRACKET TO REAR AXLE HOUSING | ||
| 279 | N 000961012151 | SCREW |
| BRACKET TO REAR AXLE HOUSING | ||
| M 12X1,5X30 | ||
| 281 | N 912004010102 | LOCK WASHER |
| BRACKET TO REAR AXLE HOUSING | ||
| 283 | N 912004012100 | LOCK WASHER |
| BRACKET TO REAR AXLE HOUSING | ||
| 285 | A 3554310384 | SHIM |
| BRACKET TO REAR AXLE HOUSING | ||
| 287 | A 3859901940 | WASHER |
| BRACKET TO REAR AXLE HOUSING | ||
| 289 | A 0004311718 | METAL SPRING BELLOWS |
| 291 | N 000961012056 | SCREW |
| METAL SPRING BELLOWS TO BRACKET | ||
| 293 | N 912004012100 | LOCK WASHER |
| METAL SPRING BELLOWS TO BRACKET | ||
| 295 | N 900331008427 | PULL ROD |
| L.H. AND R.H. THREAD | ||
| 400 MM | ||
| 297 | A 0004310867 | YOKE |
| L.H. THREAD | ||
| 299 | N 000934008010 | NUT |
| R.H. THREAD | ||
| 301 | N 000934008035 | NUT |
| L.H. THREAD | ||
| 303 | N 913004008004 | NUT |
| PULL ROD TO BRACKET AND TO BRAKEPRESSURE-REGULATOR LEVER | ||
| 305 | A 3404201229 | LINE |
| FROM BRAKE POWER REGULATOR TO DISTRIBUTOR | ||
| 750 MM | ||
| 307 | A 0004290437 | DISTRIBUTOR |
| REAR AXLE | ||
| 309 | A 0014311612 | BRAKE PRESSURE REGULATOR |
| 309 | A 0014311712 | BRAKE PRESSURE REGULATOR |
| 313 | N 000933008212 | SCREW |
| BRAKE POWER REGULATOR TO BRACKET | ||
| 315 | N 912004008102 | LOCK WASHER |
| BRAKE POWER REGULATOR TO BRACKET | ||
| 317 | A 3804310340 | BRACKET |
| BRACKET TO REAR AXLE | ||
| 319 | A 3404204329 | LINE |
| FROM DISTRIBUTOR TO VALVE | ||
| 3200 MM | ||
| 319 | A 3404204529 | LINE |
| FROM DISTRIBUTOR TO VALVE | ||
| 3600 MM | ||
| 319 | A 3404205129 | LINE |
| FROM DISTRIBUTOR TO VALVE | ||
| 4800 MM | ||
| 319 | A 3404205329 | LINE |
| FROM DISTRIBUTOR TO VALVE | ||
| 5200 MM | ||
| 327 | A 3404201929 | LINE |
| FROM DISTRIBUTOR TO BRAKE HOSE ON REAR AXLE | ||
| 1100 MM | ||
| 329 | A 3404200929 | LINE |
| FROM DISTRIBUTOR TO BRAKE POWER REGULATOR | ||
| 600 MM | ||
| 331 | A 3404202229 | LINE |
| FROM BRAKE POWER REGULATOR TO REAR BRAKE HOSE | ||
| 1250 MM | ||
| 333 | A 3224280140 | BRACKET |
| BRAKE HOSE,REAR | ||
| 335 | N 000933008147 | SCREW |
| BRACKET TO RIGHT SIDE MEMBER | ||
| 337 | N 913004008004 | NUT |
| BRACKET TO RIGHT SIDE MEMBER | ||
| 339 | A 0024280735 | BRAKE HOSE |
| REAR | ||
| 600 MM | ||
| 339 | A 0024280535 | BRAKE HOSE |
| REAR | ||
| 500 MM | ||
| 339 | A 0014285535 | BRAKE HOSE |
| REAR | ||
| 500 MM | ||
| 339 | A 0024280935 | BRAKE HOSE |
| REAR | ||
| 700 MM | ||
| 347 | A 0004280473 | BRACKET |
| Repalced by: A 6525040038 | ||
| 347 | A 6525040038 | MOUNTING PLATE |
| BRAKE HOSE,REAR | ||
| 351 | A 0004316531 | TEST CONNECTION |
| AT REAR AXLE | ||
| 351 | A 0004312231 | TEST CONNECTION |
| AT REAR AXLE | ||
| 353 | N 000933008147 | SCREW |
| TEST CONNECTION TO REAR AXLE | ||
| M 8X20 | ||
| 355 | N 912004008102 | LOCK WASHER |
| TEST CONNECTION TO REAR AXLE | ||
| 357 | N 000933008153 | SCREW |
| TEST CONNECTION TO BRACKET | ||
| M 8X25 | ||
| 357 | N 000933008150 | SCREW |
| TEST CONNECTION TO BRACKET | ||
| M 8X35 | ||
| 361 | N 913004008004 | NUT |
| TEST CONNECTION TO BRACKET | ||
| 363 | A 3814312140 | BRACKET |
| TEST CONNECTION | ||
| 365 | N 000961012034 | SCREW |
| BRACKET TO AXLE HOUSING | ||
| 367 | N 912004012100 | LOCK WASHER |
| BRACKET TO AXLE HOUSING | ||
| 369 | A 3382930053 | SPACER TUBE |
| 371 | A 3604280243 | ANGLE |
| BRAKE LINE MOUNTING | ||
| 373 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 373 | N 916016008200 | CLAMP |
| BRAKE LINE MOUNTING | ||
| 375 | A 3609950601 | CLAMP |
| BRAKE LINE MOUNTING | ||
| 377 | N 000933008153 | SCREW |
| MOUNTING CLAMP TO ANGLE | ||
| M 8X25 | ||
| 379 | N 913004008004 | NUT |
| MOUNTING CLAMP TO ANGLE | ||
| 381 | N 000933006121 | SCREW |
| BRAKE LINE MOUNTING | ||
| M 6X20 | ||
| 383 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 383 | N 913004006001 | NUT |
| BRAKE LINE MOUNTING | ||
| 385 | N 000933006127 | SCREW |
| BRAKE LINE TO REAR AXLE | ||
| M 6X25 | ||
| 387 | A 3854294040 | BRACKET |
| Repalced by: A 3812711640 | ||
| 387 | A 3812711640 | BRACKET |
| BRAKE LINE TO REAR AXLE | ||
| 389 | N 000933008212 | SCREW |
| BRAKE LINE TO REAR AXLE | ||
| M 8X16 | ||
| 391 | N 912004008102 | LOCK WASHER |
| BRAKE LINE TO REAR AXLE | ||
| 393 | A 3129951020 | CLAMP |
| 395 | A 3129973482 | HOSE |
| LINE TO AXLE HOUSING | ||
| 397 | N 000933008212 | SCREW |
| BRAKE LINE TO REAR AXLE | ||
| 399 | N 912004008103 | LOCK WASHER |
| BRAKE LINE TO REAR AXLE | ||
| 403 | A 3404202429 | LINE |
| FROM TEST CONNECTION TO LEFT WHEEL CYLINDER | ||
| 1350 MM | ||
| 403 | A 3404202329 | LINE |
| FROM TEST CONNECTION TO LEFT WHEEL CYLINDER | ||
| 1300 MM | ||
| 405 | A 3404201029 | LINE |
| FROM TEST CONNECTION TO RIGHT WHEEL CYLINDER | ||
| 650 MM | ||
| 405 | A 3404201229 | LINE |
| FROM TEST CONNECTION TO RIGHT WHEEL CYLINDER | ||
| 750 MM | ||
| 405 | A 3404201129 | LINE |
| FROM TEST CONNECTION TO RIGHT WHEEL CYLINDER | ||
| 700 MM | ||
| 411 | A 3835840821 | GUIDE SIGN |
| LOAD-DEPENDING BRAKE | ||
| 411 | A 3835843621 | GUIDE SIGN |
| LOAD-DEPENDING BRAKE | ||
| A 3875840055 | ADHESIVE FOIL | |

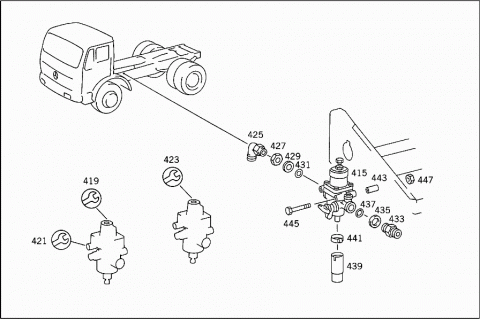

| 415 | A 0024314906 | PRESSURE REGULATOR |
| WABCO | ||
| 415 | A 0024314306 | PRESSURE REGULATOR |
| BOSCH | ||
| 415 | A 0024318306 | PRESSURE REGULATOR |
| KNORR | ||
| 419 | A 0004301768 | REPAIR KIT |
| DIAPHRAGM | ||
| TO 002 431 43 06BOSCH 0 481 039 201 | ||
| 421 | A 0004307960 | REPAIR KIT |
| TIRE INFLATING CONNECTION | ||
| TO 002 431 43 06BOSCH 0 481 039 201 | ||
| 423 | A 0014304960 | REPAIR KIT |
| TO 002 431 49 06,WABCO 975 303 460 0 | ||
| A 0004300407 | REPAIR KIT | |
| TO 002 431 83 06,KNORR 903 09 | ||
| 425 | A 0009905871 | ELBOW FITTING |
| PRESSURE REGULATOR,CONNECTION "1" | ||
| 427 | N 074305022202 | NUT |
| PRESSURE REGULATOR,CONNECTION "1" | ||
| 429 | A 0004290227 | THRUST RING |
| PRESSURE REGULATOR,CONNECTION "1" | ||
| 431 | A 0009870446 | SEALING CORD |
| PRESSURE REGULATOR,CONNECTION "1" | ||
| 433 | A 0019972172 | FITTING |
| PRESSURE REGULATOR,CONNECTION "2.1" | ||
| 435 | A 0004290227 | THRUST RING |
| PRESSURE REGULATOR,CONNECTION "2.1" | ||
| 437 | A 0009870446 | SEALING CORD |
| PRESSURE REGULATOR,CONNECTION "2.1" | ||
| 439 | A 0159975082 | HOSE |
| PRESSURE REGULATOR,CONNECTION "3" | ||
| 441 | N 916026020001 | CLAMP |
| PRESSURE REGULATOR,CONNECTION "3" | ||
| 443 | A 3809910040 | SPACER TUBE |
| PRESSURE REGULATOR TO BATTERY SUPPORT | ||
| 445 | N 000931008209 | SCREW |
| PRESSURE REGULATOR TO BATTERY SUPPORT | ||
| 447 | N 913004008004 | NUT |
| PRESSURE REGULATOR TO BATTERY SUPPORT | ||

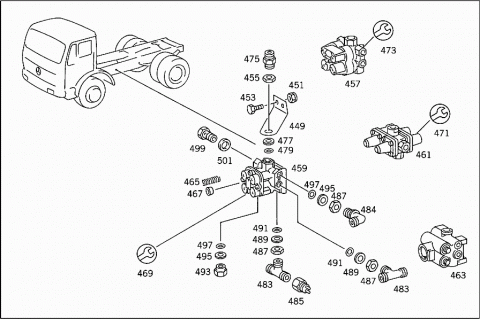

| 449 | A 3854313440 | BRACKET |
| FOUR-CIRCUIT PROTECTIVE VALVE | ||
| 451 | N 913004008004 | NUT |
| BRACKET TO BATTERY/APPARATUS SUPPORT | ||
| 453 | N 000933008147 | SCREW |
| BRACKET TO BATTERY/APPARATUS SUPPORT | ||
| 455 | N 074305022202 | NUT |
| VALVE TO BRACKET | ||
| 457 | A 0014318406 | VALVE |
| FOUR-CIRCUIT PROTECTIVE VALVE | ||
| KNORR | ||
| 459 | A 0024310406 | VALVE |
| FOUR-CIRCUIT PROTECTIVE VALVE | ||
| BOSCH | ||
| 461 | A 0014314706 | VALVE |
| FOUR-CIRCUIT PROTECTIVE VALVE | ||
| WABCO | ||
| 463 | A 0024312906 | VALVE |
| Repalced by: A 0024319306 | ||
| 463 | A 0024319306 | VALVE |
| FOUR-CIRCUIT PROTECTIVE VALVE | ||
| GRAU | ||
| 465 | A 0009935205 | SPRING |
| TO 002 431 04 06,BOSCH | ||
| 467 | A 0014310986 | CUP |
| TO 002 431 04 06,BOSCH | ||
| 469 | A 0004302906 | GASKET KIT |
| BOOT | ||
| TO 002 431 04 06,BOSCH | ||
| 471 | A 0004300468 | REPAIR KIT |
| TO 001 431 47 06,WABCO | ||
| 473 | A 0004303160 | REPAIR KIT |
| TO 001 431 84 06,KNORR | ||
| 475 | A 0019972372 | FITTING |
| FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1" | ||
| 477 | A 0004290227 | THRUST RING |
| FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1" | ||
| 479 | A 0009870446 | SEALING CORD |
| FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1" | ||
| 481 | N 074315012100 | FITTING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS "2.1,2.2" | ||
| 483 | A 0009904770 | T-FITTING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS "1.1,1.2,2.3" | ||
| 485 | A 0005455414 | SWITCH |
| AT FOUR-CIRCUIT PROTECTIVE VALVE | ||
| 487 | N 080705016003 | NUT |
| FOUR-CIRCUIT PROTECTIVE VALVE | ||
| 489 | A 0004290927 | THRUST RING |
| FOUR-CIRCUIT PROTECTIVE VALVE | ||
| 491 | A 0009971548 | SEAL RING |
| FOUR-CIRCUIT PROTECTIVE VALVE | ||
| 493 | A 0019905268 | FITTING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.4" | ||
| 495 | A 0004290927 | THRUST RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.4" | ||
| 497 | A 0009971548 | SEAL RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.4" | ||
| 499 | N 915036008202 | HOLLOW SCREW |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.4" | ||
| 501 | N 007603012405 | SEAL RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.4" | ||

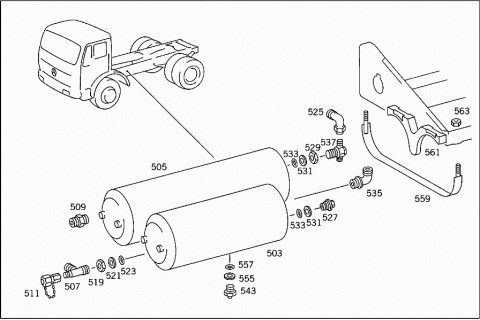

| 503 | A 0004322601 | RESERVOIR |
| Repalced by: A 0034321801 | ||
| 503 | A 0034321801 | RESERVOIR |
| 30 L | ||
| 505 | A 0004325301 | RESERVOIR |
| 30/10 L. | ||
| 507 | A 0009903970 | T-FITTING |
| Repalced by: A 0019901070 | ||
| 507 | A 0019901070 | T-FITTING |
| INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION | ||
| 509 | A 0019979572 | FITTING |
| INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION | ||
| 511 | A 0004312031 | TEST CONNECTION |
| INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION | ||
| 511 | A 0004314531 | TEST CONNECTION |
| INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION | ||
| 511 | A 0004314831 | TEST CONNECTION |
| INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION | ||
| 511 | A 0004316131 | TEST CONNECTION |
| INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION | ||
| A 0009979486 | PLUG | |
| 519 | N 074305022202 | NUT |
| INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION | ||
| 521 | A 0004290227 | THRUST RING |
| INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION | ||
| 523 | A 0009870446 | SEALING CORD |
| INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION | ||
| 525 | A 0009907771 | ELBOW FITTING |
| INSIDE AIR RESERVOIR, REAR CONNECTION | ||
| 527 | N 000908022001 | SCREW PLUG |
| OUTSIDE AIR RESERVOIR,REAR CONNECTION | ||
| 529 | N 074305022202 | NUT |
| INSIDE AIR RESERVOIR, REAR CONNECTION | ||
| 531 | A 0004290227 | THRUST RING |
| INSIDE AIR RESERVOIR, REAR CONNECTION | ||
| 533 | A 0009870446 | SEALING CORD |
| INSIDE & OUTSIDE AIR RESERVOIRS | ||
| 535 | A 0019902171 | ELBOW FITTING |
| INSIDE AIR RESERVOIR, REAR CONNECTION | ||
| 537 | A 0024295844 | VALVE |
| CHECK VALVE | ||
| 537 | A 0024295944 | VALVE |
| CHECK VALVE | ||
| 537 | A 0024297544 | VALVE |
| CHECK VALVE | ||
| 543 | A 0004321107 | VALVE |
| DRAIN | ||
| 543 | A 0004322107 | VALVE |
| DRAIN | ||
| 543 | A 0004322407 | VALVE |
| BREATHER LINE TO COWL | ||
| 555 | A 0004290227 | THRUST RING |
| AIR RESERVOIR,BOTTOM CONNECTION | ||
| 557 | A 0009870446 | SEALING CORD |
| AIR RESERVOIR,BOTTOM CONNECTION | ||
| 559 | A 3854300140 | STRAP |
| 561 | A 3854320218 | BASE |
| 563 | N 000934010014 | NUT |

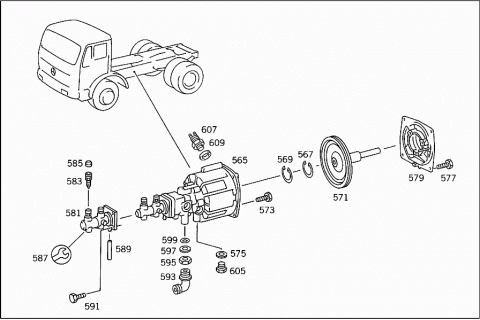

| 565 | A 0014317314 | BRAKE CYLINDER |
| 567 | N 000472036000 | LOCK RING |
| TO 001 431 73 14 | ||
| 569 | N 000472017000 | LOCK RING |
| TO 001 431 73 14 | ||
| 571 | A 0004317183 | PISTON |
| TO 001 431 73 14 | ||
| 573 | N 000933008152 | SCREW |
| TO 001 431 73 14 | ||
| 575 | N 007603010103 | SEAL RING |
| TO 001 431 73 14 | ||
| 577 | N 000933010094 | SCREW |
| TO 001 431 73 14 | ||
| 579 | A 0004311322 | COVER |
| TO 001 431 73 14 | ||
| 581 | A 0044206818 | WHEEL BRAKE CYLINDER |
| SLAVE CYLINDER | ||
| SCHAEFER | ||
| 583 | A 3075530107 | VALVE |
| 585 | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 0004217187 | ||
| 585 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 585 | A 0004210887 | PROTECTIVE CAP |
| 587 | A 0025860942 | REPAIR KIT |
| SLAVE CYLINDER | ||
| TO 004 420 68 18 | ||
| 589 | A 0089979082 | HOSE |
| SLAVE CYLINDER BREATHING | ||
| 500 MM | ||
| 591 | N 000933010094 | SCREW |
| BRAKE BOOSTER ASSEMBLY TO APPARATUS SUPPORT | ||
| 593 | N 074315012100 | FITTING |
| BRAKE CYLINDER,CONNECTIONS "1.1,1.2" | ||
| 595 | N 080705016003 | NUT |
| BRAKE CYLINDER,CONNECTIONS "1.1,1.2" | ||
| 597 | A 0004290927 | THRUST RING |
| BRAKE CYLINDER,CONNECTIONS "1.1,1.2" | ||
| 597 | A 0004290927 | THRUST RING |
| BRAKE CYLINDER,CONNECTIONS "2.1,2.2" | ||
| 599 | A 0009971548 | SEAL RING |
| BRAKE CYLINDER,CONNECTIONS "1.1,1.2" | ||
| 599 | A 0009971548 | SEAL RING |
| BRAKE CYLINDER,CONNECTIONS "2.1,2.2" | ||
| 605 | N 000908016001 | SCREW PLUG |
| BRAKE CYLINDER,CONNECTIONS "2.1,2.2" | ||
| 607 | A 0005455214 | SWITCH |
| BRAKE CYLINDER STROKE INDICATOR | ||
| M 24 X 1 MM | ||
| 609 | N 007603010103 | SEAL RING |
| BRAKE CYLINDER STROKE INDICATOR | ||

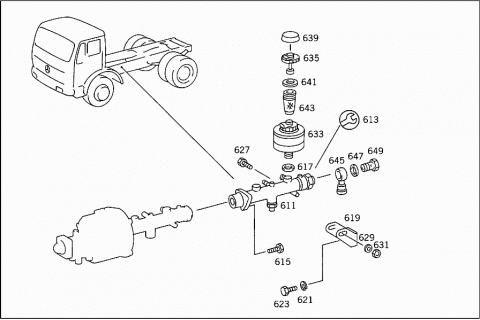

| 611 | A 0034300801 | BRAKE MASTER CYLINDER |
| 613 | A 0014300160 | REPAIR KIT |
| 615 | N 000933010129 | SCREW |
| MASTER CYLINDER TO BRAKE BOOSTER | ||
| 617 | N 007603022102 | SEAL RING |
| RESERVOIR | ||
| 619 | A 3854300110 | BRACKET |
| BRAKE MASTER CYLINDER | ||
| 621 | N 912004010102 | LOCK WASHER |
| BRACKET TO APPARATUS SUPPORT | ||
| 623 | N 000933010128 | SCREW |
| BRACKET TO APPARATUS SUPPORT | ||
| 623 | N 000933010105 | SCREW |
| BRACKET TO APPARATUS SUPPORT | ||
| 627 | N 000931008278 | SCREW |
| BRAKE MASTER CYLINDER TO BRACKET | ||
| 629 | N 000125008418 | WASHER |
| BRAKE MASTER CYLINDER TO BRACKET | ||
| 631 | N 913004008004 | NUT |
| BRAKE MASTER CYLINDER TO BRACKET | ||
| 633 | A 0004318702 | RESERVOIR |
| EXPANSION TANK | ||
| 635 | A 0004315533 | FILLER CAP |
| 639 | A 0014310287 | PROTECTIVE CAP |
| 641 | A 0039976440 | SEAL RING |
| 42X21.5 MM | ||
| 643 | A 0004312634 | STRAINER |
| 645 | A 0004280830 | CONNECTOR |
| MASTER CYLINDER,CONNECTION "2.1" | ||
| 647 | N 007603014405 | SEAL RING |
| MASTER CYLINDER,CONNECTION "2.1" | ||
| 649 | A 0004280026 | HOLLOW SCREW |
| MASTER CYLINDER,CONNECTION "2.1" | ||

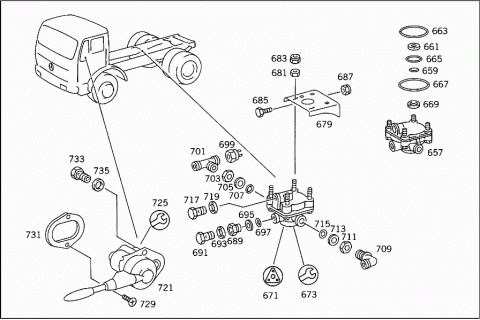

| 651 | A 0034291644 | VALVE |
| RELAY VALVE | ||
| BOSCH | ||
| 651 | A 0014296844 | VALVE |
| RELAY VALVE | ||
| WABCO | ||
| 651 | A 0034295344 | VALVE |
| RELAY VALVE | ||
| KNORR | ||
| 657 | A 0014299144 | VALVE |
| RELAY VALVE | ||
| GRAU | ||
| 659 | A 0059972648 | SEAL RING |
| 22.3X2.4 MM,TO 001 429 91 44,GRAU | ||
| 661 | A 0004312788 | VALVE SEAT |
| TO 001 429 91 44,GRAU | ||
| 663 | A 0059972748 | SEAL RING |
| TO 000 429 28 95,GRAU | ||
| 665 | A 0014311660 | SEAL RING |
| 28X2 MM,TO 001 429 91 44,GRAU | ||
| 667 | A 0014311760 | SEAL RING |
| 86X2 MM,TO 001 429 91 44,GRAU | ||
| 669 | A 0004311980 | GASKET |
| 34X2X6 MM,TO 001 429 91 44,GRAU | ||
| 671 | A 0025865642 | REPAIR KIT |
| Repalced by: A 0004201071 | ||
| 671 | A 0004201071 | VALVE |
| GASKET KIT | ||
| TO 003 429 16 44,BOSCH;UP TO 03.82 | ||
| 671 | A 0004201271 | VALVE |
| GASKET KIT | ||
| TO 003 429 16 44,BOSCH; FROM 04.82 | ||
| 673 | A 0025865742 | REPAIR KIT |
| Repalced by: A 0004301109 | ||
| 673 | A 0004301109 | REPAIR KIT |
| BLEEDER VALVE | ||
| TO 003 429 16 44,BOSCH | ||
| 673 | A 0005865742 | REPAIR KIT |
| TO 001 429 68 44,WABCO | ||
| 673 | A 0025863542 | REPAIR KIT |
| TO 003 429 53 44,KNORR | ||
| 679 | A 3554320140 | BRACKET |
| RELAY VALVE | ||
| 681 | N 000125008418 | WASHER |
| RELAY VALVE TO BRACKET | ||
| 683 | N 913004008004 | NUT |
| RELAY VALVE TO BRACKET | ||
| 685 | N 000933010128 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 687 | N 913004010008 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 689 | A 0009905168 | FITTING |
| RELAY VALVE,CONNECTION "1" | ||
| 691 | N 915036012203 | HOLLOW SCREW |
| RELAY VALVE,CONNECTION "1" | ||
| 693 | N 007603016401 | SEAL RING |
| RELAY VALVE,CONNECTION "1" | ||
| 695 | A 0004290227 | THRUST RING |
| RELAY VALVE,CONNECTION "1" | ||
| 697 | A 0009870446 | SEALING CORD |
| RELAY VALVE,CONNECTION "1" | ||
| 699 | A 0005455414 | SWITCH |
| RELAY VALVE,CONNECTION "2",RIGHT | ||
| 701 | A 0009904770 | T-FITTING |
| RELAY VALVE,CONNECTION "2",RIGHT | ||
| 703 | N 080705016003 | NUT |
| RELAY VALVE,CONNECTION "2",RIGHT | ||
| 705 | A 0004290927 | THRUST RING |
| RELAY VALVE,CONNECTION "2",RIGHT | ||
| 707 | A 0009971548 | SEAL RING |
| RELAY VALVE,CONNECTION "2",RIGHT | ||
| 709 | N 074315012100 | FITTING |
| RELAY VALVE,CONNECTION "2",LEFT | ||
| 711 | N 080705016003 | NUT |
| RELAY VALVE,CONNECTION "2",LEFT | ||
| 713 | A 0004290927 | THRUST RING |
| RELAY VALVE,CONNECTION "2",LEFT | ||
| 715 | A 0009971548 | SEAL RING |
| RELAY VALVE,CONNECTION "2",LEFT | ||
| 717 | N 915036012203 | HOLLOW SCREW |
| RELAY VALVE,CONNECTION "4" | ||
| 719 | N 007603016401 | SEAL RING |
| RELAY VALVE,CONNECTION "4" | ||
| 721 | A 0004305681 | VALVE |
| HAND BRAKE VALVE | ||
| WABCO | ||
| 721 | A 0004306781 | VALVE |
| HAND BRAKE VALVE | ||
| KNORR | ||
| 725 | A 0004305860 | REPAIR KIT |
| TO 000 430 56 81,WABCO | ||
| 725 | A 0025866243 | REPAIR KIT |
| Repalced by: A 0034303881 | ||
| 725 | A 0034303881 | REPAIR KIT |
| TO 000 430 67 81,KNORR | ||
| 729 | N 000965006000 | SCREW |
| HAND BRAKE VALVE TO CAB | ||
| 731 | A 3874310684 | SHIM |
| HAND BRAKE VALVE TO CAB | ||
| 733 | N 915036010204 | HOLLOW SCREW |
| HAND BRAKE VALVE,CONNECTIONS: | ||
| "1","2","3" | ||
| 735 | N 007603014405 | SEAL RING |
| HAND BRAKE VALVE,CONNECTIONS: | ||
| "1","2","3" | ||

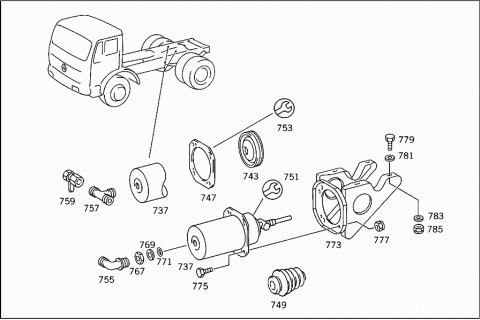

| 737 | A 0004312414 | BRAKE CYLINDER |
| SPRING LOAD ACCUMULATOR CYLINDER | ||
| BOSCH | ||
| 737 | A 0004317614 | BRAKE CYLINDER |
| SPRING LOAD ACCUMULATOR CYLINDER | ||
| KNORR | ||
| 743 | A 0014311186 | CUP |
| TO 000 431 24 14,BOSCH | ||
| 747 | A 0049971740 | SEAL RING |
| TO 000 431 24 14,BOSCH | ||
| 749 | A 0004319586 | CUP |
| TO 000 431 76 14,KNORR | ||
| 751 | A 0014301660 | REPAIR KIT |
| TO 000 431 76 14,KNORR | ||
| 753 | A 0015864342 | REPAIR KIT |
| Repalced by: A 0034201724 | ||
| 753 | A 0034201724 | REPAIR KIT |
| TO 000 431 24 14,BOSCH | ||
| 755 | N 074315012100 | FITTING |
| RIGHT BRAKE CYLINDER | ||
| 757 | A 0009904770 | T-FITTING |
| LEFT BRAKE CYLINDER | ||
| 759 | A 0004312031 | TEST CONNECTION |
| VOSS | ||
| 759 | A 0004314531 | TEST CONNECTION |
| SCHAEFER | ||
| 759 | A 0004314831 | TEST CONNECTION |
| WESTINGHOUSE | ||
| 759 | A 0004316131 | TEST CONNECTION |
| WIRA | ||
| A 0009979486 | PLUG | |
| 767 | N 080705016003 | NUT |
| LEFT AND RIGHT BRAKE CYLINDERS | ||
| 769 | A 0004290927 | THRUST RING |
| LEFT AND RIGHT BRAKE CYLINDERS | ||
| 771 | A 0009971548 | SEAL RING |
| LEFT AND RIGHT BRAKE CYLINDERS | ||
| 773 | A 3604302311 | CONSOLE |
| SPRING LOAD ACCUMULATOR CYLINDER | ||
| 775 | N 000933010105 | SCREW |
| BRAKE CYLINDER TO CONSOLE | ||
| 777 | N 913004010008 | NUT |
| BRAKE CYLINDER TO CONSOLE | ||
| 779 | N 000933010129 | SCREW |
| CONSOLE TO CROSS MEMBER | ||
| 781 | A 3859900540 | WASHER |
| CONSOLE TO CROSS MEMBER | ||
| 783 | N 000125010518 | WASHER |
| CONSOLE TO CROSS MEMBER | ||
| 785 | N 913004010008 | NUT |
| CONSOLE TO CROSS MEMBER | ||

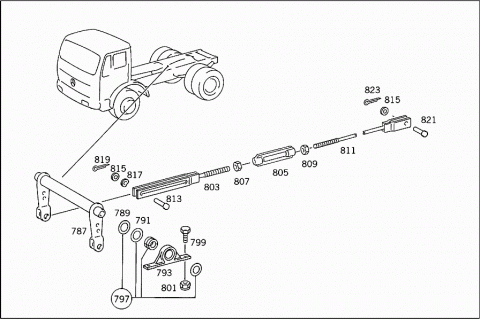

| 787 | A 3854200080 | BRAKE INTERMEDIATE SHAFT |
| 789 | A 3274270058 | SEAL HOLDER |
| 791 | A 3279970040 | SEAL RING |
| 793 | A 3854200178 | BEARING BRACKET |
| BRAKE INTERMEDIATE SHAFT | ||
| 797 | A 3534200967 | BALL CUP |
| BRAKE INTERMEDIATE SHAFT BEARING | ||
| 799 | N 000933010145 | SCREW |
| BEARING BRACKET TO FRAME | ||
| 801 | N 913004010008 | NUT |
| BEARING BRACKET TO FRAME | ||
| 803 | A 3604200474 | ROD |
| FROM BRAKE SHAFT TO BRAKE LEVER | ||
| 805 | A 3859960034 | NUT |
| FROM BRAKE SHAFT TO BRAKE LEVER | ||
| 807 | N 000934012020 | NUT |
| L.H. THREAD | ||
| 809 | N 000934012021 | NUT |
| R.H. THREAD | ||
| 811 | A 3604200774 | ROD |
| REAR | ||
| 813 | A 3529910207 | PIN |
| PULL ROD TO LEVER | ||
| 815 | N 000433013005 | WASHER |
| PULL ROD TO LEVER | ||
| 817 | N 900055012001 | SPRING WASHER |
| PULL ROD TO LEVER | ||
| 819 | N 000094003210 | COTTER PIN |
| PULL ROD TO LEVER | ||
| 821 | A 3529910107 | PIN |
| PULL ROD TO BRAKE LEVER,REAR AXLE | ||
| 823 | N 000094003210 | COTTER PIN |
| PULL ROD TO BRAKE LEVER,REAR AXLE | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
