Transporto priemonė: 1417 MBSA; VIN numerio dalis: 383017
Grupė: 52 CHASSIS SHEET METAL
| # | Kodas | Pavadinimas |
|---|---|---|

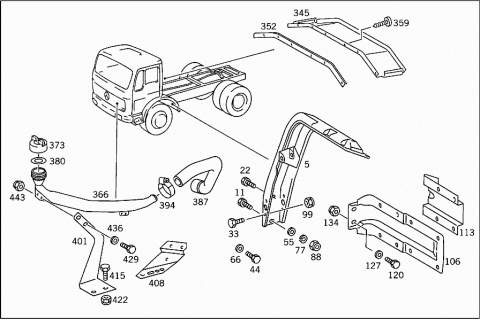

| 005 | A 3815201433 | SUPPORT |
| LEFT FENDER | ||
| 005 | A 3815202333 | SUPPORT |
| EXPANSION TANK | ||
| 011 | N 000961012120 | SCREW |
| SUPPORT TO FRAME AND TO CAB CONSOLE | ||
| M 12X40 | ||
| 022 | N 000961012106 | SCREW |
| SUPPORT TO FRAME AND TO CAB CONSOLE | ||
| M 12X35 | ||
| 033 | N 308676012012 | SCREW |
| SUPPORT TO LEFT SIDE OF FRAME AND TO CAB CONSOLE | ||
| M 12X1.5X25 | ||
| 044 | N 000961012151 | SCREW |
| SUPPORT TO RIGHT SIDE OF FRAME AND TO CAB CONSOLE | ||
| M 12X30 | ||
| 055 | N 000125013008 | WASHER |
| SUPPORT TO LEFT SIDE OF FRAME AND TO CAB CONSOLE | ||
| 066 | N 009021013102 | WASHER |
| SUPPORT TO RIGHT SIDE OF FRAME AND TO CAB CONSOLE | ||
| 077 | N 912004012100 | LOCK WASHER |
| SUPPORT TO LEFT SIDE OF FRAME AND TO CAB CONSOLE | ||
| 088 | N 913004012009 | NUT |
| SUPPORT TO FRAME AND TO CAB CONSOLE | ||
| 099 | N 913004012008 | NUT |
| SUPPORT TO FRAME AND TO CAB CONSOLE | ||
| 106 | A 3875210240 | BRACKET |
| Repalced by: A 6575210140 | ||
| 106 | A 6575210140 | BRACKET |
| FENDER | ||
| 113 | A 3875210140 | BRACKET |
| Repalced by: A 6575210040 | ||
| 113 | A 6575210040 | BRACKET |
| Repalced by: A 6575200033 | ||
| 113 | A 6575200033 | SUPPORT |
| FENDER TO CONSOLE AND TO FENDER BRACKET | ||
| 120 | N 000961014028 | SCREW |
| Repalced by: A 0029909604 | ||
| 120 | A 0029909604 | SCREW |
| FENDER BRACKET TO SIDE MEMBER | ||
| M 14X40 | ||
| 120 | N 000961014054 | SCREW |
| FENDER BRACKET TO SIDE MEMBER | ||
| M 14X45 | ||
| 127 | A 3609901840 | WASHER |
| FENDER BRACKET TO SIDE MEMBER | ||
| 134 | N 913004014002 | NUT |
| FENDER BRACKET TO SIDE MEMBER | ||
| 141 | A 3815280191 | BOOT |
| FROM AIR INTAKE PIPE TO AIR CLEANER | ||
| 148 | A 3815280443 | CLAMP |
| BOOT TO AIR DUCT AND TO AIR CLEANER | ||
| 155 | N 000084004423 | SCREW |
| BOOT TO AIR CLEANER AND TO AIR INTAKE PIPE | ||
| 162 | N 000934004006 | NUT |
| BOOT TO AIR CLEANER AND TO AIR INTAKE PIPE | ||
| A 0130948202 | AIR CLEANER | |
| DONALDSON | ||

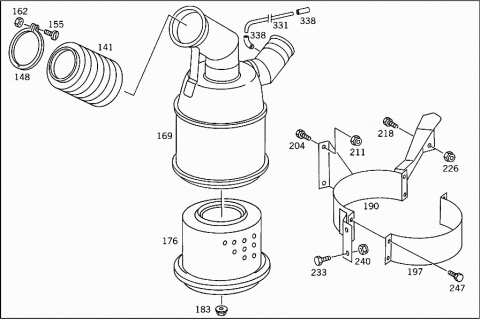

| 169 | A 0090945102 | AIR CLEANER |
| MANN | ||
| 169 | A 0090945202 | AIR CLEANER |
| KNECHT | ||
| A 0130948002 | AIR CLEANER | |
| DONALDSON | ||

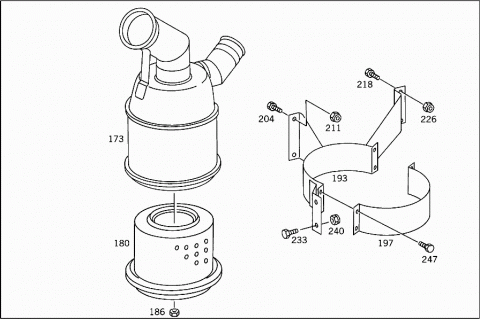

| 173 | A 0090945502 | AIR CLEANER |
| MANN | ||
| 173 | A 0090945602 | AIR CLEANER |
| KNECHT | ||
| A 0030940304 | FILTER ELEMENT | |
| DONALDSON | ||
| A 0030940404 | FILTER ELEMENT | |
| DONALDSON | ||
| 176 | A 0010949404 | FILTER ELEMENT |
| MANN ;KNECHT | ||
| A 0030940104 | FILTER ELEMENT | |
| DONALDSON | ||
| A 0030940204 | FILTER ELEMENT | |
| DONALDSON | ||
| 180 | A 0010949304 | FILTER ELEMENT |
| MANN ;KNECHT | ||
| A 0000940015 | RETAINING RING | |
| DONALDSON | ||
| A 0009973548 | SEAL RING | |
| DONALDSON | ||
| A 0000942255 | FASTENER | |
| DONALDSON | ||
| 183 | A 0029900851 | NUT |
| MANN ;KNECHT | ||
| A 0000940575 | NUT | |
| DONALDSON | ||
| 186 | A 0000940772 | NUT |
| Repalced by: N 913002010001 | ||
| 186 | N 913002010001 | NUT |
| MANN ;KNECHT | ||
| A 6155200633 | SUPPORT | |
| AIR CLEANER | ||
| TO 013 094 82 02 | ||
| A 6165200033 | SUPPORT | |
| AIR CLEANER | ||
| TO 013 094 80 02 | ||
| 190 | A 3815200833 | SUPPORT |
| AIR CLEANER | ||
| TO 009 094 51 02/ 52 02 | ||
| 193 | A 3815200733 | SUPPORT |
| AIR CLEANER | ||
| TO 009 094 55 02/ 56 02 | ||
| A 3520900081 | STRAP | |
| AIR CLEANER | ||
| TO 013 094 82 02 | ||
| 197 | A 3855280421 | STRAP |
| AIR CLEANER | ||
| 204 | N 000961014050 | SCREW |
| AIR CLEANER TO SUPPORT | ||
| 14X35 MM | ||
| 211 | N 913004014002 | NUT |
| AIR CLEANER TO SUPPORT | ||
| 218 | N 000961012122 | SCREW |
| AIR CLEANER SUPPORT TO SIDE MEMBER, REAR | ||
| M 12X40 | ||
| 226 | N 913004012008 | NUT |
| AIR CLEANER SUPPORT TO SIDE MEMBER, REAR | ||
| 233 | N 000933010128 | SCREW |
| SUPPORT TO BUMPER STRUT | ||
| 10X20 MM | ||
| 240 | N 913004010008 | NUT |
| SUPPORT TO BUMPER STRUT | ||
| 247 | N 000933008147 | SCREW |
| STRAP WITH AIR CLEANER TO SUPPORT | ||

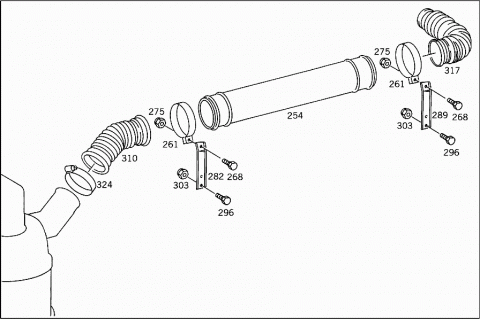

| 254 | A 3815280208 | AIR INTAKE PIPE |
| FROM AIR CLEANER TO INTAKE FITTING | ||

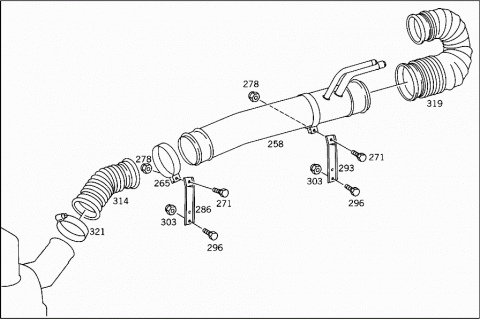

| 258 | A 3835200201 | AIR INTAKE PIPE |
| FROM AIR CLEANER TO INTAKE FITTING | ||
| 261 | A 3189950135 | CLAMP |
| AIR INTAKE PIPE TO BRACKET | ||
| 265 | A 3049951235 | CLAMP |
| AIR INTAKE PIPE TO BRACKET | ||
| 268 | N 000933010105 | SCREW |
| AIR INTAKE PIPE TO BRACKET | ||
| 271 | N 000933008153 | SCREW |
| AIR INTAKE PIPE TO BRACKET | ||
| 275 | N 913004010008 | NUT |
| AIR INTAKE PIPE TO BRACKET | ||
| 278 | N 913004008004 | NUT |
| AIR INTAKE PIPE TO BRACKET | ||
| 282 | A 3815282440 | BRACKET |
| AIR INTAKE PIPE,LEFT FRONT | ||
| 286 | A 3835280540 | BRACKET |
| AIR INTAKE PIPE,LEFT FRONT | ||
| 289 | A 3815282240 | BRACKET |
| AIR INTAKE PIPE,LEFT REAR | ||
| 293 | A 3835280340 | BRACKET |
| AIR INTAKE PIPE,LEFT REAR | ||
| 296 | N 000933008153 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 303 | N 913004008004 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 310 | A 3810940108 | ACCORDION TUBE |
| FROM AIR CLEANER TO AIR INTAKE PIPE | ||
| 314 | A 3830940008 | ACCORDION TUBE |
| FROM AIR CLEANER TO AIR INTAKE PIPE | ||
| 317 | A 3815280082 | HOSE |
| FROM AIR INTAKE PIPE TO INTAKE FITTING | ||
| 319 | A 3835280008 | AIR INTAKE PIPE |
| Repalced by: A 6155280482 | ||
| 319 | A 6155280482 | HOSE |
| FROM AIR INTAKE PIPE TO INTAKE FITTING | ||
| 321 | N 916017110001 | CLAMP |
| FROM MUFFLER TO INTAKE FITTING | ||
| 324 | N 916017080000 | CLAMP |
| Repalced by: N 000000000675 | ||
| 324 | N 000000000675 | CLAMP |
| FROM AIR INTAKE PIPE TO INTAKE FITTING | ||
| 80-100X13 MM | ||
| 331 | A 0109977082 | HOSE |
| FROM WARNING INDICATOR TO AIR CLEANER | ||
| 4X6 MM | ||
| 338 | N 073379006203 | HOSE |
| FROM WARNING INDICATOR TO AIR CLEANER | ||
| 6X10 MM | ||
| 345 | A 3835240529 | COVER |
| ENGINE COVERING | ||
| 352 | A 3875240084 | SHIM |
| COVER PLATE TO CAB REAR PANEL | ||
| 359 | N 007981005306 | SHEET METAL SCREW |
| COVER PLATE TO CAB REAR PANEL | ||
| 366 | A 4010101564 | OIL FILLER NECK |
| 373 | A 3520100468 | CAP |
| THREADED | ||
| 380 | A 1020180080 | GASKET |
| Repalced by: A 1020180380 | ||
| 380 | A 1020180380 | GASKET |
| 387 | A 3520181082 | HOSE |
| OIL REFILLING | ||
| 394 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 394 | N 000000000671 | CLAMP |
| FROM OIL FILLER NECK TO OIL PAN | ||
| 40-60X13 MM | ||
| 401 | A 4010182540 | BRACKET |
| FRONT | ||
| 408 | A 4010182940 | BRACKET |
| REAR | ||
| 415 | N 000933010105 | SCREW |
| BRACKET MOUNTING | ||
| 422 | N 913004010008 | NUT |
| BRACKET MOUNTING | ||
| 429 | N 000933006121 | SCREW |
| OIL FILLER NECK TO BRACKET | ||
| 436 | N 000125006421 | WASHER |
| OIL FILLER NECK TO BRACKET | ||
| 443 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 443 | N 913004006001 | NUT |
| OIL FILLER NECK TO BRACKET | ||
