Transporto priemonė: 1417 MBSA; VIN numerio dalis: 383017

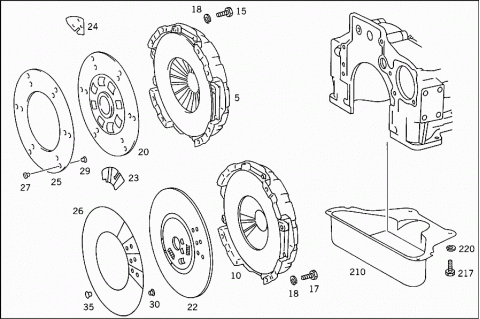

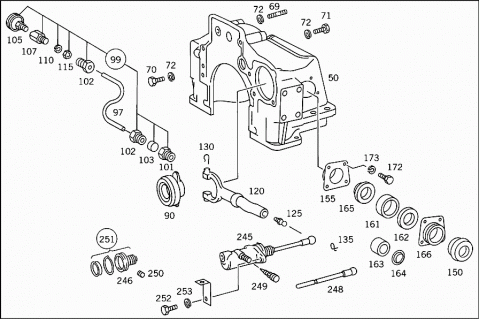

Grupė: 25 CLUTCH
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 0022507004 | CLUTCH PRESSURE PLATE |
| 005 | A 0032506504 | CLUTCH PRESSURE PLATE |
| 010 | A 0022508704 | CLUTCH PRESSURE PLATE |
| 015 | N 000933008317 | SCREW |
| CLUTCH TO FLYWHEEL | ||
| M 8X18 | ||
| 017 | N 000931008311 | SCREW |
| CLUTCH TO FLYWHEEL | ||
| M 8X50 | ||
| 018 | N 912004008102 | LOCK WASHER |
| CLUTCH TO FLYWHEEL | ||
| 020 | A 0092501203 | CLUTCH DISC |
| ASBESTOS-FREE LINING | ||
| 020 | A 0092501303 | CLUTCH DISC |
| ASBESTOS-FREE LINING | ||
| 020 | A 0032508603 | CLUTCH DISC |
| 022 | A 0032508403 | CLUTCH DISC |
| 022 | A 0052505303 | CLUTCH DISC |
| 023 | A 0002522019 | LEAF SPRING |
| 024 | A 0002523519 | LEAF SPRING |
| Repalced by: A 0002524719 | ||
| 024 | A 0002524719 | LEAF SPRING |
| 025 | A 0012525010 | CLUTCH LINING |
| ASBESTOS-FREE | ||
| 025 | A 0002529010 | CLUTCH LINING |
| 025 | A 0012524710 | CLUTCH LINING |
| ASBESTOS-FREE | ||
| 026 | A 0002529510 | CLUTCH LINING |
| 027 | A 0002521475 | RIVET |
| Repalced by: A 0002523875 | ||
| 027 | A 0002523875 | RIVET |
| LINING WITH INTERMEDIATE SPRING | ||
| 027 | A 0002523875 | RIVET |
| LINING WITH CLUTCH DISC | ||
| 029 | A 0002522175 | RIVET |
| LEAF SPRING TO CLUTCH DISC | ||
| 5X8 MM | ||
| 030 | A 0002521275 | RIVET |
| Repalced by: A 0002524375 | ||
| 030 | A 0002524375 | RIVET |
| LINING WITH INTERMEDIATE SPRING | ||
| 035 | A 0002522075 | RIVET |
| LEAF SPRING TO CLUTCH DISC | ||
| 5X6 MM | ||
| 035 | A 0002523975 | RIVET |
| LEAF SPRING TO CLUTCH DISC | ||
| 6X6 MM | ||
| 050 | A 3812510501 | BELL HOUSING |
| 050 | A 3832510001 | BELL HOUSING |
| 055 | A 3812540240 | BRACKET |
| BELL HOUSING | ||
| 060 | A 0009945341 | LOCK |
| BELL HOUSING | ||
| 069 | A 0009902605 | STUD |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| 070 | N 900170012005 | SCREW |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| M 12X35 | ||
| 071 | N 000931012206 | SCREW |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| M 12X145 | ||
| 072 | N 912004012100 | LOCK WASHER |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| 090 | A 0002504615 | RELEASE BEARING |
| 090 | A 0002504215 | RELEASE BEARING |
| 097 | A 3059971982 | HOSE |
| RELEASE BEARING LUBRICATION | ||
| 099 | A 6209970288 | GREASE NIPPLE |
| (PARTS KIT) RELEASE BEARING LUBRICATION | ||
| 101 | N 071428004102 | SCREW-IN FITTING |
| RELEASE BEARING LUBRICATION | ||
| 102 | N 003871004102 | UNION SCREW |
| RELEASE BEARING LUBRICATION | ||
| 103 | N 003862004001 | DOUBLE TAPER RING |
| RELEASE BEARING LUBRICATION | ||
| N 003411002001 | GREASE CUP | |
| Repalced by: A 6209880135 | ||
| 105 | A 6209880135 | CAP |
| RELEASE BEARING LUBRICATION | ||
| A 3072510208 | INTERMEDIATE PIECE | |
| Repalced by: A 6209970088 | ||
| 107 | A 6209970088 | GREASE NIPPLE |
| RELEASE BEARING LUBRICATION | ||
| 110 | N 912004014100 | LOCK WASHER |
| RELEASE BEARING LUBRICATION | ||
| 115 | N 000936014010 | NUT |
| RELEASE BEARING LUBRICATION | ||
| 120 | A 3812540208 | RELEASE LEVER |
| CLUTCH | ||
| 125 | A 3029910015 | BALL PIVOT |
| RELEASE LEVER | ||
| 125 | A 3529910415 | BALL PIVOT |
| RELEASE LEVER | ||
| 130 | A 3812540113 | SPRING LOCK |
| RELEASE LEVER TO RELEASE COLLAR | ||
| 135 | N 071805016402 | SECURING CLIP |
| CLUTCH SLAVE CYLINDER TO RELEASE YOKE | ||
| 150 | A 6152540097 | BOOT |
| RELEASE LEVER | ||
| 155 | A 3812540540 | BRACKET |
| INSIDE | ||
| 161 | A 3802540035 | BEARING |
| OUTSIDE | ||
| 161 | A 3802540135 | BEARING |
| OUTSIDE | ||
| 162 | A 3802540059 | SEAL RING |
| SOFT | ||
| 162 | A 3802540259 | SEAL RING |
| SOFT | ||
| 163 | A 3802540159 | SEAL RING |
| HARD | ||
| 163 | A 3802540359 | SEAL RING |
| HARD | ||
| 164 | A 3852540051 | SPACER RING |
| RELEASE LEVER | ||
| 165 | A 0009945341 | LOCK |
| RELEASE LEVER | ||
| 166 | A 3812500243 | BRACKET |
| OUTSIDE | ||
| 172 | N 000933008147 | SCREW |
| BRACKET TO BELL HOUSING | ||
| 173 | N 912004008102 | LOCK WASHER |
| BRACKET TO BELL HOUSING | ||
| 210 | A 3812501005 | HOUSING |
| LOWER PART | ||
| 210 | A 3832500005 | HOUSING |
| LOWER PART | ||
| 217 | N 914125006306 | SCREW |
| BELL HOUSING LOWER PART TO BELL HOUSING | ||
| 220 | N 000137006204 | SPRING WASHER |
| BELL HOUSING LOWER PART TO BELL HOUSING | ||
| 245 | A 0002957207 | SLAVE CYLINDER |
| CLUTCH | ||
| 246 | A 0002952983 | BOOT |
| CLUTCH SLAVE CYLINDER TO RELEASE YOKE | ||
| 248 | A 0002950233 | ROD |
| CLUTCH SLAVE CYLINDER TO RELEASE YOKE | ||
| 249 | A 3075530107 | VALVE |
| CLUTCH SLAVE CYLINDER TO RELEASE YOKE | ||
| 250 | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 0004217187 | ||
| 250 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 250 | A 0004210887 | PROTECTIVE CAP |
| BREATHER | ||
| 251 | A 0005864329 | REPAIR KIT |
| Repalced by: A 0002900811 | ||
| 251 | A 0002900811 | REPAIR KIT |
| CLUTCH SLAVE CYLINDER | ||
| 252 | N 000933010157 | SCREW |
| CLUTCH SLAVE CYLINDER TO BRACKET | ||
| 253 | N 912004010102 | LOCK WASHER |
| CLUTCH SLAVE CYLINDER TO BRACKET | ||
