Transporto priemonė: 1417 MBSA; VIN numerio dalis: 383017
Grupė: 54 ELECTRICAL EQUIPMENT AND INSTRUMENTS
| # | Kodas | Pavadinimas |
|---|---|---|

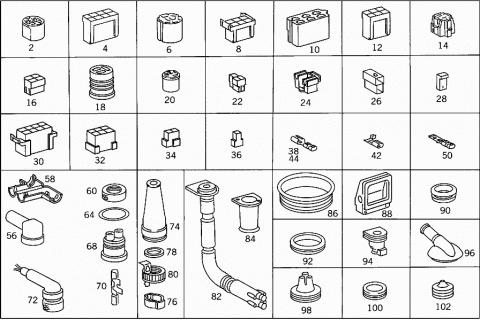

| 002 | A 0065455528 | PIN BUSHING HOUSING |
| 10-POLE | ||
| 004 | A 0015458328 | PIN BUSHING HOUSING |
| 8-POLE | ||
| 006 | A 0055459928 | PIN BUSHING HOUSING |
| 7-POLE | ||
| 008 | A 0015458128 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 010 | A 0055458428 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 012 | A 0075450528 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 014 | A 0065450728 | PIN BUSHING HOUSING |
| 5-POLE | ||
| 016 | A 0015458428 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 018 | A 0125450928 | PIN BUSHING HOUSING |
| 3-POLE | ||
| 020 | A 0065459128 | PIN BUSHING HOUSING |
| 3-POLE | ||
| 022 | A 0055456428 | PIN BUSHING HOUSING |
| 3-POLE | ||
| 024 | A 0015458528 | PIN BUSHING HOUSING |
| 3-POLE | ||
| 026 | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 028 | A 0025451128 | PIN BUSHING HOUSING |
| UNIPOLAR | ||
| 030 | A 0015458228 | PLUG HOUSING |
| 8-POLE | ||
| 032 | A 0015456028 | PLUG HOUSING |
| 6-POLE | ||
| 034 | A 0015457928 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 036 | A 0025451328 | PIN BUSHING HOUSING |
| UNIPOLAR | ||
| 038 | A 0005453726 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 038 | A 0005453826 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 042 | A 0005457926 | PIN BUSHING |
| OFFSET | ||
| 2.5 MM2 | ||
| 044 | A 0005454026 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| 044 | A 0025454026 | FLAT PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| 044 | A 0005454626 | PIN BUSHING |
| WITH DETENT;LESS CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| 050 | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 050 | A 0015458628 | PLUG |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 050 | A 0025451428 | PLUG |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| 056 | A 3805460335 | BOOT |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 27X1,M 24X1 | ||
| 058 | A 6015460335 | BOOT |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 27X1,M 24X1 | ||
| 060 | A 0009903654 | NUT |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| M 27X1 | ||
| 060 | A 0009902054 | NUT |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| M 24X1 | ||
| 064 | A 3809900140 | WASHER |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 27X1 | ||
| 064 | A 0009906840 | WASHER |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 24X1 | ||
| 068 | A 3805450226 | PLUG SOCKET |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 27X1 | ||
| 068 | A 3805450026 | PLUG SOCKET |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 24X1 | ||
| 070 | A 0015454826 | ROUND PIN BUSHING |
| PRESSURE SWITCH SCREW-CONNECTION | ||
| TO M 27X1,M 24X1 | ||
| 072 | A 3805402281 | PLUG SOCKET |
| REPAIR VERSION; NOT FOR DANGER CATEGORY VEHICLES | ||
| M 27X1 | ||
| 072 | A 3805402181 | PLUG SOCKET |
| REPAIR VERSION; NOT FOR DANGER CATEGORY VEHICLES | ||
| M 24X1 | ||
| 074 | A 0005463435 | BOOT |
| PULSE-SENDER-UNIT BAYONET CAP | ||
| 076 | A 0029978590 | CLIP |
| PULSE-SENDER-UNIT BAYONET CAP | ||
| 078 | A 3019901440 | WASHER |
| PULSE-SENDER-UNIT BAYONET CAP | ||
| 080 | A 0005421572 | NUT |
| PULSE-SENDER-UNIT BAYONET CAP | ||
| 082 | A 6205460230 | INSULATING HOSE |
| 084 | A 0005450155 | GUIDE |
| 086 | A 0005420481 | GROMMET |
| TACHOGRAPH | ||
| 086 | A 0005420481 | GROMMET |
| INSTRUMENT CLUSTER | ||
| 088 | A 0005421081 | GROMMET |
| ELECTRIC CABLE THRU FIRE WALL | ||
| 090 | A 0039973481 | GROMMET |
| BATTERY CABLE THRU SIDE MEMBER | ||
| 090 | A 0039973481 | GROMMET |
| MAIN CABLE HARNESS BRANCH-OFF THRU SIDE MEMBER | ||
| 090 | A 0039973481 | GROMMET |
| TAIL LAMP CABLE THRU SIDE MEMBER | ||
| 092 | A 0059971981 | GROMMET |
| MAIN CABLE HARNESS THRU WINDOW SILL | ||
| 094 | A 3805462037 | GROMMET |
| 096 | A 3149970181 | GROMMET |
| HEADLAMP CABLE THRU BODY | ||
| 098 | A 3839970181 | GROMMET |
| Repalced by: A 0089976381 | ||
| 098 | A 0089976381 | GROMMET |
| BRANCH-OFF TO WINDSHIELD WIPER | ||
| 100 | A 0009973081 | GROMMET |
| 102 | A 1119971481 | GROMMET |
| ELECTRIC CABLE THRU DOOR | ||

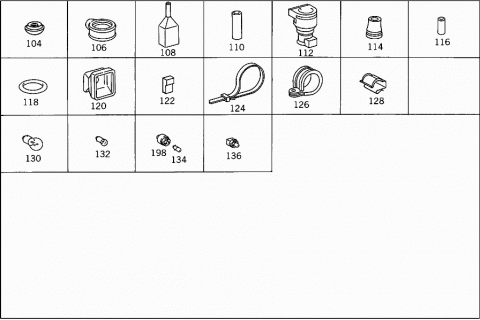

| 104 | A 0029970981 | GROMMET |
| ELECTRIC CABLE TO BRACKET,BOTTOM | ||
| 106 | A 6209970481 | GROMMET |
| ELECTRIC CABLE TO BRACKET,TOP | ||
| 108 | A 0039977381 | GROMMET |
| 110 | A 0009970581 | GROMMET |
| FRAME-CROSS-MEMBER-TO-CAB NEG. CABLE | ||
| 112 | A 3875460437 | GROMMET |
| AT CABLE CONNECTOR | ||
| 114 | A 6019972081 | GROMMET |
| AT TAIL LAMP SHELL | ||
| 116 | A 0009970381 | GROMMET |
| FROM DOOR PLUG CONNECTION TO OUTSIDE REARVIEW MIRROR PLUG-CONNECTION | ||
| 118 | A 0019875046 | SEALING CORD |
| OUTSIDE REARVIEW MIRROR CONNECTION | ||
| 120 | A 6085450045 | BOOT |
| STEERING COLUMN MOUNTED SWITCH | ||
| 122 | A 0005451745 | BOOT |
| PIN BUSHING | ||
| 124 | A 0019978390 | LOOM TIE |
| CABLE HARNESS MOUNTING | ||
| 280 MM | ||
| 124 | A 0019978490 | LOOM TIE |
| CABLE HARNESS MOUNTING | ||
| 376 MM | ||
| 126 | N 916016015202 | CLAMP |
| CABLE TO ALTERNATOR | ||
| 126 | N 916016032201 | CLAMP |
| FRAME MOUNTED CABLE HARNESS TO BRACKET | ||
| 128 | A 0009881878 | CLIP |
| ROOF MOUNTED CABLE HARNESS | ||
| 130 | N 072601012190 | BULB |
| TAIL LAMP | ||
| 12V 21W | ||
| 132 | N 072601012702 | BULB |
| TAIL LAMP | ||
| 12V 10W | ||
| 134 | N 072601012800 | BULB |
| HAZARD WARNING LIGHT SWITCH | ||
| 12V 2W | ||
| 134 | N 072601012800 | BULB |
| PUSHBUTTON SWITCH | ||
| 12V 2W | ||
| 134 | N 072601012800 | BULB |
| TELL-TALE LAMP | ||
| 12V 2W | ||
| 134 | N 072601012800 | BULB |
| TACHOMETER | ||
| 12V 2W | ||
| 134 | N 072601012800 | BULB |
| INSTRUMENT CLUSTER | ||
| TO 003 540 75 47 | ||
| 136 | A 0015442594 | BULB |
| TACHOGRAPH | ||
| 12 V/1.2 W | ||
| 136 | A 0015442594 | BULB |
| INSTRUMENT CLUSTER | ||
| TO 003 540 72 47 | ||

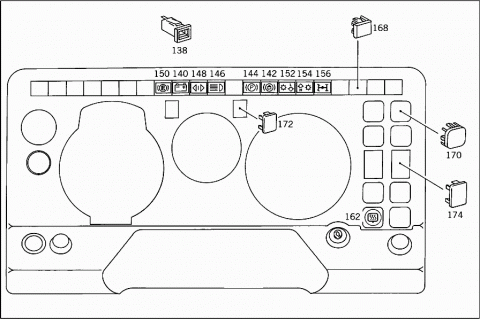

| 138 | A 0015451815 | TELL-TALE LAMP |
| LESS LENS | ||
| 140 | A 0035453290 | LENS |
| CHARGE CONTROL | ||
| 142 | A 0005455090 | LENS |
| Repalced by: A 0055458890 | ||
| 142 | A 0055458890 | LENS |
| BRAKE FLUID | ||
| 144 | A 0035453790 | LENS |
| PARKING BRAKE | ||
| 146 | A 0035453390 | LENS |
| Repalced by: A 0065451990 | ||
| 146 | A 0065451990 | LENS |
| HIGH BEAM | ||
| 148 | A 0035455290 | LENS |
| BLINKER LIGHT CONTROL | ||
| 150 | A 0015456290 | LENS |
| HYDRAULIC BRAKE ACTUATION | ||
| 152 | A 0025453890 | LENS |
| GEAR GROUP INDICATION,"SLOW" | ||
| 154 | A 0025453990 | LENS |
| GEAR GROUP INDICATION,"FAST" | ||
| 156 | A 0005454090 | LENS |
| LONGITUDINAL LOCK | ||
| 158 | A 0045450224 | SWITCH |
| HAZARD WARNING LIGHT | ||
| 160 | A 0015450511 | SWITCH |
| HEATED OUTSIDE REARVIEW MIRROR CONTROL | ||
| 162 | A 0015450490 | LENS |
| HEATED OUTSIDE REARVIEW MIRROR CONTROL | ||
| 164 | A 0005453637 | BUTTON |
| HAZARD WARNING LIGHT SWITCH | ||
| N 072601012110 | BULB | |
| HAZARD WARNING LIGHT SWITCH | ||
| 166 | A 0005452883 | CAP |
| HEATED OUTSIDE REARVIEW MIRROR CONTROL | ||
| 168 | A 0009974335 | PLUG |
| TO PLUG THE FREE BORES IN INSTRUMENT PANEL | ||
| 170 | A 0009974435 | PLUG |
| TO PLUG THE FREE BORES IN INSTRUMENT PANEL | ||
| 172 | A 6209880035 | CAP |
| TO PLUG THE FREE BORES IN INSTRUMENT PANEL | ||
| 174 | A 3899880135 | CAP |
| TO PLUG THE FREE BORES IN INSTRUMENT PANEL | ||

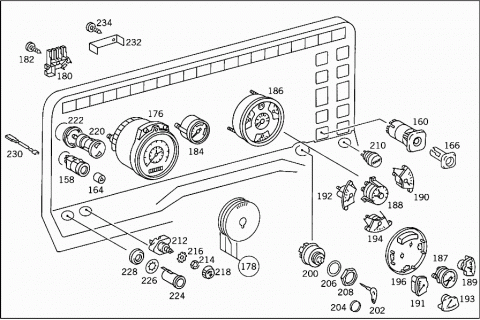

| 176 | A 0105426810 | TACHOGRAPH |
| TACHOGRAPH ADJUSTABLE | ||
| 125 KM/H | ||
| 178 | A 0005423394 | DIAGRAM PAPER |
| SET = 100 PIECES | ||
| 180 | A 0005420285 | PROTECTIVE PLATE |
| TACHOGRAPH LEAD SEALING | ||
| 182 | N 007971002206 | SHEET METAL SCREW |
| TACHOGRAPH LEAD SEALING | ||
| 184 | A 0015421316 | TACHOMETER |
| A 0035407547 | INSTRUMENT CLUSTER | |
| Repalced by: A 0035407247 | ||
| 186 | A 0035407247 | INSTRUMENT CLUSTER |
| 187 | A 0015423908 | AIR PRESSURE GAUGE |
| TO 003 540 75 47 | ||
| 188 | A 0015424208 | AIR PRESSURE GAUGE |
| TO 003 540 72 47 | ||
| 189 | A 0035428905 | TEMPERATURE GAUGE |
| TO 003 540 75 47 | ||
| 190 | A 0035429605 | TEMPERATURE GAUGE |
| TO 003 540 72 47 | ||
| 191 | A 0025422802 | OIL PRESSURE GAUGE |
| TO 003 540 75 47 | ||
| 192 | A 0025423202 | OIL PRESSURE GAUGE |
| TO 003 540 72 47 | ||
| 193 | A 0025429103 | FUEL GAUGE DASH UNIT |
| TO 003 540 75 47 | ||
| 194 | A 0025429303 | FUEL GAUGE DASH UNIT |
| TO 003 540 72 47 | ||
| 196 | A 0005423078 | CONNECTION PLATE |
| TO 003 540 75 47 | ||
| A 0005423578 | CONNECTION PLATE | |
| TO 003 540 72 47 | ||
| 198 | A 0005451219 | SOCKET |
| TO 003 540 75 47 | ||
| 200 | A 0005453013 | SWITCH |
| (IGNITION AND LIGHT SWITH) | ||
| 202 | A 0005451235 | KEY |
| IGNITION AND LIGHT SWITCH | ||
| 204 | A 0005830296 | RING |
| IGNITION AND LIGHT SWITCH | ||
| 206 | A 0005450376 | WASHER |
| IGNITION SWITCH TO INSTRUMENT PANEL | ||
| 208 | A 0005451072 | NUT |
| IGNITION SWITCH TO INSTRUMENT PANEL | ||
| 210 | A 0015454914 | SWITCH |
| STARTING IN CAB | ||
| 212 | A 6155420125 | POTENTIOMETER |
| INSTRUMENT LIGHTING | ||
| 214 | A 0029906251 | NUT |
| INSTRUMENT LIGHTING SWITCH | ||
| 216 | N 006797012153 | TOOTHED WASHER |
| INSTRUMENT LIGHTING SWITCH | ||
| 218 | A 0005421889 | KNOB |
| INSTRUMENT LIGHTING SWITCH | ||
| 220 | A 0005422527 | WARNING INDICATOR |
| AIR CLEANER | ||
| 222 | A 3816890056 | RING |
| MAINTENANCE OF AIR CLEANER | ||
| 224 | A 0005458026 | PLUG SOCKET |
| Repalced by: A 0045454326 | ||
| 224 | A 0045454326 | PLUG SOCKET |
| AT INSTRUMENT PANEL | ||
| 226 | A 0009900946 | WASHER |
| PLUG SOCKET | ||
| 228 | A 3805450076 | WASHER |
| PLUG SOCKET | ||
| 230 | A 3015400165 | RESISTOR |
| HAZARD WARNING LIGHT SWITCH | ||
| 232 | A 6155420140 | BRACKET |
| TACHOGRAPH CABLE GROMMET TO CAB | ||
| 234 | N 007981004400 | SHEET METAL SCREW |
| TACHOGRAPH CABLE GROMMET TO CAB | ||

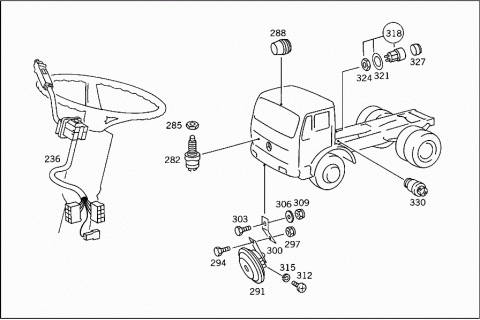

| 236 | A 0055455224 | STEERG.COLUMN MTD. SWITCH |
| 238 | A 6205420339 | PLATE |
| APPARATUS | ||
| 240 | N 007981004244 | SHEET METAL SCREW |
| APPARATUS PLATE TO WINDOW SILL | ||
| 242 | A 0005458305 | RELAY |
| BRAKE FLUID | ||
| 242 | A 0005458305 | RELAY |
| STARTING MOTOR | ||
| 242 | A 0005458305 | RELAY |
| TRANSMISSION GEAR CLUSTER INDICATOR | ||
| 244 | A 0055451324 | SENDER UNIT |
| WIPER INTERMITTENT ACTION | ||
| BOSCH | ||
| 244 | A 0055451524 | SENDER UNIT |
| WIPER INTERMITTENT ACTION | ||
| SWF | ||
| 244 | A 0055450524 | SENDER UNIT |
| WIPER INTERMITTENT ACTION | ||
| HELLA | ||
| 246 | A 0025445832 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| 246 | A 0025446332 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| 249 | N 007985006193 | SCREW |
| HAZARD WARNING LIGHT SENDER UNIT AND PULSE SENDER UNIT TO APPARATUS PLATE | ||
| 252 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 252 | N 913004006001 | NUT |
| HAZARD WARNING LIGHT SENDER UNIT AND PULSE SENDER UNIT TO APPARATUS PLATE | ||
| 255 | A 0005458501 | FUSE BOX |
| 12-POLE;TERMINALS 2-8;9-10;11-12 SHUNTED | ||
| 258 | A 0005458401 | FUSE BOX |
| 12-POLE; TERMINALS 1-2,3-8,9-12 SHUNTED | ||
| 261 | A 0005458234 | FUSE |
| 8 A | ||
| 264 | N 007985006154 | SCREW |
| FUSE BOX TO APPARATUS PLATE | ||
| 267 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 267 | N 913004006001 | NUT |
| FUSE BOX TO APPARATUS PLATE | ||
| 270 | A 3015400165 | RESISTOR |
| CLAIR/OBSCURE SWITCHING FOR TRANSMISSION GEAR CLUSTER INDICATOR | ||
| 273 | A 0015452518 | RESISTOR |
| CHARGE CONTROL | ||
| 276 | N 007985004107 | SCREW |
| RESISTOR TO APPARATUS PANEL | ||
| 279 | N 913004004002 | NUT |
| RESISTOR TO APPARATUS PANEL | ||
| 282 | A 0005456909 | SWITCH |
| STOP LIGHT | ||
| 285 | A 0009909251 | NUT |
| SWITCH TO BRAKE PEDAL | ||
| 288 | A 0005423523 | BUZZER |
| COOLING WATER TEMPERATURE WARNING | ||
| 291 | A 0035423220 | HORN |
| Repalced by: A 6315420120 | ||
| 291 | A 6315420120 | HORN |
| 291 | A 0025426420 | HORN |
| Repalced by: A 6315420120 | ||
| 291 | A 6315420120 | HORN |
| 294 | N 000933010129 | SCREW |
| HORN TO BRACKET | ||
| 297 | N 913004010008 | NUT |
| HORN TO BRACKET | ||
| 300 | A 3805420040 | BRACKET |
| HORN | ||
| 303 | N 000933010105 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 306 | N 009021010202 | WASHER |
| BRACKET TO CROSS MEMBER | ||
| 309 | N 913004010008 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 312 | N 007985004123 | SCREW |
| ELECTRIC CABLE TO HORN | ||
| 315 | N 912004004102 | LOCK WASHER |
| ELECTRIC CABLE TO HORN | ||
| 318 | A 0015454614 | SWITCH |
| Repalced by: A 0035452314 | ||
| 318 | A 0035452314 | SWITCH |
| STARTING AT ENGINE | ||
| 321 | A 0009941910 | LOCK |
| 324 | A 0005451772 | NUT |
| 327 | A 0005452945 | BOOT |
| STARTING AT ENGINE | ||
| TO 001 545 46 14 | ||
| 330 | A 0055429417 | SENDER UNIT |
| ELECTRONIC TACHOGRAPH | ||
| 330 | A 0065424617 | SENDER UNIT |
| ELECTRONIC TACHOGRAPH | ||

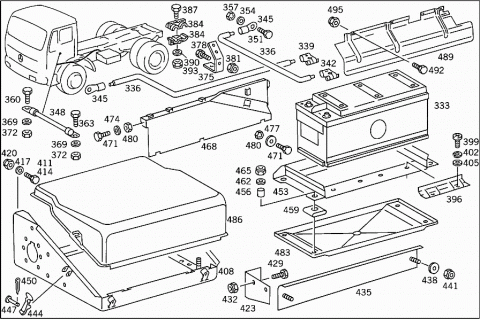

| 333 | A 0015419701 | BATTERY |
| 12V 143 AH | ||
| 336 | N 922002095000 | ELECTRIC CABLE |
| FROM BATTERY TO STARTING MOTOR | ||
| 336 | N 922002095000 | ELECTRIC CABLE |
| FROM BATTERY TO GROUND AT SIDE MEMBER | ||
| 339 | N 072332015100 | SOLDERING TERMINAL |
| POS. POLE | ||
| 342 | N 072332015200 | SOLDERING TERMINAL |
| NEG.POLE | ||
| 345 | N 046234010006 | CABLE SHOE |
| BATTERY CABLE | ||
| 348 | A 3835400231 | NEG. CABLE |
| Repalced by: A 6205402339 | ||
| 348 | A 6205402339 | NEG. CABLE |
| FROM FRAME CROSS MEMBER TO CAB | ||
| 351 | N 000933010105 | SCREW |
| NEGATIVE CABLE OR GROUND STRAP TO SIDE MEMBER | ||
| 354 | N 009021010202 | WASHER |
| NEGATIVE CABLE OR GROUND STRAP TO SIDE MEMBER | ||
| 357 | N 913004010008 | NUT |
| NEGATIVE CABLE OR GROUND STRAP TO SIDE MEMBER | ||
| 360 | N 000933008212 | SCREW |
| NEG.CABLE TO CAB | ||
| 363 | N 000933008153 | SCREW |
| GROUND FRAME-CABLE-HARNESS & CAB-FRAME GROUND STRAP TO FRAME CROSS MEMBER | ||
| 369 | N 000125008418 | WASHER |
| NEG. CABLE | ||
| 372 | N 913004008004 | NUT |
| NEG. CABLE | ||
| N 912004010102 | LOCK WASHER | |
| CABLE TO STARTING MOTOR,TERMINAL 30 | ||
| N 913021010001 | NUT | |
| CABLE TO STARTING MOTOR,TERMINAL 30 | ||
| 375 | A 3854290640 | BRACKET |
| BATTERY CABLE AND CABLE HARNESS TO SIDE MEMBER | ||
| 378 | N 000933008152 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 381 | N 913004008004 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 384 | A 3835460044 | CLAMPING PIECE |
| BATTERY POS. CABLE TO BRACKET | ||
| 387 | N 000931006122 | SCREW |
| CLAMPING PIECE TO BRACKET | ||
| 390 | N 009021006205 | WASHER |
| CLAMPING PIECE TO BRACKET | ||
| 393 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 393 | N 913004006001 | NUT |
| CLAMPING PIECE TO BRACKET | ||
| 396 | A 3855410140 | BRACKET |
| BATTERY MOUNTING | ||
| 399 | N 007985008119 | SCREW |
| BATTERY BASE FRAME | ||
| 402 | N 912004008102 | LOCK WASHER |
| BATTERY BASE FRAME | ||
| 405 | N 000125008418 | WASHER |
| BATTERY BASE FRAME | ||
| 408 | A 3804202268 | SUPPORT |
| BATTERY | ||
| 411 | N 000961014064 | SCREW |
| APPARATUS SUPPORT TO FRAME SIDE MEMBER | ||
| 14X50 MM | ||
| 414 | N 000961014028 | SCREW |
| Repalced by: A 0029909604 | ||
| 414 | A 0029909604 | SCREW |
| APPARATUS SUPPORT TO FRAME SIDE MEMBER | ||
| 14X40 MM | ||
| 417 | N 000125015013 | WASHER |
| APPARATUS SUPPORT TO FRAME SIDE MEMBER | ||
| 420 | N 913004014002 | NUT |
| APPARATUS SUPPORT TO FRAME SIDE MEMBER | ||
| 423 | A 3854260846 | MOUNTING ANGLE |
| RIGHT | ||
| 423 | A 3854260946 | MOUNTING ANGLE |
| LEFT | ||
| 429 | N 000933010105 | SCREW |
| MOUNTING ANGLE TO APPARATUS SUPPORT | ||
| 432 | N 913004010008 | NUT |
| MOUNTING ANGLE TO APPARATUS SUPPORT | ||
| 435 | A 3854200144 | PROTECTIVE PLATE |
| AT SUPPORT | ||
| 438 | N 009021008205 | WASHER |
| AT SUPPORT | ||
| 441 | N 913004008004 | NUT |
| AT SUPPORT | ||
| 444 | A 3874260040 | BRACKET |
| BOOT TO BATTERY CASE | ||
| 447 | A 3125271174 | PIN |
| BRACKET TO BATTERY CASE | ||
| 450 | N 000094001617 | COTTER PIN |
| BRACKET TO BATTERY CASE | ||
| 453 | A 3815400318 | RAIL |
| BATTERY BASE FRAME | ||
| 456 | A 3859910040 | SPACER TUBE |
| BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT | ||
| 459 | A 3855410236 | INSULATING PLATE |
| BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT | ||
| 462 | N 007349010007 | WASHER |
| BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT | ||
| 465 | N 913004010008 | NUT |
| BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT | ||
| 468 | A 3855410332 | FRONT PANEL |
| BATTERY/APPARATUS SUPPORT | ||
| 471 | N 000933008147 | SCREW |
| FRONT PANEL TO BATTERY SUPPORT | ||
| 474 | N 009021008205 | WASHER |
| FRONT PANEL TO BATTERY SUPPORT | ||
| 477 | N 000125008418 | WASHER |
| FRONT PANEL TO BATTERY SUPPORT | ||
| 480 | N 913004008004 | NUT |
| FRONT PANEL TO BATTERY SUPPORT | ||
| 483 | A 3805410102 | BATTERY CASE |
| 486 | A 3804260265 | PROTECTIVE PLATE |
| BATTERY/APPARATUS SUPPORT | ||
| 489 | A 3854310662 | COVERING |
| EXHAUST MUFFLER | ||
| 492 | N 000933008147 | SCREW |
| PROTECTIVE PLATE TO SIDE MEMBER | ||
| 495 | N 913004008004 | NUT |
| PROTECTIVE PLATE TO SIDE MEMBER | ||

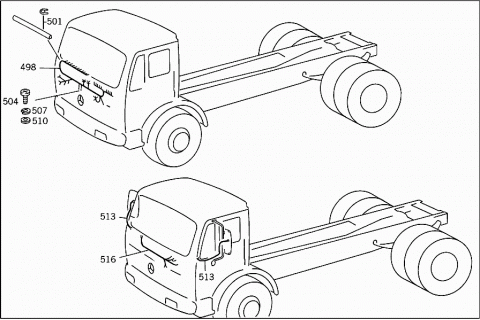

| 498 | A 3835406905 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 501 | A 0019877625 | PLASTIC SECTION |
| MAIN CABLE HARNESS THRU WINDOW SILL | ||
| 504 | N 007985006193 | SCREW |
| GROUND CONNECTION TO WINDOW SILL | ||
| 507 | N 912004006102 | LOCK WASHER |
| GROUND CONNECTION TO WINDOW SILL | ||
| 510 | N 000125006421 | WASHER |
| GROUND CONNECTION TO WINDOW SILL | ||
| 513 | A 0018207015 | ELECTRIC CABLE |
| FROM OUTSIDE REARVIEW MIRROR PLUGCONNECTION TO OUTSIDE REARVIEW MIRROR | ||
| 516 | A 3875406933 | ELECTRIC CABLE |
| FROM GEAR CLUSTER INDICATOR TO PLUG CONNECTION AT CAB | ||

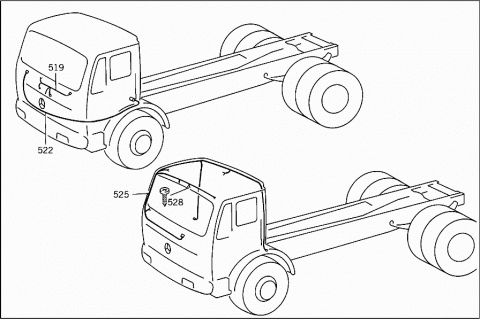

| 519 | A 3805403837 | ELECTRIC CABLE |
| FROM CAB PLUG CONNECTION TO STARTING MOTOR RELAY AND TO FUSE BOX | ||
| 522 | A 6155401336 | ELECTRIC CABLE |
| FROM TACHOGRAPH TO PULSE TRANSMITTER | ||
| 525 | A 3895401737 | ELECTRIC CABLE |
| CAB ROOF | ||
| 528 | N 007981005211 | SHEET METAL SCREW |
| GROUND CABLE CONNECTION | ||

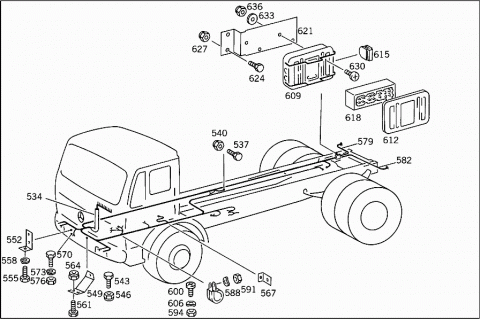

| 534 | A 3815408609 | CABLE HARNESS |
| Repalced by: A 3815408709 | ||
| 534 | A 3815408709 | CABLE HARNESS |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 534 | A 3815408109 | CABLE HARNESS |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 537 | N 000933010105 | SCREW |
| GROUND CABLE TO SIDE MEMBER | ||
| 540 | N 913004010008 | NUT |
| GROUND CABLE TO SIDE MEMBER | ||
| 543 | N 000933006127 | SCREW |
| FRAME MOUNTED CABLE HARNESS TO BRACKET | ||
| 546 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 546 | N 913004006001 | NUT |
| FRAME MOUNTED CABLE HARNESS TO BRACKET | ||
| 549 | A 3875420940 | BRACKET |
| FRAME MOUNTED CABLE HARNESS TO CROSS MEMBER | ||
| 552 | A 3875401873 | BRACKET |
| FRAME MOUNTED CABLE HARNESS TO CROSS MEMBER | ||
| 555 | N 000933008147 | SCREW |
| FRAME MOUNTED CABLE HARNESS TO CROSS MEMBER | ||
| 558 | N 912004008102 | LOCK WASHER |
| FRAME MOUNTED CABLE HARNESS TO CROSS MEMBER | ||
| 561 | N 000933008153 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 564 | N 913004008004 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 567 | A 3604280243 | ANGLE |
| BRANCH-OFF TO STARTER NON-REPEAT UNIT TO TRANSMISSION | ||
| 570 | N 000933006127 | SCREW |
| FRAME MOUNTED CABLE HARNESS TO CAB | ||
| 573 | N 912004006102 | LOCK WASHER |
| FRAME MOUNTED CABLE HARNESS TO CAB | ||
| 576 | N 000934006007 | NUT |
| FRAME MOUNTED CABLE HARNESS TO CAB | ||
| 579 | A 6215402207 | CABLE HARNESS |
| RIGHT TAIL LAMP | ||
| 582 | A 6175400207 | CABLE HARNESS |
| Repalced by: A 6175401507 | ||
| 582 | A 6175401507 | CABLE HARNESS |
| LEFT TAIL LAMP | ||
| A 0005462243 | BRACKET | |
| ALTERNATOR BRANCH-OFF TO ALTERNATOR | ||
| N 000137004105 | SPRING WASHER | |
| CABLE TO ALTERNATOR | ||
| 588 | N 000137005203 | SPRING WASHER |
| CLAMP TO ALTERNATOR | ||
| N 000137004006 | SPRING WASHER | |
| CABLE TO ALTERNATOR | ||
| 591 | N 000934005008 | NUT |
| CABLE TO ALTERNATOR | ||
| 594 | N 000934006007 | NUT |
| CABLE TO ALTERNATOR | ||
| N 913004005001 | NUT | |
| ALTERNATOR BRANCH-OFF | ||
| 600 | N 007985006157 | SCREW |
| CABLE TO ALTERNATOR | ||
| N 007985005504 | SCREW | |
| ALTERNATOR BRANCH-OFF TO ALTERNATOR BRACKET | ||
| 606 | N 000137006204 | SPRING WASHER |
| CABLE TO ALTERNATOR | ||
| N 000084006132 | SCREW | |
| CABLE TO STARTING MOTOR,TERMINAL 50 | ||
| N 912004006104 | LOCK WASHER | |
| CABLE TO STARTING MOTOR,TERMINAL 50 | ||
| 609 | A 0015465441 | CABLE CONNECTOR |
| BEHIND REAR AXLE | ||
| 612 | A 0005460581 | COVERING |
| 615 | A 0009872844 | EXPANSION PLUG |
| CABLE CONNECTOR | ||
| 618 | A 0105456728 | PLUG |
| CABLE CONNECTOR | ||
| 621 | A 3835461143 | BRACKET |
| CABLE CONNECTOR | ||
| 624 | N 000933010105 | SCREW |
| BRACKET AND GROUND CABLE TO SIDE MEMBER | ||
| 627 | N 913004010008 | NUT |
| BRACKET AND GROUND CABLE TO SIDE MEMBER | ||
| 630 | N 007985005146 | SCREW |
| CABLE CONNECTOR TO FRAME SIDE MEMBER | ||
| 633 | N 009021005202 | WASHER |
| CABLE CONNECTOR TO FRAME SIDE MEMBER | ||
| 636 | N 913004005001 | NUT |
| CABLE CONNECTOR TO FRAME SIDE MEMBER | ||

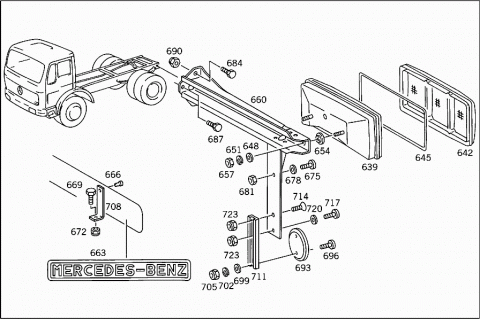

| 639 | A 0015447103 | TAIL LAMP |
| RIGHT | ||
| "HELLA" | ||
| 639 | A 0015448203 | TAIL LAMP |
| RIGHT | ||
| "R&S" | ||
| 639 | A 0015447003 | TAIL LAMP |
| LEFT | ||
| "HELLA" | ||
| 639 | A 0015448303 | TAIL LAMP |
| LEFT | ||
| "R&S" | ||
| 642 | A 0015448390 | LENS |
| "HELLA" | ||
| 642 | A 0015448490 | LENS |
| "R&S" | ||
| 645 | A 0005448580 | GASKET |
| 645 | A 0005448880 | GASKET |
| 648 | N 000125008418 | WASHER |
| TAIL LAMP TO BRACKET | ||
| 651 | N 912004008102 | LOCK WASHER |
| TAIL LAMP TO BRACKET | ||
| 654 | A 3875440076 | WASHER |
| TAIL LAMP TO BRACKET | ||
| 657 | N 000934008010 | NUT |
| TAIL LAMP TO BRACKET | ||
| 660 | A 3525405173 | BRACKET |
| LEFT TAIL LAMP | ||
| 660 | A 3525405273 | BRACKET |
| RIGHT TAIL LAMP | ||
| 663 | A 3605840025 | NAME PLATE |
| 666 | N 000660004018 | RIVET |
| 669 | N 000933008145 | SCREW |
| NAME PLATE TO BRACKET | ||
| 672 | N 913004008004 | NUT |
| NAME PLATE TO BRACKET | ||
| 675 | N 000000001147 | SCREW |
| LICENSE PLATE | ||
| M 6X20 | ||
| 678 | N 000125006421 | WASHER |
| LICENSE PLATE | ||
| 681 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 681 | N 913004006001 | NUT |
| LICENSE PLATE | ||
| 684 | N 000933010164 | SCREW |
| TAIL LAMP BRACKET AND LICENSE PLATE TO FRAME | ||
| M 10X22 | ||
| 687 | N 000933010157 | SCREW |
| TAIL LAMP BRACKET AND LICENSE PLATE TO FRAME | ||
| M 10X28 | ||
| 690 | N 913004010008 | NUT |
| TAIL LAMP BRACKET AND LICENSE PLATE TO FRAME | ||
| 693 | A 0005443305 | REFLECTOR |
| 696 | N 007985005146 | SCREW |
| REFLECTOR TO BRACKET | ||
| 699 | N 000125005317 | WASHER |
| REFLECTOR TO BRACKET | ||
| 702 | N 912004005103 | LOCK WASHER |
| REFLECTOR TO BRACKET | ||
| 705 | N 913004005001 | NUT |
| REFLECTOR TO BRACKET | ||
| 708 | A 3604280243 | ANGLE |
| BATTERY CABLE | ||
| 711 | A 3525440538 | BRACKET |
| REFLECTOR | ||
| 714 | N 000963006005 | SCREW |
| BRACKET TO TAIL LAMP BRACKET | ||
| 717 | N 000084006137 | SCREW |
| BRACKET TO TAIL LAMP BRACKET | ||
| 720 | N 000125006421 | WASHER |
| BRACKET TO TAIL LAMP BRACKET | ||
| 723 | N 913002006005 | NUT |
| BRACKET TO TAIL LAMP BRACKET | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
