Transporto priemonė: 1417 MBSA; VIN numerio dalis: 383017

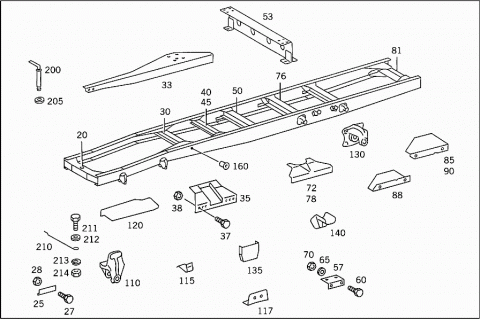

Grupė: 31 FRAME
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 3833100401 | FRAME |
| 010 | A 3833100501 | FRAME |
| 010 | A 3833100101 | FRAME |
| 010 | A 3833100801 | FRAME |
| 020 | A 3873100422 | CROSS MEMBER |
| FRONT | ||
| 025 | A 3853121987 | GUSSET PLATE |
| LEFT | ||
| 025 | A 3853122087 | GUSSET PLATE |
| RIGHT | ||
| 027 | N 000961012106 | SCREW |
| CROSS MEMBER AND GUSSET PLATE TO SIDE MEMBERS | ||
| 028 | N 913004012008 | NUT |
| CROSS MEMBER AND GUSSET PLATE TO SIDE MEMBERS | ||
| 030 | A 3813120015 | CROSS MEMBER |
| NO.2 | ||
| 033 | A 3853120152 | ANGLE |
| LEFT TOP | ||
| 033 | A 3813120652 | ANGLE |
| LEFT TOP | ||
| 033 | A 3853120252 | ANGLE |
| RIGHT TOP | ||
| 033 | A 3813120752 | ANGLE |
| RIGHT TOP | ||
| 035 | A 3813120252 | ANGLE |
| LEFT BOTTOM | ||
| 035 | A 3813120352 | ANGLE |
| RIGHT BOTTOM | ||
| 037 | N 308676012012 | SCREW |
| ANGLE TO CROSS MEMBER | ||
| 037 | N 308676012012 | SCREW |
| TOP GUSSET PLATE TO CROSS MEMBER | ||
| 038 | N 913004012008 | NUT |
| ANGLE TO CROSS MEMBER | ||
| 038 | N 913004012008 | NUT |
| TOP GUSSET PLATE TO CROSS MEMBER | ||
| 040 | A 3813100136 | CROSS MEMBER |
| NO.3 | ||
| 040 | A 3813100136 | CROSS MEMBER |
| NO.4 | ||
| 045 | A 3813120017 | CROSS MEMBER |
| NO.3 | ||
| 045 | A 3813120017 | CROSS MEMBER |
| NO.4 | ||
| 045 | A 3813120017 | CROSS MEMBER |
| NO.5 | ||
| 050 | A 3853100036 | CROSS MEMBER |
| NO.3 | ||
| 053 | A 3813100037 | CROSS MEMBER |
| TRANSFER CASE | ||
| NO.3 | ||
| 057 | A 3813120852 | ANGLE |
| TRANSFER CASE | ||
| 060 | N 000933010164 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| M 10X22 | ||
| 060 | N 000933010105 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| M 10X25 | ||
| 060 | N 308676012012 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 060 | N 000961014050 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 065 | N 000125010518 | WASHER |
| CROSS MEMBER TO FRAME | ||
| 070 | N 913004010008 | NUT |
| CROSS MEMBER TO FRAME | ||
| 070 | N 913004012008 | NUT |
| CROSS MEMBER TO FRAME | ||
| 070 | N 913004014002 | NUT |
| CROSS MEMBER TO FRAME | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FOR SHOCK ABSORBER CROSS MEMBER, SEE GROUP 32 | ||
| 072 | A 3833120360 | REINFORCEMENT |
| AT CROSS MEMBER | ||
| 076 | A 3813120021 | CROSS MEMBER |
| Repalced by: A 6173120117 | ||
| 076 | A 6173120117 | CROSS MEMBER |
| NO.5 | ||
| 076 | A 6173120117 | CROSS MEMBER |
| NO.6 | ||
| 078 | A 3833120360 | REINFORCEMENT |
| AT CROSS MEMBER | ||
| 081 | A 3833100246 | CROSS MEMBER |
| REAR | ||
| 085 | A 3213120087 | GUSSET PLATE |
| TOP LEFT | ||
| 085 | A 3213120087 | GUSSET PLATE |
| BOTTOM RIGHT | ||
| 088 | A 3213120187 | GUSSET PLATE |
| TOP RIGHT | ||
| 088 | A 3213120187 | GUSSET PLATE |
| BOTTOM LEFT | ||
| 090 | A 3833120587 | GUSSET PLATE |
| BOTTOM LEFT | ||
| 090 | A 3833120487 | GUSSET PLATE |
| BOTTOM RIGHT | ||
| 110 | A 3833220101 | FRONT SPRING BRACKET |
| FRONT AND REAR | ||
| 110 | A 3833220001 | FRONT SPRING BRACKET |
| FRONT AND REAR | ||
| 115 | A 3833220131 | PLATE |
| HELPER SPRING | ||
| 117 | A 3833220231 | PLATE |
| HELPER SPRING | ||
| 120 | A 3833110253 | ANGLE |
| LEFT REINFORCEMENT | ||
| 120 | A 3833110353 | ANGLE |
| RIGHT REINFORCEMENT | ||
| 130 | A 3523250101 | REAR SPRING BRACKET |
| FRONT AND REAR | ||
| 135 | A 3813250041 | STIFFENING |
| HELPER SPRING BRACKET TO SIDE MEMBER | ||
| 140 | A 3893250117 | HELPER SPRING BRACKET |
| Repalced by: A 6843250017 | ||
| 140 | A 6843250017 | HELPER SPRING BRACKET |
| HELPER SPRING | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| MOUNTING USED FOR FRAME CONNECTION PARTS | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| DIMENSIONS ARE INDICATED IN THE FOLLOWING ORDER: | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| THREAD X SHANK DIA. X SHANK LENGTH X TOTAL LENGTH | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| N 000609010004 | FITTED SCREW | |
| M 10X11X14X28 | ||
| N 000610010003 | FITTED SCREW | |
| M 10X11X25X38 | ||
| N 000609010014 | FITTED SCREW | |
| M 10X11X24X40 | ||
| A 3859900514 | SCREW | |
| M 10X11X26,5X46 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| A 3859900714 | SCREW | |
| M 12X12X10X25 | ||
| A 3859901414 | SCREW | |
| M 12X12X11X26 | ||
| A 0039900901 | SCREW | |
| M 12X12X12X28 | ||
| A 3859901514 | SCREW | |
| M 12X12X13X28 | ||
| A 0029908201 | SCREW | |
| M 12X12X14X30 | ||
| A 3859902114 | SCREW | |
| M 12X12X15X30 | ||
| A 0029908301 | SCREW | |
| M 12X12X16X32 | ||
| A 3859902214 | SCREW | |
| M 12X12X17X32 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| A 6209900114 | SCREW | |
| M 12X13X12X29 | ||
| A 3969900314 | SCREW | |
| M 12X13X13X30 | ||
| A 3589901914 | SCREW | |
| M 12X13X15X32 | ||
| A 3559900014 | SCREW | |
| M 12X13X18X35 | ||
| A 3589900614 | SCREW | |
| M 12X13X21X38 | ||
| A 6179900114 | SCREW | |
| M 12X13X23X40 | ||
| A 6249900014 | SCREW | |
| M 12X13X25X42 | ||
| A 3859900214 | SCREW | |
| M 12X13X35X52 | ||
| A 6689900114 | SCREW | |
| M 12X13X58X80 | ||
| A 6689900014 | SCREW | |
| M 12X13X63X85 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| A 3229903101 | SCREW | |
| M 14X14X18X32 | ||
| A 3859900814 | SCREW | |
| M 14X14X16X32 | ||
| A 3859902014 | SCREW | |
| M 14X14X18X34 | ||
| A 3559900114 | SCREW | |
| M 12X14X13X35 | ||
| A 3219901601 | SCREW | |
| M 14X14X17X35 | ||
| A 3219901901 | SCREW | |
| M 14X14X22X40 | ||
| A 3559900501 | SCREW | |
| M 14X14X24X42 | ||
| A 3409900201 | SCREW | |
| M 14X14X27X45 | ||
| A 3609902001 | SCREW | |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| A 3589900114 | SCREW | |
| M 14X15X15X32 | ||
| A 3589900814 | SCREW | |
| M 14X15X17X34 | ||
| A 6459900014 | SCREW | |
| M 14X15X18X35 | ||
| A 3589901014 | SCREW | |
| M 14X15X19X36 | ||
| A 3589900214 | SCREW | |
| M 14X15X21X38 | ||
| A 3589900414 | SCREW | |
| M 14X15X25X42 | ||
| A 3589900714 | SCREW | |
| M 14X15X27X44 | ||
| A 3589900914 | SCREW | |
| M 14X15X29X46 | ||
| A 3859900414 | SCREW | |
| M 14X15X31X48 | ||
| A 3859900314 | SCREW | |
| M 14X15X35X52 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| A 3859900914 | SCREW | |
| M 16X16X18X36 | ||
| A 3859901714 | SCREW | |
| M 16X16X20X38 | ||
| A 3859901014 | SCREW | |
| M 16X16X22X40 | ||
| A 3859901114 | SCREW | |
| M 16X16X24X42 | ||
| A 0029909901 | SCREW | |
| M 16X16X25X45 | ||
| A 3859901814 | SCREW | |
| M 16X16X30X48 | ||
| A 3859901914 | SCREW | |
| M 16X16X32X50 | ||
| A 6259900301 | SCREW | |
| M 16X16X38X90 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| A 3589900514 | SCREW | |
| M 16X17X22X42 | ||
| A 6459900714 | SCREW | |
| M 16X17X24X44 | ||
| A 3609900114 | SCREW | |
| M 16X17X28X48 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| A 3469900014 | SCREW | |
| M 16X18X18X40 | ||
| A 3859902314 | SCREW | |
| M 18X18X23X45 | ||
| A 6209900014 | SCREW | |
| M 16X18X26X48 | ||
| A 3469900114 | SCREW | |
| M 16X18X31X50 | ||
| A 3859902414 | SCREW | |
| M 18X18X33X55 | ||
| A 6229900014 | SCREW | |
| M 16X18X38X60 | ||
| A 3919900014 | SCREW | |
| M 16X18X63X85 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| N 000610018004 | FITTED SCREW | |
| M 18X19X25X45 | ||
| N 000610018009 | FITTED SCREW | |
| M 18X19X33X55 | ||
| N 000610018006 | FITTED SCREW | |
| M 18X19X38X60 | ||
| N 000609018000 | FITTED SCREW | |
| M 18X19X57X85 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| N 913004010011 | NUT | |
| N 913004012009 | NUT | |
| N 913004014005 | NUT | |
| N 913004016005 | NUT | |
| N 913004018004 | NUT | |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 160 | N 910005010012 | RIVET |
| 10X24 MM | ||
| 160 | N 910005010014 | RIVET |
| 10X26 MM | ||
| 160 | N 910005010016 | RIVET |
| 10X28 MM | ||
| 160 | N 910005012012 | RIVET |
| 12X26 MM | ||
| 160 | N 910005012073 | RIVET |
| 12X28 MM | ||
| 160 | N 910005012080 | RIVET |
| 12X42 MM | ||
| 160 | N 910005014056 | RIVET |
| 14X45 MM | ||
| 160 | N 910005014059 | RIVET |
| 14X48 MM | ||
| 160 | N 910005014059 | RIVET |
| 14X55 MM | ||
| 200 | A 3873150106 | COUPLING PIN |
| FOR COUPLING MOUTH | ||
| 205 | A 0009874346 | SEALING CORD |
| FOR COUPLING MOUTH | ||
| 210 | A 3353150031 | LOCKING SPRING |
| FOR COUPLING MOUTH | ||
| 211 | N 000933008153 | SCREW |
| LOCK SPRING TO CROSS MEMBER | ||
| 212 | N 000125008418 | WASHER |
| LOCK SPRING TO CROSS MEMBER | ||
| 213 | N 912004008102 | LOCK WASHER |
| LOCK SPRING TO CROSS MEMBER | ||
| 214 | N 000934008010 | NUT |
| LOCK SPRING TO CROSS MEMBER | ||

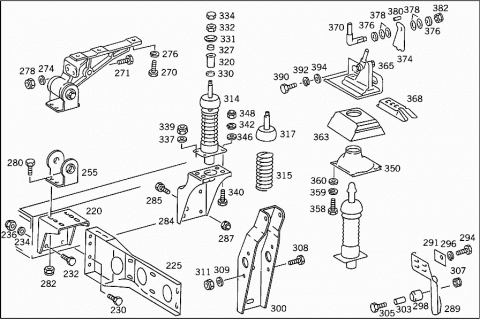

| 220 | A 3878912631 | CONSOLE |
| CAB MOUNTING,FRONT | ||
| 225 | A 3873170423 | STRUT |
| BUMPER AT TORSION BAR | ||
| 230 | N 000961014101 | SCREW |
| CONSOLE AND STRUT TO FRAME | ||
| M 14X45 | ||
| 232 | N 000961014063 | SCREW |
| CONSOLE AND STRUT TO FRAME | ||
| M 14X40 | ||
| 234 | N 000125015013 | WASHER |
| CONSOLE AND STRUT TO FRAME | ||
| 236 | N 913004014005 | NUT |
| CONSOLE AND STRUT TO FRAME | ||
| 240 | A 3813106509 | BRACKET |
| CAB SUSPENSION,FRONT RIGHT | ||
| 240 | A 3813106609 | BRACKET |
| CAB SUSPENSION,FRONT RIGHT | ||

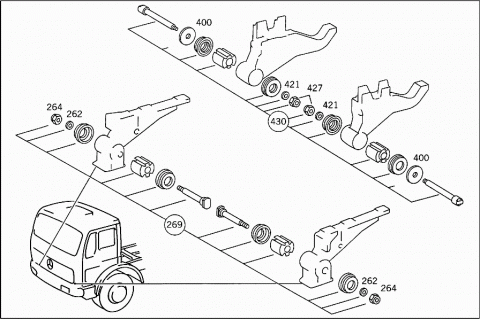

| 255 | A 3878902903 | MOUNTING |
| 262 | N 007349017002 | WASHER |
| 264 | N 913004016004 | NUT |
| 269 | A 3815860031 | REPAIR KIT |
| CAB SUSPENSION,FRONT | ||
| 270 | N 000961014028 | SCREW |
| Repalced by: A 0029909604 | ||
| 270 | A 0029909604 | SCREW |
| LEFT AND RIGHT BEARING BRACKETS TO CAB | ||
| M 14X40 | ||
| 271 | N 000961014064 | SCREW |
| LEFT AND RIGHT BEARING BRACKETS TO CAB | ||
| M 14X50 | ||
| 274 | A 3209901840 | WASHER |
| LEFT AND RIGHT BEARING BRACKETS TO CAB | ||
| 276 | N 912004014100 | LOCK WASHER |
| LEFT AND RIGHT BEARING BRACKETS TO CAB | ||
| 278 | N 913004014002 | NUT |
| LEFT AND RIGHT BEARING BRACKETS TO CAB | ||
| 280 | N 000961014063 | SCREW |
| CAB TO FRAME | ||
| M 14X40 | ||
| 280 | N 000961014101 | SCREW |
| CAB TO FRAME | ||
| M 14X45 | ||
| 282 | N 913004014005 | NUT |
| CAB TO FRAME | ||
| 284 | A 3813170601 | CONSOLE |
| VIBRATION ABSORBER TO FRAME | ||
| 284 | A 3813171201 | CONSOLE |
| VIBRATION ABSORBER TO FRAME | ||
| 285 | N 000961014050 | SCREW |
| CONSOLE TO FRAME | ||
| M 14X35 | ||
| 285 | N 000961014028 | SCREW |
| Repalced by: A 0029909604 | ||
| 285 | A 0029909604 | SCREW |
| CONSOLE TO FRAME | ||
| M 14X40 | ||
| 287 | N 913004014002 | NUT |
| CONSOLE TO FRAME | ||
| 289 | A 3813171526 | GUIDE |
| CAB SUSPENSION,REAR LEFT | ||
| 289 | A 3813171926 | GUIDE |
| CAB SUSPENSION,REAR LEFT | ||
| 289 | A 3813171626 | GUIDE |
| CAB SUSPENSION,REAR RIGHT | ||
| 289 | A 3813172026 | GUIDE |
| CAB SUSPENSION,REAR RIGHT | ||
| 291 | A 3873170084 | SHIM |
| GUIDE TO CAB | ||
| 294 | N 000960012301 | SCREW |
| GUIDE TO CAB | ||
| 296 | N 912004012100 | LOCK WASHER |
| GUIDE TO CAB | ||
| 298 | A 3813170750 | BUSHING |
| GUIDE TO CAB | ||
| 300 | A 3813177540 | BRACKET |
| (ROLLER CARRIER) | ||
| 303 | A 3813170553 | SPACER TUBE |
| BUSHING TO GUIDE | ||
| 305 | N 000960012230 | SCREW |
| LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS | ||
| 307 | N 913004012008 | NUT |
| LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS | ||
| 308 | N 000961012097 | SCREW |
| CAB SUSPENSION | ||
| M 12X35 | ||
| 308 | N 000961012122 | SCREW |
| CAB SUSPENSION | ||
| M 12X40 | ||
| 309 | N 000125013008 | WASHER |
| CAB SUSPENSION | ||
| 311 | N 913004012008 | NUT |
| CAB SUSPENSION | ||
| 314 | A 3878901619 | SHOCK ABSORBER |
| Repalced by: A 3878901319 | ||
| 314 | A 3878901319 | SHOCK ABSORBER |
| CAB SUSPENSION,REAR | ||
| 314 | A 3878901319 | SHOCK ABSORBER |
| CAB SUSPENSION,REAR | ||
| 314 | A 3878901219 | SHOCK ABSORBER |
| Repalced by: A 3878901519 | ||
| 314 | A 3878901519 | SHOCK ABSORBER |
| CAB SUSPENSION,REAR | ||
| 314 | A 3878901519 | SHOCK ABSORBER |
| CAB SUSPENSION,REAR | ||
| 315 | A 0008910751 | SPRING |
| 315 | A 0008910151 | SPRING |
| 317 | A 0008910201 | RUBBER MOUNTING |
| TO 387 890 16 19 | ||
| 317 | A 0008910301 | RUBBER MOUNTING |
| TO 387 890 13 19 | ||
| 317 | A 0008910301 | RUBBER MOUNTING |
| TO 387 890 13 19 | ||
| 320 | A 3813170753 | SPACER TUBE |
| SHOCK ABSORBER TO CAB | ||
| 327 | A 3275045082 | RUBBER RING |
| SHOCK ABSORBER TO CAB | ||
| 330 | N 000433015005 | WASHER |
| SHOCK ABSORBER TO CAB | ||
| 331 | A 3878912010 | WASHER |
| SHOCK ABSORBER TO CAB | ||
| 332 | N 000934012022 | NUT |
| SHOCK ABSORBER TO CAB | ||
| 334 | N 001587012008 | CAP NUT |
| SHOCK ABSORBER TO CAB | ||
| 337 | N 007349015003 | WASHER |
| SHOCK ABSORBER TO CAB | ||
| 339 | N 913004012008 | NUT |
| SHOCK ABSORBER TO CAB | ||
| 340 | N 000933008147 | SCREW |
| SHOCK ABSORBER TO CONSOLE | ||
| 342 | N 912004008102 | LOCK WASHER |
| SHOCK ABSORBER TO CONSOLE | ||
| 346 | N 009021008205 | WASHER |
| SHOCK ABSORBER TO CONSOLE | ||
| 348 | N 913004008004 | NUT |
| SHOCK ABSORBER TO CONSOLE | ||
| 350 | A 3813177840 | BRACKET |
| VIBRATION ABSORBER TO CAB,LEFT | ||
| 350 | A 3813177940 | BRACKET |
| VIBRATION ABSORBER TO CAB,RIGHT | ||
| 358 | N 000933010105 | SCREW |
| BRACKET TO CAB | ||
| 359 | N 912004010102 | LOCK WASHER |
| BRACKET TO CAB | ||
| 360 | N 000433010505 | WASHER |
| BRACKET TO CAB | ||
| 363 | A 3813170097 | BOOT |
| BRACKET TO CAB | ||
| 365 | A 3813101875 | LOCKING MECHANISM |
| CAB SUSPENSION,REAR LEFT | ||
| 365 | A 3813102075 | LOCKING MECHANISM |
| CAB SUSPENSION,REAR LEFT | ||
| 365 | A 3813101775 | LOCKING MECHANISM |
| CAB SUSPENSION,REAR RIGHT | ||
| 365 | A 3813101975 | LOCKING MECHANISM |
| CAB SUSPENSION,REAR RIGHT | ||
| 368 | A 3813170119 | LATCH |
| 370 | A 3813172374 | PIN |
| 374 | A 3813170924 | LEVER |
| 376 | A 3813170676 | WASHER |
| 378 | A 0009935426 | DISC SPRING |
| 380 | N 001481006041 | CLAMPING SLEEVE |
| 382 | N 913004012008 | NUT |
| 390 | N 000933010105 | SCREW |
| LOCKING MECHANISM TO CAB | ||
| 392 | N 912004010102 | LOCK WASHER |
| LOCKING MECHANISM TO CAB | ||
| 394 | N 000125010518 | WASHER |
| LOCKING MECHANISM TO CAB | ||

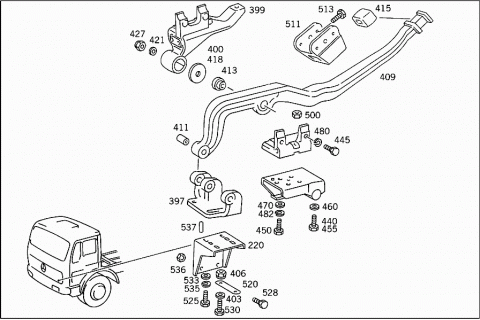

| 397 | A 3878916020 | MOUNTING |
| Repalced by: A 6558910320 | ||
| 397 | A 6558910320 | MOUNTING |
| CAB SUSPENSION,FRONT LEFT | ||
| 397 | A 3878916120 | MOUNTING |
| Repalced by: A 6558910420 | ||
| 397 | A 6558910420 | MOUNTING |
| CAB SUSPENSION,FRONT RIGHT | ||
| 399 | A 3878916420 | MOUNTING |
| CAB SUSPENSION,FRONT LEFT | ||
| 399 | A 3878916520 | MOUNTING |
| CAB SUSPENSION,FRONT RIGHT | ||
| 400 | A 3873170376 | WASHER |
| STOP | ||
| 403 | N 007349017002 | WASHER |
| MOUNTING TO BRACKET | ||
| 406 | N 913004016004 | NUT |
| MOUNTING TO BRACKET | ||
| 409 | A 3878912856 | LEVER |
| (TILTING LEVER),CAB | ||
| 411 | A 3879920203 | BUSHING |
| CAB SUSPENSION,FRONT | ||
| 413 | A 6208910017 | BUSHING |
| CAB SUSPENSION,FRONT | ||
| 415 | A 3638910023 | BUFFER |
| CAB SUSPENSION,FRONT | ||
| 418 | A 3873170376 | WASHER |
| PIN TO BEARING | ||
| 421 | N 007349017002 | WASHER |
| PIN TO BEARING | ||
| 427 | N 913004016004 | NUT |
| PIN TO BEARING | ||
| 430 | A 6205860031 | REPAIR KIT |
| CAB SUSPENSION | ||
| 440 | N 000960014167 | SCREW |
| LEFT AND RIGHT BEARING BRACKETS TO CAB | ||
| M 14X50 | ||
| 445 | N 000961014054 | SCREW |
| LEFT AND RIGHT CONSOLES TO CAB | ||
| M 14X45 | ||
| 450 | N 000961014028 | SCREW |
| Repalced by: A 0029909604 | ||
| 450 | A 0029909604 | SCREW |
| LEFT AND RIGHT BEARING BRACKETS TO CAB | ||
| M 14X40 | ||
| 455 | N 000960012189 | SCREW |
| LEFT AND RIGHT BEARING BRACKETS TO CAB | ||
| 460 | A 3209901840 | WASHER |
| LEFT AND RIGHT BEARING BRACKETS TO CAB | ||
| 470 | N 000125015013 | WASHER |
| LEFT AND RIGHT BEARING BRACKETS TO CAB | ||
| 480 | N 912004014100 | LOCK WASHER |
| LEFT AND RIGHT CONSOLES TO CAB | ||
| 482 | N 912004012100 | LOCK WASHER |
| LEFT AND RIGHT BEARING BRACKETS TO CAB | ||
| 500 | N 913004014002 | NUT |
| LEFT AND RIGHT BEARING BRACKETS TO CAB | ||
| 511 | A 6208901603 | MOUNTING |
| TILTING LEVER TO CAB SIDE MEMBER | ||
| 513 | N 000961012052 | SCREW |
| MOUNTING TO CAB | ||
| 520 | A 3878910498 | SHIM |
| CAB ON CONSOLE AT FRAME | ||
| 525 | N 000961014088 | SCREW |
| CAB ON CONSOLE AT FRAME | ||
| M 14X35 | ||
| 528 | N 000961014053 | SCREW |
| CAB ON CONSOLE AT FRAME | ||
| M 14X40 | ||
| 530 | N 000960014229 | SCREW |
| CAB ON CONSOLE AT FRAME | ||
| M 14X55 | ||
| 533 | N 007349015003 | WASHER |
| CAB ON CONSOLE AT FRAME | ||
| 535 | N 912004014100 | LOCK WASHER |
| CAB ON CONSOLE AT FRAME | ||
| 536 | N 913004014005 | NUT |
| CAB ON CONSOLE AT FRAME | ||
| 537 | N 001471016000 | GROOVED PIN |
| CAB ON CONSOLE AT FRAME | ||

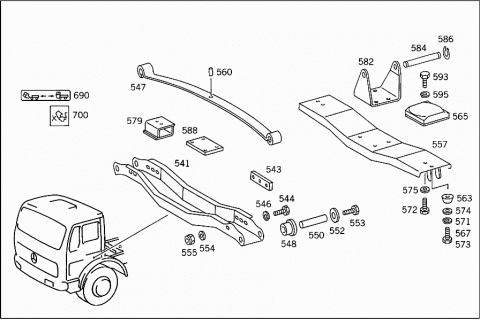

| 538 | A 3878911731 | CONSOLE |
| CAB MOUNTING,REAR | ||
| 539 | N 000961014050 | SCREW |
| CONSOLE TO FRAME | ||
| 540 | N 913004014002 | NUT |
| CONSOLE TO FRAME | ||
| 541 | A 3878910024 | STRUT |
| Repalced by: A 6558910224 | ||
| 541 | A 6558910224 | STRUT |
| CAB MOUNTING,REAR | ||
| 543 | A 3878910198 | SHIM |
| STRUT TO CONSOLE | ||
| 544 | N 308676012012 | SCREW |
| STRUT TO CONSOLE | ||
| 546 | N 912004012100 | LOCK WASHER |
| STRUT TO CONSOLE | ||
| 547 | A 3878911051 | SPRING |
| CAB SUSPENSION,REAR | ||
| 548 | A 3638910717 | BUSHING |
| SPRING TO STRUT | ||
| 550 | A 3638910218 | TUBE |
| SPRING TO STRUT | ||
| 552 | A 3638910010 | WASHER |
| SPRING TO STRUT | ||
| 553 | N 000960012153 | SCREW |
| SPRING TO STRUT | ||
| 554 | N 009021013102 | WASHER |
| SPRING TO STRUT | ||
| 555 | N 913004012008 | NUT |
| SPRING TO STRUT | ||
| 557 | A 3878900522 | RAIL |
| Repalced by: A 6558900122 | ||
| 557 | A 6558900122 | RAIL |
| CAB SUSPENSION,REAR | ||
| 560 | N 000007012201 | CYLINDRICAL PIN |
| 563 | A 3878910323 | BUFFER |
| RAIL STOP | ||
| 565 | A 3878910072 | MOUNTING |
| CAB REST | ||
| 567 | N 000084008119 | SCREW |
| BUFFER AND MOUNTING TO RAIL | ||
| 569 | N 000933008154 | SCREW |
| BUFFER AND MOUNTING TO RAIL | ||
| 571 | N 912004008102 | LOCK WASHER |
| BUFFER AND MOUNTING TO RAIL | ||
| 572 | N 000933008161 | SCREW |
| BUFFER AND MOUNTING TO RAIL | ||
| 573 | N 000084008148 | SCREW |
| BUFFER AND MOUNTING TO RAIL | ||
| 574 | N 000433008406 | WASHER |
| BUFFER AND MOUNTING TO RAIL | ||
| 575 | N 000125008418 | WASHER |
| BUFFER AND MOUNTING TO RAIL | ||
| 579 | A 3803100184 | SHIM |
| BUFFER AND MOUNTING TO RAIL | ||
| 582 | A 3878917920 | MOUNTING |
| CAB MOUNTING,REAR | ||
| 584 | A 3878911057 | PIN |
| CAB MOUNTING,REAR | ||
| 586 | N 000471025002 | LOCK RING |
| CAB MOUNTING,REAR | ||
| 588 | A 3878910811 | PLATE |

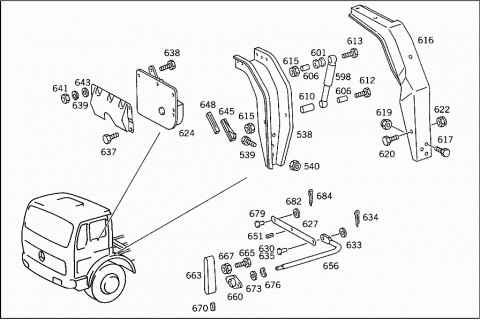

| CAB MOUNTING,REAR | ||
| 593 | N 000931010258 | SCREW |
| CAB MOUNTING,REAR | ||
| 595 | N 912004010102 | LOCK WASHER |
| CAB MOUNTING,REAR | ||
| 598 | A 0008912205 | SHOCK ABSORBER |
| CAB SUSPENSION,REAR | ||
| 601 | A 0008910501 | RUBBER MOUNTING |
| 606 | A 0008910617 | BUSHING |
| 610 | A 3878910453 | SPACER TUBE |
| SHOCK ABSORBER | ||
| 612 | N 000960018125 | SCREW |
| SHOCK ABSORBER TO CONSOLE | ||
| M 18X135 | ||
| 612 | N 000960018072 | SCREW |
| SHOCK ABSORBER TO CONSOLE | ||
| M 18X140 | ||
| 613 | N 000960018040 | SCREW |
| SHOCK ABSORBER TO RAIL | ||
| M 18X65 | ||
| 615 | N 913004018003 | NUT |
| Repalced by: N 910113018004 | ||
| 615 | N 910113018004 | NUT |
| SHOCK ABSORBER TO RAIL AND TO CONSOLE | ||
| 616 | A 3815001227 | SUPPORT |
| EXPANSION TANK | ||
| 617 | N 000961014050 | SCREW |
| SUPPORT TO FRAME | ||
| M 14X35 | ||
| 617 | N 000961014100 | SCREW |
| SUPPORT TO FRAME | ||
| M 14X30 | ||
| 619 | N 913004014002 | NUT |
| SUPPORT TO FRAME | ||
| 620 | N 000961012151 | SCREW |
| SUPPORT TO FRAME | ||
| 622 | N 913004012008 | NUT |
| SUPPORT TO FRAME | ||
| 624 | A 0008900089 | FASTENER |
| Repalced by: A 0008902389 | ||
| 624 | A 0008901389 | FASTENER |
| Repalced by: A 0008902389 | ||
| 624 | A 0008902389 | FASTENER |
| (CENTRAL LOCK) | ||
| 627 | A 6208910170 | ROD |
| CENTRAL LOCK | ||
| 630 | N 001434008059 | PIN |
| CENTRAL LOCK | ||
| 633 | N 000433008406 | WASHER |
| CENTRAL LOCK | ||
| 634 | N 000094002059 | COTTER PIN |
| PULL TO FASTENER | ||
| 635 | N 001444008202 | PIN |
| PULL TO FASTENER | ||
| 637 | N 000933010128 | SCREW |
| CENTRAL LOCK TO CAB | ||
| 638 | N 000933010105 | SCREW |
| CENTRAL LOCK TO CAB | ||
| 639 | N 912004010102 | LOCK WASHER |
| CENTRAL LOCK TO CAB | ||
| 641 | N 913004010008 | NUT |
| CENTRAL LOCK TO CAB | ||
| 643 | N 000125010518 | WASHER |
| CENTRAL LOCK TO CAB | ||
| 645 | A 3878910814 | BRACKET |
| ROD THRU CAB | ||
| 648 | A 3878910085 | SEAL |
| ROD THRU CAB | ||
| 651 | N 007346005003 | CLAMPING SLEEVE |
| CENTRAL LOCK | ||
| 656 | A 6208910056 | LEVER |
| CENTRAL LOCK | ||
| 660 | A 3638910317 | BUSHING |
| CENTRAL LOCK | ||
| 663 | A 3638910073 | HANDLE |
| Repalced by: A 6208910073 | ||
| 663 | A 6208970073 | PART NAME MISSING |
| CENTRAL LOCK | ||
| 665 | N 007985008142 | SCREW |
| CENTRAL LOCK | ||
| 667 | N 913004008004 | NUT |
| CENTRAL LOCK | ||
| 670 | N 007346005004 | CLAMPING SLEEVE |
| CENTRAL LOCK | ||
| 673 | N 000125015013 | WASHER |
| CENTRAL LOCK | ||
| 676 | N 900055014400 | LOCK RING |
| CENTRAL LOCK | ||
| 679 | N 001434008057 | PIN |
| CENTRAL LOCK | ||
| 682 | N 000433008406 | WASHER |
| CENTRAL LOCK | ||
| 684 | N 000094002059 | COTTER PIN |
| CENTRAL LOCK | ||
| 690 | A 3815840038 | GUMMED LABEL |
| CAB LOCKING MECHANISM | ||
| 700 | A 3875841321 | GUIDE SIGN |
| DANGER AREA IN FRONT OF TILTED CAB | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
