Transporto priemonė: 1417 MBSA; VIN numerio dalis: 383017

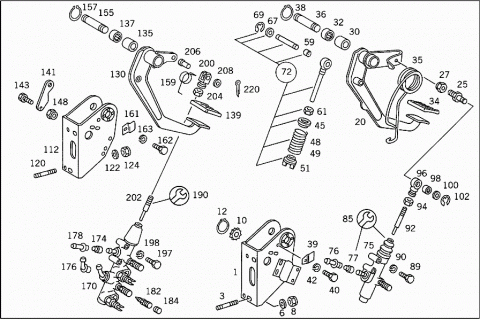

Grupė: 29 PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| 001 | A 3812901219 | BEARING BRACKET |
| CLUTCH PEDAL | ||
| 003 | N 000939008083 | STUD BOLT |
| BEARING BRACKET TO CAB | ||
| M 8X20 | ||
| 003 | N 000939008136 | STUD BOLT |
| BEARING BRACKET TO CAB | ||
| M 8X30 | ||
| 006 | N 000125008418 | WASHER |
| BEARING BRACKET TO CAB | ||
| 008 | N 913004008004 | NUT |
| BEARING BRACKET TO CAB | ||
| 010 | A 3812910186 | STOP |
| CLUTCH PEDAL | ||
| 012 | N 000471016001 | LOCK RING |
| STOP TO BEARING BRACKET | ||
| 020 | A 6202900216 | PEDAL |
| CLUTCH | ||
| 025 | A 3812910274 | PIN |
| CLUTCH PEDAL | ||
| 027 | N 913004008004 | NUT |
| CLUTCH PEDAL | ||
| 030 | A 3812910053 | SPACER TUBE |
| CLUTCH PEDAL | ||
| 032 | A 0119813410 | NEEDLE BEARING |
| CLUTCH PEDAL | ||
| 034 | A 1072910182 | PAD |
| CLUTCH PEDAL | ||
| 035 | A 3819930710 | SPRING |
| CLUTCH PEDAL RESET | ||
| 036 | A 3812940707 | PIVOT PIN |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 038 | N 000471020001 | LOCK RING |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 039 | A 3812910073 | LOCK |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 040 | N 000933006102 | SCREW |
| LOCK TO BEARING BRACKET | ||
| 042 | N 912004006102 | LOCK WASHER |
| LOCK TO BEARING BRACKET | ||
| 045 | A 1112910491 | SPRING RETAINER |
| DEAD CENTER SPRING,TOP | ||
| 048 | A 3819930201 | SPRING |
| (DEAD CENTER SPRING) | ||
| 23.2 MM | ||
| 049 | A 1109930501 | SPRING |
| (DEAD CENTER SPRING) | ||
| 35 MM | ||
| 051 | A 3092910091 | SPRING RETAINER |
| BOTTOM | ||
| 059 | A 0059814410 | NEEDLE BEARING |
| ROD TO CLUTCH PEDAL | ||
| 059 | A 0059813810 | NEEDLE BEARING |
| ROD TO CLUTCH PEDAL | ||
| 059 | A 0089811210 | NEEDLE BEARING |
| ROD TO CLUTCH PEDAL | ||
| 059 | A 0139818210 | NEEDLE BEARING |
| ROD TO CLUTCH PEDAL | ||
| 061 | N 000439010216 | NUT |
| SPRING TO PUSH ROD | ||
| 067 | N 000433008406 | WASHER |
| PUSH ROD TO PEDAL | ||
| 069 | N 006799006003 | LOCK PLATE |
| PUSH ROD TO PEDAL | ||
| 072 | A 3802900093 | REPAIR KIT |
| DEAD CENTER SPRING | ||
| 072 | A 3802900193 | REPAIR KIT |
| DEAD CENTER SPRING | ||
| 075 | A 0012952906 | MASTER CYLINDER |
| Repalced by: A 0012956006 | ||
| 075 | A 0012956006 | MASTER CYLINDER |
| CLUTCH;LESS DE-AERATION | ||
| 076 | A 0002950836 | INTERMEDIATE PIECE |
| 077 | A 0009971186 | PLUG |
| 085 | A 0005863529 | REPAIR KIT |
| Repalced by: A 0002903412 | ||
| 085 | A 0002903412 | REPAIR KIT |
| TO MASTER CYLINDER HAVING ALUMINUM PISTON | ||
| TO 001 295 29 06 | ||
| 085 | A 0002904667 | REPAIR KIT |
| TO MASTER CYLINDER HAVING SYNTHETIC PISTON | ||
| TO 001 295 60 06 | ||
| 089 | N 000931006191 | SCREW |
| CLUTCH MASTER CYLINDER TO PEDAL BEARING BRACKET | ||
| 090 | N 912004006102 | LOCK WASHER |
| CLUTCH MASTER CYLINDER TO PEDAL BEARING BRACKET | ||
| 092 | A 3812950033 | ROD |
| MASTER CYLINDER | ||
| 094 | N 000439008211 | NUT |
| MASTER CYLINDER | ||
| 096 | A 0009961145 | ARTICULATION PIECE |
| CLUTCH MASTER CYLINDER TO CLUTCH PEDAL | ||
| 096 | A 0009961045 | ARTICULATION PIECE |
| CLUTCH MASTER CYLINDER TO CLUTCH PEDAL | ||
| 098 | A 0059814410 | NEEDLE BEARING |
| CLUTCH MASTER CYLINDER TO CLUTCH PEDAL | ||
| 098 | A 0059813810 | NEEDLE BEARING |
| CLUTCH MASTER CYLINDER TO CLUTCH PEDAL | ||
| 098 | A 0089811210 | NEEDLE BEARING |
| CLUTCH MASTER CYLINDER TO CLUTCH PEDAL | ||
| 100 | N 000433008406 | WASHER |
| ROD TO LEVER | ||
| 102 | N 006799006003 | LOCK PLATE |
| ROD TO LEVER | ||
| 112 | A 3812901519 | BEARING BRACKET |
| BRAKE PEDAL | ||
| 120 | N 000939008083 | STUD BOLT |
| BEARING BRACKET TO CAB | ||
| 122 | N 000125008418 | WASHER |
| BEARING BRACKET TO CAB | ||
| 124 | N 913004008004 | NUT |
| BEARING BRACKET TO CAB | ||
| 130 | A 3812900318 | PEDAL |
| BRAKE | ||
| 135 | A 3812910053 | SPACER TUBE |
| BRAKE PEDAL | ||
| 137 | A 0119813410 | NEEDLE BEARING |
| BRAKE PEDAL | ||
| 139 | A 1072910182 | PAD |
| BRAKE PEDAL | ||
| 141 | A 3815450144 | LEVER |
| STOP LIGHT SWITCH | ||
| 143 | N 000931008314 | SCREW |
| LEVER TO BRAKE PEDAL | ||
| 148 | N 913004008004 | NUT |
| LEVER TO PEDAL | ||
| 155 | A 3812940707 | PIVOT PIN |
| PEDAL TO BEARING BRACKET | ||
| 157 | N 000471020001 | LOCK RING |
| PEDAL TO BEARING BRACKET | ||
| 159 | A 3819930210 | SPRING |
| BRAKE PEDAL | ||
| 161 | A 3812910073 | LOCK |
| PEDAL TO BEARING BRACKET | ||
| 162 | N 000933006102 | SCREW |
| LOCK TO BEARING BRACKET | ||
| 163 | N 912004006102 | LOCK WASHER |
| LOCK TO BEARING BRACKET | ||
| 170 | A 0002958706 | MASTER CYLINDER |
| BRAKE | ||
| 174 | A 0002950050 | BUSHING |
| Repalced by: A 0004310950 | ||
| 174 | A 0004310950 | BUSHING |
| 176 | A 0002950536 | INTERMEDIATE PIECE |
| 45 DEGREES | ||
| 178 | A 0002950636 | INTERMEDIATE PIECE |
| 80 DEGREES | ||
| 182 | A 3075530107 | VALVE |
| BREATHER | ||
| 184 | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 0004217187 | ||
| 184 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 184 | A 0004210887 | PROTECTIVE CAP |
| 190 | A 0005864729 | REPAIR KIT |
| 197 | N 000931006191 | SCREW |
| MASTER CYLINDER TO BEARING BRACKET | ||
| 198 | N 912004006102 | LOCK WASHER |
| MASTER CYLINDER TO BEARING BRACKET | ||
| 200 | A 0009961601 | YOKE |
| MASTER CYLINDER | ||
| 202 | A 3812950133 | ROD |
| MASTER CYLINDER | ||
| 204 | N 000439008211 | NUT |
| MASTER CYLINDER | ||
| 206 | A 3529910007 | PIN |
| PISTON ROD TO LEVER | ||
| 208 | N 000433010505 | WASHER |
| PISTON ROD TO LEVER | ||
| 220 | N 000094003219 | COTTER PIN |
| PISTON ROD TO LEVER | ||
| 270 | A 0002951915 | RESERVOIR |
| RESERVOIR | ||
| 272 | A 0002950116 | LOCKING CAP |
| 274 | A 0009972940 | SEAL RING |
| 43.7X30 MM | ||
| 276 | A 0004314334 | STRAINER |
| 280 | A 0009885435 | CAP |
| RESERVOIR DE-AERATION | ||
| 284 | N 000000001147 | SCREW |
| EXPANSION TANK TO BRACKET | ||
| M 6X20 | ||
| 286 | N 912004006102 | LOCK WASHER |
| EXPANSION TANK TO BRACKET | ||
| 288 | N 009021006205 | WASHER |
| EXPANSION TANK TO BRACKET | ||
| 290 | A 3872900433 | BRACKET |
| RESERVOIR | ||
| 292 | N 007981005306 | SHEET METAL SCREW |
| BRACKET TO CAB | ||

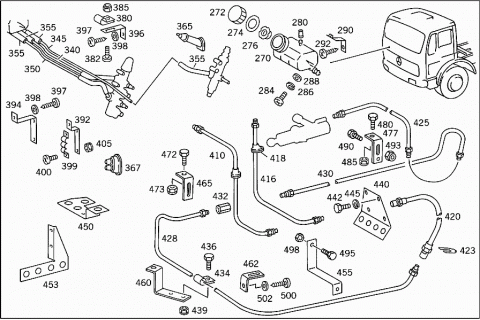

| 340 | A 3872950313 | PIPE |
| FROM BRAKE MASTER CYLINDER TO RESERVOIR | ||
| 700 MM | ||
| 345 | A 3872950813 | PIPE |
| FROM CLUTCH MASTER CYLINDER TO RESERVOIR | ||
| 320 MM | ||
| 350 | A 3872950413 | PIPE |
| FROM BRAKE MASTER CYLINDER TO RESERVOIR | ||
| 550 MM | ||
| 355 | A 0009978952 | HOSE |
| BETWEEN MASTER CYLINDER AND LINES | ||
| 365 | A 6209970281 | GROMMET |
| CLUTCH LINE THRU CAB WINDOW SILL | ||
| 367 | A 3819970581 | GROMMET |
| BRAKE LINE THRU CAB WINDOW SILL | ||
| 380 | A 3609950301 | CLAMP |
| HYDRAULIC LINE TO BRACKET | ||
| 382 | N 000000001147 | SCREW |
| HYDRAULIC LINE TO BRACKET | ||
| M 6X20 | ||
| 385 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 385 | N 913004006001 | NUT |
| HYDRAULIC LINE TO BRACKET | ||
| 392 | A 3872950340 | BRACKET |
| BRACKET TO CAB | ||
| 394 | A 3872950640 | BRACKET |
| BRACKET TO CAB | ||
| 396 | A 3812950440 | BRACKET |
| BRACKET TO CAB | ||
| 397 | N 007981005306 | SHEET METAL SCREW |
| BRACKET TO CAB | ||
| 398 | N 000125006421 | WASHER |
| BRACKET TO CAB | ||
| 399 | A 3879950007 | CLAMP |
| HYDRAULIC LINE TO BRACKET | ||
| 400 | N 000000001147 | SCREW |
| HYDRAULIC HOSE TO BRACKET | ||
| M 6X20 | ||
| 405 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 405 | N 913004006001 | NUT |
| HYDRAULIC HOSE TO BRACKET | ||
| 410 | A 3812901614 | LINE |
| FROM BRAKE MASTER CYLINDER TO HYDRAULIC HOSE | ||
| 550 MM | ||
| 416 | A 3812901814 | LINE |
| FROM CLUTCH MASTER CYLINDER TO HYDRAULIC HOSE | ||
| 700 MM | ||
| 416 | A 3812901814 | LINE |
| FROM BRAKE MASTER CYLINDER TO HYDRAULIC HOSE | ||
| 700 MM | ||
| 418 | A 3819970881 | GROMMET |
| 420 | A 0002951435 | HOSE |
| BRAKE AND CLUTCH LINES | ||
| 555 MM | ||
| 423 | A 0004280473 | BRACKET |
| Repalced by: A 6525040038 | ||
| 423 | A 6525040038 | MOUNTING PLATE |
| 425 | A 3812902014 | LINE |
| FROM CONNECTOR TO CLUTCH SLAVE CYLINDER | ||
| 1100 MM | ||
| 428 | A 3812902214 | LINE |
| FROM HYDRAULIC HOSE TO CLUTCH CONNECTOR | ||
| 2000 MM | ||
| 428 | A 3812902214 | LINE |
| FROM HYDRAULIC HOSE TO BRAKE CONNECTOR | ||
| 2000 MM | ||
| 430 | A 3812902314 | LINE |
| FROM CONNECTOR TO BRAKE SLAVE CYLINDER | ||
| 2500 MM | ||
| 432 | A 0002950736 | INTERMEDIATE PIECE |
| BRAKE AND CLUTCH LINES | ||
| 434 | A 3609950201 | CLAMP |
| Repalced by: A 3604300143 | ||
| 434 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 434 | N 916016008200 | CLAMP |
| LINE TO BRACKET | ||
| 436 | N 000000001147 | SCREW |
| CLAMP TO BRACKET | ||
| M 6X20 | ||
| 439 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 439 | N 913004006001 | NUT |
| CLAMP TO BRACKET | ||
| 440 | A 3852952140 | BRACKET |
| FROM CLUTCH MASTER CYLINDER LINE TO HYDRAULIC HOSE | ||
| 442 | N 000933006102 | SCREW |
| BRACKET TO CAB | ||
| 445 | N 912004006102 | LOCK WASHER |
| BRACKET TO CAB | ||
| 450 | A 3852951340 | BRACKET |
| CLUTCH AND BRAKE HOSES | ||
| 453 | A 3852951240 | BRACKET |
| CLUTCH AND BRAKE HOSES | ||
| 455 | A 3852952440 | BRACKET |
| CLUTCH AND BRAKE HOSES | ||
| 460 | A 3812951340 | BRACKET |
| HYDRAULIC LINE UNDER COUPLING MOUTH CROSS MEMBER | ||
| 462 | A 3604292940 | BRACKET |
| LINE TO BUMPER STRUT | ||
| 465 | A 3812952440 | BRACKET |
| WITH STABILIZER ROD TO FRAME | ||
| 472 | N 000933008147 | SCREW |
| LINE TO SIDE MEMBER | ||
| 474 | N 913004008004 | NUT |
| LINE TO SIDE MEMBER | ||
| 477 | A 3812951940 | BRACKET |
| WITH ENGINE REAR CROSS MEMBER TO RUBBER-MOUNTING CONSOLE | ||
| 480 | N 000933006102 | SCREW |
| BRACKET TO FRAME | ||
| 485 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 485 | N 913004006001 | NUT |
| BRACKET TO FRAME | ||
| 490 | N 000933008153 | SCREW |
| BRACKET TO FRAME | ||
| 493 | N 913004008004 | NUT |
| BRACKET TO FRAME | ||
| 495 | N 000933010105 | SCREW |
| WITH STABILIZER ROD TO FRAME | ||
| 498 | N 913004010008 | NUT |
| WITH STABILIZER ROD TO FRAME | ||
| 500 | N 308676012012 | SCREW |
| LINE TO BRACKET | ||
| 505 | N 913004012008 | NUT |
| LINE TO BRACKET | ||
