Transporto priemonė: 1417 MBSA; VIN numerio dalis: 383017

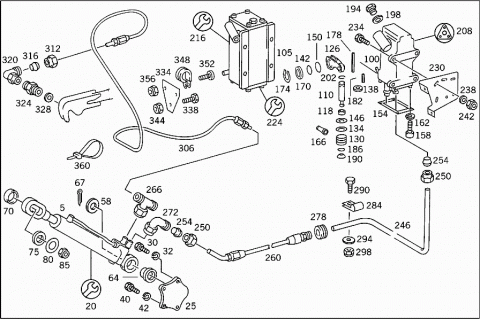

Grupė: 55 SPECIAL INSTALLATIONS - 001 HYDRAULIC SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 0005537005 | CYLINDER |
| Repalced by: A 0015533605 | ||
| 005 | A 0015533605 | CYLINDER |
| HYDRAULIC SYSTEM USED FOR CAB TILTING | ||
| WEBER | ||
| 005 | A 0005536805 | CYLINDER |
| Repalced by: A 0015533605 | ||
| 005 | A 0015533605 | CYLINDER |
| HYDRAULIC SYSTEM USED FOR CAB TILTING | ||
| POWER PACKER | ||
| A 0005530428 | GUIDE | |
| WEBER,TO 000 553 70 05 | ||
| A 0005531428 | GUIDE | |
| WEBER,TO 000 553 36 05 | ||
| 020 | A 0005864855 | REPAIR KIT |
| Repalced by: A 0005501535 | ||
| 020 | A 0005501535 | REPAIR KIT |
| Repalced by: A 0015534905 | ||
| 020 | A 0015534905 | GASKET KIT |
| HYDRAULIC CYLINDER | ||
| WEBER,TO 000 553 70 05 | ||
| 020 | A 0005501407 | GASKET KIT |
| HYDRAULIC CYLINDER | ||
| WEBER,TO 001 553 36 05 | ||
| 020 | A 0005500235 | GASKET KIT |
| HYDRAULIC CYLINDER | ||
| POWER PACKER | ||
| 025 | A 3835530338 | BEARING BRACKET |
| HYDRAULIC CYLINDER | ||
| 030 | N 000961014113 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| 032 | N 912004014100 | LOCK WASHER |
| BEARING BRACKET TO SIDE MEMBER | ||
| 040 | N 000961012008 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| 042 | N 912004012100 | LOCK WASHER |
| BEARING BRACKET TO SIDE MEMBER | ||
| 058 | A 6205530176 | WASHER |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| 064 | A 6208910417 | BUSHING |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| 067 | N 000094006327 | COTTER PIN |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| 070 | A 3875530276 | WASHER |
| HYDRAULIC CYLINDER TO CAB | ||
| 075 | A 3875530076 | WASHER |
| HYDRAULIC CYLINDER TO CAB | ||
| 080 | A 3875530376 | WASHER |
| HYDRAULIC CYLINDER TO CAB | ||
| 085 | N 913004016004 | NUT |
| HYDRAULIC CYLINDER TO CAB | ||
| 100 | A 0005533901 | PUMP |
| Repalced by: A 0005537901 | ||
| 100 | A 0005537901 | PUMP |
| WEBER | ||
| 105 | A 0005535401 | PUMP |
| POWER PACKER | ||
| 110 | A 0005531190 | PISTON |
| Repalced by: A 0005531790 | ||
| 110 | A 0005531790 | PISTON |
| WEBER,TO 000 553 39 01 | ||
| 110 | A 0005531890 | PISTON |
| WEBER,TO 000 553 79 01 | ||
| 118 | A 0005530096 | BOOT |
| 6X14X6 MM,WEBER,TO 000 553 39 01 | ||
| 126 | A 0005500113 | LEVER |
| WEBER,TO 000 553 39 01 | ||
| 130 | A 0005501555 | VALVE |
| Repalced by: A 0005502855 | ||
| 130 | A 0005502855 | VALVE |
| WEBER,TO 000 553 39 01 | ||
| 130 | A 0005503455 | VALVE |
| WEBER,TO 000 553 79 01 | ||
| 134 | A 0005534560 | SEAL RING |
| 20X16X2 MM,WEBER,TO 000 553 39 01 | ||
| 138 | A 0019978748 | SEAL RING |
| 12X2 MM,WEBER,TO 000 553 39 01 | ||
| 142 | A 0019978948 | SEAL RING |
| 15X2.5 MM,WEBER,TO 000 553 39 01 | ||
| 146 | A 0089978645 | SEAL RING |
| 20X2.5 MM,WEBER,TO 000 553 39 01 | ||
| 150 | A 0005534760 | SEAL RING |
| 11X20X1 MM,WEBER,TO 000 553 39 01 | ||
| 154 | A 0005530280 | GASKET |
| 57X96X1 MM,WEBER,TO 000 553 39 01 | ||
| 158 | N 000912008111 | SCREW |
| WEBER | ||
| 162 | N 912004008102 | LOCK WASHER |
| WEBER | ||
| 166 | A 0005530403 | FILTER |
| WEBER | ||
| 170 | N 000988020011 | FITTED WASHER |
| WEBER | ||
| 174 | N 000471020001 | LOCK RING |
| WEBER | ||
| 178 | N 001481004015 | CLAMPING SLEEVE |
| 4X28 MM,WEBER,TO 000 553 39 01 | ||
| 182 | N 001481004001 | CLAMPING SLEEVE |
| 4X12 MM,WEBER,TO 000 553 39 01 | ||
| 186 | A 0049971548 | SEAL RING |
| 2.44X1.7, MM,WEBER,TO 000 553 39 01 | ||
| 190 | A 0005530350 | BUSHING |
| WEBER,TO 000 553 39 01 | ||
| 194 | A 0009901610 | SCREW |
| OIL FILLING | ||
| WEBER,TO 000 553 79 01,000 553 39 01 | ||
| 194 | A 0005530171 | SCREW |
| 198 | N 007603018106 | SEAL RING |
| WEBER,TO 000 553 39 01 | ||
| 202 | N 009045014000 | SNAP RING |
| WEBER,TO 000 553 39 01 | ||
| 202 | N 009045016001 | SNAP RING |
| WEBER,TO 000 553 39 01 | ||
| 208 | A 0015532760 | GASKET KIT |
| Repalced by: A 0005502583 | ||
| 208 | A 0005502583 | GASKET KIT |
| HAND PUMP | ||
| WEBER,TO 000 553 39 01 | ||
| A 0005502783 | GASKET KIT | |
| HAND PUMP | ||
| WEBER,TO 000 553 79 01 | ||
| 216 | A 0005500255 | REPAIR KIT |
| VALVE | ||
| POWER PACKER,TO 000 553 54 01 | ||
| 224 | A 0005500275 | REPAIR KIT |
| PISTON | ||
| POWER PACKER,TO 000 553 54 01 | ||
| 230 | A 3875531140 | BRACKET |
| HAND PUMP | ||
| 234 | N 000933010129 | SCREW |
| HAND PUMP TO BRACKET | ||
| 238 | N 000125010518 | WASHER |
| HAND PUMP TO BRACKET | ||
| 242 | N 913004010008 | NUT |
| HAND PUMP TO BRACKET | ||
| 246 | A 0004290001 | LINE |
| FROM HAND PUMP TO HIGH PRESSURE HOSE | ||
| 6 MM | ||
| 250 | N 915017006100 | UNION NUT |
| 254 | N 003861006007 | GLAND |
| 260 | A 3875530182 | HOSE |
| FROM HYDRAULIC LINE TO CYLINDER | ||
| 266 | N 003953006101 | T-FITTING |
| HAND PUMP HOSE & TRANSMISSION SHIFTING ROD TO CYLINDER | ||
| 272 | N 003952006102 | FITTING |
| Repalced by: A 0019909871 | ||
| 272 | A 0019909871 | ELBOW FITTING |
| HIGH PRESSURE HOSE TO HYDRAULIC CYLINDER | ||
| 278 | A 0009973481 | GROMMET |
| AT SHOCK ABSORBER BRACKET AND AT FENDER BRACKET | ||
| 284 | A 3609950101 | CLAMP |
| OIL LINE MOUNTING | ||
| 290 | N 000933006102 | SCREW |
| OIL LINE MOUNTING | ||
| 294 | N 000125006421 | WASHER |
| OIL LINE MOUNTING | ||
| 298 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 298 | N 913004006001 | NUT |
| OIL LINE MOUNTING | ||
| 306 | A 3805530082 | HOSE |
| FROM HYDRAUL.CYLINDER TO TRANSMISSIONSHIFTING-ROD PAWL | ||
| 312 | N 915017006100 | UNION NUT |
| 316 | N 003861006007 | GLAND |
| 320 | N 003952006102 | FITTING |
| Repalced by: A 0019909871 | ||
| 320 | A 0019909871 | ELBOW FITTING |
| HIGH PRESSURE HOSE TO SCREW-IN FITTING | ||
| 324 | A 0029978472 | FITTING |
| HOSE TO TRANSMISSION-SHIFT ROD SHIFTING CYLINDER | ||
| 328 | N 007603010103 | SEAL RING |
| HOSE TO TRANSMISSION-SHIFT ROD SHIFTING CYLINDER | ||
| 334 | A 3875531340 | BRACKET |
| HIGH PRESSURE HOSE | ||
| 338 | N 000933010128 | SCREW |
| BRACKET TO BUMPER STRUT | ||
| 344 | N 913004010008 | NUT |
| BRACKET TO BUMPER STRUT | ||
| 348 | N 916016008200 | CLAMP |
| HIGH PRESSURE HOSE TO BRACKET | ||
| 352 | N 000000001147 | SCREW |
| HIGH PRESSURE HOSE TO BRACKET | ||
| M 6X20 | ||
| 356 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 356 | N 913004006001 | NUT |
| HIGH PRESSURE HOSE TO BRACKET | ||
| 360 | A 0019978490 | LOOM TIE |
| HIGH PRESSURE HOSE TO CAB | ||

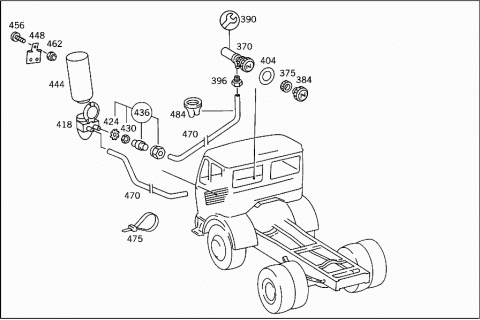

| 370 | A 0005502383 | PUMP |
| (HAND PUMP) | ||
| 375 | A 0005550372 | NUT |
| 384 | A 0005550440 | HANDLE |
| 390 | A 0005550618 | SEAL CONE |
| REPAIR KIT | ||
| 396 | A 0019970578 | SCREW CONNECTION |
| 404 | A 3359900240 | WASHER |
| STARTER PILOT PUMP TO WINDOW SILL | ||
| 418 | A 0005501404 | PRIMER CAPSULE |
| PRIMING FUEL | ||
| 424 | N 006798008101 | SERRATED WASHER |
| 430 | N 000934008021 | NUT |
| 436 | A 0009909454 | NUT |
| REPAIR KIT | ||
| 444 | A 0005550010 | FILLING CYLINDER |
| PRIMING FUEL | ||
| 448 | A 3855550040 | BRACKET |
| PRIMER CAPSULE | ||
| 456 | N 007985006193 | SCREW |
| BRACKET TO PRIMER CAPSULE | ||
| 462 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 462 | N 913004006001 | NUT |
| BRACKET TO PRIMER CAPSULE | ||
| 470 | A 3359972282 | HOSE |
| FROM HAND PUMP TO PRIMER CAPSULE | ||
| 470 | A 3359972282 | HOSE |
| FROM PRIMER CAPSULE TO SPRAY NOZZLE | ||
| 475 | A 0019978490 | LOOM TIE |
| FUEL HOSE | ||
| 484 | A 3833020091 | GROMMET |
| HOSE THRU ENGINE TUNNEL | ||
