Transporto priemonė: 1417 MBSA; VIN numerio dalis: 383017
Grupė: 32 SPRINGS AND SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|

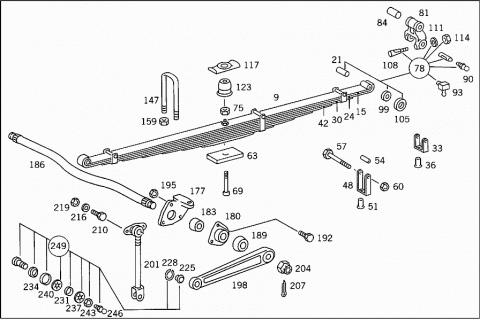

| 009 | A 3833200402 | FRONT SPRING |
| 8-LEAF | ||

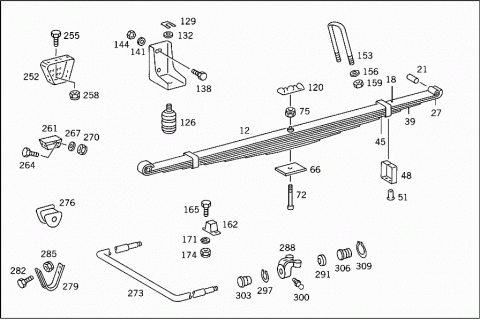

| 012 | A 3833202202 | FRONT SPRING |
| 8-LEAF | ||
| 015 | A 3833201294 | SPRING LEAF |
| NO.1 | ||
| 018 | A 3853202994 | SPRING LEAF |
| NO.1 | ||
| 021 | A 3523220050 | BUSHING |
| 021 | A 3853220050 | BUSHING |
| 024 | A 3833212012 | SPRING LEAF |
| NO.2 | ||
| 027 | A 3853212512 | SPRING LEAF |
| NO.2 | ||
| 030 | A 3833200194 | SPRING LEAF |
| NO.3 | ||
| 033 | A 3123240633 | SPRING CLAMP |
| AT SPRING LEAF NO.3 | ||
| 036 | N 910006008024 | RIVET |
| SPRING CLAMP TO SPRING LEAF | ||
| 039 | A 3833210513 | SPRING LEAF |
| NO.3 | ||
| 042 | A 3833210614 | SPRING LEAF |
| NO.4 | ||
| 045 | A 3833210514 | SPRING LEAF |
| NO.4 | ||
| 048 | A 3123240633 | SPRING CLAMP |
| AT SPRING LEAF NO.6 | ||
| 048 | A 3123240633 | SPRING CLAMP |
| AT SPRING LEAF NO.4 | ||
| 051 | N 910006008024 | RIVET |
| SPRING CLAMP TO SPRING LEAF | ||
| 054 | A 0003212353 | SPACER TUBE |
| Repalced by: A 0003213253 | ||
| 054 | A 0003213253 | SPACER TUBE |
| FOR SPRING CLAMPS | ||
| 057 | N 000931008326 | SCREW |
| FOR SPRING CLAMPS | ||
| 060 | N 913004008004 | NUT |
| FOR SPRING CLAMPS | ||
| 063 | A 3143221084 | SHIM |
| 066 | A 3833220084 | SHIM |
| 069 | N 004626012120 | SPRING BOLT |
| M 12X145 | ||
| 072 | N 004626012127 | SPRING BOLT |
| M 12X145 | ||
| 075 | N 913004012007 | NUT |
| SPRING BOLT | ||
| 078 | A 3853200165 | SHACKLE PIN |
| PARTS KIT | ||
| 081 | A 6173200163 | SHACKLE |
| LEAF SPRING | ||
| 084 | A 3853220050 | BUSHING |
| 084 | A 3523220050 | BUSHING |
| 090 | N 071412010100 | GREASE NIPPLE |
| SPRING SEAT | ||
| 090 | N 071412010300 | GREASE NIPPLE |
| SPRING SEAT | ||
| 093 | N 071412010100 | GREASE NIPPLE |
| SPRING SEAT | ||
| 099 | A 3523230376 | WASHER |
| SPRING SEAT | ||
| 4.00 MM | ||
| 099 | A 3523230476 | WASHER |
| SPRING SEAT | ||
| 4.20 MM | ||
| 105 | A 0029973140 | SEAL RING |
| SPRING SEAT | ||
| 108 | A 3529900337 | BOLT |
| SPRING SEAT | ||
| 111 | N 000125010518 | WASHER |
| SPRING SEAT | ||
| 114 | N 913004010008 | NUT |
| SPRING SEAT | ||
| 117 | A 3833220031 | PLATE |
| FRONT SPRINGS TO FRONT AXLE | ||
| 120 | A 3523220131 | PLATE |
| FRONT SPRINGS TO FRONT AXLE | ||
| 123 | A 3833240008 | HELPER SPRING |
| RUBBER BUFFER TO FRAME | ||
| 126 | A 3853200077 | RUBBER SPRING |
| (HELPER SPRING) | ||
| 129 | N 912002012001 | LOCK |
| RUBBER SPRING TO BRACKET | ||
| 132 | N 000125013008 | WASHER |
| RUBBER SPRING TO BRACKET | ||
| 135 | A 3853250040 | BRACKET |
| RUBBER BUFFER TO FRAME | ||
| 138 | N 000961014088 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 141 | N 000125015013 | WASHER |
| BRACKET TO SIDE MEMBER | ||
| 144 | N 913004014005 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 147 | A 3603310125 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 200 MM | ||
| 147 | A 3603310025 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 220 MM | ||
| 153 | A 3523311125 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 260 MM | ||
| 156 | A 3279970026 | WASHER |
| FRONT SPRINGS TO FRONT AXLE | ||
| 159 | N 000934018006 | NUT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 162 | A 3853300075 | RUBBER MOUNTING |
| FROM RESERVOIR ADJUSTING SCREW TO CENTRAL ACCUMULATOR | ||
| 165 | N 000933010105 | SCREW |
| RUBBER MOUNTING TO FRONT AXLE | ||
| M 10X25 | ||
| 165 | N 000933010128 | SCREW |
| RUBBER MOUNTING TO FRONT AXLE | ||
| M 10X20 | ||
| 171 | N 912004010102 | LOCK WASHER |
| RUBBER MOUNTING TO FRONT AXLE | ||
| 174 | N 913004010008 | NUT |
| RUBBER MOUNTING TO FRONT AXLE | ||
| 177 | A 3523231463 | BEARING BRACKET |
| TORSION BAR,FRONT | ||
| 180 | A 3523230283 | HOUSING |
| TORSION BAR,FRONT | ||
| 183 | A 3603230085 | RUBBER MOUNTING |
| TORSION BAR,FRONT | ||
| 186 | A 3603200065 | SHACKLE PIN |
| FRONT AXLE | ||
| 189 | A 3603230151 | SPACER RING |
| TORSION BAR TO SHACKLE | ||
| 192 | N 000933010145 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| 195 | N 913004010008 | NUT |
| BEARING BRACKET TO SIDE MEMBER | ||
| 198 | A 3603230869 | LEVER |
| TORSION BAR,FRONT | ||
| 201 | A 6173200089 | ROD |
| TORSION BAR | ||
| 204 | N 000937030000 | NUT |
| LEVER TO TORSION BAR | ||
| 207 | N 000094006317 | COTTER PIN |
| LEVER TO TORSION BAR | ||
| 210 | N 000961012097 | SCREW |
| ROD TO FRAME | ||
| M 12X35 | ||
| 210 | N 000961012179 | SCREW |
| ROD TO FRAME | ||
| M 12X38 | ||
| 216 | N 006796016102 | CONICAL SPRING WASHER |
| ROD TO FRAME | ||
| 219 | N 913004012008 | NUT |
| ROD TO FRAME | ||
| 219 | N 913004016004 | NUT |
| ROD TO FRAME | ||
| 225 | A 0009817231 | JOINT BEARING |
| Repalced by: A 0019814631 | ||
| 225 | A 0019814631 | JOINT BEARING |
| A 0019814831 | JOINT BEARING | |
| 228 | N 007993035200 | SNAP RING |
| ROD TO LEVER | ||
| 231 | A 3603230460 | SEAL RING |
| ROD TO LEVER | ||
| 234 | A 3603230153 | SPACER TUBE |
| ROD TO LEVER | ||
| 237 | N 006797021201 | TOOTHED WASHER |
| ROD TO LEVER | ||
| 240 | N 006797021101 | TOOTHED WASHER |
| ROD TO LEVER | ||
| 243 | N 000936020010 | NUT |
| ROD TO LEVER | ||
| 246 | N 071412010100 | GREASE NIPPLE |
| 249 | A 3603200041 | REPAIR KIT |
| TORSION BAR,FRONT | ||
| 252 | A 3833231363 | BEARING BRACKET |
| TORSION BAR,FRONT | ||
| 255 | N 000961012164 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| 258 | N 913004012008 | NUT |
| BEARING BRACKET TO SIDE MEMBER | ||
| 261 | A 3833230195 | REINFORCEMENT |
| 264 | N 000961012164 | SCREW |
| REINFORCEMENT TO BEARING BRACKET AND TO ENGINE CROSS MEMBER | ||
| 267 | N 000125013008 | WASHER |
| REINFORCEMENT TO BEARING BRACKET AND TO ENGINE CROSS MEMBER | ||
| 270 | N 913004012008 | NUT |
| REINFORCEMENT TO BEARING BRACKET AND TO ENGINE CROSS MEMBER | ||
| 273 | A 3853230265 | TORSION BAR |
| FRONT AXLE | ||
| 276 | A 3833260081 | RUBBER MOUNTING |
| TORSION BAR | ||
| 279 | A 3833230240 | BRACKET |
| TORSION BAR | ||
| 282 | N 000961012164 | SCREW |
| BRACKET TO BEARING BRACKET | ||
| 285 | N 913004012008 | NUT |
| BRACKET TO BEARING BRACKET | ||
| 288 | A 3853230263 | BEARING BRACKET |
| TORSION BAR,FRONT | ||
| 291 | A 0009816131 | JOINT BEARING |
| 291 | A 0009817431 | JOINT BEARING |
| 297 | N 000472055000 | LOCK RING |
| AT BEARING BRACKET | ||
| 300 | N 071412008100 | GREASE NIPPLE |
| AT BEARING BRACKET | ||
| 303 | A 3833230092 | BOOT |
| AT BEARING BRACKET | ||
| 306 | A 3833230392 | BOOT |
| STABILIZER TO BEARING BRACKET | ||
| 309 | N 900055022200 | LOCK RING |
| STABILIZER TO BEARING BRACKET | ||

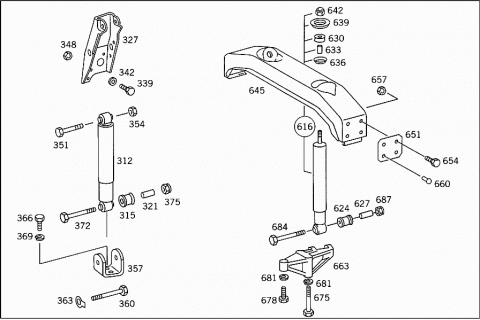

| 312 | A 0043236400 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 312 | A 0043235200 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 312 | A 0043237100 | SHOCK ABSORBER |
| 312 | A 0043233300 | SHOCK ABSORBER |
| 315 | A 0003232885 | RUBBER MOUNTING |
| TO 004 323 64 00,004 323 71 00 | ||
| 315 | A 0003233044 | RUBBER BUFFER |
| TO 004 323 33 00,004 323 52 00 | ||
| 321 | A 0003233150 | BUSHING |
| TO 004 323 64 00,004 323 71 00 | ||
| 321 | A 0003235250 | BUSHING |
| TO 004 323 33 00,004 323 52 00 | ||
| 327 | A 6173200078 | CONSOLE |
| LEFT SHOCK ABSORBER | ||
| 327 | A 6173200178 | CONSOLE |
| RIGHT SHOCK ABSORBER | ||
| 327 | A 3833200478 | CONSOLE |
| LEFT SHOCK ABSORBER | ||
| 327 | A 3853200678 | CONSOLE |
| RIGHT SHOCK ABSORBER | ||
| 339 | N 000961012122 | SCREW |
| BEARING BRACKET TO FRAME AND TO CONSOLE | ||
| M 12X40 | ||
| 339 | N 308676012012 | SCREW |
| BEARING BRACKET TO FRAME AND TO CONSOLE | ||
| M 12X1,5X25 | ||
| 342 | N 007349013003 | WASHER |
| BEARING BRACKET TO FRAME AND TO CONSOLE | ||
| 348 | N 913004012008 | NUT |
| BEARING BRACKET TO FRAME AND TO CONSOLE | ||
| 351 | N 000960016244 | SCREW |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| 354 | N 913004016004 | NUT |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| 357 | A 3833231863 | BEARING BRACKET |
| BOTTOM | ||
| 360 | N 000960016105 | SCREW |
| SHOCK ABSORBER TO BRACKET AT FRONT AXLE | ||
| 363 | N 000093017001 | LOCK PLATE |
| SHOCK ABSORBER TO BRACKET AT FRONT AXLE | ||
| 366 | N 308676012012 | SCREW |
| BOTTOM BEARING BRACKET TO FRONT AXLE | ||
| 369 | N 912004012100 | LOCK WASHER |
| BOTTOM BEARING BRACKET TO FRONT AXLE | ||
| 372 | N 000960016164 | SCREW |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| 375 | N 913004016004 | NUT |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||

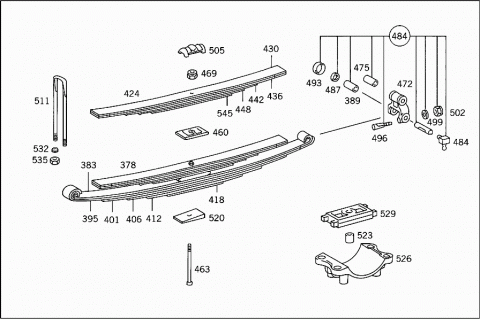

| 378 | A 3833200208 | REAR SPRING |
| 6-LEAF;WITH 5-LEAF HELPER SPRING | ||
| 378 | A 3853200108 | REAR SPRING |
| 6-LEAF;WITH 5-LEAF HELPER SPRING | ||
| 383 | A 3833200993 | SPRING LEAF |
| NO.1 | ||
| 383 | A 3853201993 | SPRING LEAF |
| NO.1 | ||
| 389 | A 3523250150 | BUSHING |
| 389 | A 3853250050 | BUSHING |
| 395 | A 3833241012 | SPRING LEAF |
| NO.2 | ||
| 395 | A 3853242012 | SPRING LEAF |
| NO.2 | ||
| 401 | A 3833240213 | SPRING LEAF |
| NO.3 | ||
| 401 | A 3853240113 | SPRING LEAF |
| NO.3 | ||
| 406 | A 3833240214 | SPRING LEAF |
| NO.4 | ||
| 406 | A 3853240014 | SPRING LEAF |
| NO.4 | ||
| 412 | A 3833240215 | SPRING LEAF |
| NO.5 | ||
| 412 | A 3853240015 | SPRING LEAF |
| NO.5 | ||
| 418 | A 3833240216 | SPRING LEAF |
| NO.6 | ||
| 418 | A 3853240016 | SPRING LEAF |
| NO.6 | ||
| 424 | A 3833200010 | HELPER SPRING |
| 5-LEAF | ||
| 424 | A 3853200010 | HELPER SPRING |
| 5-LEAF | ||
| 430 | A 3833240240 | SPRING LEAF |
| NO.1 | ||
| 430 | A 3853240140 | SPRING LEAF |
| NO.1 | ||
| 436 | A 3833240241 | SPRING LEAF |
| NO.2 | ||
| 436 | A 3853240141 | SPRING LEAF |
| NO.2 | ||
| 442 | A 3833240242 | SPRING LEAF |
| NO.3 | ||
| 442 | A 3853240042 | SPRING LEAF |
| NO.3 | ||
| 448 | A 3833240243 | SPRING LEAF |
| NO.4 | ||
| 448 | A 3853240043 | SPRING LEAF |
| NO.4 | ||
| 454 | A 3833240244 | SPRING LEAF |
| NO.5 | ||
| 454 | A 3853240044 | SPRING LEAF |
| NO.5 | ||
| 460 | A 3523240135 | SPACER |
| 463 | A 6173241671 | SPRING BOLT |
| M 12X220 | ||
| 463 | A 6173241771 | SPRING BOLT |
| M 12X230 | ||
| 469 | N 913004012007 | NUT |
| 472 | A 3523200163 | SHACKLE |
| REAR SPRING | ||
| 475 | A 3523250150 | BUSHING |
| 475 | A 3853250050 | BUSHING |
| 481 | N 071412010100 | GREASE NIPPLE |
| 484 | A 3853200065 | SHACKLE PIN |
| PARTS KIT | ||
| 487 | A 3523230976 | WASHER |
| SPRING SEAT | ||
| 4.00 MM | ||
| 487 | A 3523231076 | WASHER |
| SPRING SEAT | ||
| 4.20 MM | ||
| 493 | A 0029973040 | SEAL RING |
| SPRING SEAT | ||
| 496 | A 3529900337 | BOLT |
| SPRING SEAT | ||
| 499 | N 000125010518 | WASHER |
| SPRING SEAT | ||
| 502 | N 913004010008 | NUT |
| SPRING SEAT | ||
| 505 | A 3833250231 | PLATE |
| REAR SPRING TO REAR AXLE | ||
| 511 | A 3853511225 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 370 MM | ||
| 511 | A 3853512925 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 470 MM | ||
| 520 | A 3853510528 | PAD |
| REAR SPRING TO REAR AXLE | ||
| 520 | A 3853510728 | PAD |
| REAR SPRING TO REAR AXLE | ||
| 520 | A 3853510628 | PAD |
| REAR SPRING TO REAR AXLE | ||
| 523 | A 6179910064 | SHEAR BUSHING |
| REAR SPRING TO REAR AXLE | ||
| 526 | A 3853250031 | PLATE |
| REAR SPRING TO REAR AXLE | ||
| 529 | A 3833250484 | SHIM |
| REAR SPRING TO REAR AXLE | ||
| 532 | A 3859970126 | WASHER |
| REAR SPRING TO REAR AXLE | ||
| 535 | N 000934020008 | NUT |
| REAR SPRING TO REAR AXLE | ||

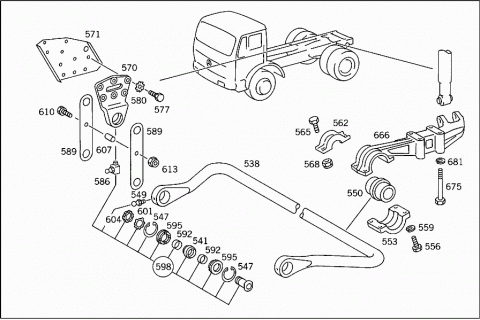

| 538 | A 3833260065 | TORSION BAR |
| REAR | ||
| 541 | A 0009810831 | JOINT BEARING |
| TORSION BAR | ||
| 541 | A 0009811231 | JOINT BEARING |
| TORSION BAR | ||
| 547 | N 000472055000 | LOCK RING |
| TORSION BAR,REAR | ||
| 549 | N 071412008100 | GREASE NIPPLE |
| TORSION BAR,REAR | ||
| 550 | A 3833260181 | RUBBER MOUNTING |
| TORSION BAR,REAR | ||
| 553 | A 3833260640 | BRACKET |
| TORSION BAR,REAR | ||
| 556 | N 000961014028 | SCREW |
| Repalced by: A 0029909604 | ||
| 556 | A 0029909604 | SCREW |
| TORSION BAR,REAR | ||
| 559 | N 912004014100 | LOCK WASHER |
| TORSION BAR,REAR | ||
| 562 | A 3833260740 | BRACKET |
| TORSION BAR,REAR | ||
| 565 | N 308676012012 | SCREW |
| BRACKET TO TORSION BAR | ||
| 568 | N 913004012008 | NUT |
| BRACKET TO TORSION BAR | ||
| 570 | A 3833260163 | BEARING BRACKET |
| TORSION BAR,REAR | ||
| 571 | A 3833250141 | STIFFENING |
| TORSION BAR,LEFT | ||
| 571 | A 3833250041 | STIFFENING |
| TORSION BAR,RIGHT | ||
| 577 | N 000961016100 | SCREW |
| BEARING BRACKET AND PLATE TO FRAME | ||
| 580 | N 006798016100 | SERRATED WASHER |
| BEARING BRACKET AND PLATE TO FRAME | ||
| 586 | N 071412008300 | GREASE NIPPLE |
| TORSION BAR,REAR | ||
| 589 | A 3523260416 | LINK |
| TORSION BAR TO BEARING BRACKET | ||
| 592 | A 3523260153 | SPACER TUBE |
| TORSION BAR,REAR | ||
| 595 | A 3603230560 | SEAL RING |
| TORSION BAR,REAR | ||
| 598 | A 3603200341 | REPAIR KIT |
| TORSION BAR,REAR | ||
| 601 | N 070952035101 | LOCK PLATE |
| TORSION BAR,REAR | ||
| 604 | N 070852035000 | NUT |
| TORSION BAR,REAR | ||
| 607 | A 3604270253 | SPACER TUBE |
| TORSION BAR,REAR | ||
| 610 | N 000960012224 | SCREW |
| TORSION BAR,REAR | ||
| 613 | N 000934012022 | NUT |
| TORSION BAR,REAR | ||
| 616 | A 3853260100 | SHOCK ABSORBER |
| (PARTS KIT) | ||
| 616 | A 3853260200 | SHOCK ABSORBER |
| (PARTS KIT) | ||
| 624 | A 0003230785 | RUBBER MOUNTING |
| TO 003 326 95 00,003 326 92 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 002 326 49 00 | ||
| 624 | A 0003233044 | RUBBER BUFFER |
| TO 003 326 45 00,003 326 18 00 | ||
| 627 | A 0003230553 | SPACER TUBE |
| 630 | A 3853260068 | RUBBER BUFFER |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 633 | A 3853230253 | SPACER TUBE |
| CROSS MEMBER TO FRAME | ||
| 636 | A 3543260067 | RETAINER |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 639 | A 3173260167 | RETAINER |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 642 | N 913004016004 | NUT |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 645 | A 3853100440 | CROSS MEMBER |
| REAR SHOCK ABSORBERS | ||
| 645 | A 3853100140 | CROSS MEMBER |
| REAR SHOCK ABSORBERS | ||
| 651 | A 3853120084 | SHIM |
| AT CROSS MEMBER | ||
| 654 | N 000961012097 | SCREW |
| CROSS MEMBER AND SHIM TO FRAME SIDE MEMBERS | ||
| 657 | N 913004012008 | NUT |
| CROSS MEMBER AND SHIM TO FRAME SIDE MEMBERS | ||
| 660 | N 910005012080 | RIVET |
| CROSS MEMBER AND SHIM TO FRAME SIDE MEMBERS | ||
| 663 | A 3833260040 | BRACKET |
| LEFT SHOCK ABSORBER | ||
| 663 | A 3833260140 | BRACKET |
| RIGHT SHOCK ABSORBER | ||
| 666 | A 3833260240 | BRACKET |
| LEFT SHOCK ABSORBER | ||
| 666 | A 3833260340 | BRACKET |
| RIGHT SHOCK ABSORBER | ||
| 675 | N 000960014073 | SCREW |
| BRACKET TO SPRING SADDLE | ||
| M 14X110 | ||
| 678 | N 000960014244 | SCREW |
| BRACKET TO SPRING SADDLE | ||
| M 14X65 | ||
| 681 | N 912004014100 | LOCK WASHER |
| BRACKET TO SPRING SADDLE | ||
| 684 | A 3859900101 | SCREW |
| SHOCK ABSORBER TO BRACKET | ||
| 687 | N 913004020004 | NUT |
| SHOCK ABSORBER TO BRACKET | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
