Transporto priemonė: 1417 MBSA; VIN numerio dalis: 383017
Grupė: 46 STEERING

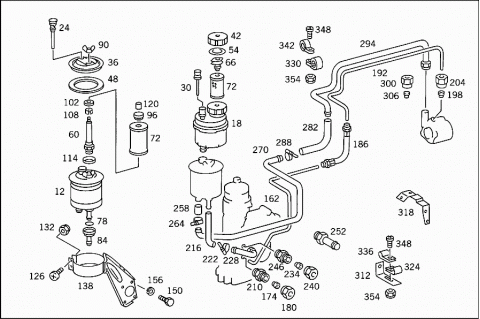

52872
52873
# Kodas Pavadinimas
012 A 0004663802 TANK
Repalced by: A 0004664502
018 A 0004664502 TANK
024 A 0004660218 PIPE
TO 000 466 38 02
030 A 0004660267 OIL DIPSTICK
Repalced by: A 0004660867
030 A 0004660867 OIL DIPSTICK
TO 000 466 45 02
A 1233270059 PROTECTIVE CAP
036 A 0004662005 COVER
TO 000 466 38 02
042 A 0004660068 FILLER CAP
TO 000 466 45 02
048 A 0004660260 SEAL RING
TO 000 466 38 02
054 A 0004661760 SEAL RING
TO 000 466 45 02
060 A 0014664465 FILTER CARRIER
TO 000 466 38 02
066 A 0004660740 BRACKET
TO 000 466 45 02
072 A 0004660604 FILTER
078 A 0059970848 SEAL RING
TO 000 466 38 02
084 A 0004660558 CONNECTOR
TO 000 466 38 02
090 N 000315008006 NUT
TO 000 466 38 02
096 A 0004660675 CENTERING RING
TO 000 466 38 02
102 A 0004660275 WASHER
TO 000 466 38 02
108 A 0004660153 SPACER TUBE
TO 000 466 38 02
114 A 0004660238 COVER PLATE
TO 000 466 38 02
120 A 0009870643 RUBBER SLEEVE
TO 000 466 38 02
126 N 007985006139 SCREW
OIL TANK TO BRACKET
M 6X30
132 N 913002006001 NUT
OIL TANK TO BRACKET
138 A 3834600335 BRACKET
OIL TANK
138 A 3834600135 BRACKET
OIL TANK
150 N 000933010130 SCREW
BRACKET TO STEERING
M 10X15
150 N 000933010238 SCREW
BRACKET TO STEERING
M 10X18
156 N 912004010102 LOCK WASHER
BRACKET TO STEERING
162 A 3854600124 LINE
FROM HIGH PRESSURE HOSE TO STEERING
162 A 3814601224 LINE
FROM HIGH PRESSURE HOSE TO STEERING
174 N 003861012007 GLAND
OIL LINES
180 N 915017012100 UNION NUT
OIL LINES
186 A 0009978152 HOSE
FROM POWER STEERING PUMP TO STEERING
186 A 0129972482 HOSE
FROM POWER STEERING PUMP TO STEERING
186 A 0019976352 HOSE
FROM POWER STEERING PUMP TO STEERING
192 A 3814601024 LINE
FROM PUMP TO HIGH PRESSURE HOSE
198 N 003861012007 GLAND
OIL LINES
204 N 915017012100 UNION NUT
OIL LINES
210 N 003901012011 SCREW-IN FITTING
HIGH PRESSURE LINE TO STEERING
A 3439970582 HOSE
Repalced by: A 3859971682
216 A 3859971682 HOSE
FROM STEERING TO OIL TANK
216 A 3834660381 HOSE
FROM STEERING TO OIL TANK
222 N 916017016000 CLAMP
Repalced by: N 000000000666
222 N 000000000666 CLAMP
HOSE TO OIL LINE
16-27X13 MM
228 A 3854660265 LINE
FROM HOSE TO OIL TANK
234 N 003861015004 GLAND
OIL LINES
240 N 915017015100 UNION NUT
OIL LINES
246 N 003901015005 SCREW-IN FITTING
FROM LINE TO OIL TANK
252 A 3839970072 FITTING
STEERING
A 3609970982 HOSE
Repalced by: A 3859971582
258 A 3859971582 HOSE
FROM LINE TO OIL TANK
264 N 916017020000 CLAMP
Repalced by: N 000000000667
264 N 000000000667 CLAMP
HOSE TO OIL LINE
20-32X13 MM
270 A 3834660865 LINE
FROM LINE TO OIL TANK
270 A 3834660365 LINE
FROM LINE TO OIL TANK
A 3609970982 HOSE
Repalced by: A 3859971582
282 A 3859971582 HOSE
OIL LINE CONNECTION
288 N 916017020000 CLAMP
Repalced by: N 000000000667
288 N 000000000667 CLAMP
HOSE TO OIL LINE
20-32X13 MM
294 A 3814600224 LINE
FROM HOSE TO POWER STEERING PUMP
300 N 915017022100 UNION NUT
OIL LINES
306 N 003861022004 GLAND
OIL LINES
312 A 3812950440 BRACKET
LINE TO STEERING
318 A 3874660940 BRACKET
DELIVERY AND SUCTION LINES TO BRACKET AT FRAME
324 A 3609950401 CLAMP
DELIVERY AND SUCTION LINES TO BRACKET
330 N 916016012200 CLAMP
OIL LINE TO ENGINE
336 A 3609950701 CLAMP
DELIVERY AND SUCTION LINES TO BRACKET
342 N 916016022202 CLAMP
OIL LINE TO ENGINE
348 N 007985006176 SCREW
DELIVERY AND SUCTION LINES TO BRACKET
354 N 913004006002 NUT
Repalced by: N 913004006001
354 N 913004006001 NUT
DELIVERY AND SUCTION LINES TO BRACKET
360 A 3834640201 STEERING WHEEL
366 A 0004640432 BADGE
STEERING WHEEL
372 N 000439022200 NUT
STEERING WHEEL TO STEERING COLUMN
378 A 3814601331 STEERING COLUMN BRACKET
384 A 3839970286 PLUG
BOTTOM LATERAL
390 A 3819971186 PLUG
TOP
396 N 007985004107 SCREW
STEERING COLUMN MOUNTED SWITCH
402 N 912006004000 LOCK WASHER
STEERING COLUMN MOUNTED SWITCH
408 A 3814620443 SHELL
STEERING COLUMN PANELLING,REAR
414 A 3814620543 SHELL
STEERING COLUMN PANELLING,FRONT
420 A 3819900221 SCREW
STEERING COLUMN PANELLING
426 A 3819900321 SCREW
STEERING COLUMN PANELLING
432 N 000137010201 SPRING WASHER
STEERING COLUMN BRACKET TO CAB
438 N 000933010145 SCREW
STEERING COLUMN BRACKET TO CAB
A 3814600609 STEERING SHAFT
Repalced by: A 6504600209
444 A 6504600209 STEERING SHAFT
444 A 6504600609 STEERING SHAFT
A 3814601509 STEERING SHAFT
Repalced by: A 6504600309
444 A 6504600309 STEERING SHAFT
444 A 6504600709 STEERING SHAFT
456 A 3814620251 RING
STEERING SHAFT
TO A 381 460 15 09,A 381 460 06 09
A 3814600057 UNIVERSAL JOINT
Repalced by: A 3164600057
A 3164600057 UNIVERSAL JOINT
Repalced by: A 0004600057
462 A 0004600057 UNIVERSAL JOINT
A 3164600157 UNIVERSAL JOINT
Repalced by: A 0004600157
462 A 0004600157 UNIVERSAL JOINT
486 A 3819900114 SCREW
486 A 3819900114 SCREW
486 A 3819900114 SCREW
486 A 3169900114 SCREW
UNIVERSAL JOINT TO STEERING COLUMN TUBE
492 N 913004008005 NUT
UNIVERSAL JOINT TO STEERING COLUMN TUBE
498 A 3874611297 PROTECTIVE SLEEVE
UNIVERSAL JOINT COVERING
504 N 007981005309 SHEET METAL SCREW
PROTECTIVE SLEEVE TO CAB FLOOR
510 A 3874610180 GASKET
PROTECTIVE SLEEVE TO CAB FLOOR
516 A 3874620024 REINFORCEMENT
PROTECTIVE SLEEVE TO CAB FLOOR
522 A 3874610396 BOOT
PROTECTIVE SLEEVE TO CAB FLOOR
528 A 3814620475 WASHER
UNIVERSAL JOINT TO STEERING
534 A 3814621196 BOOT
UNIVERSAL JOINT TO STEERING
540 A 3834610740 STEERING SUPPORT
AT FRAME
540 A 6154610140 STEERING SUPPORT
AT FRAME
552 N 000960014229 SCREW
STEERING SUPPORT TO FRAME
M 14X55
552 N 000960014237 SCREW
STEERING SUPPORT TO FRAME
M 14X50
558 N 913004014001 NUT
STEERING SUPPORT TO FRAME
564 N 000961016077 SCREW
STEERING BOX ASSEMBLY TO STEERING SUPPORT
M 16X1.5X45
572 A 3834630101 PITMAN ARM
572 A 3854630001 PITMAN ARM
590 A 3834604605 DRAG LINK
LEMFOERDER
590 A 3834602505 DRAG LINK
EHRENREICH
590 A 3854603605 DRAG LINK
LEMFOERDER
590 A 3854602105 DRAG LINK
EHRENREICH
620 A 0003301085 BOOT
FIXED PART OF JOINT
620 A 0004621896 BOOT
FIXED PART OF JOINT
632 A 0004602648 DRAG LINK END
ADJUSTABLE
632 A 0004602748 DRAG LINK END
ADJUSTABLE
632 A 0013300235 JOINT
R.H. THREAD
EHRENREICH
632 A 0013300135 JOINT
R.H. THREAD
LEMFOERDER
650 A 0003301085 BOOT
650 A 0004621896 BOOT
680 A 0003382445 CLAMP
DRAG LINK END TO DRAG LINK
680 A 0003383445 CLAMP
DRAG LINK END TO DRAG LINK
680 A 0003382545 CLAMP
DRAG LINK END TO DRAG LINK
680 A 0003383145 CLAMP
DRAG LINK END TO DRAG LINK
710 N 000960012077 SCREW
DRAG LINK END TO DRAG LINK
716 N 913004012008 NUT
DRAG LINK END TO DRAG LINK
722 N 000937020001 NUT
DRAG LINK TO LEVER
728 N 000094004065 COTTER PIN
DRAG LINK TO LEVER
