Transporto priemonė: 1417 MBSA; VIN numerio dalis: 383017

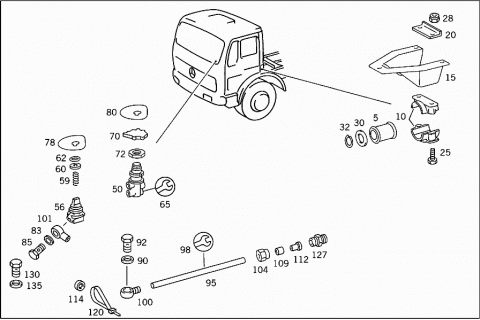

Grupė: 28 TRANSFER CASE
| # | Kodas | Pavadinimas |
|---|---|---|
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR TRANSFER CASE,SEE UNIT STANDARD VERSION,MODEL: | ||
| 750.5 | ||
| 005 | A 3222850082 | RUBBER MOUNTING |
| TRANSFER CASE TO CROSS MEMBER | ||
| 010 | A 3122801386 | BEARING |
| TRANSFER CASE TO CROSS MEMBER | ||
| 015 | A 3812850340 | BRACKET |
| BRACKET TO CROSS MEMBER | ||
| 020 | A 3812850084 | SHIM |
| BRACKET TO CROSS MEMBER | ||
| 025 | N 000960012221 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 028 | N 913004012008 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 030 | A 3129902840 | WASHER |
| BRACKET TO CROSS MEMBER | ||
| 032 | A 0009947941 | LOCK |
| BRACKET TO CROSS MEMBER | ||
| 050 | A 0019977936 | VALVE |
| DIFFERENTIAL LOCK | ||
| BOSCH | ||
| 050 | A 0019979136 | VALVE |
| DIFFERENTIAL LOCK | ||
| WABCO | ||
| 056 | A 0019976136 | VALVE |
| TRANSFER CASE SHIFT | ||
| WABCO | ||
| 056 | A 0019975036 | VALVE |
| TRANSFER CASE SHIFT | ||
| BOSCH | ||
| 056 | A 0039975936 | VALVE |
| TRANSFER CASE SHIFT | ||
| KNORR | ||
| 056 | A 0039976036 | VALVE |
| TRANSFER CASE SHIFT | ||
| VOSS | ||
| 059 | A 0049937501 | SPRING |
| TO 001 997 61 36 | ||
| 060 | A 0069972648 | SEAL RING |
| TO 001 997 61 36 | ||
| 062 | A 0039979640 | SEAL RING |
| TO 001 997 61 36 | ||
| 065 | A 0025860943 | REPAIR KIT |
| TO 001 997 91 36 | ||
| 070 | A 0009970577 | HANDLE |
| VALVE | ||
| 072 | A 3839900051 | NUT |
| VALVE | ||
| 075 | A 6239900040 | WASHER |
| VALVE | ||
| 078 | A 3855844324 | UNIT IDENTIFICATION PLATE |
| LONGITUDINAL DIFFERENTIAL LOCK | ||
| 080 | A 3855844124 | UNIT IDENTIFICATION PLATE |
| TRANSFER CASE | ||
| 083 | N 007603010103 | SEAL RING |
| VALVE | ||
| 085 | N 915036006202 | HOLLOW SCREW |
| VALVE | ||
| 090 | N 007603012405 | SEAL RING |
| VALVE | ||
| 092 | N 915047008202 | HOLLOW SCREW |
| VALVE | ||
| 095 | A 0089976082 | HOSE |
| FROM VALVE TO TRANSFER CASE SHIFTING CYLINDER | ||
| 4X6 MM | ||
| 098 | A 0039979172 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 100 | N 915052004016 | BANJO UNION |
| TRANSFER CASE CYLINDER | ||
| 101 | N 915052004015 | BANJO UNION |
| TRANSFER CASE CYLINDER | ||
| 104 | N 915017006100 | UNION NUT |
| TRANSFER CASE CYLINDER | ||
| 109 | N 003861006007 | GLAND |
| TRANSFER CASE CYLINDER | ||
| 112 | N 915062004000 | SLEEVE |
| TRANSFER CASE CYLINDER | ||
| 114 | A 3609902340 | WASHER |
| LINE TO BRACKET | ||
| 120 | A 0019978390 | LOOM TIE |
| LINE TO BRACKET | ||
| 280 MM | ||
| 120 | A 0019978490 | LOOM TIE |
| LINE TO BRACKET | ||
| 376 MM | ||
| 127 | A 0039979072 | FITTING |
| Repalced by: A 0029906071 | ||
| 127 | A 0029906071 | FITTING |
| TRANSFER CASE CYLINDER | ||
| 130 | N 915036008202 | HOLLOW SCREW |
| TRANSFER CASE CYLINDER | ||
| 135 | N 007603012405 | SEAL RING |
| TRANSFER CASE CYLINDER | ||
