Transporto priemonė: 1417 MBSA; VIN numerio dalis: 383017
Grupė: 26 TRANSMISSION
| # | Kodas | Pavadinimas |
|---|---|---|
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR TRANSMISSION,SEE UNIT STANDARD VERSION,MODEL: | ||
| 714.0 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR TRANSMISSION,SEE UNIT STANDARD VERSION,MODEL: | ||
| 714.3 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR TRANSMISSION,SEE UNIT STANDARD VERSION,MODEL: | ||
| 714.2 | ||

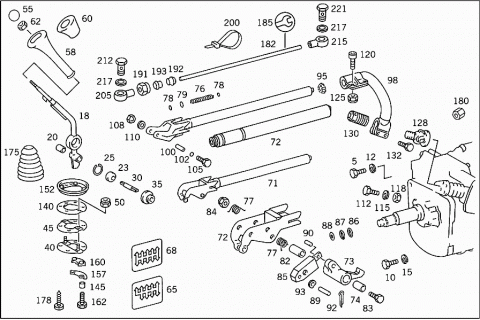

| 005 | N 000933014014 | SCREW |
| TRANSMISSION TO BELL HOUSING | ||
| M 14X40 | ||
| 010 | N 000960016112 | SCREW |
| TRANSMISSION TO BELL HOUSING | ||
| M 16X55 | ||
| 012 | N 912004014100 | LOCK WASHER |
| TRANSMISSION TO BELL HOUSING | ||
| 015 | N 912004016101 | LOCK WASHER |
| TRANSMISSION TO BELL HOUSING | ||
| 018 | A 3852607039 | SHIFT LEVER |
| 020 | A 3359920203 | BUSHING |
| SHIFT LEVER | ||
| 023 | A 0009815531 | JOINT BEARING |
| Repalced by: A 0019813931 | ||
| 023 | A 0019813931 | JOINT BEARING |
| 023 | A 0009814531 | JOINT BEARING |
| 025 | N 000472042001 | LOCK RING |
| SHIFT LEVER | ||
| 030 | A 3852681474 | PIN |
| SHIFT LEVER | ||
| 035 | A 3852680696 | BOOT |
| Repalced by: A 6202680196 | ||
| 035 | A 6202680196 | BOOT |
| SHIFT LEVER | ||
| 040 | A 3892605262 | BRACKET |
| BOTTOM | ||
| 045 | A 3892680440 | BRACKET |
| TOP | ||
| 050 | N 913004008004 | NUT |
| BRACKET TO BRACKET | ||
| 055 | A 3222600040 | HANDLE |
| (GEARSHIFT LEVER KNOB) | ||
| 058 | A 6202680042 | KNOB |
| (SHIFT LEVER HANDLE) | ||
| 060 | A 6202680157 | COVER |
| (SHIFT LEVER HANDLE) | ||
| 062 | N 000936010010 | NUT |
| GEARSHIFT LEVER KNOB | ||
| 065 | A 3855840338 | GUMMED LABEL |
| EIGHT-SPEED,ASHTRAY | ||
| 068 | A 3855840138 | GUMMED LABEL |
| NINE-SPEED,ASHTRAY | ||
| 071 | A 3852609433 | SHIFTING ROD |
| (TELESCOPIC SHIFTING ROD) | ||
| 072 | A 3852603882 | SHIFTING TUBE |
| (TELESCOPIC TUBE) | ||
| 072 | A 3852600534 | ROD END |
| (TELESCOPIC SHIFTING ROD) | ||
| 073 | A 3852600387 | PAWL |
| SHIFTING ROD | ||
| 074 | A 3359920203 | BUSHING |
| PAWL TO ROD END | ||
| A 6209920003 | BUSHING | |
| PAWL TO ROD END | ||
| A 6202680150 | BUSHING | |
| PAWL TO ROD END | ||
| 076 | A 3859930020 | SPRING |
| (TELESCOPIC SHIFTING ROD) | ||
| 077 | A 3859930120 | SPRING |
| (TELESCOPIC SHIFTING ROD) | ||
| 078 | A 0009978648 | SEAL RING |
| 17.20 MM | ||
| 079 | A 0009978748 | SEAL RING |
| PULL ROD | ||
| 30.20 MM | ||
| 082 | A 3852680153 | SPACER TUBE |
| LONG | ||
| 083 | N 000931010357 | SCREW |
| ROD END | ||
| 084 | N 913004010008 | NUT |
| ROD END | ||
| 085 | A 3852600063 | SHIFTING CYLINDER |
| HYDRAULIC RELEASE | ||
| WABCO | ||
| 085 | A 3852600563 | SHIFTING CYLINDER |
| HYDRAULIC RELEASE | ||
| TECHNOMATIK | ||
| 086 | A 0069976748 | SEAL RING |
| PISTON RINGS | ||
| WABCO | ||
| 087 | A 0069976848 | SEAL RING |
| SCREW FITTING | ||
| WABCO | ||
| 088 | A 0019970641 | SEAL RING |
| OUTSIDE | ||
| WABCO | ||
| 089 | N 001444008234 | PIN |
| SHIFTING CYLINDER TO YOKE | ||
| 8X45X39 MM | ||
| 090 | N 001443008203 | PIN |
| Repalced by: N 001444008235 | ||
| 090 | N 001444008235 | PIN |
| SHIFTING CYLINDER TO PAWL | ||
| 8X22X16 MM | ||
| 092 | N 000094002059 | COTTER PIN |
| SHIFTING CYLINDER TO YOKE | ||
| 093 | N 900055008002 | SPRING WASHER |
| SHIFTING CYLINDER TO YOKE | ||
| 095 | A 3852680776 | WASHER |
| SHIFTING CYLINDER TO YOKE | ||
| 098 | A 3802600233 | SHIFTING ROD |
| REAR | ||
| 098 | A 3812602833 | SHIFTING ROD |
| REAR | ||
| 100 | A 3852680153 | SPACER TUBE |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 102 | A 0009978648 | SEAL RING |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 105 | N 000931010357 | SCREW |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 108 | N 913004010008 | NUT |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 110 | N 900055018001 | SPRING WASHER |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 112 | A 3219900601 | SCREW |
| SHIFTING TUBE TO TRANSMISSION | ||
| 115 | N 912004008102 | LOCK WASHER |
| SHIFTING TUBE TO TRANSMISSION | ||
| 118 | N 000934008010 | NUT |
| SHIFTING TUBE TO TRANSMISSION | ||
| 120 | N 006912010021 | SCREW |
| FRONT SHIFTING ROD TO REAR SHIFTING ROD | ||
| 125 | N 913004010008 | NUT |
| FRONT SHIFTING ROD TO REAR SHIFTING ROD | ||
| 128 | A 3832680489 | JOINT |
| REAR | ||
| 128 | A 3832680289 | JOINT |
| REAR | ||
| 130 | A 3812680128 | CONNECTOR |
| FRONT SHIFTING ROD TO REAR SHIFTING ROD | ||
| 132 | N 000933010202 | SCREW |
| JOINT TO SHIFTING TUBE | ||
| 140 | A 3852680392 | RUBBER PAD |
| 145 | A 3892680525 | BUSHING |
| SHIFT LEVER | ||
| 152 | A 3852601962 | BRACKET |
| GEARSHIFT LEVER UPPER PART | ||
| 157 | A 3852681640 | BRACKET |
| GEARSHIFT LEVER LOWER PART | ||
| 160 | A 3852680492 | RUBBER PAD |
| GEARSHIFT,TRANSMISSION | ||
| 162 | N 000931008047 | SCREW |
| GEARSHIFT,TRANSMISSION | ||
| 175 | A 3892680097 | BOOT |
| SHIFT LEVER | ||
| 178 | N 007981003203 | SHEET METAL SCREW |
| BOOT TO CAB | ||
| 180 | A 6742640034 | LOCK NUT |
| SPEEDOMETER DRIVE COVERING | ||
| 182 | A 0089976082 | HOSE |
| DISTRIBUTOR,3/2-WAY VALVE,SHIFT CYLINDER | ||
| 6X4 MM | ||
| 185 | A 0039979172 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 190 | A 0089979082 | HOSE |
| FROM 3/2-WAY VALVE TO SOLENOID VALVE | ||
| 6X8 MM | ||
| 191 | A 0039978972 | FITTING |
| Repalced by: A 0029905971 | ||
| 191 | A 0029905971 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 192 | A 3852670040 | BRACKET |
| LINE MOUNTING | ||
| 200 | A 0019978490 | LOOM TIE |
| LINE TO BRACKET | ||
| 376 MM | ||
| 203 | N 915047008100 | HOLLOW SCREW |
| LINE CONNECTIONS | ||
| 205 | N 915052004015 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 4/12 MM | ||
| 208 | N 915052006013 | BANJO UNION |
| PNEUMATIC SHIFT MECHANISM | ||
| 6X12 MM | ||
| 210 | N 007603012405 | SEAL RING |
| LINE CONNECTIONS | ||
| 212 | N 915036008202 | HOLLOW SCREW |
| LINE CONNECTIONS | ||
| 215 | N 915052004016 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 4X10 MM | ||
| 217 | N 007603010103 | SEAL RING |
| LINE CONNECTIONS | ||
| 221 | N 915036006202 | HOLLOW SCREW |
| LINE CONNECTIONS | ||

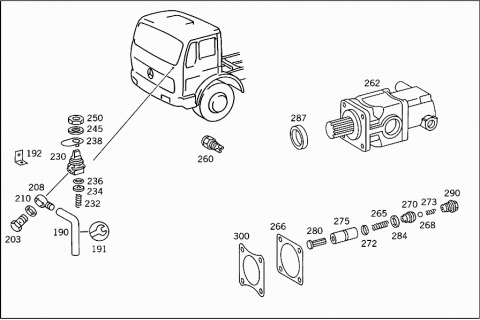

| 230 | A 0019976136 | VALVE |
| P.T.O. CONTROL | ||
| WABCO | ||
| 230 | A 0019975036 | VALVE |
| P.T.O. CONTROL | ||
| BOSCH | ||
| 230 | A 0039975936 | VALVE |
| P.T.O. CONTROL | ||
| KNORR | ||
| 230 | A 0039976036 | VALVE |
| VOSS | ||
| 232 | A 0049937501 | SPRING |
| WABCO | ||
| 234 | A 0069972648 | SEAL RING |
| WABCO | ||
| 236 | A 0039979640 | SEAL RING |
| WABCO | ||
| 238 | A 3855841524 | SYMBOL PLATE |
| 245 | A 3859901640 | WASHER |
| OPERATING VALVE | ||
| 250 | A 3839900051 | NUT |
| 253 | N 915039008100 | HOLLOW SCREW FITTING |
| 260 | A 0005456009 | SWITCH |
| 262 | A 0002366105 | HYDRAULIC PUMP |
| SERVICE WITH DUMPING PLATFORM | ||
| 265 | A 0049936301 | SPRING |
| DUMPER PUMP | ||
| 268 | A 0019814085 | BALL |
| DUMPER PUMP | ||
| 12.7 MM | ||
| 270 | A 0002360935 | VALVE |
| DUMPER PUMP | ||
| 272 | A 0002361160 | SEAL RING |
| DUMPER PUMP | ||
| 273 | A 0049936501 | SPRING |
| DUMPER PUMP | ||
| 275 | A 0002360817 | PISTON |
| Repalced by: A 0002361117 | ||
| 275 | A 0002361117 | PISTON |
| DUMPER PUMP | ||
| 280 | A 0002360735 | VALVE |
| DUMPER PUMP | ||
| 284 | A 0002360375 | LOCK |
| DUMPER PUMP | ||
| 286 | A 0002360180 | GASKET |
| DUMPER PUMP | ||
| 287 | A 0079977146 | SEAL RING |
| DUMPER PUMP | ||
| 290 | A 0019970630 | SCREW PLUG |
| DUMPER PUMP | ||
| 300 | A 0002640479 | GASKET |
| DUMPER PUMP | ||
