Transporto priemonė: 1417 MBSA; VIN numerio dalis: 383018

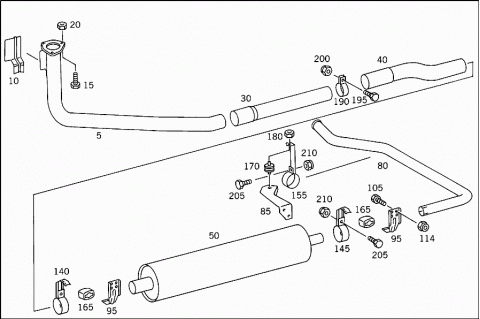

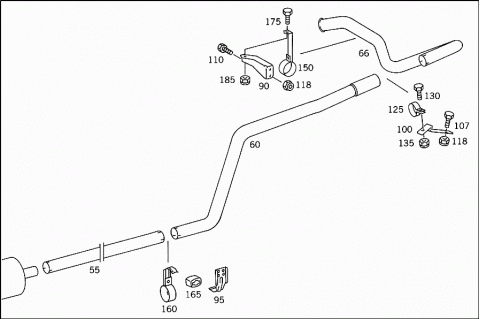

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3814900219 | EXHAUST PIPE |
| FRONT | ||
| 005 | A 3814900319 | EXHAUST PIPE |
| FRONT | ||
| 010 | A 3834922530 | PROTECTIVE PLATE |
| 015 | N 000931010282 | SCREW |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 015 | N 000931012132 | SCREW |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 020 | N 000934010014 | NUT |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 020 | N 000934012021 | NUT |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 030 | A 3224920207 | CONNECTOR |
| FRONT | ||
| 030 | A 3024920509 | CONNECTOR |
| FRONT | ||
| 040 | A 3814920001 | FRONT EXHAUST PIPE |
| AT MUFFLER | ||
| 040 | A 3814920101 | FRONT EXHAUST PIPE |
| AT MUFFLER | ||
| 050 | A 3834900001 | EXHAUST MUFFLER |
| 050 | A 3834900201 | EXHAUST MUFFLER |
| 055 | A 3604921907 | CONNECTOR |
| REAR | ||
| 060 | A 3834926304 | REAR EXHAUST PIPE |
| CENTRAL PART | ||
| 060 | A 3834926204 | REAR EXHAUST PIPE |
| CENTRAL PART | ||
| 066 | A 3814926004 | REAR EXHAUST PIPE |
| REAR | ||
| 080 | A 3814927004 | REAR EXHAUST PIPE |
| REAR | ||
| 080 | A 3814926804 | REAR EXHAUST PIPE |
| REAR | ||
| 080 | A 3814927104 | REAR EXHAUST PIPE |
| REAR | ||
| 085 | A 3814910616 | SUPPORT |
| REAR EXHAUST PIPE TO FRAME | ||
| 090 | A 3814920216 | SUPPORT |
| REAR EXHAUST PIPE TO FRAME | ||
| 095 | A 3814910416 | SUPPORT |
| EXHAUST MUFFLER | ||
| 095 | A 3814910416 | SUPPORT |
| REAR EXHAUST PIPE TO FRAME | ||
| 100 | A 3834922016 | SUPPORT |
| REAR EXHAUST PIPE TO FRAME | ||
| 100 | A 3834921916 | SUPPORT |
| REAR EXHAUST PIPE TO FRAME | ||
| 105 | N 000933008153 | SCREW |
| SUPPORT TO SIDE AND CROSS MEMBERS | ||
| 107 | N 000933010105 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 10X25 | ||
| 110 | N 000933010129 | SCREW |
| REAR CROSS MEMBER | ||
| M 10X30 | ||
| 114 | N 913004008004 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 118 | N 913004010008 | NUT |
| SUPPORT TO SIDE AND CROSS MEMBERS | ||
| 125 | A 3834920540 | CLAMP |
| CENTRAL EXHAUST PIPE | ||
| 125 | A 3834920440 | CLAMP |
| CENTRAL EXHAUST PIPE | ||
| 125 | A 3834920540 | CLAMP |
| CENTRAL EXHAUST PIPE | ||
| 130 | N 000933010157 | SCREW |
| CLAMP TO BRACKET | ||
| 135 | N 913004010008 | NUT |
| CLAMP TO BRACKET | ||
| 140 | A 3814921941 | BRACKET |
| EXHAUST PIPE | ||
| 145 | A 3814922041 | BRACKET |
| EXHAUST PIPE | ||
| 145 | A 3834921041 | BRACKET |
| EXHAUST PIPE | ||
| 150 | A 3814922241 | BRACKET |
| EXHAUST PIPE | ||
| 150 | A 3834927941 | BRACKET |
| EXHAUST PIPE | ||
| 155 | A 3834921641 | BRACKET |
| EXHAUST PIPE | ||
| 160 | A 3834921241 | BRACKET |
| EXHAUST PIPE | ||
| 165 | A 3814920082 | DAMPING PAD |
| EXHAUST MUFFLER | ||
| 165 | A 3814920082 | DAMPING PAD |
| REAR EXHAUST PIPE TO FRAME | ||
| 170 | A 0019875340 | RUBBER BUFFER |
| BRACKET TO SUPPORT | ||
| 175 | N 000933008153 | SCREW |
| BRACKET TO SUPPORT | ||
| 180 | N 913004010008 | NUT |
| BRACKET TO SUPPORT | ||
| 185 | N 913004008004 | NUT |
| BRACKET TO SUPPORT | ||
| 190 | N 071555065500 | CLAMP |
| 65.5 MM | ||
| 190 | N 071555075502 | CLAMP |
| 75.5 MM | ||
| 195 | N 000933008153 | SCREW |
| CLAMP TO BRACKET AND TO PIPE | ||
| M 8X25 | ||
| 200 | N 913004008004 | NUT |
| CLAMP TO BRACKET AND TO PIPE | ||
| 205 | N 000933010157 | SCREW |
| CLAMP TO BRACKET AND TO PIPE | ||
| M 10X28 | ||
| 210 | N 913004010008 | NUT |
| CLAMP TO BRACKET AND TO PIPE |
