Transporto priemonė: 1419 AS; VIN numerio dalis: 383154

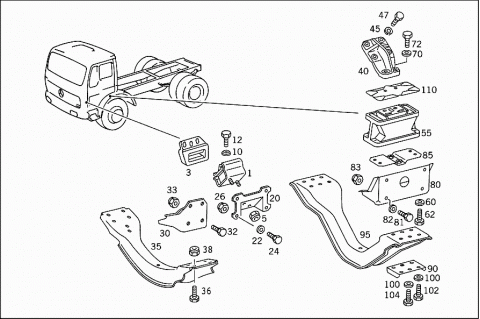

Grupė: 24 ENGINE SUSPENSION - 001 RUBBER MOUNTING TO ENGINE SUPPORT
| # | Kodas | Pavadinimas |
|---|---|---|
| 001 | A 3812400517 | RUBBER MOUNTING |
| Repalced by: A 3832401017 | ||
| 001 | A 3832401017 | RUBBER MOUNTING |
| ADJUSTABLE;FRONMT | ||
| 001 | A 3812400717 | RUBBER MOUNTING |
| Repalced by: A 3832401517 | ||
| 001 | A 3832401517 | RUBBER MOUNTING |
| ADJUSTABLE;FRONMT | ||
| 001 | A 3832402017 | RUBBER MOUNTING |
| 003 | A 0002420043 | STOP |
| ENGINE FRONT MOUNTING | ||
| TO 383 240 10 17 | ||
| 005 | N 910113012002 | NUT |
| RUBBER MOUNTING TO BEARING BRACKET | ||
| 010 | A 3529902440 | WASHER |
| RUBBER MOUNTING TO ENGINE SUPPORTING ARM | ||
| 012 | N 000961016092 | SCREW |
| RUBBER MOUNTING TO ENGINE SUPPORTING ARM | ||
| M16X38 | ||
| 020 | A 3832410235 | BEARING BRACKET |
| Repalced by: A 3832410335 | ||
| 020 | A 3832410335 | BEARING BRACKET |
| RUBBER MOUNT | ||
| 022 | A 3859901040 | WASHER |
| BEARING BRACKET TO SIDE MEMBER | ||
| TO 383 241 03 35 | ||
| 024 | N 000961012164 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| M 12X28 | ||
| 024 | N 000961012092 | SCREW |
| Repalced by: N 000961012025 | ||
| 024 | N 000961012025 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| M 12X32 | ||
| 024 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 024 | N 308676012026 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| M 12X35 | ||
| 026 | N 910113012002 | NUT |
| BEARING BRACKET TO SIDE MEMBER | ||
| 030 | A 3833130106 | CONSOLE |
| ENGINE FRONT CROSS MEMBER | ||
| 032 | N 000961014100 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 033 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 033 | N 910113014001 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 035 | A 3833120005 | ENGINE CROSS MEMBER |
| FRONT | ||
| N 000961012164 | SCREW | |
| Repalced by: N 000961012093 | ||
| 036 | N 000961012106 | SCREW |
| ENGINE CROSS MEMBER TO CONSOLES | ||
| 038 | N 910113012002 | NUT |
| ENGINE CROSS MEMBER TO CONSOLES | ||
| 040 | A 3852420005 | SUPPORTING ARM |
| BELL HOUSING | ||
| 040 | A 3852420005 | SUPPORTING ARM |
| BELL HOUSING | ||
| 040 | A 3852420905 | SUPPORTING ARM |
| BELL HOUSING | ||
| 040 | A 3852420905 | SUPPORTING ARM |
| BELL HOUSING | ||
| 045 | N 912004016101 | LOCK WASHER |
| SUPPORTING ARM TO BELL HOUSING | ||
| 045 | N 912004016101 | LOCK WASHER |
| SUPPORTING ARM TO BELL HOUSING | ||
| 047 | N 000961016077 | SCREW |
| Repalced by: N 308676016006 | ||
| 047 | N 308676016006 | SCREW |
| SUPPORTING ARM TO BELL HOUSING | ||
| M 16X45 | ||
| 047 | N 308676016006 | SCREW |
| SUPPORTING ARM TO BELL HOUSING | ||
| M 16X45 | ||
| 047 | N 000961018041 | SCREW |
| Repalced by: N 308676018001 | ||
| 047 | N 308676018001 | SCREW |
| SUPPORTING ARM TO BELL HOUSING | ||
| M 18X45 | ||
| 047 | N 308676018001 | SCREW |
| SUPPORTING ARM TO BELL HOUSING | ||
| M 18X45 | ||
| 055 | A 3832400018 | RUBBER MOUNTING |
| Repalced by: A 3012400918 | ||
| 055 | A 3832400318 | RUBBER MOUNTING |
| Repalced by: A 3012400918 | ||
| 055 | A 3012400918 | RUBBER MOUNTING |
| Repalced by: A 3832401018 | ||
| 055 | A 3832401018 | RUBBER MOUNTING |
| REAR | ||
| 055 | A 3012401418 | RUBBER MOUNTING |
| Repalced by: A 3832401118 | ||
| 055 | A 3832401118 | RUBBER MOUNTING |
| REAR | ||
| 055 | A 3012401818 | RUBBER MOUNTING |
| Repalced by: A 3832401218 | ||
| 055 | A 3832401218 | RUBBER MOUNTING |
| REAR | ||
| 060 | N 000125013008 | WASHER |
| 062 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 062 | N 308676012026 | SCREW |
| RUBBER MOUNTING TO ENGINE REAR SUPPORT | ||
| 070 | A 3529902440 | WASHER |
| ENGINE SUPPORT TO RUBBER MOUNTING | ||
| 072 | N 000961016119 | SCREW |
| ENGINE SUPPORT TO RUBBER MOUNTING | ||
| 080 | A 3832400206 | CONSOLE |
| ENGINE REAR MOUNTING | ||
| 081 | N 000961014088 | SCREW |
| Repalced by: N 308676014008 | ||
| 081 | N 308676014008 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 14X35 | ||
| 081 | N 000961014130 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 14X42 | ||
| 082 | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 082 | N 000125015019 | WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 083 | N 913004014001 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 085 | A 3832400226 | INTERMEDIATE PIECE |
| CONSOLE | ||
| 090 | A 3813120260 | REINFORCEMENT |
| ENGINE CROSS MEMBER | ||
| 095 | A 3833120207 | ENGINE CROSS MEMBER |
| REAR | ||
| 100 | A 3859901040 | WASHER |
| ENGINE CROSS MEMBER TO CONSOLES | ||
| 102 | N 000961012117 | SCREW |
| ENGINE CROSS MEMBER TO CONSOLES | ||
| 102 | N 308676012015 | SCREW |
| ENGINE CROSS MEMBER TO CONSOLES | ||
| 104 | N 000961012108 | SCREW |
| ENGINE CROSS MEMBER TO CONSOLES | ||
| 110 | A 3832420034 | SCREENING PLATE |
| RUBBER MOUNTING TO ENGINE SUPPORTING ARM | ||
