Transporto priemonė: 1419 AS; VIN numerio dalis: 383154

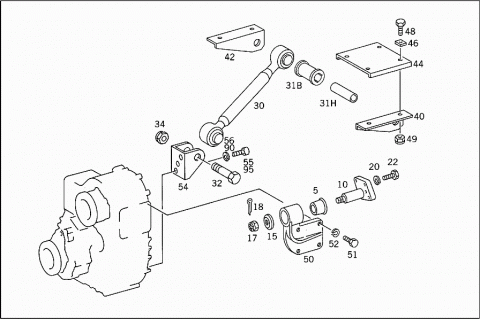

Grupė: 28 MARINE REVERSING GEAR - 001 TRANSFER CASE

#	Kodas	Pavadinimas
	T YYYYYYYYYYYY	PART NAME MISSING
		FOR TRANSFER CASE,SEE UNIT STANDARD VERSION,MODEL:
		750.4
005	A 3602850082	RUBBER MOUNTING
		TRANSFER CASE TO CROSS MEMBER
010	A 3832850015	CARRYING PIN
		TRANSFER CASE TO CROSS MEMBER
015	A 3602850062	THRUST WASHER
		TRANSFER CASE TO CROSS MEMBER
017	N 000935020004	NUT
		TRANSFER CASE TO CROSS MEMBER
018	N 000094004065	COTTER PIN
		TRANSFER CASE TO CROSS MEMBER
020	N 912004012100	LOCK WASHER
		TRANSFER CASE TO CROSS MEMBER
022	N 000961012069	SCREW
	Repalced by: N 308676012015
022	N 308676012015	SCREW
		TRANSFER CASE TO CROSS MEMBER
030	A 3852850155	ROD
		(PULL ROD)
031B	A 0002420250	BUSHING
031H	A 0002420350	BUSHING
032	A 3602850174	PIN
	Repalced by: A 3602850074
032	A 3602850074	PIN
		PULL ROD TO TRANSFER CASE
034	N 913004022003	NUT
	Repalced by: N 910113022001
034	N 910113022001	NUT
		PULL ROD TO TRANSFER CASE
040	A 3852850440	BRACKET
		LEFT
042	A 3852850540	BRACKET
		RIGHT
044	A 3852850095	REINFORCEMENT
		RUBBER MOUNTING TO ENGINE SUPPORT
046	A 3854130111	REINFORCEMENT
		RUBBER MOUNTING TO ENGINE SUPPORT
048	N 000933010260	SCREW
		BRACKET TO CROSS MEMBER
049	N 913004010008	NUT
	Repalced by: N 910113010000
049	N 910113010000	NUT
		BRACKET TO CROSS MEMBER
050	A 3852850240	BRACKET
		TRANSFER CASE TO CROSS MEMBER
051	N 000960014190	SCREW
		TRANSFER CASE TO CROSS MEMBER
052	N 912004014100	LOCK WASHER
		TRANSFER CASE TO CROSS MEMBER

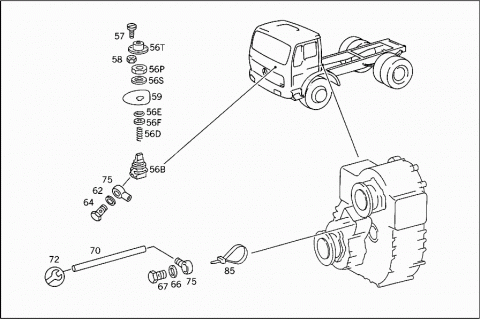

054	A 3852800085	SUPPORT
		PULL ROD TO TRANSFER CASE
055	N 000912014053	SCREW
		PULL ROD TO TRANSFER CASE
056	N 912004014100	LOCK WASHER
		PULL ROD TO TRANSFER CASE
056B	A 0019976136	VALVE
		LONGITUDINAL DIFFERENTIAL LOCK
		WABCO
056B	A 0019975036	VALVE
		LONGITUDINAL DIFFERENTIAL LOCK
		BOSCH
056B	A 0039975936	VALVE
		LONGITUDINAL DIFFERENTIAL LOCK
		KNORR
056B	A 0039976036	VALVE
		LONGITUDINAL DIFFERENTIAL LOCK
		VOSS
056D	A 0049937501	SPRING
		TO 001 997 61 36
056E	A 0069972648	SEAL RING
		TO 001 997 61 36
056F	A 0039979640	SEAL RING
		TO 001 997 61 36
056P	A 3839900051	NUT
		LONGITUDINAL-DIFFERENTIAL-LOCK VALVE
056S	A 3859901640	WASHER
		LONGITUDINAL-DIFFERENTIAL-LOCK VALVE
056T	A 3852840098	BRACKET
		LONGITUDINAL-DIFFERENTIAL-LOCK VALVE
057	N 007985006139	SCREW
		LONGITUDINAL-DIFFERENTIAL-LOCK VALVE
		M 6X30
058	N 000934006007	NUT
		LONGITUDINAL-DIFFERENTIAL-LOCK VALVE
059	A 3855844224	UNIT IDENTIFICATION PLATE
	Repalced by: A 3855844324
059	A 3855844324	UNIT IDENTIFICATION PLATE
		LONGITUDINAL DIFFERENTIAL LOCK
062	N 007603010103	SEAL RING
	Repalced by: N 007603010110
062	N 007603010110	SEAL RING
		LONGITUDINAL-DIFFERENTIAL-LOCK VALVE
064	N 915036006202	HOLLOW SCREW
		LONGITUDINAL-DIFFERENTIAL-LOCK VALVE
066	N 007603012405	SEAL RING
		LONGITUDINAL-DIFFERENTIAL-LOCK VALVE
067	N 915039008202	HOLLOW SCREW FITTING
		LONGITUDINAL-DIFFERENTIAL-LOCK VALVE
070	A 0089976082	HOSE
	Repalced by: A 0009872627
070	A 0009872627	PLASTIC PIPE
		FROM VALVE TO TRANSFER CASE SHIFTING CYLINDER
		4X6 MM
072	A 0039979172	FITTING
		(PARTS KIT),LINE RUPTURE
075	A 0009903888	BANJO UNION
	Repalced by: N 915052004006
075	N 915052004015	BANJO UNION
		TRANSFER CASE CYLINDER
075	N 915052004016	BANJO UNION
		TRANSFER CASE CYLINDER
085	A 0019978390	LOOM TIE
		LINE TO BRACKET
		280 MM
085	A 0019978490	LOOM TIE
		LINE TO BRACKET
		376 MM
090	N 912004014100	LOCK WASHER
		BRACKET TO TRANSMISSION
095	N 000912014053	SCREW
		BRACKET TO TRANSMISSION
