Transporto priemonė: 1419 MBSA-RSA; VIN numerio dalis: 397013
Grupė: 42 BRAKES
| # | Kodas | Pavadinimas |
|---|---|---|

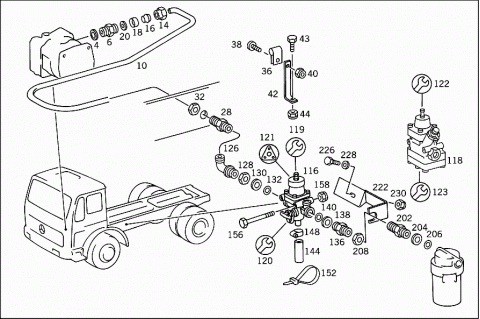

| 004 | N 007603026404 | SEAL RING |
| AIR COMPRESSOR,CONNECTION: | ||
| "2" | ||
| 006 | N 074299026203 | DOUBLE FITTING |
| AIR COMPRESSOR,CONNECTION: | ||
| "2" | ||
| 010 | A 0004291401 | LINE |
| AIR COMPRESSOR,PRESSURE REGULATOR, FILTER,FOUR-CIRCUIT PROTECTIVE VALVE | ||
| 15 MM | ||
| 014 | N 915018015000 | UNION NUT |
| 016 | N 003861015004 | GLAND |
| 018 | N 915065015101 | THRUST RING |
| 020 | N 915045012100 | SEAL RING |
| 028 | A 0019972372 | FITTING |
| FITTING TO FRAME SIDE MEMBER | ||
| 032 | N 074305022202 | NUT |
| FITTING TO FRAME SIDE MEMBER | ||
| 036 | A 3609952001 | CLAMP |
| Repalced by: A 6739950001 | ||
| 036 | A 6739950001 | CLAMP |
| BRACKET TO ENGINE | ||
| 038 | N 007985006145 | SCREW |
| BRACKET TO ENGINE | ||
| 040 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 040 | N 913004006001 | NUT |
| BRACKET TO ENGINE | ||
| 042 | A 3974290240 | BRACKET |
| MOUNTING USED FOR COMPRESSED AIR LINES | ||
| 043 | N 000931010274 | SCREW |
| AT INJECTION PUMP | ||
| 044 | N 913004010008 | NUT |
| AT INJECTION PUMP | ||
| 045 | A 0109975982 | HOSE |
| Repalced by: A 0009872827 | ||
| 045 | A 0009872827 | PLASTIC PIPE |
| 12 MM | ||
| 046 | A 0049971772 | FITTING |
| Repalced by: A 0029906171 | ||
| 046 | A 0029906171 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 047 | N 040621013200 | INSULATING HOSE |
| BLACK | ||
| 13X0.80 MM | ||
| 048 | N 915017012100 | UNION NUT |
| 050 | N 003861012007 | GLAND |
| 052 | N 915062009000 | SLEEVE |
| 054 | A 0009906588 | BANJO UNION |
| Repalced by: N 915052006002 | ||
| 054 | N 915052006021 | BANJO UNION |
| 056 | N 915052009005 | BANJO UNION |
| Repalced by: N 915052009009 | ||
| 056 | N 915052009009 | BANJO UNION |
| 057 | A 0019901088 | BANJO UNION |
| 059 | A 0089979082 | HOSE |
| 8 MM | ||
| 060 | A 0039978972 | FITTING |
| Repalced by: A 0029905971 | ||
| 060 | A 0029905971 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 061 | N 915017008100 | UNION NUT |
| 062 | N 003861008005 | GLAND |
| 063 | N 915062006000 | SLEEVE |
| 064 | N 915052006013 | BANJO UNION |
| 065 | N 915052006021 | BANJO UNION |
| 065 | N 915052006014 | BANJO UNION |
| 066 | A 0029979872 | FITTING |
| 068 | A 0009976189 | COUPLING |
| PARKING BRAKE VALVE | ||
| 069 | A 0099973948 | SEAL RING |
| 070 | A 0089976082 | HOSE |
| 6 MM | ||
| 071 | A 0039979172 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 072 | N 073379006206 | HOSE |
| 50 MM | ||
| 073 | N 915017006100 | UNION NUT |
| 074 | N 003861006007 | GLAND |
| 075 | N 915062004000 | SLEEVE |
| 076 | A 0019978490 | LOOM TIE |
| 078 | A 6209970181 | GROMMET |
| THROUGH SIDE MEMBER | ||
| 42/36 MM | ||
| 078 | A 3859970381 | GROMMET |
| THROUGH SIDE MEMBER | ||
| 078 | A 3609970481 | GROMMET |
| THROUGH SIDE MEMBER | ||
| 080 | A 6204293940 | BRACKET |
| COMPRESSED AIR LINE | ||
| 082 | N 000933008152 | SCREW |
| BRACKET TO RIGHT SIDE MEMBER | ||
| 084 | N 913004008004 | NUT |
| BRACKET TO RIGHT SIDE MEMBER | ||
| 086 | A 6204201286 | BRACKET |
| COMPRESSED AIR LINE | ||
| 088 | N 000933008147 | SCREW |
| BRACKET TO BUMPER STRUT | ||
| 090 | N 913004008004 | NUT |
| BRACKET TO BUMPER STRUT | ||
| 092 | A 6204201486 | BRACKET |
| COMPRESSED AIR LINE | ||
| 094 | N 000933008153 | SCREW |
| BRACKET TO CONSOLE | ||
| 096 | N 913004008004 | NUT |
| BRACKET TO CONSOLE | ||
| 098 | A 6204292440 | BRACKET |
| 100 | A 6204290084 | SEAL RING |
| BRACKET TO CAB FLOOR | ||
| 102 | N 007981005309 | SHEET METAL SCREW |
| BRACKET TO CAB FLOOR | ||
| 103 | N 007981004215 | SHEET METAL SCREW |
| BRACKET TO CAB FLOOR | ||
| 104 | N 009021005202 | WASHER |
| BRACKET TO CAB FLOOR | ||
| 105 | A 0009946445 | LOCK |
| BRACKET TO CAB FLOOR | ||
| A 3974200044 | PROTECTIVE PLATE | |
| Repalced by: A 6174200244 | ||
| A 6174200244 | PROTECTIVE PLATE | |
| LEFT COVER PLATE | ||
| N 000933008147 | SCREW | |
| FRONT SPRING REAR BRACKET | ||
| N 913004008004 | NUT | |
| FRONT SPRING REAR BRACKET | ||
| 110 | A 6204295240 | BRACKET |
| COVERING TO CAB | ||
| 111 | N 912004006102 | LOCK WASHER |
| COVERING TO CAB | ||
| 112 | N 000934006007 | NUT |
| COVERING TO CAB | ||
| 116 | A 0014310006 | PRESSURE REGULATOR |
| Repalced by: A 0024314906 | ||
| 116 | A 0014313406 | PRESSURE REGULATOR |
| Repalced by: A 0024314306 | ||
| 116 | A 0014311206 | PRESSURE REGULATOR |
| Repalced by: A 0024314906 | ||
| 116 | A 0024314906 | PRESSURE REGULATOR |
| WITH TIRE INFLATING CONNECTION | ||
| WESTINGHOUSE | ||
| 118 | A 0014310606 | PRESSURE REGULATOR |
| Repalced by: A 0024313406 | ||
| 118 | A 0024313406 | PRESSURE REGULATOR |
| Repalced by: A 0024314306 | ||
| 118 | A 0024314306 | PRESSURE REGULATOR |
| WITH TIRE INFLATING CONNECTION | ||
| BOSCH | ||
| 118 | A 0024318306 | PRESSURE REGULATOR |
| WITH TIRE INFLATING CONNECTION | ||
| KNORR | ||
| 119 | A 0004301768 | REPAIR KIT |
| DIAPHRAGM | ||
| TO 002 431 34 06,BOSCH 0 481 039 221 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| TO 002 431 43 06,BOSCH 0 481 039 201 | ||
| 120 | A 0004307960 | REPAIR KIT |
| TIRE INFLATING CONNECTION | ||
| TO 002 431 34 06,BOSCH 0 481 039 221 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| TO 002 431 43 06,BOSCH 0 481 039 201 | ||
| 121 | A 0014304960 | REPAIR KIT |
| SEAL RING | ||
| TO 002 431 49 06,WEST 975 303 460 0 | ||
| 122 | A 0024304681 | REPAIR KIT |
| VALVE KIT | ||
| TO 001 431 00 06 | ||
| 122 | A 0015864343 | REPAIR KIT |
| Repalced by: A 0004301107 | ||
| 122 | A 0004301107 | REPAIR KIT |
| TO 001 431 00 06,WEST. 975 300 110 0 | ||
| 123 | A 0015868543 | REPAIR KIT |
| Repalced by: A 0004301407 | ||
| 123 | A 0004301407 | REPAIR KIT |
| TO 001 431 06 06,BOSCH 0 481 039 101 | ||
| 123 | A 0025866743 | REPAIR KIT |
| TO 001 431 12 06,KNORR | ||
| 123 | A 0025866043 | REPAIR KIT |
| TO 001 431 34 06,GRAU | ||
| 123 | A 0004300407 | REPAIR KIT |
| TO 002 431 83 06,"KNORR" | ||
| 123 | A 0004301807 | REPAIR KIT |
| TO 002 431 83 06,"KNORR" | ||
| 126 | A 0009905871 | ELBOW FITTING |
| PRESSURE REGULATOR,CONNECTION "1" | ||
| 128 | N 074305022202 | NUT |
| PRESSURE REGULATOR,CONNECTION "1" | ||
| 130 | A 0004290227 | THRUST RING |
| PRESSURE REGULATOR,CONNECTION "1" | ||
| 132 | A 0009870446 | SEALING CORD |
| PRESSURE REGULATOR,CONNECTION "1" | ||
| 136 | A 0019972172 | FITTING |
| PRESSURE REGULATOR,CONNECTION "2.1" | ||
| 136 | A 0019972372 | FITTING |
| PRESSURE REGULATOR,CONNECTION "2.1" | ||
| 138 | A 0004290227 | THRUST RING |
| PRESSURE REGULATOR,CONNECTION "2.1" | ||
| 140 | A 0009870446 | SEALING CORD |
| PRESSURE REGULATOR,CONNECTION "2.1" | ||
| 144 | A 0005461830 | INSULATING HOSE |
| PRESSURE REGULATOR,CONNECTION "3" | ||
| 144 | A 0159975082 | HOSE |
| PRESSURE REGULATOR,CONNECTION "3" | ||
| 24X1.5 MM | ||
| 148 | N 916026016001 | CLAMP |
| PRESSURE REGULATOR,CONNECTION "3" | ||
| 148 | N 916026020001 | CLAMP |
| PRESSURE REGULATOR,CONNECTION "3" | ||
| 152 | A 0019978390 | LOOM TIE |
| PRESSURE REGULATOR,CONNECTION "3" | ||
| 156 | N 000931008251 | SCREW |
| PRESSURE REGULATOR TO BATTERY SUPPORT | ||
| "2.1" | ||
| 158 | N 913004008004 | NUT |
| PRESSURE REGULATOR TO BATTERY SUPPORT | ||

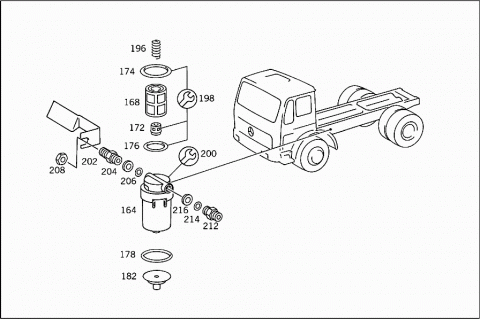

| 164 | A 0004292595 | AIR CLEANER |
| BOSCH | ||
| 164 | A 0004292695 | AIR CLEANER |
| KNORR | ||
| 164 | A 0004292795 | AIR CLEANER |
| WESTINGHOUSE | ||
| 164 | A 0004292895 | AIR CLEANER |
| GRAU | ||
| 168 | A 0004290797 | FILTER ELEMENT |
| TO 000 429 25 95,BOSCH | ||
| 168 | A 0004290497 | FILTER ELEMENT |
| TO 000 429 27 95 | ||
| 168 | A 0004290397 | FILTER ELEMENT |
| TO 000 429 28 95,GRAU | ||
| 172 | A 0004290597 | FILTER ELEMENT |
| TO 000 429 27 95 | ||
| 174 | A 0019974048 | SEAL RING |
| TO 000 429 25 95,BOSCH | ||
| 174 | A 0089978848 | SEAL RING |
| Repalced by: A 0049972248 | ||
| 174 | A 0049972248 | SEAL RING |
| Repalced by: A 0289972348 | ||
| 174 | A 0289972348 | SEAL RING |
| 100X3 MM;TO 000 429 27 95 | ||
| 174 | A 0089978048 | SEAL RING |
| TO 000 429 28 95,GRAU | ||
| 176 | A 0089978948 | SEAL RING |
| Repalced by: A 0009870746 | ||
| 176 | A 0009870746 | SEALING CORD |
| 75X3 MM;TO 000 429 27 95 | ||
| 178 | A 0119974048 | SEAL RING |
| TO 000 429 25 95,BOSCH | ||
| 178 | A 0059972748 | SEAL RING |
| TO 000 429 28 95,GRAU | ||
| 182 | A 0004291045 | DIAPHRAGM |
| TO 000 429 25 95,BOSCH | ||
| 182 | A 0004290845 | DIAPHRAGM |
| TO 000 429 28 95,GRAU | ||
| 196 | A 0059930901 | SPRING |
| TO 000 429 27 95 | ||
| 198 | A 0004204455 | REPAIR KIT |
| TO 000 429 27 95 | ||
| 200 | A 0004300369 | REPAIR KIT |
| TO 000 429 26 95 | ||
| 202 | A 0019972372 | FITTING |
| AIR CLEANER,CONNECTION: | ||
| "1" | ||
| 204 | A 0004290227 | THRUST RING |
| AIR CLEANER,CONNECTION: | ||
| "1" | ||
| 206 | A 0009870446 | SEALING CORD |
| AIR CLEANER,CONNECTION: | ||
| "1" | ||
| 208 | N 074305022202 | NUT |
| AIR CLEANER TO PRESSURE REGULATOR | ||
| "1" | ||
| 212 | A 0019972172 | FITTING |
| AIR CLEANER,CONNECTION: | ||
| "2" | ||
| 214 | A 0004290227 | THRUST RING |
| AIR CLEANER,CONNECTION: | ||
| "2" | ||
| 216 | A 0009870446 | SEALING CORD |
| AIR CLEANER,CONNECTION: | ||
| "2" | ||
| 222 | A 6204310740 | BRACKET |
| AIR CLEANER | ||
| 226 | N 000933008147 | SCREW |
| BRACKET TO STRAP | ||
| 228 | N 000125008418 | WASHER |
| BRACKET TO STRAP | ||
| 230 | N 913004008004 | NUT |
| BRACKET TO STRAP | ||

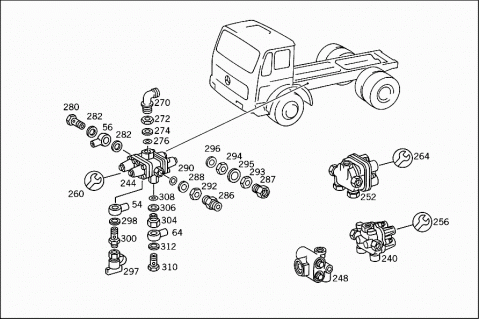

| 240 | A 0014318706 | VALVE |
| FOUR-CIRCUIT PROTECTIVE VALVE | ||
| KNORR | ||
| 244 | A 0014318906 | VALVE |
| Repalced by: A 0024314006 | ||
| 244 | A 0024314006 | VALVE |
| FOUR-CIRCUIT PROTECTIVE VALVE | ||
| WESTINGHOUSE | ||
| 248 | A 0024310206 | VALVE |
| Repalced by: A 0024312706 | ||
| 248 | A 0024312706 | VALVE |
| Repalced by: A 0024319106 | ||
| 248 | A 0024319106 | VALVE |
| FOUR-CIRCUIT PROTECTIVE VALVE | ||
| GRAU | ||
| 252 | A 0014319306 | VALVE |
| FOUR-CIRCUIT PROTECTIVE VALVE | ||
| BOSCH | ||
| 256 | A 0035861043 | REPAIR KIT |
| TO 001 431 87 06 | ||
| 260 | A 0035860943 | REPAIR KIT |
| TO 001 431 89 06,002 431 40 06 | ||
| 264 | A 0004304706 | GASKET KIT |
| TO 001 431 93 06,BOSCH 62401 | ||
| 264 | A 0004300260 | REPAIR KIT |
| TO 001 431 93 06,BOSCH 62201 | ||
| 270 | A 0009909671 | ELBOW FITTING |
| Repalced by: A 0029901271 | ||
| 270 | A 0029901271 | ELBOW FITTING |
| FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1" | ||
| 272 | N 074305022202 | NUT |
| FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1" | ||
| 274 | A 0004290227 | THRUST RING |
| FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1" | ||
| 276 | A 0009870446 | SEALING CORD |
| FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1" | ||
| 280 | N 915036012203 | HOLLOW SCREW |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.1" | ||
| 280 | N 915036012203 | HOLLOW SCREW |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.2" | ||
| 282 | N 007603016401 | SEAL RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.1" | ||
| 282 | N 007603016401 | SEAL RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.2" | ||
| 286 | N 074313012304 | FITTING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.2" | ||
| 287 | A 0004296434 | ADAPTER FITTING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.2" | ||
| 288 | A 0004290927 | THRUST RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.2" | ||
| 290 | A 0009971548 | SEAL RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.2" | ||
| 292 | N 080705018002 | NUT |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.2" | ||
| 293 | N 000439016206 | NUT |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.2" | ||
| 294 | N 080705016003 | NUT |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.2" | ||
| 295 | N 000125019009 | WASHER |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.2" | ||
| 296 | N 000125017010 | WASHER |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.2" | ||
| 297 | A 0034291044 | VALVE |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.3" | ||
| 298 | N 007603016401 | SEAL RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.3" | ||
| 300 | N 915039012205 | HOLLOW SCREW FITTING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.3" | ||
| 304 | A 0019905268 | FITTING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.4" | ||
| 306 | A 0004290927 | THRUST RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.4" | ||
| 308 | A 0009971548 | SEAL RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.4" | ||
| 310 | N 915047008202 | HOLLOW SCREW |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.4" | ||
| 312 | N 007603012405 | SEAL RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.4" | ||
| 320 | A 0004322601 | RESERVOIR |
| Repalced by: A 0034321801 | ||

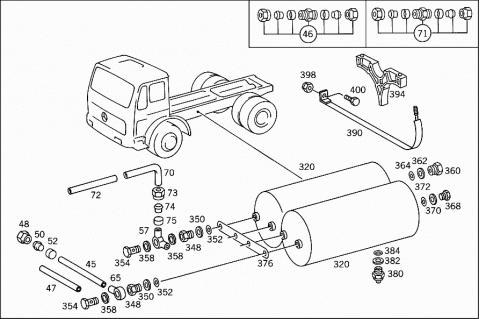

| 320 | A 0034321801 | RESERVOIR |
| BRAKE CIRCUITS I AND II | ||
| 30 L | ||
| 320 | A 0004328801 | RESERVOIR |
| BRAKE CIRCUITS I AND II | ||
| 30 L | ||

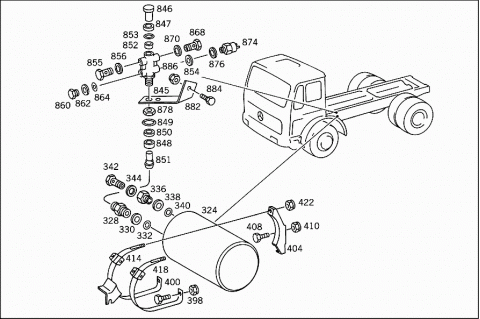

| 324 | A 0004324801 | RESERVOIR |
| SPRING-LOAD-ACCUMULATOR HAND BRAKE | ||
| 20 L | ||
| 328 | A 0019972172 | FITTING |
| CONNECTION: | ||
| 5.1.13 | ||
| 330 | A 0004290227 | THRUST RING |
| SPRING-LOADED BRAKE AIR RESERVOIR | ||
| 332 | A 0009870446 | SEALING CORD |
| SPRING-LOADED BRAKE AIR RESERVOIR | ||
| 336 | A 0009905168 | FITTING |
| SPRING-LOADED BRAKE AIR RESERVOIR | ||
| 338 | A 0004290227 | THRUST RING |
| SPRING-LOADED BRAKE AIR RESERVOIR | ||
| 340 | A 0009870446 | SEALING CORD |
| SPRING-LOADED BRAKE AIR RESERVOIR | ||
| 342 | N 915036012203 | HOLLOW SCREW |
| SPRING-LOADED BRAKE AIR RESERVOIR | ||
| 344 | N 007603016401 | SEAL RING |
| SPRING-LOADED BRAKE AIR RESERVOIR | ||
| 348 | A 0019907368 | FITTING |
| INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION | ||
| 350 | A 0004290227 | THRUST RING |
| INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION | ||
| 352 | A 0009870446 | SEALING CORD |
| INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION | ||
| 354 | N 915036012203 | HOLLOW SCREW |
| INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION | ||
| N 915047012203 | HOLLOW SCREW | |
| 358 | N 007603016401 | SEAL RING |
| INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION | ||
| 360 | A 0009905168 | FITTING |
| INSIDE AND OUTSIDE AIR RESERVOIRS | ||
| 362 | A 0004290227 | THRUST RING |
| INSIDE AND OUTSIDE AIR RESERVOIRS | ||
| 364 | A 0009870446 | SEALING CORD |
| INSIDE AND OUTSIDE AIR RESERVOIRS | ||
| 368 | N 000908022001 | SCREW PLUG |
| INSIDE AND OUTSIDE AIR RESERVOIRS | ||
| 370 | A 0004290227 | THRUST RING |
| INSIDE AND OUTSIDE AIR RESERVOIRS | ||
| 372 | A 0009870446 | SEALING CORD |
| INSIDE AND OUTSIDE AIR RESERVOIRS | ||
| 376 | A 3464320073 | LOCK |
| INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION | ||
| 380 | A 0004321407 | VALVE |
| Repalced by: A 0004320807 | ||
| 380 | A 0004321107 | VALVE |
| MANUAL DRAIN | ||
| 380 | A 0004322107 | VALVE |
| MANUAL DRAIN | ||
| 380 | A 0004322407 | VALVE |
| MANUAL DRAIN | ||
| 382 | A 0004290227 | THRUST RING |
| 384 | A 0009870446 | SEALING CORD |
| 390 | A 6204300040 | STRAP |
| AIR RESERVOIR TO APPARATUS SUPPORT | ||
| 390 | A 3874301440 | STRAP |
| RESERVOIR TO SUPPORT | ||
| 394 | A 6204320018 | BASE |
| AIR RESERVOIR TO APPARATUS SUPPORT | ||
| 394 | A 6244320018 | BASE |
| RESERVOIR TO SUPPORT | ||
| 398 | N 913004010008 | NUT |
| AIR RESERVOIR TO APPARATUS SUPPORT | ||
| 398 | N 913004010008 | NUT |
| RESERVOIR TO SUPPORT | ||
| 400 | N 000933010105 | SCREW |
| AIR RESERVOIR TO APPARATUS SUPPORT | ||
| 400 | N 000933010105 | SCREW |
| RESERVOIR TO SUPPORT | ||
| 404 | A 3874320540 | BRACKET |
| SPRING-LOADED BRAKE AIR RESERVOIR | ||
| 408 | N 000933008215 | SCREW |
| BRACKET TO APPARATUS SUPPORT | ||
| 410 | N 913004008004 | NUT |
| BRACKET TO APPARATUS SUPPORT | ||
| 414 | A 6204300440 | STRAP |
| AIR RESERVOIR TO BRACKET | ||
| 414 | A 6204300240 | STRAP |
| AIR RESERVOIR TO BRACKET | ||
| 418 | A 6204300540 | STRAP |
| AIR RESERVOIR TO BRACKET | ||
| 418 | A 6204301240 | STRAP |
| AIR RESERVOIR TO BRACKET | ||
| 418 | A 6204301040 | STRAP |
| AIR RESERVOIR TO BRACKET | ||
| 422 | N 913004010008 | NUT |
| STRAP TO BRACKET | ||

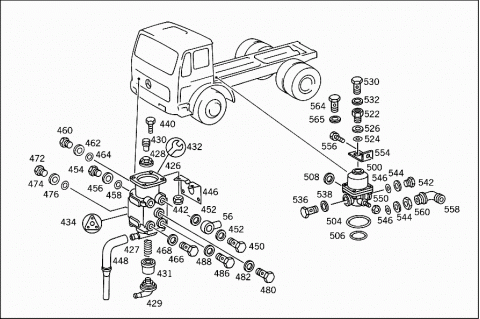

| 426 | A 0024310705 | BRAKE VALVE |
| WESTINGHOUSE | ||
| 426 | A 0024311105 | BRAKE VALVE |
| BOSCH | ||
| 426 | A 0024311905 | BRAKE VALVE |
| KNORR | ||
| 426 | A 0014318305 | BRAKE VALVE |
| WESTINGHOUSE | ||
| 426 | A 0014318905 | BRAKE VALVE |
| BOSCH | ||
| 426 | A 0014319105 | BRAKE VALVE |
| KNORR | ||
| 426 | A 0014319905 | BRAKE VALVE |
| GRAU | ||
| 427 | A 0014316993 | SPRING |
| TO 001 431 89 05 | ||
| 428 | A 0004312185 | FILLER RING |
| TO 001 431 83 05 | ||
| 429 | A 0004310273 | BREATHER PIPE |
| TO 001 431 83 05 | ||
| 430 | A 0004318383 | PISTON |
| TO 001 431 83 05 | ||
| 431 | A 0004313623 | VALVE |
| TO 001 431 83 05,WEST | ||
| 432 | A 0035861143 | REPAIR KIT |
| Repalced by: A 0004306360 | ||
| 432 | A 0004306360 | REPAIR KIT |
| TO 002 431 06 05 | ||
| 432 | A 0004300060 | REPAIR KIT |
| Repalced by: A 0014308460 | ||
| 432 | A 0025868043 | REPAIR KIT |
| Repalced by: A 0004301160 | ||
| 432 | A 0004301160 | REPAIR KIT |
| Repalced by: A 0004306260 | ||
| 432 | A 0004306260 | REPAIR KIT |
| Repalced by: A 0014300460 | ||
| 432 | A 0014300460 | REPAIR KIT |
| TO 001 431 83 05 | ||
| 432 | A 0025868743 | REPAIR KIT |
| Repalced by: A 0004303506 | ||
| 432 | A 0004303506 | REPAIR KIT |
| TO 001 431 89 05 | ||
| 432 | A 0035861243 | REPAIR KIT |
| TO 001 431 91 05 | ||
| 432 | A 0004300160 | REPAIR KIT |
| Repalced by: A 0004303306 | ||
| 432 | A 0004303306 | REPAIR KIT |
| TO 002 431 11 05 | ||
| 434 | A 0014308460 | GASKET KIT |
| TO 002 431 10 05 | ||
| 440 | N 000933008152 | SCREW |
| BRAKE BOOSTER ASSEMBLY TO PEDAL | ||
| 442 | N 913004008004 | NUT |
| BRAKE BOOSTER ASSEMBLY TO PEDAL | ||
| 446 | A 6202920140 | BRACKET |
| 448 | A 6174310073 | BREATHER PIPE |
| 448 | A 6174310073 | BREATHER PIPE |
| 450 | N 915036012203 | HOLLOW SCREW |
| CONNECTIONS "1.1,1.2" | ||
| 452 | N 007603016401 | SEAL RING |
| CONNECTIONS "1.1,1.2" | ||
| 454 | N 000908016001 | SCREW PLUG |
| CONNECTIONS "1.1,1.2" | ||
| 456 | A 0004290927 | THRUST RING |
| CONNECTIONS "1.1,1.2" | ||
| 458 | A 0009971548 | SEAL RING |
| CONNECTIONS "1.1,1.2" | ||
| 460 | N 000908016001 | SCREW PLUG |
| CONNECTION "2.1" | ||
| 462 | A 0004290927 | THRUST RING |
| CONNECTION "2.1" | ||
| 464 | A 0009971548 | SEAL RING |
| CONNECTION "2.1" | ||
| 466 | N 915036012203 | HOLLOW SCREW |
| CONNECTION "2.1" | ||
| 468 | N 007603016401 | SEAL RING |
| CONNECTION "2.1" | ||
| 472 | N 000908016001 | SCREW PLUG |
| CONNECTION: | ||
| "2.2" | ||
| 474 | A 0004290927 | THRUST RING |
| CONNECTION: | ||
| "2.2" | ||
| 476 | A 0009971548 | SEAL RING |
| CONNECTION: | ||
| "2.2" | ||
| 480 | N 915036012203 | HOLLOW SCREW |
| CONNECTION: | ||
| "2.2" | ||
| 482 | N 007603016401 | SEAL RING |
| CONNECTION: | ||
| "2.2" | ||
| 486 | N 915036008202 | HOLLOW SCREW |
| CONNECTION "4" | ||
| 488 | N 007603012405 | SEAL RING |
| CONNECTION "4" | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FRONT AXLE BRAKE CIRCUIT | ||
| 500 | A 0014306481 | VALVE |
| 504 | A 0019871746 | SEALING CORD |
| 506 | A 0089978648 | SEAL RING |
| 508 | N 007603016401 | SEAL RING |
| 522 | A 0004296134 | ADAPTER FITTING |
| REGULATING VALVE,CONNECTION: | ||
| "1" | ||
| 524 | A 0009971548 | SEAL RING |
| REGULATING VALVE,CONNECTION: | ||
| "1" | ||
| 526 | A 0004290927 | THRUST RING |
| REGULATING VALVE,CONNECTION: | ||
| "1" | ||
| 530 | N 915036012203 | HOLLOW SCREW |
| REGULATING VALVE,CONNECTION: | ||
| "1" | ||
| 532 | N 007603016401 | SEAL RING |
| REGULATING VALVE,CONNECTION: | ||
| "1" | ||
| 536 | N 915047012203 | HOLLOW SCREW |
| REGULATING VALVE,CONNECTION: | ||
| "2" | ||
| 538 | N 007603016401 | SEAL RING |
| REGULATING VALVE,CONNECTION: | ||
| "2" | ||
| 542 | N 000908016001 | SCREW PLUG |
| REGULATING VALVE,CONNECTION: | ||
| "2" | ||
| 544 | A 0004290927 | THRUST RING |
| REGULATING VALVE,CONNECTION: | ||
| "2" | ||
| 546 | A 0009971548 | SEAL RING |
| REGULATING VALVE,CONNECTION: | ||
| "2" | ||
| 550 | N 913004008004 | NUT |
| VALVE TO CAB | ||
| 554 | A 6204312540 | BRACKET |
| REGULATING VALVE | ||
| 556 | N 007976005203 | SHEET METAL SCREW |
| BRACKET TO CAB FLOOR | ||
| 558 | A 0029900871 | ELBOW FITTING |
| 560 | N 913004008004 | NUT |
| ELBOW FITTING TO CAB | ||
| 564 | N 915036012203 | HOLLOW SCREW |
| ELBOW FITTING,CONNECTION: | ||
| "1" | ||
| 564 | N 915047012203 | HOLLOW SCREW |
| ELBOW FITTING,CONNECTION: | ||
| "2" | ||
| 565 | N 007603016401 | SEAL RING |
| ELBOW FITTING,CONNECTION: | ||
| "1 U.2" | ||
| 566 | A 0004294037 | DISTRIBUTOR |
| 567 | N 915047008000 | HOLLOW SCREW |
| DISTRIBUTOR,CONNECTIONS: | ||
| "1" | ||
| 568 | N 915036008202 | HOLLOW SCREW |
| DISTRIBUTOR,CONNECTIONS: | ||
| "2,3" | ||
| 569 | N 007603012405 | SEAL RING |
| DISTRIBUTOR,CONNECTIONS: | ||
| "1,2,3" | ||
| 570 | N 000908012003 | SCREW PLUG |
| DISTRIBUTOR,CONNECTIONS: | ||
| "2,4,5,6,7" | ||
| 571 | N 007603012405 | SEAL RING |
| DISTRIBUTOR,CONNECTIONS: | ||
| "4,5,6,7" | ||
| 572 | N 000931006136 | SCREW |
| DISTRIBUTOR TO CAB | ||
| 573 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 573 | N 913004006001 | NUT |
| DISTRIBUTOR TO CAB | ||
| 574 | N 000125006421 | WASHER |
| DISTRIBUTOR TO CAB | ||
| 575 | A 0004296034 | ADAPTER FITTING |
| Repalced by: A 0004296634 | ||
| 575 | A 0004296634 | ADAPTER FITTING |
| Repalced by: A 0004296934 | ||
| 575 | A 0004296934 | ADAPTER FITTING |
| AT LEFT AND RIGHT SIDE MEMBERS,CENTER OF FRONT AXLE | ||
| 576 | N 080705018002 | NUT |
| AT LEFT AND RIGHT SIDE MEMBERS,CENTER OF FRONT AXLE | ||
| 577 | A 0004312031 | TEST CONNECTION |
| AT LEFT SIDE MEMBER | ||
| 577 | A 0004314531 | TEST CONNECTION |
| AT LEFT SIDE MEMBER | ||
| 577 | A 0004314831 | TEST CONNECTION |
| AT LEFT SIDE MEMBER | ||
| 577 | A 0004316131 | TEST CONNECTION |
| AT LEFT SIDE MEMBER | ||
| 578 | A 0019900788 | BANJO UNION |
| AT LEFT SIDE MEMBER | ||
| 579 | A 0019907070 | T-FITTING |
| AT LEFT SIDE MEMBER | ||
| 580 | N 915047012203 | HOLLOW SCREW |
| AT LEFT SIDE MEMBER | ||
| 580 | N 915036012203 | HOLLOW SCREW |
| AT LEFT SIDE MEMBER | ||
| 582 | N 007603016401 | SEAL RING |
| AT LEFT SIDE MEMBER | ||
| 586 | N 915036012203 | HOLLOW SCREW |
| AT RIGHT SIDE MEMBER | ||
| 588 | N 007603016401 | SEAL RING |
| AT RIGHT SIDE MEMBER | ||
| 590 | A 3834290801 | LINE |
| Repalced by: A 6194290801 | ||
| 590 | A 6194290801 | LINE |
| Repalced by: A 6254293501 | ||
| 590 | A 6254293501 | LINE |
| FRONT AXLE,LEFT AND RIGHT | ||
| 592 | N 915017012100 | UNION NUT |
| FRONT AXLE,LEFT AND RIGHT | ||
| 594 | N 003861012007 | GLAND |
| FRONT AXLE,LEFT AND RIGHT | ||
| 596 | N 916027011014 | HOSE |
| FRONT AXLE,LEFT AND RIGHT | ||
| 500 MM | ||
| 598 | A 0004290541 | FITTING |
| FRONT AXLE,LEFT AND RIGHT | ||
| 600 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 600 | N 000000000667 | CLAMP |
| 20-32X13 MM | ||
| 604 | A 3159955010 | CLAMP |
| LINE TO BRACKET AT FRONT AXLE | ||
| 606 | N 007985006145 | SCREW |
| LINE TO BRACKET AT FRONT AXLE | ||
| 607 | N 000125006421 | WASHER |
| LINE TO BRACKET AT FRONT AXLE | ||
| 608 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 608 | N 913004006001 | NUT |
| LINE TO BRACKET AT FRONT AXLE | ||
| 612 | A 0029971572 | FITTING |
| AT LEFT AND RIGHT DIAPHRAGM CYLINDERS | ||
| N 080705016003 | NUT | |
| 616 | A 0004290927 | THRUST RING |
| AT LEFT AND RIGHT DIAPHRAGM CYLINDERS | ||
| 618 | A 0029971640 | SEAL RING |
| Repalced by: A 0009971548 | ||
| 618 | A 0009971548 | SEAL RING |
| AT LEFT AND RIGHT DIAPHRAGM CYLINDERS | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |

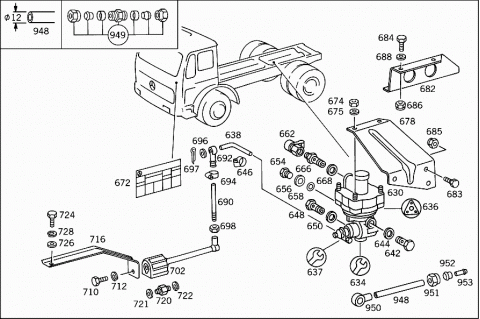

| BRAKES IN REAR CARRIAGE | ||
| 630 | A 0014313212 | BRAKE PRESSURE REGULATOR |
| 630 | A 0014313612 | BRAKE PRESSURE REGULATOR |
| 630 | A 0024310412 | BRAKE PRESSURE REGULATOR |
| 634 | A 0035860243 | REPAIR KIT |
| Repalced by: A 0004307560 | ||
| 634 | A 0004307560 | REPAIR KIT |
| TO 001 431 32 12 | ||
| 636 | A 0004301868 | REPAIR KIT |
| GASKETS | ||
| TO 001 431 36 12 | ||
| 637 | A 0014311586 | REPAIR KIT |
| COVERING | ||
| TO 001 431 36 12 | ||
| 637 | A 0004301883 | REPAIR KIT |
| VALVE | ||
| TO 001 431 36 12 | ||
| 637 | A 0004300207 | REPAIR KIT |
| TO 002 431 04 12 | ||
| 638 | A 3854310239 | LEVER |
| Repalced by: A 6204310839 | ||
| 638 | A 6204310839 | LEVER |
| Repalced by: A 6744310039 | ||
| 638 | A 6744310039 | LEVER |
| 642 | N 915036012203 | HOLLOW SCREW |
| BRAKE POWER REGULATOR,CONNECTION: | ||
| "1" | ||
| 644 | N 007603016401 | SEAL RING |
| BRAKE POWER REGULATOR,CONNECTION: | ||
| "1" | ||
| 646 | A 6249950065 | CLAMP |
| 648 | N 915036012203 | HOLLOW SCREW |
| BRAKE POWER REGULATOR,CONNECTION: | ||
| "2" | ||
| 650 | N 007603016401 | SEAL RING |
| BRAKE POWER REGULATOR,CONNECTION: | ||
| "2" | ||
| 654 | N 000908016001 | SCREW PLUG |
| BRAKE POWER REGULATOR,CONNECTION: | ||
| "2" | ||
| 656 | A 0004290927 | THRUST RING |
| BRAKE POWER REGULATOR,CONNECTION: | ||
| "2" | ||
| 658 | A 0009971548 | SEAL RING |
| BRAKE POWER REGULATOR,CONNECTION: | ||
| "2" | ||
| 662 | A 0004312031 | TEST CONNECTION |
| BRAKE POWER REGULATOR,CONNECTION: | ||
| "4" | ||
| 662 | A 0004314531 | TEST CONNECTION |
| BRAKE POWER REGULATOR,CONNECTION: | ||
| "4" | ||
| 662 | A 0004314831 | TEST CONNECTION |
| BRAKE POWER REGULATOR,CONNECTION: | ||
| "4" | ||
| 662 | A 0004316131 | TEST CONNECTION |
| BRAKE POWER REGULATOR,CONNECTION: | ||
| "4" | ||
| 666 | N 915039012205 | HOLLOW SCREW FITTING |
| BRAKE POWER REGULATOR,CONNECTION: | ||
| "4" | ||
| 668 | N 007603016401 | SEAL RING |
| BRAKE POWER REGULATOR,CONNECTION: | ||
| "4" | ||
| 672 | A 6165840621 | GUIDE SIGN |
| LOAD-DEPENDING BRAKE | ||
| 672 | A 3975840121 | GUIDE SIGN |
| LOAD-DEPENDING BRAKE | ||
| 674 | N 913004008004 | NUT |
| BRAKE POWER REGULATOR TO BRACKET | ||
| 675 | N 000125008418 | WASHER |
| BRAKE POWER REGULATOR TO BRACKET | ||
| 678 | A 6174310040 | BRACKET |
| BRAKE POWER REGULATOR | ||
| 682 | A 6174310240 | BRACKET |
| BRAKE POWER REGULATOR | ||
| 683 | N 000961016113 | SCREW |
| BRACKET TO LEFT SIDE MEMBER | ||
| 684 | N 000933010129 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 10X30 | ||
| 684 | N 000933010105 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 10X25 | ||
| 685 | N 913004016004 | NUT |
| BRACKET TO LEFT SIDE MEMBER | ||
| 686 | N 913004010008 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 688 | N 007349010007 | WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 690 | N 900331008261 | PULL ROD |
| Repalced by: N 900331008419 | ||
| 690 | N 900331008419 | PULL ROD |
| ROD TO BRAKE POWER REGULATOR | ||
| 690 | N 900331008419 | PULL ROD |
| ROD TO BRAKE POWER REGULATOR | ||
| 692 | A 0004310735 | CONNECTOR |
| PULL ROD | ||
| 694 | N 916026010000 | CLAMP |
| PULL ROD | ||
| 696 | N 000125008418 | WASHER |
| ROD TO BRAKE POWER REGULATOR | ||
| 697 | N 000094002069 | COTTER PIN |
| ROD TO BRAKE POWER REGULATOR | ||
| 698 | N 000934008010 | NUT |
| PULL ROD TO METAL-SPRING-BELLOWS BALL JOINT | ||
| 702 | A 0004311018 | METAL SPRING BELLOWS |
| 702 | A 0004311018 | METAL SPRING BELLOWS |
| 710 | N 000933012039 | SCREW |
| METAL SPRING BELLOWS TO BRACKET | ||
| M 12X18 | ||
| 710 | N 000961012047 | SCREW |
| METAL SPRING BELLOWS TO BRACKET | ||
| M 12X1.5X18 | ||
| 712 | N 912004012100 | LOCK WASHER |
| METAL SPRING BELLOWS TO BRACKET | ||
| 716 | A 6174310140 | BRACKET |
| Repalced by: A 6174311040 | ||
| 716 | A 6174311040 | BRACKET |
| METAL SPRING BELLOWS | ||
| 720 | A 6174310075 | THREADED UNION |
| METAL SPRING BELLOWS | ||
| 721 | N 009021013101 | WASHER |
| METAL SPRING BELLOWS | ||
| 722 | N 912004012100 | LOCK WASHER |
| METAL SPRING BELLOWS | ||
| 722 | N 912004010102 | LOCK WASHER |
| METAL SPRING BELLOWS | ||
| 724 | N 308676012012 | SCREW |
| BRACKET TO REAR AXLE | ||
| 726 | A 3609900940 | WASHER |
| BRACKET TO REAR AXLE | ||
| 728 | N 912004012100 | LOCK WASHER |
| BRACKET TO REAR AXLE | ||
| 730 | A 6204292040 | BRACKET |
| BRAKE HOSE | ||
| 732 | N 913004008004 | NUT |
| BRAKE HOSE | ||
| 734 | N 080705018002 | NUT |
| BRAKE HOSE | ||
| 738 | N 916027011014 | HOSE |
| FROM RELAY VALVE TO COMBINATION CYLINDER | ||
| 580 MM | ||
| 738 | N 916027011014 | HOSE |
| FROM RELAY VALVE TO COMBINATION CYLINDER | ||
| 630 MM | ||
| 740 | A 0004290541 | FITTING |
| FROM RELAY VALVE TO COMBINATION CYLINDER | ||
| 742 | N 915017012100 | UNION NUT |
| FROM RELAY VALVE TO COMBINATION CYLINDER | ||
| 744 | N 003861012007 | GLAND |
| FROM RELAY VALVE TO COMBINATION CYLINDER | ||
| 746 | A 0004290641 | FITTING |
| FROM RELAY VALVE TO COMBINATION CYLINDER | ||
| 748 | N 074304016201 | FITTING |
| FROM RELAY VALVE TO COMBINATION CYLINDER | ||
| 750 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 750 | N 000000000667 | CLAMP |
| FROM RELAY VALVE TO COMBINATION CYLINDER | ||
| 20-32X13 MM | ||
| 752 | A 0004290927 | THRUST RING |
| FROM RELAY VALVE TO COMBINATION CYLINDER | ||
| 754 | A 0009971548 | SEAL RING |
| FROM RELAY VALVE TO COMBINATION CYLINDER | ||
| 762 | A 3039971440 | SEAL RING |
| Repalced by: A 1159950465 | ||
| 762 | A 1159950465 | CLAMP |
| BETWEEN THE LINES TO BRAKE HOSE | ||
| 762 | A 6209950065 | CLAMP |
| BETWEEN THE LINES TO BRAKE HOSE | ||
| 764 | N 916027011014 | HOSE |
| FROM BRAKE POWER REGULATOR TO CYLINDER | ||
| 766 | A 0004290541 | FITTING |
| FROM BRAKE POWER REGULATOR TO CYLINDER | ||
| 768 | N 915017012100 | UNION NUT |
| FROM BRAKE POWER REGULATOR TO CYLINDER | ||
| 770 | N 003861012007 | GLAND |
| FROM BRAKE POWER REGULATOR TO CYLINDER | ||
| 772 | N 074304016200 | FITTING |
| FROM BRAKE POWER REGULATOR TO CYLINDER | ||
| 774 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 774 | N 000000000667 | CLAMP |
| FROM BRAKE POWER REGULATOR TO CYLINDER | ||
| 20-32X13 MM | ||

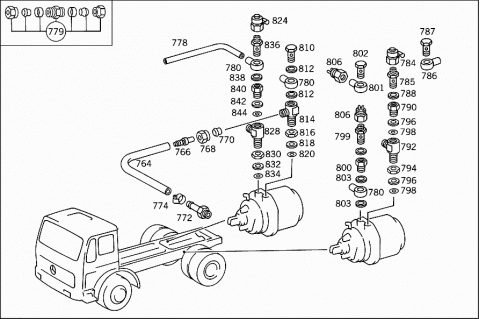

| 778 | A 0109975982 | HOSE |
| Repalced by: A 0009872827 | ||
| 778 | A 0009872827 | PLASTIC PIPE |
| FROM TRISTOP CYLINDER TO TRISTOP CYLINDER | ||
| 779 | A 0049971772 | FITTING |
| Repalced by: A 0029906171 | ||
| 779 | A 0029906171 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 780 | N 915052009005 | BANJO UNION |
| Repalced by: N 915052009009 | ||
| 780 | N 915052009009 | BANJO UNION |
| CONNECTION TO TRISTOP CYLINDER | ||
| 780 | N 915052009000 | BANJO UNION |
| CONNECTION TO TRISTOP CYLINDER | ||
| 784 | A 0004312031 | TEST CONNECTION |
| LEFT COMBINATION CYLINDER;CONNECTION: | ||
| "1" | ||
| 784 | A 0004314531 | TEST CONNECTION |
| LEFT COMBINATION CYLINDER;CONNECTION: | ||
| "1" | ||
| 784 | A 0004314831 | TEST CONNECTION |
| LEFT COMBINATION CYLINDER;CONNECTION: | ||
| "1" | ||
| 784 | A 0004316131 | TEST CONNECTION |
| LEFT COMBINATION CYLINDER;CONNECTION: | ||
| "1" | ||
| 785 | N 915039012205 | HOLLOW SCREW FITTING |
| LEFT COMBINATION CYLINDER;CONNECTION: | ||
| "1" | ||
| 786 | A 0019900788 | BANJO UNION |
| LEFT COMBINATION CYLINDER;CONNECTION: | ||
| "1" | ||
| 787 | N 915036012203 | HOLLOW SCREW |
| LEFT COMBINATION CYLINDER;CONNECTION: | ||
| "1" | ||
| 788 | N 007603016401 | SEAL RING |
| LEFT COMBINATION CYLINDER;CONNECTION: | ||
| "1" | ||
| 790 | A 0004296134 | ADAPTER FITTING |
| LEFT COMBINATION CYLINDER;CONNECTION: | ||
| "1" | ||
| 792 | A 0019905370 | T-FITTING |
| LEFT COMBINATION CYLINDER;CONNECTION: | ||
| "1" | ||
| 794 | N 080705016003 | NUT |
| LEFT COMBINATION CYLINDER;CONNECTION: | ||
| "1" | ||
| 796 | A 0004290927 | THRUST RING |
| LEFT COMBINATION CYLINDER;CONNECTION: | ||
| "1" | ||
| 798 | A 0009971548 | SEAL RING |
| LEFT COMBINATION CYLINDER;CONNECTION: | ||
| "1" | ||
| 799 | N 915039012205 | HOLLOW SCREW FITTING |
| LEFT COMBINATION CYLINDER;CONNECTION: | ||
| "2" | ||
| 800 | A 0004296134 | ADAPTER FITTING |
| LEFT COMBINATION CYLINDER;CONNECTION: | ||
| "1" | ||
| 801 | A 0019900788 | BANJO UNION |
| LEFT COMBINATION CYLINDER;CONNECTION: | ||
| "2" | ||
| 801 | A 0019900788 | BANJO UNION |
| RIGHT COMBINATION CYLINDER,CONNECTION: | ||
| "1" | ||
| 802 | N 915047012203 | HOLLOW SCREW |
| LEFT COMBINATION CYLINDER;CONNECTION: | ||
| "2" | ||
| 802 | N 915047012203 | HOLLOW SCREW |
| RIGHT COMBINATION CYLINDER,CONNECTION: | ||
| "1" | ||
| 803 | N 007603016401 | SEAL RING |
| LEFT COMBINATION CYLINDER;CONNECTION: | ||
| "2" | ||
| 803 | N 007603016401 | SEAL RING |
| LEFT COMBINATION CYLINDER;CONNECTION: | ||
| "2" | ||
| 806 | A 0005455414 | SWITCH |
| STOP LIGHT | ||
| 810 | N 915036012203 | HOLLOW SCREW |
| RIGHT COMBINATION CYLINDER,CONNECTION: | ||
| "1" | ||
| 812 | N 007603016401 | SEAL RING |
| RIGHT COMBINATION CYLINDER,CONNECTION: | ||
| "1" | ||
| 812 | N 007603016401 | SEAL RING |
| RIGHT COMBINATION CYLINDER,CONNECTION: | ||
| "1" | ||
| 814 | A 0019905370 | T-FITTING |
| RIGHT COMBINATION CYLINDER,CONNECTION: | ||
| "1" | ||
| 816 | N 080705016003 | NUT |
| RIGHT COMBINATION CYLINDER,CONNECTION: | ||
| "1" | ||
| 818 | A 0004290927 | THRUST RING |
| RIGHT COMBINATION CYLINDER,CONNECTION: | ||
| "1" | ||
| 820 | A 0009971548 | SEAL RING |
| RIGHT COMBINATION CYLINDER,CONNECTION: | ||
| "1" | ||
| 824 | A 0004312031 | TEST CONNECTION |
| RIGHT COMBINATION CYLINDER,CONNECTION: | ||
| "2" | ||
| 824 | A 0004312031 | TEST CONNECTION |
| RIGHT COMBINATION CYLINDER,CONNECTION: | ||
| "1" | ||
| 824 | A 0004314531 | TEST CONNECTION |
| RIGHT COMBINATION CYLINDER,CONNECTION: | ||
| "2" | ||
| 824 | A 0004314531 | TEST CONNECTION |
| RIGHT COMBINATION CYLINDER,CONNECTION: | ||
| "1" | ||
| 824 | A 0004314831 | TEST CONNECTION |
| RIGHT COMBINATION CYLINDER,CONNECTION: | ||
| "2" | ||
| 824 | A 0004314831 | TEST CONNECTION |
| RIGHT COMBINATION CYLINDER,CONNECTION: | ||
| "1" | ||
| 824 | A 0004316131 | TEST CONNECTION |
| RIGHT COMBINATION CYLINDER,CONNECTION: | ||
| "2" | ||
| 824 | A 0004316131 | TEST CONNECTION |
| RIGHT COMBINATION CYLINDER,CONNECTION: | ||
| "1" | ||
| 828 | A 0019905370 | T-FITTING |
| RIGHT COMBINATION CYLINDER,CONNECTION: | ||
| "2" | ||
| 830 | N 080705016003 | NUT |
| RIGHT COMBINATION CYLINDER,CONNECTION: | ||
| "2" | ||
| 832 | A 0004290927 | THRUST RING |
| RIGHT COMBINATION CYLINDER,CONNECTION: | ||
| "2" | ||
| 834 | A 0009971548 | SEAL RING |
| RIGHT COMBINATION CYLINDER,CONNECTION: | ||
| "2" | ||
| 836 | N 915039012205 | HOLLOW SCREW FITTING |
| RIGHT COMBINATION CYLINDER,CONNECTION: | ||
| "2" | ||
| 838 | N 007603016401 | SEAL RING |
| RIGHT COMBINATION CYLINDER,CONNECTION: | ||
| "2" | ||
| 840 | A 0004296134 | ADAPTER FITTING |
| RIGHT COMBINATION CYLINDER,CONNECTION: | ||
| "2" | ||
| 842 | A 0004290927 | THRUST RING |
| RIGHT COMBINATION CYLINDER,CONNECTION: | ||
| "2" | ||
| 844 | A 0009971548 | SEAL RING |
| RIGHT COMBINATION CYLINDER,CONNECTION: | ||
| "2" | ||
| 845 | A 0034290444 | VALVE |
| (CHECK VALVE) | ||
| WESTINGHOUSE | ||
| 845 | A 0024299644 | VALVE |
| (CHECK VALVE) | ||
| VOSS | ||
| 845 | A 0034291244 | VALVE |
| (CHECK VALVE) | ||
| SCHAEFER | ||
| 846 | A 0004290383 | VALVE TAPPET |
| 847 | A 0004292584 | SEAL RING |
| 848 | A 0109970048 | SEAL RING |
| 849 | A 0109970148 | SEAL RING |
| 850 | A 0004290662 | THRUST WASHER |
| 851 | A 0004290728 | SEAL CONE |
| 852 | A 0002950320 | VALVE |
| TO 003 429 04 44 | ||
| 853 | A 0089977348 | SEAL RING |
| TO 003 429 04 44 | ||
| 854 | N 915045012100 | SEAL RING |
| CHECK VALVE,CONNECTION: | ||
| "10" | ||
| 855 | N 915036012203 | HOLLOW SCREW |
| CHECK VALVE,CONNECTION: | ||
| "21" | ||
| 856 | N 007603016401 | SEAL RING |
| CHECK VALVE,CONNECTION: | ||
| "21" | ||
| 860 | N 000908016001 | SCREW PLUG |
| CHECK VALVE,CONNECTION: | ||
| "22" | ||
| 862 | A 0004290927 | THRUST RING |
| CHECK VALVE,CONNECTION: | ||
| "22" | ||
| 864 | A 0009971548 | SEAL RING |
| CHECK VALVE,CONNECTION: | ||
| "22" | ||
| 868 | N 915036010204 | HOLLOW SCREW |
| CHECK VALVE,CONNECTION: | ||
| "23" | ||
| 870 | N 007603014405 | SEAL RING |
| CHECK VALVE,CONNECTION: | ||
| "23" | ||
| 874 | A 0015456814 | SWITCH |
| STOP LIGHT | ||
| 876 | N 007603012405 | SEAL RING |
| SWITCH TO CHECK VALVE | ||
| 878 | N 074305022202 | NUT |
| CHECK VALVE TO BRACKET | ||
| 882 | A 6204292540 | BRACKET |
| Repalced by: A 6164290140 | ||
| 882 | A 6164290140 | BRACKET |
| CHECK VALVE | ||
| 884 | N 000933010129 | SCREW |
| BRACKET TO LEFT SIDE MEMBER | ||
| 886 | N 913004010008 | NUT |
| BRACKET TO LEFT SIDE MEMBER | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |

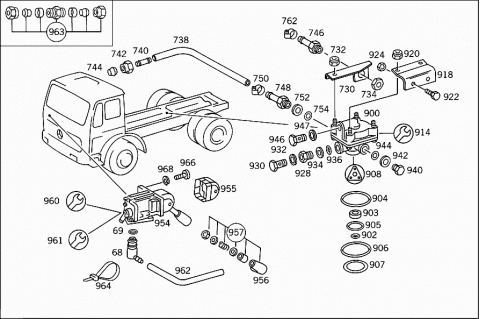

| PARKING BRAKE | ||
| 900 | A 0034291644 | VALVE |
| RELAY VALVE | ||
| BOSCH | ||
| 900 | A 0034295344 | VALVE |
| RELAY VALVE | ||
| KNORR | ||
| 900 | A 0014299144 | VALVE |
| RELAY VALVE | ||
| GRAU | ||
| 900 | A 0014296844 | VALVE |
| RELAY VALVE | ||
| WESTINGHOUSE | ||
| 902 | A 0059972648 | SEAL RING |
| 22.3X2.4 MM,TO 001 429 91 44 | ||
| 903 | A 0004312788 | VALVE SEAT |
| TO 001 429 91 44 | ||
| 904 | A 0059972748 | SEAL RING |
| TO 000 429 28 95,GRAU | ||
| 905 | A 0014311660 | SEAL RING |
| 28X2 MM, TO 001 429 91 44 | ||
| 906 | A 0014311760 | SEAL RING |
| 86X2 MM,TO 001 429 91 44 | ||
| 907 | A 0004311980 | GASKET |
| 34X2X6 MM,TO 001 429 91 44 | ||
| 908 | A 0025865642 | REPAIR KIT |
| Repalced by: A 0004201071 | ||
| 908 | A 0004201071 | VALVE |
| TO 003 429 16 44 - BOSCH:UP TO 03.82 - | ||
| 908 | A 0004201271 | VALVE |
| TO 003 429 16 44 - BOSCH:FROM 04.82 - | ||
| 914 | A 0025863542 | REPAIR KIT |
| TO 003 429 53 44 | ||
| 914 | A 0025865742 | REPAIR KIT |
| Repalced by: A 0004301109 | ||
| 914 | A 0004301109 | REPAIR KIT |
| BLEEDER VALVE | ||
| TO 003 429 16 44 | ||
| 914 | A 0005865742 | REPAIR KIT |
| TO 001 429 68 44 | ||
| 918 | A 6174310640 | BRACKET |
| RELAY VALVE | ||
| 920 | N 913004008004 | NUT |
| RELAY VALVE TO BRACKET | ||
| 922 | N 000933010105 | SCREW |
| RELAY VALVE BRACKET TO SIDE MEMBER | ||
| 924 | N 913004010008 | NUT |
| RELAY VALVE BRACKET TO SIDE MEMBER | ||
| 928 | A 0009905168 | FITTING |
| RELAY VALVE,CONNECTION "1" | ||
| 930 | N 915036012203 | HOLLOW SCREW |
| RELAY VALVE,CONNECTION "1" | ||
| 932 | N 007603016401 | SEAL RING |
| RELAY VALVE,CONNECTION "1" | ||
| 934 | A 0004290227 | THRUST RING |
| RELAY VALVE,CONNECTION "1" | ||
| 936 | A 0009870446 | SEALING CORD |
| RELAY VALVE,CONNECTION "1" | ||
| 940 | N 000908016001 | SCREW PLUG |
| RELAY VALVE,CONNECTION "2",LEFT | ||
| 942 | A 0004290927 | THRUST RING |
| RELAY VALVE,CONNECTION "2",LEFT | ||
| 944 | A 0009971548 | SEAL RING |
| RELAY VALVE,CONNECTION "2",LEFT | ||
| 946 | N 915036012203 | HOLLOW SCREW |
| RELAY VALVE,CONNECTION "4" | ||
| 947 | N 007603016401 | SEAL RING |
| RELAY VALVE,CONNECTION "4" | ||
| 948 | A 0109975982 | HOSE |
| Repalced by: A 0009872827 | ||
| 948 | A 0009872827 | PLASTIC PIPE |
| FROM PRESSURE SWITCH TO BRAKE POWER REGULATOR | ||
| 949 | A 0049971772 | FITTING |
| Repalced by: A 0029906171 | ||
| 949 | A 0029906171 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 950 | N 915052009005 | BANJO UNION |
| Repalced by: N 915052009009 | ||
| 950 | N 915052009009 | BANJO UNION |
| FROM PRESSURE SWITCH CONNECTION TO BRAKE PRESSURE REGULATOR | ||
| 951 | N 915017012100 | UNION NUT |
| FROM PRESSURE SWITCH CONNECTION TO BRAKE PRESSURE REGULATOR | ||
| 952 | N 003861012007 | GLAND |
| FROM PRESSURE SWITCH CONNECTION TO BRAKE PRESSURE REGULATOR | ||
| 953 | N 915062009000 | SLEEVE |
| FROM PRESSURE SWITCH CONNECTION TO BRAKE PRESSURE REGULATOR | ||
| 954 | A 0014304381 | VALVE |
| PARKING BRAKE VALVE | ||
| BOSCH | ||
| 954 | A 0014305781 | VALVE |
| PARKING BRAKE VALVE | ||
| WESTINGHOUSE | ||
| 954 | A 0014306781 | VALVE |
| Repalced by: A 0024309981 | ||
| 954 | A 0024309981 | VALVE |
| PARKING BRAKE VALVE | ||
| KNORR | ||
| 955 | A 0014310887 | PROTECTIVE CAP |
| TO 001 430 57 81 | ||
| 955 | A 0014311087 | PROTECTIVE CAP |
| TO 001 430 43 81 | ||
| 955 | A 0014311287 | PROTECTIVE CAP |
| TO 001 430 67 81,002 430 99 81 | ||
| 956 | A 0009972477 | HANDLE |
| TO 001 430 57 81 | ||
| 956 | A 0009975577 | HANDLE |
| TO 002 430 99 81 | ||
| 957 | A 0004300027 | HANDLE |
| Repalced by: A 0009973477 | ||
| 957 | A 0009973477 | HANDLE |
| REPAIR SIZE | ||
| TO 001 430 43 81 | ||
| 960 | A 0025866343 | REPAIR KIT |
| TO 001 430 43 81 | ||
| 960 | A 0025867443 | REPAIR KIT |
| Repalced by: A 0034303181 | ||
| 960 | A 0034303181 | REPAIR KIT |
| TO 001 430 57 51 | ||
| 960 | A 0034302081 | REPAIR KIT |
| TO 002 430 99 81 | ||
| 961 | A 0035860543 | REPAIR KIT |
| TO 001 430 67 81 | ||
| 962 | A 0109975982 | HOSE |
| Repalced by: A 0009872827 | ||
| 962 | A 0009872827 | PLASTIC PIPE |
| BLEEDING | ||
| 963 | A 0049971772 | FITTING |
| Repalced by: A 0029906171 | ||
| 963 | A 0029906171 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 964 | A 0019978390 | LOOM TIE |
| 966 | N 007985008119 | SCREW |
| PARKING BRAKE TO CAB | ||
| 968 | N 912006008000 | LOCK WASHER |
| PARKING BRAKE TO CAB | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
