Transporto priemonė: 1419 MBSA-RSA; VIN numerio dalis: 397013

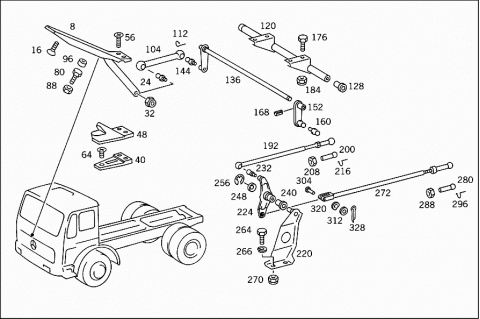

Grupė: 30 CONTROL
| # | Kodas | Pavadinimas |
|---|---|---|
| 008 | A 3813000104 | ACCELERATOR PEDAL |
| Repalced by: A 6243000104 | ||
| 008 | A 6243000104 | ACCELERATOR PEDAL |
| 016 | N 007991005007 | SCREW |
| ACCELERATOR PEDAL TO LEVER | ||
| 024 | N 071803010102 | BALL PIVOT |
| ACCELERATOR PEDAL | ||
| 024 | A 0009911015 | BALL PIVOT |
| ACCELERATOR PEDAL | ||
| 032 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 032 | N 913004006001 | NUT |
| ACCELERATOR PEDAL | ||
| 040 | A 3813010284 | SHIM |
| Repalced by: A 6153010084 | ||
| 040 | A 6153010084 | SHIM |
| ACCELERATOR PEDAL | ||
| 048 | A 3813010297 | BOOT |
| ACCELERATOR PEDAL | ||
| 048 | A 6153010097 | BOOT |
| ACCELERATOR PEDAL | ||
| 056 | N 000965006003 | SCREW |
| PEDAL TO CAB FLOOR | ||
| M 6X25 | ||
| 064 | N 000965006063 | SCREW |
| PEDAL TO CAB FLOOR | ||
| M 6 X 30 | ||
| N 006798006300 | SERRATED WASHER | |
| 080 | N 000931008254 | SCREW |
| STOP TO SUBSTRUCTURE | ||
| 088 | N 000934008010 | NUT |
| STOP TO SUBSTRUCTURE | ||
| 096 | A 3813010041 | STOP |
| ACCELERATOR PEDAL | ||
| 104 | A 3819910123 | BALL SOCKET |
| FROM ACCELERATOR PEDAL TO SHAFT | ||
| 112 | N 071805010403 | SECURING CLIP |
| FROM ACCELERATOR PEDAL TO SHAFT | ||
| 120 | A 3813000021 | BEARING TUBE |
| Repalced by: A 6153000021 | ||
| 120 | A 6153000021 | BEARING TUBE |
| CONTROL SHAFT | ||
| 128 | A 3813020050 | BUSHING |
| CONTROL SHAFT | ||
| 136 | A 3813000020 | SHAFT |
| Repalced by: A 6153000020 | ||
| 136 | A 6153000020 | SHAFT |
| CONTROL | ||
| 144 | N 071803010206 | BALL PIVOT |
| 152 | A 3813000625 | LEVER |
| CONTROL | ||
| 160 | N 071803010206 | BALL PIVOT |
| 168 | N 001481004017 | CLAMPING SLEEVE |
| CONTROL SHAFT | ||
| 176 | N 000933008212 | SCREW |
| INTERMEDIATE BEARING TO CAB FLOOR | ||
| 184 | N 913004008004 | NUT |
| INTERMEDIATE BEARING TO CAB FLOOR | ||
| 192 | A 3604301992 | ROD |
| FROM ACCELERATOR PEDAL TO CONTROL SHAFT BEARING | ||
| 200 | A 0009912422 | BALL SOCKET |
| 208 | N 000934006007 | NUT |
| 216 | N 071805010403 | SECURING CLIP |
| 220 | A 3973000136 | BEARING BRACKET |
| Repalced by: A 6203000436 | ||
| 220 | A 6203000436 | BEARING BRACKET |
| INTERMEDIATE BEARING | ||
| 224 | A 3973000128 | LEVER |
| Repalced by: A 3973000028 | ||
| 224 | A 3973000028 | LEVER |
| INTERMEDIATE BEARING | ||
| 232 | N 071803010202 | BALL PIVOT |
| 240 | A 3813020050 | BUSHING |
| INTERMEDIATE BEARING | ||
| 248 | A 3813010388 | COVERING |
| Repalced by: A 6153010088 | ||
| 248 | A 6153010088 | COVERING |
| INTERMEDIATE BEARING | ||
| 256 | N 006799010001 | LOCK PLATE |
| INTERMEDIATE BEARING | ||
| 264 | N 000933010198 | SCREW |
| INTERMEDIATE BEARING | ||
| 264 | N 000933010128 | SCREW |
| INTERMEDIATE BEARING | ||
| 266 | N 912004010102 | LOCK WASHER |
| INTERMEDIATE BEARING | ||
| 270 | N 913004010008 | NUT |
| INTERMEDIATE BEARING | ||
| 272 | A 3973000415 | ROD |
| INTERMEDIATE BEARING TO CONTROL SHAFT | ||
| 280 | A 4069910022 | BALL SOCKET |
| INTERMEDIATE BEARING TO CONTROL SHAFT | ||
| 288 | N 000934008010 | NUT |
| INTERMEDIATE BEARING TO CONTROL SHAFT | ||
| 296 | N 071805013402 | SECURING CLIP |
| INTERMEDIATE BEARING TO CONTROL SHAFT | ||
| 304 | N 001444008209 | PIN |
| ROD TO INTERMEDIATE LEVER | ||
| 312 | N 000433008406 | WASHER |
| ROD TO INTERMEDIATE LEVER | ||
| 320 | N 000137008204 | SPRING WASHER |
| ROD TO INTERMEDIATE LEVER | ||
| 328 | N 000094002069 | COTTER PIN |
| ROD TO INTERMEDIATE LEVER | ||

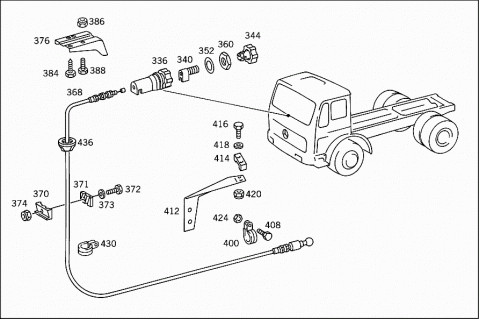

| 336 | A 3813000326 | MANUAL CONTROL |
| IDLING ADJUSTMENT | ||
| 340 | A 3813020108 | GUIDE |
| IDLING ADJUSTMENT | ||
| 344 | A 3813020201 | KNOB |
| Repalced by: A 6153020001 | ||
| 344 | A 6153020001 | KNOB |
| IDLING ADJUSTMENT | ||
| 352 | A 3819940016 | LOCK |
| Repalced by: N 000988030003 | ||
| 352 | N 000988030003 | FITTED WASHER |
| IDLING ADJUSTMENT | ||
| 360 | A 3819900051 | NUT |
| IDLING ADJUSTMENT | ||
| 368 | A 3973000430 | WIRE CABLE |
| IDLING ADJUSTMENT | ||
| 370 | A 6175460344 | CLAMPING PIECE |
| LOWER PART | ||
| 371 | A 3875460344 | CLAMPING PIECE |
| UPPER PART | ||
| 372 | N 000931006118 | SCREW |
| CABLE PULL TO FIRE WALL | ||
| 373 | N 000125006421 | WASHER |
| CABLE PULL TO FIRE WALL | ||
| 374 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 374 | N 913004006001 | NUT |
| CABLE PULL TO FIRE WALL | ||
| 376 | A 3813020340 | BRACKET |
| Repalced by: A 3813020240 | ||
| 376 | A 3813020240 | BRACKET |
| CABLE PULL TO FIRE WALL | ||
| 384 | N 007976005207 | SHEET METAL SCREW |
| Repalced by: N 914031005208 | ||
| 384 | N 914031005208 | COMBINATION BOLT |
| BRACKET TO WINDOW SILL GIRDER | ||
| 386 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 386 | N 913004006001 | NUT |
| FRESH AIR DUCT | ||
| 388 | N 000933006102 | SCREW |
| FRESH AIR DUCT | ||
| 400 | N 916016008200 | CLAMP |
| WIRE CABLE TO BRACKET | ||
| 408 | N 000933006121 | SCREW |
| WIRE CABLE TO BRACKET | ||
| 412 | A 6203010240 | BRACKET |
| CABLE | ||
| 414 | A 3975460144 | CLAMPING PIECE |
| 416 | N 000933006124 | SCREW |
| CLAMPING PIECE TO BRACKET | ||
| 418 | N 000125006421 | WASHER |
| CLAMPING PIECE TO BRACKET | ||
| 420 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 420 | N 913004006001 | NUT |
| CLAMPING PIECE TO BRACKET | ||
| 424 | N 000934006007 | NUT |
| WIRE CABLE TO BRACKET | ||
| 430 | N 916016008200 | CLAMP |
| WIRE CABLE TO BRACKET | ||
| 436 | A 0069978881 | GROMMET |
| WIRE CABLE TO BRACKET | ||
