Transporto priemonė: 1419 MBSA-RSA; VIN numerio dalis: 397013

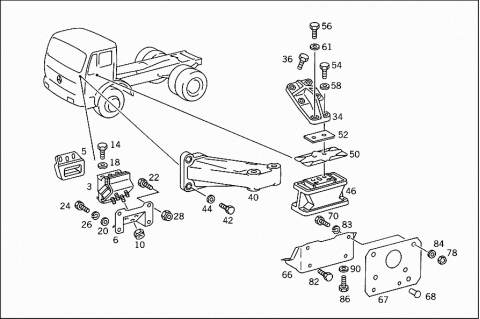

Grupė: 24 ENGINE SUSPENSION - 001 RUBBER MOUNTING TO ENGINE SUPPORT
| # | Kodas | Pavadinimas |
|---|---|---|
| 003 | A 3012403017 | RUBBER MOUNTING |
| Repalced by: A 3972400417 | ||
| 003 | A 3972400417 | RUBBER MOUNTING |
| FRONT | ||
| 003 | A 3972400317 | RUBBER MOUNTING |
| FRONT | ||
| 005 | A 0002420043 | STOP |
| ENGINE FRONT MOUNTING | ||
| TO 301 240 30 17 | ||
| 006 | A 3832410235 | BEARING BRACKET |
| Repalced by: A 3832410335 | ||
| 006 | A 3832410335 | BEARING BRACKET |
| 010 | N 913004012008 | NUT |
| RUBBER MOUNTING TO BEARING BRACKET | ||
| 014 | N 000960016105 | SCREW |
| RUBBER MOUNTING TO ENGINE FRONT SUPPORT | ||
| 018 | A 3529902440 | WASHER |
| RUBBER MOUNTING TO ENGINE FRONT SUPPORT | ||
| 020 | A 3529901040 | WASHER |
| BEARING BRACKET TO SIDE MEMBER | ||
| TO383 241 03 35 | ||
| 022 | N 000961012097 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| M 12X1.5X35 TO383 241 03 35 | ||
| 022 | N 000961012106 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| M 12X1.5X32 TO383 241 03 35 | ||
| 022 | N 000961012164 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| M 12X1.5X28 TO383 241 02 35 | ||
| 024 | N 000961012122 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| M 12X1.5X40 TO383 241 02 35,03 35 | ||
| 026 | N 912004012100 | LOCK WASHER |
| BEARING BRACKET TO SIDE MEMBER | ||
| TO383 241 02 35,03 35 | ||
| 028 | N 913004012008 | NUT |
| BEARING BRACKET TO SIDE MEMBER | ||
| 034 | A 3972420005 | SUPPORTING ARM |
| REAR | ||
| 036 | N 000961018041 | SCREW |
| SUPPORTING ARM TO BELL HOUSING | ||
| 040 | A 4072230901 | ENGINE SUPPORT |
| FRONT LEFT | ||
| 040 | A 4072230801 | ENGINE SUPPORT |
| FRONT RIGHT | ||
| 042 | N 000931014045 | SCREW |
| ENGINE SUPPORT TO CYLINDER CRANKCASE | ||
| 042 | N 000933014024 | SCREW |
| ENGINE SUPPORT TO CYLINDER CRANKCASE | ||
| 044 | N 000433015000 | WASHER |
| BRACKET TO ALTERNATOR | ||
| 044 | N 000433015000 | WASHER |
| ENGINE SUPPORT TO CYLINDER CRANKCASE | ||
| 046 | A 3012401118 | RUBBER MOUNTING |
| Repalced by: A 6172400018 | ||
| 046 | A 6172400018 | RUBBER MOUNTING |
| REAR | ||
| 046 | A 3012401618 | RUBBER MOUNTING |
| Repalced by: A 6172400118 | ||
| 046 | A 6172400118 | RUBBER MOUNTING |
| REAR | ||
| 046 | A 6172400218 | RUBBER MOUNTING |
| REAR | ||
| 050 | A 3832420034 | SCREENING PLATE |
| ENGINE MOUNTING TO SUPPORTING ARM | ||
| 052 | A 3972420026 | SHIM |
| ENGINE MOUNTING TO SUPPORTING ARM | ||
| 054 | N 000961016018 | SCREW |
| ENGINE MOUNTING TO SUPPORTING ARM | ||
| 056 | N 000961016110 | SCREW |
| ENGINE MOUNTING TO SUPPORTING ARM | ||
| 058 | A 3529902440 | WASHER |
| ENGINE MOUNTING TO SUPPORTING ARM | ||
| 061 | N 000125017010 | WASHER |
| ENGINE MOUNTING TO SUPPORTING ARM | ||
| 066 | A 3972400306 | CONSOLE |
| REAR | ||
| 067 | A 3972420232 | REINFORCEMENT |
| 068 | N 910005010016 | RIVET |
| REINFORCEMENT TO SIDE MEMBER | ||
| 070 | N 000961014028 | SCREW |
| Repalced by: A 0029909604 | ||
| 070 | A 0029909604 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 078 | N 913004014002 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 082 | N 000961014050 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 083 | N 912004014100 | LOCK WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 084 | A 3609901840 | WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 086 | N 000961012106 | SCREW |
| ENGINE MOUNTING TO CONSOLE | ||
| 090 | A 3859901040 | WASHER |
| Repalced by: N 000125013008 | ||
| 090 | N 000125013008 | WASHER |
| ENGINE MOUNTING TO CONSOLE | ||
