Transporto priemonė: 1419 MBSA-RSA; VIN numerio dalis: 397013

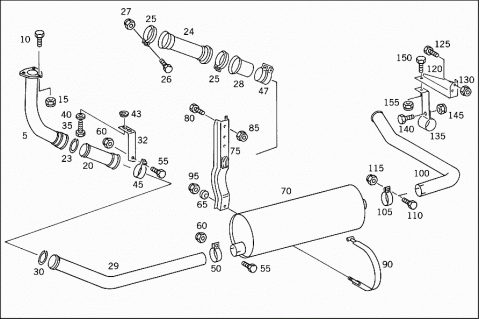

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3974900719 | EXHAUST PIPE |
| FRONT,FRONT PART | ||
| A 3974901619 | EXHAUST PIPE | |
| FRONT,FRONT PART | ||
| 010 | N 000931012114 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 010 | N 000931012254 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 015 | N 000934012010 | NUT |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 020 | A 6204900625 | CONNECTOR |
| FRONT;SECOND PART | ||
| 023 | A 0001424257 | SEAL RING |
| 024 | A 6204900465 | FLEXIBLE METAL TUBE |
| 025 | A 6209970590 | CLAMP |
| CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE | ||
| 026 | N 000933008161 | SCREW |
| CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE | ||
| 027 | N 913004008004 | NUT |
| CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE | ||
| 028 | A 6204920208 | COLLAR |
| CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE | ||
| 029 | A 3974900219 | EXHAUST PIPE |
| FRONT,REAR PART | ||
| 030 | A 0001424257 | SEAL RING |
| A 3974901719 | EXHAUST PIPE | |
| FRONT EXHAUST PIPE | ||
| 032 | A 3974921641 | BRACKET |
| FRONT EXHAUST PIPE SUSPENSION | ||
| A 3974923241 | BRACKET | |
| FRONT EXHAUST PIPE | ||
| 035 | N 000961012156 | SCREW |
| BRACKET TO CONSOLE | ||
| 040 | N 000125013008 | WASHER |
| BRACKET TO CONSOLE | ||
| 043 | N 912004012100 | LOCK WASHER |
| BRACKET TO CONSOLE | ||
| 045 | N 071555090501 | CLAMP |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 047 | A 6204920940 | CLAMP |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 050 | N 071555094501 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 055 | N 000933010129 | SCREW |
| CLAMP MOUNTING | ||
| 060 | N 913004010008 | NUT |
| CLAMP MOUNTING | ||
| 065 | N 006319010302 | SPHERICAL WASHER |
| CLAMP MOUNTING | ||
| 070 | A 3974900201 | EXHAUST MUFFLER |
| 070 | A 3974901201 | EXHAUST MUFFLER |
| 075 | A 3974910241 | BRACKET |
| Repalced by: A 6214910641 | ||
| 075 | A 6214910641 | BRACKET |
| EXHAUST MUFFLER | ||
| 080 | N 000961012151 | SCREW |
| BRACKET TO FRAME | ||
| 080 | N 000961012097 | SCREW |
| BRACKET TO FRAME | ||
| 080 | N 308676012012 | SCREW |
| BRACKET TO FRAME | ||
| 085 | N 913004012008 | NUT |
| BRACKET TO FRAME | ||
| 090 | A 3974900142 | STRAP |
| Repalced by: A 6214900042 | ||
| 090 | A 6214900042 | STRAP |
| Repalced by: A 6554900942 | ||
| 090 | A 6554900942 | STRAP |
| UNIVERSAL JOINT TO STEERING COLUMN TUBE | ||
| 095 | N 913004010008 | NUT |
| UNIVERSAL JOINT TO STEERING COLUMN TUBE | ||
| 100 | A 3974920104 | REAR EXHAUST PIPE |
| 105 | N 071555090501 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 110 | N 000933010129 | SCREW |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 115 | N 913004008004 | NUT |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 120 | A 3834922416 | SUPPORT |
| REAR EXHAUST PIPE TO FRAME | ||
| 125 | N 000933008153 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 130 | N 913004008004 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 135 | A 3974920541 | BRACKET |
| REAR EXHAUST PIPE | ||
| 140 | N 000933010129 | SCREW |
| BRACKET TO EXHAUST PIPE | ||
| 145 | N 913004010008 | NUT |
| BRACKET TO EXHAUST PIPE | ||
| 150 | N 000933010105 | SCREW |
| BRACKET TO SUPPORT | ||
| 155 | N 913004010008 | NUT |
| BRACKET TO SUPPORT | ||
