Transporto priemonė: 1419 MBSA-RSA; VIN numerio dalis: 397013

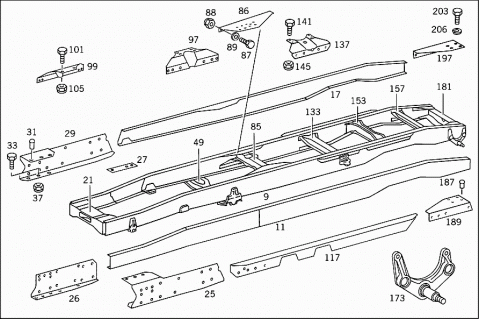

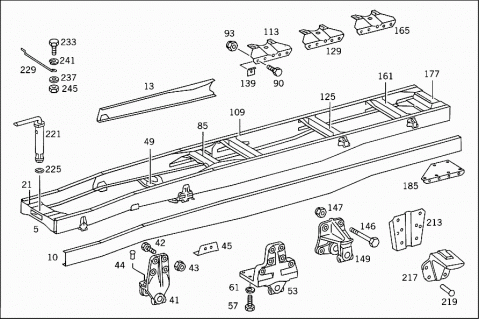

Grupė: 31 FRAME
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3973101101 | FRAME |
| 009 | A 3973101201 | FRAME |
| 010 | A 3973100418 | SIDE MEMBER |
| LEFT | ||
| 010 | A 3973100419 | SIDE MEMBER |
| RIGHT | ||
| 011 | A 3973100818 | SIDE MEMBER |
| LEFT | ||
| 011 | A 3973100819 | SIDE MEMBER |
| RIGHT | ||
| 013 | A 3973110651 | TRUSS |
| LEFT SIDE MEMBER | ||
| 013 | A 3973110751 | TRUSS |
| RIGHT SIDE MEMBER | ||
| 017 | A 3973110851 | TRUSS |
| LEFT SIDE MEMBER | ||
| 017 | A 3973110951 | TRUSS |
| RIGHT SIDE MEMBER | ||
| 021 | A 3873100422 | CROSS MEMBER |
| WITH COUPLING MOUTH | ||
| NO.1 | ||
| 025 | A 3853122187 | GUSSET PLATE |
| LEFT | ||
| A 6173122087 | GUSSET PLATE | |
| Repalced by: A 3873122087 | ||
| A 3873122087 | GUSSET PLATE | |
| LEFT | ||
| 026 | A 6173122187 | GUSSET PLATE |
| Repalced by: A 6203120987 | ||
| 026 | A 6203120987 | GUSSET PLATE |
| 027 | A 6173110055 | COVER |
| Repalced by: A 3974750084 | ||
| 027 | A 3974750084 | SHIM |
| 029 | A 3853122287 | GUSSET PLATE |
| RIGHT | ||
| 031 | N 910005012080 | RIVET |
| GUSSET PLATE TO SIDE MEMBER | ||
| 12X42 MM | ||
| 033 | N 000961012106 | SCREW |
| CROSS MEMBER AND GUSSET PLATE TO SIDE MEMBERS | ||
| 037 | N 913004012008 | NUT |
| CROSS MEMBER AND GUSSET PLATE TO SIDE MEMBERS | ||
| 041 | A 3833220101 | FRONT SPRING BRACKET |
| FRONT | ||
| 042 | A 3589900414 | SCREW |
| FRONT SPRING FRONT BRACKET TO SIDE MEMBER | ||
| 043 | N 913004014005 | NUT |
| FRONT SPRING FRONT BRACKET TO SIDE MEMBER | ||
| 044 | N 910005014059 | RIVET |
| FRONT SPRING FRONT BRACKET TO SIDE MEMBER | ||
| 14X55 MM | ||
| 045 | A 3833220131 | PLATE |
| HELPER SPRING | ||
| 049 | A 3973120010 | CROSS MEMBER |
| FRONT SPRING REAR BRACKET | ||
| NO.2 | ||
| 053 | A 6173220003 | FRONT SPRING BRACKET |
| REAR | ||
| 053 | A 6173220103 | FRONT SPRING BRACKET |
| REAR | ||
| 057 | N 000961014154 | SCREW |
| SPRING BRACKET TO FRAME | ||
| 061 | N 912004014100 | LOCK WASHER |
| SPRING BRACKET TO FRAME | ||
| A 6163120061 | STRUT | |
| FRONT SPRING REAR BRACKET | ||
| N 000961014097 | SCREW | |
| STRUT TO SIDE MEMBER | ||
| N 913004014002 | NUT | |
| STRUT TO SIDE MEMBER | ||
| N 000961014113 | SCREW | |
| STRUT TO CROSS MEMBER | ||
| N 913004014002 | NUT | |
| STRUT TO CROSS MEMBER | ||
| 085 | A 3853100436 | CROSS MEMBER |
| Repalced by: A 3813120015 | ||
| 085 | A 3813120015 | CROSS MEMBER |
| NO.3 | ||
| 086 | A 6193120687 | GUSSET PLATE |
| TOP LEFT | ||
| 086 | A 6193120787 | GUSSET PLATE |
| TOP RIGHT | ||
| 087 | N 000961012120 | SCREW |
| TOP GUSSET PLATE TO CROSS MEMBER | ||
| 088 | N 913004012009 | NUT |
| TOP GUSSET PLATE TO CROSS MEMBER | ||
| 089 | A 3859901040 | WASHER |
| TOP GUSSET PLATE TO CROSS MEMBER | ||
| 090 | N 308676012012 | SCREW |
| CROSS MEMBER TO REINFORCEMENTS AND TO SIDE MEMBERS | ||
| 093 | N 913004012008 | NUT |
| CROSS MEMBER TO REINFORCEMENTS AND TO SIDE MEMBERS | ||
| 097 | A 6173120352 | ANGLE |
| AT LEFT SIDE MEMBER | ||
| 097 | A 6173120352 | ANGLE |
| AT LEFT SIDE MEMBER | ||
| 099 | A 6173120452 | ANGLE |
| AT RIGHT SIDE MEMBER | ||
| 099 | A 6173120452 | ANGLE |
| AT RIGHT SIDE MEMBER | ||
| 101 | N 308676012012 | SCREW |
| ANGLE TO CROSS MEMBER | ||
| 105 | N 913004012008 | NUT |
| ANGLE TO CROSS MEMBER | ||
| 109 | A 6173120117 | CROSS MEMBER |
| INTERMEDIATE SHAFT BEARING | ||
| NO.4 | ||
| 113 | A 3833120360 | REINFORCEMENT |
| INTERMEDIATE BEARING CROSS MEMBER | ||
| 117 | A 6173110953 | ANGLE |
| Repalced by: A 6173110353 | ||
| 117 | A 6173110353 | ANGLE |
| FRAME SIDE MEMBER REINFORCEMENT,REAR LEFT | ||
| 117 | A 6173110553 | ANGLE |
| Repalced by: A 6173110453 | ||
| 117 | A 6173110453 | ANGLE |
| FRAME SIDE MEMBER REINFORCEMENT,REAR RIGHT | ||
| 125 | A 3813120017 | CROSS MEMBER |
| REAR SPRING FRONT BRACKET | ||
| NO.5 | ||
| 129 | A 3833120360 | REINFORCEMENT |
| CROSS MEMBER AT REAR SPRING FRONT BRACKET | ||
| 133 | A 6173120017 | CROSS MEMBER |
| REAR SPRING FRONT BRACKET | ||
| NO.4 | ||
| 137 | A 3523122360 | REINFORCEMENT |
| CROSS MEMBER AT REAR SPRING FRONT BRACKET | ||
| 139 | A 3523120884 | SHIM |
| Repalced by: A 6203121584 | ||
| 139 | A 6203121584 | SHIM |
| CROSS MEMBER AT REAR SPRING FRONT BRACKET | ||
| 141 | N 000931010094 | SCREW |
| CROSS MEMBER TO FRAME | ||
| 145 | N 913004010008 | NUT |
| CROSS MEMBER TO FRAME | ||
| 146 | A 3589901014 | SCREW |
| REAR SPRING BRACKET | ||
| 147 | N 913004014005 | NUT |
| REAR SPRING BRACKET | ||
| 149 | A 3523250101 | REAR SPRING BRACKET |
| Repalced by: A 6173250001 | ||
| 149 | A 6173250001 | REAR SPRING BRACKET |
| 153 | A 6173100037 | CROSS MEMBER |
| SHOCK ABSORBER | ||
| NO.5 | ||
| 157 | A 6173100137 | CROSS MEMBER |
| NO.6 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR SHOCK ABSORBER CROSS MEMBER, SEE GROUP 32 | ||
| NO.6 | ||
| 161 | A 3813120021 | CROSS MEMBER |
| Repalced by: A 6173120117 | ||
| 161 | A 6173120117 | CROSS MEMBER |
| REAR-SPRING REAR BRACKET | ||
| NO.7 | ||
| 165 | A 3833120360 | REINFORCEMENT |
| CROSS MEMBER AT REAR SPRING REAR BRACKET | ||
| 173 | A 6173250103 | REAR SPRING BRACKET |
| REAR LEFT | ||
| 173 | A 6173250203 | REAR SPRING BRACKET |
| REAR RIGHT | ||
| 177 | A 3853100146 | CROSS MEMBER |
| Repalced by: A 3853100246 | ||
| 177 | A 3853100246 | CROSS MEMBER |
| (REAR CROSS MEMBER) | ||
| 181 | A 6173120035 | CROSS MEMBER |
| (REAR CROSS MEMBER) | ||
| 185 | A 6193120087 | GUSSET PLATE |
| LEFT TOP,USED FOR REAR CROSS MEMBER | ||
| 185 | A 6193120087 | GUSSET PLATE |
| RIGHT BOTTOM;USED FOR REAR CROSS MEMBER | ||
| 185 | A 6193120187 | GUSSET PLATE |
| LEFT BOTTOM,FOR REAR CROSS MEMBER | ||
| 185 | A 6193120187 | GUSSET PLATE |
| RIGHT TOP,USED FOR REAR CROSS MEMBER | ||
| 187 | N 910005014038 | RIVET |
| 14X60 MM | ||
| 187 | N 910005014059 | RIVET |
| 14X55 MM | ||
| 187 | N 910005014056 | RIVET |
| 14X45 MM | ||
| 187 | N 910005012080 | RIVET |
| 12X42 MM | ||
| 187 | N 910005012073 | RIVET |
| 12 X 28 MM | ||
| 187 | N 910005010030 | RIVET |
| 10X45 MM | ||
| 187 | N 910005010022 | RIVET |
| 10X34 MM | ||
| 187 | N 910005010020 | RIVET |
| 10X32 MM | ||
| 187 | N 910005010018 | RIVET |
| 10X30 MM | ||
| 187 | N 910005010016 | RIVET |
| 10X28 MM | ||
| 187 | N 910005010014 | RIVET |
| 10X26 MM | ||
| 189 | A 6173120087 | GUSSET PLATE |
| LEFT TOP,USED FOR REAR CROSS MEMBER | ||
| 197 | A 6173120187 | GUSSET PLATE |
| RIGHT TOP,USED FOR REAR CROSS MEMBER | ||
| 197 | A 6173120187 | GUSSET PLATE |
| RIGHT TOP,USED FOR REAR CROSS MEMBER | ||
| 203 | N 000961014154 | SCREW |
| 206 | N 912004014100 | LOCK WASHER |
| 213 | A 3813250041 | STIFFENING |
| HELPER SPRING BRACKET TO SIDE MEMBER | ||
| 217 | A 3893250117 | HELPER SPRING BRACKET |
| Repalced by: A 6843250017 | ||
| 217 | A 6843250017 | HELPER SPRING BRACKET |
| HELPER SPRING | ||
| 219 | N 910005012087 | RIVET |
| HELPER SPRING BRACKET TO SIDE MEMBER | ||
| 12X45 MM | ||
| 219 | N 910005012073 | RIVET |
| HELPER SPRING BRACKET TO SIDE MEMBER | ||
| 12X28 MM | ||
| 221 | A 3873150106 | COUPLING PIN |
| COUPLING MOUTH | ||
| 225 | A 0009874346 | SEALING CORD |
| COUPLING MOUTH | ||
| 229 | A 3353150031 | LOCKING SPRING |
| COUPLING MOUTH | ||
| 233 | N 000933008153 | SCREW |
| LOCK SPRING TO CROSS MEMBER | ||
| 237 | N 000125008418 | WASHER |
| LOCK SPRING TO CROSS MEMBER | ||
| 241 | N 912004008102 | LOCK WASHER |
| LOCK SPRING TO CROSS MEMBER | ||
| 245 | N 000934008010 | NUT |
| LOCK SPRING TO CROSS MEMBER | ||

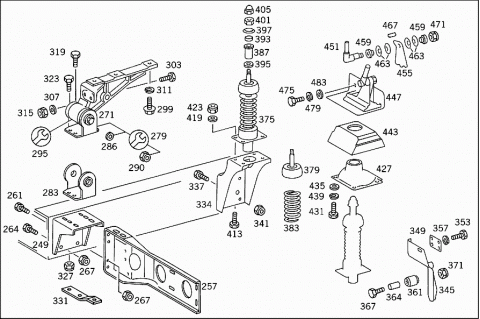

| 249 | A 3878912631 | CONSOLE |
| CAB SUSPENSION | ||
| 257 | A 6203170423 | STRUT |
| BUMPER AT TORSION BAR | ||
| 257 | A 3973170023 | STRUT |
| BUMPER AT TORSION BAR | ||
| 261 | N 000961014101 | SCREW |
| CONSOLE AND STRUT TO FRAME | ||
| M 14X45 | ||
| 264 | N 000961014063 | SCREW |
| CONSOLE AND STRUT TO FRAME | ||
| M 14X40 | ||
| 267 | N 913004014005 | NUT |
| CONSOLE AND STRUT TO FRAME | ||
| 271 | A 3813106509 | BRACKET |
| LEFT | ||
| 271 | A 3813106609 | BRACKET |
| RIGHT | ||
| A 3813171512 | RUBBER BUFFER | |
| A 3813171412 | RUBBER BUFFER | |
| Repalced by: A 6205860031 | ||
| 279 | A 6205860031 | REPAIR KIT |
| CAB SUSPENSION | ||
| 283 | A 3878902903 | MOUNTING |
| CAB SUSPENSION | ||
| 286 | N 007349017002 | WASHER |
| 290 | N 913004016004 | NUT |
| 295 | A 3815860031 | REPAIR KIT |
| CAB SUSPENSION,FRONT | ||
| 299 | N 000961014028 | SCREW |
| Repalced by: A 0029909604 | ||
| 299 | A 0029909604 | SCREW |
| LEFT AND RIGHT BEARING BRACKETS TO CAB | ||
| M 14X40 | ||
| 303 | N 000961014054 | SCREW |
| LEFT AND RIGHT BEARING BRACKETS TO CAB | ||
| M 14X45 | ||
| 307 | A 3209901840 | WASHER |
| LEFT AND RIGHT BEARING BRACKETS TO CAB | ||
| 311 | N 912004014100 | LOCK WASHER |
| LEFT AND RIGHT BEARING BRACKETS TO CAB | ||
| 315 | N 913004014002 | NUT |
| LEFT AND RIGHT BEARING BRACKETS TO CAB | ||
| 319 | N 000961014063 | SCREW |
| CAB TO FRAME | ||
| M 14X40 | ||
| 323 | N 000961014101 | SCREW |
| CAB TO FRAME | ||
| M 14X45 | ||
| 327 | N 913004014005 | NUT |
| CAB TO FRAME | ||
| 331 | A 3878910398 | SHIM |
| CAB TO FRAME | ||
| 334 | A 3813171201 | CONSOLE |
| CAB | ||
| 337 | N 000961014097 | SCREW |
| CONSOLE TO FRAME | ||
| 341 | N 913004014002 | NUT |
| CONSOLE TO FRAME | ||
| 345 | A 3813171926 | GUIDE |
| LEFT | ||
| 345 | A 3813172026 | GUIDE |
| RIGHT | ||
| 349 | A 3873170084 | SHIM |
| GUIDE TO CAB | ||
| 353 | N 000960012369 | SCREW |
| GUIDE TO CAB | ||
| 357 | N 912004012100 | LOCK WASHER |
| GUIDE TO CAB | ||
| 361 | A 3813170750 | BUSHING |
| LATERAL GUIDE OF CAB | ||
| 364 | A 3813170553 | SPACER TUBE |
| LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS | ||
| 367 | N 000960012230 | SCREW |
| LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS | ||
| 371 | N 913004012008 | NUT |
| LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS | ||
| 375 | A 3878901219 | SHOCK ABSORBER |
| Repalced by: A 3878901519 | ||
| 375 | A 3878901519 | SHOCK ABSORBER |
| 375 | A 3878901519 | SHOCK ABSORBER |
| 379 | A 0008910201 | RUBBER MOUNTING |
| (VIBRATION ABSORBER),CAB REAR SUSPENSION | ||
| TO 387 890 12 19 | ||
| 379 | A 0008910301 | RUBBER MOUNTING |
| (VIBRATION ABSORBER),CAB REAR SUSPENSION | ||
| TO 387 890 15 19 | ||
| 383 | A 0008910151 | SPRING |
| (VIBRATION ABSORBER),CAB REAR SUSPENSION | ||
| 383 | A 0008910751 | SPRING |
| 387 | A 3813170753 | SPACER TUBE |
| SHOCK ABSORBER TO CAB | ||
| 393 | A 3275045082 | RUBBER RING |
| SHOCK ABSORBER TO CAB | ||
| 395 | N 000433015005 | WASHER |
| SHOCK ABSORBER TO CAB | ||
| 397 | A 3878912010 | WASHER |
| SHOCK ABSORBER TO CAB | ||
| 401 | N 000934012022 | NUT |
| SHOCK ABSORBER TO CAB | ||
| 405 | N 001587012008 | CAP NUT |
| SHOCK ABSORBER TO CAB | ||
| A 3813170031 | COVER PLATE | |
| 413 | N 000933008153 | SCREW |
| SHOCK ABSORBER TO CAB | ||
| 419 | N 009021008205 | WASHER |
| SHOCK ABSORBER TO CAB | ||
| 423 | N 913004008004 | NUT |
| SHOCK ABSORBER TO CAB | ||
| 427 | A 3813177840 | BRACKET |
| LEFT | ||
| 427 | A 3813177940 | BRACKET |
| RIGHT | ||
| 431 | N 000933010105 | SCREW |
| BRACKET AND BOOT TO SIDE MEMBER | ||
| 435 | N 000125010518 | WASHER |
| BRACKET AND BOOT TO SIDE MEMBER | ||
| 439 | N 912004010102 | LOCK WASHER |
| BRACKET AND BOOT TO SIDE MEMBER | ||
| 443 | A 3813170097 | BOOT |
| CAB LOCKING MECHANISM | ||
| 447 | A 3813102075 | LOCKING MECHANISM |
| LEFT | ||
| 447 | A 3813101975 | LOCKING MECHANISM |
| RIGHT | ||
| 451 | A 3813172374 | PIN |
| CAB LOCKING MECHANISM | ||
| 455 | A 3813170924 | LEVER |
| CAB LOCKING MECHANISM | ||
| 459 | A 3813170676 | WASHER |
| CAB LOCKING MECHANISM | ||
| 463 | A 0009935426 | DISC SPRING |
| CAB LOCKING MECHANISM | ||
| 467 | N 001481006041 | CLAMPING SLEEVE |
| CAB LOCKING MECHANISM | ||
| 471 | N 913004012008 | NUT |
| CAB LOCKING MECHANISM | ||
| 475 | N 000933010105 | SCREW |
| LOCKING MECHANISM TO CAB | ||
| 479 | N 912004010102 | LOCK WASHER |
| LOCKING MECHANISM TO CAB | ||
| 483 | N 000125010518 | WASHER |
| LOCKING MECHANISM TO CAB | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
