Transporto priemonė: 1419 MBSA-RSA; VIN numerio dalis: 397013

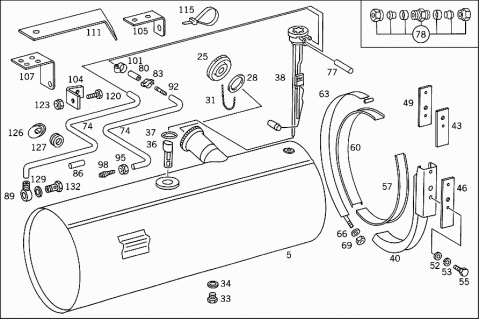

Grupė: 47 FUEL SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3874701501 | FUEL TANK |
| Repalced by: A 3874701301 | ||
| 005 | A 3874701301 | FUEL TANK |
| 200 L | ||
| 025 | A 0004710530 | FILLER CAP |
| Repalced by: A 0004717930 | ||
| 025 | A 0004717930 | FILLER CAP |
| Repalced by: A 0004700305 | ||
| 025 | A 0004718030 | FILLER CAP |
| Repalced by: A 0004700305 | ||
| 025 | A 0004700105 | FILLER CAP |
| Repalced by: A 0004700305 | ||
| 025 | A 0004700305 | FILLER CAP |
| 028 | A 3049970340 | SEAL RING |
| TO 000 471 79 30,80 30 | ||
| 031 | A 3034700031 | CHAIN |
| 033 | N 007604014106 | SCREW PLUG |
| 034 | N 007603014405 | SEAL RING |
| 036 | A 0004710235 | FUEL STRAINER |
| 037 | A 0119970745 | SEAL RING |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 038 | A 0055423817 | SENDER UNIT |
| Repalced by: A 0085428017 | ||
| 038 | A 0085428017 | SENDER UNIT |
| FUEL GAUGE | ||
| 040 | A 3854700442 | SUPPORT |
| FRONT TANK | ||
| 040 | A 3854700342 | SUPPORT |
| REAR TANK | ||
| 043 | A 3874750084 | SHIM |
| SUPPORT TO SIDE MEMBER | ||
| 046 | A 3974750084 | SHIM |
| SUPPORT TO SIDE MEMBER | ||
| 046 | A 3974750084 | SHIM |
| SUPPORT TO SIDE MEMBER | ||
| 049 | A 3834750384 | SHIM |
| SUPPORT TO SIDE MEMBER | ||
| 052 | N 007349015003 | WASHER |
| SUPPORT TO SIDE MEMBER | ||
| 052 | N 007349015003 | WASHER |
| SUPPORT TO SIDE MEMBER | ||
| 053 | N 912004014100 | LOCK WASHER |
| SUPPORT TO SIDE MEMBER | ||
| 055 | N 000961014028 | SCREW |
| Repalced by: A 0029909604 | ||
| 055 | A 0029909604 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M14X40 | ||
| 055 | N 000961014050 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M14X35 | ||
| 057 | A 3634750220 | PAD |
| FUEL TANK TO SUPPORT | ||
| 060 | A 3634750320 | PAD |
| STRAP | ||
| 063 | A 3874700140 | STRAP |
| Repalced by: A 6204700340 | ||
| 063 | A 6204700340 | STRAP |
| FUEL TANK TO SUPPORT | ||
| 066 | N 000125013008 | WASHER |
| STRAP TO SUPPORT | ||
| 069 | N 000934012021 | NUT |
| STRAP TO SUPPORT | ||
| M 12 | ||
| 069 | N 000934012022 | NUT |
| STRAP TO SUPPORT | ||
| M 12X1.5 | ||
| 074 | A 0089975482 | HOSE |
| FEED LINE AND RETURN LINE | ||
| 8X11 MM | ||
| 077 | A 0089979082 | HOSE |
| FUEL TANK BREATHING | ||
| 6X8 MM | ||
| 078 | A 0039978972 | FITTING |
| Repalced by: A 0029905971 | ||
| 078 | A 0029905971 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 080 | A 3054760126 | HOSE |
| RETURN | ||
| 083 | A 0029978790 | CLIP |
| RETURN | ||
| 086 | N 040621011200 | INSULATING HOSE |
| FEED | ||
| 089 | N 915052008016 | BANJO UNION |
| FEED | ||
| 092 | A 3879900078 | CONNECTOR |
| Repalced by: N 915062008000 | ||
| 092 | N 915062008000 | SLEEVE |
| FEED & RETURN | ||
| 095 | N 915017010201 | UNION NUT |
| RETURN | ||
| 098 | A 0019974972 | FITTING |
| RETURN | ||
| 101 | N 916026010000 | CLAMP |
| FUEL LINE TO SENDER UNIT | ||
| 104 | A 3874760136 | BRACKET |
| Repalced by: A 6454310740 | ||
| 104 | A 6454310740 | BRACKET |
| FUEL LINE | ||
| 105 | A 3854760036 | BRACKET |
| Repalced by: A 6205240340 | ||
| 105 | A 6205240340 | BRACKET |
| FUEL LINE | ||
| 107 | A 3854760836 | BRACKET |
| FUEL LINE | ||
| 111 | A 3854760736 | BRACKET |
| Repalced by: A 3184924841 | ||
| 111 | A 3184924841 | BRACKET |
| FUEL LINE | ||
| 115 | A 0019978490 | LOOM TIE |
| FUEL LINE | ||
| 376 MM | ||
| 115 | A 0019978390 | LOOM TIE |
| FUEL LINE | ||
| 280 MM | ||
| 120 | N 000933008153 | SCREW |
| BRACKET TO ENGINE SUSPENSION EYE | ||
| 123 | N 913004008004 | NUT |
| BRACKET TO ENGINE SUSPENSION EYE | ||
| 126 | A 3879970181 | GROMMET |
| FUEL LINE THRU FRAME SIDE MEMBER | ||
| 127 | A 3879970481 | GROMMET |
| FUEL LINE THRU FRAME SIDE MEMBER | ||
| 38/30 MM | ||
| 129 | N 007603014405 | SEAL RING |
| FUEL LINES TO ENGINE | ||
| 132 | N 915036010204 | HOLLOW SCREW |
| FUEL LINES TO ENGINE | ||
