Transporto priemonė: 1419 MBSA-RSA; VIN numerio dalis: 397013

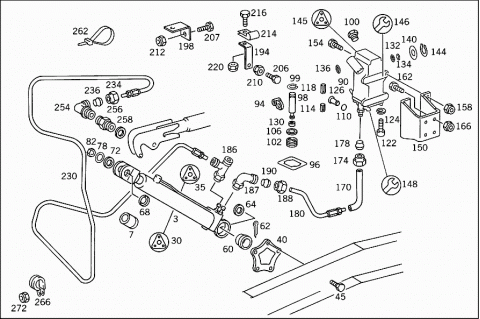

Grupė: 55 HYDRAULIC SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 003 | A 0005537005 | CYLINDER |
| Repalced by: A 0015533605 | ||
| 003 | A 0015533605 | CYLINDER |
| HYDRAULIC SYSTEM USED FOR CAB TILTING | ||
| "WEBER" | ||
| 003 | A 0015531605 | CYLINDER |
| Repalced by: A 0015533505 | ||
| 003 | A 0015533505 | CYLINDER |
| HYDRAULIC SYSTEM USED FOR CAB TILTING | ||
| "WEBER" | ||
| 003 | A 0005536805 | CYLINDER |
| Repalced by: A 0015533605 | ||
| 003 | A 0015533605 | CYLINDER |
| HYDRAULIC SYSTEM USED FOR CAB TILTING | ||
| "POWER-PACKER" | ||
| 003 | A 0015531705 | CYLINDER |
| HYDRAULIC SYSTEM USED FOR CAB TILTING | ||
| "POWER PACKER" | ||
| 007 | A 0005530428 | GUIDE |
| TO 000 553 70 05,001 553 16 05 | ||
| 007 | A 0005531428 | GUIDE |
| TO 001 553 35 05,001 553 36 05 | ||
| 030 | A 0005864855 | REPAIR KIT |
| Repalced by: A 0005501535 | ||
| 030 | A 0005501535 | REPAIR KIT |
| Repalced by: A 0015534905 | ||
| 030 | A 0015534905 | GASKET KIT |
| HYDRAULIC CYLINDER | ||
| WEBER;TO 000 553 70 05,001 553 16 05 | ||
| 030 | A 0005501407 | GASKET KIT |
| HYDRAULIC CYLINDER | ||
| WEBER;TO 001 553 35 05,001 553 36 05 | ||
| 035 | A 0005500235 | GASKET KIT |
| HYDRAULIC CYLINDER | ||
| POWER PACKER;TO 0005536805,0015531705 | ||
| 040 | A 3835530338 | BEARING BRACKET |
| HYDRAULIC CYLINDER | ||
| 045 | N 000961014154 | SCREW |
| BEARING BRACKET TO FRAME | ||
| N 912004014100 | LOCK WASHER | |
| BEARING BRACKET TO FRAME | ||
| 060 | A 6208910417 | BUSHING |
| HYDRAULIC CYLINDER | ||
| 062 | N 000094006327 | COTTER PIN |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| 064 | A 6205530176 | WASHER |
| HYDRAULIC CYLINDER TO BEARING BRACKET | ||
| 068 | A 3875530276 | WASHER |
| HYDRAULIC CYLINDER TO CAB | ||
| 072 | A 3875530076 | WASHER |
| HYDRAULIC CYLINDER TO CAB | ||
| 078 | A 3875530376 | WASHER |
| HYDRAULIC CYLINDER TO CAB | ||
| 082 | N 913004016004 | NUT |
| HYDRAULIC CYLINDER TO CAB | ||
| 090 | A 0005533901 | PUMP |
| Repalced by: A 0005537901 | ||
| 090 | A 0005537901 | PUMP |
| "WEBER" | ||
| 090 | A 0005535401 | PUMP |
| "POWER-PACKER" | ||
| 094 | A 0005500113 | LEVER |
| TO 000 553 39 01 | ||
| 096 | A 0005530280 | GASKET |
| TO 000 553 39 01 | ||
| 098 | A 0005531190 | PISTON |
| Repalced by: A 0005531790 | ||
| 098 | A 0005531790 | PISTON |
| TO 000 553 39 01 | ||
| 099 | N 009045016001 | SNAP RING |
| TO 000 553 39 01 | ||
| 100 | A 0009901310 | SCREW |
| TO 000 553 39 01 | ||
| 102 | A 0005500055 | VALVE |
| Repalced by: A 0005501555 | ||
| 102 | A 0005501555 | VALVE |
| Repalced by: A 0005502855 | ||
| 102 | A 0005502855 | VALVE |
| TO 000 553 39 01 | ||
| 106 | A 0005534560 | SEAL RING |
| 20X2 MM,TO 000 553 39 01 | ||
| 110 | A 0019978748 | SEAL RING |
| 12X2 MM,TO 000 553 39 01 | ||
| 114 | N 001481004015 | CLAMPING SLEEVE |
| 4X28 MM,TO 000 553 39 01 | ||
| 118 | N 001481004001 | CLAMPING SLEEVE |
| 4X12 MM,TO 000 553 39 01 | ||
| 122 | N 000912008111 | SCREW |
| TO 000 553 39 01 | ||
| 124 | N 912004008102 | LOCK WASHER |
| TO 000 553 39 01 | ||
| 126 | A 0005530403 | FILTER |
| TO 000 553 39 01 | ||
| 130 | A 0005530096 | BOOT |
| 6X14X6 MM,TO 000 553 39 01 | ||
| 132 | A 0009978948 | SEAL RING |
| 15X2.5 MM,TO 000 553 39 01 | ||
| 134 | A 0089978648 | SEAL RING |
| 20X2.5 MM,TO 000 553 39 01 | ||
| 136 | A 0049971548 | SEAL RING |
| 2.44X1.7, MM,TO 000 553 39 01 | ||
| 140 | N 000988020011 | FITTED WASHER |
| TO 000 553 39 01 | ||
| 144 | N 000471020001 | LOCK RING |
| TO 000 553 39 01 | ||
| 145 | A 0015532760 | GASKET KIT |
| Repalced by: A 0005502583 | ||
| 145 | A 0005502583 | GASKET KIT |
| HAND PUMP | ||
| TO 000 553 39 01 | ||
| 146 | A 0005500255 | REPAIR KIT |
| VALVE | ||
| TO 000 553 54 01 | ||
| 148 | A 0005500275 | REPAIR KIT |
| PISTON | ||
| TO 000 553 54 01 | ||
| 150 | A 3875531540 | BRACKET |
| HAND PUMP | ||
| 154 | N 000933010129 | SCREW |
| HAND PUMP TO BRACKET | ||
| 158 | N 913004010008 | NUT |
| HAND PUMP TO BRACKET | ||
| 162 | N 000961014050 | SCREW |
| BRACKET TO FRAME | ||
| 166 | N 913004014002 | NUT |
| BRACKET TO FRAME | ||
| 170 | A 0004290001 | LINE |
| FROM HAND PUMP TO HIGH PRESSURE HOSE | ||
| 6 MM | ||
| 174 | N 915017006100 | UNION NUT |
| 178 | N 003861006007 | GLAND |
| 180 | A 3875530182 | HOSE |
| FROM HYDRAULIC LINE TO CYLINDER | ||
| 186 | A 0019900170 | T-FITTING |
| HAND PUMP HOSE & TRANSMISSION SHIFTING ROD TO CYLINDER | ||
| 186 | N 003953006101 | T-FITTING |
| HAND PUMP HOSE & TRANSMISSION SHIFTING ROD TO CYLINDER | ||
| 187 | N 003952006102 | FITTING |
| Repalced by: A 0019909871 | ||
| 187 | A 0019909871 | ELBOW FITTING |
| HIGH PRESSURE HOSE TO HYDRAULIC CYLINDER | ||
| 188 | N 915017006100 | UNION NUT |
| HIGH PRESSURE HOSE TO HYDRAULIC CYLINDER | ||
| 190 | N 003861006007 | GLAND |
| HIGH PRESSURE HOSE TO HYDRAULIC CYLINDER | ||
| 194 | A 3815530640 | BRACKET |
| OIL LINE MOUNTING | ||
| 198 | A 6174280043 | ANGLE |
| Repalced by: A 3604280243 | ||
| 198 | A 3604280243 | ANGLE |
| OIL LINE MOUNTING | ||
| 206 | N 000933008147 | SCREW |
| BRACKET TO FRAME | ||
| 207 | N 000933010105 | SCREW |
| BRACKET TO FRAME | ||
| 210 | N 913004008004 | NUT |
| BRACKET TO FRAME | ||
| 212 | N 913004010008 | NUT |
| BRACKET TO FRAME | ||
| 214 | A 3609950101 | CLAMP |
| OIL DELIVERY LINE TO BRACKET | ||
| 216 | N 000933006102 | SCREW |
| OIL DELIVERY LINE TO BRACKET | ||
| 220 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 220 | N 913004006001 | NUT |
| OIL DELIVERY LINE TO BRACKET | ||
| 230 | A 3805530082 | HOSE |
| FROM HYDRAUL.CYLINDER TO TRANSMISSIONSHIFTING-ROD PAWL | ||
| 234 | N 915017006100 | UNION NUT |
| FROM HYDRAUL.CYLINDER TO TRANSMISSIONSHIFTING-ROD PAWL | ||
| 236 | N 003861006007 | GLAND |
| FROM HYDRAUL.CYLINDER TO TRANSMISSIONSHIFTING-ROD PAWL | ||
| 254 | N 003952006102 | FITTING |
| Repalced by: A 0019909871 | ||
| 254 | A 0019909871 | ELBOW FITTING |
| HOSE TO TRANSMISSION-SHIFT ROD SHIFTING CYLINDER | ||
| 256 | N 003901006104 | SCREW-IN FITTING |
| HOSE TO TRANSMISSION-SHIFT ROD SHIFTING CYLINDER | ||
| 258 | N 007603010103 | SEAL RING |
| HOSE TO TRANSMISSION-SHIFT ROD SHIFTING CYLINDER | ||
| 262 | A 0019978490 | LOOM TIE |
| HIGH PRESSURE HOSE TO CAB | ||
| 266 | N 916016008200 | CLAMP |
| HIGH PRESSURE HOSE TO BRACKET | ||
| N 007985006176 | SCREW | |
| 272 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 272 | N 913004006001 | NUT |
| HIGH PRESSURE HOSE TO BRACKET | ||
