Transporto priemonė: 1419 MBSA-RSA; VIN numerio dalis: 397013

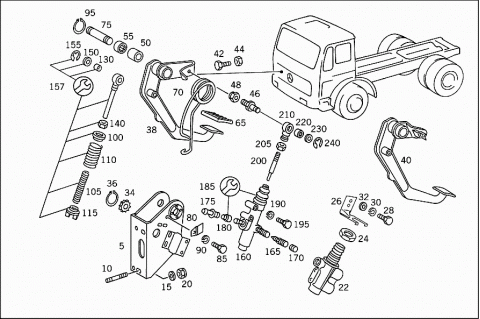

Grupė: 29 PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3812901319 | BEARING BRACKET |
| Repalced by: A 3812901219 | ||
| 005 | A 3812901219 | BEARING BRACKET |
| CLUTCH PEDAL | ||
| 010 | N 000939008083 | STUD BOLT |
| BEARING BRACKET TO CAB | ||
| 015 | N 000125008418 | WASHER |
| BEARING BRACKET TO CAB | ||
| 020 | N 913004008004 | NUT |
| BEARING BRACKET TO CAB | ||
| 022 | A 0004343801 | VALVE |
| 3/2-WAY VALVE TO ANGLE | ||
| 024 | N 074305026202 | NUT |
| 3/2-WAY VALVE TO ANGLE | ||
| 026 | A 6202900133 | BRACKET |
| BRACKET TO PEDAL BEARING BRACKET | ||
| 028 | N 000933006224 | SCREW |
| 030 | N 912004006102 | LOCK WASHER |
| 032 | N 000433006402 | WASHER |
| 034 | A 3812910186 | STOP |
| CLUTCH PEDAL | ||
| 036 | N 000471016001 | LOCK RING |
| STOP TO BEARING BRACKET | ||
| 038 | A 3812901016 | PEDAL |
| Repalced by: A 6202900216 | ||
| 038 | A 6202900216 | PEDAL |
| CLUTCH | ||
| 040 | A 6202902316 | PEDAL |
| CLUTCH | ||
| 042 | A 3529902101 | SCREW |
| CLUTCH PEDAL | ||
| 044 | N 000439008211 | NUT |
| CLUTCH PEDAL | ||
| 046 | A 3812910274 | PIN |
| CLUTCH PEDAL | ||
| 048 | N 913004008004 | NUT |
| CLUTCH PEDAL | ||
| 050 | A 3812910053 | SPACER TUBE |
| CLUTCH PEDAL | ||
| 055 | A 0009815610 | NEEDLE BEARING |
| Repalced by: A 0119813410 | ||
| 055 | A 0119813410 | NEEDLE BEARING |
| 055 | A 0089811110 | NEEDLE BEARING |
| Repalced by: A 0119813410 | ||
| 065 | A 1072910182 | PAD |
| CLUTCH PEDAL | ||
| 070 | A 3819930710 | SPRING |
| CLUTCH PEDAL RESET | ||
| 075 | A 3812940707 | PIVOT PIN |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 080 | A 3812910073 | LOCK |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 085 | N 000933006102 | SCREW |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 090 | N 912004006102 | LOCK WASHER |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 095 | N 000471020001 | LOCK RING |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 100 | A 1112910491 | SPRING RETAINER |
| TOP | ||
| 105 | A 3819930201 | SPRING |
| CLUTCH PEDAL | ||
| 110 | A 1109930501 | SPRING |
| CLUTCH PEDAL | ||
| 115 | A 3092910091 | SPRING RETAINER |
| PISTON ROD AND PUSH ROD | ||
| A 3812910233 | ROD | |
| CLUTCH PEDAL | ||
| A 3812910333 | ROD | |
| CLUTCH PEDAL | ||
| 130 | A 0059814410 | NEEDLE BEARING |
| CLUTCH PEDAL | ||
| 130 | A 0059813810 | NEEDLE BEARING |
| CLUTCH PEDAL | ||
| 130 | A 0089811210 | NEEDLE BEARING |
| CLUTCH PEDAL | ||
| 130 | A 0139818210 | NEEDLE BEARING |
| 140 | N 000936010010 | NUT |
| SPRING TO PUSH ROD | ||
| A 3812910574 | PIN | |
| ROD TO PEDAL | ||
| 150 | N 000433008406 | WASHER |
| ROD TO PEDAL | ||
| 155 | N 006799006003 | LOCK PLATE |
| ROD TO PEDAL | ||
| 157 | A 3802900193 | REPAIR KIT |
| 160 | A 0002956806 | MASTER CYLINDER |
| Repalced by: A 0012952906 | ||
| 160 | A 0012952906 | MASTER CYLINDER |
| Repalced by: A 0012956006 | ||
| 160 | A 0012956006 | MASTER CYLINDER |
| CLUTCH | ||
| 165 | A 0004310265 | VALVE |
| Repalced by: A 3075530107 | ||
| 165 | A 3075530107 | VALVE |
| BREATHER | ||
| TO 000 295 68 06 | ||
| 170 | A 3164210187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 170 | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 0004217187 | ||
| 170 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 170 | A 0004210887 | PROTECTIVE CAP |
| TO 000 295 68 06 | ||
| 175 | A 0002950836 | INTERMEDIATE PIECE |
| 180 | A 0009971186 | PLUG |
| 185 | A 0005863529 | REPAIR KIT |
| Repalced by: A 0002903412 | ||
| 185 | A 0002903412 | REPAIR KIT |
| MASTER CYLINDER | ||
| TO 001 295 29 06 | ||
| 185 | A 0002904667 | REPAIR KIT |
| TO MASTER CYLINDER HAVING SYNTHETIC PISTON | ||
| TO 001 295 60 06 | ||
| 190 | N 912004006102 | LOCK WASHER |
| CLUTCH MASTER CYLINDER TO PEDAL BEARING BRACKET | ||
| 195 | N 000931006191 | SCREW |
| CLUTCH MASTER CYLINDER TO PEDAL BEARING BRACKET | ||
| 200 | A 3812950033 | ROD |
| MASTER CYLINDER | ||
| 205 | N 000439008211 | NUT |
| YOKE TO ROD | ||
| 210 | A 0009961045 | ARTICULATION PIECE |
| 210 | A 0009961145 | ARTICULATION PIECE |
| 220 | A 0059814410 | NEEDLE BEARING |
| 220 | A 0059813810 | NEEDLE BEARING |
| 220 | A 0089811210 | NEEDLE BEARING |
| 220 | A 0139818210 | NEEDLE BEARING |
| 230 | N 000433008406 | WASHER |
| ROD TO LEVER | ||
| 240 | N 006799006003 | LOCK PLATE |
| ROD TO LEVER | ||

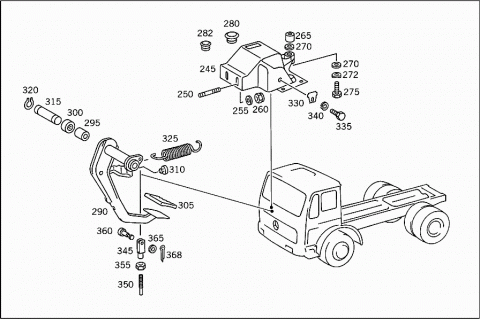

| 245 | A 3812941001 | BEARING BRACKET |
| BRAKE | ||
| 250 | N 000939008083 | STUD BOLT |
| BEARING BRACKET TO CAB | ||
| 255 | N 000125008418 | WASHER |
| BEARING BRACKET TO CAB | ||
| 260 | N 913004008004 | NUT |
| BEARING BRACKET TO CAB | ||
| 265 | A 3852920253 | SPACER TUBE |
| Repalced by: A 3604270353 | ||
| 265 | A 3604270353 | SPACER TUBE |
| Repalced by: A 3604270253 | ||
| 265 | A 3604270253 | SPACER TUBE |
| PEDAL UNIT TO WINDOW SILL GIRDER | ||
| 270 | A 3859901840 | WASHER |
| Repalced by: A 4039900040 | ||
| 270 | A 4039900040 | WASHER |
| BEARING BRACKET TO WINDOW SILL GIRDER | ||
| 272 | N 000137010201 | SPRING WASHER |
| BEARING BRACKET TO WINDOW SILL GIRDER | ||
| 275 | N 000931010272 | SCREW |
| BEARING BRACKET TO WINDOW SILL GIRDER | ||
| 280 | A 3819970486 | PLUG |
| TO PLUG BRAKE OPENING | ||
| 282 | A 3819970386 | PLUG |
| Repalced by: A 0009972020 | ||
| 282 | A 0009972020 | EXPANSION PLUG |
| Repalced by: A 0009973220 | ||
| 282 | A 0009973220 | EXPANSION PLUG |
| TO PLUG BRAKE OPENING | ||
| 290 | A 3852900518 | PEDAL |
| BRAKE | ||
| 295 | A 3852920053 | SPACER TUBE |
| BRAKE PEDAL | ||
| 300 | A 0009815610 | NEEDLE BEARING |
| Repalced by: A 0119813410 | ||
| 300 | A 0119813410 | NEEDLE BEARING |
| BRAKE PEDAL | ||
| 300 | A 0089811110 | NEEDLE BEARING |
| Repalced by: A 0119813410 | ||
| 305 | A 1072910182 | PAD |
| BRAKE PEDAL | ||
| 310 | A 1152910186 | STOP |
| BRAKE PEDAL | ||
| 315 | A 3852940007 | PIVOT PIN |
| PEDAL TO BEARING BRACKET | ||
| 320 | N 000471020001 | LOCK RING |
| PEDAL TO BEARING BRACKET | ||
| 325 | A 3879935010 | SPRING |
| BRAKE PEDAL RELEASE SPRING | ||
| 330 | A 3852920073 | LOCK |
| Repalced by: A 6732920073 | ||
| 330 | A 6732920073 | LOCK |
| PEDAL TO BEARING BRACKET | ||
| 335 | N 000933006103 | SCREW |
| LOCK TO BEARING BRACKET | ||
| 340 | N 912004006102 | LOCK WASHER |
| LOCK TO BEARING BRACKET | ||
| 345 | A 6209960001 | YOKE |
| PISTON ROD AND PUSH ROD | ||
| 350 | A 3852950133 | ROD |
| Repalced by: A 9702900039 | ||
| 350 | A 9702900039 | ROD |
| PISTON ROD AND PUSH ROD | ||
| 355 | N 000439008211 | NUT |
| PISTON ROD AND PUSH ROD | ||
| 360 | A 3852920174 | PIN |
| PISTON ROD AND PUSH ROD | ||
| 365 | N 000433008406 | WASHER |
| PISTON ROD AND PUSH ROD | ||
| 368 | N 000094002059 | COTTER PIN |
| PISTON ROD AND PUSH ROD | ||

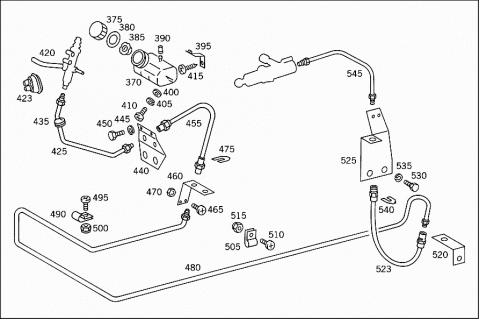

| 370 | A 0002952315 | RESERVOIR |
| RESERVOIR | ||
| 375 | A 0002950116 | LOCKING CAP |
| 380 | A 0002950260 | SEAL RING |
| Repalced by: A 0009972940 | ||
| 380 | A 0009972940 | SEAL RING |
| 385 | A 0002950123 | STRAINER |
| Repalced by: A 0004314334 | ||
| 385 | A 0004314334 | STRAINER |
| 390 | A 0009885435 | CAP |
| RESERVOIR DE-AERATION | ||
| 395 | A 3872900433 | BRACKET |
| RESERVOIR | ||
| 400 | N 009021006205 | WASHER |
| EXPANSION TANK TO BRACKET | ||
| 405 | N 912004006102 | LOCK WASHER |
| EXPANSION TANK TO BRACKET | ||
| 410 | N 007985006176 | SCREW |
| EXPANSION TANK TO BRACKET | ||
| 415 | N 007981005308 | SHEET METAL SCREW |
| BRACKET TO CAB | ||
| 420 | A 0009978952 | HOSE |
| LINE FROM FLUID RESERVOIR TO CLUTCH MASTER CYLINDER | ||
| 423 | A 6209970281 | GROMMET |
| HOSE THRU FIRE WALL | ||
| 425 | A 6202902413 | LINE |
| Repalced by: A 3812901814 | ||
| 425 | A 3812901814 | LINE |
| FROM MASTER CYLINDER TO HOSE | ||
| 700 MM | ||
| 435 | A 3819970881 | GROMMET |
| 440 | A 6202952340 | BRACKET |
| Repalced by: A 6202953040 | ||
| 440 | A 6202953040 | BRACKET |
| HYDRAULIC LINE TO CAB FLOOR | ||
| 445 | N 912004006102 | LOCK WASHER |
| BRACKET TO CAB FLOOR | ||
| 450 | N 000933006102 | SCREW |
| BRACKET TO CAB FLOOR | ||
| 455 | A 0002951435 | HOSE |
| 460 | A 3972950540 | BRACKET |
| BRACKET TO OIL TANK | ||
| 465 | N 007985006145 | SCREW |
| BRACKET TO OIL TANK | ||
| 470 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 470 | N 913004006001 | NUT |
| BRACKET TO OIL TANK | ||
| 475 | A 0004280473 | BRACKET |
| Repalced by: A 6525040038 | ||
| 475 | A 6525040038 | MOUNTING PLATE |
| HOSE TO CAB | ||
| 480 | A 3812902114 | LINE |
| FROM HOSE TO BRACKET ON FRAME | ||
| 1500 MM | ||
| 490 | A 3609950201 | CLAMP |
| Repalced by: A 3604300143 | ||
| 490 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 490 | N 916016008200 | CLAMP |
| LINE TO BRACKET | ||
| 495 | N 007985006145 | SCREW |
| LINE TO BRACKET | ||
| 500 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 500 | N 913004006001 | NUT |
| LINE TO BRACKET | ||
| 505 | A 3609950201 | CLAMP |
| Repalced by: A 3604300143 | ||
| 505 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 505 | N 916016008200 | CLAMP |
| HYDRAULIC LINE TO SHOCK ABSORBER BRACKET | ||
| 510 | N 007985006145 | SCREW |
| HYDRAULIC LINE TO SHOCK ABSORBER BRACKET | ||
| 515 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 515 | N 913004006001 | NUT |
| HYDRAULIC LINE TO SHOCK ABSORBER BRACKET | ||
| 520 | A 3972950440 | BRACKET |
| 523 | A 0002952435 | HOSE |
| FROM REAR ENGINE-MOUNTING BRACKET TO TRANSMISSION BRACKET | ||
| 525 | A 3972950340 | BRACKET |
| 530 | N 000933016030 | SCREW |
| BRACKET TO ENGINE | ||
| 535 | N 912004016101 | LOCK WASHER |
| BRACKET TO ENGINE | ||
| 540 | A 0004280473 | BRACKET |
| Repalced by: A 6525040038 | ||
| 540 | A 6525040038 | MOUNTING PLATE |
| HOSE | ||
| 545 | A 3812901914 | LINE |
| FROM HYDRAULIC LINE TO CLUTCH SLAVE CYLINDER | ||
| 800 MM | ||
