Transporto priemonė: 1419 MBSA-RSA; VIN numerio dalis: 397013

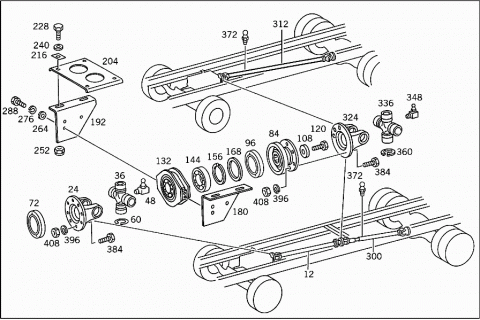

Grupė: 41 PROPELLER SHAFT

#	Kodas	Pavadinimas
012	A 3854106504	PROPELLER SHAFT
		FROM TRANSMISSION TO INTERMEDIATE BEARING
		1451 MM
	A 3974102601	PROPELLER SHAFT
	Repalced by: A 3974100804
012	A 3974100804	PROPELLER SHAFT
		FROM TRANSMISSION TO INTERMEDIATE BEARING
		1451 MM
024	A 3854111711	DRIVE FLANGE
024	A 3974110111	DRIVE FLANGE
036	A 3814100231	UNIVERSAL JOINT CROSS
	Repalced by: A 9734100031
036	A 9734100031	UNIVERSAL JOINT CROSS
		WITH BUSHINGS
		D 48X126 MM
036	A 0004100531	UNIVERSAL JOINT CROSS
		WITH BUSHINGS
		D 52X133 MM
048	N 071412008300	GREASE NIPPLE
		M 8
048	A 3459977288	GREASE NIPPLE
		M 8
048	N 071412010300	GREASE NIPPLE
		M 10
	A 3854100742	BEARING BUSHING
	A 3854101042	BEARING BUSHING
060	A 0029941341	LOCK
	Repalced by: A 0069940841
060	A 0069940841	LOCK
		AS REQUIRED
		1.70 MM
	A 0029941441	LOCK
	Repalced by: N 000472048000
060	N 000472048000	LOCK RING
		AS REQUIRED
		1.75 MM
060	A 0029941741	LOCK
	Repalced by: A 0069941241
060	A 0069941241	LOCK
		AS REQUIRED
		1.80 MM
060	A 0029941841	LOCK
	Repalced by: A 0069941441
060	A 0069941441	LOCK
		1.85 MM
060	A 3354111773	LOCK
060	A 3354112073	LOCK
		AS REQUIRED
		2.075 MM
072	A 3854130161	PROTECTIVE CAP
084	A 3854100030	CENTERING FLANGE
096	A 3854130161	PROTECTIVE CAP
108	A 3894110162	THRUST WASHER
120	A 3839900019	SCREW
	A 3855860141	REPAIR KIT
	Repalced by: A 3854100110
	A 3854100110	REPAIR KIT
	Repalced by: A 3854100122
	A 3854100122	INTERMEDIATE BEARING
	Repalced by: A 3854100922
132	A 3854100922	INTERMEDIATE BEARING
		INTERMEDIATE SHAFT BEARING
144	A 0019818125	BALL BEARING
156	N 912009100200	SNAP RING
168	A 3854130061	PROTECTIVE CAP
180	A 3834130242	BRACKET
		PROPELLER SHAFT BEARING TO CROSS MEMBER, LEFT FRONT
192	A 3834130342	BRACKET
		PROPELLER SHAFT BEARING TO CROSS MEMBER,RIGHT FRONT
204	A 3854130011	REINFORCEMENT
		BRACKET TO CROSS MEMBER
216	A 3854130111	REINFORCEMENT
		BRACKET TO CROSS MEMBER
228	N 000960010026	SCREW
		BRACKET TO CROSS MEMBER
240	N 007349010007	WASHER
		BRACKET TO CROSS MEMBER
252	N 913002010010	NUT
		BRACKET TO CROSS MEMBER
264	N 007349010003	WASHER
276	N 912004010102	LOCK WASHER
		TO MOUNT THE PROPELLER SHAFTS
288	N 000931010282	SCREW
		TO MOUNT THE PROPELLER SHAFTS
300	A 3854104807	PROPELLER SHAFT
		FROM INTERMEDIATE BEARING TO REAR AXLE
		1670 MM
300	A 3974103402	PROPELLER SHAFT
		FROM INTERMEDIATE BEARING TO REAR AXLE
		1715 MM
312	A 3854104507	PROPELLER SHAFT
		FROM TRANSMISSION TO REAR AXLE
		1580 MM
312	A 3974103302	PROPELLER SHAFT
		FROM TRANSMISSION TO REAR AXLE
		1580 MM
324	A 3854111711	DRIVE FLANGE
324	A 3974110111	DRIVE FLANGE
336	A 3814100231	UNIVERSAL JOINT CROSS
	Repalced by: A 9734100031
336	A 9734100031	UNIVERSAL JOINT CROSS
		WITH BUSHINGS
		D 48X126 MM
336	A 0004100531	UNIVERSAL JOINT CROSS
		WITH BUSHINGS
		D 52X133 MM
348	N 071412008300	GREASE NIPPLE
		M 8
348	A 3459977288	GREASE NIPPLE
		M 8
348	N 071412010300	GREASE NIPPLE
		M 10
	A 3854100742	BEARING BUSHING
	A 3854101042	BEARING BUSHING
360	A 0029941341	LOCK
	Repalced by: A 0069940841
360	A 0069940841	LOCK
		AS REQUIRED
		1.70 MM
	A 0029941441	LOCK
	Repalced by: N 000472048000
360	N 000472048000	LOCK RING
		AS REQUIRED
		1.75 MM
360	A 0029941741	LOCK
	Repalced by: A 0069941241
360	A 0069941241	LOCK
		AS REQUIRED
		1.80 MM
360	A 0029941841	LOCK
	Repalced by: A 0069941441
360	A 0069941441	LOCK
		AS REQUIRED
		1.85 MM
360	A 3354111773	LOCK
360	A 3354112073	LOCK
		AS REQUIRED
		2.075 MM
372	N 071412008100	GREASE NIPPLE
384	A 3609901901	SCREW
		PROPELLER SHAFT TO TRANSMISSION, INTERMEDIATE BEARING,AND REAR AXLE
396	N 912004012100	LOCK WASHER
		PROPELLER SHAFT TO TRANSMISSION, INTERMEDIATE BEARING,AND REAR AXLE
408	N 000934012034	NUT
		PROPELLER SHAFT TO TRANSMISSION, INTERMEDIATE BEARING,AND REAR AXLE
