Transporto priemonė: 1419 MBSA-RSA; VIN numerio dalis: 397013
Grupė: 32 SPRINGS AND SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|

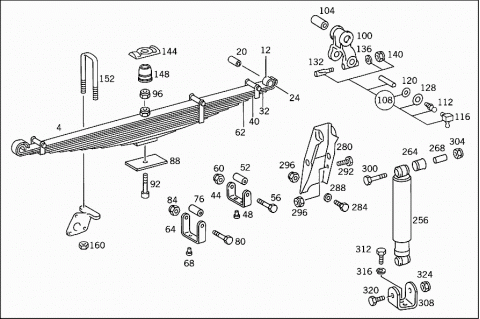

| 004 | A 3853201902 | FRONT SPRING |
| 10-LEAF | ||
| 004 | A 3853202302 | FRONT SPRING |
| 12-LEAF | ||
| 012 | A 3853203094 | SPRING LEAF |
| NO.1 | ||
| 012 | A 3853203294 | SPRING LEAF |
| NO.1 | ||
| 020 | A 3853220050 | BUSHING |
| 024 | A 3853212612 | SPRING LEAF |
| NO.2 | ||
| 024 | A 3853212912 | SPRING LEAF |
| NO.2 | ||
| 032 | A 3853211913 | SPRING LEAF |
| NO.3 | ||
| 040 | A 3853203594 | SPRING LEAF |
| NO.3 | ||
| 040 | A 3853200494 | SPRING LEAF |
| NO.3 | ||
| 040 | A 3853202094 | SPRING LEAF |
| NO.4 | ||
| 044 | A 0003219433 | SPRING CLAMP |
| Repalced by: A 6173210333 | ||
| 044 | A 3223240233 | SPRING CLAMP |
| 048 | N 910006008024 | RIVET |
| 052 | A 0003212753 | SPACER TUBE |
| 056 | N 000960012216 | SCREW |
| 060 | N 913004012008 | NUT |
| 062 | A 3853212114 | SPRING LEAF |
| NO.4 | ||
| 064 | A 0003219433 | SPRING CLAMP |
| Repalced by: A 6173210333 | ||
| 064 | A 3223240233 | SPRING CLAMP |
| TO LEAF NO.8 | ||
| 068 | N 910006008024 | RIVET |
| TO LEAF NO.8 | ||
| 076 | A 0003212753 | SPACER TUBE |
| TO LEAF NO.8 | ||
| 080 | N 000960012216 | SCREW |
| TO LEAF NO.8 | ||
| 084 | N 913004012008 | NUT |
| TO LEAF NO.8 | ||
| 088 | A 3533240135 | SPACER |
| 092 | N 004626012112 | SPRING BOLT |
| 096 | N 913004012007 | NUT |
| 100 | A 6173200163 | SHACKLE |
| 104 | A 3853220050 | BUSHING |
| 108 | A 3855860332 | REPAIR KIT |
| Repalced by: A 3853200165 | ||
| 108 | A 3853200165 | SHACKLE PIN |
| PARTS KIT | ||
| 112 | N 071412010100 | GREASE NIPPLE |
| SPRING SHACKLE TO SPRING REAR BRACKET | ||
| 112 | N 071412010100 | GREASE NIPPLE |
| FRONT SPRING TO SPRING SHACKLE | ||
| 112 | N 071412010100 | GREASE NIPPLE |
| SHACKLE PIN | ||
| 116 | N 071412010300 | GREASE NIPPLE |
| SHACKLE PIN | ||
| 120 | A 3523230376 | WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 120 | A 3523230476 | WASHER |
| AS REQUIRED | ||
| 4.20 MM | ||
| 128 | A 0029973140 | SEAL RING |
| SHACKLES TO FRONT SPRING FRONT AND REAR BRACKETS | ||
| 132 | A 3529900337 | BOLT |
| SHACKLES TO FRONT SPRING FRONT AND REAR BRACKETS | ||
| 136 | N 000125010518 | WASHER |
| SHACKLES TO FRONT SPRING FRONT AND REAR BRACKETS | ||
| 140 | N 913004010008 | NUT |
| SHACKLES TO FRONT SPRING FRONT AND REAR BRACKETS | ||
| 144 | A 3853220031 | PLATE |
| FRONT SPRINGS TO FRONT AXLE | ||
| 148 | A 3833240008 | HELPER SPRING |
| 152 | A 3853310025 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 250 MM | ||
| 152 | A 3523510425 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 220 MM | ||
| 160 | A 0029903551 | NUT |
| Repalced by: N 000934018001 | ||
| 160 | N 000934018006 | NUT |
| FRONT SPRINGS TO FRONT AXLE | ||

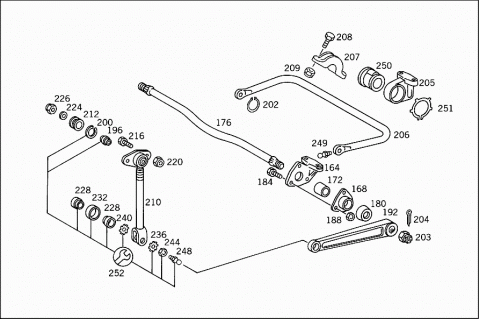

| 164 | A 3553230163 | BEARING BRACKET |
| TORSION BAR,FRONT | ||
| 168 | A 3523230283 | HOUSING |
| TORSION BAR,FRONT | ||
| 172 | A 3603230085 | RUBBER MOUNTING |
| TORSION BAR,FRONT | ||
| 176 | A 3603230065 | TORSION BAR |
| FRONT AXLE | ||
| 180 | A 3603230151 | SPACER RING |
| TORSION BAR | ||
| 184 | N 000933010145 | SCREW |
| HOUSING TO BEARING BRACKET | ||
| 188 | N 913004010008 | NUT |
| HOUSING TO BEARING BRACKET | ||
| 192 | A 3603230869 | LEVER |
| FRONT AXLE TORSION BAR | ||
| 196 | A 0009817231 | JOINT BEARING |
| Repalced by: A 0019814631 | ||
| 196 | A 0009817331 | JOINT BEARING |
| Repalced by: A 0019814631 | ||
| 196 | A 0019814631 | JOINT BEARING |
| 196 | A 0019814831 | JOINT BEARING |
| 200 | N 007993035200 | SNAP RING |
| 202 | N 000472035000 | LOCK RING |
| TORSION BAR,FRONT | ||
| 203 | N 000937030000 | NUT |
| LEVER TO TORSION BAR | ||
| 204 | N 000094006317 | COTTER PIN |
| LEVER TO TORSION BAR | ||
| 205 | A 6193230063 | BEARING BRACKET |
| FRONT STABILIZER | ||
| 206 | A 6173260065 | TORSION BAR |
| FRONT STABILIZER | ||
| 207 | A 6173230040 | BRACKET |
| TORSION BAR | ||
| 208 | N 308676012012 | SCREW |
| BRACKET TO TORSION BAR | ||
| 209 | N 913004012008 | NUT |
| BRACKET TO TORSION BAR | ||
| 210 | A 6173200089 | ROD |
| TORSION BAR | ||
| 212 | A 0004631396 | BOOT |
| TO 617 320 00 89 | ||
| 216 | N 000961012097 | SCREW |
| ROD TO FRAME | ||
| 220 | N 913004012008 | NUT |
| ROD TO FRAME | ||
| 224 | N 006796016102 | CONICAL SPRING WASHER |
| ROD TO FRAME | ||
| 226 | N 913004016004 | NUT |
| ROD TO FRAME | ||
| 228 | A 3603230460 | SEAL RING |
| ARTICULATED ROD TO LEVER | ||
| 232 | A 3603230153 | SPACER TUBE |
| ARTICULATED ROD TO LEVER | ||
| 236 | N 006797021201 | TOOTHED WASHER |
| ARTICULATED ROD TO LEVER | ||
| 240 | N 006797021101 | TOOTHED WASHER |
| ARTICULATED ROD TO LEVER | ||
| 244 | N 000439020203 | NUT |
| ARTICULATED ROD TO LEVER | ||
| 248 | N 071412010100 | GREASE NIPPLE |
| 249 | N 071412008100 | GREASE NIPPLE |
| TORSION BAR,FRONT | ||
| 250 | A 3873230385 | RUBBER MOUNTING |
| TORSION BAR | ||
| 251 | N 000983068000 | LOCK RING |
| RUBBER MOUNTING | ||
| 252 | A 3605860032 | REPAIR KIT |
| Repalced by: A 3603200041 | ||
| 252 | A 3603200041 | REPAIR KIT |
| TORSION BAR,FRONT | ||
| 256 | A 0023238600 | SHOCK ABSORBER |
| Repalced by: A 0043236400 | ||
| 256 | A 0043236400 | SHOCK ABSORBER |
| "FICHTEL & SACHS" | ||
| 256 | A 0023238700 | SHOCK ABSORBER |
| Repalced by: A 0043235200 | ||
| 256 | A 0043235200 | SHOCK ABSORBER |
| "BOGE" | ||
| 256 | A 0033230100 | SHOCK ABSORBER |
| Repalced by: A 0043235500 | ||
| 256 | A 0043235500 | SHOCK ABSORBER |
| "BOGE" | ||
| 256 | A 0033230300 | SHOCK ABSORBER |
| "FICHTEL & SACHS" | ||
| 264 | A 0003232444 | RUBBER BUFFER |
| Repalced by: A 0003232885 | ||
| 264 | A 0003232885 | RUBBER MOUNTING |
| TO 002 323 86 00,003 323 03 00 | ||
| 264 | A 0003232885 | RUBBER MOUNTING |
| TO 002 323 87 00,003 323 01 00 | ||
| 264 | A 0003233044 | RUBBER BUFFER |
| TO 004 323 52 00,55 00 | ||
| 268 | A 0003232550 | BUSHING |
| Repalced by: A 0003233150 | ||
| 268 | A 0003233150 | BUSHING |
| TO 002 323 86 00,003 323 03 00 | ||
| 268 | A 0003233150 | BUSHING |
| TO 002 323 87 00,003 323 01 00 | ||
| 268 | A 0003235250 | BUSHING |
| TO 004 323 52 00,55 00 | ||
| 280 | A 3833200278 | CONSOLE |
| Repalced by: A 6173200078 | ||
| 280 | A 6173200078 | CONSOLE |
| LEFT SHOCK ABSORBER | ||
| A 3833200378 | CONSOLE | |
| Repalced by: A 6173200178 | ||
| 280 | A 6173200178 | CONSOLE |
| RIGHT SHOCK ABSORBER | ||
| 284 | N 000961012122 | SCREW |
| SHOCK ABSORBER TO FRAME | ||
| 288 | N 007349013003 | WASHER |
| SHOCK ABSORBER TO FRAME | ||
| 292 | N 308676012012 | SCREW |
| SHOCK ABSORBER TO FRAME | ||
| 296 | N 913004012008 | NUT |
| SHOCK ABSORBER TO FRAME | ||
| 300 | N 000960016244 | SCREW |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| 304 | N 913004016004 | NUT |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| 308 | A 3833231863 | BEARING BRACKET |
| BOTTOM | ||
| 312 | N 308676012012 | SCREW |
| BOTTOM BEARING BRACKET TO FRONT AXLE | ||
| 316 | N 912004012100 | LOCK WASHER |
| BOTTOM BEARING BRACKET TO FRONT AXLE | ||
| 320 | N 000960016164 | SCREW |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| 324 | N 913004016004 | NUT |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||

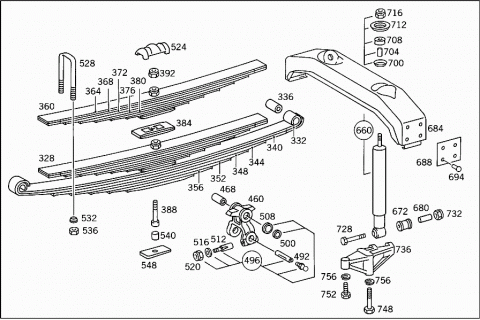

| 328 | A 3853200108 | REAR SPRING |
| 6-LEAF;WITH 5-LEAF HELPER SPRING | ||
| 332 | A 3853201993 | SPRING LEAF |
| NO.1 | ||
| 336 | A 3273255050 | BUSHING |
| Repalced by: A 3523250150 | ||
| 336 | A 3523250150 | BUSHING |
| 336 | A 3853250050 | BUSHING |
| 340 | A 3853242012 | SPRING LEAF |
| NO.2 | ||
| 344 | A 3853240113 | SPRING LEAF |
| NO.3 | ||
| 348 | A 3853240014 | SPRING LEAF |
| NO.4 | ||
| 352 | A 3853240015 | SPRING LEAF |
| NO.5 | ||
| 356 | A 3853240016 | SPRING LEAF |
| NO.6 | ||
| 360 | A 3853200010 | HELPER SPRING |
| 364 | A 3853240140 | SPRING LEAF |
| NO.1 | ||
| 368 | A 3853240141 | SPRING LEAF |
| NO.2 | ||
| 372 | A 3853240042 | SPRING LEAF |
| NO.3 | ||
| 376 | A 3853240043 | SPRING LEAF |
| NO.4 | ||
| 380 | A 3853240044 | SPRING LEAF |
| NO.5 | ||
| 384 | A 3523240135 | SPACER |
| 388 | N 004626012126 | SPRING BOLT |
| 392 | N 913004012007 | NUT |
| SPRING BOLT | ||
| 396 | A 3853200106 | REAR SPRING |
| 7-LEAF | ||
| 400 | A 3853200693 | SPRING LEAF |
| NO.1 | ||
| 404 | A 3273255050 | BUSHING |
| Repalced by: A 3523250150 | ||
| 404 | A 3523250150 | BUSHING |
| 404 | A 3853250050 | BUSHING |
| 408 | A 3853241312 | SPRING LEAF |
| NO.2 | ||
| 412 | A 3853200793 | SPRING LEAF |
| NO.3 | ||
| 416 | A 0003219433 | SPRING CLAMP |
| Repalced by: A 6173210333 | ||
| 416 | A 3223240233 | SPRING CLAMP |
| 420 | N 910006008024 | RIVET |
| 424 | A 0003212753 | SPACER TUBE |
| AT SPRING LEAF NO.3 | ||
| 428 | N 000960012371 | SCREW |
| AT SPRING LEAF NO.3 | ||
| 432 | N 000934012021 | NUT |
| AT SPRING LEAF NO.3 | ||
| 436 | A 3853241014 | SPRING LEAF |
| NO.4 | ||
| 440 | A 3853241015 | SPRING LEAF |
| NO.5 | ||
| 444 | A 3853241016 | SPRING LEAF |
| NO.6 | ||
| 448 | A 3853240917 | SPRING LEAF |
| NO.7 | ||
| 452 | N 004626012167 | SPRING BOLT |
| 452 | N 004626012198 | SPRING BOLT |
| AT SPRING LEAF NO.3 | ||
| 452 | N 004626012209 | SPRING BOLT |
| AT SPRING LEAF NO.3 | ||
| 452 | A 6173241771 | SPRING BOLT |
| AT SPRING LEAF NO.3 | ||
| 452 | A 6173240971 | SPRING BOLT |
| AT SPRING LEAF NO.3 | ||
| 456 | N 913004012007 | NUT |
| SPRING BOLT | ||
| 460 | A 3523200163 | SHACKLE |
| REAR SPRING | ||
| 464 | A 6173200063 | SHACKLE |
| REAR SPRING | ||
| 468 | A 3273255050 | BUSHING |
| Repalced by: A 3523250150 | ||
| 468 | A 3523250150 | BUSHING |
| 468 | A 3853250050 | BUSHING |
| 468 | A 6173240050 | BUSHING |
| 472 | N 071412010200 | GREASE NIPPLE |
| SPRING SHACKLE TO SPRING REAR BRACKET | ||
| 476 | A 3463255062 | THRUST WASHER |
| Repalced by: A 6213250062 | ||
| 476 | A 6213250062 | THRUST WASHER |
| SPRING SHACKLE TO SPRING REAR BRACKET | ||
| 480 | A 3463255162 | THRUST WASHER |
| Repalced by: A 6213250162 | ||
| 480 | A 6213250162 | THRUST WASHER |
| SPRING SHACKLE TO SPRING REAR BRACKET | ||
| 484 | A 0029973640 | SEAL RING |
| SPRING SHACKLE TO SPRING REAR BRACKET | ||
| 488 | N 000439024200 | NUT |
| 492 | N 071412010100 | GREASE NIPPLE |
| 492 | N 071412010100 | GREASE NIPPLE |
| SPRING SHACKLE TO SPRING REAR BRACKET | ||
| 492 | N 071412010100 | GREASE NIPPLE |
| REAR SPRING TO SPRING BRACKET | ||
| 492 | N 071412010100 | GREASE NIPPLE |
| REAR SPRING TO SPRING SHACKLE | ||
| 496 | A 3855860232 | REPAIR KIT |
| Repalced by: A 3853200065 | ||
| 496 | A 3853200065 | SHACKLE PIN |
| PARTS KIT | ||
| 500 | A 3523230976 | WASHER |
| SPRING SEAT | ||
| 4.00 MM | ||
| 500 | A 3523231076 | WASHER |
| SPRING SEAT | ||
| 4.20 MM | ||
| 508 | A 0029973040 | SEAL RING |
| SPRING SEAT | ||
| 512 | A 3529900337 | BOLT |
| SPRING SEAT | ||
| 516 | N 000125010518 | WASHER |
| SPRING SEAT | ||

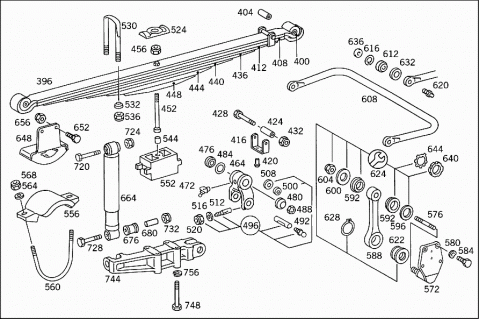

| 520 | N 913004010008 | NUT |
| SPRING SEAT | ||
| 524 | A 3833250231 | PLATE |
| REAR AXLE TO TO REAR SPRINGS | ||
| 524 | A 6173250331 | PLATE |
| REAR AXLE TO TO REAR SPRINGS | ||
| 528 | A 3853511325 | U-BOLT |
| REAR AXLE TO TO REAR SPRINGS | ||
| 528 | A 6173510925 | U-BOLT |
| Repalced by: A 6173511025 | ||
| 528 | A 6173511025 | U-BOLT |
| REAR AXLE TO TO REAR SPRINGS | ||
| 530 | A 3853512425 | U-BOLT |
| REAR AXLE TO TO REAR SPRINGS | ||
| 530 | A 6173510525 | U-BOLT |
| REAR AXLE TO TO REAR SPRINGS | ||
| 532 | A 3859970126 | WASHER |
| U-BOLT | ||
| 536 | N 000934020008 | NUT |
| U-BOLT | ||
| 540 | A 3859910464 | SHEAR BUSHING |
| REAR AXLE TO TO REAR SPRINGS | ||
| 544 | A 3859910164 | SHEAR BUSHING |
| REAR AXLE TO TO REAR SPRINGS | ||
| 544 | A 6179910064 | SHEAR BUSHING |
| REAR AXLE TO TO REAR SPRINGS | ||
| 548 | A 3853510628 | PAD |
| REAR AXLE TO TO REAR SPRINGS | ||
| 552 | A 3973250084 | SHIM |
| REAR AXLE TO TO REAR SPRINGS | ||
| 552 | A 6173250284 | SHIM |
| Repalced by: A 6173250784 | ||
| 552 | A 6173250784 | SHIM |
| REAR AXLE TO TO REAR SPRINGS | ||
| 556 | A 6173510046 | STOP |
| REAR AXLE | ||
| 560 | A 6173510047 | CLAMP |
| STOP TO REAR AXLE | ||
| 564 | N 007349010007 | WASHER |
| STOP TO REAR AXLE | ||
| 568 | N 913004010008 | NUT |
| STOP TO REAR AXLE | ||
| 572 | A 3933200678 | CONSOLE |
| Repalced by: A 3933261163 | ||
| 572 | A 3933261163 | BEARING BRACKET |
| REAR STABILIZER | ||
| 576 | N 000939016033 | STUD BOLT |
| 580 | A 3529902440 | WASHER |
| BEARING BRACKET TO SIDE MEMBER | ||
| 584 | N 000961016100 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| 588 | A 3873260947 | SHACKLE |
| TORSION BAR,REAR | ||
| 592 | A 0003260650 | BUSHING |
| SHACKLE TO BEARING BRACKET | ||
| 596 | A 3873230252 | SPACER WASHER |
| SHACKLE TO BEARING BRACKET | ||
| 600 | A 3853260052 | SPACER WASHER |
| Repalced by: A 3933260152 | ||
| 600 | A 3933260152 | SPACER WASHER |
| SHACKLE TO BEARING BRACKET | ||
| 604 | N 913004016004 | NUT |
| SHACKLE TO BEARING BRACKET | ||
| 608 | A 3833260365 | TORSION BAR |
| REAR | ||
| 612 | A 0009810831 | JOINT BEARING |
| TORSION BAR | ||
| 612 | A 0009811231 | JOINT BEARING |
| TORSION BAR | ||
| 616 | N 000472055000 | LOCK RING |
| TORSION BAR | ||
| 620 | N 071412008200 | GREASE NIPPLE |
| TORSION BAR,REAR | ||
| 622 | A 3873260281 | RUBBER MOUNTING |
| TORSION BAR | ||
| 624 | A 6173200028 | REPAIR KIT |
| Repalced by: A 6173200228 | ||
| 624 | A 6173200228 | REPAIR KIT |
| TORSION BAR MOUNTING | ||
| 628 | N 000983085001 | LOCK RING |
| TORSION BAR TO SHACKLE | ||
| 632 | A 3603230560 | SEAL RING |
| Repalced by: A 3603230860 | ||
| 632 | A 3603230860 | SEAL RING |
| BRACKET TO TORSION BAR | ||
| 636 | A 3523260153 | SPACER TUBE |
| BRACKET TO TORSION BAR | ||
| 636 | A 6173260050 | BUSHING |
| BRACKET TO TORSION BAR | ||
| 640 | N 070852035000 | NUT |
| BRACKET TO TORSION BAR | ||
| 644 | N 070952035101 | LOCK PLATE |
| BRACKET TO TORSION BAR | ||
| 648 | A 6173300175 | RUBBER MOUNTING |
| 652 | N 000933008152 | SCREW |
| RUBBER BUFFER TO FRAME | ||
| 656 | N 913004008004 | NUT |
| RUBBER BUFFER TO FRAME | ||
| 660 | A 3853260100 | SHOCK ABSORBER |
| (PARTS KIT) | ||
| 664 | A 0033261600 | SHOCK ABSORBER |
| Repalced by: A 0043260100 | ||
| 664 | A 0043260100 | SHOCK ABSORBER |
| 664 | A 0033261700 | SHOCK ABSORBER |
| Repalced by: A 0033264600 | ||
| 664 | A 0033264600 | SHOCK ABSORBER |
| 672 | A 0003233044 | RUBBER BUFFER |
| 676 | A 0003230785 | RUBBER MOUNTING |
| TO 003 326 16 00 | ||
| 676 | A 0003233144 | RUBBER BUFFER |
| TO 003 326 46 00 | ||
| 676 | A 0003234585 | RUBBER MOUNTING |
| Repalced by: A 0003230785 | ||
| 676 | A 0003230785 | RUBBER MOUNTING |
| TO 003 326 17 00 | ||
| 680 | A 0003231653 | SPACER TUBE |
| Repalced by: A 0003230553 | ||
| 680 | A 0003230553 | SPACER TUBE |
| 684 | A 3853100040 | CROSS MEMBER |
| Repalced by: A 3853100440 | ||
| 684 | A 3853100440 | CROSS MEMBER |
| REAR SHOCK ABSORBERS | ||
| 688 | A 3853120084 | SHIM |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 694 | N 910005012080 | RIVET |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 700 | A 3173260167 | RETAINER |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 704 | A 3853230253 | SPACER TUBE |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 708 | A 3853260068 | RUBBER BUFFER |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 712 | A 3543260067 | RETAINER |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 716 | N 913004016004 | NUT |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 720 | N 000960020035 | SCREW |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 724 | N 913004020004 | NUT |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 728 | A 3859900101 | SCREW |
| SHOCK ABSORBER TO BOTTOM BRACKET | ||
| 732 | N 913004020004 | NUT |
| SHOCK ABSORBER TO BOTTOM BRACKET | ||
| 736 | A 3833260040 | BRACKET |
| LEFT SHOCK ABSORBER | ||
| 736 | A 3833260140 | BRACKET |
| RIGHT SHOCK ABSORBER | ||
| 744 | A 6173260040 | BRACKET |
| SHOCK ABSORBER | ||
| 748 | N 000960014180 | SCREW |
| BRACKET TO SPRING SADDLE | ||
| 752 | N 000960014247 | SCREW |
| BRACKET TO SPRING SADDLE | ||
| 756 | N 912004014100 | LOCK WASHER |
| BRACKET TO SPRING SADDLE | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
