Transporto priemonė: 1419 MBSA-RSA; VIN numerio dalis: 397013

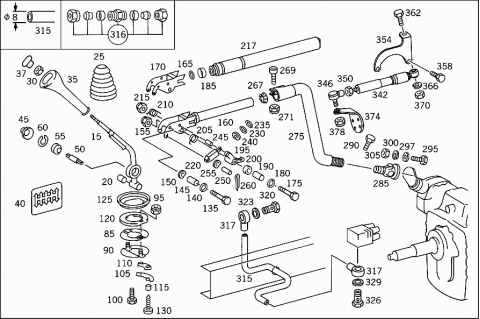

Grupė: 26 TRANSMISSION
| # | Kodas | Pavadinimas |
|---|---|---|
| 015 | A 3852606939 | SHIFT LEVER |
| 020 | A 3359920203 | BUSHING |
| 025 | A 3892680097 | BOOT |
| 030 | N 000936010010 | NUT |
| GEARSHIFT LEVER KNOB TO GEARSHIFT LEVER | ||
| 035 | A 3852670001 | SHIFT LEVER |
| Repalced by: A 6202680042 | ||
| 035 | A 6202680042 | KNOB |
| (SHIFT LEVER HANDLE) | ||
| 037 | A 6202680157 | COVER |
| 040 | A 3855840438 | GUMMED LABEL |
| EIGHT-SPEED | ||
| 045 | A 3852680696 | BOOT |
| Repalced by: A 6202680196 | ||
| 045 | A 6202680196 | BOOT |
| SHIFT LEVER BEARING | ||
| 050 | A 3852681474 | PIN |
| SHIFT LEVER BEARING | ||
| 055 | A 0009815531 | JOINT BEARING |
| Repalced by: A 0019813931 | ||
| 055 | A 0019813931 | JOINT BEARING |
| SHIFT LEVER BEARING | ||
| 055 | A 0009814531 | JOINT BEARING |
| SHIFT LEVER BEARING | ||
| 060 | N 000472042001 | LOCK RING |
| SHIFT LEVER BEARING | ||
| 085 | A 3892680440 | BRACKET |
| SHIFT LEVER UPPER PART | ||
| 090 | A 3892605262 | BRACKET |
| SHIFT LEVER UPPER PART | ||
| 095 | N 913004008004 | NUT |
| BRACKET TO BRACKET | ||
| 100 | N 000931008047 | SCREW |
| SHIFT LEVER TO CAB FLOOR | ||
| 105 | A 3852681640 | BRACKET |
| SHIFT LEVER TO CAB FLOOR | ||
| 110 | A 3852680492 | RUBBER PAD |
| SHIFT LEVER TO CAB FLOOR | ||
| 115 | A 3892680525 | BUSHING |
| SHIFT LEVER TO CAB FLOOR | ||
| 120 | A 3852680392 | RUBBER PAD |
| SHIFT LEVER TO CAB FLOOR | ||
| 125 | A 3852601962 | BRACKET |
| BOOT | ||
| 130 | N 007981003203 | SHEET METAL SCREW |
| BRACKET TO CAB | ||
| 135 | N 000931010357 | SCREW |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 140 | A 0009978648 | SEAL RING |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 145 | A 3852680153 | SPACER TUBE |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 150 | N 900055018001 | SPRING WASHER |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 155 | N 913004010008 | NUT |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 160 | A 3852609433 | SHIFTING ROD |
| (TELESCOPIC SHIFTING ROD) | ||
| 165 | A 0009978748 | SEAL RING |
| 170 | A 3852600534 | ROD END |
| HYDRAULIC RELEASE | ||
| 175 | N 000931010357 | SCREW |
| PAWL TO ROD END | ||
| M 10X75 | ||
| 180 | A 0009978648 | SEAL RING |
| PAWL TO ROD END | ||
| 185 | N 000443022000 | EXPANSION PLUG |
| PAWL TO ROD END | ||
| 190 | A 3852680153 | SPACER TUBE |
| PAWL TO ROD END | ||
| 195 | A 3852600387 | PAWL |
| PAWL TO ROD END | ||
| 200 | A 3359920203 | BUSHING |
| PAWL TO ROD END | ||
| 205 | A 3859930020 | SPRING |
| PAWL TO ROD END | ||
| 210 | A 3859930120 | SPRING |
| PAWL TO ROD END | ||
| 215 | N 913004010008 | NUT |
| PAWL TO ROD END | ||
| 217 | A 3852603882 | SHIFTING TUBE |
| (TELESCOPIC TUBE) | ||
| 220 | A 3852600063 | SHIFTING CYLINDER |
| HYDRAULIC RELEASE | ||
| 220 | A 3852600563 | SHIFTING CYLINDER |
| HYDRAULIC RELEASE | ||
| 230 | A 0069976748 | SEAL RING |
| PISTON RINGS | ||
| TO 385 260 00 63 | ||
| 235 | A 0069976848 | SEAL RING |
| SCREW FITTING | ||
| TO 385 260 00 63 | ||
| 240 | A 0019970641 | SEAL RING |
| OUTSIDE | ||
| TO 385 260 00 63 | ||
| 245 | N 001443008203 | PIN |
| Repalced by: N 001444008235 | ||
| 245 | N 001444008235 | PIN |
| SHIFTING CYLINDER TO PAWL | ||
| 250 | N 001444008234 | PIN |
| SHIFTING CYLINDER TO YOKE | ||
| 255 | N 900055008002 | SPRING WASHER |
| SHIFTING CYLINDER TO YOKE | ||
| 260 | N 000094002059 | COTTER PIN |
| SHIFTING CYLINDER TO YOKE | ||
| 267 | A 3852680776 | WASHER |
| BETWEEN FRONT AND REAR SHIFTING TUBES | ||
| 269 | N 006912010021 | SCREW |
| FRONT SHIFTING ROD TO REAR SHIFTING ROD | ||
| 271 | N 913004010008 | NUT |
| FRONT SHIFTING ROD TO REAR SHIFTING ROD | ||
| 275 | A 3972600382 | SHIFTING TUBE |
| A 3852680188 | CLAMPING PIECE | |
| 285 | A 3832680289 | JOINT |
| SHIFTING ROD | ||
| 285 | A 3832680489 | JOINT |
| FLANGE TO SHIFTING TUBE | ||
| 290 | N 000933010202 | SCREW |
| FLANGE TO SHIFTING TUBE | ||
| 295 | A 3219900601 | SCREW |
| SHIFTING TUBE TO TRANSMISSION | ||
| 297 | A 3859901640 | WASHER |
| SHIFTING TUBE TO TRANSMISSION | ||
| 300 | N 912004008102 | LOCK WASHER |
| SHIFTING TUBE TO TRANSMISSION | ||
| 305 | N 000934008010 | NUT |
| SHIFTING TUBE TO TRANSMISSION | ||
| A 3852610788 | COVER PLATE | |
| 315 | A 0089979082 | HOSE |
| 6X8 MM | ||
| 316 | A 0039978972 | FITTING |
| Repalced by: A 0029905971 | ||
| 316 | A 0029905971 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 317 | N 915052006013 | BANJO UNION |
| 320 | N 915036008202 | HOLLOW SCREW |
| DISTRIBUTOR | ||
| 323 | N 007603012405 | SEAL RING |
| DISTRIBUTOR | ||
| 326 | N 915047008100 | HOLLOW SCREW |
| 329 | N 007603012405 | SEAL RING |
| A 3852670040 | BRACKET | |
| A 0019978490 | LOOM TIE | |
| 342 | A 0002680214 | VIBRATION ABSORBER |
| 346 | A 0002683389 | JOINT |
| VIBRATION ABSORBER | ||
| 350 | N 000934008010 | NUT |
| ANGLE JOINT TO VIBRATION DAMPER | ||
| 354 | A 3852685240 | BRACKET |
| VIBRATION ABSORBER TO TRANSMISSION | ||
| 358 | N 000933008153 | SCREW |
| BRACKET TO TRANSMISSION | ||
| 362 | N 000931010264 | SCREW |
| VIBRATION ABSORBER TO BRACKET | ||
| 366 | N 912004010102 | LOCK WASHER |
| VIBRATION ABSORBER TO BRACKET | ||
| 370 | N 000934010014 | NUT |
| VIBRATION ABSORBER TO BRACKET | ||
| 374 | A 3832600562 | BRACKET |
| VIBRATION ABSORBER TO SHIFT LEVER | ||
| 378 | N 913004008004 | NUT |
| VIBRATION ABSORBER TO SHIFT LEVER | ||
