Transporto priemonė: 1419 MBSA-RSA; VIN numerio dalis: 397013
Grupė: 40 WHEELS
| # | Kodas | Pavadinimas |
|---|---|---|

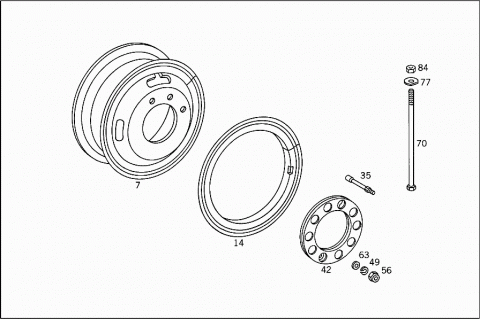

| 007 | A 0024014901 | DISC WHEEL |
| 8.0-20 | ||
| 007 | A 0024015001 | DISC WHEEL |
| 8.0-20 | ||
| 007 | A 0024015101 | DISC WHEEL |
| 8.0-20 | ||
| 014 | A 0004015606 | SIDE RING |
| 035 | A 3854010013 | VALVE |
| 035 | A 3854010113 | VALVE |
| 042 | A 3604000325 | HUB CAP |
| 049 | N 074361022351 | LOCK WASHER |
| DISC WHEELS TO FRONT AND REAR AXLES | ||
| 056 | N 074361022205 | NUT |
| DISC WHEELS TO FRONT AND REAR AXLES | ||
| 063 | A 3174020175 | SPHERICAL RING |
| DISC WHEEL TO REAR AXLE | ||
| 070 | A 3609902201 | SCREW |
| SPARE WHEEL TO CROSS MEMBER | ||
| 077 | A 3524030067 | SHIM |
| SPARE WHEEL TO CROSS MEMBER | ||
| 084 | N 000934012022 | NUT |
| SPARE WHEEL TO CROSS MEMBER | ||

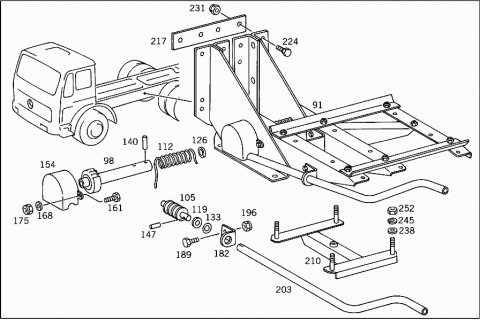

| 091 | A 6174000339 | BRACKET |
| SPARE WHEEL CARRIER | ||
| 098 | A 6174030083 | STOP GEAR |
| Repalced by: A 6204030783 | ||
| 098 | A 6204030783 | STOP GEAR |
| SPARE WHEEL HOIST | ||
| 105 | A 3814030185 | WORM |
| Repalced by: A 6204030085 | ||
| 105 | A 6204030085 | WORM |
| SPARE WHEEL HOIST | ||
| 112 | N 083334008500 | WIRE CABLE |
| 1.250 MM | ||
| 119 | A 3149900440 | WASHER |
| WORM AND SHAFT TO BRACKET | ||
| 126 | A 3819900140 | WASHER |
| WORM AND SHAFT TO BRACKET | ||
| 133 | N 002093031201 | DISC SPRING |
| WORM AND SHAFT TO BRACKET | ||
| 140 | N 001481008036 | CLAMPING SLEEVE |
| WORM AND SHAFT TO BRACKET | ||
| 147 | N 001481006027 | CLAMPING SLEEVE |
| 154 | A 6174000020 | COVERING |
| 161 | N 000933006124 | SCREW |
| CAP TO CONOLE | ||
| 168 | N 009021006205 | WASHER |
| CAP TO CONOLE | ||
| 175 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 175 | N 913004006001 | NUT |
| CAP TO CONOLE | ||
| 182 | A 6174030040 | BRACKET |
| CRANK | ||
| 189 | N 000933008147 | SCREW |
| BRACKET TO CONSOLE | ||
| 196 | N 913004008004 | NUT |
| BRACKET TO CONSOLE | ||
| 203 | A 3354030130 | CRANK |
| 210 | A 3894000839 | BRACKET |
| 217 | A 6174030019 | BASE BLOCK |
| SPARE WHEEL CARRIER TO FRAME | ||
| 224 | N 000961014054 | SCREW |
| SPARE WHEEL CARRIER TO FRAME | ||
| 231 | N 913004014002 | NUT |
| SPARE WHEEL CARRIER TO FRAME | ||
| 238 | N 000125015013 | WASHER |
| DISC WHEEL TO BRACKET | ||
| 245 | N 912004014100 | LOCK WASHER |
| DISC WHEEL TO BRACKET | ||
| 252 | N 000934014019 | NUT |
| DISC WHEEL TO BRACKET | ||
