Transporto priemonė: 1420 LS; VIN numerio dalis: 616542
Grupė: 42 BRAKES

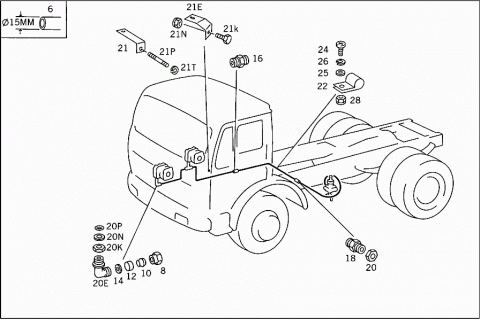

42619

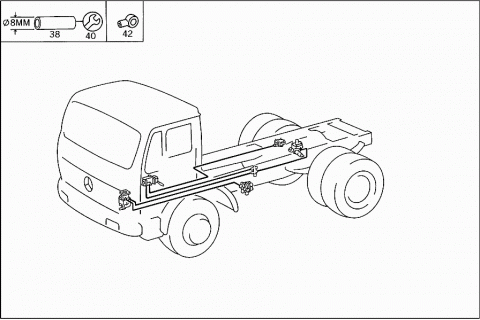

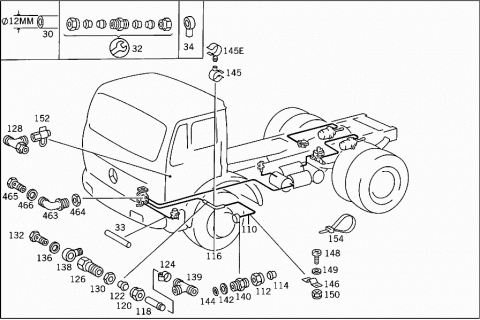

42620

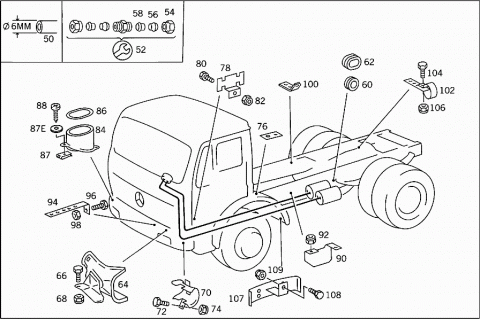

42621

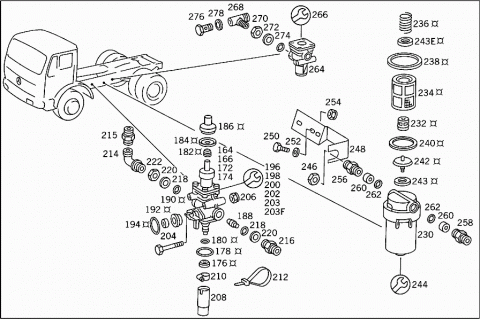

42622

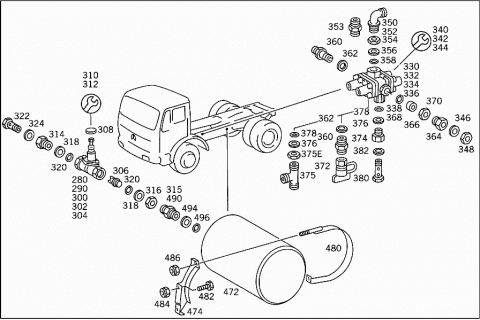

42623
42624

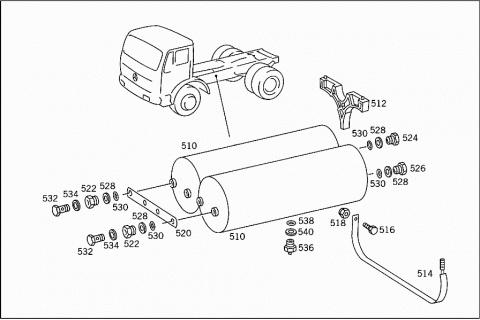

42625

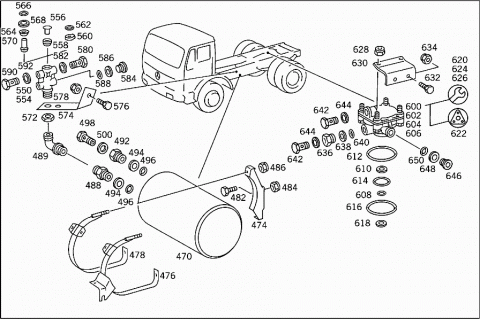

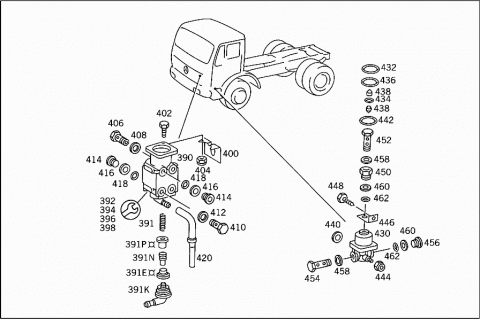

42626

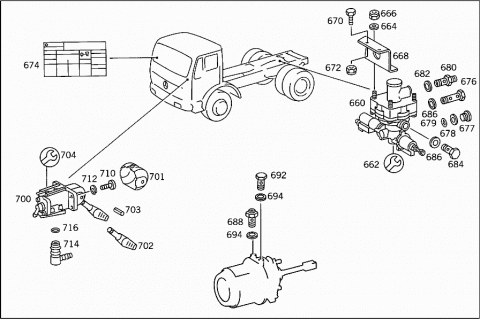

42627
42628
# Kodas Pavadinimas
T YYYYYYYYYYYY PART NAME MISSING
FOR FRONT WHEEL BRAKE,SEE UNIT STANDARD VERSION, MODEL:
730.0
T YYYYYYYYYYYY PART NAME MISSING
FOR BRAKES,SEE UNIT STANDARD VERSION, MODEL:
745.6
A 6209970272 FITTING
AIR COMPRESSOR,CONNECTION:
"20"
N 007603026104 SEAL RING
AIR COMPRESSOR,CONNECTION:
"20"
006 A 0004291401 LINE
AIR COMPRESSOR,PRESSURE REGULATOR, FILTER,FOUR-CIRCUIT PROTECTIVE VALVE
15 MM
006 A 0004291401 LINE
FROM AIR RESERVOIR TO CHECK VALVE
15 MM
006 A 0004291401 LINE
PRESSURE RELIEF VALVE
15 MM
008 N 915018015000 UNION NUT
008 N 915017015100 UNION NUT
010 N 003861015004 GLAND
012 N 915065015101 THRUST RING
014 N 915045012100 SEAL RING
Repalced by: N 007603012121
014 N 007603012121 SEAL RING
016 A 0019972172 FITTING
BETWEEN THE LINES
016 N 003902015002 CONNECTION FITTING
BETWEEN THE LINES
018 A 0019972372 FITTING
THROUGH SIDE MEMBER
018 N 003910015002 BULKHEAD FITTING
THROUGH SIDE MEMBER
020 N 074305022202 NUT
FITTING TO FRAME SIDE MEMBER
020E A 6209900071 ELBOW FITTING
Repalced by: A 0039901671
020E A 0039901671 ELBOW FITTING
BELT-DRIVEN AIR COMPRESSOR,CONNECTION:
"20"
020K N 074305026202 NUT
BELT-DRIVEN AIR COMPRESSOR,CONNECTION:
"20"
020N A 0004290527 THRUST RING
BELT-DRIVEN AIR COMPRESSOR,CONNECTION:
"20"
020P A 0039973848 SEAL RING
BELT-DRIVEN AIR COMPRESSOR,CONNECTION:
"20"
021 A 6164290340 BRACKET
AIR COMPRESSOR LINE
021E A 6154290640 BRACKET
AIR COMPRESSOR LINE
021K N 000933008116 SCREW
Repalced by: N 000933008337
021K N 000933008337 SCREW
Repalced by: A 0099900101
021K A 0099900101 SCREW
BRACKET TO AIR COMPRESSOR
021N N 913004008004 NUT
Repalced by: N 913004008001
021N N 913004008001 NUT
BRACKET TO AIR COMPRESSOR
021P N 000939010026 STUD BOLT
BRACKET TO ENGINE,REAR
021T N 912004010102 LOCK WASHER
BRACKET TO ENGINE,REAR
022 A 3609952001 CLAMP
Repalced by: A 6739950001
022 A 6739950001 CLAMP
MOUNTING USED FOR COMPRESSED AIR LINES
024 N 007985006145 SCREW
Repalced by: N 007985006581
024 N 007985006581 SCREW
CLAMP TO BRACKET
025 N 000125006421 WASHER
CLAMP TO BRACKET
025 N 000125006421 WASHER
CLAMP TO BRACKET
026 N 912004006102 LOCK WASHER
CLAMP TO BRACKET
028 N 913004006002 NUT
Repalced by: N 913004006001
028 N 913004006001 NUT
CLAMP TO BRACKET
030 A 0109975982 HOSE
Repalced by: A 0009872827
030 A 0009872827 PLASTIC PIPE
AIR RESERVOIR,BRAKE VALVE,BRAKE PRESSURE REGULATOR,SPRING-LOAD ACCUMULATOR
9X12 MM
030 A 0009872827 PLASTIC PIPE
BRAKE VALVE,FOUR-CIRCUIT PROTECTIVE VALVE,RELAY VALVE
9X12 MM
030 A 0009872827 PLASTIC PIPE
PRESSURE RATIO VALVE
9X12 MM
030 A 0009872827 PLASTIC PIPE
PRESSURE RELIEF VALVE,OVERFLOW VALVE
9X12 MM
030 A 0009872827 PLASTIC PIPE
HAND BRAKE VALVE BLEEDING
9X12 MM
032 A 0049971772 FITTING
Repalced by: A 0029906171
032 A 0029906171 FITTING
(PARTS KIT),LINE RUPTURE
A 0009907378 CONNECTOR
REPAIR SIZE
033 N 040621013200 INSULATING HOSE
FOUR-CIRCUIT PROTECTIVE VALVE,OVERFLOW VALVE
034 N 915052009009 BANJO UNION
I.D., / HOSE WIDTH,
16/9 MM
034 A 0019901088 BANJO UNION
AIR RESERVOIR,FOUR-CIRCUIT PROTECTIVE VALVE
038 A 0089979082 HOSE
BRAKE VALVE,FOUR-CIRCUIT PROTECTIVE VALVE,RELAY VALVE
6X8 MM
038 A 0089979082 HOSE
PARKING BRAKE VALVE
6X8 MM
038 A 0089979082 HOSE
FROM BRAKE POWER REGULATOR TO BRAKE VALVE
6X8 MM
038 A 0089979082 HOSE
AXLE BREATHING
6X8 MM
040 A 0039978972 FITTING
Repalced by: A 0029905971
040 A 0029905971 FITTING
(PARTS KIT),LINE RUPTURE
042 N 915052006021 BANJO UNION
I.D., / HOSE WIDTH,
14/6 MM
042 N 915052006014 BANJO UNION
I.D., / HOSE WIDTH,
16/6 MM
042 N 915052006013 BANJO UNION
I.D., / HOSE WIDTH,
12/6 MM
050 A 0089976082 HOSE
Repalced by: A 0009872627
050 A 0009872627 PLASTIC PIPE
FROM AIR RESERVOIR TO DOUBLE PRESSURE GAUGE
4X6 MM
052 A 0039979172 FITTING
(PARTS KIT),LINE RUPTURE
054 N 915017006100 UNION NUT
056 N 003861006007 GLAND
Repalced by: A 0019901667
056 A 0019901667 SEAL CONE
058 N 915062004000 SLEEVE
060 A 6209970181 GROMMET
LINE THRU LEFT SIDE MEMBER
42/36 MM
062 A 3549970081 GROMMET
LINE THRU LEFT SIDE MEMBER
32/27 MM
064 A 6204201186 BRACKET
LEFT COMPRESSED AIR LINES
064 A 6204201286 BRACKET
RIGHT COMPRESSED AIR LINES
066 N 000933008147 SCREW
Repalced by: N 304017008021
066 N 304017008021 SCREW
BRACKET TO BUMPER STRUT
068 N 913004008004 NUT
Repalced by: N 913004008001
068 N 913004008001 NUT
BRACKET TO BUMPER STRUT
070 A 6204201386 BRACKET
Repalced by: A 6154200086
070 A 6154200086 BRACKET
LEFT COMPRESSED AIR LINES
070 A 6204201486 BRACKET
Repalced by: A 6154200186
070 A 6154200186 BRACKET
RIGHT COMPRESSED AIR LINES
072 N 000933008153 SCREW
Repalced by: N 304017008034
072 N 304017008034 SCREW
BRACKET TO CAB CONSOLE
074 N 913004008004 NUT
Repalced by: N 913004008001
074 N 913004008001 NUT
BRACKET TO CAB CONSOLE
076 A 6204294340 BRACKET
Repalced by: A 3604293140
076 A 3604293140 BRACKET
COMPRESSED AIR LINE
078 A 6204293940 BRACKET
COMPRESSED AIR LINE
078 A 6204293940 BRACKET
COMPRESSED AIR LINE
080 N 000933008152 SCREW
Repalced by: N 304017008027
080 N 304017008027 SCREW
BRACKET TO SIDE MEMBER
082 N 913004008004 NUT
Repalced by: N 913004008001
082 N 913004008001 NUT
BRACKET TO SIDE MEMBER
084 A 6204291940 BRACKET
BRAKE LINE THRU CAB FLOOR
084 A 6204292440 BRACKET
BRAKE LINE THRU CAB FLOOR
086 A 6204290084 SEAL RING
BETWEEN BRACKET AND CAB FLOOR
087 A 0009946445 LOCK
BRACKET TO CAB FLOOR
087E N 009021005202 WASHER
Repalced by: N 009021005205
087E N 009021005205 WASHER
BRACKET TO CAB FLOOR
088 N 007981004252 SHEET METAL SCREW
BRACKET TO CAB FLOOR
090 A 6204295240 BRACKET
BETWEEN THE LINES
092 N 913004006002 NUT
Repalced by: N 913004006001
092 N 913004006001 NUT
BRACKET TO CAB FLOOR
094 A 6174290540 BRACKET
Repalced by: A 3604292940
094 A 3604292940 BRACKET
COMPRESSED AIR LINE TO CROSS MEMBER
096 N 000933008147 SCREW
Repalced by: N 304017008021
096 N 304017008021 SCREW
BRACKET TO CROSS MEMBER
098 N 913004008004 NUT
Repalced by: N 913004008001
098 N 913004008001 NUT
BRACKET TO CROSS MEMBER
100 A 6204296740 BRACKET
Repalced by: A 3184923441
100 A 3184923441 BRACKET
COMPRESSED AIR LINE TO TRIANGULAR CONTROL ARM
102 A 3934310140 BRACKET
Repalced by: A 6514310240
102 A 6514310240 BRACKET
COMPRESSED AIR LINE TO TRIANGULAR CONTROL ARM
104 N 000933008147 SCREW
Repalced by: N 304017008021
104 N 304017008021 SCREW
BRACKET TO CONTROL ARM
106 N 913004008004 NUT
Repalced by: N 913004008001
106 N 913004008001 NUT
BRACKET TO CONTROL ARM
107 A 6174200244 PROTECTIVE PLATE
108 N 000933008147 SCREW
Repalced by: N 304017008021
108 N 304017008021 SCREW
LEFT COMPRESSED AIR LINES
109 N 913004008004 NUT
Repalced by: N 913004008001
109 N 913004008001 NUT
LEFT COMPRESSED AIR LINES
A 6194200326 LINE
Repalced by: A 6194290801
A 6194200426 LINE
Repalced by: A 6194290801
A 6194290801 LINE
Repalced by: A 6254293501
110 A 6254293501 LINE
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
112 N 915017012100 UNION NUT
114 N 003861012007 GLAND
Repalced by: A 0019901967
114 A 0019901967 SEAL CONE
116 N 916027011014 HOSE
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
118 A 0004290541 FITTING
LEFT AND RIGHT BRAKE HOSES
120 N 915017012100 UNION NUT
LEFT AND RIGHT BRAKE HOSES
122 N 003861012007 GLAND
Repalced by: A 0019901967
122 A 0019901967 SEAL CONE
LEFT AND RIGHT BRAKE HOSES
124 N 916017016000 CLAMP
Repalced by: N 000000000666
124 N 000000000666 CLAMP
LINE MOUNTING
126 A 0004296634 ADAPTER FITTING
Repalced by: A 0004296934
126 A 0004296934 ADAPTER FITTING
LEFT AND RIGHT BRAKE HOSES
128 A 0019907070 T-FITTING
ADAPTER FITTING TO SIDE MEMBER
130 N 080705018002 NUT
ADAPTER FITTING TO SIDE MEMBER
132 N 915047012203 HOLLOW SCREW
LEFT FRONT BRAKE HOSE
132 N 915036012203 HOLLOW SCREW
RIGHT FRONT BRAKE HOSE
132 N 915036012203 HOLLOW SCREW
LEFT AND RIGHT BRAKE HOSES
136 N 007603016401 SEAL RING
LEFT AND RIGHT BRAKE HOSES
136 N 007603016401 SEAL RING
LEFT AND RIGHT BRAKE HOSES
138 A 0019900788 BANJO UNION
LEFT FRONT BRAKE HOSE
139 A 0019907070 T-FITTING
LEFT FRONT BRAKE HOSE
140 A 0029971572 FITTING
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
142 A 0004290927 THRUST RING
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
144 A 0009971548 SEAL RING
LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
145 A 1159950465 CLAMP
BRAKE HOSE MOUNTING
145E A 6209950065 CLAMP
BRAKE HOSE MOUNTING
146 A 3159955010 CLAMP
COMPRESSED AIR LINE TO BRACKET
148 N 007985006145 SCREW
Repalced by: N 007985006581
148 N 007985006581 SCREW
CLAMP TO BRACKET
149 N 000125006421 WASHER
CLAMP TO BRACKET
150 N 913004006002 NUT
Repalced by: N 913004006001
150 N 913004006001 NUT
CLAMP TO BRACKET
152 A 0004312031 TEST CONNECTION
VOSS
152 A 0004314531 TEST CONNECTION
SCHAEFER
152 A 0004314831 TEST CONNECTION
WABCO
152 A 0004316131 TEST CONNECTION
WIRA
152 A 0004316131 TEST CONNECTION
FRONT AXLE BRAKE CIRCUIT
WIRA
152 A 0004316131 TEST CONNECTION
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"21,22"
152 A 0004316131 TEST CONNECTION
BRAKE POWER REGULATOR,CONNECTION:
"4"
152 A 0004316131 TEST CONNECTION
TRISTOP CYLINDER;CONNECTIONS:
"11,12"
A 0009979486 PLUG
154 A 0019978390 LOOM TIE
LINE MOUNTING
280 MM
154 A 0019978490 LOOM TIE
LINE MOUNTING
376 MM
A 0014316106 PRESSURE REGULATOR
Repalced by: A 0024313606
A 0024313606 PRESSURE REGULATOR
Repalced by: A 0024314406
A 0014316506 PRESSURE REGULATOR
Repalced by: A 0024315006
A 0014319006 PRESSURE REGULATOR
Repalced by: A 0024314406
164 A 0024314406 PRESSURE REGULATOR
BOSCH
A 0014319106 PRESSURE REGULATOR
Repalced by: A 0024318406
166 A 0024315006 PRESSURE REGULATOR
WABCO
166 A 0024318406 PRESSURE REGULATOR
KNORR 90310
A 0014310006 PRESSURE REGULATOR
Repalced by: A 0024314906
A 0014313406 PRESSURE REGULATOR
Repalced by: A 0024314306
A 0014311206 PRESSURE REGULATOR
Repalced by: A 0024314906
172 A 0024314906 PRESSURE REGULATOR
WABCO
A 0014310606 PRESSURE REGULATOR
Repalced by: A 0024313406
A 0024313406 PRESSURE REGULATOR
Repalced by: A 0024314306
174 A 0024314306 PRESSURE REGULATOR
WITH TIRE INFLATING CONNECTION
BOSCH
174 A 0024318306 PRESSURE REGULATOR
KNORR
176 A 0004312381 VALVE DISC
TO 001 431 90 06,GRAU
178 A 0059972948 SEAL RING
TO 001 431 90 06,GRAU
180 A 0059973048 SEAL RING
TO 001 431 90 06,GRAU
182 A 0004312481 VALVE DISC
TO 001 431 90 06,GRAU
184 A 0004311328 DIAPHRAGM
TO 001 431 90 06,GRAU
186 A 0004318687 PROTECTIVE CAP
TO 001 431 90 06,GRAU
188 A 0004313423 VALVE
TO 001 431 90 06,GRAU
190 A 0004313534 STRAINER
TO 001 431 90 06,GRAU
192 A 0004312888 VALVE SEAT
TO 001 431 90 06,GRAU
194 A 0059973148 SEAL RING
TO 001 431 90 06,GRAU
196 A 0015864343 REPAIR KIT
Repalced by: A 0004301107
196 A 0004301107 REPAIR KIT
TO 001 431 00 06,WABCO 975 300 110 0
196 A 0004301107 REPAIR KIT
001 431 65 06,WABCO 975 300 151 0
196 A 0024304681 REPAIR KIT
VALVE KIT
TO 001 431 00 06,WABCO 975 300 110 0
196 A 0014304960 REPAIR KIT
TO 002 431 49 06,WABCO 975 303 460 0
196 A 0014304960 REPAIR KIT
002 431 50 06,WABCO 975 303 500 0
196 A 0014304960 REPAIR KIT
TO 001 431 65 06,WABCO 975 300 151 0
198 A 0015868543 REPAIR KIT
Repalced by: A 0004301407
198 A 0004301407 REPAIR KIT
TO 001 431 06 06,BOSCH 0 481 039 101
198 A 0004301407 REPAIR KIT
001 431 61 06,BOSCH 0 481 039 105
200 A 0025866743 REPAIR KIT
TO 001 431 12 06,KNORR 3200
200 A 0025866743 REPAIR KIT
001 431 91 06,KNORR 3211
202 A 0025866043 REPAIR KIT
TO 001 431 34 06,GRAU,312 017 014
203 A 0004301768 REPAIR KIT
DIAPHRAGM
TO 002 431 34 06,BOSCH 0 481 039 221
203 A 0004301768 REPAIR KIT
DIAPHRAGM
TO 002 431 43 06,BOSCH 0 481 039 201
203 A 0004301768 REPAIR KIT
DIAPHRAGM
TO 002 431 36 06,BOSCH 0 481 039 225
203 A 0004301768 REPAIR KIT
DIAPHRAGM
TO 002 431 44 06,BOSCH 0 481 039 205
203F A 0004307960 REPAIR KIT
TIRE INFLATING CONNECTION
TO 002 431 36 06,BOSCH 0 481 039 225
203F A 0004307960 REPAIR KIT
TIRE INFLATING CONNECTION
TO 002 431 44 06,BOSCH 0 481 039 205
203F A 0004307960 REPAIR KIT
TIRE INFLATING CONNECTION
TO 002 431 34 06,BOSCH 0 481 039 221
203F A 0004307960 REPAIR KIT
TIRE INFLATING CONNECTION
TO 002 431 43 06,BOSCH 0 481 039 201
A 0004300407 PRESSURE REGULATOR
TO 002 431 83 06,KNORR 90309
A 0004300507 REPAIR KIT
TO 002 431 84 06,KNORR 90310
204 N 000931008251 SCREW
PRESSURE REGULATOR TO BRACKET
206 N 913004008004 NUT
Repalced by: N 913004008001
206 N 913004008001 NUT
PRESSURE REGULATOR TO BRACKET
208 A 0005461830 INSULATING HOSE
PRESSURE REGULATOR,CONNECTION:
"30"
208 A 0159975082 HOSE
PRESSURE REGULATOR,CONNECTION:
"30"
210 N 916026016001 CLAMP
Repalced by: A 0059970190
210 A 0059970190 LOOM TIE
HOSE TO PRESSURE REGULATOR
"30"
210 N 916026020001 CLAMP
Repalced by: N 000000000667
210 N 000000000667 CLAMP
HOSE TO PRESSURE REGULATOR
"30"
212 A 0019978390 LOOM TIE
HOSE TO PRESSURE REGULATOR
"30"
214 A 0009905871 ELBOW FITTING
PRESSURE REGULATOR,CONNECTION:
"10"
215 N 003911015102 FITTING
PRESSURE REGULATOR,CONNECTION:
"10"
216 A 0019972172 FITTING
PRESSURE REGULATOR,CONNECTION:
"21"
218 A 0009870446 SEALING CORD
PRESSURE REGULATOR,CONNECTIONS:
"10,21"
220 A 0004290227 THRUST RING
Repalced by: A 0009940203
220 A 0009940203 THRUST RING
PRESSURE REGULATOR,CONNECTIONS:
"10,21"
222 N 074305022202 NUT
PRESSURE REGULATOR,CONNECTION:
"10"
230 A 0004292595 AIR CLEANER
BOSCH
230 A 0004292695 AIR CLEANER
KNORR
230 A 0004292795 AIR CLEANER
WABCO
230 A 0004292895 AIR CLEANER
GRAU
232 A 0004290597 FILTER ELEMENT
WABCO
234 A 0004290497 FILTER ELEMENT
WABCO
234 A 0004290397 FILTER ELEMENT
GRAU
234 A 0004290797 FILTER ELEMENT
BOSCH
236 A 0059930901 SPRING
WABCO
238 A 0089978048 SEAL RING
GRAU
238 A 0019974048 SEAL RING
BOSCH
240 A 0059972748 SEAL RING
GRAU
240 A 0119974048 SEAL RING
BOSCH
242 A 0004290845 DIAPHRAGM
GRAU
242 A 0004291045 DIAPHRAGM
BOSCH
A 0089978848 SEAL RING
Repalced by: A 0049972248
243 A 0049972248 SEAL RING
Repalced by: A 0289972348
243 A 0289972348 SEAL RING
100X3 MM,WABCO
A 0089978948 SEAL RING
Repalced by: A 0009870746
243E A 0009870746 SEALING CORD
75X3 MM,WABCO
244 A 0004204455 REPAIR KIT
AIR CLEANER
WABCO
A 0004300369 REPAIR KIT
TO 000 429 26 95,KNORR
246 N 074305022202 NUT
AIR CLEANER TO PRESSURE REGULATOR
248 A 6204310740 BRACKET
AIR CLEANER
250 N 000933008147 SCREW
Repalced by: N 304017008021
250 N 304017008021 SCREW
BRACKET TO APPARATUS SUPPORT
252 N 000125008418 WASHER
Repalced by: N 000125008443
252 N 000125008443 WASHER
BRACKET TO APPARATUS SUPPORT
254 N 913004008004 NUT
Repalced by: N 913004008001
254 N 913004008001 NUT
BRACKET TO APPARATUS SUPPORT
256 A 0019972372 FITTING
AIR CLEANER,CONNECTION:
"10"
258 A 0019972172 FITTING
AIR CLEANER,CONNECTION:
"20"
258 A 0029978972 FITTING
AIR CLEANER,CONNECTION:
"20"
260 A 0004290227 THRUST RING
Repalced by: A 0009940203
260 A 0009940203 THRUST RING
AIR CLEANER;CONNECTIONS:
"10,20"
262 A 0009870446 SEALING CORD
AIR CLEANER;CONNECTIONS:
"10,20"
264 A 0024312406 VALVE
PRESSURE RELIEF
266 A 0004304960 REPAIR KIT
PRESSURE RELIEF VALVE
268 A 0019907370 T-FITTING
PRESSURE RELIEF VALVE,CONNECTION:
"1"
268 A 0029902270 T-FITTING
PRESSURE RELIEF VALVE,CONNECTION:
"1"
270 N 080705016003 NUT
PRESSURE RELIEF VALVE,CONNECTIONS:
"1,2"
272 A 0004290927 THRUST RING
PRESSURE RELIEF VALVE,CONNECTIONS:
"1,2"
274 A 0009971548 SEAL RING
PRESSURE RELIEF VALVE,CONNECTIONS:
"1,2"
276 N 915036012203 HOLLOW SCREW
PRESSURE RELIEF VALVE,CONNECTION:
"1"
278 N 007603016401 SEAL RING
PRESSURE RELIEF VALVE,CONNECTION:
"1"
280 A 0034295544 VALVE
Repalced by: A 0024294244
280 A 0024294244 VALVE
Repalced by: A 0034290944
280 A 0034290944 VALVE
Repalced by: A 0044293144
280 A 0044293144 VALVE
(OVERFLOW VALVE)
WABCO
290 A 0034295644 VALVE
Repalced by: A 0024296544
290 A 0024296544 VALVE
Repalced by: A 0034290844
290 A 0034290844 VALVE
Repalced by: A 0044293244
290 A 0044293244 VALVE
(OVERFLOW VALVE)
GRAU
300 A 0014296544 VALVE
Repalced by: A 0044293144
300 A 0044293144 VALVE
(OVERFLOW VALVE)
WABCO
302 A 0024290044 VALVE
Repalced by: A 0044293144
302 A 0044293144 VALVE
(OVERFLOW VALVE)
WABCO
304 A 0024297044 VALVE
Repalced by: A 0044293244
304 A 0044293244 VALVE
(OVERFLOW VALVE)
GRAU
306 A 0024298844 VALVE
TO 002 429 70 44,003 429 08 44
308 A 0004290745 DIAPHRAGM
TO 002 429 70 44,003 429 08 44
A 0004290645 DIAPHRAGM
Repalced by: A 0004290745
A 0004290745 DIAPHRAGM
TO 004 429 32 44
310 A 0015862042 REPAIR KIT
TO 001 429 65 44,002 429 42 44
310 A 0005865842 REPAIR KIT
TO 003 429 09 44, WABCO
312 A 0015862642 REPAIR KIT
TO 002 429 00 44,BOSCH
314 A 0009905168 FITTING
OVERFLOW VALVE,CONNECTION:
"10"
315 A 0019972372 FITTING
OVERFLOW VALVE TO AIR RESERVOIR
316 N 074305022202 NUT
OVERFLOW VALVE TO AIR RESERVOIR, CONNECTION:
"20,24"
318 A 0004290227 THRUST RING
Repalced by: A 0009940203
318 A 0009940203 THRUST RING
OVERFLOW VALVE,CONNECTION:
"10"
318 A 0009940203 THRUST RING
OVERFLOW VALVE TO AIR RESERVOIR, CONNECTION:
"20,24"
320 A 0009870446 SEALING CORD
OVERFLOW VALVE,CONNECTION:
"10"
320 A 0009870446 SEALING CORD
OVERFLOW VALVE TO AIR RESERVOIR, CONNECTION:
"20,24"
322 N 915036012203 HOLLOW SCREW
OVERFLOW VALVE,CONNECTION:
"10"
324 N 007603016401 SEAL RING
OVERFLOW VALVE,CONNECTION:
"10"
330 A 0014319306 VALVE
Repalced by: A 0034315006
332 A 0014318906 VALVE
Repalced by: A 0024314006
332 A 0024314006 VALVE
Repalced by: A 0034315006
334 A 0014318706 VALVE
Repalced by: A 0034315006
336 A 0024310206 VALVE
Repalced by: A 0024312706
336 A 0024312706 VALVE
Repalced by: A 0024319106
336 A 0024319106 VALVE
Repalced by: A 0034315006
A 0034315006 VALVE
(FOUR-CIRCUIT PROTECTIVE VALVE)
WABCO
338 A 0059973248 SEAL RING
TO 002 431 02 06,GRAU
340 A 0035860943 REPAIR KIT
FOUR-CIRCUIT PROTECTIVE VALVE
TO 001 431 89 06,002 431 40 06,WABCO
342 A 0035861043 REPAIR KIT
FOUR-CIRCUIT PROTECTIVE VALVE
TO 001 431 87 06,KNORR
344 A 0004304706 GASKET KIT
FOUR-CIRCUIT PROTECTIVE VALVE
TO 001 431 93 06,BOSCH 62401
344 A 0004300260 REPAIR KIT
FOUR-CIRCUIT PROTECTIVE VALVE
TO 001 431 93 06,BOSCH 62201
A 0034300981 GASKET KIT
TO 002 431 91 06 GRAU 66001
A 0004305106 REPAIR KIT
FOUR-CIRCUIT PROTECTIVE VALVE
WABCO; TO 003 431 50 06
346 N 000125017010 WASHER
Repalced by: N 000125017016
346 N 000125017016 WASHER
FOUR-CIRCUIT PROTECTIVE VALVE TO BRACKET
348 N 080705016003 NUT
FOUR-CIRCUIT PROTECTIVE VALVE TO BRACKET
350 A 0019903971 ELBOW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"10"
352 A 0009909671 ELBOW FITTING
Repalced by: A 0029901271
352 A 0029901271 ELBOW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"10"
353 A 0029902271 ELBOW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"10"
354 N 074305022202 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"10"
356 A 0004290227 THRUST RING
Repalced by: A 0009940203
356 A 0009940203 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"10"
358 A 0009870446 SEALING CORD
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"10"
360 N 915039012205 HOLLOW SCREW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"21,22,23"
362 N 007603016401 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"21,22,23"
364 A 0004296434 ADAPTER FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
366 A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
368 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
370 N 000439016206 NUT
Repalced by: N 308675016001
370 N 308675016001 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"22"
372 A 0034291044 VALVE
EMERGENCY RELEASE VALVE,CONNECTION:
"23"
372 A 0044293744 VALVE
EMERGENCY RELEASE VALVE,CONNECTION:
374 A 0019905268 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
375 A 0019905270 T-FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
375E N 080705016003 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
376 A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
378 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
380 N 915036008202 HOLLOW SCREW
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
380 N 915047008202 HOLLOW SCREW
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
380 N 915036012203 HOLLOW SCREW
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
382 N 007603012405 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
382 N 007603016401 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"24"
390 A 0024310705 BRAKE VALVE
TWO-CIRCUIT
WABCO
390 A 0024311105 BRAKE VALVE
TWO-CIRCUIT
BOSCH
390 A 0024311905 BRAKE VALVE
TWO-CIRCUIT
KNORR
390 A 0014318305 BRAKE VALVE
TWO-CIRCUIT
WABCO
390 A 0014318905 BRAKE VALVE
TWO-CIRCUIT
BOSCH
390 A 0014319105 BRAKE VALVE
TWO-CIRCUIT
KNORR
390 A 0014319905 BRAKE VALVE
TWO-CIRCUIT
GRAU
391 A 0014316993 SPRING
TO 001 431 89 05,BOSCH
391E A 0004312185 FILLER RING
TO 001 431 83 05,WABCO
391K A 0004310273 BREATHER PIPE
TO 001 431 83 05,WABCO
391N A 0004318383 PISTON
TO 001 431 83 05,WABCO
391P A 0004313623 VALVE
WABCO
392 A 0035861143 REPAIR KIT
Repalced by: A 0004306360
392 A 0004306360 REPAIR KIT
Repalced by: A 0004308206
392 A 0004308206 REPAIR KIT
TWO-CIRCUIT BRAKE VALVE
TO 002 431 07 05,WABCO
394 A 0004300160 REPAIR KIT
Repalced by: A 0004303306
394 A 0004303306 REPAIR KIT
TWO-CIRCUIT BRAKE VALVE
TO 002 431 11 05,BOSCH
396 A 0004301160 REPAIR KIT
Repalced by: A 0004306260
396 A 0004306260 REPAIR KIT
Repalced by: A 0014300460
396 A 0014300460 REPAIR KIT
Repalced by: A 0004308006
396 A 0004308006 REPAIR KIT
TWO-CIRCUIT BRAKE VALVE
TO 001 431 83 05,WABCO
396 A 0035861243 REPAIR KIT
TWO-CIRCUIT BRAKE VALVE
TO 001 431 91 05,KNORR
398 A 0025868743 REPAIR KIT
Repalced by: A 0004303506
398 A 0004303506 REPAIR KIT
TWO-CIRCUIT BRAKE VALVE
TO 001 431 89 05,BOSCH
400 A 6202920140 BRACKET
TWO-CIRCUIT BRAKE VALVE
402 N 000933008152 SCREW
Repalced by: N 304017008027
402 N 304017008027 SCREW
TWO-CIRCUIT BRAKE VALVE TO PEDAL BEARING BRACKET
404 N 913004008004 NUT
Repalced by: N 913004008001
404 N 913004008001 NUT
TWO-CIRCUIT BRAKE VALVE TO PEDAL BEARING BRACKET
406 N 915036008202 HOLLOW SCREW
TWO-CIRCUIT BRAKE VALVE,CONNECTION:
"40"
408 N 007603012405 SEAL RING
TWO-CIRCUIT BRAKE VALVE,CONNECTION:
"40"
410 N 915036012203 HOLLOW SCREW
TWO-CIRCUIT BRAKE VALVE, LEFT CONNECTIONS:
"11,12,21,22"
412 N 007603016401 SEAL RING
TWO-CIRCUIT BRAKE VALVE, LEFT CONNECTIONS:
"11,12,21,22"
414 N 000908016001 SCREW PLUG
TWO-CIRCUIT BRAKE VALVE, RIGHT CONNECTIONS:
"11,12,21,22"
416 A 0004290927 THRUST RING
TWO-CIRCUIT BRAKE VALVE, RIGHT CONNECTIONS:
"11,12,21,22"
418 A 0009971548 SEAL RING
TWO-CIRCUIT BRAKE VALVE, RIGHT CONNECTIONS:
"11,12,21,22"
420 A 6174310073 BREATHER PIPE
AT BRAKE VALVE
420 A 6174310173 BREATHER PIPE
AT BRAKE VALVE
430 A 0014306481 VALVE
(PRESSURE RATIO VALVE) FRONT AXLE BRAKE PRESSURE
432 A 0019871746 SEALING CORD
38X3 MM
434 A 0089970445 SEAL RING
34.6X2.6 MM
436 A 0089978648 SEAL RING
28.4X2.6 MM
438 A 0004313223 VALVE
440 N 007603016401 SEAL RING
16X20 MM
442 A 0089978748 SEAL RING
56X1.7 MM
444 N 913004008004 NUT
Repalced by: N 913004008001
444 N 913004008001 NUT
VALVE TO FLOOR
446 A 6204312440 BRACKET
PRESSURE RATIO VALVE
446 A 6204312540 BRACKET
PRESSURE RATIO VALVE
448 N 007976005204 SHEET METAL SCREW
BRACKET TO CAB FLOOR
450 A 0004296134 ADAPTER FITTING
Repalced by: A 0069970072
450 A 0069970072 FITTING
PRESSURE RATIO VALVE,CONNECTION:
"1"
452 N 915036012203 HOLLOW SCREW
PRESSURE RATIO VALVE,CONNECTION:
"1"
454 N 915047012203 HOLLOW SCREW
PRESSURE RATIO VALVE,CONNECTION:
"2"
456 N 000908016001 SCREW PLUG
PRESSURE RATIO VALVE,CONNECTION:
"2"
458 N 007603016401 SEAL RING
PRESSURE RATIO VALVE,CONNECTIONS:
"1,2"
460 A 0004290927 THRUST RING
PRESSURE RATIO VALVE,CONNECTIONS:
"1,2"
462 A 0009971548 SEAL RING
PRESSURE RATIO VALVE,CONNECTIONS:
"1,2"
463 A 0029900271 ELBOW FITTING
BETWEEN THE LINES
463 A 0029900271 ELBOW FITTING
BETWEEN THE LINES
463 A 0029900871 ELBOW FITTING
BETWEEN THE LINES
463 A 0029900871 ELBOW FITTING
BETWEEN THE LINES
464 N 913004008004 NUT
Repalced by: N 913004008001
464 N 913004008001 NUT
ELBOW FITTING TO CAB
464 N 913004008001 NUT
ELBOW FITTING TO CAB
465 N 915036012203 HOLLOW SCREW
ELBOW FITTING,CONNECTION:
"10"
465 N 915036012203 HOLLOW SCREW
ELBOW FITTING,CONNECTION:
"10"
465 N 915047012203 HOLLOW SCREW
ELBOW FITTING,CONNECTION:
"20"
465 N 915047012203 HOLLOW SCREW
ELBOW FITTING,CONNECTION:
"20"
466 N 007603016401 SEAL RING
ELBOW FITTING,CONNECTIONS:
"10,20"
466 N 007603016401 SEAL RING
ELBOW FITTING,CONNECTIONS:
"10,20"
470 A 0004324801 RESERVOIR
Repalced by: A 0014327501
470 A 0014327501 RESERVOIR
Repalced by: A 0034321201
470 A 0034321201 RESERVOIR
FRONT AIR RESERVOIR
20 L
470 A 0034321201 RESERVOIR
FRONT AND REAR
20 L
472 A 0004325101 RESERVOIR
Repalced by: A 0034321301
472 A 0034321301 RESERVOIR
REAR AIR RESERVOIR
20 L
474 A 3874320540 BRACKET
FRONT AIR RESERVOIR
474 A 3874320540 BRACKET
REAR AIR RESERVOIR
476 A 6204300440 STRAP
FRONT AIR RESERVOIR
476 A 6204300240 STRAP
FRONT AIR RESERVOIR
478 A 6204300540 STRAP
FRONT AIR RESERVOIR
478 A 6204301040 STRAP
FRONT AIR RESERVOIR
480 A 3874300640 STRAP
REAR AIR RESERVOIR
482 N 000933008215 SCREW
Repalced by: A 0069909301
482 A 0069909301 SCREW
AIR RESERVOIR TO APPARATUS SUPPORT
482 N 000933008154 SCREW
Repalced by: N 304017008021
482 N 304017008021 SCREW
AIR RESERVOIR TO APPARATUS SUPPORT
484 N 913004008004 NUT
Repalced by: N 913004008001
484 N 913004008001 NUT
AIR RESERVOIR TO APPARATUS SUPPORT
486 N 913004010008 NUT
Repalced by: N 910113010000
486 N 910113010000 NUT
AIR RESERVOIR TO BRACKET
488 A 0019972172 FITTING
FRONT AIR RESERVOIR,CONNECTION:
"13"
489 A 0019909771 ELBOW FITTING
FRONT AIR RESERVOIR,CONNECTION:
"13"
490 A 0019972372 FITTING
REAR AIR RESERVOIR,CONNECTION:
"24"
492 A 0009905168 FITTING
FRONT AIR RESERVOIR,CONNECTION:
"23"
492 A 0009905168 FITTING
FRONT AIR RESERVOIR,CONNECTION:
"13"
492 A 0009905168 FITTING
REAR AIR RESERVOIR,CONNECTION:
"14"
N 000908022001 SCREW PLUG
Repalced by: N 000908022011
N 000908022011 SCREW PLUG
AIR RESERVOIR
N 007603022403 SEAL RING
AIR RESERVOIR
494 A 0004290227 THRUST RING
Repalced by: A 0009940203
494 A 0009940203 THRUST RING
AIR RESERVOIR,CONNECTIONS:
"13,14,23,24"
496 A 0009870446 SEALING CORD
AIR RESERVOIR,CONNECTIONS:
"13,14,23,24"
498 N 915036012203 HOLLOW SCREW
AIR RESERVOIR,CONNECTIONS:
"23,24"
498 N 915036012203 HOLLOW SCREW
FRONT AIR RESERVOIR,CONNECTION:
"13"
500 N 007603016401 SEAL RING
AIR RESERVOIR,CONNECTIONS:
"23,24"
500 N 007603016401 SEAL RING
FRONT AIR RESERVOIR,CONNECTION:
"13"
510 A 0004322601 RESERVOIR
Repalced by: A 0034321801
510 A 0034321801 RESERVOIR
INSIDE AND OUTSIDE AIR RESERVOIRS
30 L
512 A 6204320018 BASE
AIR RESERVOIR,STRAP
514 A 6204300040 STRAP
INSIDE AND OUTSIDE AIR RESERVOIRS
516 N 000933010105 SCREW
STRAP TO SUPPORT
N 001440010002 WASHER
STRAP TO SUPPORT
518 N 913004010008 NUT
Repalced by: N 910113010000
518 N 910113010000 NUT
STRAP TO SUPPORT
520 A 3464320073 LOCK
(PROTECTION AGAINST TORSION)
522 A 0019907368 FITTING
INSIDE AND OUTSIDE AIR RESERVOIRS, CONNECTIONS:
"11,12,21,22"
524 A 0009905168 FITTING
INSIDE AIR RESERVOIR,CONNECTION:
"31"
526 N 000908022001 SCREW PLUG
Repalced by: N 000908022011
526 N 000908022011 SCREW PLUG
OUTSIDE AIR RESERVOIR,CONNECTION:
"32"
528 A 0004290227 THRUST RING
Repalced by: A 0009940203
528 A 0009940203 THRUST RING
AIR RESERVOIR,CONNECTIONS:
"11,12,21,22,31,32"
530 A 0009870446 SEALING CORD
AIR RESERVOIR,CONNECTIONS:
"11,12,21,22,31,32"
532 N 915036012203 HOLLOW SCREW
AIR RESERVOIR,CONNECTIONS:
"11,12,21,22,31"
534 N 007603016401 SEAL RING
AIR RESERVOIR,CONNECTIONS:
"11,12,21,22,31"
536 A 0004322407 VALVE
AIR RESERVOIR DRAIN
536 A 0004321107 VALVE
AIR RESERVOIR DRAIN
536 A 0004322107 VALVE
AIR RESERVOIR DRAIN
A 0005830296 RING
DRAIN VALVE
538 A 0009870446 SEALING CORD
DRAIN VALVE TO AIR RESERVOIR
540 A 0004290227 THRUST RING
Repalced by: A 0009940203
540 A 0009940203 THRUST RING
DRAIN VALVE TO AIR RESERVOIR
550 A 0024299644 VALVE
CHECK
VOSS
554 A 0034291244 VALVE
CHECK
SCHAEFER
556 A 0004290383 VALVE TAPPET
TO 002 429 96 44,VOSS
558 A 0004292584 SEAL RING
TO 002 429 96 44,VOSS
560 A 0002950320 VALVE
TO 003 429 04 44,WABCO
562 A 0089977348 SEAL RING
19.3X2.4 MM,TO 003 429 04 44,WABCO
564 A 0109970048 SEAL RING
13.6X2 MM,TO 003 429 12 44,SCHAEFER
566 A 0109970148 SEAL RING
15.3X2.4 MM,TO 003 429 12 44,SCHAEFER
568 A 0004290662 THRUST WASHER
TO 003 429 12 44,SCHAEFER
570 A 0004290728 SEAL CONE
TO 003 429 12 44,SCHAEFER
572 N 074305022202 NUT
CHECK VALVE TO BRACKET
574 A 6204292540 BRACKET
Repalced by: A 6164290140
574 A 6164290140 BRACKET
CHECK VALVE
576 N 000933010129 SCREW
Repalced by: N 304017010002
576 N 304017010002 SCREW
BRACKET TO LEFT SIDE MEMBER
578 N 913004010008 NUT
Repalced by: N 910113010000
578 N 910113010000 NUT
BRACKET TO LEFT SIDE MEMBER
N 915045012100 SEAL RING
Repalced by: N 007603012121
N 007603012121 SEAL RING
CHECK VALVE,CONNECTION:
"10"
580 N 915036012203 HOLLOW SCREW
CHECK VALVE,CONNECTION:
"21"
582 N 007603016401 SEAL RING
CHECK VALVE,CONNECTION:
"21"
584 N 000908016001 SCREW PLUG
CHECK VALVE,CONNECTION:
"22"
586 A 0004290927 THRUST RING
CHECK VALVE,CONNECTION:
"22"
588 A 0009971548 SEAL RING
CHECK VALVE,CONNECTION:
"22"
590 N 915036010204 HOLLOW SCREW
Repalced by: N 915036010108
590 N 915036010108 HOLLOW SCREW
CHECK VALVE,CONNECTION:
"23"
592 N 007603014405 SEAL RING
CHECK VALVE,CONNECTION:
"23"
600 A 0014296844 VALVE
RELAY
WABCO
602 A 0034291644 VALVE
RELAY
BOSCH
604 A 0034295344 VALVE
RELAY
KNORR
606 A 0014299144 VALVE
RELAY
GRAU
608 A 0059972648 SEAL RING
22.3X2.4 MM,TO 001 429 91 44,GRAU
610 A 0004312788 VALVE SEAT
TO 001 429 91 44,GRAU
612 A 0059972748 SEAL RING
80X3 MM,TO 000 429 28 95,GRAU
614 A 0014311660 SEAL RING
28X2 MM,TO 001 429 91 44,GRAU
616 A 0014311760 SEAL RING
86X2 MM,TO 001 429 91 44,GRAU
618 A 0004311980 GASKET
34X2X6 MM,TO 001 429 91 44,GRAU
620 A 0005865742 REPAIR KIT
TO 001 429 68 44,WABCO
622 A 0025865642 REPAIR KIT
Repalced by: A 0004201071
622 A 0004201071 VALVE
GASKET KIT
TO 003 429 16 44,BOSCH; UP TO 03.82
622 A 0004201271 VALVE
GASKET KIT
TO 003 429 16 44,BOSCH; FROM 04.82
624 A 0025865742 REPAIR KIT
Repalced by: A 0004301109
624 A 0004301109 REPAIR KIT
BLEEDER VALVE
TO 003 429 16 44,BOSCH
626 A 0005863542 REPAIR KIT
TO 003 429 53 44,KNORR
628 N 913004008004 NUT
Repalced by: N 913004008001
628 N 913004008001 NUT
RELAY VALVE TO BRACKET
630 A 3914311240 BRACKET
RELAY VALVE
632 N 000933008147 SCREW
Repalced by: N 304017008021
632 N 304017008021 SCREW
BRACKET TO CROSS MEMBER
634 N 913004008004 NUT
Repalced by: N 913004008001
634 N 913004008001 NUT
BRACKET TO CROSS MEMBER
636 A 0009905168 FITTING
RELAY VALVE,CONNECTION:
"1"
638 A 0004290227 THRUST RING
Repalced by: A 0009940203
638 A 0009940203 THRUST RING
RELAY VALVE,CONNECTION:
"1"
640 A 0009870446 SEALING CORD
RELAY VALVE,CONNECTION:
"1"
642 N 915036012203 HOLLOW SCREW
RELAY VALVE;CONNECTIONS:
"1,2,4"
644 N 007603016401 SEAL RING
RELAY VALVE;CONNECTIONS:
"1,2,4"
646 N 000908016001 SCREW PLUG
RELAY VALVE,CONNECTION "2",LEFT
648 A 0004290927 THRUST RING
RELAY VALVE,CONNECTION "2",LEFT
650 A 0009971548 SEAL RING
RELAY VALVE,CONNECTION "2",LEFT
660 A 0014316312 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
662 A 0004303660 REPAIR KIT
BRAKE POWER REGULATOR
664 N 000125008418 WASHER
Repalced by: N 000125008443
664 N 000125008443 WASHER
BRAKE POWER REGULATOR TO BRACKET
666 N 913004008004 NUT
Repalced by: N 913004008001
666 N 913004008001 NUT
BRAKE POWER REGULATOR TO BRACKET
668 A 6234310140 BRACKET
BRAKE POWER REGULATOR
670 N 000933008147 SCREW
Repalced by: N 304017008021
670 N 304017008021 SCREW
BRACKET TO CROSS MEMBER
672 N 913004008004 NUT
Repalced by: N 913004008001
672 N 913004008001 NUT
BRACKET TO CROSS MEMBER
674 A 6165840321 GUIDE SIGN
LOAD-DEPENDING BRAKE
674 A 6165840421 GUIDE SIGN
LOAD-DEPENDING BRAKE
A 3875840055 ADHESIVE FOIL
676 N 915036012203 HOLLOW SCREW
BRAKE POWER REGULATOR,CONNECTIONS:
"1,2"
677 N 000908016001 SCREW PLUG
BRAKE POWER REGULATOR,CONNECTION:
"2"
678 A 0004290927 THRUST RING
BRAKE POWER REGULATOR,CONNECTION:
"2"
679 A 0009971548 SEAL RING
BRAKE POWER REGULATOR,CONNECTION:
"2"
680 N 915039012205 HOLLOW SCREW FITTING
BRAKE POWER REGULATOR,CONNECTION:
"4"
682 N 007603016401 SEAL RING
BRAKE POWER REGULATOR,CONNECTIONS:
"1,2,4"
684 N 915047008202 HOLLOW SCREW
BRAKE POWER REGULATOR,CONNECTIONS:
"41,42"
686 N 007603012405 SEAL RING
BRAKE POWER REGULATOR,CONNECTIONS:
"41,42"
688 N 915040012206 HOLLOW SCREW FITTING
LEFT TRISTOP CYLINDER,CONNECTION:
"11"
688 N 915040012206 HOLLOW SCREW FITTING
RIGHT TRISTOP CYLINDER,CONNECTION:
"12"
688 N 915039012205 HOLLOW SCREW FITTING
LEFT TRISTOP CYLINDER,CONNECTION:
"12"
692 N 915036012203 HOLLOW SCREW
RIGHT TRISTOP CYLINDER,CONNECTION:
"11"
694 N 007603016401 SEAL RING
TRISTOP CYLINDER;CONNECTIONS:
"11,12"
700 A 0014303481 VALVE
PARKING BRAKE
BOSCH
700 A 0014305681 VALVE
PARKING BRAKE
WABCO
700 A 0014306681 VALVE
Repalced by: A 0024309881
700 A 0024309881 VALVE
PARKING BRAKE
KNORR
700 A 0014304381 VALVE
PARKING BRAKE
BOSCH
700 A 0014305781 VALVE
PARKING BRAKE
WABCO
700 A 0014306781 VALVE
Repalced by: A 0024309981
700 A 0024309981 VALVE
PARKING BRAKE
KNORR
701 A 0014311287 PROTECTIVE CAP
KNORR
701 A 0014310887 PROTECTIVE CAP
WABCO
701 A 0014311087 PROTECTIVE CAP
BOSCH
702 A 0009975577 HANDLE
KNORR
702 A 0009972477 HANDLE
WABCO
702 A 0009973477 HANDLE
BOSCH
703 N 001481003025 CLAMPING SLEEVE
KNORR
704 A 0025867443 REPAIR KIT
Repalced by: A 0034303181
704 A 0034303181 REPAIR KIT
PARKING BRAKE VALVE
WABCO
704 A 0025866343 REPAIR KIT
PARKING BRAKE VALVE
BOSCH
A 0034302081 REPAIR KIT
TO 002 430 98 81,002 430 99 81,KNORR
710 N 007985008119 SCREW
PARKING BRAKE VALVE TO CAB
712 N 912006008000 LOCK WASHER
PARKING BRAKE VALVE TO CAB
714 A 0009976189 COUPLING
LINE TO HAND BRAKE VALVE
716 A 0099973948 SEAL RING
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
