Transporto priemonė: 1420 LS; VIN numerio dalis: 616542

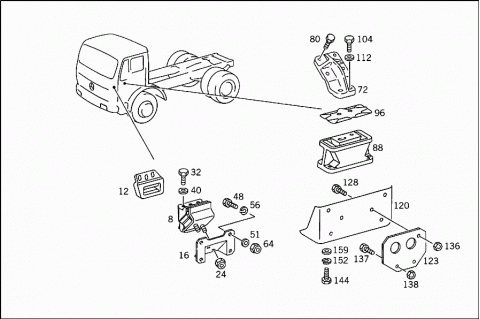

Grupė: 24 ENGINE SUSPENSION - 001 RUBBER MOUNTING TO ENGINE SUPPORT
| # | Kodas | Pavadinimas |
|---|---|---|
| 008 | A 3832401017 | RUBBER MOUNTING |
| Repalced by: A 6162400017 | ||
| 008 | A 6162400017 | RUBBER MOUNTING |
| ADJUSTABLE;FRONMT | ||
| 008 | A 3832401517 | RUBBER MOUNTING |
| Repalced by: A 6162400117 | ||
| 008 | A 6162400117 | RUBBER MOUNTING |
| ADJUSTABLE;FRONMT | ||
| 008 | A 3832402017 | RUBBER MOUNTING |
| Repalced by: A 6162400217 | ||
| 008 | A 6162400217 | RUBBER MOUNTING |
| ADJUSTABLE;FRONMT | ||
| 008 | A 3832401717 | RUBBER MOUNTING |
| Repalced by: A 3832400917 | ||
| 008 | A 3832400917 | RUBBER MOUNTING |
| ADJUSTABLE;FRONMT | ||
| 008 | A 6172400017 | RUBBER MOUNTING |
| ADJUSTABLE;FRONMT | ||
| 008 | A 6172400117 | RUBBER MOUNTING |
| ADJUSTABLE;FRONMT | ||
| 010 | A 6152400317 | RUBBER MOUNTING |
| ENGINE FRONT MOUNTING | ||
| 012 | A 0002420043 | STOP |
| ENGINE FRONT MOUNTING | ||
| TO 383 240 10 17,383 240 09 17, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 616 240 00 17,617 240 00 17 | ||
| 016 | A 6172410035 | BEARING BRACKET |
| RUBBER MOUNTING TO FRAME | ||
| 016 | A 3832410335 | BEARING BRACKET |
| RUBBER MOUNTING TO FRAME | ||
| 018 | A 3813120105 | ENGINE CROSS MEMBER |
| ENGINE FRONT SUSPENSION | ||
| 020 | A 3812410609 | ENGINE STAY |
| ENGINE FRONT SUSPENSION | ||
| 024 | N 910113012002 | NUT |
| RUBBER MOUNTING TO BEARING BRACKET | ||
| 032 | N 000961016092 | SCREW |
| RUBBER MOUNTING TO ENGINE SUPPORTING ARM | ||
| 034 | N 000961016088 | SCREW |
| Repalced by: N 000961016097 | ||
| 034 | N 000961016097 | SCREW |
| Repalced by: N 308676016005 | ||
| 034 | N 308676016005 | SCREW |
| RUBBER MOUNTING TO ENGINE SUPPORTING ARM | ||
| 040 | A 3529902440 | WASHER |
| RUBBER MOUNTING TO ENGINE SUPPORTING ARM | ||
| 048 | N 000961012164 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| M 12X28 | ||
| N 000961012151 | SCREW | |
| ENGINE STAY TO SIDE MEMBER | ||
| M 12X30 | ||
| 048 | N 000961012106 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| M 12X32 | ||
| 048 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 048 | N 308676012026 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| M 12X35 | ||
| 048 | N 308676012026 | SCREW |
| ENGINE FRONT CROSS MEMBER TO ENGINE STAY | ||
| M 12X35 | ||
| 048 | N 308676012026 | SCREW |
| ENGINE STAY TO SIDE MEMBER | ||
| M 12X35 | ||
| 048 | N 308676012026 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| M 12X35 | ||
| 048 | N 000961012122 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| M 12X40 | ||
| 048 | N 000961012122 | SCREW |
| ENGINE STAY TO SIDE MEMBER | ||
| M 12X40 | ||
| 051 | A 3859901040 | WASHER |
| BEARING BRACKET TO SIDE MEMBER | ||
| 051 | A 3859901040 | WASHER |
| ENGINE FRONT CROSS MEMBER TO ENGINE STAY | ||
| 056 | N 912004012100 | LOCK WASHER |
| BEARING BRACKET TO SIDE MEMBER | ||
| 064 | N 910113012002 | NUT |
| BEARING BRACKET TO SIDE MEMBER | ||
| 064 | N 910113012002 | NUT |
| ENGINE FRONT CROSS MEMBER TO ENGINE STAY | ||
| 064 | N 910113012002 | NUT |
| ENGINE STAY TO SIDE MEMBER | ||
| 072 | A 6172420105 | SUPPORTING ARM |
| REAR | ||
| 074 | A 3812420305 | SUPPORTING ARM |
| REAR | ||
| 076 | N 000933016072 | SCREW |
| Repalced by: N 304017016004 | ||
| 076 | N 304017016004 | SCREW |
| SUPPORTING ARM TO BELL HOUSING | ||
| 080 | N 000961018041 | SCREW |
| Repalced by: N 308676018001 | ||
| 080 | N 308676018001 | SCREW |
| SUPPORTING ARM TO BELL HOUSING | ||
| 088 | A 3012400918 | RUBBER MOUNTING |
| Repalced by: A 6162400618 | ||
| 088 | A 6162400618 | RUBBER MOUNTING |
| REAR | ||
| 088 | A 3012401418 | RUBBER MOUNTING |
| Repalced by: A 6162400718 | ||
| 088 | A 6162400718 | RUBBER MOUNTING |
| REAR | ||
| 088 | A 3012401818 | RUBBER MOUNTING |
| Repalced by: A 6162400818 | ||
| 088 | A 6162400818 | RUBBER MOUNTING |
| REAR | ||
| 088 | A 3872400218 | RUBBER MOUNTING |
| Repalced by: A 6172400318 | ||
| 088 | A 6172400318 | RUBBER MOUNTING |
| Repalced by: A 6452400118 | ||
| 088 | A 6452400118 | RUBBER MOUNTING |
| REAR | ||
| 088 | A 3832400718 | RUBBER MOUNTING |
| Repalced by: A 6172400418 | ||
| 088 | A 6172400418 | RUBBER MOUNTING |
| Repalced by: A 6452400018 | ||
| 088 | A 6452400018 | RUBBER MOUNTING |
| REAR | ||
| 088 | A 3872400418 | RUBBER MOUNTING |
| Repalced by: A 6172400518 | ||
| 088 | A 6172400518 | RUBBER MOUNTING |
| Repalced by: A 6452400218 | ||
| 088 | A 6452400218 | RUBBER MOUNTING |
| REAR | ||
| 091 | A 6152400018 | RUBBER MOUNTING |
| REAR | ||
| 091 | A 6152400118 | RUBBER MOUNTING |
| REAR | ||
| 096 | A 3832420034 | SCREENING PLATE |
| ENGINE REAR MOUNTING | ||
| 098 | A 3812420034 | SCREENING PLATE |
| ENGINE REAR MOUNTING | ||
| 100 | N 000961014101 | SCREW |
| Repalced by: N 308676014012 | ||
| 100 | N 308676014012 | SCREW |
| RUBBER MOUNTING TO SUPPORTING ARM | ||
| 100 | N 000961014116 | SCREW |
| RUBBER MOUNTING TO SUPPORTING ARM | ||
| 104 | N 000961016039 | SCREW |
| RUBBER MOUNTING TO SUPPORTING ARM | ||
| 108 | A 3609901840 | WASHER |
| RUBBER MOUNTING TO SUPPORTING ARM | ||
| 112 | A 3529902440 | WASHER |
| RUBBER MOUNTING TO SUPPORTING ARM | ||
| 120 | A 6172420002 | SUPPORT |
| Repalced by: A 3962420002 | ||
| 120 | A 3962420002 | SUPPORT |
| ENGINE REAR MOUNTING | ||
| 121 | A 3812400106 | CONSOLE |
| ENGINE LEFT SUPPORT | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| DELIVER ADDITIONALLY: | ||
| 2X 000961 012097 | ||
| 121 | A 3812400206 | CONSOLE |
| ENGINE RIGHT SUPPORT | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| DELIVER ADDITIONALLY: | ||
| 2X 000961 012097 | ||
| 123 | A 6172420032 | REINFORCEMENT |
| CONSOLE TO SIDE MEMBER | ||
| 124 | A 6172420132 | REINFORCEMENT |
| CONSOLE TO SIDE MEMBER | ||
| 126 | N 000961012106 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 126 | N 308676012010 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 128 | N 000961014088 | SCREW |
| Repalced by: N 308676014008 | ||
| 128 | N 308676014008 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14X35 | ||
| 128 | N 000961014119 | SCREW |
| Repalced by: A 9429901304 | ||
| 128 | A 9429901304 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14X38 | ||
| 131 | N 910113012002 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 136 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 136 | N 910113014000 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 137 | N 000933010202 | SCREW |
| Repalced by: N 304017010047 | ||
| 137 | N 304017010047 | SCREW |
| REINFORCEMENT TO SIDE MEMBER | ||
| 137 | N 000933012133 | SCREW |
| Repalced by: N 304017012013 | ||
| 137 | N 304017012013 | SCREW |
| 138 | N 913004010011 | NUT |
| REINFORCEMENT TO SIDE MEMBER | ||
| 138 | N 913004012007 | NUT |
| Repalced by: N 910113012005 | ||
| 138 | N 910113012005 | NUT |
| REINFORCEMENT TO SIDE MEMBER | ||
| 140 | N 000961012164 | SCREW |
| REAR RUBBER MOUNTING TO CONSOLE | ||
| 144 | N 000961012151 | SCREW |
| REAR RUBBER MOUNTING TO CONSOLE | ||
| M 12X30 | ||
| 144 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 144 | N 308676012026 | SCREW |
| REAR RUBBER MOUNTING TO CONSOLE | ||
| M 12X35 | ||
| 152 | N 912004012100 | LOCK WASHER |
| REAR RUBBER MOUNTING TO CONSOLE | ||
| 159 | N 000125013008 | WASHER |
