Transporto priemonė: 1420 LS; VIN numerio dalis: 616542
Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|

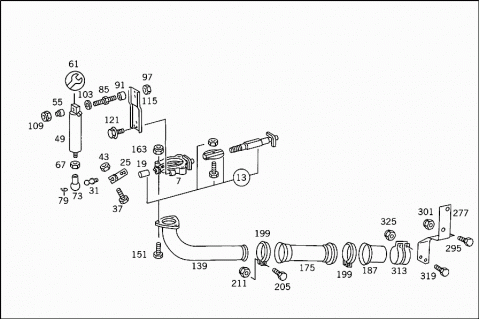

| 007 | A 3661402353 | THROTTLE HOUSING |
| Repalced by: A 3661405353 | ||
| 007 | A 3661405353 | THROTTLE HOUSING |
| PARTS KIT | ||
| 013 | A 3661401163 | VALVE |
| PARTS KIT | ||
| 019 | A 4031440550 | BUSHING |
| THROTTLE VALVE SHAFT | ||
| 025 | A 3661400032 | LEVER |
| Repalced by: A 3661400232 | ||
| 025 | A 3661400232 | LEVER |
| 031 | N 071803013208 | BALL PIVOT |
| 037 | N 000933006124 | SCREW |
| LEVER TO THROTTLE VALVE SHAFT | ||
| TO 366 140 00 32 | ||
| 037 | N 914126006025 | SCREW |
| Repalced by: N 910105006005 | ||
| 037 | N 910105006005 | SCREW |
| Repalced by: N 000000001479 | ||
| 037 | N 000000001479 | SCREW |
| LEVER TO THROTTLE VALVE SHAFT | ||
| TO 366 140 02 32 | ||
| 043 | N 000934006007 | NUT |
| LEVER TO THROTTLE VALVE SHAFT | ||
| TO 366 140 00 32 | ||
| 043 | N 913017006000 | NUT |
| Repalced by: N 910112006001 | ||
| 043 | N 910112006001 | NUT |
| Repalced by: N 913023006001 | ||
| 043 | N 913023006001 | NUT |
| LEVER TO THROTTLE VALVE SHAFT | ||
| TO 366 140 02 32 | ||
| 049 | A 0004303026 | CYLINDER |
| Repalced by: A 0004304826 | ||
| 049 | A 0004304826 | CYLINDER |
| Repalced by: A 0004306026 | ||
| 049 | A 0004303226 | CYLINDER |
| Repalced by: A 0004304926 | ||
| 049 | A 0004304926 | CYLINDER |
| Repalced by: A 0004306026 | ||
| 049 | A 0004306026 | CYLINDER |
| Repalced by: A 0004305926 | ||
| 049 | A 0004305926 | CYLINDER |
| (POWER CYLINDER),EXHAUST BRAKE | ||
| MOTORBREMSE TECHNOMATIK | ||
| 055 | A 0004340550 | BUSHING |
| Repalced by: A 0004340850 | ||
| 055 | A 0004340850 | BUSHING |
| TO 000 430 30 26/32 26 | ||
| 055 | A 4421440050 | BUSHING |
| TO 000 430 48 26/49 26 | ||
| 061 | A 0004308460 | REPAIR KIT |
| SHIFTING CYLINDER | ||
| TO KNORR,SZ 1130 I/7493,000 430 30 26 | ||
| 061 | A 0004305426 | REPAIR KIT |
| TO KNORR,000 430 48 26 | ||
| 067 | N 000439008211 | NUT |
| Repalced by: N 304035008001 | ||
| 067 | N 304035008001 | NUT |
| SHIFTING CYLINDER TO SHIFT LEVER | ||
| 073 | A 4039910222 | BALL SOCKET |
| SHIFTING CYLINDER TO SHIFT LEVER | ||
| 073 | A 3769917022 | BALL SOCKET |
| SHIFTING CYLINDER TO SHIFT LEVER | ||
| 079 | N 071805013402 | SECURING CLIP |
| SHIFTING CYLINDER TO SHIFT LEVER | ||
| 085 | A 4221440174 | PIN |
| Repalced by: A 4421440574 | ||
| 085 | A 4421440574 | PIN |
| SHIFTING CYLINDER TO BRACKET | ||
| 085 | A 4421440274 | PIN |
| 091 | N 007349008003 | WASHER |
| SHIFTING CYLINDER TO BRACKET | ||
| 097 | N 304032008006 | NUT |
| SHIFTING CYLINDER TO BRACKET | ||
| 103 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 103 | N 000125008443 | WASHER |
| SHIFTING CYLINDER TO BRACKET | ||
| A 0039902940 | WASHER | |
| SHIFTING CYLINDER | ||
| 109 | N 999900008005 | NUT |
| SHIFTING CYLINDER TO BRACKET | ||
| 115 | A 3661440040 | BRACKET |
| Repalced by: A 3661440440 | ||
| 115 | A 3661440440 | BRACKET |
| SHIFTING CYLINDER | ||
| 121 | N 914126008007 | SCREW |
| BRACKET TO THROTTLE HOUSING | ||

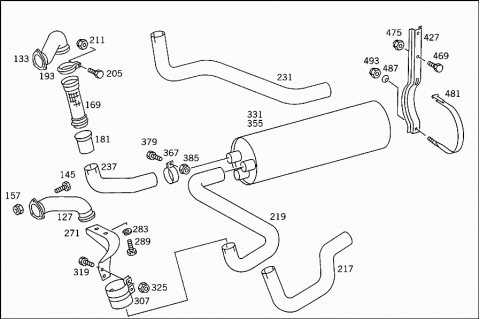

| 127 | A 6174900825 | CONNECTOR |
| LEFT FRONT | ||
| 133 | A 6174900925 | CONNECTOR |
| RIGHT FRONT | ||
| 139 | A 6164900919 | EXHAUST PIPE |
| FRONT,FRONT PART | ||
| A 6164902319 | EXHAUST PIPE | |
| FRONT,FRONT PART | ||
| 145 | N 000931012114 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 12X45 | ||
| N 000933012071 | SCREW | |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 12X40 | ||
| 151 | N 000960012221 | SCREW |
| EXHAUST PIPE AND THROTTLE HOUSING TO EXHAUST MANIFOLD | ||
| 12X80 | ||
| N 000960012224 | SCREW | |
| Repalced by: N 000961012208 | ||
| N 000961012208 | SCREW | |
| EXHAUST PIPE AND THROTTLE HOUSING TO EXHAUST MANIFOLD | ||
| 12X75 | ||
| 157 | N 913004012010 | NUT |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 163 | N 910113012002 | NUT |
| EXHAUST PIPE AND THROTTLE HOUSING TO EXHAUST MANIFOLD | ||
| A 6524920230 | PROTECTIVE PLATE | |
| A 6764921641 | BRACKET | |
| Repalced by: A 6764901040 | ||
| A 6764901040 | BRACKET | |
| PROTECTIVE PLATE | ||
| A 4609900601 | SCREW | |
| PROTECTIVE PLATE TO BRACKET | ||
| N 913004008004 | NUT | |
| Repalced by: N 913004008001 | ||
| N 913004008001 | NUT | |
| PROTECTIVE PLATE TO BRACKET | ||
| N 000125008418 | WASHER | |
| Repalced by: N 000125008443 | ||
| N 000125008443 | WASHER | |
| PROTECTIVE PLATE TO BRACKET | ||
| 169 | A 6204900365 | FLEXIBLE METAL TUBE |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 175 | A 6204900465 | FLEXIBLE METAL TUBE |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 181 | A 6204920008 | COLLAR |
| Repalced by: A 6524920008 | ||
| 181 | A 6524920008 | COLLAR |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 181 | A 6174920008 | COLLAR |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 187 | A 6204920208 | COLLAR |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 193 | A 6209970490 | CLAMP |
| EXHAUST LINE FLEXIBLE METAL TUBE | ||
| 199 | A 6209970590 | CLAMP |
| EXHAUST LINE FLEXIBLE METAL TUBE | ||
| 205 | N 000933008161 | SCREW |
| Repalced by: N 304017008028 | ||
| 205 | N 304017008028 | SCREW |
| CLAMP TO EXHAUST PIPE AND TO FLEXIBLE METAL TUBE | ||
| 211 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 211 | N 913004008001 | NUT |
| CLAMP TO EXHAUST PIPE AND TO FLEXIBLE METAL TUBE | ||
| A 6174901220 | EXHAUST PIPE | |
| Repalced by: A 6174904720 | ||
| 217 | A 6174904720 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 219 | A 6194901920 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 219 | A 6194901320 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| A 6174901620 | EXHAUST PIPE | |
| Repalced by: A 6174904020 | ||
| 219 | A 6174904020 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| A 6174901820 | EXHAUST PIPE | |
| Repalced by: A 6174904120 | ||
| 219 | A 6174904120 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| A 6174901320 | EXHAUST PIPE | |
| Repalced by: A 6174904820 | ||
| 231 | A 6174904820 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 237 | A 6194902020 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 237 | A 6194901220 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| A 6174901720 | EXHAUST PIPE | |
| Repalced by: A 6174905020 | ||
| 237 | A 6174905020 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| A 6174901920 | EXHAUST PIPE | |
| Repalced by: A 6174904220 | ||
| 237 | A 6174904220 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||

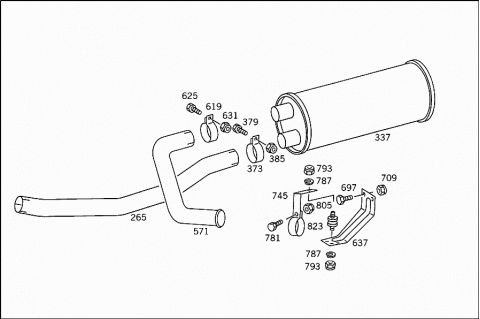

| 265 | A 6164901620 | EXHAUST PIPE |
| FRONT,REAR PART | ||
| A 6164902120 | EXHAUST PIPE | |
| FRONT,REAR PART | ||
| A 6194903320 | EXHAUST PIPE | |
| FRONT,REAR PART | ||
| 271 | A 6174922941 | BRACKET |
| LEFT EXHAUST PIPE | ||
| 271 | A 6174923041 | BRACKET |
| RIGHT EXHAUST PIPE | ||
| 277 | A 6164900340 | BRACKET |
| FRONT EXHAUST PIPE | ||
| A 6164900540 | BRACKET | |
| Repalced by: A 6504920241 | ||
| A 6504920241 | BRACKET | |
| FRONT EXHAUST PIPE | ||
| 283 | N 912004014100 | LOCK WASHER |
| BRACKET TO CROSS MEMBER | ||
| 283 | N 912004014100 | LOCK WASHER |
| BRACKET TO CROSS MEMBER | ||
| 289 | N 000961014100 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 289 | N 000961014100 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 295 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 295 | N 308676014020 | SCREW |
| BRACKET TO LEFT SIDE MEMBER | ||
| 301 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 301 | N 910113014001 | NUT |
| BRACKET TO LEFT SIDE MEMBER | ||
| 307 | A 6204920840 | CLAMP |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 313 | A 6204920940 | CLAMP |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 319 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 319 | N 304017010002 | SCREW |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 325 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 325 | N 910113010000 | NUT |
| FRONT EXHAUST PIPE TO BRACKET | ||
| A 3834901030 | PROTECTIVE PLATE | |
| FRONT EXHAUST PIPE | ||
| N 071555090501 | CLAMP | |
| Repalced by: N 071555090502 | ||
| N 071555090502 | CLAMP | |
| PROTECTIVE PLATE TO FRONT EXHAUST PIPE | ||
| N 000933010129 | SCREW | |
| Repalced by: N 304017010002 | ||
| N 304017010002 | SCREW | |
| PROTECTIVE PLATE TO FRONT EXHAUST PIPE | ||
| N 913004010008 | NUT | |
| Repalced by: N 910113010000 | ||
| N 910113010000 | NUT | |
| PROTECTIVE PLATE TO FRONT EXHAUST PIPE | ||
| 331 | A 6174900001 | EXHAUST MUFFLER |
| 337 | A 6164900401 | EXHAUST MUFFLER |
| 343 | A 6174900101 | EXHAUST MUFFLER |
| 349 | A 3874900601 | EXHAUST MUFFLER |
| 355 | A 6174901901 | EXHAUST MUFFLER |
| 361 | A 6164900501 | EXHAUST MUFFLER |
| 367 | N 071555078502 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 373 | N 071555094501 | CLAMP |
| Repalced by: N 071555094502 | ||
| 373 | N 071555094502 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 379 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 379 | N 304017010002 | SCREW |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 385 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 385 | N 910113010000 | NUT |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 397 | A 6174910616 | SUPPORT |
| FRONT EXHAUST MUFFLER | ||
| 397 | A 6174911216 | SUPPORT |
| FRONT EXHAUST MUFFLER | ||
| 409 | N 000933012151 | SCREW |
| Repalced by: N 304017012022 | ||
| 409 | N 304017012022 | SCREW |
| SUPPORT TO CROSS MEMBER | ||
| 409 | N 000961012151 | SCREW |
| SUPPORT TO CROSS MEMBER | ||
| 415 | N 910113012002 | NUT |
| SUPPORT TO CROSS MEMBER | ||
| 415 | N 910113012002 | NUT |
| SUPPORT TO CROSS MEMBER | ||
| 421 | A 6174900034 | SUPPORT |
| REAR EXHAUST MUFFLER | ||
| 427 | A 6174910541 | BRACKET |
| EXHAUST MUFFLER TO FRAME | ||
| 427 | A 6174910541 | BRACKET |
| EXHAUST MUFFLER TO FRAME | ||
| A 6174911841 | BRACKET | |
| EXHAUST MUFFLER TO FRAME | ||
| 433 | N 000933010157 | SCREW |
| SUPPORT TO SUPPORT | ||
| 433 | N 000933010157 | SCREW |
| SUPPORT TO CROSS MEMBER | ||
| 439 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 439 | N 910113010000 | NUT |
| SUPPORT TO SUPPORT | ||
| 439 | N 910113010000 | NUT |
| SUPPORT TO CROSS MEMBER | ||
| 445 | A 6174911316 | SUPPORT |
| REAR EXHAUST MUFFLER | ||
| 445 | A 6174911316 | SUPPORT |
| REAR EXHAUST MUFFLER | ||
| 451 | A 6164920018 | BASE PLATE |
| SUPPORT TO SUPPORT | ||
| 457 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 457 | N 304017010002 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 463 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 463 | N 910113010000 | NUT |
| SUPPORT TO FRAME | ||
| 463 | N 910113010000 | NUT |
| SUPPORT TO SUPPORT | ||
| 469 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 469 | N 308676014020 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 14X35 | ||
| N 000961014027 | SCREW | |
| BRACKET TO SIDE MEMBER | ||
| M 14X30 | ||
| 475 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 475 | N 910113014001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 481 | A 6174900142 | STRAP |
| FRONT AND REAR EXHAUST MUFFLERS | ||
| 487 | N 006319010302 | SPHERICAL WASHER |
| STRAP TO BRACKET | ||
| 493 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 493 | N 910113010000 | NUT |
| STRAP TO BRACKET | ||
| 499 | A 6174920141 | BRACKET |
| EXHAUST MUFFLER TO SUPPORT | ||
| 499 | A 6174920141 | BRACKET |
| EXHAUST MUFFLER TO SUPPORT | ||
| 505 | A 6174923441 | BRACKET |
| REAR EXHAUST MUFFLER | ||
| 505 | A 6174923441 | BRACKET |
| REAR EXHAUST MUFFLER | ||
| 505 | A 6164920041 | BRACKET |
| REAR EXHAUST MUFFLER | ||
| 511 | A 3814920082 | DAMPING PAD |
| BRACKET TO SUPPORT | ||
| 511 | A 3814920082 | DAMPING PAD |
| BRACKET TO SUPPORT | ||
| A 6174910340 | CLAMP | |
| Repalced by: A 6174910540 | ||
| 523 | A 6174910540 | CLAMP |
| EXHAUST MUFFLER TO BRACKET,FRONT AND REAR | ||
| 523 | A 6164910040 | CLAMP |
| EXHAUST MUFFLER TO BRACKET,FRONT AND REAR | ||
| 535 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 535 | N 304017010002 | SCREW |
| EXHAUST MUFFLER TO BRACKET,FRONT AND REAR | ||
| 535 | N 000933010094 | SCREW |
| EXHAUST MUFFLER TO BRACKET,FRONT AND REAR | ||
| 541 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 541 | N 910113010000 | NUT |
| EXHAUST MUFFLER TO BRACKET,FRONT AND REAR | ||
| 541 | N 910113010000 | NUT |
| EXHAUST MUFFLER TO BRACKET,FRONT AND REAR | ||
| 547 | A 6174921114 | END PIECE |
| 559 | A 6164920714 | END PIECE |
| 559 | A 6194921204 | REAR EXHAUST PIPE |
| TAIL PIPE,FRONT | ||
| 559 | A 6194923104 | REAR EXHAUST PIPE |
| TAIL PIPE,FRONT | ||
| 571 | A 6164921514 | END PIECE |
| Repalced by: A 6164922314 | ||
| A 6164922314 | END PIECE | |
| A 6194920514 | END PIECE | |
| 577 | A 6174920004 | REAR EXHAUST PIPE |
| Repalced by: A 6174920204 | ||
| 577 | A 6174920204 | REAR EXHAUST PIPE |
| 583 | A 6164921914 | END PIECE |
| A 6194920714 | END PIECE | |
| 589 | A 6194922004 | REAR EXHAUST PIPE |
| TAIL PIPE,FRONT | ||
| 595 | A 6194921904 | REAR EXHAUST PIPE |
| TAIL PIPE,FRONT | ||
| 601 | A 6194922104 | REAR EXHAUST PIPE |
| TAIL PIPE,FRONT | ||
| 607 | A 3974920404 | REAR EXHAUST PIPE |
| A 6174920514 | END PIECE | |
| Repalced by: A 6174920604 | ||
| 613 | A 6174920604 | REAR EXHAUST PIPE |
| 619 | N 071555090501 | CLAMP |
| Repalced by: N 071555090502 | ||
| 619 | N 071555090502 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 625 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 625 | N 304017010002 | SCREW |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 631 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 631 | N 910113010000 | NUT |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 637 | A 6164920316 | SUPPORT |
| REAR EXHAUST PIPE | ||
| 643 | A 3814910416 | SUPPORT |
| REAR EXHAUST PIPE | ||
| A 3814910616 | SUPPORT | |
| Repalced by: A 3464920841 | ||
| 649 | A 3464920841 | BRACKET |
| REAR EXHAUST PIPE | ||
| A 3814910616 | SUPPORT | |
| Repalced by: A 3814920316 | ||
| 655 | A 3814920316 | SUPPORT |
| REAR EXHAUST PIPE | ||
| 691 | A 3814910116 | SUPPORT |
| REAR EXHAUST PIPE | ||
| 697 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 697 | N 304017010002 | SCREW |
| SUPPORT TO FRONT APPARATUS SUPPORT | ||
| 697 | N 304017010002 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 703 | N 000933008150 | SCREW |
| Repalced by: N 304017008018 | ||
| 703 | N 304017008018 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 709 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 709 | N 910113010000 | NUT |
| SUPPORT TO FRONT APPARATUS SUPPORT | ||
| 715 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 715 | N 913004008001 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 715 | N 913004008001 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 721 | A 6174911316 | SUPPORT |
| TAIL PIPE,FRONT | ||
| 727 | N 000933010157 | SCREW |
| SUPPORT TO SUPPORT | ||
| 733 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 733 | N 910113010000 | NUT |
| SUPPORT TO SUPPORT | ||
| 739 | A 6174923641 | BRACKET |
| TAIL PIPE,FRONT | ||
| 745 | A 6164923041 | BRACKET |
| Repalced by: A 6164920141 | ||
| 745 | A 6164920141 | BRACKET |
| Repalced by: A 6164920241 | ||
| 745 | A 6164920241 | BRACKET |
| TAIL PIPE,FRONT | ||
| A 6164924341 | BRACKET | |
| Repalced by: A 6164920141 | ||
| A 6164920141 | BRACKET | |
| Repalced by: A 6164920241 | ||
| A 6164920241 | BRACKET | |
| TAIL PIPE,FRONT | ||
| 751 | A 6174920941 | BRACKET |
| TAIL PIPE,FRONT | ||
| 757 | A 6194921041 | BRACKET |
| TAIL PIPE,FRONT | ||
| 757 | A 6194921141 | BRACKET |
| TAIL PIPE,FRONT | ||
| 757 | A 6194921341 | BRACKET |
| TAIL PIPE,FRONT | ||
| 775 | A 6194921441 | BRACKET |
| TAIL PIPE,FRONT | ||
| A 6214921741 | BRACKET | |
| Repalced by: A 6244920741 | ||
| 775 | A 6244920741 | BRACKET |
| TAIL PIPE,FRONT | ||
| 781 | N 000933010105 | SCREW |
| BRACKET TO HYDRAULIC PUMP BRACKET | ||
| 781 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 781 | N 304017010002 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 781 | N 304017010002 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 781 | N 304017010002 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 781 | N 304017010002 | SCREW |
| BRACKET TO HYDRAULIC PUMP BRACKET | ||
| 787 | N 912004010102 | LOCK WASHER |
| BRACKET TO SUPPORT | ||
| 793 | N 000934010014 | NUT |
| BRACKET TO SUPPORT | ||
| 799 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 799 | N 304017008034 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 805 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 805 | N 910113010000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 805 | N 910113010000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 805 | N 910113010000 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 805 | N 910113010000 | NUT |
| BRACKET TO HYDRAULIC PUMP BRACKET | ||
| 811 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 811 | N 913004008001 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 817 | A 3814920082 | DAMPING PAD |
| BRACKET TO SUPPORT | ||
| A 3834920082 | DAMPING PAD | |
| BRACKET TO SUPPORT | ||
| 823 | A 0019875340 | RUBBER BUFFER |
| BRACKET TO SUPPORT | ||
| 829 | A 3954920040 | CLAMP |
| Repalced by: A 6454921140 | ||
| 829 | A 6454921140 | CLAMP |
| TAIL PIPE AT FRONT TO BRACKET | ||
| 90 MM | ||
| 829 | A 6454921140 | CLAMP |
| TAIL PIPE AT FRONT TO BRACKET | ||
| 90 MM | ||
| 835 | N 071555090501 | CLAMP |
| Repalced by: N 071555090502 | ||
| 835 | N 071555090502 | CLAMP |
| TAIL PIPE AT FRONT TO BRACKET | ||
| 90,5 MM | ||
| 835 | N 071555090502 | CLAMP |
| TAIL PIPE AT FRONT TO BRACKET | ||
| 90,5 MM | ||
| 835 | N 071555090502 | CLAMP |
| BRACKET TO TAIL PIPE | ||
| 90,5 MM | ||
| 841 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 841 | N 304017010002 | SCREW |
| TAIL PIPE AT FRONT TO BRACKET | ||
| M 10X30 | ||
| 841 | N 304017010002 | SCREW |
| BRACKET TO TAIL PIPE | ||
| M 10X30 | ||
| 844 | N 000933010157 | SCREW |
| TAIL PIPE AT FRONT TO BRACKET | ||
| M 10X28 | ||
| 846 | N 000933010105 | SCREW |
| TAIL PIPE AT FRONT TO BRACKET | ||
| M 10X25 | ||
| 847 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 847 | N 910113010000 | NUT |
| TAIL PIPE AT FRONT TO BRACKET | ||
| 853 | A 0019875340 | RUBBER BUFFER |
| EXHAUST PIPE SUSPENSION | ||
| 853 | A 0019875340 | RUBBER BUFFER |
| EXHAUST PIPE SUSPENSION | ||
| 859 | N 912004010102 | LOCK WASHER |
| RUBBER BUFFER TO BRACKET | ||
| 859 | N 912004010102 | LOCK WASHER |
| RUBBER BUFFER TO BRACKET | ||
| 865 | N 000934010014 | NUT |
| RUBBER BUFFER TO BRACKET | ||
| 865 | N 000934010014 | NUT |
| RUBBER BUFFER TO BRACKET | ||
| A 6164920241 | BRACKET | |
| REAR EXHAUST PIPE | ||
| 871 | A 6174923241 | BRACKET |
| REAR EXHAUST PIPE | ||
| 871 | A 6174922541 | BRACKET |
| Repalced by: A 6164923241 | ||
| 871 | A 6174923241 | BRACKET |
| REAR EXHAUST PIPE | ||
| 871 | A 6174923241 | BRACKET |
| REAR EXHAUST PIPE | ||
| 877 | N 000933010105 | SCREW |
| REAR EXHAUST PIPE TO BRACKET | ||
| 883 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 883 | N 304017010002 | SCREW |
| REAR EXHAUST PIPE TO BRACKET | ||
| 889 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 889 | N 910113010000 | NUT |
| REAR EXHAUST PIPE TO BRACKET | ||
| 889 | N 910113010000 | NUT |
| REAR EXHAUST PIPE TO BRACKET | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
