Transporto priemonė: 1420 LS; VIN numerio dalis: 616542
Grupė: 41 PROPELLER SHAFT

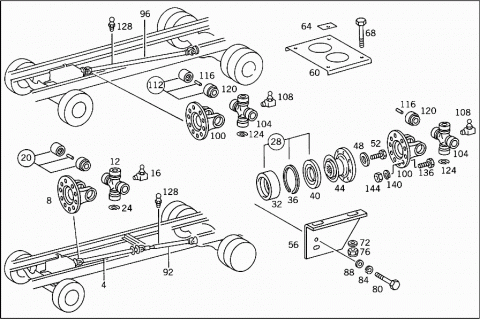

41130
# Kodas Pavadinimas
004 A 3854106204 PROPELLER SHAFT
FROM TRANSMISSION TO INTERMEDIATE BEARING
1145 MM
004 A 3854106704 PROPELLER SHAFT
FROM TRANSMISSION TO INTERMEDIATE BEARING
1543 MM
004 A 3854106904 PROPELLER SHAFT
FROM TRANSMISSION TO INTERMEDIATE BEARING
1602 MM
004 A 3854107204 PROPELLER SHAFT
FROM TRANSMISSION TO INTERMEDIATE BEARING
1757 MM
004 A 3854107404 PROPELLER SHAFT
FROM TRANSMISSION TO INTERMEDIATE BEARING
1872 MM
004 A 3854107604 PROPELLER SHAFT
FROM TRANSMISSION TO INTERMEDIATE BEARING
848 MM
008 A 3854111711 DRIVE FLANGE
012 A 3814100231 UNIVERSAL JOINT CROSS
Repalced by: A 9734100031
012 A 9734100031 UNIVERSAL JOINT CROSS
WITH BUSHINGS
016 N 071412008302 GREASE NIPPLE
020 A 3854100742 BEARING BUSHING
020 A 3854101042 BEARING BUSHING
024 A 0069940641 LOCK
AS REQUIRED
1.65 MM
024 A 0069940841 LOCK
AS REQUIRED
1.70 MM
024 N 000472048000 LOCK RING
AS REQUIRED
1.75 MM
024 A 0069941241 LOCK
AS REQUIRED
1.80 MM
024 A 0069941441 LOCK
AS REQUIRED
1.85 MM
024 A 0039943641 LOCK
AS REQUIRED
1.90 MM
A 3854130161 PROTECTIVE CAP
A 3854130461 PROTECTIVE CAP
028 A 3854100122 INTERMEDIATE BEARING
Repalced by: A 3854100922
028 A 3854100922 INTERMEDIATE BEARING
Repalced by: A 3854101722
028 A 3854101722 INTERMEDIATE BEARING
Repalced by: A 9734100022
028 A 9734100022 INTERMEDIATE BEARING
PROPELLER SHAFT
032 A 0019818125 BALL BEARING
036 N 912009100200 SNAP RING
040 A 3854130061 PROTECTIVE CAP
INSIDE
A 9734110052 SPACER WASHER
PROPELLER SHAFT BEARING
044 A 3854100030 CENTERING FLANGE
Repalced by: A 3854110045
A 3854110045 FLANGE
PROPELLER SHAFT BEARING
A 3854130161 PROTECTIVE CAP
A 3854130461 PROTECTIVE CAP
048 A 3894110162 THRUST WASHER
FOLLOWER FLANGE TO PROPELLER SHAFT
052 A 3839900019 SCREW
FOLLOWER FLANGE TO PROPELLER SHAFT
056 A 3854135242 BRACKET
PROPELLER SHAFT BEARING,LEFT
056 A 3854135242 BRACKET
PROPELLER SHAFT BEARING,LEFT
056 A 3854136842 BRACKET
PROPELLER SHAFT BEARING,LEFT
056 A 3854132542 BRACKET
PROPELLER SHAFT BEARING,LEFT
056 A 3854132142 BRACKET
PROPELLER SHAFT BEARING,LEFT
056 A 6164130042 BRACKET
PROPELLER SHAFT BEARING,LEFT
056 A 3854135342 BRACKET
PROPELLER SHAFT BEARING,RIGHT
056 A 3854135342 BRACKET
PROPELLER SHAFT BEARING,RIGHT
056 A 3854136942 BRACKET
PROPELLER SHAFT BEARING,RIGHT
056 A 3854132642 BRACKET
PROPELLER SHAFT BEARING,RIGHT
056 A 3854132242 BRACKET
PROPELLER SHAFT BEARING,RIGHT
056 A 6164130142 BRACKET
PROPELLER SHAFT BEARING,RIGHT
060 A 3854130011 REINFORCEMENT
BRACKET TO CROSS MEMBER
064 A 3854130111 REINFORCEMENT
BRACKET TO CROSS MEMBER
068 N 000960010026 SCREW
Repalced by: N 000961010031
068 N 000961010031 SCREW
Repalced by: N 308676010023
068 N 308676010023 SCREW
BRACKET TO CROSS MEMBER
072 N 007349010003 WASHER
Repalced by: N 007349010007
072 N 007349010007 WASHER
BRACKET TO CROSS MEMBER
076 N 913002010010 NUT
BRACKET TO CROSS MEMBER
080 N 000931010282 SCREW
BRACKET TO HOUSING
M 10X40
080 N 000933010105 SCREW
BRACKET TO HOUSING
M 10X25
084 N 912004010102 LOCK WASHER
BRACKET TO HOUSING
088 N 007349010003 WASHER
Repalced by: N 007349010007
088 N 007349010007 WASHER
BRACKET TO HOUSING
092 A 3854104507 PROPELLER SHAFT
FROM INTERMEDIATE BEARING TO REAR AXLE
1580 MM
092 A 3854107207 PROPELLER SHAFT
FROM INTERMEDIATE BEARING TO REAR AXLE
1620 MM
092 A 3854103007 PROPELLER SHAFT
FROM INTERMEDIATE BEARING TO REAR AXLE
1750 MM
092 A 3854103007 PROPELLER SHAFT
FROM TRANSMISSION TO REAR AXLE
1750 MM
092 A 3854108307 PROPELLER SHAFT
FROM INTERMEDIATE BEARING TO REAR AXLE
1920 MM
092 A 3974100007 PROPELLER SHAFT
FROM INTERMEDIATE BEARING TO REAR AXLE
1884 MM
096 A 3854103107 PROPELLER SHAFT
FROM TRANSMISSION TO REAR AXLE
1825 MM
096 A 6164100307 PROPELLER SHAFT
FROM TRANSMISSION TO REAR AXLE
2160 MM
096 A 6164100407 PROPELLER SHAFT
FROM TRANSMISSION TO REAR AXLE
2200 MM
096 A 6174100501 PROPELLER SHAFT
Repalced by: A 6174100302
096 A 6174100302 PROPELLER SHAFT
FROM TRANSMISSION TO REAR AXLE
2050 MM
096 A 6174100602 PROPELLER SHAFT
FROM TRANSMISSION TO REAR AXLE
2150 MM
A 3854104907 PROPELLER SHAFT
FROM INTERMEDIATE BEARING TO REAR AXLE
1450 MM
100 A 3854111711 DRIVE FLANGE
100 A 3874110011 DRIVE FLANGE
Repalced by: A 3894110511
100 A 3894110511 DRIVE FLANGE
A 3854104907 PROPELLER SHAFT
FROM INTERMEDIATE BEARING TO REAR AXLE
104 A 3814100231 UNIVERSAL JOINT CROSS
Repalced by: A 9734100031
104 A 9734100031 UNIVERSAL JOINT CROSS
WITH BUSHINGS
104 A 0004100231 UNIVERSAL JOINT CROSS
Repalced by: A 0004101628
104 A 0004101628 UNIVERSAL JOINT
Repalced by: A 9424100131
104 A 9424100131 UNIVERSAL JOINT CROSS
WITH BUSHINGS
108 N 071412008302 GREASE NIPPLE
112 A 3854100742 BEARING BUSHING
112 A 3854101042 BEARING BUSHING
112 A 3874100042 BEARING BUSHING
116 A 3959810087 NEEDLE
SET = 164 PIECES
TO 363 410 06 31;36,25MM
120 A 3634110080 GASKET
124 A 0069940641 LOCK
AS REQUIRED
1.65 MM
124 A 0069940841 LOCK
AS REQUIRED
1.70 MM
124 N 000472048000 LOCK RING
AS REQUIRED
1.75 MM
124 A 0069941241 LOCK
AS REQUIRED
1.80 MM
124 A 0069941441 LOCK
AS REQUIRED
1.85 MM
124 A 0039943641 LOCK
AS REQUIRED
1.90 MM
124 A 0069941941 LOCK
AS REQUIRED
2.00 MM
124 A 0069942341 LOCK
AS REQUIRED
2.10 MM
124 A 0069942741 LOCK
AS REQUIRED
2.20 MM
128 N 071412008101 GREASE NIPPLE
Repalced by: N 071412008102
128 N 071412008102 GREASE NIPPLE
132 N 900087008000 PLUG
136 A 3609901901 SCREW
Repalced by: A 3609903001
136 A 3609903001 SCREW
PROPELLER SHAFT TO TRANSMISSION, INTERMEDIATE BEARING,AND REAR AXLE
136 A 0029909901 SCREW
Repalced by: A 3959900501
136 A 3959900501 SCREW
PROPELLER SHAFT TO TRANSMISSION, INTERMEDIATE BEARING,AND REAR AXLE
140 N 912004012100 LOCK WASHER
PROPELLER SHAFT
140 N 912004016101 LOCK WASHER
PROPELLER SHAFT
144 N 000934012034 NUT
PROPELLER SHAFT
144 N 000934016013 NUT
Repalced by: N 308673016001
144 N 308673016001 NUT
PROPELLER SHAFT
