Transporto priemonė: 1420 LS; VIN numerio dalis: 616542
Grupė: 32 SPRINGS AND SUSPENSION
31887
31888
31889
31890
31891
31892
31893
31894
# Kodas Pavadinimas

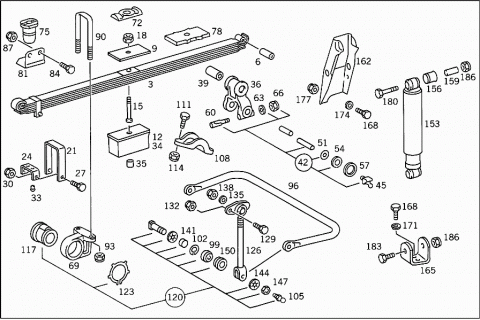

003 A 6163200302 FRONT SPRING
(PARABOLIC SPRING);NUMBER OF LEAVES:
"3"
003 A 6163200302 FRONT SPRING
Repalced by: A 6163200502
003 A 6163200502 FRONT SPRING
(PARABOLIC SPRING);NUMBER OF LEAVES:
"4"
006 A 3523220050 BUSHING
006 A 3853220050 BUSHING
009 A 6163210084 SHIM
BETWEEN THE SPRING LEAVES
009 A 6163210084 SHIM
BETWEEN THE SPRING LEAVES
009 A 6163210084 SHIM
BETWEEN THE SPRING LEAVES
012 A 3813220584 SHIM
Repalced by: A 6173221184
012 A 3813220584 SHIM
Repalced by: A 6173221184
012 A 6163220084 SHIM
Repalced by: A 6173220984
015 N 004626012171 SPRING BOLT
M 12X150
015 N 004626012172 SPRING BOLT
M 12X95
015 N 004626012135 SPRING BOLT
M 12X100
018 N 913004012007 NUT
Repalced by: N 910113012005
018 N 910113012005 NUT
SPRING BOLT
021 A 6163210133 SPRING CLAMP
024 A 6163210035 CLAMP
SPRING CLAMP TO SPRING LEAF
027 N 000933008152 SCREW
Repalced by: N 304017008027
027 N 304017008027 SCREW
SPRING CLAMP TO CLAMP
030 N 913004008004 NUT
Repalced by: N 913004008001
030 N 913004008001 NUT
SPRING CLAMP TO CLAMP
033 N 910006008024 RIVET
CLAMP TO SPRING LEAF
034 A 6173221184 SHIM
FRONT SPRINGS TO FRONT AXLE
034 A 6173221184 SHIM
FRONT SPRINGS TO FRONT AXLE
034 A 6173220984 SHIM
FRONT SPRINGS TO FRONT AXLE
035 A 3449917260 DOWEL PIN
(CENTERING CONE)
036 A 6173200163 SHACKLE
FRONT SPRING
039 A 3523220050 BUSHING
039 A 3853220050 BUSHING
042 A 3855860332 REPAIR KIT
Repalced by: A 3853200165
042 A 3853200165 SHACKLE PIN
PARTS KIT
045 N 071412010300 GREASE NIPPLE
SHACKLE
045 N 071412010100 GREASE NIPPLE
SHACKLE
051 A 3523230376 WASHER
AS REQUIRED
4.00 MM
054 A 3523230476 WASHER
AS REQUIRED
4.20 MM
054 A 3523230576 WASHER
AS REQUIRED
4.30 MM
057 A 0029973140 SEAL RING
SPRING SUSPENSION
060 A 3529900337 BOLT
SHACKLES TO FRONT SPRING FRONT AND REAR BRACKETS
063 N 000125010518 WASHER
Repalced by: N 000125010532
063 N 000125010532 WASHER
SHACKLES TO FRONT SPRING FRONT AND REAR BRACKETS
066 N 913004010008 NUT
Repalced by: N 910113010000
066 N 910113010000 NUT
SHACKLES TO FRONT SPRING FRONT AND REAR BRACKETS
069 A 6163230063 BEARING BRACKET
TORSION BAR,FRONT
072 A 3833220031 PLATE
FRONT SPRINGS TO FRONT AXLE
075 A 3833240008 HELPER SPRING
FRONT SPRINGS TO FRONT AXLE
075 A 3833240008 HELPER SPRING
LEFT AND RIGHT SIDE MEMBERS
078 A 3833221084 SHIM
TOP
081 A 3953210040 BRACKET
HELPER SPRING
084 N 000933010145 SCREW
BRACKET TO SIDE MEMBER
087 N 913004010008 NUT
Repalced by: N 910113010000
087 N 910113010000 NUT
BRACKET TO SIDE MEMBER
090 A 3383315125 U-BOLT
FRONT SPRINGS TO FRONT AXLE
250 MM
090 A 3403510325 U-BOLT
FRONT SPRINGS TO FRONT AXLE
230 MM
093 N 000934018006 NUT
FRONT SPRINGS TO FRONT AXLE
093 N 913004020004 NUT
Repalced by: N 913004020003
093 N 913004020003 NUT
FRONT SPRINGS TO FRONT AXLE
096 A 6173260065 TORSION BAR
FRONT STABILIZER
099 A 0009817231 JOINT BEARING
Repalced by: A 0019814631
099 A 0019814631 JOINT BEARING
TORSION BAR,FRONT
A 0019814831 JOINT BEARING
TORSION BAR,FRONT
102 N 000472035000 LOCK RING
TORSION BAR,FRONT
105 N 071412008101 GREASE NIPPLE
Repalced by: N 071412008102
105 N 071412008102 GREASE NIPPLE
TORSION BAR,FRONT
108 A 6173230040 BRACKET
TORSION BAR
111 N 000961012052 SCREW
Repalced by: N 308676012012
111 N 308676012012 SCREW
BRACKET TO TORSION BAR
114 N 910113012002 NUT
BRACKET TO TORSION BAR
117 A 3873230385 RUBBER MOUNTING
TORSION BAR
120 A 6173200128 REPAIR KIT
TORSION BAR MOUNTING
123 N 000983068000 LOCK RING
TORSION BAR TO SHACKLE
126 A 6173200189 ROD
Repalced by: A 6173200089
126 A 6173200089 ROD
(ARTICULATED ROD)
129 N 000961012097 SCREW
Repalced by: N 308676012026
129 N 308676012026 SCREW
ROD TO FRAME
132 N 910113012002 NUT
ROD TO FRAME
135 N 006796016102 CONICAL SPRING WASHER
ROD TO FRAME
138 N 913004016004 NUT
Repalced by: N 910113016002
138 N 910113016002 NUT
ROD TO FRAME
141 A 3603230153 SPACER TUBE
ROD TO TORSION BAR
144 N 006797021201 TOOTHED WASHER
ROD TO TORSION BAR
144 N 006797021101 TOOTHED WASHER
ROD TO TORSION BAR
147 N 000936020010 NUT
ROD TO TORSION BAR
150 A 3603230460 SEAL RING
ROD TO TORSION BAR
153 A 0033238100 SHOCK ABSORBER
Repalced by: A 0043236900
153 A 0043236900 SHOCK ABSORBER
FRONT AXLE
153 A 0033238100 SHOCK ABSORBER
Repalced by: A 0043232300
153 A 0043232300 SHOCK ABSORBER
FRONT AXLE
153 A 0033238200 SHOCK ABSORBER
Repalced by: A 0043232400
153 A 0033238200 SHOCK ABSORBER
Repalced by: A 0043233500
153 A 0043232400 SHOCK ABSORBER
Repalced by: A 0043233800
153 A 0043233800 SHOCK ABSORBER
FRONT AXLE
153 A 0043233500 SHOCK ABSORBER
FRONT AXLE
156 A 0003232444 RUBBER BUFFER
Repalced by: A 0003232885
156 A 0003232885 RUBBER MOUNTING
TO 003 323 81 00,004 323 69 00,
Y YYYYYYYYYYYY PART NAME MISSING
003 323 82 00
156 A 0003233044 RUBBER BUFFER
Repalced by: A 0003233144
156 A 0003233144 RUBBER BUFFER
TO 004 323 35 00 004 323 38 00
159 A 0003232550 BUSHING
Repalced by: A 0003233150
159 A 0003233150 BUSHING
TO 003 323 81 00,004 323 69 00,
Y YYYYYYYYYYYY PART NAME MISSING
003 323 82 00
159 A 0003235250 BUSHING
TO 004 323 35 00,004 323 38 00
162 A 3833200278 CONSOLE
Repalced by: A 6173200078
162 A 6173200078 CONSOLE
LEFT SHOCK ABSORBER
162 A 3833200378 CONSOLE
Repalced by: A 6173200178
162 A 6173200178 CONSOLE
RIGHT SHOCK ABSORBER
165 A 3833231863 BEARING BRACKET
SHOCK ABSORBER,BOTTOM
168 N 000961012122 SCREW
BEARING BRACKET TO FRAME AND TO CONSOLE
M 12X40
168 N 000961012052 SCREW
Repalced by: N 308676012012
168 N 308676012012 SCREW
BEARING BRACKET TO FRAME AND TO CONSOLE
M 12X25
168 N 308676012012 SCREW
BOTTOM BEARING BRACKET TO FRONT AXLE
M 12X25
171 N 912004012100 LOCK WASHER
BOTTOM BEARING BRACKET TO FRONT AXLE
174 N 007349013003 WASHER
Repalced by: N 007349013005
174 N 007349013005 WASHER
BEARING BRACKET TO FRAME AND TO CONSOLE
177 N 910113012002 NUT
BEARING BRACKET TO FRAME AND TO CONSOLE
180 N 000960016244 SCREW
SHOCK ABSORBER TO UPPER BEARING BRACKET
M 16X90
183 N 000960016164 SCREW
Repalced by: N 000960016250
183 N 000960016250 SCREW
SHOCK ABSORBER TO LOWER BEARING BRACKET
M 16X85
186 N 913004016004 NUT
Repalced by: N 910113016002
186 N 910113016002 NUT
SHOCK ABSORBER TO UPPER BEARING BRACKET
186 N 910113016002 NUT
SHOCK ABSORBER TO LOWER BEARING BRACKET
189 A 3833282041 SUPPORT
AIR SPRING BELLOWS,LEFT
189 A 6163280041 SUPPORT
AIR SPRING BELLOWS,LEFT
189 A 3833282141 SUPPORT
AIR SPRING BELLOWS,RIGHT
189 A 6163280141 SUPPORT
AIR SPRING BELLOWS,RIGHT
208 N 071412008302 GREASE NIPPLE
AIR-SPRING-BELLOWS SUPPORT
209 A 3833280184 SHIM
AIR-SPRING-BELLOWS SUPPORT TO REAR AXLE
210 A 3873510325 U-BOLT
AIR-SPRING-BELLOWS SUPPORT TO REAR AXLE
320 MM
211 A 6163280084 SHIM
AIR-SPRING-BELLOWS SUPPORT TO REAR AXLE
214 N 000960024059 SCREW
AIR-SPRING-BELLOWS SUPPORT TO REAR AXLE
217 A 6203250070 SPHERICAL WASHER
WISHBONE CONTROL ARM
220 N 913004024004 NUT
AIR-SPRING-BELLOWS SUPPORT TO REAR AXLE
223 A 3873200818 PISTON
REAR AXLE PNEUMATIC SUSPENSION
223 A 3873200418 PISTON
REAR AXLE PNEUMATIC SUSPENSION
223 A 6173200218 PISTON
REAR AXLE PNEUMATIC SUSPENSION
224 N 007603012405 SEAL RING
TO 387 320 04 18
225 A 0004290456 SCREW PLUG
TO 387 320 04 18
226 N 000960016066 SCREW
PISTON TO AIR-SPRING-BELLOWS SUPPORT
229 N 912004016101 LOCK WASHER
PISTON TO AIR-SPRING-BELLOWS SUPPORT
232 A 3603280039 RUBBER BUFFER
(RUBBER STOP),EMERGENCY RUNNING
235 A 3873280001 AIR SPRING BELLOWS
REAR AXLE PNEUMATIC SUSPENSION
235 A 3873280101 AIR SPRING BELLOWS
REAR AXLE PNEUMATIC SUSPENSION
238 A 3833270053 SPACER TUBE
PISTON TO FRAME
241 N 308675022001 NUT
PISTON TO FRAME
244 A 3833200335 PLATE
AIR SPRING BELLOWS,TOP
247 N 915047010202 HOLLOW SCREW
AIR SPRING BELLOWS,CONNECTION:
"10"
250 N 915036010204 HOLLOW SCREW
Repalced by: N 915036010108
250 N 915036010108 HOLLOW SCREW
AIR SPRING BELLOWS,CONNECTION:
"10"
253 N 007603014405 SEAL RING
AIR SPRING BELLOWS,CONNECTION:
"10"
256 A 3839910220 BALL PIVOT
WISHBONE CONTROL ARM
259 N 000961020047 SCREW
BALL PIVOT TO REAR AXLE
262 N 912004020100 LOCK WASHER
BALL PIVOT TO REAR AXLE
265 A 3853520641 BEARING BODY
Repalced by: A 6163520441
265 A 6163520441 BEARING BODY
LEFT
265 A 3853520641 BEARING BODY
Repalced by: A 6163520241
265 A 6163520241 BEARING BODY
LEFT
265 A 3853520741 BEARING BODY
Repalced by: A 6163520341
265 A 6163520341 BEARING BODY
RIGHT
265 A 3853520741 BEARING BODY
Repalced by: A 6163520141
265 A 6163520141 BEARING BODY
RIGHT
268 N 000960014190 SCREW
BEARING BODY TO CROSS MEMBER
271 N 000960010038 SCREW
BEARING BODY TO CROSS MEMBER
274 N 913004014005 NUT
Repalced by: N 910113014000
274 N 910113014000 NUT
BEARING BODY TO CROSS MEMBER
277 N 913004010014 NUT
Repalced by: N 910113010003
277 N 910113010003 NUT
BEARING BODY TO CROSS MEMBER
N 000125010518 WASHER
Repalced by: N 000125010532
N 000125010532 WASHER
BEARING BODY TO CROSS MEMBER
280 N 000960018111 SCREW
Repalced by: N 308676018010
280 N 308676018010 SCREW
BEARING BODY TO SIDE MEMBER
283 N 913004018004 NUT
BEARING BODY TO SIDE MEMBER
A 6173260025 PLATE
BEARING BODY TO SIDE MEMBER
A 6173260025 PLATE
BEARING BODY TO SIDE MEMBER
286 A 3933505405 CONTROL ARM
Repalced by: A 6553500305
286 A 6553500305 CONTROL ARM
Repalced by: A 6583500005
286 A 3933505505 CONTROL ARM
Repalced by: A 6583500005
286 A 6583500005 CONTROL ARM
Repalced by: A 6583500205
286 A 6583500205 CONTROL ARM
TRIANGULAR
LEMFOERDER
287 A 0003500313 JOINT
(CENTRAL JOINT)
TO 393 350 55 05 ; EHRENREICH
287 A 0003500713 JOINT
(CENTRAL JOINT)
TO 393 350 54 05 ; LEMFOERDER

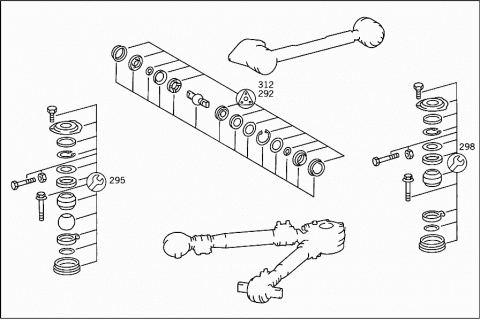

292 A 0005861533 REPAIR KIT
LESS BALL PIVOT
TO 393 350 55 05 ; EHRENREICH
292 A 0005861433 REPAIR KIT
WITH BALL PIVOT
TO 393 350 55 05 ; EHRENREICH
292 A 0003500505 REPAIR KIT
Repalced by: A 0003500305
292 A 0003500305 REPAIR KIT
Repalced by: A 0003500213
292 A 0003500213 REPAIR KIT
WITH BALL PIVOT
TO 393 350 54 05 ; LEMFOERDER
295 A 0005860135 REPAIR KIT
Repalced by: A 0005861833
295 A 0003500105 REPAIR KIT
WITH BALL PIVOT
TO 653 350 01 05
298 A 0005861933 REPAIR KIT
Repalced by: A 0005861833
298 A 0005861833 REPAIR KIT
Repalced by: A 0003500405
298 A 0003500405 REPAIR KIT
WITH BALL PIVOT
TO 393 350 55 05 ; EHRENREICH
301 N 000960020037 SCREW
CONTROL ARM TO BEARING BODY
M 20X110
301 N 000960020037 SCREW
CONTROL ARM TO BEARING BODY
M 20X110
301 N 000960020143 SCREW
CONTROL ARM TO BEARING BODY
M 20X100
301 N 000960020143 SCREW
CONTROL ARM TO BEARING BODY
M 20X100
301 N 000961020014 SCREW
CONTROL ARM TO BEARING BODY
M 20X50
304 A 6173520053 SPACER TUBE
CONTROL ARM TO BEARING BODY
304 A 6173280053 SPACER TUBE
CONTROL ARM TO BEARING BODY
304 A 3833270153 SPACER TUBE
CONTROL ARM TO BEARING BODY
304 A 3833270153 SPACER TUBE
CONTROL ARM TO BEARING BODY
304 A 6173280153 SPACER TUBE
CONTROL ARM TO BEARING BODY
307 N 912004020100 LOCK WASHER
CONTROL ARM TO BEARING BODY
307 N 000137020200 SPRING WASHER
CONTROL ARM TO BEARING BODY
310 A 3813500606 CONTROL ARM
Repalced by: A 6533500106
310 A 6533500106 CONTROL ARM
Repalced by: A 6523500306
310 A 6523500306 CONTROL ARM
BOTTOM
312 A 0005861533 REPAIR KIT
LESS BALL PIVOT
TO 381 350 06 06 ; EHRENREICH
312 A 0005861433 REPAIR KIT
WITH DOUBLE BALL STUD
TO 381 350 06 06 ; EHRENREICH
312 A 0003500505 REPAIR KIT
Repalced by: A 0003500305
312 A 0003500305 REPAIR KIT
Repalced by: A 0003500213
312 A 0003500213 REPAIR KIT
WITH DOUBLE BALL STUD
TO 653 350 01 06
312 A 0003500613 REPAIR KIT
WITH DOUBLE BALL STUD
TO 652 350 03 06
313 A 0003500205 REPAIR KIT
WITH HOLLOW BALL STUD
TO 653 350 01 06
313 A 0005861035 REPAIR KIT
WITH HOLLOW BALL STUD
TO 381 350 06 06 ; LEMFOERDER
313 A 0003501905 REPAIR KIT
WITH HOLLOW BALL STUD
TO 652 350 03 06
316 N 000960020018 SCREW
CONTROL ARM TO SUPPORT
319 N 913004020004 NUT
Repalced by: N 913004020003
319 N 913004020003 NUT
CONTROL ARM TO SUPPORT
322 N 000960020093 SCREW
Repalced by: N 308765020014
322 N 308765020014 SCREW
CONTROL ARM TO BEARING BODY
325 N 913004020004 NUT
Repalced by: N 913004020003
325 N 913004020003 NUT
CONTROL ARM TO BEARING BODY
328 A 3933280152 SPACER WASHER
AS REQUIRED
0.50 MM
328 A 3933280252 SPACER WASHER
AS REQUIRED
1.00 MM
328 A 3933280352 SPACER WASHER
AS REQUIRED
2.00 MM
328 N 000125021006 WASHER
AS REQUIRED
3.00 MM
328 A 3933280452 SPACER WASHER
AS REQUIRED
4.00 MM
331 A 3833200389 ROD
TORSION BAR,REAR
331 A 6193200289 ROD
TORSION BAR,REAR
334 N 071412008302 GREASE NIPPLE
337 A 3833260940 BRACKET
TORSION BAR
340 N 000960016285 SCREW
ROD TO BRACKET
343 A 3853230353 SPACER TUBE
ROD TO BRACKET
346 A 3853230453 SPACER TUBE
ROD TO BRACKET
349 A 3803230260 SEAL RING
ROD TO BRACKET
352 N 007349017002 WASHER
ROD TO BRACKET
355 N 913004016005 NUT
Repalced by: N 910113016001
355 N 910113016001 NUT
ROD TO BRACKET
358 N 000961018020 SCREW
ROD TO FRAME
361 N 913004018004 NUT
ROD TO FRAME
364 A 3833260265 TORSION BAR
REAR AXLE
364 A 6193260165 TORSION BAR
REAR AXLE
367 A 3853230353 SPACER TUBE
TORSION BAR TO AIR-SPRING-BELLOWS SUPPORT
369 A 0009816131 JOINT BEARING
TORSION BAR,REAR
369 A 0009817431 JOINT BEARING
TORSION BAR,REAR
370 A 3803230160 SEAL RING
TORSION BAR TO AIR-SPRING-BELLOWS SUPPORT
372 N 000472055000 LOCK RING
JOINT BEARING TO BEARING BRACKET
373 A 3939900040 WASHER
TORSION BAR TO AIR-SPRING-BELLOWS SUPPORT
376 N 000125036003 WASHER
TORSION BAR TO AIR-SPRING-BELLOWS SUPPORT
379 N 913004022002 NUT
TORSION BAR TO AIR-SPRING-BELLOWS SUPPORT
382 A 3933260281 RUBBER MOUNTING
TORSION BAR
385 A 3803200028 REPAIR KIT
TORSION BAR BEARING
388 A 3933250419 SPRING SEAT
ROD TO TORSION BAR
391 N 000960016269 SCREW
Repalced by: N 308765016010
391 N 308765016010 SCREW
ROD TO TORSION BAR
394 N 913004016005 NUT
Repalced by: N 910113016001
394 N 910113016001 NUT
ROD TO TORSION BAR
397 A 3833260063 BEARING BRACKET
SHOCK ABSORBER
400 N 000961012052 SCREW
Repalced by: N 308676012012
400 N 308676012012 SCREW
BEARING BRACKET TO AIR-SPRING-BELLOWS SUPPORT
403 N 912004012100 LOCK WASHER
BEARING BRACKET TO AIR-SPRING-BELLOWS SUPPORT
406 A 3853260000 SHOCK ABSORBER
SHOCK ABSORBER TO CROSS MEMBER
406 A 3853260000 SHOCK ABSORBER
Repalced by: A 6163260000
406 A 6163260000 SHOCK ABSORBER
(PARTS KIT),REAR SPRINGS
409 A 0003232550 BUSHING
Repalced by: A 0003233150
409 A 0003233150 BUSHING
BOTTOM
409 A 0003233150 BUSHING
BOTTOM
TO 002 323 25 00,002 326 52 00
409 A 0003235250 BUSHING
TO 003 326 86 00,003 326 65 00
412 A 0003232444 RUBBER BUFFER
Repalced by: A 0003232885
412 A 0003232885 RUBBER MOUNTING
LOWER PART
412 A 0003232885 RUBBER MOUNTING
LOWER PART
TO 002 323 25 00,002 326 52 00
412 A 0003233044 RUBBER BUFFER
Repalced by: A 0003233144
412 A 0003233144 RUBBER BUFFER
TO 003 326 86 00,003 326 65 00
415 A 3543260068 RUBBER BUFFER
SHOCK ABSORBER TO UPPER BEARING BRACKET
418 A 3523230253 SPACER TUBE
Repalced by: A 3179911240
418 A 3179911240 SPACER TUBE
SHOCK ABSORBER TO UPPER BEARING BRACKET
421 A 3173230344 RUBBER BUFFER
SHOCK ABSORBER TO UPPER BEARING BRACKET
424 A 3529903501 SCREW
SHOCK ABSORBER TO LOWER BEARING BRACKET
427 N 913004016004 NUT
Repalced by: N 910113016002
427 N 910113016002 NUT
SHOCK ABSORBER TO LOWER BEARING BRACKET

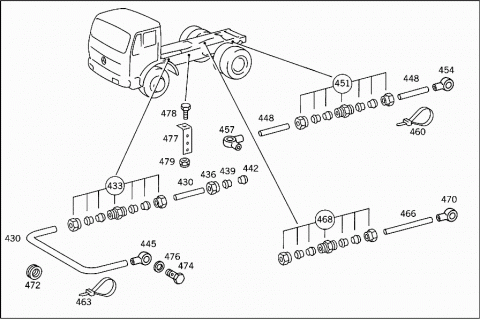

430 A 0109975982 HOSE
Repalced by: A 0009872827
430 A 0009872827 PLASTIC PIPE
FROM AIR RESERVOIR TO OPERATING VALVE
9X12 MM
433 A 0049971772 FITTING
Repalced by: A 0029906171
433 A 0029906171 FITTING
(PARTS KIT),LINE RUPTURE
436 N 915017012100 UNION NUT
LINE CONNECTIONS
439 N 003861012007 GLAND
Repalced by: A 0019901967
439 A 0019901967 SEAL CONE
LINE CONNECTIONS
442 N 915062009000 SLEEVE
LINE CONNECTIONS
445 N 915052009009 BANJO UNION
HOSE WIDTH, / I.D.,
9/16 MM
448 A 0089979082 HOSE
SHIFT VALVE,AIR SPRING BELLOWS,TEST CONNECTION
6X8 MM
451 A 0039978972 FITTING
Repalced by: A 0029905971
451 A 0029905971 FITTING
(PARTS KIT),LINE RUPTURE
454 N 915052006014 BANJO UNION
HOSE WIDTH, / I.D.,
6/16 MM
454 N 915052006021 BANJO UNION
HOSE WIDTH, / I.D.,
6/14 MM
454 N 915052006013 BANJO UNION
HOSE WIDTH, / I.D.,
6/12 MM
457 A 0009909488 BANJO UNION
DOUBLE
16 MM
460 A 0019978390 LOOM TIE
LINE MOUNTING
280 MM
463 A 0019978490 LOOM TIE
LINE MOUNTING
376 MM
466 A 0089976082 HOSE
Repalced by: A 0009872627
466 A 0009872627 PLASTIC PIPE
FROM BRAKE POWER REGULATOR TO TEST CONNECTION
4X6 MM
468 A 0039979172 FITTING
(PARTS KIT),LINE RUPTURE
470 N 915052004015 BANJO UNION
HOSE WIDTH, / I.D.,
4/12 MM
472 A 3609970681 GROMMET
LINE THRU FRAME
474 N 915036012203 HOLLOW SCREW
AIR RESERVOIR,CONNECTION:
"24"
476 N 007603016401 SEAL RING
AIR RESERVOIR,CONNECTION:
"24"
477 A 3604292340 BRACKET
COMPRESSED AIR LINE TO SIDE MEMBER
478 N 000961012151 SCREW
COMPRESSED AIR LINE TO SIDE MEMBER
479 N 910113012002 NUT
COMPRESSED AIR LINE TO SIDE MEMBER

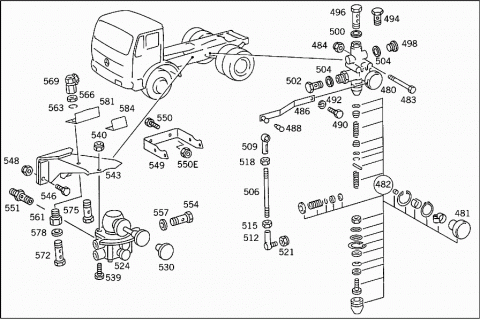

480 A 0003283230 VALVE
SELF-LEVELLING DEVICE
481 A 0003280192 BOOT
Repalced by: A 0003280292
481 A 0003280292 BOOT
482 A 0005861332 REPAIR KIT
Repalced by: A 0003201067
482 A 0003201067 REPAIR KIT
AIR SPRING VALVE
KNORR SV 1280-I/69324
483 N 000931008228 SCREW
Repalced by: N 000933008134
483 N 000933008134 SCREW
VALVE TO SIDE MEMBER
483 N 000933008134 SCREW
VALVE TO SIDE MEMBER
483 N 000931008309 SCREW
VALVE TO SIDE MEMBER
484 N 913004008004 NUT
Repalced by: N 913004008001
484 N 913004008001 NUT
VALVE TO SIDE MEMBER
486 A 3603200927 LEVER
Repalced by: A 6523200527
486 A 6523200527 LEVER
SELF-LEVELLING DEVICE
488 N 071803013208 BALL PIVOT
490 N 000933008212 SCREW
Repalced by: N 304017008016
490 N 304017008016 SCREW
LEVER TO VALVE
492 N 912004008102 LOCK WASHER
LEVER TO VALVE
494 N 915036008202 HOLLOW SCREW
PNEUMATIC SUSPENSION VALVE,CONNECTION:
"11,21"
496 N 915047008202 HOLLOW SCREW
PNEUMATIC SUSPENSION VALVE,CONNECTION:
"11"
498 N 000908012003 SCREW PLUG
Repalced by: N 000908012009
498 N 000908012009 SCREW PLUG
PNEUMATIC SUSPENSION VALVE,CONNECTION:
"21"
500 N 007603012405 SEAL RING
PNEUMATIC SUSPENSION VALVE,CONNECTION:
"11,21"
502 N 915036012203 HOLLOW SCREW
PNEUMATIC SUSPENSION VALVE,CONNECTION:
"12,23"
504 N 007603016401 SEAL RING
PNEUMATIC SUSPENSION VALVE,CONNECTION:
"12,23"
506 N 900331008427 PULL ROD
PNEUMATIC SUSPENSION CONTROL
509 A 0004310667 YOKE
TOP
512 A 0004310767 YOKE
BOTTOM
515 N 000439008211 NUT
Repalced by: N 304035008001
515 N 304035008001 NUT
R.H. THREAD
518 N 000439008203 NUT
Repalced by: N 304035008002
518 N 304035008002 NUT
L.H. THREAD
521 N 913004008004 NUT
Repalced by: N 913004008001
521 N 913004008001 NUT
PULL ROD TO AXLE
524 A 0003290725 VALVE
(SHIFT VALVE)
GRAU
524 A 0003290725 VALVE
(SHIFT VALVE)
GRAU
524 A 0003290725 VALVE
(SHIFT VALVE)
GRAU
524 A 0003290425 VALVE
Repalced by: A 0003290825
524 A 0003290825 VALVE
(SHIFT VALVE)
KNORR
524 A 0003290825 VALVE
(SHIFT VALVE)
KNORR
524 A 0003290825 VALVE
(SHIFT VALVE)
KNORR
525 A 0003290525 VALVE
Repalced by: A 0003290925
525 A 0003290925 VALVE
Repalced by: A 0003291125
525 A 0003291125 VALVE
(SHIFT VALVE)
KNORR

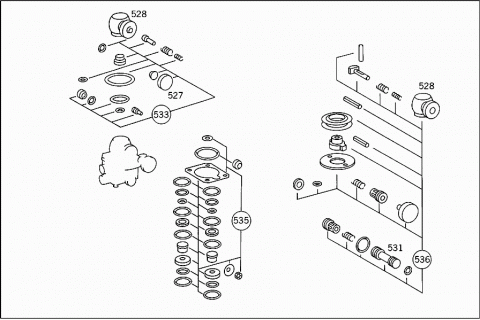

527 A 0003290193 PROTECTIVE CAP
KNORR
527 A 0003290193 PROTECTIVE CAP
KNORR
527 A 0003290193 PROTECTIVE CAP
KNORR
527 A 0003290193 PROTECTIVE CAP
KNORR
A 0003290293 PROTECTIVE CAP
Repalced by: A 0003290092
528 A 0003290092 BOOT
KNORR
528 A 0003290092 BOOT
KNORR
528 A 0003290092 BOOT
KNORR
528 A 0003290092 BOOT
KNORR
530 A 0009973177 HANDLE
KNORR
530 A 0009973177 HANDLE
KNORR
530 A 0009973177 HANDLE
KNORR
530 A 0009973177 HANDLE
KNORR
531 A 0003200058 VALVE
KNORR
531 A 0003200058 VALVE
KNORR
531 A 0003200058 VALVE
KNORR
531 A 0003200058 VALVE
KNORR
A 0003291325 VALVE
533 A 0005861132 REPAIR KIT
CONTROL VALVE
KNORR SV 3111-I/73100
533 A 0005861132 REPAIR KIT
CONTROL VALVE
KNORR SV 3111-I/73100
533 A 0005861132 REPAIR KIT
CONTROL VALVE
KNORR SV 3111-I/73100
535 A 0003200567 REPAIR KIT
CONTROL VALVE
GRAU
535 A 0003200567 REPAIR KIT
CONTROL VALVE
GRAU
535 A 0003200567 REPAIR KIT
CONTROL VALVE
GRAU
536 A 0003200767 REPAIR KIT
CONTROL VALVE
KNORR SV 3111-I/83153
536 A 0003200767 REPAIR KIT
CONTROL VALVE
KNORR SV 3111-I/83153
536 A 0003200767 REPAIR KIT
CONTROL VALVE
KNORR SV 3111-I/83153

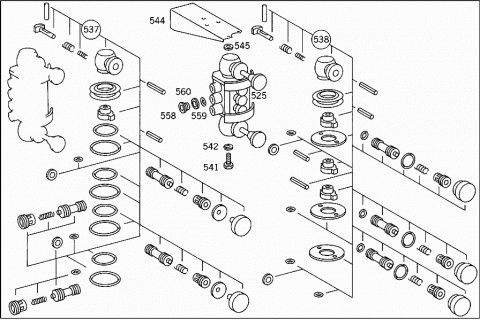

537 A 0003200667 REPAIR KIT
CONTROL VALVE
KNORR SV 3118-I/85379
538 A 0003200867 REPAIR KIT
CONTROL VALVE
KNORR SV 3118-I/86025
539 N 000933008153 SCREW
Repalced by: N 304017008034
539 N 304017008034 SCREW
SHIFT VALVE TO BRACKET
539 N 304017008034 SCREW
SHIFT VALVE TO BRACKET
539 N 304017008034 SCREW
SHIFT VALVE TO BRACKET
540 N 913004008004 NUT
Repalced by: N 913004008001
540 N 913004008001 NUT
SHIFT VALVE TO BRACKET
540 N 913004008001 NUT
SHIFT VALVE TO BRACKET
540 N 913004008001 NUT
SHIFT VALVE TO BRACKET
541 N 000933008212 SCREW
Repalced by: N 304017008016
541 N 304017008016 SCREW
SHIFT VALVE TO BRACKET
542 N 912004008102 LOCK WASHER
SHIFT VALVE TO BRACKET
543 A 3873200443 BRACKET
CONTROL VALVE
543 A 3873200443 BRACKET
CONTROL VALVE
544 A 6163270040 BRACKET
CONTROL VALVE
545 A 6169900140 WASHER
CONTROL VALVE
546 N 000961012097 SCREW
Repalced by: N 308676012026
546 N 308676012026 SCREW
BRACKET TO FRAME
546 N 308676012026 SCREW
BRACKET TO FRAME
546 N 000933008154 SCREW
Repalced by: N 304017008021
546 N 304017008021 SCREW
BRACKET TO FRAME
M 8X22
546 N 000933008150 SCREW
Repalced by: N 304017008018
546 N 304017008018 SCREW
BRACKET TO FRAME
M 8X35
548 N 910113012002 NUT
BRACKET TO FRAME
548 N 910113012002 NUT
BRACKET TO FRAME
548 N 913004008004 NUT
Repalced by: N 913004008001
548 N 913004008001 NUT
BRACKET TO FRAME
549 A 6203270240 BRACKET
CONTROL VALVE
550 N 000933008147 SCREW
Repalced by: N 304017008021
550 N 304017008021 SCREW
BRACKET TO SUPPORT
550E N 913004008004 NUT
Repalced by: N 913004008001
550E N 913004008001 NUT
BRACKET TO SUPPORT
551 N 915039012206 HOLLOW SCREW FITTING
SHIFT VALVE,CONNECTION:
"11"
N 915047012203 HOLLOW SCREW
SHIFT VALVE,CONNECTION:
"15"
554 N 915036012203 HOLLOW SCREW
SHIFT VALVE,CONNECTIONS:
"12,13,22,23"
557 N 007603016401 SEAL RING
SHIFT VALVE,CONNECTIONS:
"11,12,13,22,23"
557 N 007603016401 SEAL RING
SHIFT VALVE,CONNECTIONS:
"15"
558 N 000908016001 SCREW PLUG
SHIFT VALVE,CONNECTION:
"14,24"
559 A 0009971548 SEAL RING
SHIFT VALVE,CONNECTION:
"14,24"
560 A 0004290927 THRUST RING
SHIFT VALVE,CONNECTION:
"14,24"
561 A 0019908168 FITTING
AT BRACKET
563 N 912004012100 LOCK WASHER
TEST CONNECTION TO BRACKET
566 N 080705012003 NUT
TEST CONNECTION TO BRACKET
569 A 0004312031 TEST CONNECTION
VOSS
569 A 0004314531 TEST CONNECTION
SCHAEFER
569 A 0004314831 TEST CONNECTION
WESTINGHOUSE
569 A 0004316131 TEST CONNECTION
WIRA
572 N 915047008202 HOLLOW SCREW
TEST CONNECTION
575 N 915036008202 HOLLOW SCREW
TEST CONNECTION
578 N 007603012405 SEAL RING
TEST CONNECTION
581 A 3935840721 GUIDE SIGN
AIR SPRING BELLOWS,LEFT AND RIGHT
584 A 3185840621 GUIDE SIGN
SUPPLY
A 3875840055 ADHESIVE FOIL
SUPPLY
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
