Transporto priemonė: 1422 S; VIN numerio dalis: 616121

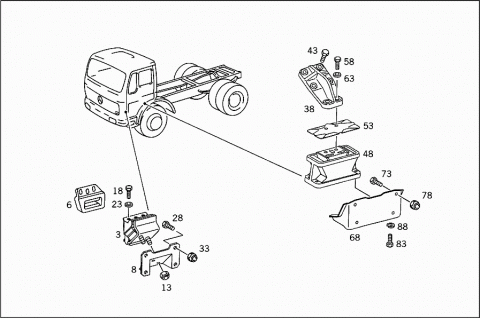

Grupė: 24 ENGINE SUSPENSION - 001 RUBBER MOUNTING TO ENGINE SUPPORT

#	Kodas	Pavadinimas
003	A 3832401017	RUBBER MOUNTING
	Repalced by: A 6162400017
003	A 6162400017	RUBBER MOUNTING
		ADJUSTABLE;FRONMT
003	A 3832401517	RUBBER MOUNTING
	Repalced by: A 6162400117
003	A 6162400117	RUBBER MOUNTING
		ADJUSTABLE;FRONMT
003	A 3832402017	RUBBER MOUNTING
	Repalced by: A 6162400217
003	A 6162400217	RUBBER MOUNTING
		ADJUSTABLE;FRONMT
003	A 3832401717	RUBBER MOUNTING
	Repalced by: A 3832400917
003	A 3832400917	RUBBER MOUNTING
		ADJUSTABLE;FRONMT
003	A 6172400017	RUBBER MOUNTING
		ADJUSTABLE;FRONMT
003	A 6172400117	RUBBER MOUNTING
		ADJUSTABLE;FRONMT
006	A 0002420043	STOP
		ENGINE FRONT MOUNTING
		TO 383 240 10 17,383 240 09 17,
	T YYYYYYYYYYYY	PART NAME MISSING
		616 240 00 17,617 240 00 17
008	A 6172410035	BEARING BRACKET
		RUBBER MOUNT
	A 3832410335	BEARING BRACKET
		RUBBER MOUNT
013	N 910113012002	NUT
		RUBBER MOUNTING TO BEARING BRACKET
018	N 000961016092	SCREW
		RUBBER MOUNTING TO ENGINE SUPPORTING ARM
		M 16X38
023	A 3529902440	WASHER
		RUBBER MOUNTING TO ENGINE SUPPORTING ARM
028	N 000961012164	SCREW
		BEARING BRACKET TO SIDE MEMBER
		M 12X28
028	N 000961012106	SCREW
		BEARING BRACKET TO SIDE MEMBER
		M 12X32
028	N 000961012097	SCREW
	Repalced by: N 308676012026
028	N 308676012026	SCREW
		BEARING BRACKET TO SIDE MEMBER
		M 12X35
028	N 000961012122	SCREW
		BEARING BRACKET TO SIDE MEMBER
		M 12X40
	A 3859901040	WASHER
		BEARING BRACKET TO SIDE MEMBER
	N 912004012100	LOCK WASHER
		BEARING BRACKET TO SIDE MEMBER
033	N 910113012002	NUT
		BEARING BRACKET TO SIDE MEMBER
038	A 6172420105	SUPPORTING ARM
		REAR
043	N 000961018041	SCREW
	Repalced by: N 308676018001
043	N 308676018001	SCREW
		SUPPORTING ARM TO BELL HOUSING
		M 18X45
048	A 3012400918	RUBBER MOUNTING
	Repalced by: A 6162400618
048	A 6162400618	RUBBER MOUNTING
		REAR
048	A 3012401418	RUBBER MOUNTING
	Repalced by: A 6162400718
048	A 6162400718	RUBBER MOUNTING
		REAR
048	A 3012401818	RUBBER MOUNTING
	Repalced by: A 6162400818
048	A 6162400818	RUBBER MOUNTING
		REAR
048	A 6172400318	RUBBER MOUNTING
	Repalced by: A 6452400118
048	A 6452400118	RUBBER MOUNTING
		REAR
048	A 6172400418	RUBBER MOUNTING
	Repalced by: A 6452400018
048	A 6452400018	RUBBER MOUNTING
		REAR
048	A 6172400518	RUBBER MOUNTING
	Repalced by: A 6452400218
048	A 6452400218	RUBBER MOUNTING
		REAR
053	A 3832420034	SCREENING PLATE
		ENGINE REAR MOUNTING
058	N 000961016039	SCREW
		RUBBER MOUNTING TO ENGINE REAR SUPPORT
		M 16X65
063	A 3529902440	WASHER
		RUBBER MOUNTING TO ENGINE REAR SUPPORT
068	A 6172420002	SUPPORT
	Repalced by: A 3962420002
068	A 3962420002	SUPPORT
		ENGINE REAR MOUNTING
	A 6172420032	REINFORCEMENT
		CONSOLE TO SIDE MEMBER
073	N 000961014088	SCREW
	Repalced by: N 308676014008
073	N 308676014008	SCREW
		CONSOLE TO SIDE MEMBER
		M 14X35
073	N 000961014119	SCREW
	Repalced by: A 9429901304
073	A 9429901304	SCREW
		CONSOLE TO SIDE MEMBER
		M 14X38
078	N 913004014005	NUT
	Repalced by: N 910113014000
078	N 910113014000	NUT
		CONSOLE TO SIDE MEMBER
	N 000933010202	SCREW
	Repalced by: N 304017010047
	N 304017010047	SCREW
		REINFORCEMENT TO SIDE MEMBER
	N 000933012133	SCREW
	Repalced by: N 304017012013
	N 304017012013	SCREW
		REINFORCEMENT TO SIDE MEMBER
	N 913004010011	NUT
		REINFORCEMENT TO SIDE MEMBER
	N 913004012007	NUT
	Repalced by: N 910113012005
	N 910113012005	NUT
		REINFORCEMENT TO SIDE MEMBER
083	N 000961012151	SCREW
		REAR RUBBER MOUNTING TO CONSOLE
		M 12X30
083	N 000961012097	SCREW
	Repalced by: N 308676012026
083	N 308676012026	SCREW
		REAR RUBBER MOUNTING TO CONSOLE
		M 12X35
088	N 912004012100	LOCK WASHER
		REAR RUBBER MOUNTING TO CONSOLE
	N 000125013008	WASHER
