Transporto priemonė: 1422 S; VIN numerio dalis: 616121
Grupė: 32 SPRINGS AND SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|

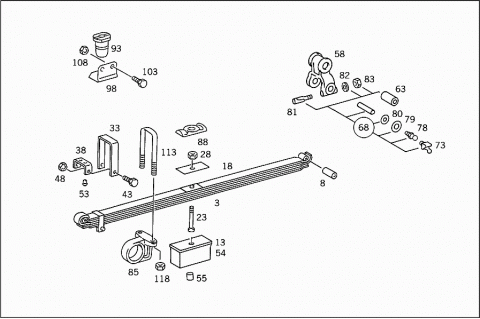

| 003 | A 6163200002 | FRONT SPRING |
| (PARABOLIC SPRING);NUMBER OF LEAVES: | ||
| "3" | ||
| 003 | A 6163200202 | FRONT SPRING |
| (PARABOLIC SPRING);NUMBER OF LEAVES: | ||
| "3" | ||
| 003 | A 6163200102 | FRONT SPRING |
| (PARABOLIC SPRING);NUMBER OF LEAVES: | ||
| "4" | ||
| 008 | A 3523220050 | BUSHING |
| 008 | A 3853220050 | BUSHING |
| 013 | A 3813220584 | SHIM |
| Repalced by: A 6173221184 | ||
| 013 | A 6163220084 | SHIM |
| Repalced by: A 6173220984 | ||
| 018 | A 6163210084 | SHIM |
| BETWEEN THE SPRING LEAVES | ||
| 023 | N 004626012171 | SPRING BOLT |
| M 12X150 | ||
| 023 | N 004626012172 | SPRING BOLT |
| M 12X95 | ||
| 023 | N 004626012135 | SPRING BOLT |
| M 12X100 | ||
| 028 | N 913004012007 | NUT |
| Repalced by: N 910113012005 | ||
| 028 | N 910113012005 | NUT |
| SPRING BOLT | ||
| 033 | A 6163210033 | SPRING CLAMP |
| 033 | A 6163210133 | SPRING CLAMP |
| 038 | A 6163210035 | CLAMP |
| SPRING CLAMP TO SPRING LEAF NO.3 | ||
| 043 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 043 | N 304017008027 | SCREW |
| SPRING CLAMP TO CLAMP | ||
| 048 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 048 | N 913004008001 | NUT |
| SPRING CLAMP TO CLAMP | ||
| 053 | N 910006008024 | RIVET |
| CLAMP TO SPRING LEAF | ||
| 054 | A 6173221184 | SHIM |
| FRONT SPRINGS TO FRONT AXLE | ||
| 054 | A 6173220984 | SHIM |
| FRONT SPRINGS TO FRONT AXLE | ||
| 055 | A 3449917260 | DOWEL PIN |
| (CENTERING CONE) | ||
| 058 | A 6173200163 | SHACKLE |
| FRONT SPRING | ||
| 063 | A 3523220050 | BUSHING |
| 063 | A 3853220050 | BUSHING |
| 068 | A 3855860332 | REPAIR KIT |
| Repalced by: A 3853200165 | ||
| 068 | A 3853200165 | SHACKLE PIN |
| PARTS KIT | ||
| 073 | N 071412010300 | GREASE NIPPLE |
| FRONT SPRING | ||
| 078 | N 071412010100 | GREASE NIPPLE |
| FRONT SPRING | ||
| 079 | A 3523230376 | WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 079 | A 3523230476 | WASHER |
| AS REQUIRED | ||
| 4.20 MM | ||
| 079 | A 3523230576 | WASHER |
| AS REQUIRED | ||
| 4.30 MM | ||
| 080 | A 0029973140 | SEAL RING |
| 081 | A 3529900337 | BOLT |
| 082 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 082 | N 000125010532 | WASHER |
| 083 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 083 | N 910113010000 | NUT |
| 085 | A 6163230063 | BEARING BRACKET |
| TORSION BAR,FRONT | ||
| 088 | A 3833220031 | PLATE |
| FRONT SPRINGS TO FRONT AXLE | ||
| 093 | A 3833240008 | HELPER SPRING |
| FRONT SPRINGS TO FRONT AXLE | ||
| 093 | A 3833240008 | HELPER SPRING |
| LEFT AND RIGHT SIDE MEMBERS | ||
| 098 | A 3953210040 | BRACKET |
| HELPER SPRING | ||
| 103 | N 000933010145 | SCREW |
| HELPER SPRING AND BRACKET TO FRAME | ||
| 108 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 108 | N 910113010000 | NUT |
| HELPER SPRING AND BRACKET TO FRAME | ||
| 113 | A 3603310125 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 200 MM | ||
| 113 | A 3603310025 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 220 MM | ||
| 118 | A 0029903551 | NUT |
| Repalced by: N 000934018001 | ||
| 118 | N 000934018006 | NUT |
| FRONT SPRINGS TO FRONT AXLE | ||

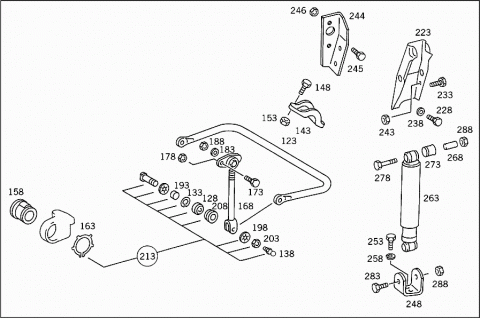

| 123 | A 6173260065 | TORSION BAR |
| FRONT AXLE | ||
| 128 | A 0009810731 | JOINT BEARING |
| Repalced by: A 0009817231 | ||
| 128 | A 0009810931 | JOINT BEARING |
| Repalced by: A 0009817331 | ||
| 128 | A 0009817331 | JOINT BEARING |
| Repalced by: A 0009817231 | ||
| 128 | A 0009817231 | JOINT BEARING |
| Repalced by: A 0019814631 | ||
| 128 | A 0019814631 | JOINT BEARING |
| TORSION BAR,FRONT | ||
| A 0019814831 | JOINT BEARING | |
| TORSION BAR,FRONT | ||
| 133 | N 000472035000 | LOCK RING |
| TORSION BAR,FRONT | ||
| 138 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 138 | N 071412008102 | GREASE NIPPLE |
| TORSION BAR,FRONT | ||
| 143 | A 6173230040 | BRACKET |
| TORSION BAR | ||
| 148 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 148 | N 308676012012 | SCREW |
| BRACKET TO TORSION BAR | ||
| 153 | N 910113012002 | NUT |
| BRACKET TO TORSION BAR | ||
| 158 | A 3873230385 | RUBBER MOUNTING |
| TORSION BAR | ||
| 163 | N 000983068000 | LOCK RING |
| RUBBER MOUNTING | ||
| 168 | A 6173200189 | ROD |
| Repalced by: A 6173200089 | ||
| 168 | A 6173200089 | ROD |
| (ARTICULATED ROD) | ||
| 173 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 173 | N 308676012026 | SCREW |
| ROD TO FRAME | ||
| 178 | N 910113012002 | NUT |
| ROD TO FRAME | ||
| 183 | N 006796016102 | CONICAL SPRING WASHER |
| ROD TO FRAME | ||
| 188 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 188 | N 910113016002 | NUT |
| ROD TO FRAME | ||
| 193 | A 3603230153 | SPACER TUBE |
| ROD TO TORSION BAR | ||
| 198 | N 006797021201 | TOOTHED WASHER |
| ROD TO TORSION BAR | ||
| 198 | N 006797021101 | TOOTHED WASHER |
| ROD TO TORSION BAR | ||
| 203 | N 000936020010 | NUT |
| ROD TO TORSION BAR | ||
| 208 | A 3603230460 | SEAL RING |
| ROD TO TORSION BAR | ||
| 213 | A 6173200128 | REPAIR KIT |
| TORSION BAR MOUNTING | ||
| 223 | A 3833200278 | CONSOLE |
| Repalced by: A 6173200078 | ||
| 223 | A 6173200078 | CONSOLE |
| LEFT SHOCK ABSORBER | ||
| A 3833200378 | CONSOLE | |
| Repalced by: A 6173200178 | ||
| A 6173200178 | CONSOLE | |
| RIGHT SHOCK ABSORBER | ||
| 228 | N 000961012122 | SCREW |
| BEARING BRACKET TO FRAME AND TO CONSOLE | ||
| M 12X40 | ||
| 233 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 233 | N 308676012012 | SCREW |
| BEARING BRACKET TO FRAME AND TO CONSOLE | ||
| M 12X25 | ||
| 238 | N 007349013003 | WASHER |
| Repalced by: N 007349013005 | ||
| 238 | N 007349013005 | WASHER |
| BEARING BRACKET TO FRAME AND TO CONSOLE | ||
| 243 | N 910113012002 | NUT |
| BEARING BRACKET TO FRAME AND TO CONSOLE | ||
| 244 | A 3853230695 | REINFORCEMENT |
| CONSOLE,LEFT | ||
| 244 | A 3853230795 | REINFORCEMENT |
| CONSOLE,RIGHT | ||
| 245 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 245 | N 308676014020 | SCREW |
| REINFORCEMENT TO FRAME | ||
| 246 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 246 | N 910113014001 | NUT |
| REINFORCEMENT TO FRAME | ||
| 248 | A 3833231863 | BEARING BRACKET |
| SHOCK ABSORBER MOUNTING,FRONT | ||
| 253 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 253 | N 308676012012 | SCREW |
| BOTTOM BEARING BRACKET TO FRONT AXLE | ||
| 258 | N 912004012100 | LOCK WASHER |
| BOTTOM BEARING BRACKET TO FRONT AXLE | ||
| 263 | A 0033238800 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 263 | A 0033238900 | SHOCK ABSORBER |
| Repalced by: A 0043233700 | ||
| 263 | A 0043233700 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 263 | A 0033236700 | SHOCK ABSORBER |
| Repalced by: A 0043236800 | ||
| 263 | A 0043236800 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 263 | A 0033236800 | SHOCK ABSORBER |
| Repalced by: A 0043234100 | ||
| 263 | A 0043234100 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 268 | A 0003233150 | BUSHING |
| TO 003 323 88 00,003 323 67 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 004 323 68 00,003 323 68 00 | ||
| 268 | A 0003235250 | BUSHING |
| TO 004 323 37 00,004 323 41 00 | ||
| 273 | A 0003232885 | RUBBER MOUNTING |
| TO 003 323 88 00,003 323 67 00, | ||
| 273 | A 0003233044 | RUBBER BUFFER |
| Repalced by: A 0003233144 | ||
| 273 | A 0003233144 | RUBBER BUFFER |
| TO 004 323 37 00,004 323 41 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 004 323 68 00,003 323 68 00 | ||
| 278 | N 000960016244 | SCREW |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| M 16X65 | ||
| 283 | N 000960016164 | SCREW |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| M 16X85 | ||
| 288 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 288 | N 910113016002 | NUT |
| SHOCK ABSORBER TO BEARING BRACKET | ||

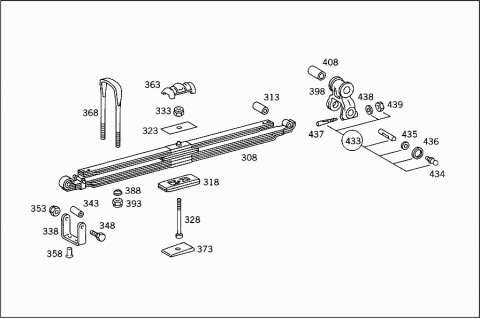

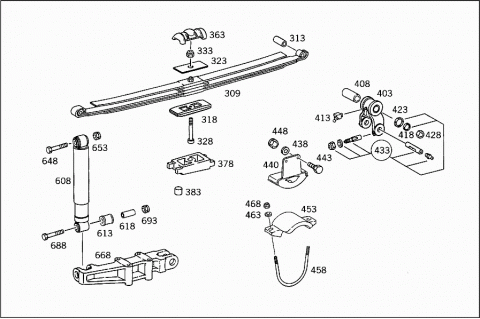

| 308 | A 6163200208 | REAR SPRING |
| (PARABOLIC SPRING),3-LEAF; WITH 2-LEAF HELPER SPRING | ||
| 308 | A 6173200808 | REAR SPRING |
| (PARABOLIC SPRING),3-LEAF; WITH 3-LEAF HELPER SPRING | ||
| 309 | A 6163200108 | REAR SPRING |
| (PARABOLIC SPRING),2-LEAF; WITH 1-LEAF HELPER SPRING | ||
| 313 | A 3273255050 | BUSHING |
| Repalced by: A 3523250150 | ||
| 313 | A 3523250150 | BUSHING |
| 313 | A 3853250050 | BUSHING |
| 318 | A 3523240135 | SPACER |
| 323 | A 3853210384 | SHIM |
| Repalced by: A 3963210084 | ||
| 323 | A 3963210084 | SHIM |
| 328 | A 6173241071 | SPRING BOLT |
| 328 | A 6173241571 | SPRING BOLT |
| 328 | A 6173240271 | SPRING BOLT |
| 333 | N 913004012007 | NUT |
| Repalced by: N 910113012005 | ||
| 333 | N 910113012005 | NUT |
| 338 | A 0003219433 | SPRING CLAMP |
| Repalced by: A 6173210333 | ||
| 338 | A 3223240233 | SPRING CLAMP |
| Repalced by: A 6173210333 | ||
| 338 | A 6173210333 | SPRING CLAMP |
| 343 | A 3033210153 | SPACER TUBE |
| Repalced by: A 0003212753 | ||
| 343 | A 0003212753 | SPACER TUBE |
| SPRING CLAMP | ||
| 348 | N 000960012371 | SCREW |
| SPRING CLAMP | ||
| 353 | N 000934012022 | NUT |
| SPRING CLAMP | ||
| 358 | N 910006008023 | RIVET |
| SPRING CLAMP TO SPRING LEAF NO.3 | ||
| 363 | A 3833250231 | PLATE |
| REAR SPRING TO REAR AXLE | ||
| 363 | A 3833250231 | PLATE |
| REAR SPRING TO REAR AXLE | ||
| 363 | A 6173250331 | PLATE |
| REAR SPRING TO REAR AXLE | ||
| 368 | A 3853513025 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 330 MM | ||
| 368 | A 3853512425 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 350 MM | ||
| 368 | A 3853512425 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 350 MM | ||
| 368 | A 6173510425 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 380 MM | ||
| 368 | A 6173510825 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 420 MM | ||
| 368 | A 3853510925 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 310 MM | ||
| 373 | A 3853510628 | PAD |
| REAR SPRING TO REAR AXLE | ||
| 373 | A 3853510728 | PAD |
| REAR SPRING TO REAR AXLE | ||
| 373 | A 3853510528 | PAD |
| REAR SPRING TO REAR AXLE | ||
| 378 | A 6173250284 | SHIM |
| Repalced by: A 6173250784 | ||
| 378 | A 6173250784 | SHIM |
| Repalced by: A 6173251384 | ||
| 378 | A 6173251384 | SHIM |
| REAR SPRING TO REAR AXLE | ||
| 383 | A 6179910064 | SHEAR BUSHING |
| REAR SPRING TO REAR AXLE | ||
| 388 | A 3859970126 | WASHER |
| REAR SPRING TO REAR AXLE | ||
| 393 | N 000934020008 | NUT |
| Repalced by: N 308673020002 | ||
| 393 | N 308673020002 | NUT |
| Repalced by: N 308674020000 | ||
| 393 | N 308674020000 | NUT |
| REAR SPRING TO REAR AXLE | ||
| 398 | A 3523200163 | SHACKLE |
| REAR SPRING | ||
| 403 | A 6173200063 | SHACKLE |
| REAR SPRING | ||
| 408 | A 3273255050 | BUSHING |
| Repalced by: A 3523250150 | ||
| 408 | A 3523250150 | BUSHING |
| 408 | A 3853250050 | BUSHING |
| 408 | A 6173240050 | BUSHING |
| 413 | N 071412010200 | GREASE NIPPLE |
| 418 | A 3463255062 | THRUST WASHER |
| Repalced by: A 6213250062 | ||
| 418 | A 6213250062 | THRUST WASHER |
| SHACKLE TO REAR-SPRING REAR BRACKET | ||
| 418 | A 3463255162 | THRUST WASHER |
| Repalced by: A 6213250162 | ||
| 418 | A 6213250162 | THRUST WASHER |
| SHACKLE TO REAR-SPRING REAR BRACKET | ||
| 423 | A 0029973640 | SEAL RING |
| SHACKLE TO REAR-SPRING REAR BRACKET | ||
| 428 | N 000439024200 | NUT |
| SHACKLE TO REAR-SPRING REAR BRACKET | ||
| 433 | A 3855860232 | REPAIR KIT |
| Repalced by: A 3853200065 | ||
| 433 | A 3853200065 | SHACKLE PIN |
| PARTS KIT | ||
| 433 | A 3853200065 | SHACKLE PIN |
| REAR SPRING TO SPRING SHACKLE AND TO SPRING FRONT AND REAR BRACKETS | ||
| 433 | A 3853200065 | SHACKLE PIN |
| REAR SPRING TO REAR SPRING FRONT BRACKET AND TO SHACKLE | ||
| 434 | N 071412010100 | GREASE NIPPLE |
| SHACKLE PIN | ||
| 435 | A 3523230976 | WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 435 | A 3523231076 | WASHER |
| AS REQUIRED | ||
| 4.20 MM | ||
| 436 | A 0029973040 | SEAL RING |
| REAR SPRING TO SPRING SHACKLE AND TO SPRING FRONT AND REAR BRACKETS | ||
| 436 | A 0029973040 | SEAL RING |
| REAR SPRING TO REAR SPRING FRONT BRACKET AND TO SHACKLE | ||
| 437 | A 3529900337 | BOLT |
| REAR SPRING TO SPRING SHACKLE AND TO SPRING FRONT AND REAR BRACKETS | ||
| 437 | A 3529900337 | BOLT |
| REAR SPRING TO REAR SPRING FRONT BRACKET AND TO SHACKLE | ||
| 438 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 438 | N 000125010532 | WASHER |
| REAR SPRING TO SPRING SHACKLE AND TO SPRING FRONT AND REAR BRACKETS | ||
| 438 | N 000125010532 | WASHER |
| REAR SPRING TO REAR SPRING FRONT BRACKET AND TO SHACKLE | ||
| 439 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 439 | N 910113010000 | NUT |
| REAR SPRING TO SPRING SHACKLE AND TO SPRING FRONT AND REAR BRACKETS | ||
| 439 | N 910113010000 | NUT |
| REAR SPRING TO REAR SPRING FRONT BRACKET AND TO SHACKLE | ||
| 440 | A 6173300175 | RUBBER MOUNTING |
| AXLE STOP | ||
| 443 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 443 | N 304017008027 | SCREW |
| RUBBER MOUNTING TO FRAME | ||
| 448 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 448 | N 913004008001 | NUT |
| RUBBER MOUNTING TO FRAME | ||
| 453 | A 6173510046 | STOP |
| REAR AXLE | ||
| 458 | A 6173510047 | CLAMP |
| STOP TO REAR AXLE | ||
| 463 | N 007349010003 | WASHER |
| Repalced by: N 007349010007 | ||
| 463 | N 007349010007 | WASHER |
| STOP TO REAR AXLE | ||
| 468 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 468 | N 910113010000 | NUT |
| STOP TO REAR AXLE | ||

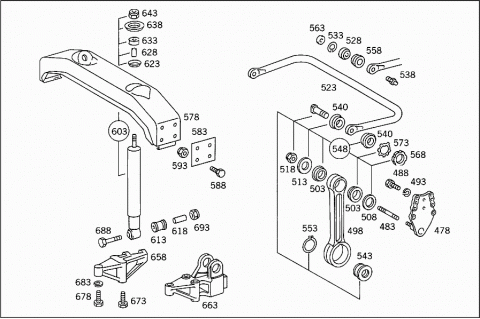

| 478 | A 3933200678 | CONSOLE |
| Repalced by: A 3933261163 | ||
| 478 | A 3933261163 | BEARING BRACKET |
| TORSION BAR,REAR | ||
| 483 | N 000939016033 | STUD BOLT |
| 488 | N 000961016108 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 16X30 | ||
| 488 | N 000961016100 | SCREW |
| Repalced by: N 308676016020 | ||
| 488 | N 308676016020 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 16X35 | ||
| 488 | N 308676016020 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 16X35 | ||
| 488 | N 308676016020 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 16X35 | ||
| 488 | N 000961016036 | SCREW |
| Repalced by: N 308676016013 | ||
| 488 | N 308676016013 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 16X40 | ||
| 493 | N 000137016202 | SPRING WASHER |
| CONSOLE TO FRAME | ||
| 493 | N 000137016202 | SPRING WASHER |
| CONSOLE TO FRAME | ||
| 493 | A 3529902440 | WASHER |
| CONSOLE TO FRAME | ||
| 498 | A 6153260047 | SHACKLE |
| TORSION BAR,REAR | ||
| 498 | A 3873260947 | SHACKLE |
| TORSION BAR,REAR | ||
| 503 | A 0003260650 | BUSHING |
| SHACKLE TO BEARING BRACKET | ||
| 508 | A 3873230252 | SPACER WASHER |
| SHACKLE TO BEARING BRACKET | ||
| 513 | A 3853260052 | SPACER WASHER |
| Repalced by: A 3933260152 | ||
| 513 | A 3933260152 | SPACER WASHER |
| SHACKLE TO BEARING BRACKET | ||
| 518 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 518 | N 910113016002 | NUT |
| SHACKLE TO BEARING BRACKET | ||
| N 000961016081 | SCREW | |
| SHACKLE TO BEARING BRACKET | ||
| 523 | A 3833260365 | TORSION BAR |
| REAR AXLE | ||
| 528 | A 0009810831 | JOINT BEARING |
| TORSION BAR | ||
| 528 | A 0009811231 | JOINT BEARING |
| TORSION BAR | ||
| 533 | N 000472055000 | LOCK RING |
| TORSION BAR | ||
| 538 | N 071412008200 | GREASE NIPPLE |
| TORSION BAR | ||
| 540 | A 6173260050 | BUSHING |
| TORSION BAR | ||
| 543 | A 3873260281 | RUBBER MOUNTING |
| TORSION BAR | ||
| 548 | A 6173200028 | REPAIR KIT |
| Repalced by: A 6173200228 | ||
| 548 | A 6173200228 | REPAIR KIT |
| TORSION BAR TO SHACKLE | ||
| 553 | N 000983085001 | LOCK RING |
| TORSION BAR TO SHACKLE | ||
| 558 | A 3603230560 | SEAL RING |
| Repalced by: A 3603230860 | ||
| 558 | A 3603230860 | SEAL RING |
| TORSION BAR TO BEARING BRACKET | ||
| 563 | A 3523260153 | SPACER TUBE |
| TORSION BAR TO BEARING BRACKET | ||
| 568 | N 070852035000 | NUT |
| TORSION BAR TO BEARING BRACKET | ||
| 573 | N 070952035101 | LOCK PLATE |
| TORSION BAR TO BEARING BRACKET | ||
| 578 | A 3853100040 | CROSS MEMBER |
| Repalced by: A 3853100440 | ||
| 578 | A 3853100440 | CROSS MEMBER |
| SHOCK ABSORBER MOUNTING,REAR | ||
| 583 | A 3853120084 | SHIM |
| SHOCK ABSORBER MOUNTING,REAR | ||
| 588 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 588 | N 308676012026 | SCREW |
| CROSS MEMBER AND SHIM TO FRAME SIDE MEMBERS | ||
| 593 | N 910113012002 | NUT |
| CROSS MEMBER AND SHIM TO FRAME SIDE MEMBERS | ||
| N 910005012080 | RIVET | |
| CROSS MEMBER AND SHIM TO FRAME SIDE MEMBERS | ||
| 12X42 MM | ||
| N 910005012080 | RIVET | |
| CROSS MEMBER AND SHIM TO FRAME SIDE MEMBERS | ||
| 12X42 MM | ||
| A 0033261400 | SHOCK ABSORBER | |
| Repalced by: A 6173260000 | ||
| A 0033261500 | SHOCK ABSORBER | |
| Repalced by: A 6173260000 | ||
| 603 | A 6173260000 | SHOCK ABSORBER |
| (PARTS KIT) | ||
| 608 | A 0033262900 | SHOCK ABSORBER |
| REAR AXLE | ||
| 608 | A 0033263000 | SHOCK ABSORBER |
| REAR AXLE | ||
| 613 | A 0003230785 | RUBBER MOUNTING |
| 618 | A 0003230553 | SPACER TUBE |
| 623 | A 3173260167 | RETAINER |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 628 | A 3853230253 | SPACER TUBE |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 633 | A 3853260068 | RUBBER BUFFER |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 638 | A 3543260067 | RETAINER |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 643 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 643 | N 910113016002 | NUT |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 648 | N 000960020035 | SCREW |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 653 | N 913004020004 | NUT |
| Repalced by: N 913004020003 | ||
| 653 | N 913004020003 | NUT |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 658 | A 3833260040 | BRACKET |
| LEFT SHOCK ABSORBER | ||
| 663 | A 3833261240 | BRACKET |
| SHOCK ABSORBER AND STABILIZER,LEFT | ||
| A 3833260140 | BRACKET | |
| RIGHT SHOCK ABSORBER | ||
| A 3833261340 | BRACKET | |
| SHOCK ABSORBER AND STABILIZER,RIGHT | ||
| 668 | A 6173260040 | BRACKET |
| SHOCK ABSORBER AND STABILIZER | ||
| 673 | N 000960014073 | SCREW |
| BRACKET TO SPRING SADDLE | ||
| M 14X110 | ||
| 678 | N 000960014244 | SCREW |
| BRACKET TO SPRING SADDLE | ||
| M 14X65 | ||
| 683 | N 912004014100 | LOCK WASHER |
| BRACKET TO SPRING SADDLE | ||
| 688 | A 3859900101 | SCREW |
| SHOCK ABSORBER TO BRACKET | ||
| 688 | A 3859900101 | SCREW |
| SHOCK ABSORBER TO BRACKET AND TO STABILIZER | ||
| 693 | N 913004020004 | NUT |
| Repalced by: N 913004020003 | ||
| 693 | N 913004020003 | NUT |
| SHOCK ABSORBER TO BRACKET | ||
| 693 | N 913004020003 | NUT |
| SHOCK ABSORBER TO BRACKET AND TO STABILIZER | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
