Transporto priemonė: 1422 S; VIN numerio dalis: 616122

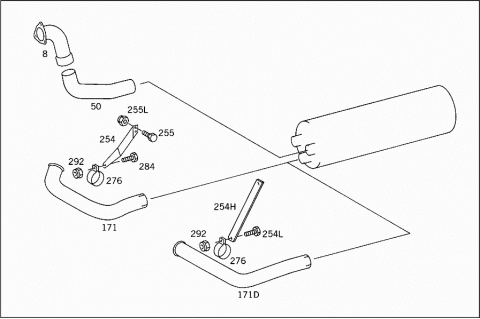

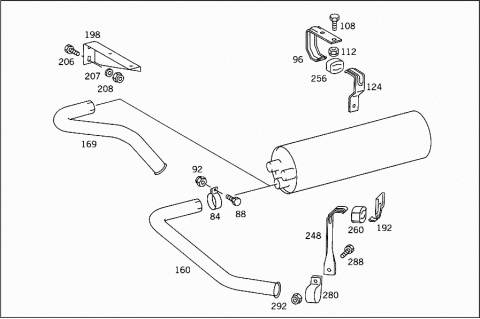

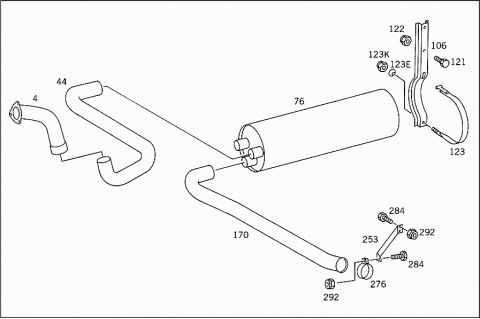

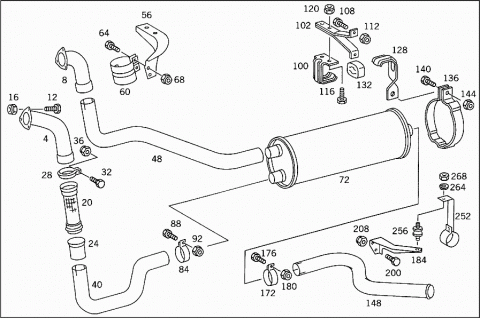

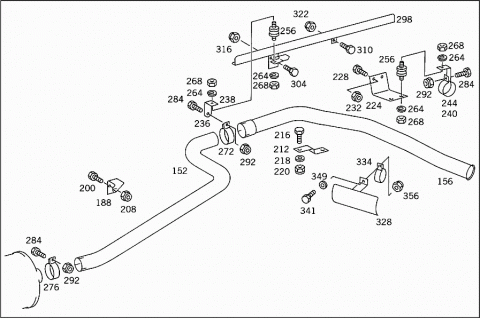

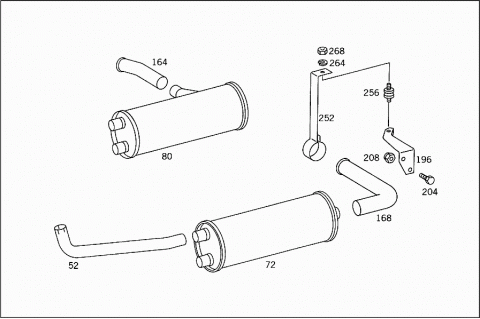

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 004 | A 6174900825 | CONNECTOR |
| LEFT FRONT | ||
| 008 | A 6174900925 | CONNECTOR |
| RIGHT FRONT | ||
| 012 | N 000931012034 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 12 X 50 | ||
| N 000931012114 | SCREW | |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 12X45 | ||
| 016 | N 913004012010 | NUT |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 020 | A 6204900365 | FLEXIBLE METAL TUBE |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 024 | A 6204920008 | COLLAR |
| Repalced by: A 6524920008 | ||
| 024 | A 6524920008 | COLLAR |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 024 | A 6174920008 | COLLAR |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 028 | A 6209970490 | CLAMP |
| EXHAUST LINE FLEXIBLE METAL TUBE | ||
| 032 | N 000933008161 | SCREW |
| Repalced by: N 304017008028 | ||
| 032 | N 304017008028 | SCREW |
| TO CLAMP PIPE CLAMPS | ||
| 036 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 036 | N 913004008001 | NUT |
| TO CLAMP PIPE CLAMPS | ||
| 040 | A 6174901220 | EXHAUST PIPE |
| Repalced by: A 6174904720 | ||
| 040 | A 6174904720 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 040 | A 6174904720 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 044 | A 6194901920 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 044 | A 6174901620 | EXHAUST PIPE |
| Repalced by: A 6174904020 | ||
| 044 | A 6174904020 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 044 | A 6174901820 | EXHAUST PIPE |
| Repalced by: A 6174904120 | ||
| 044 | A 6174904120 | EXHAUST PIPE |
| FRONT,REAR LEFT PART | ||
| 048 | A 6174901320 | EXHAUST PIPE |
| Repalced by: A 6174904820 | ||
| 048 | A 6174904820 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 048 | A 6174904820 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 050 | A 6194902020 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 052 | A 6174901720 | EXHAUST PIPE |
| Repalced by: A 6174905020 | ||
| 052 | A 6174905020 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 052 | A 6174901920 | EXHAUST PIPE |
| Repalced by: A 6174904220 | ||
| 052 | A 6174904220 | EXHAUST PIPE |
| FRONT,REAR RIGHT PART | ||
| 056 | A 6174922941 | BRACKET |
| LEFT EXHAUST PIPE | ||
| 056 | A 6174923041 | BRACKET |
| RIGHT EXHAUST PIPE | ||
| 060 | A 6204920840 | CLAMP |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 064 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 064 | N 304017010002 | SCREW |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 068 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 068 | N 910113010000 | NUT |
| FRONT EXHAUST PIPE TO BRACKET | ||
| A 3834901030 | PROTECTIVE PLATE | |
| FRONT EXHAUST PIPE | ||
| N 071555090501 | CLAMP | |
| Repalced by: N 071555090502 | ||
| N 071555090502 | CLAMP | |
| PROTECTIVE PLATE TO FRONT EXHAUST PIPE | ||
| N 000933010129 | SCREW | |
| Repalced by: N 304017010002 | ||
| N 304017010002 | SCREW | |
| PROTECTIVE PLATE TO FRONT EXHAUST PIPE | ||
| N 913004010008 | NUT | |
| Repalced by: N 910113010000 | ||
| N 910113010000 | NUT | |
| PROTECTIVE PLATE TO FRONT EXHAUST PIPE | ||
| 072 | A 6174900101 | EXHAUST MUFFLER |
| 072 | A 6174900101 | EXHAUST MUFFLER |
| 072 | A 6174900101 | EXHAUST MUFFLER |
| 072 | A 6174900101 | EXHAUST MUFFLER |
| 076 | A 6174900001 | EXHAUST MUFFLER |
| 076 | A 6174901901 | EXHAUST MUFFLER |
| 080 | A 3874900601 | EXHAUST MUFFLER |
| 084 | N 071555078502 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 78.5 MM | ||
| 088 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 088 | N 304017010002 | SCREW |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 092 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 092 | N 910113010000 | NUT |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 096 | A 6174910616 | SUPPORT |
| FRONT EXHAUST MUFFLER | ||
| 096 | A 6174910616 | SUPPORT |
| FRONT EXHAUST MUFFLER | ||
| 100 | A 6174911316 | SUPPORT |
| REAR EXHAUST MUFFLER | ||
| 100 | A 6174911316 | SUPPORT |
| REAR EXHAUST MUFFLER | ||
| 102 | A 6174900034 | SUPPORT |
| REAR EXHAUST MUFFLER | ||
| 106 | A 6174910541 | BRACKET |
| EXHAUST MUFFLER TO FRAME | ||
| 108 | N 000933012151 | SCREW |
| Repalced by: N 304017012022 | ||
| 108 | N 304017012022 | SCREW |
| SUPPORT TO CROSS MEMBER | ||
| M 12X1.5X30 | ||
| 108 | N 304017012022 | SCREW |
| SUPPORT TO CROSS MEMBER | ||
| M 12X1.5X30 | ||
| 112 | N 910113012002 | NUT |
| SUPPORT TO CROSS MEMBER | ||
| 112 | N 910113012002 | NUT |
| SUPPORT TO CROSS MEMBER | ||
| 116 | N 000933010157 | SCREW |
| SUPPORT TO CROSS MEMBER | ||
| M 10X28 | ||
| 116 | N 000933010157 | SCREW |
| SUPPORT TO CROSS MEMBER | ||
| M 10X28 | ||
| 116 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 116 | N 304017010002 | SCREW |
| SUPPORT TO FRAME | ||
| M 10X30 | ||
| 120 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 120 | N 910113010000 | NUT |
| SUPPORT TO FRAME | ||
| 120 | N 910113010000 | NUT |
| SUPPORT TO CROSS MEMBER | ||
| 121 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 121 | N 308676014020 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 14X35 | ||
| N 000961014100 | SCREW | |
| BRACKET TO SIDE MEMBER | ||
| M 14X30 | ||
| 122 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 122 | N 910113014001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 123 | A 6174900142 | STRAP |
| FRONT AND REAR EXHAUST MUFFLERS | ||
| 123E | N 006319010302 | SPHERICAL WASHER |
| STRAP TO BRACKET | ||
| 123K | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 123K | N 910113010000 | NUT |
| STRAP TO BRACKET | ||
| 124 | A 6174920141 | BRACKET |
| FRONT EXHAUST MUFFLER | ||
| 124 | A 6174920141 | BRACKET |
| FRONT EXHAUST MUFFLER | ||
| 128 | A 6174920241 | BRACKET |
| REAR EXHAUST MUFFLER | ||
| 128 | A 6174920241 | BRACKET |
| REAR EXHAUST MUFFLER | ||
| 128 | A 6174922741 | BRACKET |
| REAR EXHAUST MUFFLER | ||
| 132 | A 3814920082 | DAMPING PAD |
| BRACKET TO SUPPORT | ||
| 132 | A 3814920082 | DAMPING PAD |
| BRACKET TO SUPPORT | ||
| 136 | A 6174910340 | CLAMP |
| Repalced by: A 6174910540 | ||
| 136 | A 6174910540 | CLAMP |
| EXHAUST MUFFLER TO BRACKET,FRONT AND REAR | ||
| 136 | A 6174910540 | CLAMP |
| EXHAUST MUFFLER TO BRACKET,FRONT AND REAR | ||
| 140 | N 000933010094 | SCREW |
| EXHAUST MUFFLER TO BRACKET,FRONT AND REAR | ||
| M 10X40 | ||
| 140 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 140 | N 304017010002 | SCREW |
| EXHAUST MUFFLER TO BRACKET,FRONT AND REAR | ||
| M 10X30 | ||
| 144 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 144 | N 910113010000 | NUT |
| EXHAUST MUFFLER TO BRACKET,FRONT AND REAR | ||
| 144 | N 910113010000 | NUT |
| EXHAUST MUFFLER TO BRACKET,FRONT AND REAR | ||
| 148 | A 6174920914 | END PIECE |
| 148 | A 6174920004 | REAR EXHAUST PIPE |
| Repalced by: A 6174920204 | ||
| 148 | A 6174920204 | REAR EXHAUST PIPE |
| 148 | A 6174920204 | REAR EXHAUST PIPE |
| 152 | A 6164920304 | REAR EXHAUST PIPE |
| FRONT | ||
| A 6164920507 | CONNECTOR | |
| REAR EXHAUST PIPE | ||
| 156 | A 6154920304 | REAR EXHAUST PIPE |
| Repalced by: A 6154920014 | ||
| 156 | A 6154920014 | END PIECE |
| 160 | A 6174920014 | END PIECE |
| 164 | A 3974920404 | REAR EXHAUST PIPE |
| 168 | A 6174920514 | END PIECE |
| 169 | A 6174920604 | REAR EXHAUST PIPE |
| 170 | A 6194921204 | REAR EXHAUST PIPE |
| TAIL PIPE,FRONT | ||
| 171 | A 6194922004 | REAR EXHAUST PIPE |
| TAIL PIPE,FRONT | ||
| 171D | A 6194922104 | REAR EXHAUST PIPE |
| 172 | N 071555090501 | CLAMP |
| Repalced by: N 071555090502 | ||
| 172 | N 071555090502 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 90.5 MM | ||
| 176 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 176 | N 304017010002 | SCREW |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 180 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 180 | N 910113010000 | NUT |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 184 | A 3814910516 | SUPPORT |
| REAR EXHAUST PIPE | ||
| 188 | A 6154920441 | BRACKET |
| REAR EXHAUST PIPES | ||
| 192 | A 3814910416 | SUPPORT |
| REAR EXHAUST PIPE | ||
| 192 | A 3814920316 | SUPPORT |
| REAR EXHAUST PIPE | ||
| 196 | A 3814910616 | SUPPORT |
| REAR EXHAUST PIPE | ||
| 198 | A 3464920841 | BRACKET |
| REAR EXHAUST PIPE | ||
| 200 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 200 | N 304017008034 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 8X25 | ||
| 200 | N 304017008034 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 8X25 | ||
| 204 | N 000933008150 | SCREW |
| Repalced by: N 304017008018 | ||
| 204 | N 304017008018 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 8X35 | ||
| 204 | N 304017008018 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 8X35 | ||
| 206 | N 000933010094 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 10X40 | ||
| 206 | N 000933010328 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 10X45 | ||
| 207 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 207 | N 000125010532 | WASHER |
| SUPPORT TO SIDE MEMBER | ||
| 208 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 208 | N 913004008001 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 208 | N 913004008001 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 208 | N 913004008001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 208 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 208 | N 910113010000 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 212 | A 6154920041 | BRACKET |
| EXHAUST PIPE TO CROSS MEMBER | ||
| 216 | N 000961012151 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| M 12X30 | ||
| 218 | N 007349013003 | WASHER |
| Repalced by: N 007349013005 | ||
| 218 | N 007349013005 | WASHER |
| BRACKET TO CROSS MEMBER | ||
| 220 | N 910113012002 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 224 | A 6154920341 | BRACKET |
| EXHAUST PIPE TO SIDE MEMBER | ||
| 224 | A 6154921841 | BRACKET |
| EXHAUST PIPE TO SIDE MEMBER | ||
| 228 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 228 | N 308676012012 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 12X25 | ||
| 232 | N 910113012002 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 236 | A 6164920141 | BRACKET |
| Repalced by: A 6164920241 | ||
| 236 | A 6164920241 | BRACKET |
| REAR EXHAUST PIPE | ||
| 238 | A 3814920041 | BRACKET |
| EXHAUST PIPE TO SIDE MEMBER | ||
| 238 | A 3814920041 | BRACKET |
| REAR EXHAUST PIPE TO BRACKET AT SHOCK ABSORBER CROSS MEMBER | ||
| 240 | A 6174910341 | BRACKET |
| 244 | A 6154920241 | BRACKET |
| EXHAUST PIPE TO SIDE MEMBER | ||
| 248 | A 6174920941 | BRACKET |
| REAR EXHAUST PIPE | ||
| 252 | A 6174922441 | BRACKET |
| Repalced by: A 6164920241 | ||
| 252 | A 6164920241 | BRACKET |
| REAR EXHAUST PIPE | ||
| 252 | A 6174922541 | BRACKET |
| Repalced by: A 6164923241 | ||
| 252 | A 6164923241 | BRACKET |
| REAR EXHAUST PIPE | ||
| 252 | A 6164923241 | BRACKET |
| REAR EXHAUST PIPE | ||
| 253 | A 6194921041 | BRACKET |
| TAIL PIPE,FRONT | ||
| 254 | A 6194921341 | BRACKET |
| TAIL PIPE,FRONT | ||
| 254H | A 6214921741 | BRACKET |
| Repalced by: A 6244920741 | ||
| 254H | A 6244920741 | BRACKET |
| TAIL PIPE,FRONT | ||
| 254L | N 000933010105 | SCREW |
| BRACKET TO HYDRAULIC PUMP BRACKET | ||
| 255 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 255 | N 304017010002 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 255 | N 304017010002 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 255L | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 255L | N 910113010000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 255L | N 910113010000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 255L | N 910113010000 | NUT |
| BRACKET TO HYDRAULIC PUMP BRACKET | ||
| 256 | A 0019875340 | RUBBER BUFFER |
| EXHAUST PIPE SUSPENSION | ||
| 256 | A 0019875340 | RUBBER BUFFER |
| EXHAUST PIPE SUSPENSION | ||
| 256 | A 0019875340 | RUBBER BUFFER |
| EXHAUST PIPE SUSPENSION | ||
| 260 | A 3814920082 | DAMPING PAD |
| BRACKET TO SUPPORT | ||
| 264 | N 912004010102 | LOCK WASHER |
| RUBBER BUFFER TO BRACKET | ||
| 264 | N 912004010102 | LOCK WASHER |
| RUBBER BUFFER TO BRACKET | ||
| 264 | N 912004010102 | LOCK WASHER |
| RUBBER BUFFER TO BRACKET | ||
| 268 | N 000934010014 | NUT |
| RUBBER BUFFER TO BRACKET | ||
| 268 | N 000934010014 | NUT |
| RUBBER BUFFER TO BRACKET | ||
| 268 | N 000934010014 | NUT |
| RUBBER BUFFER TO BRACKET | ||
| 272 | N 071555094501 | CLAMP |
| Repalced by: N 071555094502 | ||
| 272 | N 071555094502 | CLAMP |
| REAR EXHAUST PIPE TO BRACKET | ||
| 94.5 MM | ||
| 276 | N 071555090501 | CLAMP |
| Repalced by: N 071555090502 | ||
| 276 | N 071555090502 | CLAMP |
| REAR EXHAUST PIPE TO BRACKET | ||
| 90.5 MM | ||
| 276 | N 071555090502 | CLAMP |
| TAIL PIPE TO BRACKET | ||
| 90.5 MM | ||
| 280 | A 3954920040 | CLAMP |
| Repalced by: A 6454921140 | ||
| 280 | A 6454921140 | CLAMP |
| REAR EXHAUST PIPE TO BRACKET | ||
| 284 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 284 | N 304017010002 | SCREW |
| REAR EXHAUST PIPE TO BRACKET | ||
| M 10 X 30 | ||
| 284 | N 304017010002 | SCREW |
| TAIL PIPE TO BRACKET | ||
| M 10 X 30 | ||
| 288 | N 000933010105 | SCREW |
| REAR EXHAUST PIPE TO BRACKET | ||
| M 10 X 25 | ||
| 288 | N 000933010105 | SCREW |
| REAR EXHAUST PIPE TO BRACKET | ||
| M 10 X 25 | ||
| 292 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 292 | N 910113010000 | NUT |
| REAR EXHAUST PIPE TO BRACKET | ||
| 292 | N 910113010000 | NUT |
| REAR EXHAUST PIPE TO BRACKET | ||
| 292 | N 910113010000 | NUT |
| TAIL PIPE TO BRACKET | ||
| 298 | A 6164900030 | PROTECTIVE PLATE |
| REAR EXHAUST PIPE | ||
| 304 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 304 | N 304017008034 | SCREW |
| M 8X25 | ||
| 310 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 310 | N 304017010002 | SCREW |
| M 10X25 | ||
| 316 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 316 | N 913004008001 | NUT |
| 322 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 322 | N 910113010000 | NUT |
| 328 | A 3834901030 | PROTECTIVE PLATE |
| TAIL PIPE | ||
| 334 | N 071555090501 | CLAMP |
| Repalced by: N 071555090502 | ||
| 334 | N 071555090502 | CLAMP |
| 341 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 341 | N 304017008027 | SCREW |
| 349 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 349 | N 000125008443 | WASHER |
| 356 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 356 | N 913004008001 | NUT |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
