Transporto priemonė: 1424 LAP AEGYPTEN; VIN numerio dalis: 699100

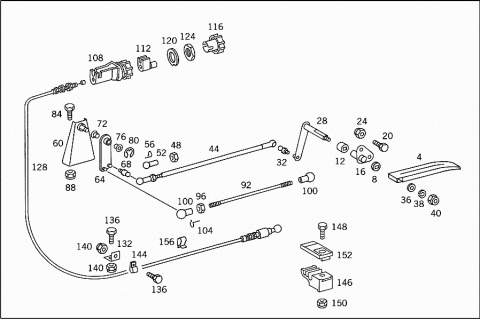

Grupė: 30 CONTROL
| # | Kodas | Pavadinimas |
|---|---|---|
| 004 | A 3523000802 | PLATE |
| ACCELERATOR PEDAL | ||
| 008 | A 3223010054 | GUARD PLATE |
| ACCELERATOR PEDAL BEARING | ||
| 012 | A 3523010088 | COVERING |
| ACCELERATOR PEDAL BEARING | ||
| 016 | A 3533000021 | BEARING TUBE |
| ACCELERATOR PEDAL | ||
| 020 | A 0019903804 | SCREW |
| Repalced by: N 910142008001 | ||
| 020 | N 910142008001 | SCREW |
| BEARING TUBE TO SUBSTRUCTURE | ||
| 024 | A 0009906350 | NUT |
| BEARING TUBE TO SUBSTRUCTURE | ||
| 028 | A 3533000125 | LEVER |
| ACCELERATOR PEDAL | ||
| 032 | N 071803010209 | BALL PIVOT |
| 10X6 MM | ||
| 032 | N 071803010204 | BALL PIVOT |
| 10X8 MM | ||
| 036 | N 000433008406 | WASHER |
| PEDAL PLATE TO SHAFT | ||
| 038 | N 912004008102 | LOCK WASHER |
| PEDAL PLATE TO SHAFT | ||
| 040 | A 0009907950 | NUT |
| PEDAL PLATE TO SHAFT | ||
| 044 | A 3533000415 | ROD |
| FROM ACCELERATOR PEDAL TO INTERMEDIATE LEVER | ||
| 048 | A 0009907850 | NUT |
| BALL SOCKET TO ROD | ||
| 052 | N 071805010204 | BALL SOCKET |
| ON ROD: | ||
| 056 | N 071805010403 | CIRCLIP |
| BALL SOCKET | ||
| 060 | A 3533000036 | BEARING BRACKET |
| INTERMEDIATE LEVER | ||
| 064 | A 3533000028 | LEVER |
| (INTERMEDIATE LEVER) | ||
| 068 | N 071803013208 | BALL PIVOT |
| 072 | A 3813020050 | BUSHING |
| LEVER TO BEARING BRACKET | ||
| 076 | A 3813010388 | COVERING |
| LEVER TO BEARING BRACKET | ||
| 080 | N 006799010001 | LOCK PLATE |
| LEVER TO BEARING BRACKET | ||
| 084 | A 0019904104 | SCREW |
| Repalced by: N 910142008009 | ||
| 084 | N 910142008009 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| 088 | A 0009906350 | NUT |
| BEARING BRACKET TO SIDE MEMBER | ||
| 092 | A 3963000615 | ROD |
| FROM INTERMEDIATE LEVER TO ENGINE CONTROL SHAFT | ||
| 096 | A 0009907950 | NUT |
| BALL SOCKET TO ROD | ||
| 100 | A 4069910022 | BALL SOCKET |
| ON ROD: | ||
| 104 | N 071805010403 | CIRCLIP |
| BALL SOCKET | ||
| 108 | A 3813000326 | MANUAL CONTROL |
| IDLING ADJUSTER | ||
| 112 | A 3813020108 | GUIDE |
| 116 | A 6153020001 | KNOB |
| 120 | N 000988030003 | FITTED WASHER |
| 124 | A 3819900051 | NUT |
| 128 | A 6153000930 | WIRE CABLE |
| IDLING ADJUSTMENT | ||
| 128 | A 6203000130 | WIRE CABLE |
| IDLING ADJUSTMENT | ||
| 132 | A 6993020240 | BRACKET |
| WIRE CABLE | ||
| 132 | A 3532950140 | BRACKET |
| WIRE CABLE | ||
| 136 | A 0029902704 | SCREW |
| BRACKET TO FRAME | ||
| 140 | A 0009906950 | NUT |
| BRACKET TO FRAME | ||
| 144 | N 916016008200 | CLAMP |
| Repalced by: N 000000000319 | ||
| 144 | N 000000000319 | CLAMP |
| WIRE CABLE TO BRACKET | ||
| 146 | A 6553010043 | CLAMPING PIECE |
| IDLING ADJUSTMENT WIRE CABLE | ||
| 146 | A 6733010043 | CLAMPING PIECE |
| IDLING ADJUSTMENT WIRE CABLE | ||
| 148 | N 914130006606 | SCREW |
| CLAMPING PIECE TO BRACKET | ||
| 150 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 150 | N 913004006001 | NUT |
| CLAMPING PIECE TO BRACKET | ||
| 152 | A 6733010036 | COVER |
| IDLING ADJUSTMENT WIRE CABLE | ||
| 156 | A 1235040246 | CLIP-TYPE NUT |
| WIRE CABLE TO FRAME | ||
