Transporto priemonė: 1514; VIN numerio dalis: 675022

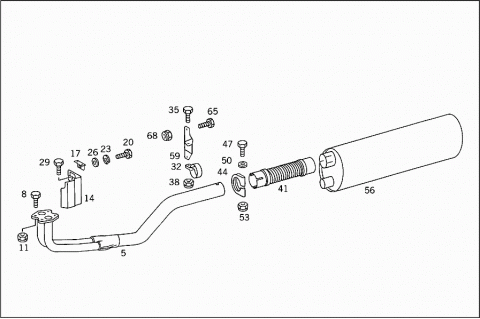

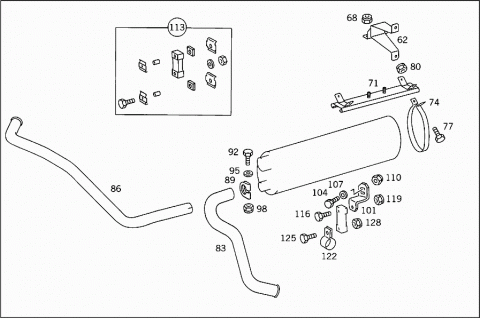

Grupė: 49 EXHAUST SYSTEM - 040 EXHAUST SYSTEM W/SIDE MOUNTED TAIL PIPE
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6744902819 | EXHAUST PIPE |
| Repalced by: A 6744904119 | ||
| 005 | A 6744904119 | EXHAUST PIPE |
| CONNECTING PIPE TO EXHAUST MANIFOLD | ||
| 008 | N 000931010282 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 12X45 | ||
| 011 | A 0009906550 | NUT |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 014 | A 6764900330 | PROTECTIVE PLATE |
| Repalced by: A 6764900730 | ||
| 014 | A 6764900730 | PROTECTIVE PLATE |
| FRONT EXHAUST PIPE | ||
| 017 | A 6744901440 | BRACKET |
| FRONT EXHAUST PIPE | ||
| 020 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 020 | N 304017008016 | SCREW |
| EXHAUST PIPE BRACKET TO BELL HOUSING | ||
| 023 | N 912004008102 | LOCK WASHER |
| EXHAUST PIPE BRACKET TO BELL HOUSING | ||
| 026 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 026 | N 000125008443 | WASHER |
| EXHAUST PIPE BRACKET TO BELL HOUSING | ||
| 029 | N 000931010282 | SCREW |
| BRACKET TO TRANSMISSION CASE | ||
| 032 | N 071555090501 | CLAMP |
| Repalced by: N 071555090502 | ||
| 032 | N 071555090502 | CLAMP |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 035 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 035 | N 304017010002 | SCREW |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 038 | A 0009906550 | NUT |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 041 | A 6744900065 | FLEXIBLE METAL TUBE |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 044 | A 6744920040 | CLAMP |
| FLEXIBLE METAL TUBE TO EXHAUST PIPE AND TO EXHAUST MUFFLER | ||
| 047 | N 000931008222 | SCREW |
| FLEXIBLE METAL TUBE TO EXHAUST PIPE AND TO EXHAUST MUFFLER | ||
| 050 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 050 | N 000125008443 | WASHER |
| FLEXIBLE METAL TUBE TO EXHAUST PIPE AND TO EXHAUST MUFFLER | ||
| 053 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 053 | N 913004008001 | NUT |
| FLEXIBLE METAL TUBE TO EXHAUST PIPE | ||
| 056 | A 6764900001 | EXHAUST MUFFLER |
| Repalced by: A 6764900501 | ||
| 056 | A 6764900501 | EXHAUST MUFFLER |
| 059 | A 6744922541 | BRACKET |
| EXHAUST MUFFLER | ||
| 062 | A 6744902840 | BRACKET |
| Repalced by: A 6744903140 | ||
| 062 | A 6744903140 | BRACKET |
| Repalced by: A 6744903740 | ||
| 062 | A 6744903740 | BRACKET |
| Repalced by: A 6744903840 | ||
| 062 | A 6744903840 | BRACKET |
| Repalced by: A 6744904640 | ||
| 062 | A 6744904640 | BRACKET |
| Repalced by: A 6744924841 | ||
| 062 | A 6744924841 | BRACKET |
| EXHAUST MUFFLER | ||
| A 6734901734 | SUPPORT | |
| EXHAUST MUFFLER | ||
| 062 | A 6744913641 | BRACKET |
| Repalced by: A 6744904440 | ||
| 062 | A 6744904440 | BRACKET |
| Repalced by: A 6744916241 | ||
| 062 | A 6744916241 | BRACKET |
| EXHAUST MUFFLER | ||
| 065 | N 000933010157 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 068 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 068 | N 910113010000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 071 | A 6734901434 | SUPPORT |
| Repalced by: A 6734901734 | ||
| 071 | A 6734901734 | SUPPORT |
| EXHAUST MUFFLER | ||
| A 6744904640 | BRACKET | |
| Repalced by: A 6744924841 | ||
| A 6744924841 | BRACKET | |
| EXHAUST MUFFLER | ||
| 074 | A 6744912641 | BRACKET |
| Repalced by: A 6744914541 | ||
| 074 | A 6744914541 | STRAP |
| AT MUFFLER | ||
| 077 | N 000933010164 | SCREW |
| BRACKET TO EXHAUST PIPE BRACKET | ||
| M 10X35 | ||
| 077 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 077 | N 304017010002 | SCREW |
| BRACKET TO EXHAUST PIPE BRACKET | ||
| M 10X30 | ||
| 080 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 080 | N 910113010000 | NUT |
| BRACKET TO EXHAUST PIPE BRACKET | ||
| 083 | A 6764923004 | REAR EXHAUST PIPE |
| Repalced by: A 6754920604 | ||
| 083 | A 6754920604 | REAR EXHAUST PIPE |
| TAIL PIPE,FRONT | ||
| A 6744929504 | REAR EXHAUST PIPE | |
| Repalced by: A 6744920005 | ||
| 083 | A 6744920005 | REAR EXHAUST PIPE |
| TAIL PIPE,FRONT | ||
| 083 | A 6744924704 | REAR EXHAUST PIPE |
| Repalced by: A 6754920804 | ||
| 083 | A 6754920804 | REAR EXHAUST PIPE |
| TAIL PIPE,FRONT | ||
| 086 | A 6744927504 | REAR EXHAUST PIPE |
| Repalced by: A 6754920704 | ||
| 086 | A 6754920704 | REAR EXHAUST PIPE |
| TAIL PIPE,FRONT | ||
| 086 | A 6754920904 | REAR EXHAUST PIPE |
| TAIL PIPE,FRONT | ||
| 089 | A 6734920140 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 092 | N 000931008281 | SCREW |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 095 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 095 | N 000125008443 | WASHER |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 098 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 098 | N 913004008001 | NUT |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 101 | A 6734921141 | BRACKET |
| TAIL PIPE,FRONT | ||
| A 6744915841 | BRACKET | |
| Repalced by: A 3524920141 | ||
| A 3524920141 | BRACKET | |
| TAIL PIPE,FRONT | ||
| 104 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 104 | N 304017008034 | SCREW |
| BRACKET TO APPARATUS SUPPORT | ||
| N 000933008147 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| BRACKET TO APPARATUS SUPPORT | ||
| N 304017008021 | HEXAGON HEAD BOLT | |
| BRACKET TO FILTER BRACKET | ||
| 107 | N 007349008003 | WASHER |
| BRACKET TO APPARATUS SUPPORT | ||
| 110 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 110 | N 913004008001 | NUT |
| BRACKET TO APPARATUS SUPPORT | ||
| 110 | N 913004008001 | NUT |
| BRACKET TO FILTER BRACKET | ||
| 113 | A 3094900037 | SUSPENSION |
| (DAMPING PAD),REAR EXHAUST PIPE | ||
| 116 | N 000931008266 | SCREW |
| DAMPING PAD TO BRACKET | ||
| 119 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 119 | N 913004008001 | NUT |
| DAMPING PAD TO BRACKET | ||
| A 6734921041 | BRACKET | |
| TAIL PIPE,FRONT | ||
| A 6744915741 | BRACKET | |
| TAIL PIPE,FRONT | ||
| A 6734912041 | BRACKET | |
| TAIL PIPE,FRONT | ||
| A 6764922441 | BRACKET | |
| TAIL PIPE,FRONT | ||
| A 6744924041 | BRACKET | |
| BRACKET TO FILTER BRACKET | ||
| A 3849877140 | RUBBER BUFFER | |
| BRACKET TO TAIL PIPE BRACKET | ||
| A 6739900940 | WASHER | |
| Repalced by: N 006902011100 | ||
| N 006902011100 | WASHER | |
| Repalced by: N 006902011102 | ||
| N 006902011102 | WASHER | |
| BRACKET TO RUBBER MOUNTING | ||
| N 913004010008 | NUT | |
| Repalced by: N 910113010000 | ||
| N 910113010000 | NUT | |
| BRACKET TO RUBBER MOUNTING | ||
| 122 | N 071555075502 | CLAMP |
| TAIL PIPE,FRONT | ||
| 125 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 125 | N 304017010002 | SCREW |
| CLAMP TO BRACKET AND TO PIPE | ||
| 128 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 128 | N 910113010000 | NUT |
| CLAMP TO BRACKET AND TO PIPE | ||
