Transporto priemonė: 1518 INDONESIA; VIN numerio dalis: 684302

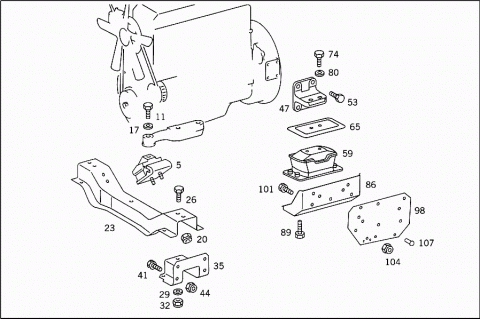

Grupė: 24 ENGINE SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6152400317 | RUBBER MOUNTING |
| FRONT | ||
| 011 | N 000961016110 | SCREW |
| RUBBER MOUNTING TO ENGINE SUPPORTING ARM | ||
| 017 | A 3529902440 | WASHER |
| RUBBER MOUNTING TO ENGINE SUPPORTING ARM | ||
| 020 | N 913004012008 | NUT |
| RUBBER MOUNTING TO ENGINE CROSS MEMBER | ||
| 023 | A 3813120105 | ENGINE CROSS MEMBER |
| ENGINE FRONT SUSPENSION | ||
| 026 | N 000961012168 | SCREW |
| ENGINE FRONT CROSS MEMBER TO ENGINE STAY | ||
| 029 | A 3859901040 | WASHER |
| ENGINE FRONT CROSS MEMBER TO ENGINE STAY | ||
| 032 | N 913004012008 | NUT |
| ENGINE FRONT CROSS MEMBER TO ENGINE STAY | ||
| 035 | A 3812410609 | ENGINE STAY |
| ENGINE FRONT SUSPENSION | ||
| 041 | N 000961012151 | SCREW |
| ENGINE STAY TO SIDE MEMBER | ||
| M 12X30 | ||
| 041 | N 000961012156 | SCREW |
| ENGINE STAY TO SIDE MEMBER | ||
| M 12X35 | ||
| 044 | N 913004012008 | NUT |
| ENGINE STAY TO SIDE MEMBER | ||
| 047 | A 3812420305 | SUPPORTING ARM |
| REAR | ||
| 053 | N 000933016072 | SCREW |
| SUPPORTING ARM TO BELL HOUSING | ||
| 059 | A 6152400218 | RUBBER MOUNTING |
| REAR | ||
| 059 | A 6152400318 | RUBBER MOUNTING |
| REAR | ||
| 059 | A 6152400418 | RUBBER MOUNTING |
| REAR | ||
| 059 | A 6152400018 | RUBBER MOUNTING |
| REAR | ||
| 059 | A 6152400118 | RUBBER MOUNTING |
| REAR | ||
| 065 | A 3812420034 | SCREENING PLATE |
| ENGINE REAR MOUNTING | ||
| 074 | N 000961014101 | SCREW |
| RUBBER MOUNTING TO ENGINE SUPPORTING ARM | ||
| 080 | A 3609901840 | WASHER |
| RUBBER MOUNTING TO ENGINE SUPPORTING ARM | ||
| 086 | A 6162420302 | SUPPORT |
| ENGINE REAR SUPPORT | ||
| 089 | N 000961012164 | SCREW |
| REAR RUBBER MOUNTING TO CONSOLE | ||
| 098 | A 6172420132 | REINFORCEMENT |
| CONSOLE TO SIDE MEMBER | ||
| 101 | N 000961012163 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 12X35 | ||
| 101 | N 000961012120 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 12X40 | ||
| 104 | N 913004012009 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 107 | N 910005010085 | RIVET |
| REINFORCEMENT TO SIDE MEMBER | ||
| 107 | N 910005012074 | RIVET |
| REINFORCEMENT TO SIDE MEMBER |
