Transporto priemonė: 1613; VIN numerio dalis: 385007

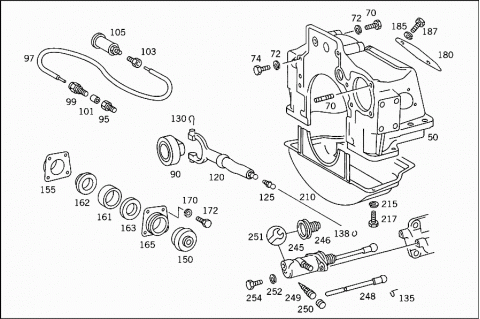

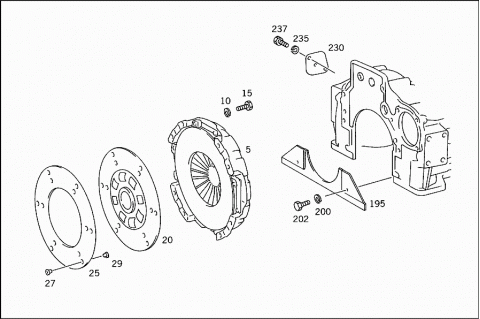

Grupė: 25 CLUTCH
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 0022507004 | CLUTCH PRESSURE PLATE |
| 005 | A 0032506504 | CLUTCH PRESSURE PLATE |
| 010 | N 912004008102 | LOCK WASHER |
| CLUTCH TO FLYWHEEL | ||
| 015 | N 000933008317 | SCREW |
| CLUTCH TO FLYWHEEL | ||
| 020 | A 0092501203 | CLUTCH DISC |
| ASBESTOS-FREE LINING | ||
| 020 | A 0092501303 | CLUTCH DISC |
| ASBESTOS-FREE LINING | ||
| 020 | A 0032508203 | CLUTCH DISC |
| Repalced by: A 0032508603 | ||
| 020 | A 0022500403 | CLUTCH DISC |
| Repalced by: A 0032508603 | ||
| 020 | A 0052500603 | CLUTCH DISC |
| Repalced by: A 0032508603 | ||
| 020 | A 0052500703 | CLUTCH DISC |
| Repalced by: A 0032508603 | ||
| 020 | A 0032508603 | CLUTCH DISC |
| A 0002522019 | LEAF SPRING | |
| 025 | A 0012525010 | CLUTCH LINING |
| ASBESTOS-FREE | ||
| 025 | A 0002525210 | CLUTCH LINING |
| Repalced by: A 0002529010 | ||
| 025 | A 0002529010 | CLUTCH LINING |
| 027 | A 0002521475 | RIVET |
| Repalced by: A 0002523875 | ||
| 027 | A 0002523875 | RIVET |
| LINING WITH INTERMEDIATE SPRING | ||
| 029 | A 0002522175 | RIVET |
| LEAF SPRING TO CLUTCH DISC | ||
| 050 | A 3812510101 | BELL HOUSING |
| Repalced by: A 3812510501 | ||
| 050 | A 3812510301 | BELL HOUSING |
| Repalced by: A 3812510501 | ||
| 050 | A 3812510301 | BELL HOUSING |
| Repalced by: A 3812510501 | ||
| 050 | A 3812510501 | BELL HOUSING |
| 050 | A 3812510501 | BELL HOUSING |
| A 3852510801 | BELL HOUSING | |
| Repalced by: A 3832510001 | ||
| A 3852510801 | BELL HOUSING | |
| Repalced by: A 3832510001 | ||
| A 3832510001 | BELL HOUSING | |
| A 3832510001 | BELL HOUSING | |
| A 3812540240 | BRACKET | |
| BELL HOUSING | ||
| A 3812540240 | BRACKET | |
| BELL HOUSING | ||
| A 0009945341 | LOCK | |
| BELL HOUSING | ||
| A 0009945341 | LOCK | |
| BELL HOUSING | ||
| 070 | A 0009902605 | STUD |
| BELL HOUSING | ||
| 072 | N 912004012100 | LOCK WASHER |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| 074 | N 900170012005 | SCREW |
| Repalced by: A 0029906804 | ||
| 074 | A 0029906804 | SCREW |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| M 12X35 | ||
| N 000931012152 | SCREW | |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| M 12X135 | ||
| N 000931012152 | SCREW | |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| M 12X135 | ||
| N 000931012206 | SCREW | |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| M 12X145 | ||
| N 000931012206 | SCREW | |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| M 12X145 | ||
| N 000931012206 | SCREW | |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| M 12X145 | ||
| 090 | A 0002504015 | RELEASE BEARING |
| Repalced by: A 0002504615 | ||
| 090 | A 0002504015 | RELEASE BEARING |
| Repalced by: A 0002504615 | ||
| 090 | A 0002503115 | RELEASE BEARING |
| Repalced by: A 0002504615 | ||
| 090 | A 0002503115 | RELEASE BEARING |
| Repalced by: A 0002504615 | ||
| 090 | A 0002504615 | RELEASE BEARING |
| Repalced by: A 0012509315 | ||
| 090 | A 0012509315 | RELEASE BEARING |
| 090 | A 0012509315 | RELEASE BEARING |
| 090 | A 0012509315 | RELEASE BEARING |
| 090 | A 0002504215 | RELEASE BEARING |
| 090 | A 0002504215 | RELEASE BEARING |
| 090 | A 0002504215 | RELEASE BEARING |
| A 6209970288 | GREASE NIPPLE | |
| (PARTS KIT) RELEASE BEARING LUBRICATION | ||
| 095 | N 071428004102 | SCREW-IN FITTING |
| RELEASE BEARING LUBRICATION | ||
| 097 | A 3059971982 | HOSE |
| RELEASE BEARING LUBRICATION | ||
| 099 | N 003871004102 | UNION SCREW |
| RELEASE BEARING LUBRICATION | ||
| 101 | N 003862004001 | DOUBLE TAPER RING |
| RELEASE BEARING LUBRICATION | ||
| 103 | N 003871004102 | UNION SCREW |
| RELEASE BEARING LUBRICATION | ||
| 105 | N 003411002001 | GREASE CUP |
| Repalced by: A 6209880135 | ||
| 105 | A 6209880135 | CAP |
| RELEASE BEARING LUBRICATION | ||
| A 3812500113 | RELEASE LEVER | |
| Repalced by: A 3812540108 | ||
| 120 | A 3812540108 | RELEASE LEVER |
| 120 | A 3812540108 | RELEASE LEVER |
| A 3812500213 | RELEASE LEVER | |
| Repalced by: A 3812540208 | ||
| A 3812540208 | RELEASE LEVER | |
| A 3812540208 | RELEASE LEVER | |
| A 3812540208 | RELEASE LEVER | |
| 125 | A 3029910015 | BALL PIVOT |
| RELEASE LEVER | ||
| 125 | A 3529910415 | BALL PIVOT |
| RELEASE LEVER | ||
| 130 | A 3402540013 | SPRING LOCK |
| RELEASE LEVER TO RELEASE BEARING | ||
| 130 | A 3402540013 | SPRING LOCK |
| RELEASE LEVER TO RELEASE BEARING | ||
| A 3812540113 | SPRING LOCK | |
| RELEASE LEVER TO RELEASE BEARING | ||
| A 3812540113 | SPRING LOCK | |
| RELEASE LEVER TO RELEASE BEARING | ||
| A 3812540113 | SPRING LOCK | |
| RELEASE LEVER TO RELEASE BEARING | ||
| 135 | N 071805016402 | SECURING CLIP |
| PULL ROD TO RELEASE LEVER | ||
| N 071805016300 | SNAP RING | |
| PULL ROD TO RELEASE LEVER | ||
| N 071805016300 | SNAP RING | |
| PULL ROD TO RELEASE LEVER | ||
| A 3072510108 | INTERMEDIATE PIECE | |
| Repalced by: A 3072510208 | ||
| A 3072510208 | INTERMEDIATE PIECE | |
| Repalced by: A 6209970088 | ||
| A 3072510208 | INTERMEDIATE PIECE | |
| Repalced by: A 6209970088 | ||
| A 3072510208 | INTERMEDIATE PIECE | |
| Repalced by: A 6209970088 | ||
| A 6209970088 | GREASE NIPPLE | |
| RELEASE BEARING LUBRICATION | ||
| A 6209970088 | GREASE NIPPLE | |
| RELEASE BEARING LUBRICATION | ||
| A 6209970088 | GREASE NIPPLE | |
| RELEASE BEARING LUBRICATION | ||
| 138 | N 912004014100 | LOCK WASHER |
| RELEASE BEARING LUBRICATION | ||
| 138 | N 912004014100 | LOCK WASHER |
| RELEASE BEARING LUBRICATION | ||
| 138 | N 912004014100 | LOCK WASHER |
| RELEASE BEARING LUBRICATION | ||
| N 000936014010 | NUT | |
| Repalced by: N 308675014000 | ||
| N 308675014000 | NUT | |
| Repalced by: N 308675014002 | ||
| N 308675014002 | NUT | |
| RELEASE BEARING LUBRICATION | ||
| N 308675014002 | NUT | |
| RELEASE BEARING LUBRICATION | ||
| N 308675014002 | NUT | |
| RELEASE BEARING LUBRICATION | ||
| N 071805016300 | SNAP RING | |
| CLUTCH SLAVE CYLINDER TO RELEASE YOKE | ||
| 150 | A 3522540097 | BOOT |
| Repalced by: A 3142540197 | ||
| 150 | A 3142540197 | BOOT |
| RELEASE LEVER | ||
| 150 | A 3142540197 | BOOT |
| RELEASE LEVER | ||
| A 3812540097 | BOOT | |
| Repalced by: A 6152540097 | ||
| A 6152540097 | BOOT | |
| RELEASE LEVER | ||
| A 6152540097 | BOOT | |
| RELEASE LEVER | ||
| A 6152540097 | BOOT | |
| RELEASE LEVER | ||
| 155 | A 3812540040 | BRACKET |
| Repalced by: A 3522540040 | ||
| 155 | A 3522540040 | BRACKET |
| INSIDE | ||
| 155 | A 3522540040 | BRACKET |
| INSIDE | ||
| A 3812540540 | BRACKET | |
| INSIDE | ||
| 161 | A 3522540135 | BEARING |
| Repalced by: A 3802540035 | ||
| 161 | A 3802540035 | BEARING |
| OUTSIDE | ||
| 161 | A 3802540135 | BEARING |
| OUTSIDE | ||
| 162 | A 3802540059 | SEAL RING |
| SOFT | ||
| 162 | A 3802540259 | SEAL RING |
| SOFT | ||
| 163 | A 3802540159 | SEAL RING |
| HARD | ||
| 163 | A 3802540359 | SEAL RING |
| HARD | ||
| A 0009945341 | LOCK | |
| OUTSIDE | ||
| A 0009945341 | LOCK | |
| OUTSIDE | ||
| 165 | A 3812500043 | BRACKET |
| Repalced by: A 3522500243 | ||
| 165 | A 3522500243 | BRACKET |
| OUTSIDE | ||
| 165 | A 3522500243 | BRACKET |
| OUTSIDE | ||
| 165 | A 3812500243 | BRACKET |
| OUTSIDE | ||
| 170 | N 912004008102 | LOCK WASHER |
| BRACKET TO BELL HOUSING | ||
| 170 | N 912004008102 | LOCK WASHER |
| BRACKET TO BELL HOUSING | ||
| 172 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 172 | N 304017008021 | SCREW |
| BRACKET TO BELL HOUSING | ||
| 172 | N 304017008021 | SCREW |
| BRACKET TO BELL HOUSING | ||
| 180 | A 3602510004 | END COVER |
| TOP | ||
| 180 | A 3602510004 | END COVER |
| TOP | ||
| 180 | A 3812510204 | END COVER |
| TOP | ||
| 185 | N 000137006204 | SPRING WASHER |
| END COVER TO BELL HOUSING | ||
| 185 | N 000137006204 | SPRING WASHER |
| END COVER TO BELL HOUSING | ||
| 187 | N 000933006122 | SCREW |
| Repalced by: N 304017006034 | ||
| 187 | N 304017006034 | SCREW |
| END COVER TO BELL HOUSING | ||
| 187 | N 304017006034 | SCREW |
| END COVER TO BELL HOUSING | ||
| A 3852500155 | COVER | |
| BELL HOUSING | ||
| A 3852500155 | COVER | |
| BELL HOUSING | ||
| 195 | A 3122511006 | PROTECTIVE PLATE |
| Repalced by: A 3522500055 | ||
| 195 | A 3522500055 | PROTECTIVE PLATE |
| Repalced by: A 3522510106 | ||
| 195 | A 3522510106 | PROTECTIVE PLATE |
| 200 | N 912004006102 | LOCK WASHER |
| PROTECTIVE PLATE TO BELL HOUSING | ||
| 202 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 202 | N 304017006018 | SCREW |
| PROTECTIVE PLATE TO BELL HOUSING | ||
| 210 | A 3812510102 | BELL HOUSING |
| Repalced by: A 3522503105 | ||
| 210 | A 3522503105 | HOUSING |
| Repalced by: A 3522510202 | ||
| 210 | A 3522510202 | BELL HOUSING |
| LOWER PART | ||
| 210 | A 3522510202 | BELL HOUSING |
| LOWER PART | ||
| 210 | A 3812501005 | HOUSING |
| Repalced by: A 6762500105 | ||
| 210 | A 6762500105 | HOUSING |
| Repalced by: A 6762510002 | ||
| 210 | A 6762510002 | BELL HOUSING |
| LOWER PART | ||
| A 3812510302 | BELL HOUSING | |
| Repalced by: A 3832500005 | ||
| A 3812510302 | BELL HOUSING | |
| Repalced by: A 3832500005 | ||
| 210 | A 3832500005 | HOUSING |
| Repalced by: A 3832500105 | ||
| 210 | A 3832500105 | HOUSING |
| Repalced by: A 3832510102 | ||
| 210 | A 3832510102 | BELL HOUSING |
| LOWER PART | ||
| 210 | A 3832510102 | BELL HOUSING |
| LOWER PART | ||
| 215 | N 000137006204 | SPRING WASHER |
| BELL HOUSING LOWER PART TO BELL HOUSING | ||
| 217 | N 914125006306 | SCREW |
| Repalced by: N 910106006006 | ||
| 217 | N 910106006006 | SCREW |
| Repalced by: N 000000002270 | ||
| 217 | N 000000002270 | SCREW |
| BELL HOUSING LOWER PART TO BELL HOUSING | ||
| 230 | A 3102500155 | COVER |
| 230 | A 3102500155 | COVER |
| 235 | N 912004008102 | LOCK WASHER |
| COVER TO BELL HOUSING | ||
| 235 | N 912004008102 | LOCK WASHER |
| COVER TO BELL HOUSING | ||
| 237 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 237 | N 304017008016 | SCREW |
| COVER TO BELL HOUSING | ||
| 237 | N 304017008016 | SCREW |
| COVER TO BELL HOUSING | ||
| 245 | A 0002957207 | SLAVE CYLINDER |
| CLUTCH | ||
| 246 | A 0002952983 | BOOT |
| A 0002950673 | LOCK | |
| 248 | A 0002950233 | ROD |
| 249 | A 0004202155 | BLEEDER VALVE |
| Repalced by: A 0004310265 | ||
| 249 | A 0004310265 | VALVE |
| Repalced by: A 3075530107 | ||
| 249 | A 3075530107 | VALVE |
| 250 | A 3164210187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 250 | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 0004217187 | ||
| 250 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 250 | A 0004210887 | PROTECTIVE CAP |
| DE-AERATION VALVE | ||
| 251 | A 0005864329 | REPAIR KIT |
| Repalced by: A 0002900811 | ||
| 251 | A 0002900811 | REPAIR KIT |
| CLUTCH SLAVE CYLINDER | ||
| 252 | N 912004010102 | LOCK WASHER |
| CLUTCH SLAVE CYLINDER TO BRACKET | ||
| 254 | N 000933010157 | SCREW |
| CLUTCH SLAVE CYLINDER TO BRACKET | ||
| A 3835460243 | BRACKET | |
| Repalced by: A 3835460543 | ||
| A 3835460543 | BRACKET | |
| STARTING CABLE | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
