Transporto priemonė: 1613; VIN numerio dalis: 385007

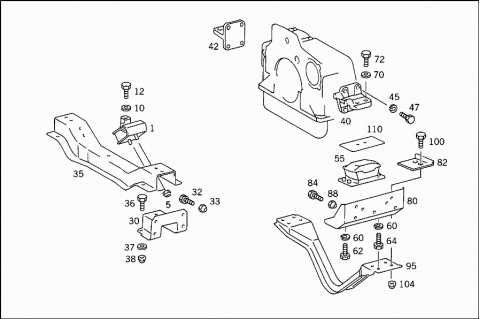

Grupė: 24 ENGINE SUSPENSION - 001 RUBBER MOUNTING TO ENGINE SUPPORT
| # | Kodas | Pavadinimas |
|---|---|---|
| 001 | A 3812400817 | RUBBER MOUNTING |
| Repalced by: A 6152400317 | ||
| 001 | A 3812400917 | RUBBER MOUNTING |
| Repalced by: A 6152400317 | ||
| 001 | A 3812401217 | RUBBER MOUNTING |
| Repalced by: A 6152400317 | ||
| 001 | A 6152400317 | RUBBER MOUNTING |
| FRONT | ||
| 005 | N 910113012002 | NUT |
| RUBBER MOUNTING TO ENGINE CROSS MEMBER | ||
| 010 | A 3529902440 | WASHER |
| RUBBER MOUNTING TO ENGINE SUPPORTING ARM | ||
| 012 | N 000961016088 | SCREW |
| Repalced by: N 000961016097 | ||
| 012 | N 000961016097 | SCREW |
| Repalced by: N 308676016005 | ||
| 012 | N 308676016005 | SCREW |
| RUBBER MOUNTING TO ENGINE SUPPORTING ARM | ||
| 030 | A 3812410609 | ENGINE STAY |
| FRONT | ||
| 032 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 032 | N 308676012026 | SCREW |
| ENGINE SUPPORT TO SIDE MEMBERS | ||
| M 12X35 | ||
| 033 | N 910113012002 | NUT |
| ENGINE SUPPORT TO SIDE MEMBERS | ||
| 035 | A 3813120105 | ENGINE CROSS MEMBER |
| FRONT | ||
| 036 | N 000961012164 | SCREW |
| ENGINE CROSS MEMBER TO CONSOLES | ||
| 036 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 036 | N 308676012026 | SCREW |
| ENGINE CROSS MEMBER TO CONSOLES | ||
| M 12X35 | ||
| 037 | N 000125013008 | WASHER |
| 037 | A 3859901040 | WASHER |
| 038 | N 910113012002 | NUT |
| ENGINE CROSS MEMBER TO CONSOLES | ||
| 040 | A 3812420205 | SUPPORTING ARM |
| LEFT | ||
| 042 | A 3812420305 | SUPPORTING ARM |
| RIGHT | ||
| 045 | N 912004016101 | LOCK WASHER |
| SUPPORTING ARM TO BELL HOUSING | ||
| 047 | N 000933016040 | SCREW |
| SUPPORTING ARM TO BELL HOUSING | ||
| M 16X40 | ||
| 047 | N 000933016072 | SCREW |
| Repalced by: N 304017016004 | ||
| 047 | N 304017016004 | SCREW |
| SUPPORTING ARM TO BELL HOUSING | ||
| M 16X35 | ||
| 055 | A 3812400618 | RUBBER MOUNTING |
| Repalced by: A 6152400218 | ||
| 055 | A 6152400218 | RUBBER MOUNTING |
| REAR | ||
| 055 | A 6152400218 | RUBBER MOUNTING |
| REAR | ||
| 055 | A 3812400718 | RUBBER MOUNTING |
| Repalced by: A 6152400318 | ||
| 055 | A 6152400318 | RUBBER MOUNTING |
| REAR | ||
| 055 | A 6152400318 | RUBBER MOUNTING |
| REAR | ||
| 055 | A 3812401018 | RUBBER MOUNTING |
| Repalced by: A 6152400418 | ||
| 055 | A 6152400418 | RUBBER MOUNTING |
| REAR | ||
| 055 | A 6152400418 | RUBBER MOUNTING |
| REAR | ||
| 055 | A 3812400918 | RUBBER MOUNTING |
| Repalced by: A 3812401118 | ||
| 055 | A 3812400818 | RUBBER MOUNTING |
| Repalced by: A 3812401118 | ||
| 055 | A 3812401118 | RUBBER MOUNTING |
| REAR | ||
| 060 | N 912004012100 | LOCK WASHER |
| RUBBER MOUNTING TO ENGINE REAR SUPPORT | ||
| 062 | N 000961012164 | SCREW |
| RUBBER MOUNTING TO ENGINE REAR SUPPORT | ||
| 12X28 MM | ||
| 064 | N 000961012179 | SCREW |
| RUBBER MOUNTING TO ENGINE REAR SUPPORT | ||
| 12X38 MM | ||
| 070 | A 3609901840 | WASHER |
| ENGINE MOUNTING TO ENGINE SUPPORT | ||
| 072 | N 000961014101 | SCREW |
| Repalced by: N 308676014012 | ||
| 072 | N 308676014012 | SCREW |
| ENGINE MOUNTING TO ENGINE SUPPORT | ||
| 080 | A 3812420202 | SUPPORT |
| Repalced by: A 3812400106 | ||
| 080 | A 3812400106 | CONSOLE |
| LEFT | ||
| 082 | A 3812420202 | SUPPORT |
| Repalced by: A 3812400206 | ||
| 082 | A 3812400206 | CONSOLE |
| RIGHT | ||
| 080 | A 3813120860 | REINFORCEMENT |
| Repalced by: A 3812400106 | ||
| 082 | A 3813120860 | REINFORCEMENT |
| Repalced by: A 3812400206 | ||
| 084 | N 000961012151 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 084 | N 000961012106 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 084 | N 308676012010 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 088 | N 910113012002 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 095 | A 3813120360 | REINFORCEMENT |
| Repalced by: A 3812400202 | ||
| 095 | A 3813120207 | ENGINE CROSS MEMBER |
| Repalced by: A 3812400202 | ||
| 095 | A 3812400202 | ENGINE SUPPORT |
| REAR | ||
| 100 | N 000961012108 | SCREW |
| ENGINE CROSS MEMBER TO CONSOLES | ||
| 104 | N 910113012002 | NUT |
| ENGINE CROSS MEMBER TO CONSOLES | ||
| 110 | A 3812420034 | SCREENING PLATE |
| RUBBER MOUNTING TO SUPPORTING ARM | ||
