Transporto priemonė: 1613; VIN numerio dalis: 385007
Grupė: 26 TRANSMISSION
| # | Kodas | Pavadinimas |
|---|---|---|
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR TRANSMISSION,SEE UNIT STANDARD VERSION,MODEL: | ||
| 714.0 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR TRANSMISSION,SEE UNIT STANDARD VERSION,MODEL: | ||
| 714.2 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| FOR TRANSMISSION,SEE UNIT STANDARD VERSION,MODEL: | ||
| 714.3 | ||
| N 000933014014 | SCREW | |
| TRANSMISSION TO BELL HOUSING | ||
| M 14X40 | ||
| N 000933014014 | SCREW | |
| TRANSMISSION TO BELL HOUSING | ||
| M 14X40 | ||
| N 000960016112 | SCREW | |
| Repalced by: N 308676016015 | ||
| N 308676016015 | SCREW | |
| TRANSMISSION TO BELL HOUSING | ||
| M 16X55 | ||
| N 308676016015 | SCREW | |
| TRANSMISSION TO BELL HOUSING | ||
| M 16X55 | ||
| N 912004014100 | LOCK WASHER | |
| TRANSMISSION TO BELL HOUSING | ||
| N 912004014100 | LOCK WASHER | |
| TRANSMISSION TO BELL HOUSING | ||
| N 912004016101 | LOCK WASHER | |
| TRANSMISSION TO BELL HOUSING | ||
| N 912004016101 | LOCK WASHER | |
| TRANSMISSION TO BELL HOUSING | ||

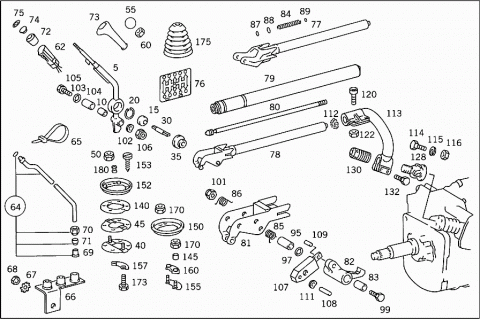

| A 3852605139 | SHIFT LEVER | |
| Repalced by: A 3852605539 | ||
| A 3852605739 | SHIFT LEVER | |
| Repalced by: A 3852605539 | ||
| A 3852605539 | SHIFT LEVER | |
| 005 | A 3852607039 | SHIFT LEVER |
| 010 | A 3359920203 | BUSHING |
| 015 | A 0009815531 | JOINT BEARING |
| Repalced by: A 0019813931 | ||
| 015 | A 0019813931 | JOINT BEARING |
| 015 | A 0009814531 | JOINT BEARING |
| 020 | N 000472042001 | LOCK RING |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE SPARE PARTS LIST 332,GROUP 26,FIG.NO.25 | ||
| 030 | A 3852681474 | PIN |
| 035 | A 3852680696 | BOOT |
| Repalced by: A 6202680196 | ||
| 035 | A 6202680196 | BOOT |
| 040 | A 3892605262 | BRACKET |
| SHIFT LEVER LOWER PART | ||
| 045 | A 3892680440 | BRACKET |
| SHIFT LEVER UPPER PART | ||
| 050 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 050 | N 913004008001 | NUT |
| BRACKET TO BRACKET | ||
| 055 | A 3222600040 | HANDLE |
| SHIFT LEVER KNOB | ||
| 055 | A 3222600040 | HANDLE |
| SHIFT LEVER KNOB | ||
| 060 | N 000936010010 | NUT |
| SHIFT LEVER KNOB | ||
| 062 | A 3852600057 | VALVE |
| (SHIFT LEVER VALVE) | ||
| 062 | A 3852600057 | VALVE |
| (SHIFT LEVER VALVE) | ||
| A 0049974848 | SEAL RING | |
| 064 | A 3859970082 | HOSE |
| Repalced by: A 3019970682 | ||
| 064 | A 3019970682 | HOSE |
| Repalced by: A 3019971182 | ||
| 064 | A 3019971182 | HOSE |
| (PARTS KIT) | ||
| A 0012609957 | REPAIR KIT | |
| SHIFT LEVER VALVE | ||
| 065 | A 0019978390 | LOOM TIE |
| 066 | A 3892600062 | BRACKET |
| SHIFT LEVER | ||
| 066 | A 3892600062 | BRACKET |
| SHIFT LEVER | ||
| 066 | A 3892600262 | BRACKET |
| SHIFT LEVER | ||
| 066 | A 3892600262 | BRACKET |
| SHIFT LEVER | ||
| 067 | N 006798006103 | SERRATED WASHER |
| BRACKET TO CAB | ||
| 067 | N 006798006103 | SERRATED WASHER |
| BRACKET TO CAB | ||
| 068 | N 000934006007 | NUT |
| BRACKET TO CAB | ||
| 068 | N 000934006007 | NUT |
| BRACKET TO CAB | ||
| 069 | N 915062002000 | SLEEVE |
| LINE TO BRACKET | ||
| 069 | N 915062002000 | SLEEVE |
| LINE TO BRACKET | ||
| 070 | N 915017004101 | UNION NUT |
| LINE TO BRACKET | ||
| 070 | N 915017004101 | UNION NUT |
| LINE TO BRACKET | ||
| 071 | N 003861004001 | GLAND |
| LINE TO BRACKET | ||
| 071 | N 003861004001 | GLAND |
| LINE TO BRACKET | ||
| 072 | A 3852600140 | HANDLE |
| SHIFT LEVER | ||
| 072 | A 3852600140 | HANDLE |
| SHIFT LEVER | ||
| 073 | A 3852670001 | SHIFT LEVER |
| Repalced by: A 6202680042 | ||
| 073 | A 6202680042 | KNOB |
| (GEARSHIFT LEVER KNOB) | ||
| A 0002670114 | CAP | |
| Repalced by: A 6202680042 | ||
| A 6202680042 | KNOB | |
| SHIFT LEVER KNOB | ||
| 074 | A 3852680357 | COVER |
| SHIFT LEVER KNOB | ||
| 074 | A 3852680357 | COVER |
| SHIFT LEVER KNOB | ||
| 075 | A 3855840040 | DECALCOMANIA |
| NINE-SPEED,SHIFT LEVER KNOB | ||
| 075 | A 3855840240 | DECALCOMANIA |
| EIGHT-SPEED;SHIFT LEVER KNOB | ||
| 075 | A 3855840140 | DECALCOMANIA |
| NINE-SPEED,SHIFT LEVER KNOB | ||
| 075 | A 3855840340 | DECALCOMANIA |
| EIGHT-SPEED;SHIFT LEVER KNOB | ||
| 076 | A 3855840138 | GUMMED LABEL |
| NINE-SPEED,ASHTRAY | ||
| 076 | A 3855840138 | GUMMED LABEL |
| NINE-SPEED,ASHTRAY | ||
| 076 | A 3855840238 | GUMMED LABEL |
| NINE-SPEED,ASHTRAY | ||
| 076 | A 3855840338 | GUMMED LABEL |
| EIGHT-SPEED,ASHTRAY | ||
| 076 | A 3855840338 | GUMMED LABEL |
| EIGHT-SPEED,ASHTRAY | ||
| 076 | A 3855840438 | GUMMED LABEL |
| EIGHT-SPEED,ASHTRAY | ||
| 077 | A 3852606033 | SHIFTING ROD |
| (TELESCOPIC SHIFTING ROD) | ||
| 078 | A 3852609433 | SHIFTING ROD |
| (TELESCOPIC SHIFTING ROD) | ||
| 079 | A 3852607033 | SHIFTING ROD |
| (TELESCOPIC TUBE) | ||
| 079 | A 3852603882 | SHIFTING TUBE |
| (TELESCOPIC TUBE) | ||
| 080 | A 3852600689 | PULL ROD |
| A 3852680423 | YOKE | |
| MECHANICAL RELAESE | ||
| 081 | A 3852600534 | ROD END |
| HYDRAULIC RELEASE | ||
| A 3852600187 | PAWL | |
| MECHANICAL RELAESE | ||
| 082 | A 3852600387 | PAWL |
| Repalced by: A 6202600087 | ||
| 082 | A 6202600087 | PAWL |
| HYDRAULIC RELEASE | ||
| 083 | A 3359920203 | BUSHING |
| PAWL TO ROD END | ||
| A 6209920003 | BUSHING | |
| PAWL TO ROD END | ||
| A 6202680150 | BUSHING | |
| PAWL TO ROD END | ||
| 084 | A 3859930901 | SPRING |
| 085 | A 3859930020 | SPRING |
| LEFT | ||
| 086 | A 3859930120 | SPRING |

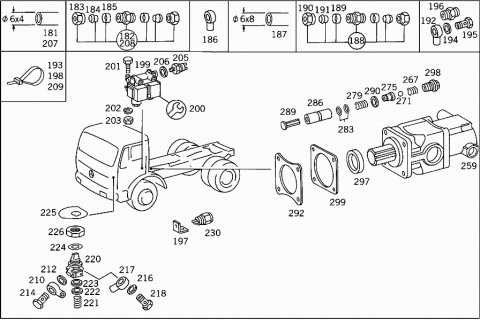

| RIGHT | ||
| 087 | A 0009978648 | SEAL RING |
| 17.20 MM | ||
| 088 | A 0009978748 | SEAL RING |
| 30.20 MM | ||
| 089 | A 0039970448 | SEAL RING |
| 8.30 MM | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 104F | ||
| 095 | A 3852680153 | SPACER TUBE |
| PAWL TO ROD END | ||
| 097 | A 0009978648 | SEAL RING |
| 17.20 MM | ||
| 099 | N 000931010357 | SCREW |
| Repalced by: N 000933010192 | ||
| 099 | A 0019909404 | SCREW |
| PAWL TO ROD END | ||
| 099 | A 0019909404 | SCREW |
| SEE FIG. NO.: | ||
| 135 | ||
| 101 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 101 | N 910113010000 | NUT |
| PAWL TO ROD END | ||
| 102 | N 900055018001 | LOCK RING |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 103 | A 3852680153 | SPACER TUBE |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 104 | A 0009978648 | SEAL RING |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 105 | N 000931010357 | SCREW |
| Repalced by: N 000933010192 | ||
| 105 | A 0019909404 | SCREW |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 106 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 106 | N 910113010000 | NUT |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 107 | A 3852600063 | SHIFTING CYLINDER |
| HYDRAULIC RELEASE | ||
| WESTINGHOUSE | ||
| 107 | A 3852600563 | SHIFTING CYLINDER |
| HYDRAULIC RELEASE | ||
| TECHNOMATIK | ||
| A 0069976748 | SEAL RING | |
| PISTON RINGS | ||
| TO 385 260 00 63 | ||
| A 0069976848 | SEAL RING | |
| SCREW FITTING | ||
| TO 385 260 00 63 | ||
| A 0019970641 | SEAL RING | |
| OUTSIDE | ||
| TO 385 260 00 63 | ||
| 108 | N 001444008234 | PIN |
| SHIFTING CYLINDER TO YOKE | ||
| 8X45X39 MM | ||
| 109 | N 001443008203 | PIN |
| Repalced by: N 001444008235 | ||
| 109 | N 001444008235 | PIN |
| SHIFTING CYLINDER TO PAWL | ||
| 8X22X16 MM | ||
| N 000094002059 | COTTER PIN | |
| SHIFTING CYLINDER TO PAWL | ||
| 111 | N 900055008002 | SPRING WASHER |
| SHIFTING CYLINDER TO PAWL | ||
| 112 | A 3852680776 | WASHER |
| SHIFTING CYLINDER TO PAWL | ||
| 113 | A 3812602233 | SHIFTING ROD |
| REAR | ||
| 113 | A 3802600233 | SHIFTING ROD |
| REAR | ||
| 114 | A 3219900601 | SCREW |
| SHIFTING TUBE TO TRANSMISSION | ||
| 115 | N 912004008102 | LOCK WASHER |
| SHIFTING TUBE TO TRANSMISSION | ||
| 116 | N 304032008006 | NUT |
| SHIFTING TUBE TO TRANSMISSION | ||
| 120 | N 006912010021 | SCREW |
| FRONT SHIFTING ROD TO REAR SHIFTING ROD | ||
| 122 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 122 | N 910113010000 | NUT |
| FRONT SHIFTING ROD TO REAR SHIFTING ROD | ||
| A 3832680089 | JOINT | |
| Repalced by: A 3832680489 | ||
| 128 | A 3832680489 | JOINT |
| REAR | ||
| 128 | A 3832680289 | JOINT |
| REAR | ||
| 128 | A 3832680589 | JOINT |
| REAR | ||
| 130 | A 3812680028 | CONNECTOR |
| Repalced by: A 3812680128 | ||
| 130 | A 3812680128 | CONNECTOR |
| REAR | ||
| 132 | N 000933010202 | SCREW |
| Repalced by: N 304017010047 | ||
| 132 | N 304017010047 | SCREW |
| SHIFTING ROD TO JOINT | ||
| A 3852680083 | COVERING | |
| CONNECTOR | ||
| A 3852680083 | COVERING | |
| CONNECTOR | ||
| A 3852680183 | COVERING | |
| CONNECTOR | ||
| A 3852680183 | COVERING | |
| CONNECTOR | ||
| 140 | A 3852680292 | RUBBER PAD |
| Repalced by: A 3852680392 | ||
| 140 | A 3852680392 | RUBBER PAD |
| SHIFT LEVER | ||
| 145 | A 3892687125 | TUBE |
| SHIFT LEVER | ||
| 145 | A 3892680525 | TUBE |
| SHIFT LEVER | ||
| 150 | A 3852600562 | BRACKET |
| GEARSHIFT LEVER UPPER PART | ||
| 152 | A 3852601962 | BRACKET |
| GEARSHIFT LEVER UPPER PART | ||
| 153 | N 007981003214 | SHEET METAL SCREW |
| BOOT TO CAB | ||
| 155 | A 3852600962 | BRACKET |
| GEARSHIFT LEVER LOWER PART | ||
| 157 | A 3852681640 | BRACKET |
| GEARSHIFT LEVER LOWER PART | ||
| 160 | A 3852680192 | RUBBER PAD |
| Repalced by: A 3852680492 | ||
| 160 | A 3852680492 | RUBBER PAD |
| SHIFT LEVER UPPER PART TO SHIFT LEVER LOWER PART | ||
| 170 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 170 | N 913004008001 | NUT |
| SHIFT LEVER UPPER PART TO SHIFT LEVER LOWER PART | ||
| 173 | N 000931008047 | SCREW |
| Repalced by: N 304017008018 | ||
| 173 | N 304017008018 | SCREW |
| SHIFT LEVER UPPER PART TO SHIFT LEVER LOWER PART | ||
| 175 | A 3852680497 | BOOT |
| Repalced by: A 3892680097 | ||
| 175 | A 3892680097 | BOOT |
| SHIFT LEVER | ||
| A 3859970086 | PLUG | |
| SHIFT LEVER | ||
| A 3892685086 | RUBBER RING | |
| SHIFT LEVER | ||
| 180 | A 3852681950 | BUSHING |
| SHIFT LEVER TO CAB FLOOR | ||
| 181 | A 0089976082 | HOSE |
| Repalced by: A 0009872627 | ||
| 181 | A 0009872627 | PLASTIC PIPE |
| PNEUMATIC SHIFT MECHANISM USED FOR TRANSMISSION | ||
| 4X6 MM | ||
| 181 | A 0009872627 | PLASTIC PIPE |
| 4/2-WAY VALVE,SOLENOID VALVE,HAND BRAKE VALVE | ||
| 4X6 MM | ||
| 181 | N 040621006204 | INSULATING HOSE |
| YELLOW | ||
| 181 | N 040621006215 | INSULATING HOSE |
| BLUE | ||
| 182 | A 0039979172 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 183 | N 915017006104 | UNION NUT |
| LINE CONNECTIONS | ||
| 184 | N 003861006008 | GLAND |
| LINE CONNECTIONS | ||
| 185 | A 0009920105 | BUSHING |
| Repalced by: N 915062004000 | ||
| 185 | N 915062004000 | SLEEVE |
| LINE CONNECTIONS | ||
| 186 | A 0009903888 | BANJO UNION |
| Repalced by: N 915052004006 | ||
| 186 | N 915052004015 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 4/12 MM | ||
| 186 | N 915052004016 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 4/10 MM | ||
| 187 | A 0089979082 | HOSE |
| 3/2-WAY VALVE,FOUR-CIRCUIT PROTECTIVE VALVE,SOLENOID VALVE | ||
| 6X8 MM | ||
| 187 | A 0089979082 | HOSE |
| FROM SOLENOID VALVE TO SHIFT CYLINDER | ||
| 6X8 MM | ||
| 188 | A 0039978972 | FITTING |
| Repalced by: A 0029905971 | ||
| 188 | A 0029905971 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| A 0007630043 | SLEEVE | |
| Repalced by: N 915062006000 | ||
| 189 | N 915062006000 | SLEEVE |
| LINE CONNECTIONS | ||
| 189 | N 915062006000 | SLEEVE |
| LINE CONNECTIONS | ||
| 190 | N 915017008100 | UNION NUT |
| LINE CONNECTIONS | ||
| 190 | N 915017008100 | UNION NUT |
| LINE CONNECTIONS | ||
| 191 | N 003861008005 | GLAND |
| LINE CONNECTIONS | ||
| 191 | N 003861008005 | GLAND |
| LINE CONNECTIONS | ||
| 192 | A 0009906688 | BANJO UNION |
| Repalced by: N 915052006013 | ||
| 192 | N 915052006013 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 6/12 MM | ||
| 192 | N 915052006014 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 6/16 MM | ||
| 193 | A 0019978390 | LOOM TIE |
| LINE MOUNTING | ||
| 194 | N 007603016401 | SEAL RING |
| LINE CONNECTIONS | ||
| 194 | N 007603016401 | SEAL RING |
| LINE CONNECTIONS | ||
| 194 | N 007603012405 | SEAL RING |
| LINE CONNECTIONS | ||
| 194 | N 007603012405 | SEAL RING |
| LINE CONNECTIONS | ||
| 194 | N 007603010103 | SEAL RING |
| Repalced by: N 007603010110 | ||
| 194 | N 007603010110 | SEAL RING |
| LINE CONNECTIONS | ||
| 194 | N 007603010110 | SEAL RING |
| LINE CONNECTIONS | ||
| 195 | A 0009905563 | HOLLOW SCREW |
| Repalced by: N 915047012100 | ||
| 195 | N 915047012100 | HOLLOW SCREW |
| LINE CONNECTIONS | ||
| 195 | N 915047012100 | HOLLOW SCREW |
| LINE CONNECTIONS | ||
| 195 | N 915036006202 | HOLLOW SCREW |
| LINE CONNECTIONS | ||
| 195 | N 915036006202 | HOLLOW SCREW |
| LINE CONNECTIONS | ||
| 196 | N 915039008202 | HOLLOW SCREW FITTING |
| LINE CONNECTIONS | ||
| 197 | A 3852670040 | BRACKET |
| COMPRESSED AIR LINE MOUNTING | ||
| 197 | A 3852670040 | BRACKET |
| COMPRESSED AIR LINE MOUNTING | ||
| 198 | A 0019978490 | LOOM TIE |
| LINE MOUNTING | ||
| 198 | A 0019978490 | LOOM TIE |
| LINE MOUNTING | ||
| 198 | A 0019978490 | LOOM TIE |
| LINE MOUNTING | ||
| 199 | A 0002602957 | VALVE |
| SOLENOID | ||
| 12 V | ||
| 199 | A 0002602957 | VALVE |
| SOLENOID | ||
| 12 V | ||
| 200 | A 0015869643 | REPAIR KIT |
| SOLENOID VALVE | ||
| HERION,9417232/0711/12V | ||
| 200 | A 0015869643 | REPAIR KIT |
| SOLENOID VALVE | ||
| HERION,9417232/0711/12V | ||
| 200 | A 0015861626 | REPAIR KIT |
| SOLENOID VALVE | ||
| HERION,9417237/0734/12V | ||
| 200 | A 0015861626 | REPAIR KIT |
| SOLENOID VALVE | ||
| HERION,9417237/0734/12V | ||
| 201 | N 000931006118 | SCREW |
| SOLENOID VALVE TO TRANSMISSION CASE TOP COVER | ||
| 201 | N 000931006118 | SCREW |
| SOLENOID VALVE TO TRANSMISSION CASE TOP COVER | ||
| 202 | N 912004006102 | LOCK WASHER |
| SOLENOID VALVE TO TRANSMISSION CASE TOP COVER | ||
| 202 | N 912004006102 | LOCK WASHER |
| SOLENOID VALVE TO TRANSMISSION CASE TOP COVER | ||
| 203 | N 000934006007 | NUT |
| SOLENOID VALVE TO TRANSMISSION CASE TOP COVER | ||
| 203 | N 000934006007 | NUT |
| SOLENOID VALVE TO TRANSMISSION CASE TOP COVER | ||
| A 3852600296 | COVERING | |
| Repalced by: A 3852610388 | ||
| A 3852600396 | COVERING | |
| Repalced by: A 3852610388 | ||
| N 000931006118 | SCREW | |
| BRACKET TO SHIFTING CYLINDER | ||
| N 000931006118 | SCREW | |
| BRACKET TO SHIFTING CYLINDER | ||
| N 912004006102 | LOCK WASHER | |
| BRACKET TO SHIFTING CYLINDER | ||
| N 912004006102 | LOCK WASHER | |
| BRACKET TO SHIFTING CYLINDER | ||
| N 000934006012 | NUT | |
| BRACKET TO SHIFTING CYLINDER | ||
| N 000934006012 | NUT | |
| BRACKET TO SHIFTING CYLINDER | ||
| N 912004006102 | LOCK WASHER | |
| BRACKET TO BRACKET | ||
| N 912004006102 | LOCK WASHER | |
| BRACKET TO BRACKET | ||
| N 000933006102 | SCREW | |
| BRACKET TO BRACKET | ||
| N 000933006102 | SCREW | |
| BRACKET TO BRACKET | ||
| 205 | A 0005458314 | SWITCH |
| Repalced by: A 0015455314 | ||
| 205 | A 0015455314 | SWITCH |
| SOLENOID VALVE | ||
| 205 | A 0015455314 | SWITCH |
| SOLENOID VALVE | ||
| 206 | N 007603010103 | SEAL RING |
| Repalced by: N 007603010110 | ||
| 206 | N 007603010110 | SEAL RING |
| SWITCH TO SOLENOID VALVE | ||
| 206 | N 007603010110 | SEAL RING |
| SWITCH TO SOLENOID VALVE | ||
| 207 | A 0089976082 | HOSE |
| Repalced by: A 0009872627 | ||
| 207 | A 0009872627 | PLASTIC PIPE |
| PNEUMATIC SHIFT MECHANISM USED FOR LATERAL P.T.O. | ||
| 4X6 MM | ||
| 207 | A 0009872627 | PLASTIC PIPE |
| VALVE TO SHIFTING CYLINDER | ||
| 4X6 MM | ||
| 207 | A 0009872627 | PLASTIC PIPE |
| FROM DISTRIBUTOR TO VALVE | ||
| 4X6 MM | ||
| 208 | A 0039979172 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 209 | A 0019978490 | LOOM TIE |
| LINE MOUNTING | ||
| 210 | A 0009903888 | BANJO UNION |
| Repalced by: N 915052004006 | ||
| 210 | N 915052004015 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 4/12MM | ||
| 212 | N 007603012405 | SEAL RING |
| LINE CONNECTIONS | ||
| 214 | N 915039008202 | HOLLOW SCREW FITTING |
| LINE CONNECTIONS | ||
| 216 | N 007603010103 | SEAL RING |
| Repalced by: N 007603010110 | ||
| 216 | N 007603010110 | SEAL RING |
| LINE CONNECTIONS | ||
| 217 | N 915052004016 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 4/10 MM | ||
| 218 | N 915036006202 | HOLLOW SCREW |
| LINE CONNECTIONS | ||
| 220 | A 0019976136 | VALVE |
| P.T.O. CONTROL | ||
| WABCO | ||
| 220 | A 0019975036 | VALVE |
| P.T.O. CONTROL | ||
| BOSCH | ||
| 220 | A 0039975936 | VALVE |
| P.T.O. CONTROL | ||
| KNORR | ||
| 220 | A 0039976036 | VALVE |
| P.T.O. CONTROL | ||
| VOSS | ||
| 221 | A 0049937501 | SPRING |
| TO 001 997 61 36 | ||
| 222 | A 0069972648 | SEAL RING |
| TO 001 997 61 36 | ||
| 223 | A 0039979640 | SEAL RING |
| TO 001 997 61 36 | ||
| 224 | A 3859901640 | WASHER |
| VALVE TO SHIFTER COVER | ||
| 225 | A 3855841524 | SYMBOL PLATE |
| P.T.O. | ||
| 226 | A 3839900051 | NUT |
| VALVE TO SHIFTER COVER | ||
| A 3609900170 | T-FITTING | |
| VALVE TO SHIFTER COVER | ||
| A 0004290827 | THRUST RING | |
| VALVE TO SHIFTER COVER | ||
| A 0019875046 | SEALING CORD | |
| VALVE TO SHIFTER COVER | ||
| 230 | A 0005456009 | SWITCH |
| P.T.O. | ||
| N 080705012003 | NUT | |
| SHIFTING CYLINDER TO P.T.O. | ||
| A 3839970372 | FITTING | |
| Repalced by: N 915039008100 | ||
| N 915039008202 | HOLLOW SCREW FITTING | |
| SHIFTING CYLINDER TO P.T.O. | ||
| 259 | A 0002366105 | HYDRAULIC PUMP |
| SERVICE WITH DUMPING PLATFORM | ||
| 267 | A 0049936301 | SPRING |
| FRONT | ||
| 271 | A 0019814085 | BALL |
| Repalced by: A 0019815085 | ||
| 271 | A 0019815085 | BALL |
| 12.7 MM | ||
| 275 | A 0002360935 | VALVE |
| REAR | ||
| 279 | A 0049936501 | SPRING |
| REAR | ||
| 283 | A 0002361160 | SEAL RING |
| FRONT | ||
| 286 | A 0002360817 | PISTON |
| Repalced by: A 0002361117 | ||
| 286 | A 0002361117 | PISTON |
| 289 | A 0002360735 | VALVE |
| FRONT | ||
| 290 | A 0002360376 | WASHER |
| REAR | ||
| A 0059974247 | SEAL RING | |
| REAR | ||
| 292 | A 0002360180 | GASKET |
| DUMPER PUMP | ||
| 297 | A 0079977146 | SEAL RING |
| REAR | ||
| 298 | A 0019970630 | SCREW PLUG |
| REAR | ||
| 299 | A 0002640479 | GASKET |
| DUMPER PUMP | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
