Transporto priemonė: 1613 L; VIN numerio dalis: 385208
Grupė: 31 FRAME
29354
29355
29356
29357
29358

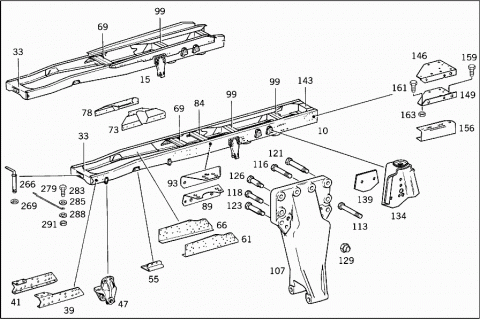

# Kodas Pavadinimas
010 A 3853102801 FRAME
010 A 3853102501 FRAME
010 A 3853102601 FRAME
010 A 3853102701 FRAME
010 A 3853101502 FRAME
010 A 3853101602 FRAME
010 A 3853101702 FRAME
015 A 3853102602 FRAME
A 3833110460 REINFORCEMENT
LEFT
033 A 3873100422 CROSS MEMBER
FRONT
039 A 3853121187 GUSSET PLATE
LEFT
039 A 3853122187 GUSSET PLATE
LEFT
041 A 3853121287 GUSSET PLATE
RIGHT
041 A 3853122287 GUSSET PLATE
RIGHT
N 000961012106 SCREW
GUSSET PLATES AND CROSS MEMBER TO SIDE MEMBERS
N 910113012002 NUT
GUSSET PLATES AND CROSS MEMBER TO SIDE MEMBERS
047 A 3523220201 FRONT SPRING BRACKET
Repalced by: A 3833220101
055 A 3833220131 PLATE
HELPER SPRING
A 3833220101 FRONT SPRING BRACKET
FRONT AND REAR
061 A 3833110253 ANGLE
LEFT
066 A 3833110353 ANGLE
RIGHT
A 3813100036 CROSS MEMBER
Repalced by: A 3853100436
A 3853100436 CROSS MEMBER
Repalced by: A 3813120015
069 A 3813120015 CROSS MEMBER
NO.2
A 3853120152 ANGLE
LEFT TOP
A 3853120252 ANGLE
RIGHT TOP
073 A 3813120252 ANGLE
LEFT BOTTOM
078 A 3813120352 ANGLE
RIGHT BOTTOM
N 000933010128 SCREW
ANGLE TO CROSS MEMBER
N 000933010128 SCREW
BOTTOM GUSSET PLATE TO CROSS MEMBER
N 000961012052 SCREW
Repalced by: N 308676012012
N 308676012012 HEXAGON HEAD BOLT
ANGLE TO CROSS MEMBER
N 913004010008 NUT
Repalced by: N 910113010000
N 910113010000 NUT
ANGLE TO CROSS MEMBER
N 910113012002 NUT
ANGLE TO CROSS MEMBER
N 910113012002 NUT
BOTTOM GUSSET PLATE TO CROSS MEMBER
084 A 3813100136 CROSS MEMBER
NO.3
A 3853100036 CROSS MEMBER
NO.3
A 3813100136 CROSS MEMBER
NO.4
A 3523120052 ANGLE
CROSS MEMBER TO SIDE MEMBERS
089 A 3523120552 ANGLE
CROSS MEMBER TO SIDE MEMBERS
093 A 3523120452 ANGLE
CROSS MEMBER TO SIDE MEMBERS
099 A 3853100237 CROSS MEMBER
NO.4,NO.5
099 A 3853100237 CROSS MEMBER
NO.5,NO.6
099 A 3853100237 CROSS MEMBER
NO.3,NO.4
A 3833270304 COVER PLATE
AIR SPRING BELLOWS
A 0039906701 SCREW
Repalced by: N 000961018009
N 000961018009 SCREW
CROSS MEMBER TO REINFORCEMENTS AND TO SIDE MEMBERS
N 000961018031 SCREW
Repalced by: A 3019900601
A 3019900601 SCREW
CROSS MEMBER TO REINFORCEMENTS AND TO SIDE MEMBERS
N 913004018003 NUT
Repalced by: N 910113018004
N 910113018004 NUT
CROSS MEMBER TO REINFORCEMENTS AND TO SIDE MEMBERS
N 000961014028 SCREW
CROSS MEMBER TO REINFORCEMENTS AND TO SIDE MEMBERS
N 913004014002 NUT
Repalced by: N 910113014001
N 910113014001 NUT
CROSS MEMBER TO REINFORCEMENTS AND TO SIDE MEMBERS
N 000961014100 SCREW
CROSS MEMBER TO REINFORCEMENTS AND TO SIDE MEMBERS
N 913004014002 NUT
Repalced by: N 910113014001
N 910113014001 NUT
CROSS MEMBER TO REINFORCEMENTS AND TO SIDE MEMBERS
107 A 3813520041 BEARING BODY
Repalced by: A 3813520341
107 A 3813520341 BEARING BODY
Repalced by: A 3813500032
107 A 3813500032 SUPPORT
Repalced by: A 6523520341
107 A 6523520341 BEARING BODY
LONGITUDINAL CONTROL ARM
113 N 000960018117 SCREW
BEARING BODY TO SIDE AND CROSS MEMBERS
M 18X100
113 N 000961018043 SCREW
BEARING BODY TO SIDE AND CROSS MEMBERS
M 18X55
116 N 000960018093 SCREW
BEARING BODY TO SIDE AND CROSS MEMBERS
M 18X95
116 N 000961018020 SCREW
BEARING BODY TO SIDE AND CROSS MEMBERS
M 18X50
118 N 000960018119 SCREW
BEARING BODY TO SIDE AND CROSS MEMBERS
M 18X85
118 N 000961018041 SCREW
Repalced by: N 308676018001
118 N 308676018001 SCREW
BEARING BODY TO SIDE AND CROSS MEMBERS
M 18X45
121 N 000609018004 FITTED SCREW
BEARING BODY TO SIDE AND CROSS MEMBERS
M 18X100
121 N 000610018006 FITTED SCREW
BEARING BODY TO SIDE AND CROSS MEMBERS
M 18X60
123 N 000609018001 FITTED SCREW
BEARING BODY TO SIDE AND CROSS MEMBERS
M 18X95
123 N 000610018009 FITTED SCREW
BEARING BODY TO SIDE AND CROSS MEMBERS
M 18X50
126 N 000609018000 FITTED SCREW
BEARING BODY TO SIDE AND CROSS MEMBERS
M 18X85
126 N 000610018004 FITTED SCREW
BEARING BODY TO SIDE AND CROSS MEMBERS
M 18X45
A 6179900340 WASHER
BEARING BODY TO SIDE AND CROSS MEMBERS
129 N 913004018004 NUT
BEARING BODY TO SIDE AND CROSS MEMBERS
134 A 3603200878 CONSOLE
SHOCK ABSORBER
139 A 3833230284 SHIM
143 A 3833100246 CROSS MEMBER
REAR
146 A 3213120087 GUSSET PLATE
149 A 3213120187 GUSSET PLATE
156 A 3853120460 REINFORCEMENT
159 N 000961012151 SCREW
M 12X30
161 N 000961012052 SCREW
Repalced by: N 308676012012
161 N 308676012012 HEXAGON HEAD BOLT
M12X1.5X25
163 N 910113012002 NUT
X XXXXXXXXXXXX PART NAME MISSING
MOUNTING USED FOR FRAME CONNECTION PARTS
Y YYYYYYYYYYYY PART NAME MISSING
DIMENSIONS ARE INDICATED IN THE FOLLOWING ORDER:
Y YYYYYYYYYYYY PART NAME MISSING
THREAD X SHANK DIA. X SHANK LENGTH X TOTAL LENGTH
Y YYYYYYYYYYYY PART NAME MISSING
N 000609010004 FITTED SCREW
M 10X11X14X28
N 000610010003 FITTED SCREW
M 10X11X25X38
N 000609010014 FITTED SCREW
M 10X11X24X40
A 3859900514 SCREW
M 10X11X26.5X46
Y YYYYYYYYYYYY PART NAME MISSING
A 3859900714 SCREW
M 12X12X10X25
A 3859901414 SCREW
M 12X12X11X26
A 0039900901 SCREW
Repalced by: A 0029908201
A 0029908201 SCREW
M 12X12X12X28
A 3859901514 SCREW
M 12X12X13X28
A 0029908201 SCREW
M 12X12X14X30
A 3859902114 SCREW
M 12X12X15X30
A 0029908301 SCREW
Repalced by: N 308676012013
N 308676012013 HEXAGON HEAD BOLT
M12X1.5X30
A 3859902214 SCREW
M 12X12X17X32
Y YYYYYYYYYYYY PART NAME MISSING
A 6209900114 SCREW
M 12X13X12X29
A 3969900314 SCREW
M 12X13X13X30
A 3589901914 SCREW
M 12X13X15X32
A 3559900014 SCREW
M 12X13X18X35
A 3589900614 SCREW
M 12X13X21X38
A 6179900114 SCREW
M 12X13X23X40
A 6249900014 SCREW
M 12X13X25X42
A 3859900214 SCREW
M 12X13X35X52
A 6689900114 SCREW
M 12X13X58X80
A 6689900014 SCREW
M 12X13X63X85
Y YYYYYYYYYYYY PART NAME MISSING
A 3859900814 SCREW
Repalced by: A 3229903101
A 3229903101 SCREW
M 14X14X18X32
A 3859902014 SCREW
M 14X14X18X34
A 3559900114 SCREW
M 12X14X13X35
A 3219901601 SCREW
Repalced by: A 3169900014
A 3169900014 SCREW
M 14X14X17X35
A 3219901901 SCREW
M 14X14X22X40
A 3559900501 SCREW
M 14X14X24X42
A 3409900201 SCREW
M 14X14X27X45
A 3609902001 SCREW
M 14X14X32X50
Y YYYYYYYYYYYY PART NAME MISSING
A 3589900114 SCREW
M 14X15X15X32
A 3589900814 SCREW
M 14X15X17X34
A 6459900014 SCREW
M 14X15X18X35
A 3589901014 SCREW
M 14X15X19X36
A 3589900214 SCREW
M 14X15X21X38
A 3589900414 SCREW
M 14X15X25X42
A 3589900714 SCREW
M 14X15X27X44
A 3589900914 SCREW
M 14X15X29X46
A 3859900414 SCREW
M 14X15X31X48
A 3859900314 SCREW
M 14X15X35X52
Y YYYYYYYYYYYY PART NAME MISSING
A 3859900914 SCREW
Repalced by: N 308676016020
N 308676016020 SCREW
M 16X16X18X36
A 3859901714 SCREW
M 16X16X20X38
A 3859901014 SCREW
M 16X16X22X40
A 3859901114 SCREW
Repalced by: N 000961016118
N 000961016118 SCREW
M 16X16X24X42
A 0029909901 SCREW
Repalced by: A 3959900501
A 3959900501 SCREW
M 16X16X20X45
A 3859901814 SCREW
M 16X16X30X48
A 3859901914 SCREW
M 16X16X32X50
A 6259900301 SCREW
M 16X16X38X90
Y YYYYYYYYYYYY PART NAME MISSING
A 3589900514 SCREW
M 16X17X22X42
A 6459900714 SCREW
M 16X17X24X44
A 3609900114 SCREW
Repalced by: A 0009906314
A 0009906314 SCREW
M 16X17X28X48
Y YYYYYYYYYYYY PART NAME MISSING
A 3469900014 SCREW
M 16X18X18X40
A 3859902314 SCREW
M 18X18X23X45
A 6209900014 SCREW
M 16X18X26X48
A 3469900114 SCREW
M 16X18X31X50
A 3859902414 SCREW
Repalced by: N 000961018043
N 000961018043 SCREW
M 18X18X33X55
A 6229900014 SCREW
M 16X18X38X60
A 3919900014 SCREW
M 16X18X63X85
Y YYYYYYYYYYYY PART NAME MISSING
N 000610018004 FITTED SCREW
M 18X19X25X45
N 000610018009 FITTED SCREW
M 18X19X33X55
N 000610018006 FITTED SCREW
M 18X19X38X60
N 000609018000 FITTED SCREW
M 18X19X57X85
Y YYYYYYYYYYYY PART NAME MISSING
N 913004010011 NUT
N 913004012009 NUT
Repalced by: N 910113012003
N 910113012003 HEXAGON NUT
N 913004014005 NUT
Repalced by: N 910113014000
N 910113014000 NUT
N 913004016005 NUT
Repalced by: N 910113016001
N 910113016001 NUT
N 913004018004 NUT
Y YYYYYYYYYYYY PART NAME MISSING
N 910005010012 RIVET
10X24 MM
N 910005010014 RIVET
10X26 MM
N 910005010016 RIVET
10X28 MM
N 910005010020 RIVET
10X30 MM
N 910005010022 RIVET
10X34 MM
N 910005010027 RIVET
10X40 MM
N 910005012012 RIVET
12X26 MM
N 910005012073 RIVET
12X28 MM
N 910005012080 RIVET
12X42 MM
N 910005014059 RIVET
14X16 MM
N 910005014056 RIVET
14X45 MM
N 910005014057 RIVET
14X48 MM
A 0009902193 RIVET
Repalced by: N 910005010022
N 910005010022 RIVET
N 000960010007 SCREW
GUSSET PLATE TO CROSS MEMBER
N 913004010014 NUT
Repalced by: N 910113010003
N 910113010003 NUT
GUSSET PLATE TO CROSS MEMBER
266 A 3873150006 COUPLING PIN
FOR COUPLING MOUTH
269 A 0009874346 SEALING CORD
FOR COUPLING MOUTH
279 A 3353150031 LOCKING SPRING
FOR COUPLING MOUTH
283 N 000933008153 SCREW
Repalced by: N 304017008034
283 N 304017008034 SCREW
LOCK SPRING TO CROSS MEMBER
285 N 000125008418 WASHER
Repalced by: N 000125008443
285 N 000125008443 WASHER
LOCK SPRING TO CROSS MEMBER
288 N 912004008102 LOCK WASHER
LOCK SPRING TO CROSS MEMBER
291 N 304032008006 NUT
LOCK SPRING TO CROSS MEMBER
A 3813100436 CROSS MEMBER
SPARE WHEEL MOUNTING
N 000961012122 SCREW
SPARE WHEEL MOUNTING
N 910113012002 NUT
SPARE WHEEL MOUNTING
N 000961014100 SCREW
ANGLE TO SIDE MEMBER
N 000961014100 SCREW
ANGLE TO SIDE MEMBER
N 913004014002 NUT
Repalced by: N 910113014001
N 910113014001 NUT
ANGLE TO SIDE MEMBER

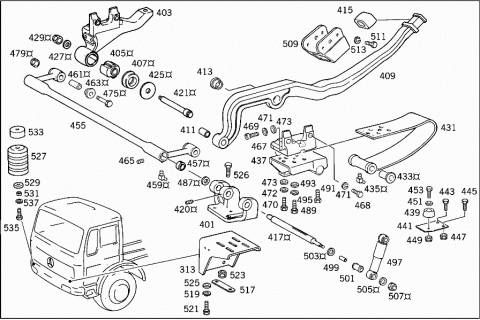

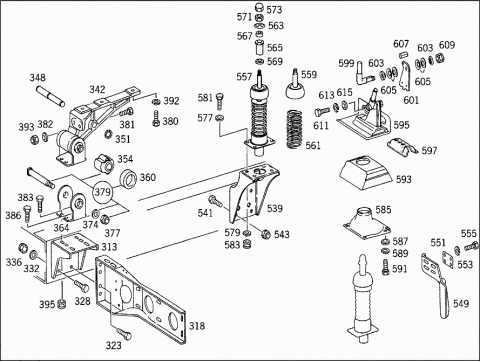

313 A 3878910531 CONSOLE
Repalced by: A 3878912631
313 A 3878912631 CONSOLE
CAB MOUNTING,FRONT
313 A 3878912631 CONSOLE
CAB MOUNTING,FRONT
318 A 3873170423 STRUT
BUMPER AT TORSION BAR
318 A 3873170423 STRUT
BUMPER AT TORSION BAR
A 3873100153 STRUT
BUMPER,LEFT
A 3873100253 STRUT
BUMPER,RIGHT
323 N 000961014101 SCREW
Repalced by: N 308676014012
323 N 308676014012 SCREW
CONSOLE AND STRUT TO FRAME
M 14X45
328 N 000961014063 SCREW
Repalced by: A 9429901304
328 A 9429901304 SCREW
CONSOLE AND STRUT TO FRAME
M 14X40
332 N 000125015013 WASHER
Repalced by: N 000125015019
332 N 000125015019 WASHER
CONSOLE AND STRUT TO FRAME
336 N 913004014005 NUT
Repalced by: N 910113014000
336 N 910113014000 NUT
CONSOLE AND STRUT TO FRAME
342 A 3813106409 BRACKET
CAB SUSPENSION,FRONT LEFT
342 A 3813106409 BRACKET
CAB SUSPENSION,FRONT LEFT
342 A 3813106509 BRACKET
CAB SUSPENSION,FRONT LEFT
342 A 3813106509 BRACKET
CAB SUSPENSION,FRONT LEFT
A 3813106609 BRACKET
CAB SUSPENSION,FRONT RIGHT
A 3813106609 BRACKET
CAB SUSPENSION,FRONT RIGHT
348 A 3813172274 PIN
348 A 3813172274 PIN
351 N 000471018001 LOCK RING
351 N 000471018001 LOCK RING
354 A 3813171512 RUBBER BUFFER
360 A 3813171412 RUBBER BUFFER
364 A 3878902903 MOUNTING
Repalced by: A 3878908703
364 A 3878908703 MOUNTING
364 A 3878908703 MOUNTING
A 3813172174 PIN
374 N 007349017002 WASHER
Repalced by: N 007349017003
374 N 007349017003 WASHER
A 3859902114 SCREW
M 12X12X15X30
A 3859902114 SCREW
M 12X12X15X30
377 N 913004016004 NUT
Repalced by: N 910113016002
377 N 910113016002 NUT
377 N 910113016002 NUT
379 A 3815860031 REPAIR KIT
CAB SUSPENSION,FRONT
380 N 000961014028 SCREW
LEFT AND RIGHT BEARING BRACKETS TO CAB
M 14X40
380 N 000961014028 SCREW
LEFT AND RIGHT BEARING BRACKETS TO CAB
M 14X40
381 N 000961014064 SCREW
LEFT AND RIGHT BEARING BRACKETS TO CAB
M 14X50
381 N 000961014064 SCREW
LEFT AND RIGHT BEARING BRACKETS TO CAB
M 14X50
382 A 3209901840 WASHER
LEFT AND RIGHT BEARING BRACKETS TO CAB
382 A 3209901840 WASHER
LEFT AND RIGHT BEARING BRACKETS TO CAB
383 N 000961014063 SCREW
Repalced by: A 9429901304
383 A 9429901304 SCREW
CAB TO FRAME
M 14X40
383 A 9429901304 SCREW
CAB TO FRAME
M 14X40
386 N 000961014101 SCREW
Repalced by: N 308676014012
386 N 308676014012 SCREW
CAB TO FRAME
M 14X45
386 N 308676014012 SCREW
CAB TO FRAME
M 14X45
A 3878910698 SHIM
392 N 912004014100 LOCK WASHER
LEFT AND RIGHT BEARING BRACKETS TO CAB
392 N 912004014100 LOCK WASHER
LEFT AND RIGHT BEARING BRACKETS TO CAB
393 N 913004014002 NUT
Repalced by: N 910113014001
393 N 910113014001 NUT
LEFT AND RIGHT BEARING BRACKETS TO CAB
393 N 910113014001 NUT
LEFT AND RIGHT BEARING BRACKETS TO CAB
395 N 913004014005 NUT
Repalced by: N 910113014000
395 N 910113014000 NUT
CAB TO FRAME
395 N 910113014000 NUT
CAB TO FRAME
A 3878913720 MOUNTING
CAB SUSPENSION,FRONT LEFT
A 3878913720 MOUNTING
CAB SUSPENSION,FRONT LEFT
401 A 3878916020 MOUNTING
Repalced by: A 6558910320
401 A 6558910320 MOUNTING
CAB SUSPENSION,FRONT LEFT
403 A 3878916420 MOUNTING
CAB SUSPENSION,FRONT LEFT
A 3878913820 MOUNTING
CAB SUSPENSION,FRONT RIGHT
A 3878913820 MOUNTING
CAB SUSPENSION,FRONT RIGHT
A 3878916120 MOUNTING
Repalced by: A 6558910420
A 6558910420 MOUNTING
CAB SUSPENSION,FRONT RIGHT
A 3878916520 MOUNTING
CAB SUSPENSION,FRONT RIGHT
405 A 3813171712 RUBBER BUFFER
Repalced by: A 6205860031
407 A 3813171412 RUBBER BUFFER
Repalced by: A 6205860031
409 A 3878912156 LEVER
Repalced by: A 3878912556
409 A 3878912556 LEVER
(TILTING LEVER),CAB
409 A 3878912256 LEVER
Repalced by: A 3878912856
409 A 3878912856 LEVER
(TILTING LEVER),CAB
411 A 3879920003 BUSHING
LEVER TO BEARING BRACKET
411 A 3879920203 BUSHING
LEVER TO BEARING BRACKET
A 0019810531 JOINT BEARING
Repalced by: A 6208910017
A 0019810431 JOINT BEARING
Repalced by: A 6208910017
A 0029943741 LOCK
Repalced by: A 6208910017
413 A 6208910017 BUSHING
CAB TILTING LEVER
415 A 3638910023 BUFFER
CAB SUSPENSION,FRONT
417 A 3873170674 PIN
Repalced by: A 3875860131

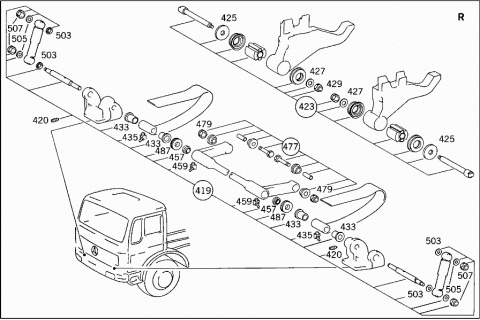

419 A 3875860131 REPAIR KIT
Repalced by: A 3873100077
419 A 3873100077 REPAIR KIT
CAB SUSPENSION,FRONT
419 A 3873100077 REPAIR KIT
CAB SUSPENSION,FRONT
420 N 000417008004 HEADLESS SETSCREW
PIN TO BEARING
420 N 000417008004 HEADLESS SETSCREW
PIN TO BEARING
421 A 3873170874 PIN
Repalced by: A 6205860031
423 A 6205860031 REPAIR KIT
CAB SUSPENSION,FRONT
425 A 3873170376 WASHER
MOUNTING TO BRACKET
427 N 007349017002 WASHER
MOUNTING TO BRACKET
Repalced by: N 007349017003
427 N 007349017003 WASHER
MOUNTING TO BRACKET
429 N 913004016004 NUT
Repalced by: N 910113016002
429 N 910113016002 NUT
MOUNTING TO BRACKET
431 A 3878910551 SPRING
CAB SUSPENSION,FRONT
431 A 3878910551 SPRING
CAB SUSPENSION,FRONT
433 A 3638910617 BUSHING
FOR SPRING
433 A 3638910617 BUSHING
FOR SPRING
435 N 071412008200 GREASE NIPPLE
FOR SPRING
435 N 071412008200 GREASE NIPPLE
FOR SPRING
437 A 3878905303 MOUNTING
STABILIZER TO CAB,LEFT
437 A 3878905303 MOUNTING
STABILIZER TO CAB,LEFT
437 A 6218900203 MOUNTING
Repalced by: A 6218900403
437 A 6218900403 MOUNTING
STABILIZER TO CAB,LEFT
437 A 3878905603 MOUNTING
STABILIZER TO CAB,RIGHT
437 A 3878905603 MOUNTING
STABILIZER TO CAB,RIGHT
437 A 6218900303 MOUNTING
Repalced by: A 6218900503
437 A 6218900503 MOUNTING
STABILIZER TO CAB,RIGHT
A 6218910157 PIN
439 A 3348910072 MOUNTING
CAB SUSPENSION,FRONT
439 A 3348910072 MOUNTING
CAB SUSPENSION,FRONT
441 A 3878910914 BRACKET
RUBBER MOUNTING
441 A 3878910914 BRACKET
RUBBER MOUNTING
443 N 000961012097 SCREW
Repalced by: N 308676012026
443 N 308676012026 SCREW
BRACKET TO FRAME
443 N 308676012026 SCREW
BRACKET TO FRAME
445 N 000961012151 SCREW
BRACKET TO FRAME
445 N 000961012151 SCREW
BRACKET TO FRAME
447 N 910113012002 NUT
BRACKET TO FRAME
447 N 910113012002 NUT
BRACKET TO FRAME
449 N 913004008004 NUT
Repalced by: N 913004008001
449 N 913004008001 NUT
RUBBER BUFFER TO BRACKET
449 N 913004008001 NUT
RUBBER BUFFER TO BRACKET
451 N 009021008205 WASHER
Repalced by: N 009021008213
451 N 009021008213 WASHER
RUBBER BUFFER TO BRACKET
Repalced by: N 000000003250
451 N 000000003250 WASHER
RUBBER BUFFER TO BRACKET
451 N 000000003250 WASHER
RUBBER BUFFER TO BRACKET
453 N 000933008153 SCREW
Repalced by: N 304017008034
453 N 304017008034 SCREW
RUBBER BUFFER TO BRACKET
453 N 304017008034 SCREW
RUBBER BUFFER TO BRACKET
455 A 3878900404 STABILIZER
CAB SUSPENSION,FRONT
455 A 3878900404 STABILIZER
CAB SUSPENSION,FRONT
455 A 6218900304 STABILIZER
Repalced by: A 6528900104
455 A 6528900104 STABILIZER
CAB SUSPENSION,FRONT
457 A 0009817331 JOINT BEARING
Repalced by: A 0009817231
457 A 0009817231 JOINT BEARING
Repalced by: A 0019814631
457 A 0019814631 JOINT BEARING
457 A 0019814631 JOINT BEARING
A 0019814831 JOINT BEARING
A 0019814831 JOINT BEARING
459 N 071412008200 GREASE NIPPLE
459 N 071412008200 GREASE NIPPLE
461 A 3878910717 BUSHING
Repalced by: A 3875860531
461 A 3878910717 BUSHING
Repalced by: A 6203100077
463 A 3878910272 MOUNTING
Repalced by: A 3875860531
463 A 3878910272 MOUNTING
Repalced by: A 6203100077
465 N 000906010000 SCREW PLUG
STABILIZER TO BEARING BRACKET
465 N 000906010000 SCREW PLUG
STABILIZER TO BEARING BRACKET
467 A 3878910831 CONSOLE
Repalced by: A 6208910631
467 A 6208910631 CONSOLE
CAB SUSPENSION,FRONT LEFT
467 A 6208910631 CONSOLE
CAB SUSPENSION,FRONT LEFT
467 A 3878910931 CONSOLE
Repalced by: A 6208910731
467 A 6208910731 CONSOLE
CAB SUSPENSION,FRONT RIGHT
467 A 6208910731 CONSOLE
CAB SUSPENSION,FRONT RIGHT
468 N 000961012069 SCREW
Repalced by: N 308676012015
468 N 308676012015 SCREW
LEFT AND RIGHT CONSOLES TO CAB
M 12X45
468 N 308676012015 SCREW
LEFT AND RIGHT CONSOLES TO CAB
M 12X45
469 N 006912012013 SCREW
LEFT AND RIGHT CONSOLES TO CAB
M 12X30
469 N 006912012013 SCREW
LEFT AND RIGHT CONSOLES TO CAB
M 12X30
470 N 000961014050 SCREW
Repalced by: N 308676014020
470 N 308676014020 SCREW
LEFT AND RIGHT CONSOLES TO CAB
470 N 308676014020 SCREW
LEFT AND RIGHT CONSOLES TO CAB
471 N 912004012100 LOCK WASHER
LEFT AND RIGHT CONSOLES TO CAB
471 N 912004012100 LOCK WASHER
LEFT AND RIGHT CONSOLES TO CAB
472 N 912004014100 LOCK WASHER
LEFT AND RIGHT CONSOLES TO CAB
472 N 912004014100 LOCK WASHER
LEFT AND RIGHT CONSOLES TO CAB
473 A 3609900940 WASHER
LEFT AND RIGHT CONSOLES TO CAB
473 A 3609900940 WASHER
LEFT AND RIGHT CONSOLES TO CAB
475 A 3878910957 PIN
Repalced by: A 3875860531
477 A 3875860531 REPAIR KIT
CAB FRONT SUSPENSION STABILIZER
477 A 3875860531 REPAIR KIT
CAB FRONT SUSPENSION STABILIZER
477 A 6203100077 REPAIR KIT
CAB FRONT SUSPENSION STABILIZER
477 A 6203100177 REPAIR KIT
CAB FRONT SUSPENSION STABILIZER
N 000960014245 SCREW
STABILIZER TO BEARING BRACKET
479 N 913004014002 NUT
Repalced by: N 910113014001
479 N 910113014001 NUT
STABILIZER TO BEARING BRACKET
479 N 910113014001 NUT
STABILIZER TO BEARING BRACKET
N 000960012189 SCREW
Repalced by: N 308676012031
N 308676012031 SCREW
Repalced by: N 308676012011
N 308676012011 SCREW
LEFT AND RIGHT BEARING BRACKETS TO CAB
N 000961014028 SCREW
LEFT AND RIGHT BEARING BRACKETS TO CAB
M 14X40
N 000961014054 SCREW
LEFT AND RIGHT BEARING BRACKETS TO CAB
M 14X45
N 912004012100 LOCK WASHER
LEFT AND RIGHT BEARING BRACKETS TO CAB
N 912004014100 LOCK WASHER
LEFT AND RIGHT BEARING BRACKETS TO CAB
A 3209901840 WASHER
LEFT AND RIGHT BEARING BRACKETS TO CAB
N 913004014002 NUT
Repalced by: N 910113014001
N 910113014001 NUT
LEFT AND RIGHT BEARING BRACKETS TO CAB
N 000125015013 WASHER
Repalced by: N 000125015019
N 000125015019 WASHER
LEFT AND RIGHT BEARING BRACKETS TO CAB
N 000960014167 SCREW
Repalced by: N 000961014064
N 000961014064 SCREW
LEFT AND RIGHT BEARING BRACKETS TO CAB
487 A 3878911910 WASHER
BEARING BRACKET TO CAB
487 A 3878911910 WASHER
BEARING BRACKET TO CAB
489 N 000961014050 SCREW
Repalced by: N 308676014020
489 N 308676014020 SCREW
BEARING BRACKET TO CAB
M 14X35
489 N 308676014020 SCREW
BEARING BRACKET TO CAB
M 14X35
491 N 000961014084 SCREW
Repalced by: N 000961014148
491 N 000961014148 SCREW
BEARING BRACKET TO CAB
M 14X75
491 N 000961014148 SCREW
BEARING BRACKET TO CAB
M 14X75
493 N 007349015003 WASHER
BEARING BRACKET TO CAB
493 N 007349015003 WASHER
BEARING BRACKET TO CAB
495 N 912004014100 LOCK WASHER
BEARING BRACKET TO CAB
495 N 912004014100 LOCK WASHER
BEARING BRACKET TO CAB
495 N 912004014100 LOCK WASHER
BEARING BRACKET TO CAB
N 000933008153 SCREW
Repalced by: N 304017008034
N 304017008034 SCREW
BEARING BRACKET TO CAB
N 304017008034 SCREW
BEARING BRACKET TO CAB
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
BEARING BRACKET TO CAB
N 913004008001 NUT
BEARING BRACKET TO CAB
497 A 0008911805 SHOCK ABSORBER
CAB SUSPENSION,FRONT
497 A 0008911805 SHOCK ABSORBER
CAB SUSPENSION,FRONT
499 A 0008910617 BUSHING
501 A 0008910501 RUBBER MOUNTING
501 A 0008910501 RUBBER MOUNTING
503 A 3873170176 WASHER
Repalced by: A 6203170176
503 A 6203170176 WASHER
SHOCK ABSORBER TO CAB
503 A 6203170176 WASHER
SHOCK ABSORBER TO CAB
505 A 3873170276 WASHER
Repalced by: N 000125013008
505 N 000125013008 WASHER
505 N 000125013008 WASHER
507 N 910113012002 NUT
SHOCK ABSORBER TO CAB
507 N 910113012002 NUT
SHOCK ABSORBER TO CAB
509 A 3878913220 MOUNTING
Repalced by: A 6208901603
509 A 6208901603 MOUNTING
TILTING LEVER TO CAB SIDE MEMBER
511 N 000933010105 SCREW
BEARING BRACKET TO CAB
N 000961012052 SCREW
Repalced by: N 308676012012
N 308676012012 HEXAGON HEAD BOLT
BEARING BRACKET TO CAB
N 308676012012 HEXAGON HEAD BOLT
BEARING BRACKET TO CAB
513 N 912004010102 LOCK WASHER
BEARING BRACKET TO CAB
N 912004012100 LOCK WASHER
BEARING BRACKET TO CAB
N 000960014229 SCREW
CAB ON CONSOLE AT FRAME
517 A 3878910498 SHIM
CAB ON CONSOLE AT FRAME
519 N 912004014100 LOCK WASHER
CAB ON CONSOLE AT FRAME
521 N 000961014088 SCREW
Repalced by: N 308676014008
521 N 308676014008 SCREW
CAB ON CONSOLE AT FRAME
523 N 913004014005 NUT
Repalced by: N 910113014000
523 N 910113014000 NUT
CAB ON CONSOLE AT FRAME
525 N 007349015003 WASHER
CAB ON CONSOLE AT FRAME
526 N 000961014100 SCREW
CAB ON CONSOLE AT FRAME
527 A 3638910223 BUFFER
CAB SUSPENSION
529 A 3638910047 FLANGE
BUFFER TO FRAME
531 A 3638910517 BUSHING
BUFFER TO FRAME
533 A 3878912210 WASHER
Repalced by: A 4432610076
533 A 4432610076 WASHER
BUFFER TO FRAME
535 N 000933010129 SCREW
Repalced by: N 304017010002
535 N 304017010002 SCREW
BUFFER TO CAB
537 N 912004010102 LOCK WASHER
BUFFER TO CAB
A 3813100263 CONSOLE
Repalced by: A 3813170601
539 A 3813170601 CONSOLE
VIBRATION ABSORBER TO FRAME
539 A 3813170601 CONSOLE
VIBRATION ABSORBER TO FRAME
N 000961014050 SCREW
Repalced by: N 308676014020
N 308676014020 SCREW
CONSOLE TO FRAME
M 14X35
N 308676014020 SCREW
CONSOLE TO FRAME
M 14X35
541 N 000961014028 SCREW
CONSOLE TO FRAME
M 14X40
541 N 000961014028 SCREW
CONSOLE TO FRAME
M 14X40
543 N 913004014002 NUT
Repalced by: N 910113014001
543 N 910113014001 NUT
CONSOLE TO FRAME
543 N 910113014001 NUT
CONSOLE TO FRAME
N 000960012230 SCREW
LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS
N 000960012230 SCREW
LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS
N 910113012002 NUT
LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS
N 910113012002 NUT
LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS
A 3813170553 SPACER TUBE
LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS
A 3813170553 SPACER TUBE
LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS
549 A 3813171526 GUIDE
CAB SUSPENSION,REAR LEFT
549 A 3813171526 GUIDE
CAB SUSPENSION,REAR LEFT
A 3813171626 GUIDE
CAB SUSPENSION,REAR RIGHT
A 3813171626 GUIDE
CAB SUSPENSION,REAR RIGHT
551 A 3873170084 SHIM
GUIDE TO CAB
551 A 3873170084 SHIM
GUIDE TO CAB
553 N 912004012100 LOCK WASHER
GUIDE TO CAB
553 N 912004012100 LOCK WASHER
GUIDE TO CAB
555 N 000960012301 SCREW
GUIDE TO CAB
555 N 000960012301 SCREW
GUIDE TO CAB
A 3813170750 BUSHING
GUIDE TO CAB
A 3813170750 BUSHING
GUIDE TO CAB
557 A 3878901619 SHOCK ABSORBER
Repalced by: A 3878901319
557 A 3878901319 SHOCK ABSORBER
CAB SUSPENSION,REAR
557 A 3878901319 SHOCK ABSORBER
CAB SUSPENSION,REAR
557 A 3878901319 SHOCK ABSORBER
CAB SUSPENSION,REAR
557 A 3878901319 SHOCK ABSORBER
CAB SUSPENSION,REAR
559 A 0008910201 RUBBER MOUNTING
TO 387 890 16 19
559 A 0008910201 RUBBER MOUNTING
TO 387 890 16 19
559 A 0008910301 RUBBER MOUNTING
TO 387 890 13 19
559 A 0008910301 RUBBER MOUNTING
TO 387 890 13 19
561 A 0008910751 SPRING
Repalced by: A 0008910451
561 A 0008910451 SPRING
561 A 0008910451 SPRING
563 A 3878912010 WASHER
SHOCK ABSORBER
563 A 3878912010 WASHER
SHOCK ABSORBER
565 A 3813170753 SPACER TUBE
SHOCK ABSORBER
565 A 3813170753 SPACER TUBE
SHOCK ABSORBER
567 A 3275045082 RUBBER RING
SHOCK ABSORBER
567 A 3275045082 RUBBER RING
SHOCK ABSORBER
569 N 000433015005 WASHER
SHOCK ABSORBER
569 N 000433015005 WASHER
SHOCK ABSORBER
571 N 000934012022 NUT
SHOCK ABSORBER
571 N 000934012022 NUT
SHOCK ABSORBER
573 N 001587012008 CAP NUT
Repalced by: N 001587012010
573 N 001587012010 CAP NUT
SHOCK ABSORBER
573 N 001587012010 CAP NUT
SHOCK ABSORBER
577 N 009021008205 WASHER
Repalced by: N 009021008213
577 N 009021008213 WASHER
SHOCK ABSORBER TO CONSOLE
Repalced by: N 000000003250
577 N 000000003250 WASHER
SHOCK ABSORBER TO CONSOLE
577 N 000000003250 WASHER
SHOCK ABSORBER TO CONSOLE
579 N 912004008102 LOCK WASHER
SHOCK ABSORBER TO CONSOLE
579 N 912004008102 LOCK WASHER
SHOCK ABSORBER TO CONSOLE
581 N 000933008147 SCREW
Repalced by: N 304017008021
581 N 304017008021 SCREW
SHOCK ABSORBER TO CONSOLE
581 N 304017008021 SCREW
SHOCK ABSORBER TO CONSOLE
583 N 913004008004 NUT
Repalced by: N 913004008001
583 N 913004008001 NUT
SHOCK ABSORBER TO CONSOLE
583 N 913004008001 NUT
SHOCK ABSORBER TO CONSOLE
585 A 3813177840 BRACKET
VIBRATION ABSORBER TO CAB,LEFT
585 A 3813177840 BRACKET
VIBRATION ABSORBER TO CAB,LEFT
585 A 3813177940 BRACKET
VIBRATION ABSORBER TO CAB,RIGHT
585 A 3813177940 BRACKET
VIBRATION ABSORBER TO CAB,RIGHT
587 N 000433010505 WASHER
Repalced by: N 000433010510
587 N 000433010510 WASHER
BRACKET AND BOOT TO SIDE MEMBER
587 N 000433010510 WASHER
BRACKET AND BOOT TO SIDE MEMBER
589 N 912004010102 LOCK WASHER
BRACKET AND BOOT TO SIDE MEMBER
589 N 912004010102 LOCK WASHER
BRACKET AND BOOT TO SIDE MEMBER
591 N 000933010105 SCREW
BRACKET AND BOOT TO SIDE MEMBER
591 N 000933010105 SCREW
BRACKET AND BOOT TO SIDE MEMBER
593 A 3813170097 BOOT
BRACKET TO SIDE MEMBER
593 A 3813170097 BOOT
BRACKET TO SIDE MEMBER
595 A 3813101875 LOCKING MECHANISM
CAB SUSPENSION,REAR LEFT
595 A 3813101875 LOCKING MECHANISM
CAB SUSPENSION,REAR LEFT
A 3813101775 LOCKING MECHANISM
CAB SUSPENSION,REAR RIGHT
A 3813101775 LOCKING MECHANISM
CAB SUSPENSION,REAR RIGHT
597 A 3813170119 LATCH
597 A 3813170119 LATCH
599 A 3813172374 PIN
599 A 3813172374 PIN
601 A 3813170924 LEVER
601 A 3813170924 LEVER
603 A 3813170676 WASHER
603 A 3813170676 WASHER
605 A 0009935426 DISC SPRING
605 A 0009935426 DISC SPRING
607 N 001481006041 CLAMPING SLEEVE
607 N 001481006041 CLAMPING SLEEVE
609 N 913004012009 NUT
Repalced by: N 910113012003
609 N 910113012003 HEXAGON NUT
609 N 910113012003 HEXAGON NUT
611 N 000933010105 SCREW
LOCKING MECHANISM TO CAB
611 N 000933010105 SCREW
LOCKING MECHANISM TO CAB
613 N 912004010102 LOCK WASHER
LOCKING MECHANISM TO CAB
613 N 912004010102 LOCK WASHER
LOCKING MECHANISM TO CAB
615 N 000125010518 WASHER
Repalced by: N 000125010532
615 N 000125010532 WASHER
LOCKING MECHANISM TO CAB
615 N 000125010532 WASHER
LOCKING MECHANISM TO CAB

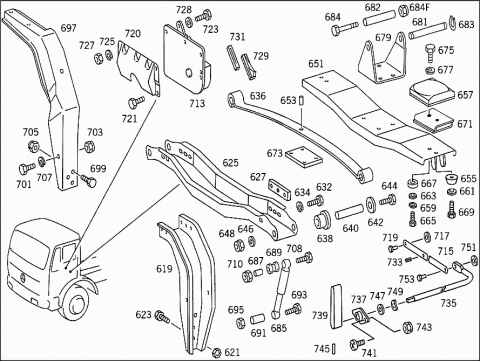

619 A 3878911731 CONSOLE
CAB MOUNTING,REAR
621 N 913004014002 NUT
Repalced by: N 910113014001
621 N 910113014001 NUT
CONSOLE TO FRAME
623 N 000961014050 SCREW
Repalced by: N 308676014020
623 N 308676014020 SCREW
CONSOLE TO FRAME
625 A 3878910024 STRUT
Repalced by: A 6558910224
625 A 6558910224 STRUT
CAB MOUNTING,REAR
627 A 3878910198 SHIM
CAB MOUNTING,REAR
632 N 000961012052 SCREW
Repalced by: N 308676012012
632 N 308676012012 HEXAGON HEAD BOLT
STRUT TO CONSOLE
634 N 912004012100 LOCK WASHER
STRUT TO CONSOLE
636 A 3878911051 SPRING
CAB SUSPENSION,REAR
638 A 3638910717 BUSHING
SPRING TO STRUT
640 A 3638910218 TUBE
SPRING TO STRUT
642 A 3638910010 WASHER
SPRING TO STRUT
644 N 000960012153 SCREW
SPRING TO STRUT
646 N 009021013200 WASHER
SPRING TO STRUT
648 N 910113012002 NUT
SPRING TO STRUT
651 A 3878900522 RAIL
Repalced by: A 6558900122
651 A 6558900122 RAIL
(CONNECTING RAIL)
653 N 000007012200 CYLINDRICAL PIN
655 A 3638910123 BUFFER
Repalced by: A 3878910323
655 A 3878910323 BUFFER
(RUBBER BUFFER)
657 A 3878910072 MOUNTING
CAB SUSPENSION,REAR
N 000084008119 SCREW
CAB,REAR
M 8X20
N 000933008154 SCREW
Repalced by: N 304017008021
N 304017008021 SCREW
CAB,REAR
M 8X22
659 N 912004008102 LOCK WASHER
BUFFER AND MOUNTING TO RAIL
661 N 000433008406 WASHER
BUFFER AND MOUNTING TO RAIL
663 N 000125008418 WASHER
Repalced by: N 000125008443
663 N 000125008443 WASHER
BUFFER AND MOUNTING TO RAIL
665 N 000933008161 SCREW
Repalced by: N 304017008028
665 N 304017008028 SCREW
BUFFER AND MOUNTING TO RAIL
M 8X50
667 A 3204290052 SPACER WASHER
669 N 000084008148 SCREW
BUFFER AND MOUNTING TO RAIL
M 8X45
671 A 3803100184 SHIM
BUFFER AND MOUNTING TO RAIL
673 A 3878910811 PLATE
SPRING TO STRUT
675 N 000931010258 SCREW
SPRING TO BEARING
677 N 912004010102 LOCK WASHER
SPRING TO BEARING
679 A 3878917920 MOUNTING
CAB LOCKING MECHANISM
679 A 3878918120 MOUNTING
CAB LOCKING MECHANISM
679 A 6208910020 MOUNTING
CAB LOCKING MECHANISM
681 A 3878911057 PIN
CAB LOCKING MECHANISM
681 A 3638910457 PIN
CAB LOCKING MECHANISM
682 A 3878911753 SPACER TUBE
CAB LOCKING MECHANISM
683 N 000471025002 LOCK RING
CENTRAL LOCK
683 N 000471025002 LOCK RING
CENTRAL LOCK
684 N 000960016242 SCREW
Repalced by: N 000960016251
684 N 000960016251 SCREW
BEARING BRACKET
684F N 913004016004 NUT
Repalced by: N 910113016002
684F N 910113016002 NUT
BEARING BRACKET
685 A 0008911805 SHOCK ABSORBER
CAB SUSPENSION,REAR
685 A 0008911805 SHOCK ABSORBER
CAB SUSPENSION,REAR
685 A 0008912205 SHOCK ABSORBER
CAB SUSPENSION,REAR
687 A 0008910617 BUSHING
689 A 0008910501 RUBBER MOUNTING
691 A 3878910453 SPACER TUBE
SHOCK ABSORBER TO CONSOLE
693 N 000960018125 SCREW
Repalced by: N 000960018072
693 N 000960018072 SCREW
SHOCK ABSORBER TO CONSOLE
695 N 913004018003 NUT
Repalced by: N 910113018004
695 N 910113018004 NUT
SHOCK ABSORBER TO CONSOLE
697 A 3815000927 SUPPORT
Repalced by: A 3815001227
697 A 3815001227 SUPPORT
RESERVOIR
N 000960018072 SCREW
Repalced by: N 308765018004
N 308765018004 SCREW
TANK TO CONSOLES
N 913004018003 NUT
Repalced by: N 910113018004
N 910113018004 NUT
TANK TO CONSOLES
699 N 000961014050 SCREW
Repalced by: N 308676014020
699 N 308676014020 SCREW
SUPPORT TO CROSS MEMBER
701 N 000961012151 SCREW
SUPPORT TO CROSS MEMBER
703 N 910113012002 NUT
SUPPORT TO CROSS MEMBER
705 N 913004014002 NUT
Repalced by: N 910113014001
705 N 910113014001 NUT
SUPPORT TO CROSS MEMBER
707 N 912004012100 LOCK WASHER
SUPPORT TO CROSS MEMBER
708 N 000960018040 SCREW
Repalced by: N 000960018142
708 N 000960018142 SCREW
SHOCK ABSORBER TO RAIL
710 N 913004018003 NUT
Repalced by: N 910113018004
710 N 910113018004 NUT
SHOCK ABSORBER TO RAIL
713 A 0008900089 FASTENER
Repalced by: A 0008902389
713 A 0008901389 FASTENER
Repalced by: A 0008902389
713 A 0008902389 FASTENER
CAB MOUNTING
715 A 3878910070 ROD
CAB LOCKING MECHANISM
715 A 3878910170 ROD
CAB LOCKING MECHANISM
715 A 6208910170 ROD
CAB LOCKING MECHANISM
717 N 000433008406 WASHER
PULL TO FASTENER
N 000094002059 COTTER PIN
PULL TO FASTENER
Repalced by: N 000094002060
N 000094002060 COTTER PIN
PULL TO FASTENER
719 N 001444008202 PIN
PULL TO FASTENER
720 A 3878911131 CONSOLE
CENTRAL LOCK
721 N 000933010128 SCREW
CENTRAL LOCK TO CAB
M 10X20
723 N 000933010105 SCREW
CENTRAL LOCK TO CAB
M 10X25
725 N 912004010102 LOCK WASHER
CENTRAL LOCK TO CAB
727 N 913004010008 NUT
Repalced by: N 910113010000
727 N 910113010000 NUT
CENTRAL LOCK TO CAB
728 N 000125010518 WASHER
Repalced by: N 000125010532
728 N 000125010532 WASHER
CENTRAL LOCK TO CAB
729 A 3878910814 BRACKET
ROD THRU CAB
731 A 3878910085 SEAL
ROD THRU CAB
733 N 007346005003 CLAMPING SLEEVE
CAB LOCKING MECHANISM
735 A 3878911956 LEVER
CAB LOCKING MECHANISM
735 A 6208910056 LEVER
CAB LOCKING MECHANISM
735 A 3878911456 LEVER
CAB LOCKING MECHANISM
735 A 6208910256 LEVER
CAB LOCKING MECHANISM
737 A 3638910317 BUSHING
LEVER TO CAB
739 A 3638910073 HANDLE
Repalced by: A 6208910073
739 A 6208910073 HANDLE
CAB LOCKING MECHANISM
741 N 007985008142 SCREW
LEVER AND BUSHING TO CAB
743 N 913004008004 NUT
Repalced by: N 913004008001
743 N 913004008001 NUT
LEVER AND BUSHING TO CAB
745 N 007346005004 CLAMPING SLEEVE
Repalced by: N 001481005039
745 N 001481005039 CLAMPING SLEEVE
CAB LOCKING MECHANISM
747 N 000125015013 WASHER
Repalced by: N 000125015019
747 N 000125015019 WASHER
CAB LOCKING MECHANISM
749 N 900055014400 RETAINING RING
CAB LOCKING MECHANISM
751 N 000433008406 WASHER
PULL ROD TO LEVER
N 000094002030 COTTER PIN
PULL ROD TO LEVER
753 N 001444008233 PIN
PULL ROD TO LEVER
A 3815840038 GUMMED LABEL
CAB LOCKING MECHANISM
A 3875841321 GUIDE SIGN
Repalced by: A 0015847238
A 0015847238 GUMMED LABEL
DANGER AREA IN FRONT OF TILTED CAB
A 3875840055 ADHESIVE FOIL
DANGER AREA IN FRONT OF TILTED CAB
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
