Transporto priemonė: 1613 L; VIN numerio dalis: 385208
Grupė: 50 RADIATOR
| # | Kodas | Pavadinimas |
|---|---|---|

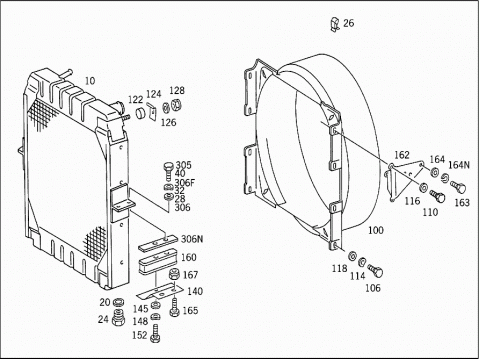

| 010 | A 3815010601 | RADIATOR |
| 010 | A 0005001403 | RADIATOR |
| 010 | A 3815010301 | RADIATOR |
| 010 | A 3815010901 | RADIATOR |
| 010 | A 0005001503 | RADIATOR |

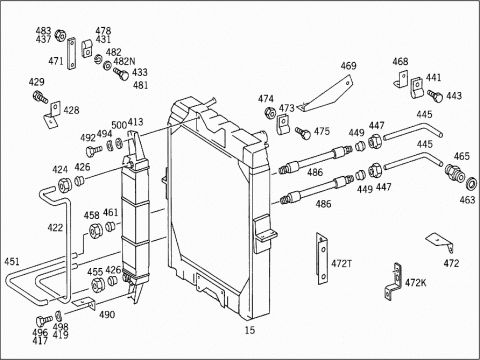

| 015 | A 3815010501 | RADIATOR |
| 015 | A 3815010801 | RADIATOR |
| 020 | N 007603014405 | SEAL RING |
| 024 | N 007604014101 | SCREW PLUG |
| 026 | A 1235040246 | CLIP-TYPE NUT |
| 028 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 028 | N 000125010532 | WASHER |
| 032 | N 000137010201 | SPRING WASHER |
| 040 | N 000933010105 | SCREW |
| M 10X25 | ||
| 040 | N 000933010164 | SCREW |
| M 10X22 | ||

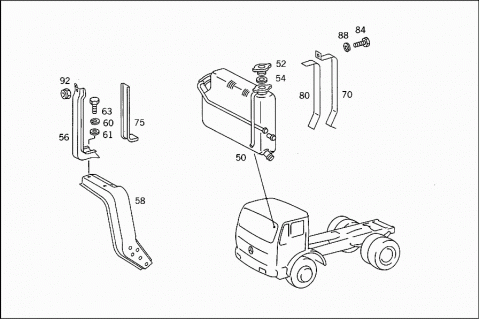

| 050 | A 3815000249 | TANK |
| Repalced by: A 3815001649 | ||
| 050 | A 3815001649 | TANK |
| 050 | A 3815000849 | TANK |
| COOLING WATER EXPANSION | ||
| 050 | A 3815000649 | TANK |
| Repalced by: A 3815000749 | ||
| 050 | A 3815000749 | TANK |
| COOLING WATER EXPANSION | ||
| 052 | A 0005014215 | RADIATOR CAP |
| TO 381 500 02 49,381 500 16 49 | ||
| 052 | A 0005014515 | RADIATOR CAP |
| TO 381 500 08 49,381 500 06 49 | ||
| 052 | A 0005014515 | RADIATOR CAP |
| TO 381 500 07 49 | ||
| 052 | A 0005014615 | RADIATOR CAP |
| TO 381 500 08 49,381 500 06 49 | ||
| 052 | A 0005017215 | RADIATOR CAP |
| TO 381 500 08 49,381 500 06 49 | ||
| 052 | A 0005017215 | RADIATOR CAP |
| TO 381 500 07 49 | ||
| 054 | A 0005010480 | GASKET |
| O.D., | ||
| 52 MM,TO 000 501 42 15,000 501 46 15 | ||
| 054 | A 0005010880 | GASKET |
| O.D., | ||
| 37 MM | ||
| 056 | A 3815010520 | BRACKET |
| Repalced by: A 6155010020 | ||
| 056 | A 6155010020 | BRACKET |
| EXPANSION TANK | ||
| 056 | A 6155010020 | BRACKET |
| EXPANSION TANK | ||
| 056 | A 3815000731 | BRACKET |
| EXPANSION TANK | ||
| 058 | A 3815001227 | SUPPORT |
| EXPANSION TANK | ||
| 060 | N 912004010102 | LOCK WASHER |
| EXPANSION TANK | ||
| 060 | N 912004010102 | LOCK WASHER |
| BRACKET TO SUPPORT | ||
| 061 | N 006902011101 | WASHER |
| BRACKET TO SUPPORT | ||
| 063 | N 000933010238 | SCREW |
| Repalced by: N 304017010028 | ||
| 063 | N 304017010028 | HEXAGON HEAD BOLT |
| EXPANSION TANK | ||
| 063 | N 000933010164 | SCREW |
| BRACKET TO SUPPORT | ||
| 063 | N 000933010238 | SCREW |
| Repalced by: N 304017010028 | ||
| 063 | N 304017010028 | HEXAGON HEAD BOLT |
| BRACKET TO SUPPORT | ||
| 063 | N 304017010028 | HEXAGON HEAD BOLT |
| BRACKET TO SUPPORT | ||
| 070 | A 3815000131 | BRACKET |
| Repalced by: A 3815012720 | ||
| 070 | A 3815012720 | BRACKET |
| EXPANSION TANK | ||
| 070 | A 3815012720 | BRACKET |
| EXPANSION TANK | ||
| 070 | A 3815012520 | BRACKET |
| EXPANSION TANK | ||
| 075 | A 3634750220 | PAD |
| EXPANSION TANK | ||
| A 3815010095 | SHIM | |
| Repalced by: A 3815010295 | ||
| 080 | A 3815010295 | SHIM |
| Repalced by: A 3815010495 | ||
| 080 | A 3815010495 | SHIM |
| EXPANSION TANK | ||
| 084 | N 000933010105 | SCREW |
| EXPANSION TANK | ||
| 088 | N 912004010102 | LOCK WASHER |
| EXPANSION TANK | ||
| 092 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 092 | N 910113010000 | NUT |
| EXPANSION TANK | ||
| 100 | A 3815050555 | FAN SHROUD |
| 100 | A 3835050355 | FAN SHROUD |
| 100 | A 3855050555 | FAN SHROUD |
| 106 | N 000933006102 | SCREW |
| FAN SHROUD TO RADIATOR | ||
| 6X16 MM | ||
| 110 | N 000933006130 | SCREW |
| OIL DIPSTICK TO RADIATOR | ||
| 6X18 MM | ||
| 110 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 110 | N 304017006020 | SCREW |
| OIL DIPSTICK TO RADIATOR | ||
| 6X20 MM | ||
| 114 | N 000137006204 | SPRING WASHER |
| OIL DIPSTICK TO RADIATOR | ||
| 116 | N 000125006421 | WASHER |
| OIL DIPSTICK TO RADIATOR | ||
| Repalced by: N 000125006449 | ||
| 116 | N 000125006449 | WASHER |
| OIL DIPSTICK TO RADIATOR | ||
| 118 | A 3859901140 | WASHER |
| OIL DIPSTICK TO RADIATOR | ||
| 122 | A 3815040051 | SPACER RING |
| Repalced by: A 3469910040 | ||
| 122 | A 3469910040 | SPACER TUBE |
| FAN SHROUD TO RADIATOR | ||
| 124 | A 3815040031 | SUPPORTING PLATE |
| FAN SHROUD TO RADIATOR | ||
| 126 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 126 | N 009021006208 | WASHER |
| FAN SHROUD TO RADIATOR | ||
| 128 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 128 | N 913004006001 | NUT |
| FAN SHROUD TO RADIATOR | ||
| 140 | A 3835040040 | BRACKET |
| RADIATOR | ||
| 140 | A 3835040401 | SUPPORT |
| RADIATOR | ||
| 145 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 145 | N 000125010532 | WASHER |
| RADIATOR | ||
| 148 | N 000137010201 | SPRING WASHER |
| RADIATOR | ||
| 152 | N 000933010238 | SCREW |
| Repalced by: N 304017010028 | ||
| 152 | N 304017010028 | HEXAGON HEAD BOLT |
| RADIATOR | ||
| 160 | A 3875040012 | RUBBER MOUNTING |
| RADIATOR | ||
| 160 | A 3875040112 | RUBBER MOUNTING |
| RADIATOR | ||
| 162 | A 4010100240 | BRACKET |
| OIL DIPSTICK TO RADIATOR | ||
| 162 | A 4010100240 | BRACKET |
| OIL DIPSTICK TO RADIATOR | ||
| 162 | A 4010100440 | BRACKET |
| OIL DIPSTICK TO RADIATOR | ||
| 162 | A 4010100140 | BRACKET |
| OIL DIPSTICK TO RADIATOR | ||
| 163 | N 000933008145 | SCREW |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||
| 164N | N 912004008102 | LOCK WASHER |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||
| 164 | N 007349008003 | WASHER |
| OIL-DIPSTICK GUIDE TUBE TO BRACKET | ||
| 165 | N 000961012023 | SCREW |
| RADIATOR | ||
| 167 | N 910113012002 | NUT |
| RADIATOR | ||

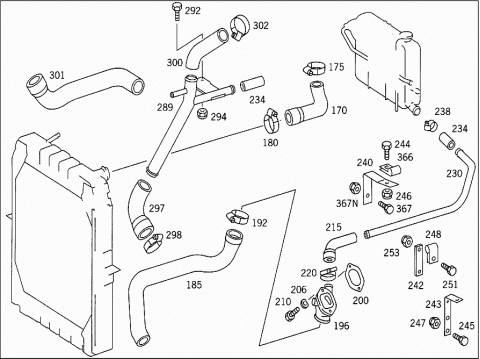

| 170 | A 3815011082 | HOSE |
| TOP | ||
| 170 | A 3835010082 | HOSE |
| TOP | ||
| 170 | A 3855011482 | HOSE |
| TOP | ||
| 175 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 175 | N 000000000671 | CLAMP |
| 175 | N 916017070000 | CLAMP |
| Repalced by: N 000000000674 | ||
| 175 | N 000000000674 | CLAMP |
| 180 | N 916017050000 | CLAMP |
| Repalced by: N 000000000672 | ||
| 180 | N 000000000672 | CLAMP |
| 185 | A 3835010182 | HOSE |
| BOTTOM | ||
| 185 | A 3855011582 | HOSE |
| BOTTOM | ||
| 192 | N 916017070000 | CLAMP |
| Repalced by: N 000000000674 | ||
| 192 | N 000000000674 | CLAMP |
| 192 | N 916017050000 | CLAMP |
| Repalced by: N 000000000672 | ||
| 192 | N 000000000672 | CLAMP |
| 192 | N 916017060000 | CLAMP |
| Repalced by: N 000000000673 | ||
| 192 | N 000000000673 | CLAMP |
| 196 | A 3835010023 | CONNECTOR |
| 196 | A 3875010123 | CONNECTOR |
| BOTTOM | ||
| 200 | A 4032010480 | GASKET |
| Repalced by: A 4422010480 | ||
| 200 | A 4422010480 | GASKET |
| Repalced by: A 0002011080 | ||
| 200 | A 0002011080 | GASKET |
| Repalced by: A 0002011180 | ||
| 200 | A 0002011180 | GASKET |
| Repalced by: A 0002011280 | ||
| 200 | A 0002011280 | GASKET |
| 206 | N 000137010201 | SPRING WASHER |
| 210 | N 000933010105 | SCREW |
| N 900271028026 | HOSE | |
| 215 | A 3875011082 | HOSE |
| 220 | N 916017032000 | CLAMP |
| Repalced by: N 000000000670 | ||
| 220 | N 000000000670 | CLAMP |
| 230 | A 3815011124 | COOLING WATER PIPE |
| 230 | A 3835010124 | COOLING WATER PIPE |
| 230 | A 3835011024 | COOLING WATER PIPE |
| 230 | A 3855010524 | COOLING WATER PIPE |
| 230 | A 3835011124 | COOLING WATER PIPE |
| 234 | N 900271028026 | HOSE |
| 238 | N 916017032000 | CLAMP |
| Repalced by: N 000000000670 | ||
| 238 | N 000000000670 | CLAMP |
| 240 | A 3815013020 | BRACKET |
| COOLING WATER LINE TO FRAME | ||
| 242 | A 3835010120 | BRACKET |
| COOLING WATER LINE TO FRAME | ||
| 243 | A 3875010920 | BRACKET |
| COOLING WATER LINE TO FRAME | ||
| 244 | N 000961012151 | SCREW |
| COOLING WATER PIPE TO SIDE MEMBER | ||
| 244 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 244 | N 304017008021 | SCREW |
| COOLING WATER PIPE TO SIDE MEMBER | ||
| 245 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 245 | N 308676012012 | HEXAGON HEAD BOLT |
| COOLING WATER LINE TO FRAME | ||
| 246 | N 910113012002 | NUT |
| COOLING WATER LINE TO FRAME | ||
| 246 | N 910113012002 | NUT |
| COOLING WATER PIPE TO SIDE MEMBER | ||
| 247 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 247 | N 913004008001 | NUT |
| COOLING WATER PIPE TO SIDE MEMBER | ||
| 248 | N 916016028200 | CLAMP |
| COOLING WATER LINE TO BRACKET | ||
| 248 | N 916016028200 | CLAMP |
| COOLING WATER PIPE TO SIDE MEMBER | ||
| 251 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 251 | N 304017008021 | SCREW |
| COOLING WATER LINE TO BRACKET | ||
| 253 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 253 | N 913004008001 | NUT |
| COOLING WATER LINE TO BRACKET | ||
| 260 | A 3875000179 | FLANGE |
| 260 | A 3875000079 | FLANGE |
| 266 | N 917003040008 | GASKET |
| FLANGE TO ENGINE | ||
| 270 | N 912004010102 | LOCK WASHER |
| FLANGE TO ENGINE | ||
| 274 | N 000933010105 | SCREW |
| FLANGE TO ENGINE | ||
| 280 | A 3875011420 | BRACKET |
| HEATING PIPE TO ENGINE | ||
| 285 | A 3609950601 | CLAMP |
| BRACKET TO ENGINE | ||
| 286 | N 000933006130 | SCREW |
| BRACKET TO ENGINE | ||
| 287 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 287 | N 913004006001 | NUT |
| BRACKET TO ENGINE | ||
| 289 | A 3815000672 | LINE |
| Repalced by: A 3815002572 | ||
| 289 | A 3815002572 | LINE |
| COOLING WATER PIPE | ||
| 289 | A 3815002572 | LINE |
| COOLING WATER PIPE | ||
| 292 | N 000933010105 | SCREW |
| LINE TO SIDE MEMBER | ||
| 292 | N 000933010105 | SCREW |
| LINE TO SIDE MEMBER | ||
| 294 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 294 | N 910113010000 | NUT |
| LINE TO SIDE MEMBER | ||
| 294 | N 910113010000 | NUT |
| LINE TO SIDE MEMBER | ||
| 297 | A 3815010882 | HOSE |
| FROM RADIATOR TO COOLING WATER PIPE | ||
| 297 | A 3815010882 | HOSE |
| FROM RADIATOR TO COOLING WATER PIPE | ||
| 298 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 298 | N 000000000671 | CLAMP |
| 298 | N 916017050000 | CLAMP |
| Repalced by: N 000000000672 | ||
| 298 | N 000000000672 | CLAMP |
| 300 | A 3815011282 | HOSE |
| FROM COOLING WATER LINE TO WATER PUMP | ||
| 300 | A 3815011282 | HOSE |
| FROM COOLING WATER LINE TO WATER PUMP | ||
| 301 | A 3815012682 | HOSE |
| FROM RADIATOR TO OIL COOLER | ||
| A 6765010081 | RUBBER PAD | |
| COOLING WATER LINE | ||
| 302 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 302 | N 000000000671 | CLAMP |

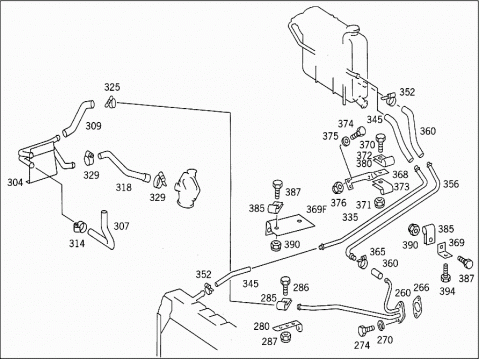

| 304 | A 3815000572 | LINE |
| HEATING PIPE | ||
| 304 | A 3815000572 | LINE |
| HEATING PIPE | ||
| 304 | A 3815002872 | LINE |
| HEATING PIPE | ||
| 304 | A 3835000072 | LINE |
| Repalced by: A 3875000072 | ||
| 304 | A 3875000072 | LINE |
| 305 | N 000933010105 | SCREW |
| RADIATOR TO RUBBER MOUNTING | ||
| 305 | N 000933010094 | SCREW |
| RADIATOR TO RUBBER MOUNTING | ||
| 306 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 306 | N 000125010532 | WASHER |
| RADIATOR TO RUBBER MOUNTING | ||
| 306F | N 000137010201 | SPRING WASHER |
| RADIATOR TO RUBBER MOUNTING | ||
| 306N | A 3835040084 | SHIM |
| RADIATOR TO RUBBER MOUNTING | ||
| 306N | A 3855040184 | SHIM |
| RADIATOR TO RUBBER MOUNTING | ||
| 306N | A 3855040284 | SHIM |
| RADIATOR TO RUBBER MOUNTING | ||
| 307 | A 3835060035 | HOSE |
| 307 | N 900271018050 | HOSE |
| 309 | A 3875060335 | HOSE |
| A 3855060035 | HOSE | |
| Repalced by: A 3875060235 | ||
| 309 | A 3875060235 | HOSE |
| 314 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 314 | N 000000000667 | CLAMP |
| 318 | A 3815060235 | HOSE |
| 318 | A 3815060235 | HOSE |
| 318 | A 3875060535 | HOSE |
| Repalced by: A 3635060235 | ||
| 318 | A 3635060235 | HOSE |
| A 3875060435 | HOSE | |
| Repalced by: A 3635060135 | ||
| 318 | A 3635060135 | HOSE |
| Repalced by: A 3635060235 | ||
| 318 | A 3635060235 | HOSE |
| 325 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 325 | N 000000000667 | CLAMP |
| 325 | N 000000000667 | CLAMP |
| 329 | N 916017025000 | CLAMP |
| Repalced by: N 000000000668 | ||
| 329 | N 000000000668 | CLAMP |
| A 3815012025 | BREATHER PIPE | |
| Repalced by: A 3815014025 | ||
| A 3815013425 | BREATHER PIPE | |
| Repalced by: A 3815014025 | ||
| 335 | A 3815014025 | BREATHER PIPE |
| FROM RADIATOR TO WATER EXPANSION TANK | ||
| 335 | A 3875011925 | BREATHER PIPE |
| 335 | A 3875017125 | BREATHER PIPE |
| 335 | A 3875012025 | BREATHER PIPE |
| 335 | A 3875016225 | BREATHER PIPE |
| 345 | N 900271012018 | HOSE |
| 352 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 352 | N 000000000667 | CLAMP |
| 356 | A 3815012125 | BREATHER PIPE |
| 15 MM | ||
| 356 | A 3875011525 | BREATHER PIPE |
| 15 MM | ||
| 356 | A 3875017225 | BREATHER PIPE |
| 15 MM | ||
| 356 | A 3875011625 | BREATHER PIPE |
| 15 MM | ||
| 356 | A 3875016825 | BREATHER PIPE |
| 15 MM | ||
| 360 | N 900271015037 | HOSE |
| 365 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 365 | N 000000000667 | CLAMP |
| 366 | A 3049951520 | CLAMP |
| DE-AERATION LINE TO BRACKET | ||
| Repalced by: A 1009950420 | ||
| 366 | A 1009950420 | CLAMP |
| DE-AERATION LINE TO BRACKET | ||
| 367 | N 000933006102 | SCREW |
| DE-AERATION LINE TO BRACKET | ||
| 367N | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 367N | N 913004006001 | NUT |
| DE-AERATION LINE TO BRACKET | ||
| 368 | A 3855010220 | BRACKET |
| LINES TO ENGINE | ||
| 369 | A 3875015920 | BRACKET |
| Repalced by: A 6454310740 | ||
| 369 | A 6454310740 | BRACKET |
| LINES TO ENGINE | ||
| 369F | A 3522030840 | BRACKET |
| LINES TO ENGINE | ||
| 370 | N 000933006158 | SCREW |
| LINES TO ENGINE | ||
| 371 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 371 | N 913004006001 | NUT |
| LINES TO ENGINE | ||
| 371 | N 913004006001 | NUT |
| LINES TO ENGINE | ||
| 372 | A 3609950401 | CLAMP |
| LINES TO ENGINE | ||
| 372 | A 3609950401 | CLAMP |
| LINES TO ENGINE | ||
| A 3609950501 | CLAMP | |
| Repalced by: A 3609952001 | ||
| 372 | A 3609952001 | CLAMP |
| Repalced by: A 6739950001 | ||
| 372 | A 6739950001 | CLAMP |
| LINES TO ENGINE | ||
| 372 | A 6739950001 | CLAMP |
| LINES TO ENGINE | ||
| 373 | A 3609950601 | CLAMP |
| LINES TO ENGINE | ||
| 374 | N 000933010094 | SCREW |
| LINES TO ENGINE | ||
| 374 | N 000933010094 | SCREW |
| LINES TO ENGINE | ||
| 375 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 375 | N 000125010532 | WASHER |
| LINES TO ENGINE | ||
| 375 | N 000125010532 | WASHER |
| LINES TO ENGINE | ||
| 376 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 376 | N 910113010000 | NUT |
| LINES TO ENGINE | ||
| 376 | N 910113010000 | NUT |
| LINES TO ENGINE | ||
| 380 | A 3609951401 | CLAMP |
| Repalced by: N 916016011202 | ||
| 380 | N 916016011202 | CLAMP |
| LINES TO ENGINE | ||
| A 3609951301 | CLAMP | |
| Repalced by: A 3609951201 | ||
| 385 | A 3609951201 | CLAMP |
| LINES TO ENGINE | ||
| 385 | A 3609950401 | CLAMP |
| LINES TO ENGINE | ||
| 385 | A 3609950401 | CLAMP |
| LINES TO ENGINE | ||
| 385 | A 3609950401 | CLAMP |
| LINES TO ENGINE | ||
| 385 | A 3609950401 | CLAMP |
| LINES TO ENGINE | ||
| 385 | A 3609952001 | CLAMP |
| Repalced by: A 6739950001 | ||
| 385 | A 6739950001 | CLAMP |
| LINES TO ENGINE | ||
| 385 | A 6739950001 | CLAMP |
| LINES TO ENGINE | ||
| 385 | A 6739950001 | CLAMP |
| LINES TO ENGINE | ||
| 385 | A 6739950001 | CLAMP |
| LINES TO ENGINE | ||
| 387 | N 000933008148 | SCREW |
| Repalced by: N 304017008023 | ||
| 387 | N 304017008023 | SCREW |
| LINES TO ENGINE | ||
| 387 | N 000933006102 | SCREW |
| LINES TO ENGINE | ||
| 387 | N 000933006102 | SCREW |
| LINES TO ENGINE | ||
| 390 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 390 | N 913004008001 | NUT |
| LINES TO ENGINE | ||
| 390 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 390 | N 913004006001 | NUT |
| LINES TO ENGINE | ||
| 390 | N 913004006001 | NUT |
| LINES TO ENGINE | ||
| 394 | N 000933006127 | SCREW |
| LINES TO ENGINE | ||
| 394 | N 000933006127 | SCREW |
| LINES TO ENGINE | ||
| 413 | A 0005014401 | RADIATOR |
| 417 | N 000933008130 | SCREW |
| Repalced by: N 304017008039 | ||
| 417 | N 304017008039 | SCREW |
| BRACKET TO WATER RADIATOR | ||
| 419 | N 900055008002 | SPRING WASHER |
| BRACKET TO WATER RADIATOR | ||
| 422 | A 0002610283 | OIL PIPE |
| RETURN | ||
| 424 | N 915017015200 | UNION NUT |
| RETURN | ||
| 424 | N 915017010100 | UNION NUT |
| RETURN | ||
| 426 | N 003861010009 | GLAND |
| RETURN | ||
| 428 | A 3852710940 | BRACKET |
| OIL LINES | ||
| 429 | N 000933010328 | SCREW |
| OIL LINES | ||
| 431 | A 3609950301 | CLAMP |
| OIL LINES | ||
| 433 | N 000933006102 | SCREW |
| OIL LINES | ||
| 437 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 437 | N 913004006001 | NUT |
| OIL LINES | ||
| 441 | A 3609950301 | CLAMP |
| LINE TO OIL RADIATOR | ||
| 443 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 443 | N 304017006020 | SCREW |
| LINE TO OIL RADIATOR | ||
| 445 | A 0004292301 | LINE |
| FEED AND RETURN | ||
| 447 | N 915017010100 | UNION NUT |
| FEED AND RETURN | ||
| 449 | N 003861010009 | GLAND |
| FEED AND RETURN | ||
| 451 | A 0002610283 | OIL PIPE |
| FEED | ||
| 455 | N 915017015200 | UNION NUT |
| FEED | ||
| 458 | N 915017010100 | UNION NUT |
| FEED | ||
| 461 | N 003861010009 | GLAND |
| FEED | ||
| 461 | N 915004013200 | SEAL CONE |
| FEED | ||
| 463 | N 007603014405 | SEAL RING |
| LINE TO TRANSMISSION | ||
| 465 | N 003901010001 | SCREW-IN FITTING |
| LINE TO TRANSMISSION | ||
| 468 | A 3852710740 | BRACKET |
| OIL LINES | ||
| 469 | A 3852700441 | BRACKET |
| OIL LINES | ||
| 471 | A 3852710840 | BRACKET |
| OIL LINES | ||
| 472 | A 3852700341 | BRACKET |
| OIL LINES | ||
| A 3634291840 | BRACKET | |
| OIL LINES | ||
| 472K | A 3164290040 | BRACKET |
| OIL LINES | ||
| 472T | A 3852700541 | BRACKET |
| OIL LINES | ||
| 473 | A 3609950301 | CLAMP |
| LINE MOUNTING | ||
| 474 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 474 | N 304017006020 | SCREW |
| 475 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 475 | N 913004006001 | NUT |
| LINE MOUNTING | ||
| 478 | A 3609950301 | CLAMP |
| LINE MOUNTING | ||
| 481 | N 000933006102 | SCREW |
| LINE MOUNTING | ||
| 481 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 481 | N 304017006018 | SCREW |
| LINE MOUNTING | ||
| 481 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 481 | N 304017006020 | SCREW |
| LINE MOUNTING | ||
| 482 | N 912004006102 | LOCK WASHER |
| LINE MOUNTING | ||
| 482N | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 482N | N 000125010532 | WASHER |
| LINE MOUNTING | ||
| 483 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 483 | N 913004006001 | NUT |
| LINE MOUNTING | ||
| 486 | A 3859970782 | HOSE |
| Repalced by: A 3859970982 | ||
| 486 | A 3859970982 | HOSE |
| OIL COOLER | ||
| 486 | A 3859971382 | HOSE |
| OIL COOLER | ||
| 490 | A 3852710640 | BRACKET |
| Repalced by: A 6735460443 | ||
| 490 | A 6735460443 | BRACKET |
| 492 | N 000933008130 | SCREW |
| Repalced by: N 304017008039 | ||
| 492 | N 304017008039 | SCREW |
| BRACKET TO WATER RADIATOR | ||
| 494 | N 900055008002 | SPRING WASHER |
| BRACKET TO WATER RADIATOR | ||
| 496 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 496 | N 304017008016 | SCREW |
| OIL COOLER AND BRACKET TO RADIATOR | ||
| 498 | N 900055008002 | SPRING WASHER |
| OIL COOLER AND BRACKET TO RADIATOR | ||
| 500 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 500 | N 000125008443 | WASHER |
| OIL COOLER AND BRACKET TO RADIATOR | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
