Transporto priemonė: 1617; VIN numerio dalis: 385014
Grupė: 40 WHEELS
| # | Kodas | Pavadinimas |
|---|---|---|

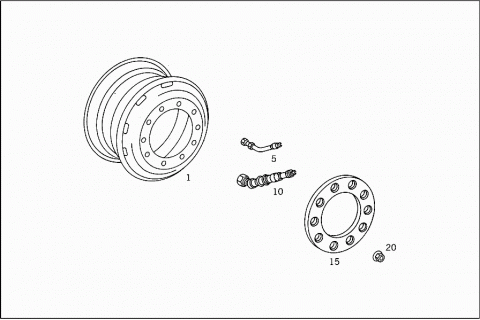

| 001 | A 6174000002 | DISC WHEEL |
| Repalced by: A 3854001302 | ||
| 001 | A 3854001302 | DISC WHEEL |
| Repalced by: A 0004017405 | ||
| 001 | A 0004017405 | RIM |
| 7.50X22.5 | ||
| 001 | A 0004017405 | RIM |
| 7.50X22.5 | ||
| 001 | A 0004018705 | RIM |
| Repalced by: A 0004012302 | ||
| 001 | A 0004012302 | DISC WHEEL |
| Repalced by: A 0004002902 | ||
| 001 | A 0004012302 | DISC WHEEL |
| 001 | A 0004019805 | RIM |
| 7.50X22.5 | ||
| 001 | A 0004019805 | RIM |
| 7.50X22.5 | ||
| 001 | A 6174000102 | DISC WHEEL |
| Repalced by: A 3874000102 | ||
| 001 | A 3874000102 | DISC WHEEL |
| Repalced by: A 0004017605 | ||
| 001 | A 0004017605 | RIM |
| Repalced by: A 0004017905 | ||
| 001 | A 0004017905 | RIM |
| Repalced by: A 0004016702 | ||
| 001 | A 0004016702 | DISC WHEEL |
| 8.25X22.5 | ||
| 001 | A 0004011702 | DISC WHEEL |
| Repalced by: A 0004018905 | ||
| 001 | A 0004018905 | RIM |
| Repalced by: A 0004016502 | ||
| 001 | A 0004016502 | DISC WHEEL |
| 8.25X22.5 | ||
| 001 | A 0004016602 | DISC WHEEL |
| 8.25X22.5 | ||
| 005 | A 0004012913 | VALVE |
| Repalced by: A 0004017113 | ||
| 005 | A 0004017113 | VALVE |
| Repalced by: A 0004013213 | ||
| 005 | A 0004013213 | VALVE |
| 27 DEGREES | ||
| A 0004010272 | NUT | |
| VALVE TO DISC WHEEL | ||
| 010 | A 0004012013 | VALVE |
| Repalced by: A 3854010013 | ||
| 010 | A 3854010013 | VALVE |
| EXTENSION | ||
| 010 | A 3854010113 | VALVE |
| EXTENSION | ||
| N 007757008600 | VALVE CAP | |
| 015 | A 3604000325 | HUB CAP |
| FRONT DISC WHEEL | ||
| 020 | A 3854000124 | WHEEL NUT |
| Repalced by: A 0004010672 | ||
| 020 | A 6174000024 | WHEEL NUT |
| Repalced by: A 0004010672 | ||
| 020 | A 0004010672 | NUT |
| DISC WHEELS TO FRONT AND REAR AXLES | ||

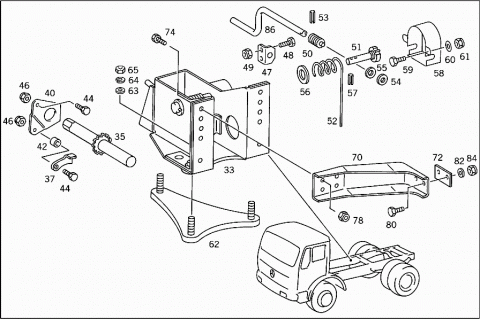

| 033 | A 3524001739 | BRACKET |
| Repalced by: A 3854000039 | ||
| 033 | A 3854000139 | BRACKET |
| Repalced by: A 3854000039 | ||
| 033 | A 3854000039 | BRACKET |
| Repalced by: A 3854000539 | ||
| 033 | A 3854000539 | SPARE WHEEL CARRIER |
| 035 | A 3524000117 | SHAFT |
| 037 | A 3524030084 | PAWL |
| SHAFT TO SPARE WHEEL CARRIER | ||
| 040 | A 3524030294 | PLATE |
| SHAFT TO SPARE WHEEL CARRIER | ||
| 042 | A 3524030150 | BUSHING |
| Repalced by: A 3633220051 | ||
| 042 | A 3633220051 | SPACER RING |
| SHAFT TO SPARE WHEEL CARRIER | ||
| 044 | N 000933010105 | SCREW |
| SHAFT TO SPARE WHEEL CARRIER | ||
| M 10X25 | ||
| 044 | N 000933010260 | SCREW |
| SHAFT TO SPARE WHEEL CARRIER | ||
| M 10X70 | ||
| 046 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 046 | N 910113010000 | NUT |
| SHAFT TO SPARE WHEEL CARRIER | ||
| 047 | A 3854030003 | BEARING BRACKET |
| CRANK | ||
| 048 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 048 | N 304017006020 | SCREW |
| BEARING BRACKET TO BRACKET | ||
| 049 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 049 | N 913004006001 | NUT |
| BEARING BRACKET TO BRACKET | ||
| 050 | A 3854030085 | WORM |
| Repalced by: A 6204030085 | ||
| 050 | A 6204030085 | WORM |
| 051 | A 3854030083 | STOP GEAR |
| Repalced by: A 6204030583 | ||
| 051 | A 6204030583 | STOP GEAR |
| 052 | A 3524030036 | CABLE |
| Repalced by: N 083331008500 | ||
| 052 | N 083331008500 | WIRE CABLE |
| Repalced by: N 083334008000 | ||
| 052 | N 083334008000 | WIRE CABLE |
| SPARE WHEEL HOIST | ||
| 1500 MM | ||
| 053 | N 001481006027 | CLAMPING SLEEVE |
| CRANK TO WORM | ||
| 054 | A 3149900440 | WASHER |
| WORM AND SHAFT TO BRACKET | ||
| 055 | N 002093031201 | DISC SPRING |
| WORM AND SHAFT TO BRACKET | ||
| 056 | A 3819900140 | WASHER |
| WORM AND SHAFT TO BRACKET | ||
| 057 | N 001481008038 | CLAMPING SLEEVE |
| Repalced by: N 308752008000 | ||
| 057 | N 308752008000 | CLAMPING PIN |
| WORM AND SHAFT TO BRACKET | ||
| 058 | A 3854000020 | COVERING |
| SPARE WHEEL HOIST | ||
| 059 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 059 | N 304017006020 | SCREW |
| COVER PLATE TO BRACKET | ||
| 060 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 060 | N 009021006208 | WASHER |
| COVER PLATE TO BRACKET | ||
| 061 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 061 | N 913004006001 | NUT |
| COVER PLATE TO BRACKET | ||
| 062 | A 3524001939 | BRACKET |
| SPARE WHEEL | ||
| 062 | A 3854000439 | BRACKET |
| SPARE WHEEL | ||
| 063 | A 3359900340 | WASHER |
| BRACKET TO SPARE WHEEL CARRIER | ||
| 063 | N 007349019002 | WASHER |
| BRACKET TO SPARE WHEEL CARRIER | ||
| 064 | N 074361020352 | LOCK WASHER |
| BRACKET TO SPARE WHEEL CARRIER | ||
| 064 | N 912004018101 | LOCK WASHER |
| BRACKET TO SPARE WHEEL CARRIER | ||
| 065 | N 074361020205 | NUT |
| BRACKET TO SPARE WHEEL CARRIER | ||
| 065 | N 000934018006 | NUT |
| BRACKET TO SPARE WHEEL CARRIER | ||
| 070 | A 3524030408 | REINFORCEMENT |
| SPARE WHEEL CARRIER TO SIDE MEMBER | ||
| 070 | A 3814030508 | REINFORCEMENT |
| SPARE WHEEL CARRIER TO SIDE MEMBER | ||
| 072 | A 3524030019 | BASE BLOCK |
| SPARE WHEEL CARRIER TO SIDE MEMBER | ||
| 072 | A 3834030019 | BASE BLOCK |
| SPARE WHEEL CARRIER TO SIDE MEMBER | ||
| 074 | N 000961012122 | SCREW |
| SPARE WHEEL CARRIER TO SIDE MEMBER | ||
| M 12X40 | ||
| 074 | N 000961012122 | SCREW |
| SPARE WHEEL CARRIER TO SIDE MEMBER | ||
| M 12X40 | ||
| 074 | N 000961012092 | SCREW |
| Repalced by: N 000961012025 | ||
| 074 | N 000961012025 | SCREW |
| SPARE WHEEL CARRIER TO SIDE MEMBER | ||
| M 12X32 | ||
| 074 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 074 | N 308676012012 | SCREW |
| SPARE WHEEL CARRIER TO SIDE MEMBER | ||
| M 12X25 | ||
| 078 | N 910113012002 | NUT |
| SPARE WHEEL CARRIER TO SIDE MEMBER | ||
| 080 | N 000933010157 | SCREW |
| SPARE WHEEL CARRIER TO SIDE MEMBER | ||
| 080 | N 000933010105 | SCREW |
| SPARE WHEEL CARRIER TO SIDE MEMBER | ||
| 082 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 082 | N 000125010532 | WASHER |
| SPARE WHEEL CARRIER TO SIDE MEMBER | ||
| 084 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 084 | N 910113010000 | NUT |
| SPARE WHEEL CARRIER TO SIDE MEMBER | ||
| 084 | N 910113010000 | NUT |
| SPARE WHEEL CARRIER TO SIDE MEMBER | ||
| 086 | A 3354030130 | CRANK |
| SPARE WHEEL HOIST | ||
| 090 | A 3814001739 | BRACKET |
| Repalced by: A 3814001639 | ||
| 090 | A 3814001639 | SPARE WHEEL HOIST |
| 100 | A 3814030185 | WORM |
| Repalced by: A 6204030085 | ||
| 100 | A 6204030085 | WORM |
| SPARE WHEEL HOIST | ||
| 105 | A 3814030250 | BUSHING |
| SPARE WHEEL HOIST | ||
| 110 | N 001481006027 | CLAMPING SLEEVE |
| BUSHING TO WORM | ||
| 115 | A 3814030183 | STOP GEAR |
| Repalced by: A 6204030483 | ||
| 115 | A 6204030483 | STOP GEAR |
| SPARE WHEEL HOIST | ||
| 120 | A 3814030036 | CABLE |
| Repalced by: N 083331008500 | ||
| 120 | N 083331008500 | WIRE CABLE |
| Repalced by: N 083334008000 | ||
| 120 | N 083334008000 | WIRE CABLE |
| SPARE WHEEL HOIST | ||
| 2700 MM | ||
| 125 | A 3819900340 | WASHER |
| WORM AND SHAFT TO BRACKET | ||
| 125 | A 6179900540 | WASHER |
| WORM AND SHAFT TO BRACKET | ||
| 130 | A 3819900140 | WASHER |
| WORM AND SHAFT TO BRACKET | ||
| 135 | N 001481008038 | CLAMPING SLEEVE |
| Repalced by: N 308752008000 | ||
| 135 | N 308752008000 | CLAMPING PIN |
| WORM AND SHAFT TO BRACKET | ||
| 137 | N 002093031201 | DISC SPRING |
| WORM AND SHAFT TO BRACKET | ||
| 140 | A 3814030044 | COVER PLATE |
| SPARE WHEEL HOIST | ||
| 145 | A 3814030150 | BUSHING |
| AT SIDE MEMBER | ||
| 150 | A 3814000045 | CRANK |
| Repalced by: A 3814030045 | ||
| 150 | A 3814030045 | CRANK |
| SPARE WHEEL HOIST | ||
| 152 | N 001481006027 | CLAMPING SLEEVE |
| CRANK TO BUSHING | ||
| N 000933010128 | SCREW | |
| SPARE WHEEL HOIST TO CROSS MEMBER | ||
| N 913004010008 | NUT | |
| Repalced by: N 910113010000 | ||
| N 910113010000 | NUT | |
| SPARE WHEEL HOIST TO CROSS MEMBER | ||
| 160 | A 3814001139 | BRACKET |
| Repalced by: A 3814002039 | ||
| 160 | A 3814002039 | BRACKET |
| SPARE WHEEL | ||
| 161 | A 3814002239 | BRACKET |
| Repalced by: A 3814002639 | ||
| 161 | A 3814002639 | BRACKET |
| SPARE WHEEL | ||
| 162 | A 3634030074 | PIN |
| SPARE WHEEL CARRIER TO FRAME | ||
| 162 | A 3874030074 | PIN |
| SPARE WHEEL CARRIER TO FRAME | ||
| 164 | N 000444016322 | EYEBOLT |
| SPARE WHEEL CARRIER TO FRAME | ||
| 164 | N 000444016104 | EYEBOLT |
| SPARE WHEEL CARRIER TO FRAME | ||
| 164 | A 3859900023 | SCREW |
| Repalced by: A 6519900023 | ||
| 164 | A 6519900023 | SCREW |
| SPARE WHEEL CARRIER TO FRAME | ||
| 166 | N 000433017004 | WASHER |
| SPARE WHEEL CARRIER TO FRAME | ||
| 168 | N 007349017002 | WASHER |
| SPARE WHEEL CARRIER TO FRAME | ||
| 169 | A 3874030319 | BASE BLOCK |
| SPARE WHEEL CARRIER TO FRAME | ||
| 170 | N 912004016101 | LOCK WASHER |
| SPARE WHEEL CARRIER TO FRAME | ||
| 172 | N 000934016012 | NUT |
| SPARE WHEEL CARRIER TO FRAME | ||
| 172 | N 000934016011 | NUT |
| Repalced by: N 308673016001 | ||
| 172 | N 308673016001 | NUT |
| SPARE WHEEL CARRIER TO FRAME | ||
| N 000094004023 | COTTER PIN | |
| SPARE WHEEL CARRIER TO FRAME | ||
| N 007346004016 | CLAMPING SLEEVE | |
| SPARE WHEEL CARRIER TO FRAME | ||
| 180 | N 007349017002 | WASHER |
| SPARE WHEEL TO BRACKET | ||
| 180 | N 007349019002 | WASHER |
| SPARE WHEEL TO BRACKET | ||
| 180 | N 007349021001 | WASHER |
| SPARE WHEEL TO BRACKET | ||
| 182 | N 912004016101 | LOCK WASHER |
| SPARE WHEEL TO BRACKET | ||
| 182 | N 912004018101 | LOCK WASHER |
| SPARE WHEEL TO BRACKET | ||
| 182 | N 912004020100 | LOCK WASHER |
| SPARE WHEEL TO BRACKET | ||
| 184 | N 000934016011 | NUT |
| Repalced by: N 308673016001 | ||
| 184 | N 308673016001 | NUT |
| SPARE WHEEL TO BRACKET | ||
| 184 | N 000934018006 | NUT |
| SPARE WHEEL TO BRACKET | ||
| 184 | N 000934020008 | NUT |
| Repalced by: N 308673020002 | ||
| 184 | N 308673020002 | NUT |
| Repalced by: N 308674020000 | ||
| 184 | N 308674020000 | NUT |
| SPARE WHEEL TO BRACKET | ||
| 190 | A 3354031301 | SUPPORT |
| SPARE WHEEL CARRIER | ||
| 192 | A 3874030701 | SUPPORT |
| SPARE WHEEL CARRIER | ||
| N 000961012052 | SCREW | |
| Repalced by: N 308676012012 | ||
| N 308676012012 | SCREW | |
| SUPPORT TO FRAME | ||
| N 910113012002 | NUT | |
| SUPPORT TO FRAME | ||
| N 910005012080 | RIVET | |
| SUPPORT TO FRAME | ||
| 200 | A 3609902201 | SCREW |
| Repalced by: A 3529900802 | ||
| 200 | A 3529900802 | SCREW |
| SPARE WHEEL TO CROSS MEMBER | ||
| 200 | A 3529900802 | SCREW |
| SPARE WHEEL TO CROSS MEMBER | ||
| 200 | A 3529900802 | SCREW |
| SPARE WHEEL TO CROSS MEMBER | ||
| 205 | A 3524030067 | SHIM |
| SPARE WHEEL TO CROSS MEMBER | ||
| 205 | A 3524030067 | SHIM |
| SPARE WHEEL TO CROSS MEMBER | ||
| 205 | A 3524030067 | SHIM |
| SPARE WHEEL TO CROSS MEMBER | ||
| 210 | N 000934012022 | NUT |
| SPARE WHEEL TO CROSS MEMBER | ||
| 210 | N 000934012022 | NUT |
| SPARE WHEEL TO CROSS MEMBER | ||
| 210 | N 000934012022 | NUT |
| SPARE WHEEL TO CROSS MEMBER | ||
| 215 | A 3524002439 | BRACKET |
| Repalced by: A 3524003439 | ||
| 215 | A 3524003439 | SPARE WHEEL HOIST |
| Repalced by: A 3524003339 | ||
| 215 | A 3524003339 | SPARE WHEEL HOIST |
| A 0004030090 | CHAIN | |
| A 0004030036 | CABLE | |
| A 0004030012 | COVERING | |
| 220 | A 3464005339 | BRACKET |
| Repalced by: A 6554000049 | ||
| 220 | A 6554000049 | PLATE |
| SPARE WHEEL | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
