Transporto priemonė: 1617; VIN numerio dalis: 385017
Grupė: 42 BRAKES
43203
43204
43205
42263
42264

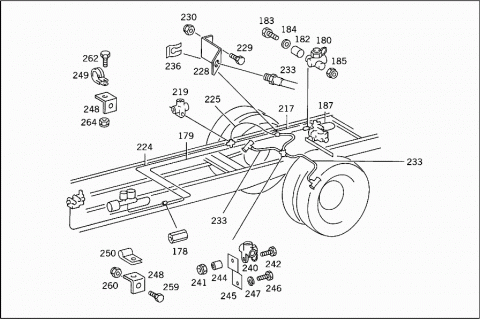

42265
43209
42266
42267
42268
42269
42270

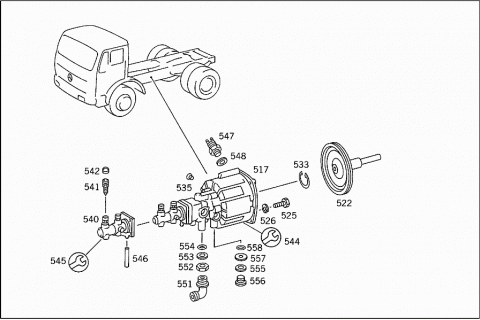

42271
42272
42273
42274
42275
44478

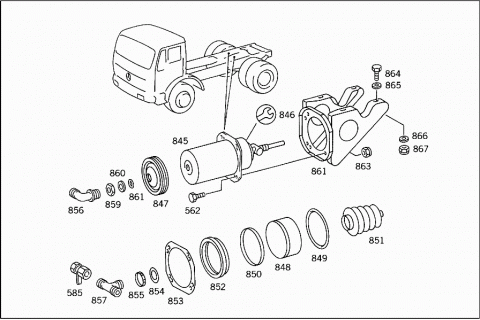

44479
44480
44481
# Kodas Pavadinimas
T YYYYYYYYYYYY PART NAME MISSING
FOR FRONT WHEEL BRAKE,SEE UNIT PARTS LIST:
730.0
Y YYYYYYYYYYYY PART NAME MISSING
FOR REAR WHEEL BRAKE, SEE PARTS LIST:
745.1
T YYYYYYYYYYYY PART NAME MISSING
FOR REAR WHEEL BRAKE, SEE PARTS LIST:
745.6
T YYYYYYYYYYYY PART NAME MISSING
FOR REAR WHEEL BRAKE, SEE PARTS LIST:
740.1
Y YYYYYYYYYYYY PART NAME MISSING
010 N 074298022203 DOUBLE FITTING
AT AIR COMPRESSOR
010 N 074313018201 FITTING
AT AIR COMPRESSOR
014 N 007603022102 SEAL RING
AT AIR COMPRESSOR
014 N 007603026104 SEAL RING
AT AIR COMPRESSOR
020 A 0004291401 LINE
15 MM
020 A 0004291401 LINE
AIR COMPRESSOR,PRESSURE REGULATOR, FOUR-CIRCUIT PROTECTIVE VALVE
15 MM
N 000933008147 SCREW
Repalced by: N 304017008021
N 304017008021 SCREW
PLASTIC LINES TO FRAME
025 N 003872015100 UNION NUT
Repalced by: N 915018015000
025 N 915018015000 UNION NUT
027 N 003861015004 GLAND
029 N 915065015101 THRUST RING
031 N 915045012100 SEAL RING
Repalced by: N 007603012121
031 N 007603012121 SEAL RING
035 N 074298022203 DOUBLE FITTING
BETWEEN THE LINES
035 A 0009909671 ELBOW FITTING
Repalced by: A 0029901271
035 A 0029901271 ELBOW FITTING
AT LEFT SIDE MEMBER
035 N 003941015101 FITTING
AT LEFT SIDE MEMBER
037 N 074305022202 NUT
AT LEFT SIDE MEMBER
040 A 0004292101 LINE
12 MM
040 A 0004292101 LINE
FROM FOUR-CIRCUIT PROTECTIVE VALVE TO AIR RESERVOIR
12 MM
045 N 003870012104 UNION NUT
Repalced by: N 915017012100
045 N 915017012100 UNION NUT
047 N 003861012007 GLAND
Repalced by: A 0019901967
047 A 0019901967 SEAL CONE
049 N 074317012300 FITTING
BETWEEN THE LINES
050 A 0109975982 HOSE
Repalced by: A 0009872827
050 A 0009872827 PLASTIC PIPE
9X12 MM
050 A 0009872827 PLASTIC PIPE
FOUR-CIRCUIT PROTECTIVE VALVE,AIR RESERVOIR,BRAKE BOOSTER
9X12 MM
050 A 0009872827 PLASTIC PIPE
RELAY VALVE,CHECK VALVE,SPRING-LOADED BRAKE CYLINDER
9X12 MM
051 A 0049971772 FITTING
Repalced by: A 0029906171
051 A 0029906171 FITTING
(PARTS KIT),LINE RUPTURE
TO 010 997 59 82
052 N 040621013200 INSULATING HOSE
BLACK
13 MM
052 N 040621010200 INSULATING HOSE
BLACK
10 MM
053 N 003870012104 UNION NUT
Repalced by: N 915017012100
053 N 915017012100 UNION NUT
054 N 003861012007 GLAND
Repalced by: A 0019901967
054 A 0019901967 SEAL CONE
056 N 915062009000 SLEEVE
060 N 915052009009 BANJO UNION
I.D., / HOSE WIDTH,
16 MM/9 MM
A 0009904280 SCREW
16 MM
065 N 074317012300 FITTING
BETWEEN THE LINES
070 A 0089979082 HOSE
6X8 MM
070 A 0089979082 HOSE
HAND BRAKE VALVE,4-CIRCUIT PROTECTIVE VALVE,RELAY VALVE,CHECK VALVE
6X8 MM
070 A 0089979082 HOSE
FROM T-FITTING TO LEFT AND RIGHT DIAPHRAGM CYLINDERS
6X8 MM
072 N 040621008207 INSULATING HOSE
RED
8 MM
072 N 040621008206 INSULATING HOSE
BLUE
8 MM
N 040621008216 INSULATING HOSE
GREEN
8 MM
080 N 003870008101 UNION NUT
Repalced by: N 915017008100
080 N 915017008100 UNION NUT
082 N 003861008005 GLAND
084 N 915062006000 SLEEVE
086 N 915052006021 BANJO UNION
I.D., / HOSE WIDTH,
14 MM/6 MM
088 N 915052006014 BANJO UNION
I.D., / HOSE WIDTH,
16 MM/6 MM
088 N 915052006013 BANJO UNION
I.D., / HOSE WIDTH,
12 MM/6 MM
092 A 0019976772 FITTING
Repalced by: N 915059006000
092 N 915059006002 FITTING
095 A 0089976082 HOSE
Repalced by: A 0009872627
095 A 0009872627 PLASTIC PIPE
BLACK
6 X 4 MM
095 A 0009872627 PLASTIC PIPE
RELAY VALVE,CHECK VALVE,SPRING-LOADED BRAKE CYLINDER
6 X 4 MM
095 A 0009872627 PLASTIC PIPE
4-CIRCUIT PROTECT. VALVE,PRESS. GAUGE, 3/2-WAY VALVE,OIL BATH AIR CLEANER
6 X 4 MM
097 N 040621006203 INSULATING HOSE
RED
6 MM
100 N 915017006100 UNION NUT
102 N 003861006007 GLAND
Repalced by: A 0019901667
102 A 0019901667 SEAL CONE
104 A 0009920105 BUSHING
Repalced by: N 915062004000
104 N 915062004000 SLEEVE
110 A 3874291140 BRACKET
FUEL LINE TO CAB CONSOLE
112 N 000933008147 SCREW
Repalced by: N 304017008021
112 N 304017008021 SCREW
FUEL LINE TO CAB CONSOLE
113 N 913004008004 NUT
Repalced by: N 913004008001
113 N 913004008001 NUT
FUEL LINE TO CAB CONSOLE
114 A 3874292740 BRACKET
PRESSURE GAUGE LINE TO BRACKET
A 3874291540 BRACKET
PRESSURE GAUGE LINE TO BRACKET
115 A 3874292540 BRACKET
LINE TO STRUT
A 3874292640 BRACKET
LINE TO STRUT
116 N 000933008145 SCREW
LINE TO STRUT
117 N 913004008004 NUT
Repalced by: N 913004008001
117 N 913004008001 NUT
LINE TO STRUT
118 A 3274925419 BRACKET
Repalced by: A 6205240340
118 A 6205240340 BRACKET
LINE TO CROSS MEMBER
119 A 0004290086 PROTECTIVE TUBE
Repalced by: A 0004290286
119 A 0004290286 PROTECTIVE TUBE
LINE TO CROSS MEMBER
120 N 000933008153 SCREW
Repalced by: N 304017008034
120 N 304017008034 SCREW
LINE TO CROSS MEMBER
121 N 000125008418 WASHER
Repalced by: N 000125008443
121 N 000125008443 WASHER
LINE TO CROSS MEMBER
122 N 913004008004 NUT
Repalced by: N 913004008001
122 N 913004008001 NUT
LINE TO CROSS MEMBER
123 A 3604292940 BRACKET
PLASTIC LINES TO FRAME
124 N 000933008147 SCREW
Repalced by: N 304017008021
124 N 304017008021 SCREW
PLASTIC LINES TO FRAME
125 N 913004008004 NUT
Repalced by: N 913004008001
125 N 913004008001 NUT
PLASTIC LINES TO FRAME
126 A 0019978490 LOOM TIE
376 MM
127 A 0004294137 DISTRIBUTOR
127 A 0004294037 DISTRIBUTOR
SECONDARY CONSUMING UNITS
128 N 304017006026 SCREW
Repalced by: N 304017006026
128 N 304017006026 SCREW
DISTRIBUTOR TO CAB
129 N 000125006421 WASHER
DISTRIBUTOR TO CAB
130 N 913004006002 NUT
Repalced by: N 913004006001
130 N 913004006001 NUT
DISTRIBUTOR TO CAB
131 A 6204295240 BRACKET
AT CAB FLOOR
132 N 913004006002 NUT
Repalced by: N 913004006001
132 N 913004006001 NUT
AT CAB FLOOR
133 A 0009971572 FITTING
Repalced by: A 0019972572
133 A 0019972572 FITTING
133 N 915039008202 HOLLOW SCREW FITTING
DISTRIBUTOR,CONNECTIONS:
"1,2,3"
134 N 915036012203 HOLLOW SCREW
134 N 915047008202 HOLLOW SCREW
DISTRIBUTOR,CONNECTION:
"1"
135 N 007603016401 SEAL RING
135 N 007603012405 SEAL RING
AT DISTRIBUTOR
136 N 000908012003 SCREW PLUG
Repalced by: N 000908012009
136 N 000908012009 SCREW PLUG
AT DISTRIBUTOR
137 A 3854290540 BRACKET
BRAKE LINES
138 N 000933008153 SCREW
Repalced by: N 304017008034
138 N 304017008034 SCREW
BRACKET TO SIDE MEMBER
139 N 913004008004 NUT
Repalced by: N 913004008001
139 N 913004008001 NUT
BRACKET TO SIDE MEMBER
140 A 3609950601 CLAMP
LINE TO BRACKET
140 A 3609952001 CLAMP
Repalced by: A 6739950001
140 A 6739950001 CLAMP
LINE TO BRACKET
141 N 000084006407 SCREW
LINE TO BRACKET
141 N 000000001147 SCREW
LINE TO BRACKET
M 6X20
142 N 912004006102 LOCK WASHER
LINE TO BRACKET
143 N 913004006002 NUT
Repalced by: N 913004006001
143 N 913004006001 NUT
LINE TO BRACKET
144 A 3404201229 LINE
FROM MASTER CYLINDER TO FRONT AXLE TEST CONNECTION
750 MM
144 A 3404201229 LINE
FROM MASTER CYLINDER TO FRONT AXLE TEST CONNECTION
750 MM
144 A 3404203529 LINE
FROM MASTER CYLINDER TO FRONT AXLE TEST CONNECTION
1900 MM
145 A 3404200529 LINE
FROM TEST CONNECTION TO VALVE
400 MM
146 A 3879970181 GROMMET
AT LEFT SIDE MEMBER
147 A 0039973481 GROMMET
AT LEFT SIDE MEMBER
148 A 3859970381 GROMMET
AT LEFT SIDE MEMBER
A 3859970181 GROMMET
CABLE HARNESS THRU MOUNTING ANGLE
149 A 0004312231 TEST CONNECTION
FRONT AXLE BRAKE CIRCUIT I
149 A 0004316531 TEST CONNECTION
FRONT AXLE BRAKE CIRCUIT I
150 A 0004311231 TEST CONNECTION
FRONT AXLE BRAKE CIRCUIT I
150 A 0004316631 TEST CONNECTION
FRONT AXLE BRAKE CIRCUIT I
A 3604292440 BRACKET
Repalced by: A 3604292940
A 3604292940 BRACKET
TEST CONNECTION TO CROSS MEMBER BEHIND CAB
151 N 000933008153 SCREW
Repalced by: N 304017008034
151 N 304017008034 SCREW
TEST CONNECTION TO CROSS MEMBER BEHIND CAB
151 N 304017008034 SCREW
TEST CONNECTION TO CROSS MEMBER BEHIND CAB
151 N 000931008246 SCREW
Repalced by: N 304017008028
151 N 304017008028 SCREW
TEST CONNECTION TO BRACKET
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
TEST CONNECTION TO CROSS MEMBER BEHIND CAB
153 A 1801550053 SPACER TUBE
TEST CONNECTION TO BRACKET
154 A 0004314513 VALVE
PRESSURE REGULATOR
154 A 0004314613 VALVE
PRESSURE REGULATOR
155 A 0019970341 SEAL RING
TO 000 431 46 13
156 A 0019970441 SEAL RING
TO 000 431 46 13
157 A 0209975948 SEAL RING
TO 000 431 46 13
157 A 0069974548 SEAL RING
Repalced by: A 0019975945
157 A 0019975945 SEAL RING
TO 000 431 46 13
158 A 0000600178 VALVE
Repalced by: A 3075530107
158 A 3075530107 VALVE
TO 000 431 46 13
159 A 0004280032 SCREW PLUG
CONNECTION "1","2"
160 N 000931008251 SCREW
REGULATING VALVE TO BRACKET
161 N 913004008004 NUT
Repalced by: N 913004008001
161 N 913004008001 NUT
REGULATING VALVE TO BRACKET
162 A 3854315540 BRACKET
(REGULATING VALVE)
163 N 000933008153 SCREW
Repalced by: N 304017008034
163 N 304017008034 SCREW
VALVE TO CROSS MEMBER
164 N 913004008004 NUT
Repalced by: N 913004008001
164 N 913004008001 NUT
VALVE TO CROSS MEMBER
165 N 000933010105 SCREW
VALVE TO CROSS MEMBER
166 N 913004010008 NUT
Repalced by: N 910113010000
166 N 910113010000 NUT
VALVE TO CROSS MEMBER
167 A 3404203329 LINE
FROM VALVE TO LEFT FRONT WHEEL
1800 MM
168 A 3404203829 LINE
FROM TEST CONNECTION TO RIGHT FRONT WHEEL
2200 MM
168 A 3404203129 LINE
FROM TEST CONNECTION TO RIGHT FRONT WHEEL
1700 MM
169 A 3404200729 LINE
FROM VALVE TO TEST CONNECTION
500 MM
169 A 3404203529 LINE
FROM VALVE TO RIGHT FRONT WHEEL
1900 MM
170 A 3859970081 GROMMET
AT SIDE MEMBER
171 A 3854280040 BRACKET
Repalced by: A 3854280240
171 A 3854280240 BRACKET
LEFT FRONT BRAKE HOSE TO FRONT AXLE
171 A 3854280340 BRACKET
RIGHT FRONT BRAKE HOSE TO FRONT AXLE
172 N 000933008147 SCREW
Repalced by: N 304017008021
172 N 304017008021 SCREW
BRACKET TO SIDE MEMBER
173 N 913004008004 NUT
Repalced by: N 913004008001
173 N 913004008001 NUT
BRACKET TO SIDE MEMBER
175 A 0014282935 BRAKE HOSE
Repalced by: A 0004288935
175 A 0024281135 BRAKE HOSE
Repalced by: A 0004288935
175 A 0004288935 BRAKE HOSE
650 MM
175 A 0014284835 BRAKE HOSE
650 MM
176 A 0004280473 BRACKET
Repalced by: A 6525040038
176 A 6525040038 MOUNTING PLATE
BRAKE HOSE TO BRACKET
177 A 3404200929 LINE
FROM MASTER CYLINDER TO REAR AXLE TEST CONNECTION
600 MM
177 A 3404200929 LINE
FROM MASTER CYLINDER TO CONNECTOR
600 MM
177 A 3404201929 LINE
FROM MASTER CYLINDER TO CONNECTOR
1100 MM
178 A 0004280531 CONNECTOR
Repalced by: A 0004292736
178 A 0004292736 CONNECTOR
179 A 3404204929 LINE
FROM CONNECTOR TO TEST CONNECTION
4400 MM
179 A 3404204129 LINE
FROM CONNECTOR TO TEST CONNECTION
2800 MM
179 A 3404204429 LINE
FROM CONNECTOR TO TEST CONNECTION
3400 MM
179 A 3404204629 LINE
FROM CONNECTOR TO TEST CONNECTION
3800 MM
179 A 3404204829 LINE
FROM CONNECTOR TO TEST CONNECTION
4200 MM
179 A 3404205129 LINE
FROM CONNECTOR TO TEST CONNECTION
4800 MM
179 A 3404203829 LINE
FROM CONNECTOR TO TEST CONNECTION
2200 MM
179 A 3404204029 LINE
FROM CONNECTOR TO TEST CONNECTION
2600 MM
180 A 0004311231 TEST CONNECTION
REAR AXLE BRAKE CIRCUIT
180 A 0004316631 TEST CONNECTION
REAR AXLE BRAKE CIRCUIT
182 A 1801550053 SPACER TUBE
TEST CONNECTION TO SIDE MEMBER
183 N 000931008322 SCREW
TEST CONNECTION TO SIDE MEMBER
M 8X80
184 N 000125008418 WASHER
Repalced by: N 000125008443
184 N 000125008443 WASHER
TEST CONNECTION TO SIDE MEMBER
185 N 913004008004 NUT
Repalced by: N 913004008001
185 N 913004008001 NUT
TEST CONNECTION TO SIDE MEMBER
N 000933008160 SCREW
Repalced by: N 304017008040
N 304017008040 SCREW
Repalced by: N 910105008010
N 910105008010 SCREW
Repalced by: N 910143008005
N 910143008005 SCREW
TEST CONNECTION TO BRACKET
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
TEST CONNECTION TO BRACKET
A 3604292940 BRACKET
TEST CONNECTION
N 000933008153 SCREW
Repalced by: N 304017008034
N 304017008034 SCREW
BRACKET TO LEFT SIDE MEMBER
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
BRACKET TO LEFT SIDE MEMBER

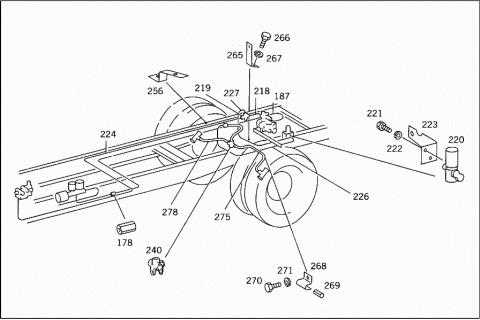

187 A 3404205529 LINE
FROM TEST CONNECTION TO BRAKE POWER REGULATOR
5600 MM
187 A 3404204429 LINE
FROM TEST CONNECTION TO BRAKE POWER REGULATOR
3400 MM
187 A 3404204729 LINE
FROM TEST CONNECTION TO BRAKE POWER REGULATOR
4000 MM
187 A 3404205129 LINE
FROM TEST CONNECTION TO BRAKE POWER REGULATOR
4800 MM
187 A 3404205429 LINE
FROM TEST CONNECTION TO BRAKE POWER REGULATOR
5400 MM
187 A 3404204129 LINE
FROM TEST CONNECTION TO BRAKE POWER REGULATOR
2800 MM
187 A 3404204929 LINE
FROM TEST CONNECTION TO BRAKE POWER REGULATOR
4400 MM
187 A 3404201229 LINE
FROM TEST CONNECTION TO BRAKE POWER REGULATOR,CONNECTION "1"
750 MM

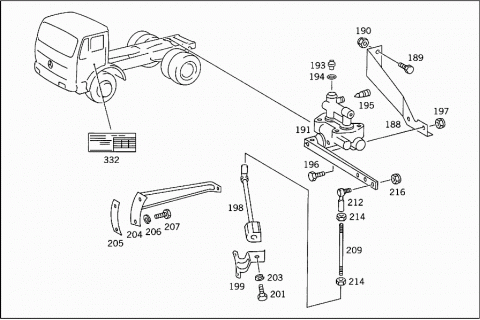

188 A 3834310340 BRACKET
Repalced by: A 3834300039
188 A 3834300039 SUPPORT
BRAKE POWER REGULATOR
189 N 000961012097 SCREW
Repalced by: N 308676012026
189 N 308676012026 SCREW
BRAKE POWER REGULATOR TO RIGHT SIDE MEMBER
190 N 910113012002 NUT
BRAKE POWER REGULATOR TO RIGHT SIDE MEMBER
191 A 0004314312 BRAKE PRESSURE REGULATOR
191 A 0004317512 BRAKE PRESSURE REGULATOR
A 0004312713 GUIDE BUSHING
A 0004312339 LEVER
TOOTHED
A 0004312439 LEVER
A 0004316583 PISTON
A 0109975845 SEAL RING
A 0004310949 GUIDE BUSHING
A 0004318760 FELT STRIP
A 0089975646 SEAL RING
A 0004318560 SEAL RING
193 A 0004310968 VALVE PART
Repalced by: A 0004311068
193 A 0004311068 VALVE PART
TO 000 431 43 12,000 431 75 12
A 0004315793 SPRING
TO 000 431 43 12,000 431 75 12
A 0004318660 SEAL RING
A 0004311049 GUIDE BUSHING
A 0029937201 SPRING
194 N 007603018101 SEAL RING
TO 000 431 43 12,000 431 75 12
195 A 0004310465 VALVE
Repalced by: A 0004310265
195 A 0004310265 VALVE
Repalced by: A 3075530107
195 A 3075530107 VALVE
TO 000 431 43 12,000 431 75 12
196 N 000931010258 SCREW
BRAKE POWER REGULATOR TO SUPPORT
197 N 913004010008 NUT
Repalced by: N 910113010000
197 N 910113010000 NUT
BRAKE POWER REGULATOR TO SUPPORT
198 A 0004311418 METAL SPRING BELLOWS
Repalced by: A 0004311718
198 A 0004311718 METAL SPRING BELLOWS
199 A 3834310440 BRACKET
METAL SPRING BELLOWS
199 A 3834310440 BRACKET
METAL SPRING BELLOWS
199 A 3854317840 BRACKET
METAL SPRING BELLOWS
201 N 000933012058 SCREW
METAL SPRING BELLOWS TO BRACKET
201 N 000961012056 SCREW
Repalced by: N 308676012038
201 N 308676012038 SCREW
METAL SPRING BELLOWS TO BRACKET
203 N 912004012100 LOCK WASHER
METAL SPRING BELLOWS TO BRACKET
204 A 3854310640 BRACKET
OPERATING ROD
204 A 3834310140 BRACKET
OPERATING ROD
205 A 3554310484 SHIM
BRACKET TO REAR AXLE HOUSING
A 3859901940 WASHER
BRACKET TO REAR AXLE HOUSING
206 N 912004010102 LOCK WASHER
BRACKET TO REAR AXLE HOUSING
206 N 912004010102 LOCK WASHER
BRACKET TO REAR AXLE HOUSING
206 N 912004012100 LOCK WASHER
BRACKET TO REAR AXLE HOUSING
207 N 000933010157 SCREW
BRACKET TO REAR AXLE HOUSING
207 N 000933010128 SCREW
BRACKET TO REAR AXLE HOUSING
207 N 000933010128 SCREW
BRACKET TO REAR AXLE HOUSING
207 N 000961012151 SCREW
BRACKET TO REAR AXLE HOUSING
209 A 3534300792 ROD
Repalced by: N 900331008427
209 A 3814300092 ROD
Repalced by: N 900331008427
209 N 900331008420 PULL ROD
209 N 900331008427 PULL ROD
212 A 0004310467 YOKE
Repalced by: A 0004310667
212 A 0004310667 YOKE
R.H. THREAD
212 A 0004310867 YOKE
L.H. THREAD
214 N 304032008006 NUT
R.H. THREAD
214 N 000934008035 NUT
L.H. THREAD
216 N 913004008004 NUT
Repalced by: N 913004008001
216 N 913004008001 NUT
ROD TO BRAKE PRESSURE REGULATOR AND TO BRACKET
217 A 3404200729 LINE
FROM BRAKE POWER REGULATOR TO BRAKE HOSE
500 MM
218 A 3404201129 LINE
FROM BRAKE POWER REGULATOR TO DISTRIBUTOR
700 MM
219 A 0004290437 DISTRIBUTOR
REAR AXLE
219 A 0004294337 DISTRIBUTOR
REAR AXLE
N 000933008168 SCREW
DISTRIBUTOR TO BRACKET
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
DISTRIBUTOR TO BRACKET
A 3604292940 BRACKET
DISTRIBUTOR
N 000933008153 SCREW
Repalced by: N 304017008034
N 304017008034 SCREW
BRACKET TO RIGHT SIDE MEMBER
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
BRACKET TO RIGHT SIDE MEMBER
220 A 0014311612 BRAKE PRESSURE REGULATOR
220 A 0014311712 BRAKE PRESSURE REGULATOR
221 N 000933008212 SCREW
Repalced by: N 304017008016
221 N 304017008016 SCREW
BRAKE POWER REGULATOR TO BRACKET
222 N 912004008102 LOCK WASHER
BRAKE POWER REGULATOR TO BRACKET
223 A 3804310340 BRACKET
BRACKET TO REAR AXLE
224 A 3404205329 LINE
FROM DISTRIBUTOR TO VALVE
5200 MM
224 A 3404204229 LINE
FROM DISTRIBUTOR TO VALVE
3000 MM
224 A 3404204429 LINE
FROM DISTRIBUTOR TO VALVE
3400 MM
224 A 3404204529 LINE
FROM DISTRIBUTOR TO VALVE
3600 MM
224 A 3404204829 LINE
FROM DISTRIBUTOR TO VALVE
4200 MM
224 A 3404205029 LINE
FROM DISTRIBUTOR TO VALVE
4600 MM
224 A 3404205229 LINE
FROM DISTRIBUTOR TO VALVE
5000 MM
224 A 3404205529 LINE
FROM DISTRIBUTOR TO VALVE
5600 MM
225 A 3404200629 LINE
FROM DISTRIBUTOR TO BRAKE HOSE ON REAR AXLE
415 MM
226 A 3404202129 LINE
FROM BRAKE POWER REGULATOR TO REAR BRAKE HOSE
1200 MM
227 A 3404201529 LINE
FROM DISTRIBUTOR TO BRAKE POWER REGULATOR
900 MM
228 A 3224280140 BRACKET
BRAKE HOSE,REAR
229 N 000933008147 SCREW
Repalced by: N 304017008021
229 N 304017008021 SCREW
BRACKET TO RIGHT SIDE MEMBER
230 N 913004008004 NUT
Repalced by: N 913004008001
230 N 913004008001 NUT
BRACKET TO RIGHT SIDE MEMBER
233 A 0004284335 BRAKE HOSE
Repalced by: A 0024280735
233 A 0024280635 BRAKE HOSE
Repalced by: A 0024280735
233 A 0014282935 BRAKE HOSE
Repalced by: A 0024280735
233 A 0024280735 BRAKE HOSE
600 MM
233 A 0024280735 BRAKE HOSE
600 MM
233 A 0024280535 BRAKE HOSE
500 MM
233 A 0004287635 BRAKE HOSE
Repalced by: A 0004280535
233 A 0014285535 BRAKE HOSE
500 MM
236 A 0004280473 BRACKET
Repalced by: A 6525040038
236 A 6525040038 MOUNTING PLATE
REAR BRAKE HOSE TO BRACKET
240 A 0004312231 TEST CONNECTION
REAR AXLE
240 A 0004316531 TEST CONNECTION
REAR AXLE
241 N 913004008004 NUT
Repalced by: N 913004008001
241 N 913004008001 NUT
TEST CONNECTION TO BRACKET
242 N 000933008150 SCREW
Repalced by: N 304017008018
242 N 304017008018 SCREW
TEST CONNECTION TO REAR AXLE
242 N 304017008018 SCREW
TEST CONNECTION TO REAR AXLE
242 N 000933008153 SCREW
Repalced by: N 304017008034
242 N 304017008034 SCREW
TEST CONNECTION TO BRACKET
242 N 304017008034 SCREW
TEST CONNECTION TO BRACKET
244 A 3382930053 SPACER TUBE
Repalced by: A 3872640974
244 A 3872640974 PIN
TEST CONNECTION TO REAR AXLE
244 A 3872640974 PIN
TEST CONNECTION TO REAR AXLE
245 A 3814312140 BRACKET
TEST CONNECTION
245 A 3814312140 BRACKET
TEST CONNECTION
246 N 000961012034 SCREW
BRACKET TO AXLE HOUSING
246 N 000961012034 SCREW
BRACKET TO AXLE HOUSING
247 N 912004012100 LOCK WASHER
BRACKET TO AXLE HOUSING
247 N 912004012100 LOCK WASHER
BRACKET TO AXLE HOUSING
248 A 3604280243 ANGLE
BRAKE LINE MOUNTING
249 A 3604300143 CLAMP
Repalced by: N 916016008200
249 N 916016008200 CLAMP
BRAKE LINE MOUNTING
250 A 3609950601 CLAMP
BRAKE LINE MOUNTING
A 3852670040 BRACKET
BRAKE CIRCUIT II TEST CONNECTION
256 A 3854291740 BRACKET
BRAKE LINE MOUNTING
259 N 000933008153 SCREW
Repalced by: N 304017008034
259 N 304017008034 SCREW
BRAKE LINE MOUNTING
M 8X25
260 N 913004008004 NUT
Repalced by: N 913004008001
260 N 913004008001 NUT
BRAKE LINE MOUNTING
262 N 000933006121 SCREW
Repalced by: N 304017006020
262 N 304017006020 SCREW
BRAKE LINE MOUNTING
M 6X20
262 N 000933006127 SCREW
BRAKE LINE TO REAR AXLE
M 6X25
264 N 913004006002 NUT
Repalced by: N 913004006001
264 N 913004006001 NUT
BRAKE LINE MOUNTING
265 A 3854294040 BRACKET
Repalced by: A 3812711640
265 A 3812711640 BRACKET
BRAKE LINE TO REAR AXLE
266 N 000933008212 SCREW
Repalced by: N 304017008016
266 N 304017008016 SCREW
BRAKE LINE TO REAR AXLE
M 8X16
267 N 912004008102 LOCK WASHER
BRAKE LINE TO REAR AXLE
A 3129951020 CLAMP
BRAKE LINE TO REAR AXLE
268 A 3859950020 CLAMP
BRAKE LINE TO REAR AXLE
269 A 3129973482 HOSE
BRAKE LINE TO REAR AXLE
A 3209901340 WASHER
BRAKE LINE TO REAR AXLE
270 N 000961012052 SCREW
Repalced by: N 308676012012
270 N 308676012012 SCREW
BRAKE LINE TO REAR AXLE
271 N 912004008103 LOCK WASHER
BRAKE LINE TO REAR AXLE
275 A 3404202429 LINE
FROM TEST CONNECTION TO LEFT WHEEL CYLINDER
1350 MM
275 A 3404202329 LINE
FROM TEST CONNECTION TO LEFT WHEEL CYLINDER
1300 MM
278 A 3404201129 LINE
FROM TEST CONNECTION TO RIGHT WHEEL CYLINDER
700 MM
278 A 3404201229 LINE
FROM TEST CONNECTION TO RIGHT WHEEL CYLINDER
750 MM
332 A 3855840121 GUIDE SIGN
LOAD-DEPENDING BRAKE
332 A 3855840321 GUIDE SIGN
LOAD-DEPENDING BRAKE
332 A 3855844321 GUIDE SIGN
LOAD-DEPENDING BRAKE
332 A 3855841921 GUIDE SIGN
LOAD-DEPENDING BRAKE
332 A 3855847621 GUIDE SIGN
LOAD-DEPENDING BRAKE
A 3875840055 ADHESIVE FOIL

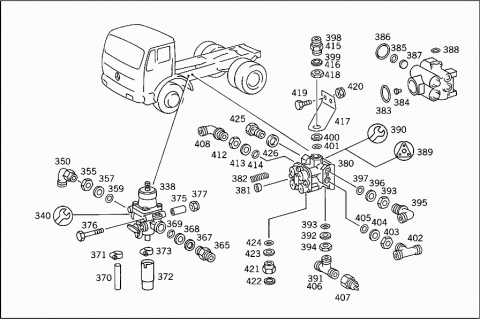

338 A 0014310006 PRESSURE REGULATOR
Repalced by: A 0024314906
338 A 0014310606 PRESSURE REGULATOR
Repalced by: A 0024313406
338 A 0024313406 PRESSURE REGULATOR
Repalced by: A 0024314306
338 A 0014311206 PRESSURE REGULATOR
Repalced by: A 0024314906
338 A 0024314906 PRESSURE REGULATOR
WABCO
338 A 0014313406 PRESSURE REGULATOR
Repalced by: A 0024314306
338 A 0024314306 PRESSURE REGULATOR
BOSCH
338 A 0024318306 PRESSURE REGULATOR
KNORR
340 A 0025866043 REPAIR KIT
TO 001 431 34 06,GRAU 312 017 014
340 A 0015864343 REPAIR KIT
Repalced by: A 0004301107
340 A 0004301107 REPAIR KIT
TO 001 431 00 06,WABCO 975 300 110 0
340 A 0024304681 REPAIR KIT
VALVE KIT
TO 001 431 00 06,WABCO 975 300 110 0
340 A 0014304960 REPAIR KIT
TO 002 431 49 06,WABCO 975 303 460 0
340 A 0015868543 REPAIR KIT
Repalced by: A 0004301407
340 A 0004301407 REPAIR KIT
TO 001 431 06 06,BOSCH 0 481 039 101
340 A 0025866743 REPAIR KIT
TO 001 431 12 06,KNORR 3200
340 A 0004301768 REPAIR KIT
DIAPHRAGM
TO 002 431 34 06,BOSCH 0 481 039 221
340 A 0004301768 REPAIR KIT
DIAPHRAGM
TO 002 431 43 06,BOSCH. 0 481 039 201
340 A 0004307960 REPAIR KIT
TIRE INFLATING CONNECTION
TO 002 431 34 06,BOSCH 0 481 039 221
340 A 0004307960 REPAIR KIT
TIRE INFLATING CONNECTION
TO 002 431 43 06,BOSCH. 0 481 039 201
340 A 0004300407 REPAIR KIT
TO 002 431 83 06,KNORR 90309
350 N 074301022203 ELBOW FITTING
PRESSURE REGULATOR,CONNECTION "1"
350 A 0019972172 FITTING
PRESSURE REGULATOR,CONNECTION "1"
355 N 074305022202 NUT
PRESSURE REGULATOR,CONNECTION "1"
357 A 0004290227 THRUST RING
PRESSURE REGULATOR,CONNECTION "1"
359 A 0009870446 SEALING CORD
PRESSURE REGULATOR,CONNECTION "1"
365 A 0019972172 FITTING
PRESSURE REGULATOR,CONNECTION "2.1"
367 N 007603022102 SEAL RING
PRESSURE REGULATOR,CONNECTION "2.1"
368 A 0004290227 THRUST RING
PRESSURE REGULATOR,CONNECTION "2.1"
369 A 0009870446 SEALING CORD
PRESSURE REGULATOR,CONNECTION "2.1"
370 A 0004310173 BREATHER PIPE
PRESSURE REGULATOR,CONNECTION "3"
371 N 916026020001 CLAMP
Repalced by: N 000000000667
371 N 000000000667 CLAMP
PRESSURE REGULATOR,CONNECTION "3"
372 A 0004300170 MUFFLER
PRESSURE REGULATOR,CONNECTION "3"
373 N 916017032000 CLAMP
Repalced by: N 000000000670
373 N 000000000670 CLAMP
PRESSURE REGULATOR,CONNECTION "3"
373 N 916026016001 CLAMP
Repalced by: A 0059970190
373 A 0059970190 LOOM TIE
PRESSURE REGULATOR,CONNECTION "3"
A 0004310151 SPACER RING
PRESSURE REGULATOR,CONNECTION "3"
375 A 3854310153 SPACER TUBE
Repalced by: A 4409910040
375 A 4409910040 SPACER TUBE
PRESSURE REGULATOR TO SUPPORT
375 A 3809910040 SPACER TUBE
PRESSURE REGULATOR TO SUPPORT
376 N 000933008147 SCREW
Repalced by: N 304017008021
376 N 304017008021 SCREW
PRESSURE REGULATOR TO SUPPORT
376 N 000931008209 SCREW
PRESSURE REGULATOR TO SUPPORT
377 N 913004008004 NUT
Repalced by: N 913004008001
377 N 913004008001 NUT
PRESSURE REGULATOR TO SUPPORT
380 A 0014313806 VALVE
Repalced by: A 0024310406
380 A 0024310406 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE
BOSCH
380 A 0014313506 VALVE
Repalced by: A 0014318406
380 A 0014318406 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE
KNORR
380 A 0014314706 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE
WABCO
380 A 0014316806 VALVE
Repalced by: A 0024312906
380 A 0024312906 VALVE
Repalced by: A 0024319306
380 A 0024319306 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE
GRAU
381 A 0014310986 CUP
TO 002 431 04 06,BOSCH
382 A 0009934905 SPRING
Repalced by: A 0009935205
382 A 0009935205 SPRING
TO 002 431 04 06,BOSCH
383 A 0014311860 SEAL RING
34X2,3 MM TO 001 431 68 06
34X2.3 MM,TO 001 431 68 06,GRAU
384 A 0024298844 VALVE
TO 001 431 68 06,GRAU 37001
385 A 0099972448 SEAL RING
TO 001 431 68 06,19.3X2.4 MM, GRAU 37001
386 A 0059973248 SEAL RING
25,3X2,4 MM TO 001 431 68 06
25.3X2.4 MM,TO 001 431 68 06,GRAU
387 A 0004313188 VALVE SEAT
TO 001 431 68 06,GRAU 37001
388 A 0014311960 SEAL RING
Repalced by: A 0009971548
388 A 0009971548 SEAL RING
15X2 MM TO 001 431 68 06,GRAU 19001
389 A 0004302906 GASKET KIT
BOOT
TO 002 431 04 06,BOSCH
390 A 0015863842 REPAIR KIT
TO 001 431 35 06
TO 001 431 35 06,KNORR
390 A 0004303160 REPAIR KIT
TO 001 431 84 06,KNORR
390 A 0034300881 REPAIR KIT
TO 002 431 93 06 GRAU 74001
390 A 0015868443 REPAIR KIT
SEAL RING
TO 001 431 38 06,BOSCH
390 A 0025861743 REPAIR KIT
BOOT
TO 001 431 38 06,BOSCH
390 A 0025860643 REPAIR KIT
Repalced by: A 0025862843
390 A 0025862843 REPAIR KIT
TO 001 431 47 06,WABCO 2100
390 A 0004300468 REPAIR KIT
TO 001 431 47 06,WABCO 2210
391 A 0009904770 T-FITTING
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1.1"
391 A 0009904770 T-FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS "1.1,1.2,2.3"
392 A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS "1.1,1.2,2.3"
393 A 0029971640 SEAL RING
Repalced by: A 0009971548
393 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS "1.1,1.2,2.3"
394 N 080705016003 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS "1.1,1.2,2.3"
395 N 074301022203 ELBOW FITTING
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1"
396 A 0004290227 THRUST RING
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1"
397 A 0009870446 SEALING CORD
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1"
398 A 0019972372 FITTING
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1"
399 N 007603022102 SEAL RING
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1"
400 A 0004290227 THRUST RING
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1"
401 A 0009870446 SEALING CORD
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1"
402 N 074317012201 FITTING
Repalced by: A 0009905070
402 A 0009905070 T-FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "1.2"
403 N 080705016003 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "1.2"
404 A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "1.2"
405 A 0029971640 SEAL RING
Repalced by: A 0009971548
405 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "1.2"
406 A 0009904670 T-FITTING
AT FOUR-CIRCUIT PROTECTIVE VALVE
406 A 0009904770 T-FITTING
407 A 0005455414 SWITCH
AT FOUR-CIRCUIT PROTECTIVE VALVE
408 N 074315012100 FITTING
Repalced by: A 0019903371
408 A 0019903371 ELBOW FITTING
408 A 0019903371 ELBOW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS "2.1,2.2"
412 N 080705016003 NUT
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "2.1","2.2"
413 A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "2.1","2.2"
A 0029971640 SEAL RING
Repalced by: A 0009971548
414 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "2.1","2.2"
415 A 0029971572 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.2"
416 N 007603016401 SEAL RING
417 A 3854312240 BRACKET
FOUR-CIRCUIT PROTECTIVE VALVE
417 A 3854313440 BRACKET
FOUR-CIRCUIT PROTECTIVE VALVE
418 N 074305022202 NUT
VALVE TO BRACKET
419 N 000933008147 SCREW
Repalced by: N 304017008021
419 N 304017008021 SCREW
BRACKET TO BATTERY/APPARATUS SUPPORT
420 N 913004008004 NUT
Repalced by: N 913004008001
420 N 913004008001 NUT
BRACKET TO BATTERY/APPARATUS SUPPORT
421 A 0019905268 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.4"
422 A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.4"
423 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.4"
424 N 007603016401 SEAL RING
FROM DISTRIBUTOR TO VALVE
425 N 915039008202 HOLLOW SCREW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.4"
T YYYYYYYYYYYY PART NAME MISSING
.
26
426 N 007603012405 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.4"
A 0009901387 CROSS FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "2.3"

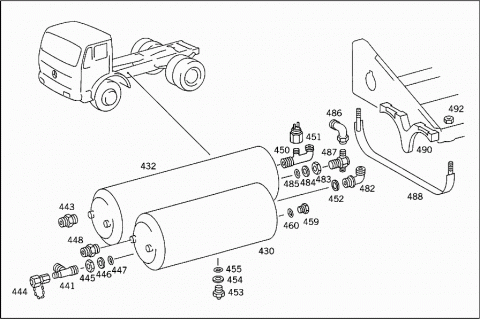

430 A 0004322601 RESERVOIR
Repalced by: A 0034321801
430 A 0034321801 RESERVOIR
30L
432 A 0004325301 RESERVOIR
30/10 L.
433 A 0004322001 RESERVOIR
Repalced by: A 0034321101
433 A 0034321101 RESERVOIR
20L
441 A 0009903970 T-FITTING
Repalced by: A 0019901070
441 A 0019901070 T-FITTING
INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION
441 A 0009902487 CROSS FITTING
OUTSIDE AIR RESERVOIR,FRONT CONNECTION
443 A 0019979572 FITTING
INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION
444 A 0004312031 TEST CONNECTION
INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION
444 A 0004314531 TEST CONNECTION
INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION
444 A 0004314831 TEST CONNECTION
INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION
444 A 0004316131 TEST CONNECTION
INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION
A 0009979486 PLUG
445 N 074305022202 NUT
INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION
446 A 0004290227 THRUST RING
INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION
446 A 0004290227 THRUST RING
INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION
447 A 0009870446 SEALING CORD
INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION
447 A 0009870446 SEALING CORD
INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION
448 A 0029971172 FITTING
AT AIR RESERVOIR
448 A 0029971172 FITTING
AT AIR RESERVOIR
448 A 0029971172 FITTING
INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION
450 A 0009970569 F-FITTING
INSIDE AIR RESERVOIR
451 A 0005455414 SWITCH
INSIDE AIR RESERVOIR
452 N 007603022102 SEAL RING
INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION

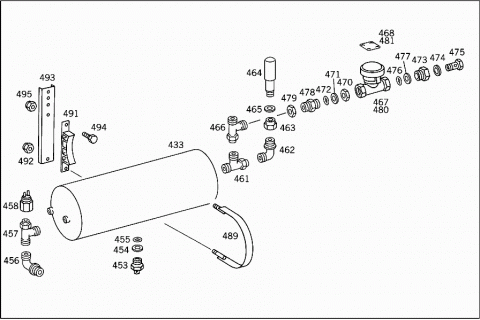

453 A 0004322407 VALVE
AIR RESERVOIR
453 A 0004321407 VALVE
DRAIN
454 N 007603022102 SEAL RING
454 A 0004290227 THRUST RING
455 A 0009870446 SEALING CORD
456 A 0004293838 ELBOW FITTING
Repalced by: A 0004294638
456 A 0004294638 ELBOW FITTING
OUTSIDE AIR RESERVOIR,REAR CONNECTION
457 A 0009904670 T-FITTING
OUTSIDE AIR RESERVOIR,REAR CONNECTION
458 A 0005455414 SWITCH
OUTSIDE AIR RESERVOIR,REAR CONNECTION
459 N 000908022001 SCREW PLUG
Repalced by: N 000908022011
459 N 000908022011 SCREW PLUG
OUTSIDE AIR RESERVOIR,REAR CONNECTION
460 N 007603022102 SEAL RING
OUTSIDE AIR RESERVOIR,REAR CONNECTION
461 N 074315000301 FITTING
Repalced by: A 0009909171
461 A 0009909171 ELBOW FITTING
INSIDE AIR RESERVOIR, REAR CONNECTION
462 A 0009903870 T-FITTING
INSIDE AIR RESERVOIR, REAR CONNECTION
463 A 0004294934 ADAPTER FITTING
INSIDE AIR RESERVOIR, REAR CONNECTION
464 A 0014295844 VALVE
Repalced by: A 0034295044
464 A 0034295044 VALVE
Repalced by: A 0044297044
464 A 0044297044 VALVE
INSIDE AIR RESERVOIR, REAR CONNECTION
A 0004290147 COVERING
INSIDE AIR RESERVOIR, REAR CONNECTION
465 N 007603018101 SEAL RING
INSIDE AIR RESERVOIR, REAR CONNECTION
466 N 003954012101 FITTING
Repalced by: A 0019900970
466 A 0019900970 T-FITTING
INSIDE AIR RESERVOIR, REAR CONNECTION
467 A 0024290344 VALVE
OVERFLOW VALVE
467 A 0024295244 VALVE
OVERFLOW VALVE
467 A 0014296044 VALVE
OVERFLOW VALVE
468 A 0004290545 DIAPHRAGM
TO 001 429 60 44
469 A 0015862042 REPAIR KIT
TO 001 429 60 44
470 N 074305022202 NUT
OVERFLOW VALVE,CONNECTION "2"
471 A 0004290227 THRUST RING
OVERFLOW VALVE,CONNECTION "2"
472 A 0009870446 SEALING CORD
OVERFLOW VALVE,CONNECTION "2"
473 A 0009905168 FITTING
OVERFLOW VALVE,CONNECTION "2"
474 N 007603016401 SEAL RING
OVERFLOW VALVE,CONNECTION "2"
475 N 915036012203 HOLLOW SCREW
OVERFLOW VALVE,CONNECTION "2"
476 A 0009870446 SEALING CORD
OVERFLOW VALVE,CONNECTION "1"
477 A 0004290227 THRUST RING
OVERFLOW VALVE,CONNECTION "1"
478 A 0029971172 FITTING
OVERFLOW VALVE,CONNECTION "1"
479 N 074305022202 NUT
OVERFLOW VALVE,CONNECTION "1"
480 A 0024290844 VALVE
(OVERFLOW VALVE)
BOSCH
480 A 0024296944 VALVE
(OVERFLOW VALVE)
GRAU
480 A 0024290944 VALVE
(OVERFLOW VALVE)
WABCO
480 A 0034290344 VALVE
(OVERFLOW VALVE)
KNORR
481 A 0004290545 DIAPHRAGM
481 A 0004290745 DIAPHRAGM
TO 002 429 69 44,GRAU
481 A 0004290945 DIAPHRAGM
TO 003 429 03 44,KNORR
482 A 0009907771 ELBOW FITTING
482 A 0009907771 ELBOW FITTING
482 A 0009907771 ELBOW FITTING
OUTSIDE AIR RESERVOIR,REAR CONNECTION
483 N 074305022202 NUT
INSIDE AIR RESERVOIR, REAR CONNECTION
483 N 074305022202 NUT
OUTSIDE AIR RESERVOIR,REAR CONNECTION
484 A 0004290227 THRUST RING
INSIDE AIR RESERVOIR, REAR CONNECTION
484 A 0004290227 THRUST RING
OUTSIDE AIR RESERVOIR,REAR CONNECTION
485 A 0009870446 SEALING CORD
486 A 0019902171 ELBOW FITTING
INSIDE AIR RESERVOIR
487 A 0024295844 VALVE
CHECK VALVE
487 A 0024295944 VALVE
CHECK VALVE
487 A 0024297544 VALVE
CHECK VALVE
488 A 3854300140 STRAP
RESERVOIR TO SUPPORT
489 A 3524300040 STRAP
Repalced by: A 3354300340
489 A 3354300340 STRAP
RESERVOIR TO SUPPORT
490 A 3854320218 BASE
RESERVOIR TO SUPPORT
491 A 3354320418 BASE
RESERVOIR TO SUPPORT
492 N 000934010014 NUT
RESERVOIR TO SUPPORT
493 A 3814320140 BRACKET
AIR RESERVOIR TO FRAME
494 N 000933010105 SCREW
AIR RESERVOIR TO FRAME
494 N 000933010129 SCREW
Repalced by: N 304017010002
494 N 304017010002 SCREW
AIR RESERVOIR TO FRAME
495 N 913004010008 NUT
Repalced by: N 910113010000
495 N 910113010000 NUT
AIR RESERVOIR TO FRAME
496 A 3854200168 SUPPORT
Repalced by: A 3854260240
496 A 3854260240 BRACKET

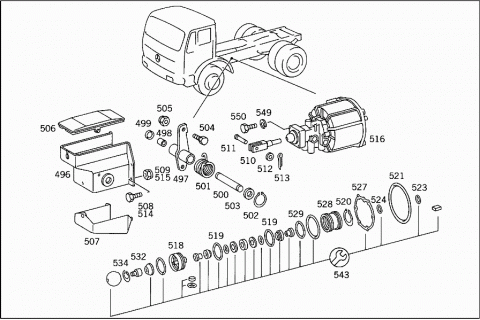

497 A 3854200042 BRAKE LEVER
498 A 0009815610 NEEDLE BEARING
Repalced by: A 0119813410
498 A 0089811110 NEEDLE BEARING
Repalced by: A 0119813410
498 A 0119813410 NEEDLE BEARING
499 A 0089978046 SEAL RING
Repalced by: A 0069979147
499 A 0069979147 SEAL RING
500 A 3802940507 PIVOT PIN
500 A 3854310853 SPACER TUBE
501 A 3859930010 SPRING
502 N 000471020001 LOCK RING
503 N 000433021002 WASHER
504 N 000931010379 SCREW
505 N 913004010008 NUT
Repalced by: N 910113010000
505 N 910113010000 NUT
506 A 3854260165 PROTECTIVE PLATE
506 A 3854260165 PROTECTIVE PLATE
507 A 3854260065 PROTECTIVE PLATE
507 A 3854260065 PROTECTIVE PLATE
508 N 304017010025 SCREW
Repalced by: N 304017010051
508 N 304017010051 SCREW
509 N 000934010014 NUT
510 A 3804310092 ROD
511 N 001434010006 PIN
Repalced by: N 001434010009
511 N 001434010009 PIN
512 N 000433010505 WASHER
Repalced by: N 000433010510
512 N 000433010510 WASHER
513 N 000094003219 COTTER PIN
514 N 000933010105 SCREW
CONSOLE TO APPARATUS SUPPORT
514 N 000933010128 SCREW
CONSOLE TO APPARATUS SUPPORT
515 N 913004010008 NUT
Repalced by: N 910113010000
515 N 910113010000 NUT
CONSOLE TO APPARATUS SUPPORT
516 A 0004316614 BRAKE CYLINDER
Repalced by: A 0014317114
516 A 0004319614 BRAKE CYLINDER
Repalced by: A 0014317114
516 A 0014317114 BRAKE CYLINDER
BOSCH
517 A 0004319414 BRAKE CYLINDER
Repalced by: A 0014317314
517 A 0014310514 BRAKE CYLINDER
Repalced by: A 0014317314
517 A 0024300830 BRAKE BOOSTER ASSEMBLY
Repalced by: A 0014317314
517 A 0014313914 BRAKE CYLINDER
Repalced by: A 0014317314
517 A 0014317314 BRAKE CYLINDER
BOSCH-SCHAEFER
517 A 0014317314 BRAKE CYLINDER
BOSCH-SCHAEFER
517 A 0014317314 BRAKE CYLINDER
BOSCH-SCHAEFER
518 A 0004317283 PISTON
TO 000 431 94 14;000 431 96 14
519 A 0019979340 SEAL RING
Repalced by: A 0019975945
519 A 0019975945 SEAL RING
TO 000 431 94 14;000 431 96 14
520 N 000472030000 LOCK RING
TO 000 431 94 14;000 431 96 14
521 A 0039979248 SEAL RING
TO 000 431 94 14;000 431 96 14
521 A 0039979248 SEAL RING
TO 001 431 71 14;001 431 73 14
522 A 0004317183 PISTON
TO 000 431 94 14;000 431 96 14
522 A 0004317183 PISTON
TO 001 431 71 14;001 431 73 14
523 A 0069975645 SEAL RING
TO 000 431 94 14;000 431 96 14
524 A 0039979348 SEAL RING
TO 000 431 94 14;000 431 96 14
525 N 000933008152 SCREW
Repalced by: N 304017008027
525 N 304017008027 SCREW
TO 000 431 94 14;000 431 96 14
526 N 912004008102 LOCK WASHER
TO 000 431 94 14;000 431 96 14
527 A 0014310660 SEAL RING
TO 000 431 94 14;000 431 96 14
528 A 0004317383 PISTON
TO 000 431 94 14;000 431 96 14
529 A 0039979448 SEAL RING
TO 000 431 94 14;000 431 96 14
N 000934006007 NUT
TO 000 431 94 14;000 431 96 14
N 000963006014 SCREW
TO 000 431 94 14;000 431 96 14
532 A 0004311249 GUIDE BUSHING
TO 000 431 94 14;000 431 96 14
533 N 007993016100 SNAP RING
TO 000 431 94 14;000 431 96 14
N 000933010145 SCREW
TO 000 431 94 14;000 431 96 14
N 000933010095 SCREW
Repalced by: N 304017010030
N 304017010030 SCREW
Repalced by: N 304017010053
N 304017010053 SCREW
TO 001 431 71 14;001 431 73 14
A 0039974347 SEAL RING
534 N 007993006100 SNAP RING
TO 000 431 94 14;000 431 96 14
535 A 0004318886 CUP
TO 000 431 94 14;000 431 96 14
N 007603010103 SEAL RING
Repalced by: N 007603010110
N 007603010110 SEAL RING
TO 001 431 71 14;001 431 73 14
A 0049970248 SEAL RING
TO 000 431 94 14;000 431 96 14
A 0004318986 CUP
TO 000 431 94 14;000 431 96 14
N 000472017000 LOCK RING
TO 001 431 71 14;001 431 73 14
N 000472036000 LOCK RING
TO 000 431 94 14;000 431 96 14
N 000472036000 LOCK RING
TO 001 431 71 14;001 431 73 14
N 912004010102 LOCK WASHER
TO 000 431 94 14;000 431 96 14
N 001476003007 GROOVED NAIL
TO 000 431 94 14;000 431 96 14
N 000471022000 LOCK RING
TO 000 431 94 14;000 431 96 14
N 000471022000 LOCK RING
TO 001 431 71 14;001 431 73 14
A 0004315487 PROTECTIVE CAP
TO 000 431 66 14,001 431 05 14
A 0044205518 WHEEL BRAKE CYLINDER
Repalced by: A 0074202018
A 0004311322 COVER
TO 001 431 73 14,001 431 71 14
A 0009882735 CAP
TO 001 431 71 14
540 A 0074202018 WHEEL BRAKE CYLINDER
Repalced by: A 0044206818
540 A 0044206818 WHEEL BRAKE CYLINDER
SLAVE CYLINDER
540 A 0044206818 WHEEL BRAKE CYLINDER
SLAVE CYLINDER
TO 001 431 73 14
540 A 0044206818 WHEEL BRAKE CYLINDER
SLAVE CYLINDER
540 A 0044206818 WHEEL BRAKE CYLINDER
SLAVE CYLINDER
541 A 0004204155 BLEEDER VALVE
Repalced by: A 0004310265
541 A 0004310265 VALVE
Repalced by: A 3075530107
541 A 3075530107 VALVE
A 0004202155 BLEEDER VALVE
Repalced by: A 0004310265
542 A 3164210187 PROTECTIVE CAP
Repalced by: A 0004210887
542 A 0004210887 PROTECTIVE CAP
Repalced by: A 0004217187
542 A 0004217187 PROTECTIVE CAP
Repalced by: A 0004210887
542 A 0004210887 PROTECTIVE CAP
543 A 0004212687 PROTECTIVE CAP
Repalced by: A 0004210887
543 A 0025860743 REPAIR KIT
Repalced by: A 0004302108
543 A 0004302108 REPAIR KIT
COMPRESSED AIR CYLINDER
TO 000 431 94 14, 96 14, 001 431 39 14
543 A 0004302108 REPAIR KIT
COMPRESSED AIR CYLINDER
TO 001 431 71 14
544 A 0025865543 REPAIR KIT
TO 000 431 66 14,001 431 05 14
544 A 0025865643 REPAIR KIT
Repalced by: A 0025865543
545 A 0005864829 REPAIR KIT
SLAVE CYLINDER
TO 004 420 55 18
Y YYYYYYYYYYYY PART NAME MISSING
SEE FIG. NO.:
523R
545 A 0025862442 REPAIR KIT
SLAVE CYLINDER
TO 007 420 20 18
545 A 0025860942 REPAIR KIT
SLAVE CYLINDER
TO 004 420 68 18
545 A 0025865542 REPAIR KIT
SLAVE CYLINDER
TO 004 420 68 18
546 A 0089979082 HOSE
BLEEDING
547 A 0005455214 SWITCH
BRAKE CYLINDER STROKE INDICATOR
M 24 X 1 MM
548 N 007603010103 SEAL RING
Repalced by: N 007603010110
548 N 007603010110 SEAL RING
BRAKE CYLINDER STROKE INDICATOR
549 N 912004010102 LOCK WASHER
BRAKE BOOSTER ASSEMBLY TO APPARATUS SUPPORT
550 N 000933010129 SCREW
Repalced by: N 304017010002
550 N 304017010002 SCREW
BRAKE BOOSTER ASSEMBLY TO APPARATUS SUPPORT
M 10X30 MM
550 N 000931010331 SCREW
BRAKE BOOSTER ASSEMBLY TO APPARATUS SUPPORT
550 N 000931010331 SCREW
BRAKE BOOSTER ASSEMBLY TO APPARATUS SUPPORT
550 N 000931010331 SCREW
BRAKE BOOSTER ASSEMBLY TO APPARATUS SUPPORT
550 N 000933010094 SCREW
BRAKE BOOSTER ASSEMBLY TO APPARATUS SUPPORT
M10X40 MM
N 007603010103 SEAL RING
Repalced by: N 007603010110
N 007603010110 SEAL RING
551 N 074315012100 FITTING
Repalced by: A 0019903371
551 A 0019903371 ELBOW FITTING
BRAKE CYLINDER,CONNECTIONS "1.1,1.2"
552 N 080705016003 NUT
BRAKE CYLINDER,CONNECTIONS "1.1,1.2"
553 A 0004290927 THRUST RING
BRAKE CYLINDER,CONNECTIONS "1.1,1.2"
554 A 0009971548 SEAL RING
BRAKE CYLINDER,CONNECTIONS "1.1,1.2"
555 N 007603016401 SEAL RING
BRAKE CYLINDER,CONNECTIONS "2.1,2.2"
556 N 000908016001 SCREW PLUG
BRAKE CYLINDER,CONNECTIONS "2.1,2.2"
557 A 0004290927 THRUST RING
BRAKE CYLINDER,CONNECTIONS "2.1,2.2"
558 A 0009971548 SEAL RING
BRAKE CYLINDER,CONNECTIONS "2.1,2.2"

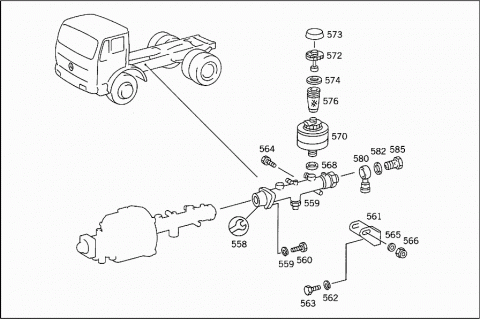

559 A 0024306901 BRAKE MASTER CYLINDER
SCHAEFER
A 0004308281 VALVE
558 A 0015866743 REPAIR KIT
Repalced by: A 0004309960
558 A 0004309960 REPAIR KIT
A 0034303101 BRAKE MASTER CYLINDER
TEVES
559 N 912004010102 LOCK WASHER
MASTER CYLINDER TO BRAKE BOOSTER
560 N 000933010129 SCREW
Repalced by: N 304017010002
560 N 304017010002 SCREW
MASTER CYLINDER TO BRAKE BOOSTER
561 A 3854300110 BRACKET
BRAKE MASTER CYLINDER
562 N 912004010102 LOCK WASHER
BRACKET TO SUPPORT
563 N 000933010128 SCREW
BRACKET TO SUPPORT
563 N 000933010128 SCREW
BRACKET TO SUPPORT
563 N 000933010105 SCREW
BRACKET TO SUPPORT
564 N 304014008004 SCREW
Repalced by: N 304014008001
564 N 304014008001 SCREW
BRAKE MASTER CYLINDER TO BRACKET
565 N 000125008418 WASHER
Repalced by: N 000125008443
565 N 000125008443 WASHER
BRAKE MASTER CYLINDER TO BRACKET
566 N 913004008004 NUT
Repalced by: N 913004008001
566 N 913004008001 NUT
BRAKE MASTER CYLINDER TO BRACKET
568 N 007603022102 SEAL RING
FLUID RESERVOIR
570 A 0004318702 RESERVOIR
572 A 0004312833 FILLER CAP
Repalced by: A 0004315533
572 A 0004315533 FILLER CAP
TO 000 431 87 02
573 A 0014310287 PROTECTIVE CAP
574 A 0039976440 SEAL RING
42X21.5 MM
576 A 0004312634 STRAINER
TO 000 431 87 02
A 0004319702 RESERVOIR
Repalced by: A 0004318702
A 0004313333 FILLER CAP
TO 000 431 97 02
580 A 0004280830 CONNECTOR
MASTER CYLINDER,CONNECTION "2.1"
580 A 0004280830 CONNECTOR
MASTER CYLINDER,CONNECTION "2.1"
582 N 007603014405 SEAL RING
MASTER CYLINDER,CONNECTION "2.1"
585 A 0004280026 HOLLOW SCREW
MASTER CYLINDER,CONNECTION "2.1"
585 A 0004280026 HOLLOW SCREW
MASTER CYLINDER,CONNECTION "2.1"

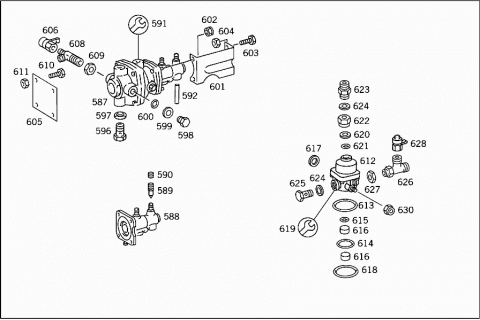

587 A 0014313505 BRAKE VALVE
TWO-CIRCUIT BRAKE VALVE
WABCO-TEVES
587 A 0014314305 BRAKE VALVE
TWO-CIRCUIT BRAKE VALVE
BOSCH-TEVES
587 A 0014319405 BRAKE VALVE
TWO-CIRCUIT BRAKE VALVE
587 A 0024310505 BRAKE VALVE
TWO-CIRCUIT BRAKE VALVE
BOSCH-SCHAEFER
A 0004310378 RUBBER RING
TO 001 431 43 05,002 431 05 05
A 0049970248 SEAL RING
TO 001 431 43 05,BOSCH-TEVES
A 0004312181 VALVE DISC
Repalced by: A 0004312781
A 0004312781 VALVE DISC
TO 001 431 43 05,BOSCH-TEVES
A 0004318986 CUP
TO 001 431 43 05,BOSCH-TEVES
A 0004312281 VALVE DISC
TO 001 431 43 05,BOSCH-TEVES
A 0109974248 SEAL RING
TO 001 431 43 05,BOSCH-TEVES
A 0109974348 SEAL RING
Repalced by: A 0049970248
A 0049970248 SEAL RING
TO 002 431 05 05,BOSCH-SCHAEFER
A 0059975248 SEAL RING
TO 001 431 43 05,002 431 05 05
A 0059975348 SEAL RING
TO 001 431 43 05,002 431 05 05
A 0059975448 SEAL RING
TO 001 431 43 05,002 431 05 05
A 0049979148 SEAL RING
TO 001 431 43 05,002 431 05 05
A 0059975548 SEAL RING
TO 001 431 43 05,002 431 05 05
588 A 0074202118 WHEEL BRAKE CYLINDER
SLAVE CYLINDER
TEVES,TO 001 431 35 05,001 431 43 05
588 A 0064201518 WHEEL BRAKE CYLINDER
SLAVE CYLINDER
SCHAEFER,TO001 431 94 05,002 431 05 05
589 A 0004310265 VALVE
Repalced by: A 3075530107
589 A 3075530107 VALVE
590 A 3164210187 PROTECTIVE CAP
Repalced by: A 0004210887
590 A 0004210887 PROTECTIVE CAP
Repalced by: A 0004217187
590 A 0004217187 PROTECTIVE CAP
Repalced by: A 0004210887
590 A 0004210887 PROTECTIVE CAP
TO 006 420 15 18,007 420 21 18
591 A 0005868643 REPAIR KIT
COMPRESSED AIR CYLINDER
TO 001 431 35 05,001 431 94 05
591 A 0025861343 REPAIR KIT
VALVE DISC
TO 001 431 43 05,002 431 05 05
591 A 0025865742 REPAIR KIT
Repalced by: A 0004301109
591 A 0004301109 REPAIR KIT
BLEEDER VALVE
TO 001 431 43 05,002 431 05 05
591 A 0025862442 REPAIR KIT
SLAVE CYLINDER
TO 007 420 21 18
591 A 0025865542 REPAIR KIT
SLAVE CYLINDER
TO 006 420 15 18
592 A 0089979082 HOSE
SLAVE CYLINDER BREATHING
500 MM
596 N 915036012203 HOLLOW SCREW
TWO-CIRCUIT BRAKE VALVE,CONNECTIONS:
"1.1;1.2;2.1;2.2"
597 N 007603016401 SEAL RING
TWO-CIRCUIT BRAKE VALVE,CONNECTIONS:
"1.1;1.2;2.1;2.2"
598 N 000908016001 SCREW PLUG
TWO-CIRCUIT BRAKE VALVE,CONNECTIONS:
"2.1;2.2"
599 A 0004290927 THRUST RING
TWO-CIRCUIT BRAKE VALVE,CONNECTIONS:
"2.1;2.2"
600 A 0009971548 SEAL RING
TWO-CIRCUIT BRAKE VALVE,CONNECTIONS:
"2.1;2.2"
601 A 3854313040 BRACKET
BRAKE VALVE
602 N 913004008004 NUT
Repalced by: N 913004008001
602 N 913004008001 NUT
BRAKE VALVE TO BRACKET
603 N 000933008147 SCREW
Repalced by: N 304017008021
603 N 304017008021 SCREW
BRAKE VALVE TO BRACKET
603 N 000933010164 SCREW
BRACKET TO APPARATUS SUPPORT
604 N 913004010008 NUT
Repalced by: N 910113010000
604 N 910113010000 NUT
BRACKET TO APPARATUS SUPPORT
605 A 3854313740 BRACKET
TEST CONNECTION
606 A 0004312031 TEST CONNECTION
VOSS
606 A 0004314531 TEST CONNECTION
SCHAEFER
606 A 0004314831 TEST CONNECTION
WABCO
606 A 0004316131 TEST CONNECTION
WIRA
A 0009979486 PLUG
608 A 0009977172 FITTING
TEST CONNECTION
609 N 080705012003 NUT
FITTING TO BRACKET
610 N 000933008147 SCREW
Repalced by: N 304017008021
610 N 304017008021 SCREW
FUEL STRAINER SCREEN TO FUEL TANK
611 N 913004008004 NUT
Repalced by: N 913004008001
611 N 913004008001 NUT
BRACKET TO APPARATUS SUPPORT
612 A 0004304881 VALVE
Repalced by: A 0014306481
612 A 0014306481 VALVE
(REGULATING VALVE)
613 A 0019871746 SEALING CORD
TO 001 430 64 81
614 A 0089970445 SEAL RING
TO 001 430 64 81
615 A 0089978648 SEAL RING
TO 001 430 64 81
616 A 0004313223 VALVE
TO 001 430 64 81
617 N 007603016400 SEAL RING
Repalced by: N 007603016401
617 N 007603016401 SEAL RING
TO 001 430 64 81
618 A 0089978748 SEAL RING
TO 001 430 64 81
619 A 0005867343 REPAIR KIT
Repalced by: A 0034304381
619 A 0034304381 REPAIR KIT
TO 000 430 48 81
620 A 0004290227 THRUST RING
REGULATING VALVE,CONNECTIONS "1,2"
620 A 0004290927 THRUST RING
REGULATING VALVE,CONNECTIONS "1,2"
TO 001 430 64 81
621 A 0009870446 SEALING CORD
REGULATING VALVE,CONNECTIONS "1,2"
621 A 0009971548 SEAL RING
REGULATING VALVE,CONNECTIONS "1,2"
TO 001 430 64 81
622 A 0009905168 FITTING
REGULATING VALVE,CONNECTIONS "1,2"
623 A 0029971172 FITTING
REGULATING VALVE,CONNECTIONS "1,2"
623 A 0029971572 FITTING
REGULATING VALVE,CONNECTIONS "1,2"
TO 001 430 64 81
624 N 007603016401 SEAL RING
REGULATING VALVE,CONNECTIONS "1,2"
625 N 915047012100 HOLLOW SCREW
REGULATING VALVE,CONNECTIONS "1,2"
626 A 0019979572 FITTING
REGULATING VALVE,CONNECTIONS "1,2"
626 A 0009905070 T-FITTING
REGULATING VALVE,CONNECTIONS "1,2"
TO 001 430 64 81
627 N 074305022202 NUT
REGULATING VALVE,CONNECTIONS "1,2"
627 N 080705016003 NUT
REGULATING VALVE,CONNECTIONS "1,2"
TO 001 430 64 81
628 A 0004312031 TEST CONNECTION
REGULATING VALVE,CONNECTIONS "1,2"
628 A 0004314531 TEST CONNECTION
REGULATING VALVE,CONNECTIONS "1,2"
SCHAEFER
628 A 0004314831 TEST CONNECTION
REGULATING VALVE,CONNECTIONS "1,2"
WABCO
628 A 0004316131 TEST CONNECTION
REGULATING VALVE,CONNECTIONS "1,2"
WIRA
A 0009979486 PLUG
630 N 913004008004 NUT
Repalced by: N 913004008001
630 N 913004008001 NUT
REGULATING VALVE TO CROSS MEMBER
631 N 003911008101 FITTING
AUXILIARY BRAKE LINE CONNECTION
631 A 0009906970 T-FITTING
AUXILIARY BRAKE LINE CONNECTION
633 N 080705014002 NUT
AUXILIARY BRAKE LINE CONNECTION
635 A 0029979672 FITTING
Repalced by: A 0049975872
635 A 0049975872 FITTING
DIAPHRAGM CYLINDER
635 N 003952012101 FITTING
Repalced by: A 0019902771
635 A 0019902771 ELBOW FITTING
DIAPHRAGM CYLINDER
635 A 0029979772 FITTING
DIAPHRAGM CYLINDER
636 N 003911012100 FITTING
Repalced by: A 0009907871
636 A 0009907871 ELBOW FITTING
637 N 080705018002 NUT
639 A 0004295235 HOSE
AT FITTING
639 N 916027011014 HOSE
LEFT AND RIGHT FRONT WHEEL BRAKE LINES
480 MM
640 N 900271018036 HOSE
LEFT AND RIGHT FRONT WHEEL BRAKE LINES
641 A 0004290541 FITTING
LEFT AND RIGHT FRONT WHEEL BRAKE LINES
642 N 916018016010 CLAMP
LEFT AND RIGHT FRONT WHEEL BRAKE LINES
643 A 0019978490 LOOM TIE
LEFT AND RIGHT FRONT WHEEL BRAKE LINES
644 A 3834290801 LINE
Repalced by: A 6194290801
644 A 6194290801 LINE
Repalced by: A 6254293501
644 A 6254293501 LINE
LEFT AND RIGHT FRONT WHEEL BRAKE LINES
645 A 3159955010 CLAMP
COMPRESSED AIR LINE TO BRACKET
646 N 000000001147 SCREW
COMPRESSED AIR LINE TO BRACKET
M 6X20
647 N 913004006002 NUT
Repalced by: N 913004006001
647 N 913004006001 NUT
COMPRESSED AIR LINE TO BRACKET
648 N 074315012100 FITTING
Repalced by: A 0019903371
648 A 0019903371 ELBOW FITTING
FRONT LEFT AND RIGHT,DIAPHRAGM CYLINDERS
649 N 080705016003 NUT
FRONT LEFT AND RIGHT,DIAPHRAGM CYLINDERS
650 A 0004290927 THRUST RING
FRONT LEFT AND RIGHT,DIAPHRAGM CYLINDERS
651 A 0009971548 SEAL RING
FRONT LEFT AND RIGHT,DIAPHRAGM CYLINDERS
652 N 900288014002 CLAMP
FRONT LEFT AND RIGHT,DIAPHRAGM CYLINDERS
A 3609950201 CLAMP
Repalced by: A 3604300143
A 3604300143 CLAMP
Repalced by: N 916016008200
N 916016008200 CLAMP
653 A 0014311312 BRAKE PRESSURE REGULATOR
654 A 0025867343 REPAIR KIT
655 A 3854310439 LEVER
Repalced by: A 6204310439
655 A 6204310439 LEVER
656 N 915036012203 HOLLOW SCREW
BRAKE POWER REGULATOR,CONNECTION:
"1;2"
657 N 007603016401 SEAL RING
BRAKE POWER REGULATOR,CONNECTION:
"1;2"
658 N 913004008004 NUT
Repalced by: N 913004008001
658 N 913004008001 NUT
BRAKE POWER REGULATOR TO BRACKET
659 A 3854302110 BRACKET
BRAKE POWER REGULATOR
660 N 000961012097 SCREW
Repalced by: N 308676012026
660 N 308676012026 SCREW
BRACKET TO FRAME
661 N 009021013200 WASHER
BRACKET TO FRAME
662 N 910113012002 NUT
BRACKET TO FRAME
663 N 900331008419 PULL ROD
664 A 0004310667 YOKE
METAL SPRING BELLOWS
665 N 304032008006 NUT
666 A 0004310735 CONNECTOR
BRAKE POWER REGULATOR
667 N 916026010000 CLAMP
Repalced by: N 000000000665
667 N 000000000665 CLAMP
A 0014292044 VALVE
Repalced by: A 0034291644
T YYYYYYYYYYYY PART NAME MISSING
SEE FIG. NO.:
592
668 A 0034291644 VALVE
RELAY VALVE
BOSCH
668 A 0024290744 VALVE
Repalced by: A 0034295344
668 A 0034295344 VALVE
RELAY VALVE
KNORR
668 A 0014299144 VALVE
RELAY VALVE
GRAU
668 A 0014296844 VALVE
RELAY VALVE
WABCO
670 A 0059972648 SEAL RING
22.3X2.4 MM,TO 001 429 91 44,GRAU
671 A 0004312788 VALVE SEAT
TO 001 429 91 44,GRAU
672 A 0059972748 SEAL RING
80X3 MM,TO 000 429 28 95, GRAU
673 A 0014311660 SEAL RING
28X2 MM,TO 001 429 91 44,GRAU
674 A 0014311760 SEAL RING
86X2 MM,TO 001 429 91 44,GRAU
675 A 0014311980 GASKET
Repalced by: A 0004311980
675 A 0004311980 GASKET
34X2X6 MM,TO 001 429 91 44,GRAU
677 A 0015862742 REPAIR KIT
TO 001 429 20 44,BOSCH
677 A 0005865742 REPAIR KIT
TO 001 429 68 44,WABCO
677 A 0025865742 REPAIR KIT
Repalced by: A 0004301109
677 A 0004301109 REPAIR KIT
BLEEDER VALVE
TO 003 429 16 44,BOSCH
677 A 0025863542 REPAIR KIT
TO 003 429 53 44,KNORR
678 A 0025865642 REPAIR KIT
Repalced by: A 0004201071
678 A 0004201071 VALVE
GASKET KIT
TO 003 429 16 44,BOSCH;UP TO 03.82
678 A 0004201271 VALVE
GASKET KIT
TO 003 429 16 44,BOSCH;FROM 04.82
680 A 3554320140 BRACKET
RELAY VALVE
681 N 000125008418 WASHER
Repalced by: N 000125008443
681 N 000125008443 WASHER
RELAY VALVE TO BRACKET
682 N 913004008004 NUT
Repalced by: N 913004008001
682 N 913004008001 NUT
RELAY VALVE TO BRACKET
683 N 000933010128 SCREW
BRACKET TO CROSS MEMBER
684 N 913004010008 NUT
Repalced by: N 910113010000
684 N 910113010000 NUT
BRACKET TO CROSS MEMBER
685 A 0009905168 FITTING
RELAY VALVE,CONNECTION "1"
686 N 007603022102 SEAL RING
RELAY VALVE,CONNECTION "1"
687 N 915011010101 HOLLOW SCREW
Repalced by: N 915036012101
687 N 915036012203 HOLLOW SCREW
RELAY VALVE,CONNECTION "1"
688 N 007603016401 SEAL RING
RELAY VALVE,CONNECTION "1"
689 A 0004290227 THRUST RING
RELAY VALVE,CONNECTION "1"
690 A 0009870446 SEALING CORD
RELAY VALVE,CONNECTION "1"
691 A 0005455414 SWITCH
HAND BRAKE CONTROL
692 A 0009904770 T-FITTING
RELAY VALVE,CONNECTION "2",RIGHT
692 A 0009905070 T-FITTING
RELAY VALVE,CONNECTION "2",RIGHT
693 N 080705016003 NUT
RELAY VALVE,CONNECTION "2",RIGHT
694 A 0004290927 THRUST RING
RELAY VALVE,CONNECTION "2",RIGHT
695 A 0009971548 SEAL RING
RELAY VALVE,CONNECTION "2",RIGHT
696 N 074315012100 FITTING
Repalced by: A 0019903371
696 A 0019903371 ELBOW FITTING
RELAY VALVE,CONNECTION "2",LEFT
697 N 080705016003 NUT
RELAY VALVE,CONNECTION "2",LEFT
698 N 000908016001 SCREW PLUG
RELAY VALVE,CONNECTION "2",LEFT
699 A 0004290927 THRUST RING
RELAY VALVE,CONNECTION "2",LEFT
700 A 0009971548 SEAL RING
RELAY VALVE,CONNECTION "2",LEFT
701 N 915011010101 HOLLOW SCREW
Repalced by: N 915036012101
701 N 915036012203 HOLLOW SCREW
RELAY VALVE,CONNECTION "4"
702 N 007603016401 SEAL RING
RELAY VALVE,CONNECTION "4"
705 A 3854290842 BRACKET
LEFT
705 A 3854290942 BRACKET
RIGHT
706 N 000961014050 SCREW
Repalced by: N 308676014020
706 N 308676014020 SCREW
MOUNTING ANGLE TO FRAME
707 N 913004014002 NUT
Repalced by: N 910113014001
707 N 910113014001 NUT
MOUNTING ANGLE TO FRAME
708 A 3874321016 SUPPORT
709 N 000933008147 SCREW
Repalced by: N 304017008021
709 N 304017008021 SCREW
SUPPORT TO SIDE MEMBER
709 N 000933008153 SCREW
Repalced by: N 304017008034
709 N 304017008034 SCREW
SUPPORT TO SIDE MEMBER
710 N 000125008418 WASHER
Repalced by: N 000125008443
710 N 000125008443 WASHER
SUPPORT TO SIDE MEMBER
711 N 913004008004 NUT
Repalced by: N 913004008001
711 N 913004008001 NUT
SUPPORT TO SIDE MEMBER
712 A 0004291431 SHUT-OFF COCK
SUPPLY
712 A 0004291631 SHUT-OFF COCK
SUPPLY
A 0004292684 SEAL RING
TO 000 429 16 31
A 0004292293 SPRING
TO 000 429 16 31
A 0119976748 SEAL RING
TO 000 429 16 31
A 0009974077 HANDLE
TO 000 429 16 31
A 0004292393 SPRING
TO 000 429 16 31
714 A 0005866342 REPAIR KIT
TO 000 429 14 31
716 A 0009903870 T-FITTING
AT SHUT-OFF COCK
718 A 0009870446 SEALING CORD
AT SHUT-OFF COCK
719 A 0004290227 THRUST RING
AT SHUT-OFF COCK
720 N 074305022202 NUT
AT SHUT-OFF COCK
721 A 0004290734 ADAPTER FITTING
AT SHUT-OFF COCK
722 A 0004293434 ADAPTER FITTING
AT SHUT-OFF COCK
723 N 915045012100 SEAL RING
Repalced by: N 007603012121
723 N 007603012121 SEAL RING
AT SHUT-OFF COCK
A 0004290356 SCREW PLUG
AT SHUT-OFF COCK
A 0004296734 ADAPTER FITTING
BULKHEAD FITTING
N 080705018002 NUT
BULKHEAD FITTING
A 0009870446 SEALING CORD
BULKHEAD FITTING
A 0004290227 THRUST RING
BULKHEAD FITTING
A 0019902771 ELBOW FITTING
BULKHEAD FITTING
A 0004316431 TEST CONNECTION
"SUPPLY" SHUT-OFF COCK
A 0004316431 TEST CONNECTION
BULKHEAD FITTING
724 A 0009907771 ELBOW FITTING
AT SHUT-OFF COCK
726 A 0014298344 VALVE
(RELAY VALVE),TRAILER CONTROL
728 A 0015867942 REPAIR KIT
TO 001 429 83 44
729 A 0004290227 THRUST RING
RELAY VALVE;CONNECTIONS:
"1,2,4"
730 A 0009870446 SEALING CORD
RELAY VALVE;CONNECTIONS:
"1,2,4"
731 A 0029971172 FITTING
RELAY VALVE,CONNECTION "1"
732 A 0009970171 FITTING
RELAY VALVE,CONNECTION "4"
733 N 000908022001 SCREW PLUG
Repalced by: N 000908022011
733 N 000908022011 SCREW PLUG
RELAY VALVE,CONNECTION "2"
734 A 0004316431 TEST CONNECTION
RELAY VALVE,CONNECTION "2"
735 A 0004293434 ADAPTER FITTING
RELAY VALVE,CONNECTION "2"
736 N 913004008004 NUT
Repalced by: N 913004008001
736 N 913004008001 NUT
RELAY VALVE TO BRACKET
A 0014316905 BRAKE VALVE
(TRAILER CONTROL VALVE)
WABCO
A 0014316705 BRAKE VALVE
(TRAILER CONTROL VALVE)
BOSCH
A 0024314805 BRAKE VALVE
(TRAILER CONTROL VALVE)
KNORR
A 0024314005 BRAKE VALVE
(TRAILER CONTROL VALVE)
GRAU
A 0004312988 VALVE SEAT
TO 002 431 40 05,GRAU
A 0059973848 SEAL RING
TO 002 431 40 05,64.77X62 MM,GRAU
A 0059973548 SEAL RING
TO 002 431 40 05,18X2.5 MM,GRAU
A 0059973948 SEAL RING
TO 002 431 40 05,44.2X3,GRAU
A 0059974148 SEAL RING
TO 002 431 40 05,30X2 MM,GRAU
A 0059973348 SEAL RING
TO 002 431 40 05,7X1.5 MM,GRAU
A 0059972648 SEAL RING
TO 002 431 40 05,22.3X2.4 MM,GRAU
A 0059973748 SEAL RING
TO 002 431 40 05,90X3 MM,GRAU
A 0059974048 SEAL RING
TO 002 431 40 05,100X3 MM,GRAU
A 0099974248 SEAL RING
TO 002 431 40 05,36.2X3 MM,GRAU
A 0059974248 SEAL RING
TO 002 431 40 05,9X1.5 MM,GRAU
A 0059974348 SEAL RING
TO 002 431 40 05,23.47X2.62 MM,GRAU
A 0025865243 REPAIR KIT
Repalced by: A 0014304760
A 0014304760 REPAIR KIT
TO 001 431 67 05,BOSCH 061 010
A 0024300360 REPAIR KIT
VALVE DISC
TO 001 431 67 05,BOSCH 061 214
A 0024300260 GASKET KIT
SEAL RING
TO 001 431 67 05,BOSCH 061 214
A 0025869343 REPAIR KIT
Repalced by: A 0024301860
A 0024301860 REPAIR KIT
TO 001 431 69 05,WABCO
A 0004303060 REPAIR KIT
TO 002 431 48 05,KNORR
A 0004303206 REPAIR KIT
VALVE SEAT
KNORR
A 0014309460 REPAIR KIT
TO 002 431 40 05,GRAU
N 915047012203 HOLLOW SCREW
TRAILER CONTROL VALVE,CONNECTION:
"1"
N 915036012203 HOLLOW SCREW
TRAILER CONTROL VALVE,CONNECTIONS:
"1","2","4"
N 007603016401 SEAL RING
TRAILER CONTROL VALVE,CONNECTIONS:
"1","2","4"
N 915039012205 HOLLOW SCREW FITTING
TRAILER CONTROL VALVE,CONNECTION:
"4"
A 0004312031 TEST CONNECTION
TRAILER CONTROL VALVE,CONNECTION:
"4"
A 0004314531 TEST CONNECTION
TRAILER CONTROL VALVE,CONNECTION:
"4"
A 0004314831 TEST CONNECTION
TRAILER CONTROL VALVE,CONNECTION:
"4"
A 0004316131 TEST CONNECTION
TRAILER CONTROL VALVE,CONNECTION:
"4"
A 0009979486 PLUG
A 3854293640 BRACKET
BRACKET TO CONTROL VALVE
N 000961012151 SCREW
AT CROSS MEMBER BEHIND CAB,FRONT
M 12X1,5X30
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
TRAILER CONTROL VALVE TO BRACKET
A 0014314805 BRAKE VALVE
(TRAILER CONTROL VALVE)
GRAU
A 0014313705 BRAKE VALVE
(TRAILER CONTROL VALVE)
WABCO
A 0014311805 BRAKE VALVE
(TRAILER CONTROL VALVE)
BOSCH
A 0004311980 GASKET
TO 001 431 48 05,GRAU
A 0059973348 SEAL RING
TO 001 431 48 05,GRAU
A 0059973448 SEAL RING
TO 001 431 48 05,GRAU
A 0059973548 SEAL RING
TO 001 431 48 05,GRAU
A 0004312988 VALVE SEAT
TO 001 431 48 05,GRAU
A 0059973648 SEAL RING
TO 001 431 48 05,GRAU
A 0059973748 SEAL RING
TO 001 431 48 05,GRAU
A 0059973848 SEAL RING
TO 001 431 48 05,GRAU
A 0059973948 SEAL RING
TO 001 431 48 05,GRAU
A 0059974048 SEAL RING
TO 001 431 48 05,GRAU
A 0024306581 REPAIR KIT
GASKETS
TO 001 431 37 05,WABCO
A 0024304781 REPAIR KIT
VALVE
TO 001 431 37 05,WABCO
A 0015868643 REPAIR KIT
Repalced by: A 0004304606
A 0004304606 BRAKE VALVE
TO 001 431 18 05,BOSCH
N 915036012203 HOLLOW SCREW
TRAILER BRAKE VALVE,CONNECTIONS:
"1,2"
N 915047012203 HOLLOW SCREW
TRAILER BRAKE VALVE,CONNECTION:
"43"
N 007603016401 SEAL RING
TRAILER BRAKE VALVE,CONNECTIONS:
"1,2,43"
A 6233280365 PIPE SOCKET
TRAILER BRAKE VALVE,CONNECTIONS:
"41,42"
A 6204300110 BRACKET
TRAILER CONTROL VALVE
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
TRAILER CONTROL VALVE TO BRACKET
N 000933008153 SCREW
Repalced by: N 304017008034
N 304017008034 SCREW
AT CROSS MEMBER BEHIND CAB,REAR
M 8X25
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
AT CROSS MEMBER BEHIND CAB,REAR
800 A 0014298344 VALVE
(RELAY VALVE),AUXILIARY BRAKE
801 A 0015867942 REPAIR KIT
802 A 0004290227 THRUST RING
RELAY VALVE;CONNECTIONS:
"1,2,4"
803 A 0009870446 SEALING CORD
RELAY VALVE;CONNECTIONS:
"1,2,4"
804 A 0019979572 FITTING
RELAY VALVE,CONNECTION "1"
805 N 074305022202 NUT
RELAY VALVE;CONNECTIONS:
"1,4"
806 A 0004295532 T-FITTING
RELAY VALVE,CONNECTION "4"
807 A 0005456009 SWITCH
RELAY VALVE,CONNECTION "4"
808 N 000908022001 SCREW PLUG
Repalced by: N 000908022011
808 N 000908022011 SCREW PLUG
RELAY VALVE,CONNECTION "2"
809 A 0009905168 FITTING
RELAY VALVE,CONNECTION "2"
810 N 007603016401 SEAL RING
RELAY VALVE,CONNECTION "2"
811 N 915011010101 HOLLOW SCREW
Repalced by: N 915036012101
811 N 915036012203 HOLLOW SCREW
RELAY VALVE,CONNECTION "2"
N 000908022001 SCREW PLUG
Repalced by: N 000908022011
N 000908022011 SCREW PLUG
RELAY VALVE,CONNECTION "2"
813 A 3854301810 BRACKET
RELAY VALVE
814 N 912004010102 LOCK WASHER
BRACKET TO SIDE MEMBER
815 N 000933010105 SCREW
BRACKET TO SIDE MEMBER
816 N 913004008004 NUT
Repalced by: N 913004008001
816 N 913004008001 NUT
BRACKET TO SIDE MEMBER
820 A 0004291431 SHUT-OFF COCK
AUXILIARY BRAKE
820 A 0004291631 SHUT-OFF COCK
AUXILIARY BRAKE
A 0004292684 SEAL RING
TO 000 429 16 31
A 0004292293 SPRING
TO 000 429 16 31
A 0119976748 SEAL RING
TO 000 429 16 31
A 0009974077 HANDLE
TO 000 429 16 31
A 0004292393 SPRING
TO 000 429 16 31
821 A 0005866342 REPAIR KIT
AUXILIARY BRAKE
TO 000 429 14 31
822 N 074305022202 NUT
AT SHUT-OFF COCK
823 A 0004293434 ADAPTER FITTING
AT SHUT-OFF COCK
A 0004290356 SCREW PLUG
AT SHUT-OFF COCK
824 A 0004316431 TEST CONNECTION
AT SHUT-OFF COCK
825 A 0009907771 ELBOW FITTING
AT SHUT-OFF COCK
826 A 0009870446 SEALING CORD
AT SHUT-OFF COCK
827 A 0004290227 THRUST RING
AT SHUT-OFF COCK
A 0004296734 ADAPTER FITTING
BULKHEAD FITTING
N 080705018002 NUT
BULKHEAD FITTING
A 0019902771 ELBOW FITTING
BULKHEAD FITTING
A 0009870446 SEALING CORD
BULKHEAD FITTING
A 0004290227 THRUST RING
BULKHEAD FITTING
835 A 0004305581 VALVE
HAND BRAKE VALVE
WABCO
835 A 0004306681 VALVE
HAND BRAKE VALVE
KNORR
835 A 0004305681 VALVE
HAND BRAKE VALVE
WABCO
835 A 0004306781 VALVE
HAND BRAKE VALVE
KNORR
835 A 0004308881 VALVE
HAND BRAKE VALVE
836 A 0005868043 REPAIR KIT
Repalced by: A 0004305760
836 A 0004305760 REPAIR KIT
TO 000 430 55 81,WABCO
836 A 0005868143 REPAIR KIT
Repalced by: A 0004305860
836 A 0004305860 REPAIR KIT
TO 000 430 56 81,WABCO
836 A 0025866243 REPAIR KIT
Repalced by: A 0034303881
836 A 0034303881 REPAIR KIT
TO 000 430 66 81,000 430 67 81,KNORR
A 0025862443 REPAIR KIT
TO 000 430 88 81
837 N 000965006003 SCREW
HAND BRAKE VALVE TO CAB
837 N 000933006121 SCREW
Repalced by: N 304017006020
837 N 304017006020 SCREW
HAND BRAKE VALVE TO CAB
837 N 000965006000 SCREW
HAND BRAKE VALVE TO CAB
837 N 000965006058 SCREW
HAND BRAKE VALVE TO CAB
838 A 0009907191 NUT RETAINER
Repalced by: A 3229900091
838 A 3229900091 NUT RETAINER
HAND BRAKE VALVE TO CAB
838 N 913004006002 NUT
Repalced by: N 913004006001
838 N 913004006001 NUT
HAND BRAKE VALVE TO CAB
839 A 3874310684 SHIM
HAND BRAKE VALVE TO CAB
839 A 3854318140 BRACKET
HAND BRAKE VALVE TO CAB
A 3854200944 PROTECTIVE PLATE
HAND BRAKE VALVE
840 N 915036010204 HOLLOW SCREW
Repalced by: N 915036010108
840 N 915036010108 HOLLOW SCREW
LINE TO HAND BRAKE VALVE
840 N 915047010202 HOLLOW SCREW
LINE TO HAND BRAKE VALVE
840 N 915047008202 HOLLOW SCREW
LINE TO HAND BRAKE VALVE
A 3854310953 SPACER TUBE
Repalced by: A 3124231453
A 3124231453 SPACER TUBE
INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION
841 N 007603014405 SEAL RING
LINE TO HAND BRAKE VALVE
845 A 0014311314 BRAKE CYLINDER
SPRING LOAD ACCUMULATOR CYLINDER
WABCO
A 0004312114 BRAKE CYLINDER
SPRING LOAD ACCUMULATOR CYLINDER
BOSCH
845 A 0004317714 BRAKE CYLINDER
SPRING LOAD ACCUMULATOR CYLINDER
KNORR
846 A 0015864243 REPAIR KIT
Repalced by: A 0025861443
846 A 0025861443 REPAIR KIT
TO 000 431 56 14,001 431 13 14,WABCO
846 A 0004318186 CUP
Repalced by: A 0015864342
846 A 0015864342 REPAIR KIT
Repalced by: A 0034201724
846 A 0034201724 REPAIR KIT
TO 000 431 21 14,BOSCH
847 A 0004317986 CUP
Repalced by: A 0004319186
847 A 0004319186 CUP
Repalced by: A 0004312786
847 A 0014310786 CUP
Repalced by: A 0004312786
847 A 0004312786 CUP
TO 000 431 21 14,BOSCH
848 A 0004318583 PISTON
TO 000 431 21 14,BOSCH
849 A 0089977548 SEAL RING
TO 000 431 21 14,BOSCH
850 A 0049971740 SEAL RING
TO 000 431 21 14,BOSCH
A 0004310736 FILTER BOTTOM
TO 000 431 21 14,BOSCH
A 0004310649 SLIDE
TO 000 431 21 14,BOSCH
A 0004318587 PROTECTIVE CAP
AS REQUIRED
TO 000 431 56 14,001 431 13 14,WABCO
851 A 0004319586 CUP
TO 000 431 77 14,KNORR
852 A 0004319686 CUP
TO 000 431 77 14,KNORR
853 A 0004311880 GASKET
TO 000 431 77 14,KNORR
854 A 0059971148 SEAL RING
TO 000 431 77 14,KNORR
855 A 0004311160 SEAL RING
TO 000 431 77 14,KNORR
856 N 074315012100 FITTING
Repalced by: A 0019903371
856 A 0019903371 ELBOW FITTING
RIGHT SPRING-LOAD ACCUMULATOR
857 A 0009904770 T-FITTING
LEFT SPRING-LOAD ACCUMULATOR
858 A 0004312031 TEST CONNECTION
LEFT SPRING-LOAD ACCUMULATOR
VOSS
858 A 0004314531 TEST CONNECTION
LEFT SPRING-LOAD ACCUMULATOR
SCHAEFER
858 A 0004314831 TEST CONNECTION
LEFT SPRING-LOAD ACCUMULATOR
WABCO
858 A 0004316131 TEST CONNECTION
LEFT SPRING-LOAD ACCUMULATOR
WIRA
A 0009979486 PLUG
859 N 080705016003 NUT
SPRING LOAD ACCUMULATOR CYLINDER
860 A 0004290927 THRUST RING
SPRING LOAD ACCUMULATOR CYLINDER
861 A 0009971548 SEAL RING
SPRING LOAD ACCUMULATOR CYLINDER
861 A 3604302311 CONSOLE
SPRING LOAD ACCUMULATOR CYLINDER
862 N 000933010105 SCREW
SPRING LOAD ACCUMULATOR BRAKE CYLINDER TO BEARING BRACKET
863 N 913004010008 NUT
Repalced by: N 910113010000
863 N 910113010000 NUT
SPRING LOAD ACCUMULATOR BRAKE CYLINDER TO BEARING BRACKET
864 N 000933010129 SCREW
Repalced by: N 304017010002
864 N 304017010002 SCREW
CONSOLE TO CROSS MEMBER
865 A 3859900140 WASHER
Repalced by: A 3859900540
865 A 3859900540 WASHER
CONSOLE TO CROSS MEMBER
866 N 000125010518 WASHER
Repalced by: N 000125010532
866 N 000125010532 WASHER
CONSOLE TO CROSS MEMBER
867 N 913004010008 NUT
Repalced by: N 910113010000
867 N 910113010000 NUT
CONSOLE TO CROSS MEMBER
A 0064204918 WHEEL BRAKE CYLINDER
SEE UNIT STANDARD VERSION,MODEL
A 3894201978 BEARING BRACKET
Repalced by: A 3854204078
A 3854204078 BEARING BRACKET
SEE UNIT STANDARD VERSION,MODEL
870 N 080705016003 NUT
TRISTOP CYLINDER;CONNECTION:
"1,2"
871 A 0004290927 THRUST RING
TRISTOP CYLINDER;CONNECTION:
"1,2"
872 A 0009971548 SEAL RING
TRISTOP CYLINDER;CONNECTION:
"1,2"
873 A 0004312031 TEST CONNECTION
TRISTOP CYLINDER;CONNECTION:
"1,2" VOSS
873 A 0004314531 TEST CONNECTION
TRISTOP CYLINDER;CONNECTION:
"1,2" SCHAEFER
873 A 0004314831 TEST CONNECTION
TRISTOP CYLINDER;CONNECTION:
"1,2" WABCO
873 A 0004316131 TEST CONNECTION
TRISTOP CYLINDER;CONNECTION:
"1,2" WIRA
A 0009979486 PLUG
874 A 0009904770 T-FITTING
LEFT TRISTOP CYLINDER,CONNECTION:
"1,2"
875 A 0009904270 T-FITTING
RIGHT TRISTOP CYLINDER,CONNECTION:
"1,2"
876 A 3854280840 BRACKET
BRAKE HOSE,REAR
877 N 000933008147 SCREW
Repalced by: N 304017008021
877 N 304017008021 SCREW
BRACKET TO RIGHT SIDE MEMBER
878 N 913004008004 NUT
Repalced by: N 913004008001
878 N 913004008001 NUT
BRACKET TO RIGHT SIDE MEMBER
879 N 916027011014 HOSE
TRISTOP CYLINDER;CONNECTIONS:
"1,2"
880 A 0004290541 FITTING
TRISTOP CYLINDER;CONNECTIONS:
"1,2"
881 A 0004290641 FITTING
TRISTOP CYLINDER;CONNECTIONS:
"1,2"
882 N 916017016000 CLAMP
Repalced by: N 000000000666
882 N 000000000666 CLAMP
TRISTOP CYLINDER;CONNECTIONS:
"1,2"
883 N 003952012101 FITTING
Repalced by: A 0019902771
883 A 0019902771 ELBOW FITTING
BRAKE HOSE
884 A 3039971440 SEAL RING
885 N 080705018002 NUT
BRAKE HOSE TO BRACKET
890 A 3854200080 BRAKE INTERMEDIATE SHAFT
891 A 3274270058 SEAL HOLDER
892 A 3279970040 SEAL RING
893 A 3854200178 BEARING BRACKET
BRAKE INTERMEDIATE SHAFT
894 N 000470052000 EXPANSION PLUG
895 A 3024260083 SPHERICAL PIECE
Repalced by: A 3025860242
895 A 3025860242 REPAIR KIT
Repalced by: A 3534200067
895 A 3534200067 REPAIR KIT
Repalced by: A 3534200167
895 A 3534200167 BALL CUP
BRAKE INTERMEDIATE SHAFT BEARING
896 N 000933010145 SCREW
BEARING BRACKET TO CROSS MEMBER
897 N 913004010008 NUT
Repalced by: N 910113010000
897 N 910113010000 NUT
BEARING BRACKET TO CROSS MEMBER
898 A 3604200474 ROD
FROM BRAKE SHAFT TO BRAKE LEVER
899 N 001480012200 TURNBUCKLE
Repalced by: A 3859960034
899 A 3859960034 NUT
FROM BRAKE SHAFT TO BRAKE LEVER
900 N 000934012020 NUT
L.H. THREAD
901 N 000934012021 NUT
FROM BRAKE SHAFT TO BRAKE LEVER
902 A 3604200774 ROD
FROM BRAKE SHAFT TO BRAKE LEVER
903 A 3529910207 PIN
PULL ROD TO BRAKE INTERMEDIATE LEVER
904 N 000094003210 COTTER PIN
PULL ROD TO BRAKE INTERMEDIATE LEVER
905 N 000433013005 WASHER
Repalced by: N 000433013010
905 N 000433013010 WASHER
PULL ROD TO BRAKE INTERMEDIATE LEVER
906 N 900055012001 SPRING WASHER
PULL ROD TO BRAKE INTERMEDIATE LEVER
910 A 3529910107 PIN
PULL ROD TO BRAKE LEVER,REAR AXLE
912 N 000433013005 WASHER
Repalced by: N 000433013010
912 N 000433013010 WASHER
PULL ROD TO BRAKE LEVER,REAR AXLE
914 N 000094003210 COTTER PIN
PULL ROD TO BRAKE LEVER,REAR AXLE
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
