Transporto priemonė: 1617 AK; VIN numerio dalis: 385144

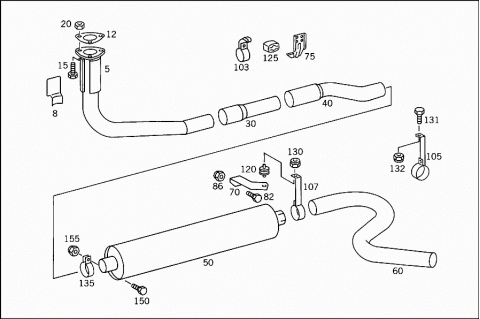

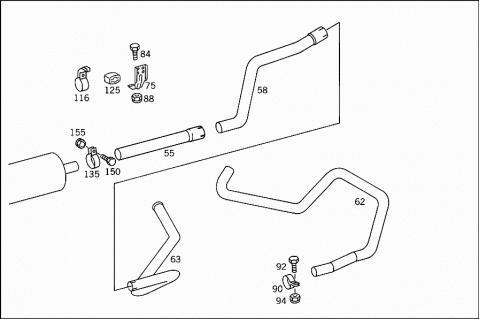

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3814900119 | EXHAUST PIPE |
| Repalced by: A 3814900319 | ||
| 005 | A 3814900319 | EXHAUST PIPE |
| FRONT | ||
| 008 | A 3834922530 | PROTECTIVE PLATE |
| 012 | A 3024900080 | FLANGE GASKET |
| Repalced by: A 4424920080 | ||
| 012 | A 4424920080 | FLANGE GASKET |
| FRONT EXHAUST PIPE | ||
| 015 | N 000931012132 | SCREW |
| FRONT EXHAUST PIPE | ||
| 020 | N 000934012021 | NUT |
| FRONT EXHAUST PIPE | ||
| 030 | A 3524920907 | CONNECTOR |
| Repalced by: A 3024920509 | ||
| 030 | A 3024920509 | CONNECTOR |
| FRONT | ||
| 040 | A 3814920101 | FRONT EXHAUST PIPE |
| FRONT | ||
| 050 | A 3834900201 | EXHAUST MUFFLER |
| 055 | A 3604921907 | CONNECTOR |
| REAR | ||
| 058 | A 3834926204 | REAR EXHAUST PIPE |
| CENTRAL PART | ||
| 060 | A 3814920504 | REAR EXHAUST PIPE |
| Repalced by: A 3814926304 | ||
| 060 | A 3814926304 | REAR EXHAUST PIPE |
| REAR | ||
| 062 | A 3814920204 | REAR EXHAUST PIPE |
| REAR | ||
| 063 | A 3814926004 | REAR EXHAUST PIPE |
| REAR | ||
| 070 | A 3814910516 | SUPPORT |
| EXHAUST | ||
| 070 | A 3814910616 | SUPPORT |
| EXHAUST | ||
| 070 | A 3814920216 | SUPPORT |
| 075 | A 3814910416 | SUPPORT |
| EXHAUST | ||
| 075 | A 3814910316 | SUPPORT |
| Repalced by: A 3604910016 | ||
| 075 | A 3604910016 | SUPPORT |
| EXHAUST | ||
| 075 | A 3834921916 | SUPPORT |
| EXHAUST | ||
| 082 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 082 | N 304017008034 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M8X25 | ||
| 082 | N 304017008034 | SCREW |
| SUPPORT TO SIDE AND CROSS MEMBERS | ||
| M8X25 | ||
| 084 | N 000933010105 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M10X25 | ||
| 084 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 084 | N 304017010002 | SCREW |
| REAR CROSS MEMBER | ||
| M10X30 | ||
| 086 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 086 | N 913004008001 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 086 | N 913004008001 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 088 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 088 | N 910113010000 | NUT |
| SUPPORT TO SIDE AND CROSS MEMBERS | ||
| 090 | A 3834920440 | CLAMP |
| CENTRAL EXHAUST PIPE | ||
| 092 | N 000933010157 | SCREW |
| CLAMP TO BRACKET | ||
| M 10X28 | ||
| 094 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 094 | N 910113010000 | NUT |
| CLAMP TO BRACKET | ||
| 103 | A 3834921041 | BRACKET |
| EXHAUST | ||
| 105 | A 3834921841 | BRACKET |
| Repalced by: A 3814923841 | ||
| 105 | A 3834927941 | BRACKET |
| EXHAUST | ||
| 105 | A 3834921741 | BRACKET |
| Repalced by: A 3834927941 | ||
| 105 | A 3834927941 | BRACKET |
| EXHAUST | ||
| 105 | A 3834927941 | BRACKET |
| EXHAUST | ||
| 107 | A 3834923341 | BRACKET |
| Repalced by: A 3834927941 | ||
| 107 | A 3834927941 | BRACKET |
| EXHAUST | ||
| 107 | A 3814920041 | BRACKET |
| EXHAUST | ||
| 116 | A 3834921241 | BRACKET |
| EXHAUST | ||
| A 0019873140 | RUBBER BUFFER | |
| Repalced by: A 0019875340 | ||
| 120 | A 0019875340 | RUBBER BUFFER |
| BRACKET TO SUPPORT | ||
| 120 | A 0019875340 | RUBBER BUFFER |
| BRACKET TO SUPPORT | ||
| 125 | A 3814920082 | DAMPING PAD |
| BRACKET TO SUPPORT | ||
| 125 | A 3814920082 | DAMPING PAD |
| BRACKET TO SUPPORT | ||
| 130 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 130 | N 910113010000 | NUT |
| BRACKET TO SUPPORT | ||
| 131 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 131 | N 304017008034 | SCREW |
| BRACKET TO SUPPORT | ||
| 132 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 132 | N 913004008001 | NUT |
| BRACKET TO SUPPORT | ||
| 135 | N 071555075502 | CLAMP |
| CLAMP TO BRACKET AND TO PIPE | ||
| 75.5 MM | ||
| 150 | N 000933010157 | SCREW |
| CLAMP TO BRACKET AND TO PIPE | ||
| 155 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 155 | N 910113010000 | NUT |
| CLAMP TO BRACKET AND TO PIPE | ||
